prEN 50377-15-1

Connector sets and interconnect components to be used in optical fibre communication systems - Product specifications Part 15-1: Type MPO with 12 fibre PPS ferrules terminated on EN 60793-2 category A1a multimode fibre for 50/125 micron multimode fibre - macrobend enhanced fibre only

1.1 Product definition This document contains the initial, start of life dimensional, optical, mechanical and environmental performance requirements which a terminated and assembled 12 fibre multimode MPO connector set (plug adapter plug) meet in order for it to be categorized as an EN standard product. Since different variants are permitted, product marking details are given in 5.2. 1.2 Intermateability All products conforming to the requirements of this document will intermate and give the specified level of random attenuation and random return loss performance. The intention is that this will be true irrespective of the manufacturing source(s) of the product. 1.3 Operating environment The tests selected combined with the severity and duration are representative of a backplane/back panel indoor application derived from customer premises protected environment as defined in EN 50173 series and ISO/IEC 11801 series and specified as category C in EN IEC 61753 1. 1.4 Reliability Whilst the anticipated service life expectancy of the product in this environment is 20 years, compliance with this document does not guarantee the reliability of the product. This is expected to be predicted using a recognized reliability assessment programme. 1.5 Quality assurance Compliance with this document does not guarantee the manufacturing consistency of the product. This is expected to be maintained using a recognized quality assurance programme.

Jeux de connecteurs et composants d’interconnexion à utiliser dans les systèmes de communication par fibres optiques - Spécifications de produit - Partie 15-1: Type MPO équipé de férules PPS 12 fibres, raccordé sur fibres multimodales de catégorie A1a de l’EN 60793-2 pour fibres multimodales de 50/125 microns (fibres renforcées contre les macrocourbures uniquement)

1.1 Définition du produit Le présent document contient les exigences de performances initiales, dimensionnelles de début de vie, optiques, mécaniques et environnementales auxquelles un jeu de connecteurs (fiche/raccord/fiche) de type MPO multimodal 12 fibres, assemblé doit satisfaire afin d’être classé comme produit entrant dans une Norme européenne de produit. Dans la mesure où différentes variantes sont autorisées, les détails de marquage des produits sont donnés en 5.2. 1.2 Compatibilité d’accouplement Tous les produits conformes aux exigences du présent document s’accouplent entre eux et présentent le niveau spécifié de performance de dispersion d’affaiblissement et de dispersion d’affaiblissement de réflexion aléatoire. Le but est que cela se vérifie indépendamment de des sources de fabrication du produit. 1.3 Environnement de fonctionnement Les essais sélectionnés combinés avec la sévérité et la durée sont représentatifs d’une application en intérieur de fond de panier dérivée d’un environnement de local utilisateur protégé, comme défini dans la série EN 50173 et la série ISO/IEC 11801 et spécifié comme dans la catégorie C selon l’EN IEC 61753 1. 1.4 Fiabilité Alors que l’espérance de vie du produit prévue dans cet environnement est de 20 ans, la conformité au présent document ne garantit pas la fiabilité du produit. Il est attendu que celle-ci soit estimée en utilisant un programme reconnu d’évaluation de la fiabilité. 1.5 Assurance de la qualité La conformité au présent document ne garantit pas l’uniformité de fabrication du produit. Il est prévu qu’elle soit suivie en utilisant un programme reconnu d’assurance de la qualité. 2 Références normatives Les documents suivants sont cités dans le texte de sorte qu’ils constituent, pour tout ou partie de leur contenu, des exigences du présent document. Pour les références datées, seule l’édition citée s’applique. Pour les références non datées, la dernière édition du document de référence s’applique (y compris les éventuels amendements).

Konektorski sestavi in povezovalne komponente za uporabo v optičnih komunikacijskih sistemih - Specifikacije izdelka - 15-1. del: Tip MPO s tulkami PPS, zaključenimi na večrodovnem vlaknu kategorije A1a po IEC 60793-2 za večrodovno vlakno velikosti 50/125 mikrometrov - samo za izboljšana makro upogljiva vlakna

General Information

• Status: Not Published
• Publication Date: 17-Jan-2022
• Withdrawal Date: 17-Jul-2022
• Technical Committee: CLC/TC 86BXA - Fibre optic interconnect, passive and connectorised components
• Drafting Committee: CLC/TC 86BXA - Fibre optic interconnect, passive and connectorised components
• Current Stage: 4098 - Decision to drop project - Standstill maintained / released - Enquiry
• Start Date: 30-Sep-2022
• Completion Date: 23-Sep-2025
• Ref Project: oSIST prEN 50377-15-1:2020 - Connector sets and interconnect components to be used in optical fibre communication systems - Product specifications Part 15-1: Type MPO with 12 fibre PPS ferrules terminated on EN 60793-2 category A1a multimode fibre for 50/125 micron multimode fibre - macrobend enhanced fibre only

Relations

• Revises: EN 50377-15-1:2011 - Connector sets and interconnect components to be used in optical fibre communication systems - Product specifications - Part 15-1: Type MPO with 12-fibre PPS ferrules terminated on IEC 60793-2 category A1a multimode fibre for 50/125 micron multimode fibre
• Effective Date: 24-Jan-2023

Standards Content (Sample)

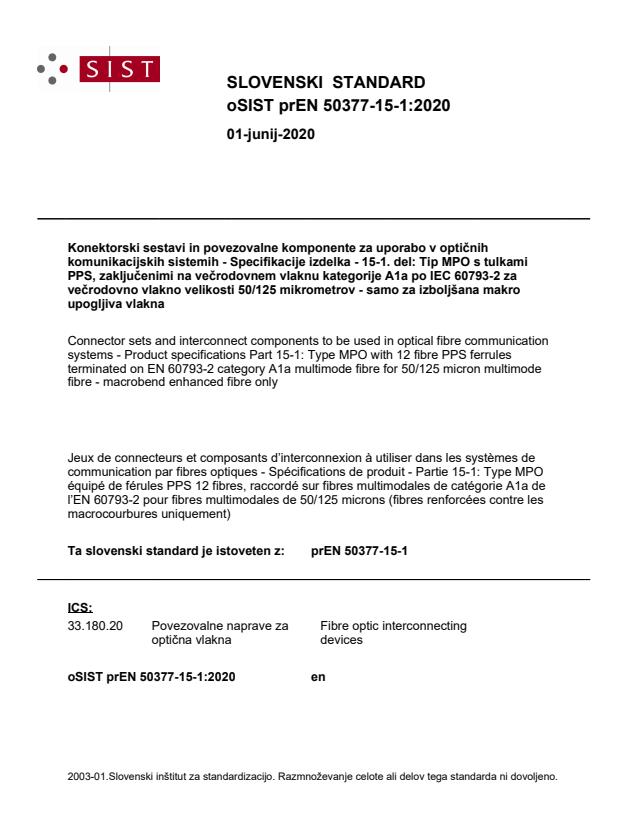

SLOVENSKI STANDARD
01-junij-2020
Konektorski sestavi in povezovalne komponente za uporabo v optičnih
komunikacijskih sistemih - Specifikacije izdelka - 15-1. del: Tip MPO s tulkami
PPS, zaključenimi na večrodovnem vlaknu kategorije A1a po IEC 60793-2 za
večrodovno vlakno velikosti 50/125 mikrometrov - samo za izboljšana makro
upogljiva vlakna
Connector sets and interconnect components to be used in optical fibre communication
systems - Product specifications Part 15-1: Type MPO with 12 fibre PPS ferrules
terminated on EN 60793-2 category A1a multimode fibre for 50/125 micron multimode
fibre - macrobend enhanced fibre only
Jeux de connecteurs et composants d’interconnexion à utiliser dans les systèmes de
communication par fibres optiques - Spécifications de produit - Partie 15-1: Type MPO
équipé de férules PPS 12 fibres, raccordé sur fibres multimodales de catégorie A1a de
l’EN 60793-2 pour fibres multimodales de 50/125 microns (fibres renforcées contre les
macrocourbures uniquement)
Ta slovenski standard je istoveten z: prEN 50377-15-1
ICS:
33.180.20 Povezovalne naprave za Fibre optic interconnecting
optična vlakna devices
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

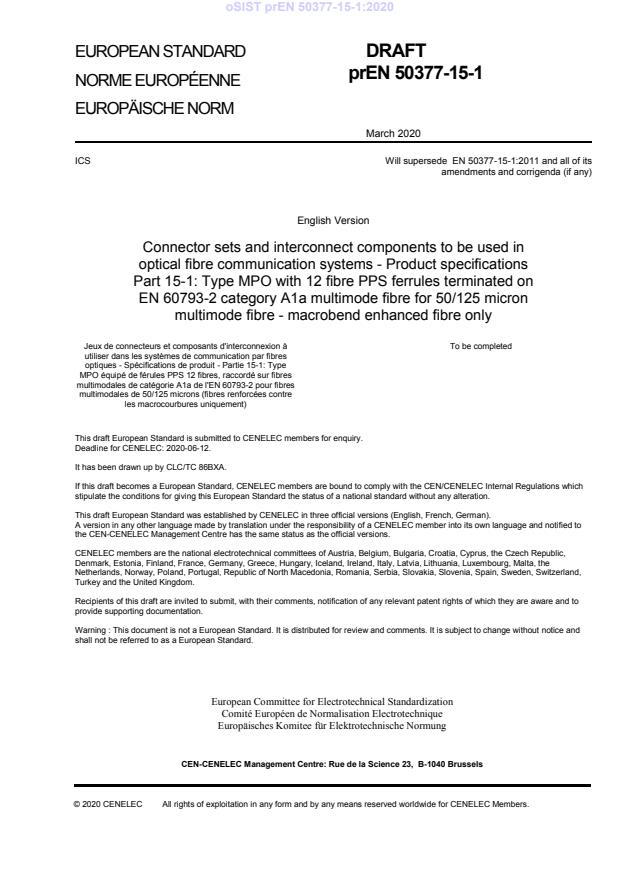

EUROPEAN STANDARD DRAFT
NORME EUROPÉENNE
EUROPÄISCHE NORM
March 2020
ICS  Will supersede EN 50377-15-1:2011 and all of its
amendments and corrigenda (if any)
English Version
Connector sets and interconnect components to be used in
optical fibre communication systems - Product specifications
Part 15-1: Type MPO with 12 fibre PPS ferrules terminated on
EN 60793-2 category A1a multimode fibre for 50/125 micron
multimode fibre - macrobend enhanced fibre only
Jeux de connecteurs et composants d'interconnexion à To be completed
utiliser dans les systèmes de communication par fibres
optiques - Spécifications de produit - Partie 15-1: Type
MPO équipé de férules PPS 12 fibres, raccordé sur fibres
multimodales de catégorie A1a de l'EN 60793-2 pour fibres
multimodales de 50/125 microns (fibres renforcées contre
les macrocourbures uniquement)
This draft European Standard is submitted to CENELEC members for enquiry.
Deadline for CENELEC: 2020-06-12.

It has been drawn up by CLC/TC 86BXA.

If this draft becomes a European Standard, CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which
stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CENELEC in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a CENELEC member into its own language and notified to
the CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.

1 Contents Page
2 European foreword . 4
3 Introduction . 5
4 1 Scope . 6
5 1.1 Product definition . 6
6 1.2 Intermateability . 6
7 1.3 Operating environment . 6
8 1.4 Reliability . 6
9 1.5 Quality assurance . 6
10 2 Normative references . 6
11 3 Terms and definitions . 7
12 4 General . 7
13 4.1 Description . 7
14 4.2 Plug . 7
15 4.3 Adapter . 8
16 4.4 Materials . 8
17 4.5 Dimensions . 8
18 4.6 Colour and marking . 8
19 5 Variants . 8
20 5.1 Terminated plug . 8
21 5.2 Adapter . 9
22 5.3 Identification of variants . 9
23 6 Dimensional requirements . 10
24 Outline dimensions . 10
6.1
25 6.1.1 Plug variants . 10
26 6.1.2 Adapter variants . 11
27 6.2 Mating face and other limit dimensions . 13
28 6.2.1 Plug . 13
29 6.2.2 Ferrule end face geometry after termination – End face parameters related to
attenuation . 17
31 6.2.3 Ferrule end face geometry after termination – End face parameters related to
physical contact . 20
33 6.2.4 Adapter dimensions . 22
34 7 Tests . 24
35 7.1 Sample size . 24
36 7.2 Test and measurement methods . 24
37 7.3 Test sequence . 24
38 7.4 Pass/fail criteria . 24
39 8 Test report . 24
40 9 Product qualification requirements . 24
41 Dimensional and marking requirements. 24
9.1
42 9.2 Optical performance requirements . 24
43 9.3 Mechanical performance requirements . 25
44 9.4 Environmental performance requirements . 29
45 Annex A (normative) Sample size and product sourcing requirements . 31
46 Annex B (informative) Reference connector details . 32
47 B.1 Reference plug . 32
48 B.2 Test details . 33
49 Bibliography . 34
50 European foreword
51 This document (prEN 50377-15-1:2020) has been prepared by CLC/TC 86BXA “Fibre optic interconnect,
52 passive and connectorised components “.
53 This document is currently submitted to the Enquiry.
54 The following dates are proposed:
• latest date by which the existence of this (doa) dor + 6 months
document has to be announced at national
level
• latest date by which this document has to be (dop) dor + 12 months
implemented at national level by publication of
an identical national standard or by
endorsement
• latest date by which the national standards (dow) dor + 12 months
conflicting with this document have to be (to be confirmed or
withdrawn modified when voting)
55 This document will supersede EN 50377-15-1:2011 and all of its amendments and corrigenda (if any).
56 Introduction
CONNECTOR SETS AND INTERCONNECT COMPONENTS TO BE USED IN OPTICAL FIBRE
COMMUNICATION SYSTEMS – PRODUCT SPECIFICATIONS
Part 15–1: Type MPO with 12 fibre PPS ferrules terminated on EN 60793-2 category A1-OM3b, A1-
OM4b, A1-OM5b 50/125 micron macrobend enhanced multimode fibre
Description Performance
Coupling mechanism: push-pull Application: Indoor applications (test
severities according
IEC category C)
Configuration: plug/adaptor/plug Attenuation grade: B 97 % < 0,60 dB
m
(random mated)
Mean ≤ 0,30 dB
Fibre category: EN 60793-2, type A1-
OM3b, A1-OM4b, A1-
OM5b – macrobend
enhanced fibre only
Cable type: see Table 2 Return loss grade: R: ≥ 20 dB
Related documents:
EN 50173 series, Information technology – Generic cabling systems
EN 60793-2, Optical fibres – Part 2: Product specifications – General (IEC 60793-2)
EN 60794-2, Optical fibre cables – Part 2: Indoor cables – Sectional specification (IEC 60794-2)
EN 60794-2-30, Optical fibre cables – Part 2–30: Indoor cables – Family specification for optical fibre
ribbon cables (IEC 60794-2-30)
EN 61300 series, Fibre optic interconnecting devices and passive components – Basic test and
measurement procedures (IEC 61300 series)
EN IEC 61753-1, Fibre optic interconnecting devices and passive components performance standard –
Part 1: General and guidance for performance standards (IEC 61753-1)
EN 61754-7, Fibre optic interconnecting devices and passive components – Fibre optic connector
interfaces – Part 7: Type MPO connector family (IEC 61754-7)
ISO/IEC 11801 Ed3 series, Information technology – Generic cabling for customer premises
Maximum outline dimensions:
57 1 Scope
58 1.1 Product definition
59 This document contains the initial, start of life dimensional, optical, mechanical and environmental performance
60 requirements which a terminated and assembled 12 fibre multimode MPO connector set (plug adapter plug)
61 meet in order for it to be categorized as an EN standard product.
62 Since different variants are permitted, product marking details are given in 5.2.
63 1.2 Intermateability
64 All products conforming to the requirements of this document will intermate and give the specified level of
65 random attenuation and random return loss performance. The intention is that this will be true irrespective of
66 the manufacturing source(s) of the product.
67 1.3 Operating environment
68 The tests selected combined with the severity and duration are representative of a backplane/back panel
69 indoor application derived from customer premises protected environment as defined in EN 50173 series and
70 ISO/IEC 11801 series and specified as category C in EN IEC 61753-1.
71 1.4 Reliability
72 Whilst the anticipated service life expectancy of the product in this environment is 20 years, compliance with
73 this d
...
