ISO/IEC 29341-14-12:2011

Information technology - UPnP Device Architecture - Part 14-12: Audio Video Device Control Protocol - Level 3 - Audio Video Content Directory Service

ISO/IEC 29341-14-12:2011(E) describes a service template which is compliant with the UPnP Device Architecture version 1.0. It defines a service type referred to herein as ContentDirectory service. The purpose of the ContentDirectory service is to allow the server device provide a uniform mechanism for UI devices to browse the content on the server and to obtain detailed information about object individual content. The ContentDirectory service additionally provides a lookup/storage service that allows clients to locate (and possibly store) individual objects (for example, songs, movies, pictures, etc) that the (server) device is capable of providing.

General Information

• Status: Published
• Publication Date: 11-Sep-2011
• ICS: 31.040 - Resistors
• ICS: 31.060 - Capacitors
• ICS: 35.200 - Interface and interconnection equipment
• Technical Committee: ISO/IEC JTC 1 - Information technology
• Current Stage: PPUB - Publication issued
• Start Date: 06-Sep-2011
• Completion Date: 30-Nov-2011

Overview - ISO/IEC 29341-14-12:2011 (UPnP Audio/Video ContentDirectory Service)

ISO/IEC 29341-14-12:2011 defines the ContentDirectory service template for the UPnP Device Architecture (v1.0). It standardizes how a UPnP server device exposes audio/video content so UI devices and client applications can browse, search, and retrieve detailed metadata about individual media objects (songs, movies, pictures, playlists, bookmarks, etc.). The document specifies data types, XML schemas (including DIDL-Lite usage), state variables, actions, eventing, and the theory of operation required to implement a Level 3 Audio/Video Content Directory Service (AV-CDS).

Key technical topics and requirements

• Service model and state variables: Definitions such as SystemUpdateID, ContainerUpdateIDs, LastChange and feature lists that track content and changes on the server.
• Object model: Concepts like object, item, container, reference, and hierarchical organization used to represent media libraries.
• Metadata and XML formats: Use of DIDL-Lite and defined property sets (Dublin Core subset, UPnP AV properties) for consistent metadata encoding.
• Core actions and APIs: Standardized operations for content management and discovery, including Browse(), Search(), CreateObject(), DestroyObject(), UpdateObject(), MoveObject(), ImportResource(), ExportResource(), and CreateReference().
• Transfer and resource handling: TransferIDs, progress reporting, import/export and resource binding for moving or adding media resources between devices.
• Search, sort and query capabilities: SearchCriteria, SortCriteria, FreeFormQuery and related capabilities to enable flexible content discovery.
• Eventing and change tracking: Mechanisms for clients to monitor updates, subtree updates, and event notifications to maintain synchronized views.
• Vendor extensions and namespaces: Guidance for vendor-defined actions, state variables and XML namespace management while preserving interoperability.

Practical applications and who uses this standard

• Media server vendors implement the ContentDirectory service to expose local or cloud-hosted libraries to networked clients.
• Application developers and UI designers build control points (client apps, smart TVs, mobile media players) that browse, search and play AV content from UPnP servers.
• System integrators use the standard to ensure cross-vendor interoperability in home media networks, multi-room audio systems, and embedded AV devices.
• Software stacks and middleware incorporate DIDL-Lite parsing, state-variable handling and standardized actions to support robust media discovery and transfer workflows.

Related standards

• UPnP Device Architecture (version 1.0) - the framework this service conforms to.
• ISO/IEC 29341 series - other parts of the UPnP AV / Device Architecture family that define devices, protocols and AV control layers.

For implementers, ISO/IEC 29341-14-12:2011 is essential reading to ensure consistent ContentDirectory, metadata encoding (DIDL-Lite), and API behavior across UPnP AV ecosystems.

Standards Content (Sample)

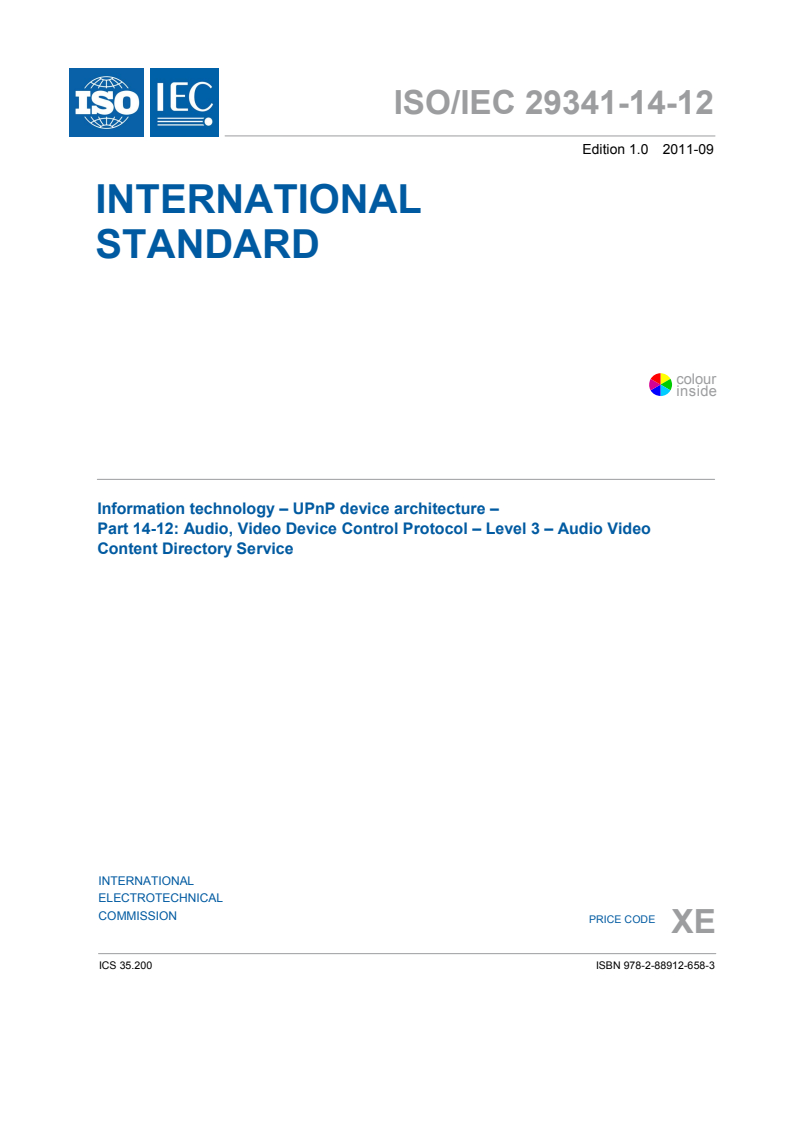

ISO/IEC 29341-14-12
Edition 1.0 2011-09
INTERNATIONAL
STANDARD
colour
inside
Information technology – UPnP device architecture –
Part 14-12: Audio, Video Device Control Protocol – Level 3 – Audio Video
Content Directory Service
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester.
If you have any questions about ISO/IEC copyright or have an enquiry about obtaining additional rights to this
publication, please contact the address below or your local IEC member National Committee for further information.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]
ISO/IEC 29341-14-12
Edition 1.0 2011-09
INTERNATIONAL
STANDARD
colour
inside
Information technology – UPnP device architecture –
Part 14-12: Audio, Video Device Control Protocol – Level 3 – Audio Video
Content Directory Service
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
PRICE CODE
XC
ICS 35.200 ISBN 978-2-88912-658-3

29341-14-12 © ISO/IEC:2011(E)

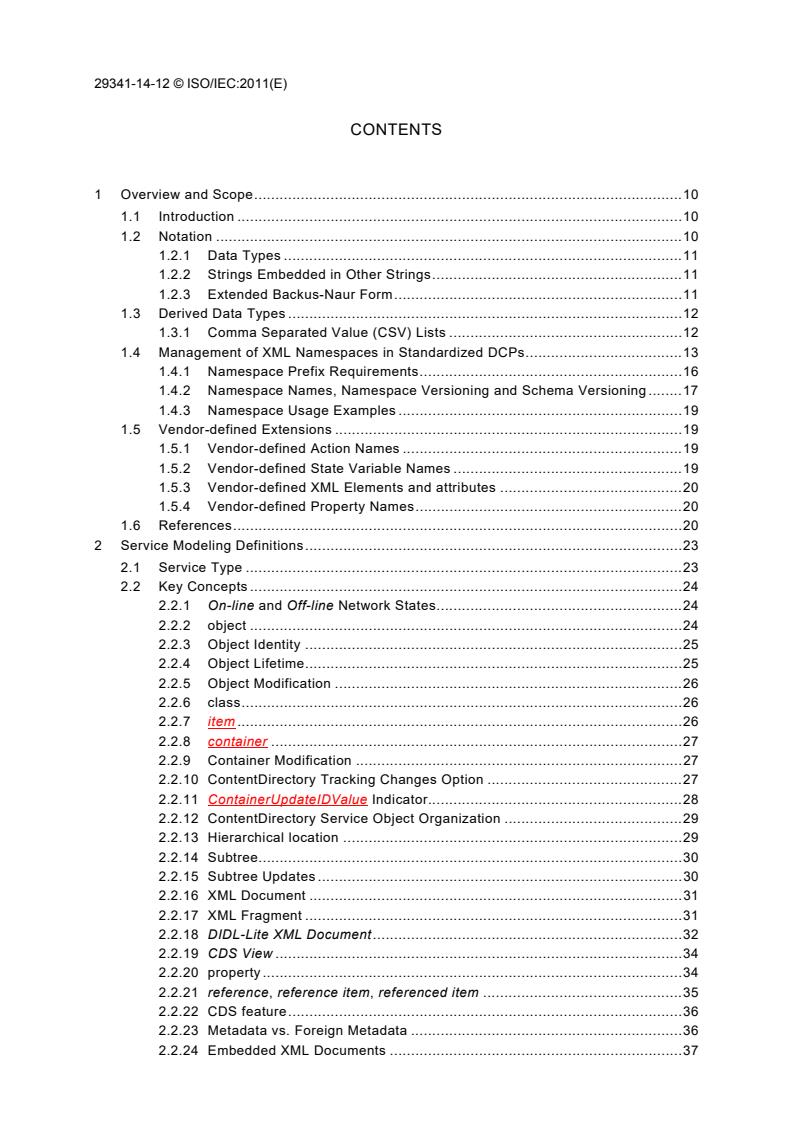

CONTENTS
