IEC 60335-2-86:2018

Household and similar electrical appliances - Safety - Part 2-86: Particular requirements for electric fishing machines

IEC 60335-2-86:2018 deals with the safety of electric fishing machines by means of which water may be electrified for the purpose of catching fish or for providing barriers to all animals living in water. The rated voltage of electric fishing machines is not more than 250 V for single phase machines and 480 V for other machines, except that the rated voltage of electric fishing machines for permanent connection to fixed wiring is not more than 1 000 V. Electric fishing machines are appliances for scientific and commercial use. Additional requirements for boat mounted electric fishing machines are given in Annex AA. This Part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its amendments. It was established on the basis of the fifth edition (2010) of that standard. This third edition cancels and replaces the second edition published in 2002, its Amendment 1 (2005) and its Amendment 2 (2012). This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
- aligns the text with IEC 60335-1, Ed 5, and its Amendments 1 and 2;
- some notes have been converted to normative text (22.102, 22.113, 26.106);
- requirements for battery-operated electric fishing machines have been moved to Annex S.

Appareils électrodomestiques et analogues – Sécurité – Partie 2-86: Exigences particulières pour les équipements électriques de pêche

L'IEC 60335-2-86:2018 traite de la sécurité des équipements électriques de pêche au moyen desquels l’eau peut être électrifiée afin de pêcher des poissons ou de constituer des barrières pour tous les animaux vivant dans l’eau.
La tension assignée des équipements électriques de pêche n’est pas supérieure à 250 V pour les équipements monophasés et à 480 V pour les autres machines, mais la tension assignée des équipements électriques de pêche pour raccordement permanent aux canalisations fixes n’est pas supérieure à 1 000 V.
Les équipements électriques de pêche sont des appareils à usage scientifique et commercial.
Des exigences supplémentaires relatives aux équipements électriques de pêche montés sur un bateau sont données à l'Annexe AA.
Exemples d’équipements électriques de pêche entrant dans le domaine d’application de la présente norme:
– les équipements électriques de pêche alimentés par le réseau, y compris ceux qui sont alimentés par des générateurs mobiles ou fixes;
– équipement électrique de pêche alimenté par piles ou accumulateurs.
L'attention est attirée sur le fait que:
– pour les appareils destinés à être utilisés à bord de navires ou de bateaux, des exigences supplémentaires peuvent être nécessaires;
– dans de nombreux pays, des exigences supplémentaires sont spécifiées par les organismes nationaux de la santé, par les organismes nationaux responsables de la protection des travailleurs, par les organismes nationaux responsables de l'alimentation en eau et par des organismes similaires.
La présente Norme ne s’applique pas
– aux électrificateurs de clôtures (IEC 60335-2-76);
– aux appareils électriques d'insensibilisation des animaux (IEC 60335-2-87);
– aux dispositifs de défense contre les requins qui sont portés par l'utilisateur.
Cette troisième édition annule et remplace la deuxième édition publiée en 2002, son Amendement 1 (2005) et son Amendement 2 (2012). Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques significatives suivantes par rapport à l'édition précédente:
– le texte a été aligné sur l'IEC 60335-1, Ed 5, son Amendement 1 et son Amendement 2;
– certaines notes ont été converties en texte normatif (22.102, 22.113, 26.106);
– les exigences relatives aux équipements électriques de pêche alimentés par batterie ou accumulateurs ont été déplacées à l'Annexe S.

General Information

• Status: Published
• Publication Date: 19-Apr-2018
• ICS: 65.150 - Fishing and fish breeding
• Technical Committee: SC 61H - Safety of electrically-operated farm appliances
• Drafting Committee: WG 1 - TC 61/SC 61H/WG 1
• Current Stage: PPUB - Publication issued
• Start Date: 20-Apr-2018
• Completion Date: 04-May-2018

Relations

• Revises: IEC 60335-2-86:2002 - Household and similar electrical appliances - Safety - Part 2-86: Particular requirements for electric fishing machines
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-86:2002/AMD1:2005 - Amendment 1 - Household and similar electrical appliances - Safety - Part 2-86: Particular requirements for electric fishing machines
• Effective Date: 05-Sep-2023
• Revises: IEC 60335-2-86:2002/AMD2:2012 - Amendment 2 - Household and similar electrical appliances - Safety - Part 2-86: Particular requirements for electric fishing machines
• Effective Date: 05-Sep-2023

Overview

IEC 60335-2-86:2018 - Household and similar electrical appliances - Safety - Part 2-86: Particular requirements for electric fishing machines - is an IEC product-family standard that specifies safety requirements for appliances that electrify water to catch fish or provide barriers to aquatic animals. This third edition (2018) is a technical revision that must be applied together with IEC 60335-1 (the general requirements for household and similar electrical appliances). The standard covers portable and permanently connected electric fishing machines used for scientific and commercial purposes and sets limits on rated voltages (≤250 V for single-phase portable machines, ≤480 V for other machines, and ≤1 000 V for permanently connected appliances).

Key topics and technical requirements

The standard supplements and modifies IEC 60335-1 with particular requirements, including:

• Construction and mechanical safety: safeguards against mechanical hazards, stability, mechanical strength and resistance to rusting.
• Electrical protection: protection against access to live parts, requirements for starting of motor-operated appliances, leakage current and electric strength (at operating temperature and under other conditions).
• Thermal and fire safety: heating limits, resistance to heat and fire, and temperature-related surface limits.
• Environmental and operational tests: moisture resistance, transient overvoltages, abnormal operation and endurance testing.
• Wiring and components: internal wiring, components, terminals, supply connection, external flexible cords and provision for earthing.
• Clearances and insulation: requirements for clearances, creepage distances and solid insulation to prevent breakdown.
• Marking and documentation: mandatory marking and user instructions specific to electric fishing machines.
• Special annexes:
  • Annex S (normative) - requirements for battery-operated electric fishing machines.
  • Annex AA (normative) - additional requirements for boat-mounted electric fishing machines.

Significant changes in the 2018 edition include alignment with IEC 60335-1 Ed.5, conversion of some informative notes into normative requirements, and relocation of battery-specific rules to Annex S.

Practical applications - who uses this standard

IEC 60335-2-86:2018 is intended for:

• Manufacturers and design engineers of electric fishing machines (portable, boat-mounted, battery-operated and permanently connected units) to ensure safe product design.
• Test laboratories and conformity assessment bodies performing type and routine safety testing per IEC 60335 series requirements.
• Regulatory authorities and procurement teams specifying safety criteria for scientific and commercial aquatic equipment.
• Safety engineers and compliance officers preparing technical files, user manuals, and safety labels.

Related standards

• IEC 60335-1 - General requirements for household and similar electrical appliances (mandatory companion document).
• Other IEC 60335 Part‑2 standards when the appliance incorporates additional functions covered by other part‑2 documents.

Keywords: IEC 60335-2-86:2018, electric fishing machines safety, IEC 60335 series, battery-operated electric fishing machines, boat-mounted electric fishing machines, leakage current, earthing, clearances, conformity testing.

Standards Content (Sample)

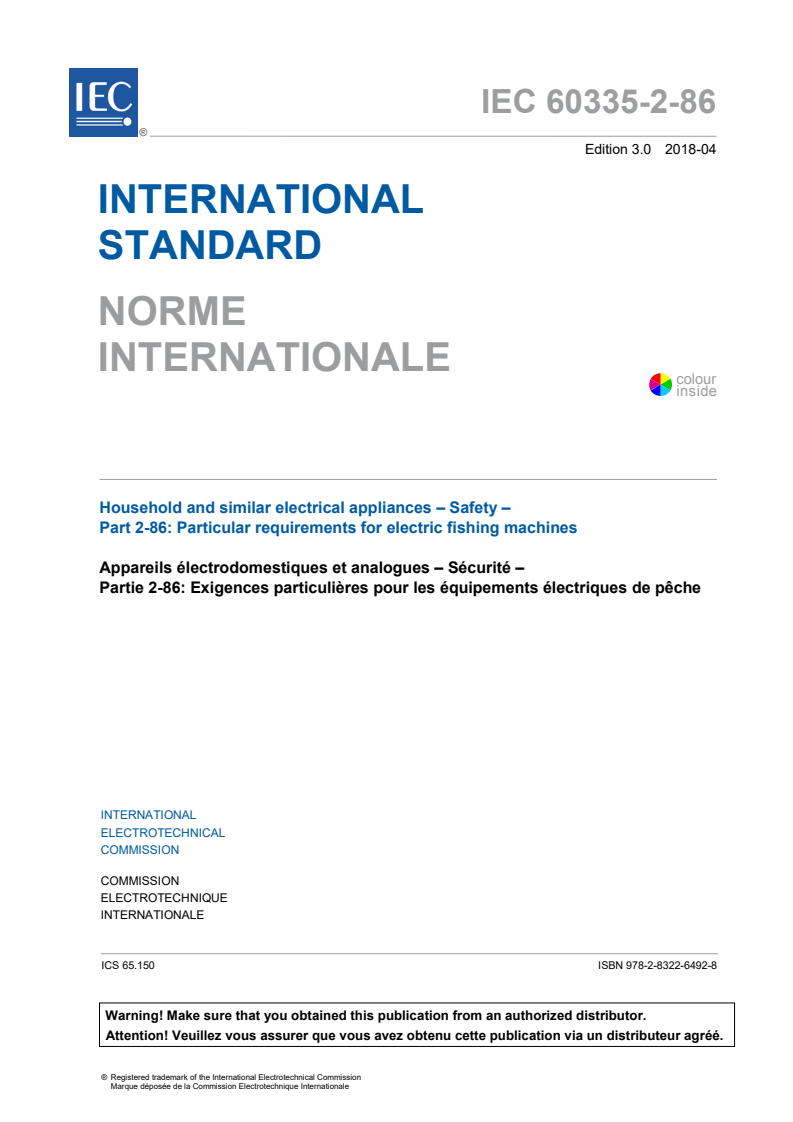

IEC 60335-2-86 ®
Edition 3.0 2018-04
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –
Part 2-86: Particular requirements for electric fishing machines

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form
or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from
either IEC or IEC's member National Committee in the country of the requester. If you have any questions about IEC
copyright or have an enquiry about obtaining additional rights to this publication, please contact the address below or
your local IEC member National Committee for further information.

IEC Central Office Tel.: [phone]
3, rue de Varembé [e-mail]
CH-1211 Geneva 20 www.iec.ch
Switzerland
About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.

IEC Catalogue - webstore.iec.ch/catalogue Electropedia - www.electropedia.org
The stand-alone application for consulting the entire The world's leading online dictionary of electronic and
bibliographical information on IEC International Standards, electrical terms containing 21 000 terms and definitions in
Technical Specifications, Technical Reports and other English and French, with equivalent terms in 16 additional
documents. Available for PC, Mac OS, Android Tablets and languages. Also known as the International Electrotechnical
iPad. Vocabulary (IEV) online.

IEC publications search - webstore.iec.ch/advsearchform IEC Glossary - std.iec.ch/glossary
The advanced search enables to find IEC publications by a 67 000 electrotechnical terminology entries in English and
variety of criteria (reference number, text, technical French extracted from the Terms and Definitions clause of
committee,…). It also gives information on projects, replaced IEC publications issued since 2002. Some entries have been
and withdrawn publications. collected from earlier publications of IEC TC 37, 77, 86 and

CISPR.
IEC Just Published - webstore.iec.ch/justpublished

Stay up to date on all new IEC publications. Just Published IEC Customer Service Centre - webstore.iec.ch/csc
details all new publications released. Available online and If you wish to give us your feedback on this publication or
also once a month by email. need further assistance, please contact the Customer Service
Centre: [e-mail].
IEC 60335-2-86 ®
Edition 3.0 2018-04
INTERNATIONAL
STANDARD
colour
inside
Household and similar electrical appliances – Safety –

Part 2-86: Particular requirements for electric fishing machines

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
ICS 65.150 ISBN 978-2-8322-5569-8

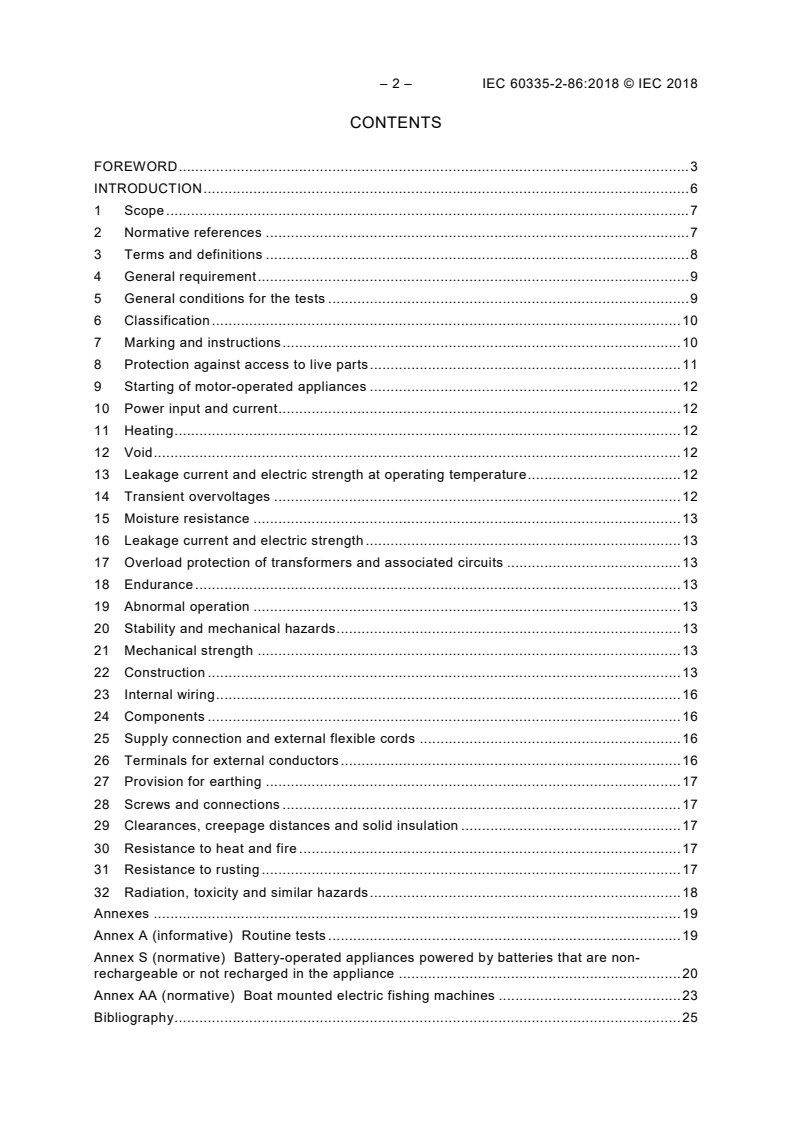

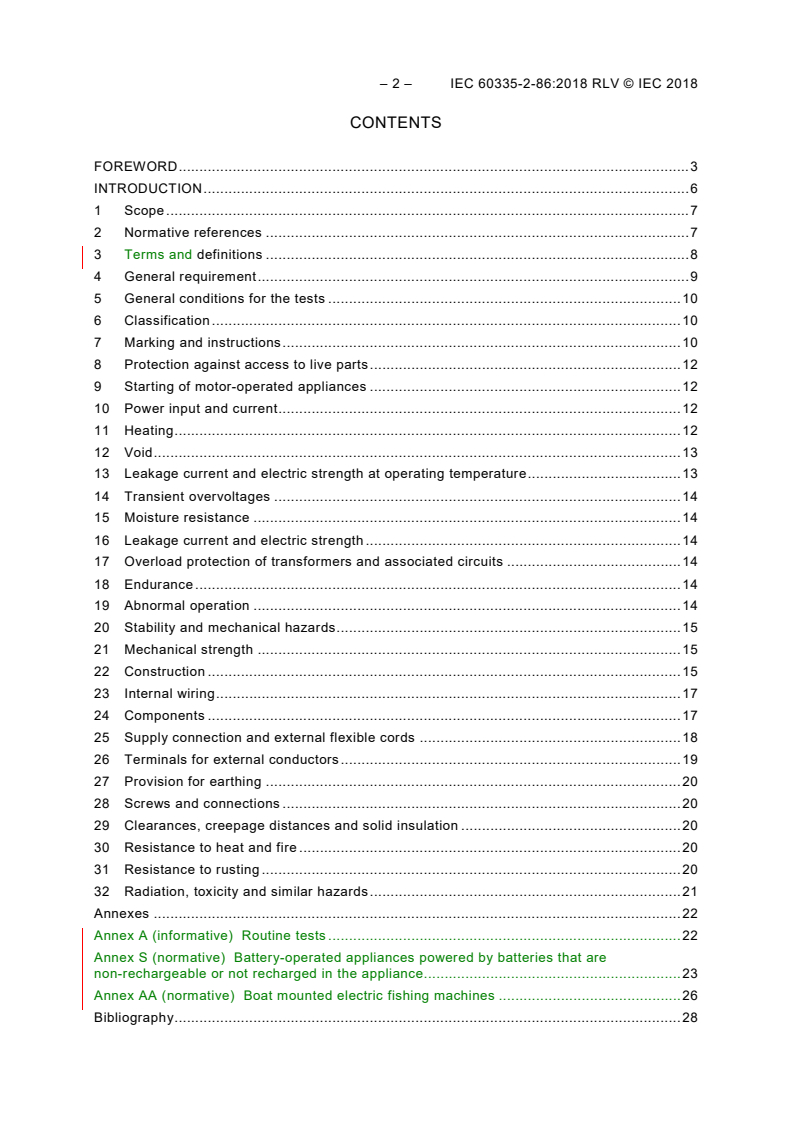

– 2 – IEC 60335-2-86:2018 © IEC 2018

CONTENTS
FOREWORD . 3
INTRODUCTION . 6
1 Scope . 7
2 Normative references . 7
3 Terms and definitions . 8
4 General requirement . 9
5 General conditions for the tests . 9
6 Classification . 10
7 Marking and instructions . 10
8 Protection against access to live parts . 11
9 Starting of motor-operated appliances . 12
10 Power input and current . 12
11 Heating . 12
12 Void . 12
13 Leakage current and electric strength at operating temperature . 12
14 Transient overvoltages . 12
15 Moisture resistance . 13
16 Leakage current and electric strength . 13
17 Overload protection of transformers and associated circuits . 13
18 Endurance . 13
19 Abnormal operation . 13
20 Stability and mechanical hazards . 13
21 Mechanical strength . 13
22 Construction . 13
23 Internal wiring . 16
24 Components . 16
25 Supply connection and external flexible cords . 16
26 Terminals for external conductors . 16
27 Provision for earthing . 17
28 Screws and connections . 17
29 Clearances, creepage distances and solid insulation . 17
30 Resistance to heat and fire . 17
31 Resistance to rusting . 17
32 Radiation, toxicity and similar hazards . 18
Annexes . 19
Annex A (informative) Routine tests . 19
Annex S (normative) Battery-operated appliances powered by batteries that are non-
rechargeable or not recharged in the appliance . 20
Annex AA (normative) Boat mounted electric fishing machines . 23
Bibliography . 25

INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-86: Particular requirements for electric fishing machines

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
This part of International Standard IEC 60335 has been prepared by subcommittee 61H:
Safety of electrically-operated farm appliances, of IEC technical committee 61: Safety of
household and similar electrical appliances.
This third edition cancels and replaces the second edition published in 2002, its Amendment 1
(2005) and its Amendment 2 (2012). This edition constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
– aligns the text with IEC 60335-1, Ed 5, and its Amendments 1 and 2;
– some notes have been converted to normative text (22.102, 22.113, 26.106);
– requirements for battery-operated electric fishing machines have been moved to Annex S.

– 4 – IEC 60335-2-86:2018 © IEC 2018
The text of this International Standard is based on the following documents:
FDIS Report on voting
61H/363/FDIS 61H/365/RVD
Full information on the voting for the approval of this International Standard can be found in
the report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
A list of all parts of the IEC 60335 series, under the general title: Household and similar
electrical appliances – Safety, can be found on the IEC website.
This Part 2 is to be used in conjunction with the latest edition of IEC 60335-1 and its
amendments. It was established on the basis of the fifth edition (2010) of that standard.
NOTE 1 When “Part 1” is mentioned in this standard, it refers to IEC 60335-1.
This part 2 supplements or modifies the corresponding clauses in IEC 60335-1, so as to
convert that publication into the IEC standard: Safety requirements for electric fishing
machines.
When a particular subclause of Part 1 is not mentioned in this part 2, that subclause applies
as far as is reasonable. When this standard states “addition”, “modification” or “replacement”,
the relevant text in Part 1 is to be adapted accordingly.
NOTE 2 The following numbering system is used:
– subclauses, tables and figures that are numbered starting from 101 are additional to those in Part 1;
– unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from 101, including
those in a replaced clause or subclause;
– additional annexes are lettered AA, BB, etc.
NOTE 3 The following print types are used:
– requirements: in roman type
– test specifications: in italic type
– notes: in small roman type.
Words in bold in the text are defined in Clause 3. When a definition concerns an adjective, the adjective and
associated noun are also in bold.
NOTE 4 The attention of National Committees is drawn to the fact that equipment manufacturers and testing
organizations may need a transitional period following publication of a new, amended or revised IEC publication in
which to make products in accordance with the new requirements and to equip themselves for conducting new or
revised tests.
It is the recommendation of the committee that the content of this publication be adopted for implementation
nationally not earlier than 12 months or later than 36 months from the date of publication.

The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
A bilingual version of this publication may be issued at a later date.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates
that it contains colours which are considered to be useful for the correct
understanding of its contents. Users should therefore print this document using a
colour printer.
– 6 – IEC 60335-2-86:2018 © IEC 2018
INTRODUCTION
It has been assumed in the drafting of this International Standard that the execution of its
provisions is entrusted to appropriately qualified and experienced persons.
This standard recognizes the internationally accepted level of protection against hazards such
as electrical, mechanical, thermal, fire and radiation of appliances when operated as in
normal use taking into account the manufacturer's instructions. It also covers abnormal
situations that can be expected in practice and takes into account the way in which
electromagnetic phenomena can affect the safe operation of appliances.
This standard takes into account the requirements of IEC 60364 as far as possible so that
there is compatibility with the wiring rules when the appliance is connected to the supply
mains. However, national wiring rules may differ.
If an appliance within the scope of this standard also incorporates functions that are covered
by another part 2 of IEC 60335, the relevant part 2 is applied to each function separately, as
far as is reasonable. If applicable, the influence of one function on the other is taken into
account.
NOTE 1 Throughout this publication, when “Part 1” is mentioned, it refers to IEC 60335-1.
When a part 2 standard does not include additional requirements to cover hazards dealt with
in Part 1, Part 1 applies.
NOTE 2 This means that the technical committees responsible for the part 2 standards have determined that it is
not necessary to specify particular requirements for the appliance in question over and above the general
requirements.
This standard is a product family standard dealing with the safety of appliances and takes
precedence over horizontal and generic standards covering the same subject.
NOTE 3 Horizontal and generic standards covering a hazard are not applicable since they have been taken into
consideration when developing the general and particular requirements for the IEC 60335 series of standards. For
example, in the case of temperature requirements for surfaces on many appliances, generic standards, such as
ISO 13732-1 for hot surfaces, are not applicable in addition to Part 1 or part 2 standards.

HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
SAFETY –
Part 2-86: Particular requirements for electric fishing machines

1 Scope
This clause of Part 1 is replaced by the following.
This part of IEC 60335 deals with the safety of electric fishing machines by means of which
water may be electrified for the purpose of catching fish or for providing barriers to all animals
living in water.
The rated voltage of electric fishing machines is not more than 250 V for single phase
machines and 480 V for other machines, except that the rated voltage of electric fishing
machines for permanent connection to fixed wiring is not more than 1 000 V.
Electric fishing machines are appliances for scientific and commercial use.
Additional requirements for boat mounted electric fishing machines are given in Annex AA.
NOTE 101 Examples of electric fishing machines coming within the scope of this standard are:
– mains-operated electric fishing machines which include those supplied from portable or stationary generator
sets;
– battery-operated electric fishing machines.
NOTE 102 Attention is drawn to the fact that
– for appliances intended to be used on board ships or boats, additional requirements can be necessary;
– in many countries, additional requirements are specified by the national health authorities, the national
authorities responsible for the protection of labour, the national water supply authorities and similar authorities.
NOTE 103 This standard does not apply to
– electric fence energizers (IEC 60335-2-76);
– electric animal stunning equipment (IEC 60335-2-87);
– shark deterrent devices that are carried by the user.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their
content constitutes requirements of this document. For dated references, only the edition
cited applies. For undated references, the latest edition of the referenced document (including
any amendments) applies.
This clause of Part 1 is applicable except as follows.
Addition:
IEC 60068-2-52, Environmental testing – Part 2: Tests – Test Kb: Salt mist, cyclic (sodium
chloride solution)
IEC 61558-2-4, Safety of transformers, reactors, power supply units and similar products for
supply voltages up to 1 100 V – Part 2-4: Particular requirements and tests for isolating
transformers and power supply units incorporating isolating transformers

– 8 – IEC 60335-2-86:2018 © IEC 2018
3 Terms and definitions
This clause of Part 1 is applicable except as follows.
3.1 Definitions relating to physical characteristics
3.1.1 Addition:
Note 101 to entry: The rated voltage is the rated input voltage.
3.1.6 Addition:
Note 102 to entry: The rated current is the rated input current.
3.1.9 Replacement:
normal operation
operation of the appliance under the following conditions:
The electric fishing machine is operated as in normal use when connected to the supply
with an adjustable non-inductive resistor connected between its output terminals. The resistor
is adjusted so as to give an output current just sufficient not to cause any protective device
to operate
3.1.101
output voltage
voltage between the electrodes
3.1.102
output current
current in the output circuit that the electric fishing machine is designed to supply
3.1.103
pulsed voltage
voltage impulse of any form and any duration
3.1.104
impulse
that part of the pulsed voltage output that exceeds 12 V
3.5 Definitions relating to types of appliances
3.5.101
electric fishing machine
appliance, comprising electrodes and an energizer, that is designed or used for the control,
taking, killing of any species of fish or invertebrate living in water or for the production of
electronarcosis, by means of electric current
Note 1 to entry: An electric fishing machine may be used to provide a barrier effective for all animals living in
water.
Note 2 to entry: A given electric fishing machine may only perform some of the functions specified.
3.5.102
mains-operated electric fishing machine
electric fishing machine designed for direct connection to a supply other than a battery
supply at a voltage greater than safety extra-low voltage
Note 1 to entry: It may also be supplied from a generator set.

3.5.103
battery-operated electric fishing machine
electric fishing machine deriving its energy solely from non-rechargeable batteries,
rechargeable batteries or other sources of energy, with a voltage meeting the requirements
for safety extra-low voltage
3.6 Definitions relating to parts of an appliance
3.6.3 Addition:
Note 101 to entry: It also includes terminals for the connection of the battery and other metal parts in a battery
compartment that become accessible when batteries are replaced, even with the aid of a tool.
3.6.4 Replacement:
live part
conductive part that may cause an electric shock
3.6.101
electrode
that part of an electric fishing machine that transfers the electric power into the water
Note 1 to entry: The catching electrode is the electrode used by the fisherman, the return electrode is the
electrode trailed in the water.
Note 2 to entry: The catching electrode is usually the anode and the return electrode is usually the cathode.
Note 3 to entry: This does not preclude the return electrode being held by the user.
3.6.102
energizer
that part of an electric fishing machine that transfers the electric power into the electrodes
3.6.103
output circuit
all conductive parts or components within an electric fishing machine that are connected or
intended to be connected galvanically to the electrode terminals
3.7 Definitions relating to safety components
Addition:
3.7.101
biased-off switch
switch which automatically returns to the off position when its actuating member is released
4 General requirement
This clause of Part 1 is applicable.
5 General conditions for the tests
This clause of Part 1 is applicable except as follows.
5.101 If there is no indication as to which of the output terminals is to be connected to the
return electrode, the terminal that gives the most unfavourable result is connected to the
return electrode.
5.102 Electric fishing machines are tested as motor-operated appliances.
...
