ISO 5925-1:2007/Amd 1:2015

Fire tests - Smoke-control door and shutter assemblies - Part 1: Ambient- and medium-temperature leakage tests - Amendment 1

Essais au feu — Assemblages porte et volet pare-fumée — Partie 1: Essais de fuite à température ambiante et moyenne — Amendement 1

Požarni preskusi - Dimna vrata z opremo - 1. del: Preskus tesnosti pri sobni in srednji temperaturi - Dopolnilo A1 (ISO 5925-1:2007/Amd 1:2015)

General Information

• Status: Published
• Publication Date: 30-Jan-2015
• ICS: 13.220.20 - Fire protection
• ICS: 13.220.50 - Fire-resistance of building materials and elements
• ICS: 91.060.50 - Doors and windows
• Technical Committee: ISO/TC 92/SC 2 - Fire containment
• Drafting Committee: ISO/TC 92/SC 2 - Fire containment
• Current Stage: 6060 - International Standard published
• Start Date: 31-Jan-2015
• Due Date: 11-Jun-2016
• Completion Date: 11-Jun-2016
• Ref Project: SIST ISO 5925-1:2018/A1:2018 - Fire tests - Smoke-control door and shutter assemblies - Part 1: Ambient-and medium-temperature leakage tests - Amendment 1 (ISO 5925-1:2007/Amd 1:2015)

Relations

• Amends: ISO 5925-1:2007 - Fire tests - Smoke-control door and shutter assemblies - Part 1: Ambient- and medium-temperature leakage tests
• Effective Date: 07-Aug-2021
• Revised: ISO 5925:2025 - Smoke-control door, shutter assemblies and self-closing glazed elements - Ambient-temperature and medium-temperature leakage tests
• Effective Date: 27-Apr-2024

Overview

ISO 5925-1:2007/Amd 1:2015 is an amendment to the international test method for fire tests - smoke-control door and shutter assemblies, specifically addressing Part 1: ambient- and medium-temperature leakage tests. The amendment refines procedures for measuring leakage rates of smoke-control doors and shutters under non-fire (ambient and medium temperature) conditions, clarifying instrumentation and chamber test methods used by test laboratories and manufacturers.

Key topics and technical requirements

• Leakage measurement methods: Amendment 1 adds detailed procedures (Annex B.3) defining two measurement approaches:
  • Method A - uses an inlet and an outlet pipe on opposite chamber walls; measures flow in both pipes and corrects for temperature differences. Notes that Method A requires more robust heating because outlet air can be hotter than inlet air.
  • Method B - uses a single inlet pipe with controlled inlet pressure; measures only the inlet flow and subtracts chamber background leakage.
• Airflow measurement: Use a suitable device (for example, a hot wire anemometer) traversed across pipe diameter to determine average air speed (V_avg). Combine V_avg with pipe cross-sectional area to compute volumetric flow Q (m3/h).
• Measurement placement and pipe sizing: Air-speed measurement shall be taken at least nine pipe diameters downstream of the flow source and a minimum of five pipe diameters from the chamber wall. Pipes should be sized to allow accurate traverse averaging (minimum recommended diameter ~75 mm).
• Temperature correction: Flow rates must be corrected to standard conditions; Method A specifically requires care to account for hotter outlet air.
• Chamber leakage determination: Background leakage is measured by hermetically sealing the chamber opening (recommended EPDM rubber sheet mounted in a frame and sealed with silicone caulk) and measuring sealed chamber flow.
• Pressure control guidance: Amendment discusses inlet control options - valve control versus a bleed T and recommends leaking excess pressure at the inlet (bleed T) or using a variac-controlled blower for finer control.

Applications and users

This amendment is intended for:

• Fire test laboratories performing smoke leakage and performance testing of smoke-control doors and shutters
• Manufacturers and quality assurance teams validating door and shutter assemblies
• Fire safety engineers and consultants specifying smoke containment performance
• Building authorities and code officials referencing standardized leakage test methods

Related standards

• ISO 5925 series (Part 1 is focused on ambient/medium-temperature leakage). For fire exposure and high-temperature behavior, consult other parts of the ISO 5925 family and applicable fire-resistance standards.

Keywords: ISO 5925-1:2007/Amd 1:2015, fire tests, smoke-control door, shutter assemblies, leakage tests, ambient temperature, medium temperature, hot wire anemometer, EPDM hermetic seal.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 5925-1
Second edition
2007-09-15
AMENDMENT 1
2015-02-01
Fire tests — Smoke-control door and
shutter assemblies —
Part 1:
Ambient- and medium-temperature
leakage tests
AMENDMENT 1
Essais au feu — Assemblages porte et volet pare-fumée —
Partie 1: Essais de fuite à température ambiante et moyenne
AMENDEMENT 1
Reference number
ISO 5925-1:2007/Amd.1:2015(E)
©
ISO 2015

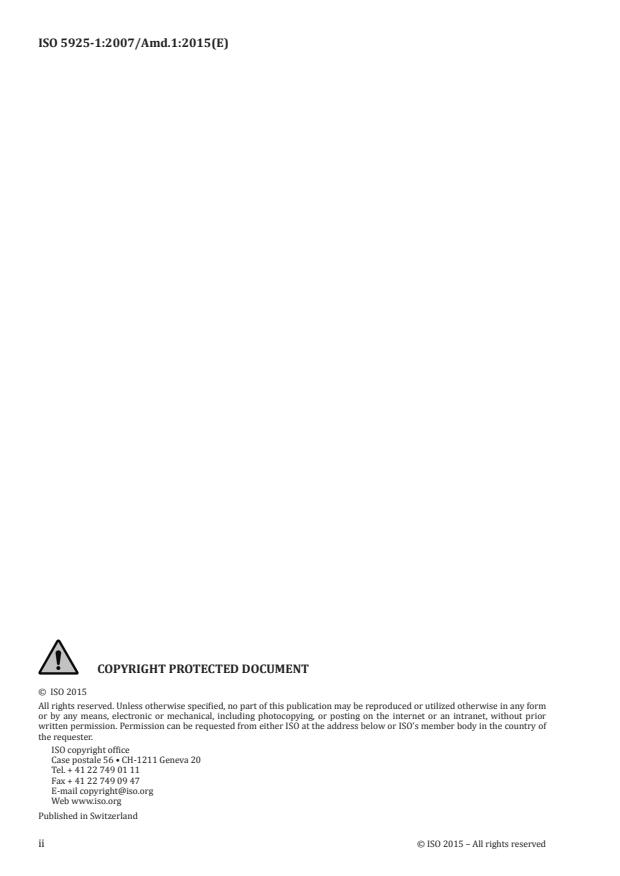

ISO 5925-1:2007/Amd.1:2015(E)
© ISO 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2015 – All rights reserved

ISO 5925-1:2007/Amd.1:2015(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 92, Fire safety, Subcommittee SC 2, Fire containment.
ISO 5925-1:2007/Amd.1:2015(E)
Fire tests — Smoke-control door and shutter assemblies —
Part 1:
Ambient- and medium-temperature leakage tests
AMENDMENT 1
Page 10, Annex B
Add a new clause, B.3, as follows:
B.3 Methods for measuring leakage rates
Using the equipment described in B.2, one of the two following methods shall be used for measuring
leakage rates.
B.3.1 Method A
An inlet and an outlet pipe are connected to the chamber in Figure 1 on opposite ends of the chamber
(in the left wall and right wall of the chamber at mid-height). The outlet pipe shall be fitted with a valve
to control chamber pressure. The air flow rate shall be measured in each pipe using apparatus suitable
for this purpose. For example, use a h
...

SLOVENSKI STANDARD
01-december-2018
Požarni preskusi - Dimna vrata z opremo - 1. del: Preskus tesnosti pri sobni in
srednji temperaturi - Dopolnilo A1 (ISO 5925-1:2007/Amd 1:2015)
Fire tests — Smoke-control door and shutter assemblies — Part 1: Ambient-and medium
-temperature leakage tests - Amendment 1 (ISO 5925-1:2007/Amd 1:2015)
Ta slovenski standard je istoveten z: ISO 5925-1:2007/Amd 1:2015
ICS:
13.220.50 Požarna odpornost Fire-resistance of building
gradbenih materialov in materials and elements
elementov
91.060.50 Vrata in okna Doors and windows
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

INTERNATIONAL ISO
STANDARD 5925-1
Second edition
2007-09-15
AMENDMENT 1
2015-02-01
Fire tests — Smoke-control door and
shutter assemblies —
Part 1:
Ambient- and medium-temperature
leakage tests
AMENDMENT 1
Essais au feu — Assemblages porte et volet pare-fumée —
Partie 1: Essais de fuite à température ambiante et moyenne
AMENDEMENT 1
Reference number
ISO 5925-1:2007/Amd.1:2015(E)
©
ISO 2015
ISO 5925-1:2007/Amd.1:2015(E)
© ISO 2015
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Case postale 56 • CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail [e-mail]
Web www.iso.org
Published in Switzerland
ii © ISO 2015 – All rights reserved

ISO 5925-1:2007/Amd.1:2015(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the meaning of ISO specific terms and expressions related to conformity
assessment, as well as information about ISO’s adherence to the WTO principles in the Technical Barriers
to Trade (TBT) see the following URL: Foreword - Supplementary information
The committee responsible for this document is ISO/TC 92, Fire safety, Subcommittee SC 2, Fire containment.
ISO 5925-1:2007/Amd.1:2015(E)
Fire tests — Smoke-control door and shutter assemblies —
Part 1:
Ambient- and me
...
