ISO/FDIS 19691

Measurement method of corrosion for weathering steel structures

This international standard specifies a method for measuring the corrosion loss of each part of structures using unpainted steel such as weathering steel by using the attached coupons Also this standard provides a prediction method for corrosion loss over a long period from the measurement results and a method for determining the applicability of existing and new constructing weathering steel structures. Also this standard provides a method for evaluating the type of corrosion by visual inspection of the appearance of rust on an existing weathering steel structure.

Titre manque

General Information

• Status: Not Published
• ICS: 77.060 - Corrosion of metals
• ICS: 91.080.13 - Steel structures
• Technical Committee: ISO/TC 156 - Corrosion of metals and alloys
• Drafting Committee: ISO/TC 156 - Corrosion of metals and alloys
• Current Stage: 5020 - FDIS ballot initiated: 2 months. Proof sent to secretariat
• Start Date: 01-May-2026
• Completion Date: 01-May-2026

Overview

ISO/FDIS 19691: Measurement Method of Corrosion for Weathering Steel Structures is an international standard developed by ISO/TC 156. It defines rigorous procedures for assessing and predicting corrosion loss in unpainted weathering steel structures, such as bridges and buildings, by utilizing test coupons. The standard addresses the need for accurate corrosion evaluation in various microclimates and operational contexts, ensuring robust decisions on material durability, maintenance scheduling, and suitability for new constructions. Additionally, ISO/FDIS 19691 establishes methods for predicting long-term corrosion loss and evaluating the visual appearance of rust, supporting effective lifecycle management of weathering steel assets.

Key Topics

• Measurement with Attached Coupons: The standard specifies the design and placement of steel coupons on different structural elements, providing practical methods to obtain representative corrosion data from real environmental exposures.
• Long-Term Corrosion Prediction: A consistent approach is offered for forecasting corrosion loss over extended periods, enabling asset managers and engineers to project maintenance needs and structural performance.
• Applicability Assessment: Methods are provided to determine the suitability of both existing and newly built weathering steel structures in specific environments based on measured and predicted corrosion rates.
• Visual Rust Evaluation: The document outlines procedures for assessing the type and severity of corrosion by visually inspecting the rust patterns, supporting rapid, non-destructive evaluations.
• Electrochemical Characterization: Guidance is included for more advanced analysis using electrochemical measurements, enhancing understanding of the protective qualities of rust layers.

Applications

ISO/FDIS 19691 is relevant for a range of stakeholders involved in infrastructure using weathering steel:

• Structural Engineers and Inspectors: The standard is essential for planning corrosion monitoring strategies, establishing baseline data, and verifying environmental suitability for weathering steel applications in bridges, towers, and buildings.
• Asset Owners and Managers: Supports lifecycle management by enabling reliable prediction of corrosion rates and maintenance requirements, which leads to optimized resource allocation and budget planning.
• Contractors and Fabricators: Provides guidelines for the selection of corrosion-resistant steel structures and methods to ensure compliance with durability standards during and after construction.
• Regulators and Policy Makers: Offers a foundational reference for developing national and local guidelines or requirements regarding use and maintenance of unpainted steel structures.

By employing the coupon method specified in ISO/FDIS 19691, practitioners can obtain precise, actionable data for various positions on a structure, taking into account unique microclimatic influences-such as exposure to rainfall, salt spray, or pollution-that affect corrosion rates.

Related Standards

ISO/FDIS 19691 is closely aligned with several other international standards that address corrosion testing, classification, and measurement for metallic structures:

• ISO 8407: Removal of corrosion products from corrosion test specimens.
• ISO 9223: Classification and determination of atmospheric corrosivity, providing context for environment-driven corrosion rates.
• ISO 9224: Guidance values for corrosivity categories useful for prediction modeling.
• ISO 9226: Measurement of corrosion rate of standard specimens to evaluate atmospheric corrosivity.
• ISO 22410: Electrochemical measurement techniques for assessing protective rust layers on weathering steel.
• ISO 8565: General requirements for atmospheric corrosion testing of metals and alloys.

These related standards underpin the methodologies and ensure ISO/FDIS 19691 provides comprehensive, compatible, and internationally recognized practices for corrosion measurement in weathering steel structures. Adopting this standard enhances structural durability assessments and aligns with best practices in steel infrastructure management.

Standards Content (Sample)

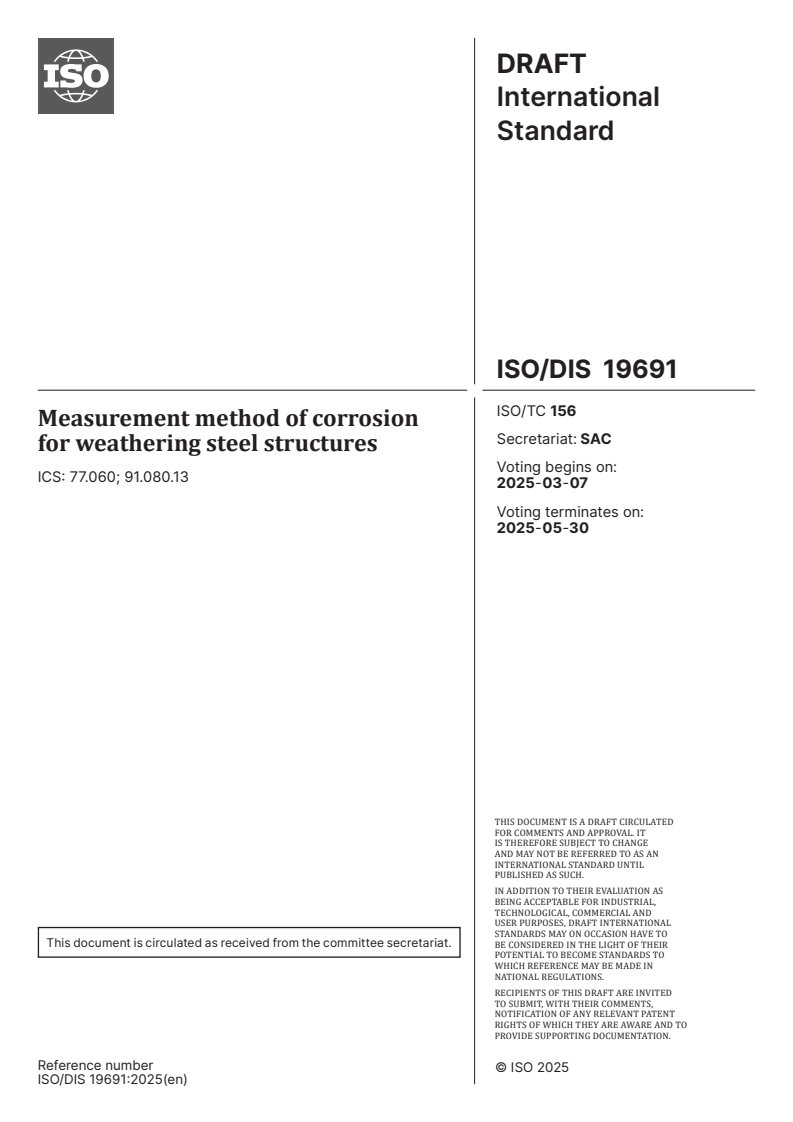

DRAFT
International
Standard
ISO/DIS 19691
ISO/TC 156
Measurement method of corrosion
Secretariat: SAC
for weathering steel structures
Voting begins on:
ICS: 77.060; 91.080.13
2025-03-07
Voting terminates on:
2025-05-30
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
This document is circulated as received from the committee secretariat.
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
NATIONAL REGULATIONS.
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Reference number
ISO/DIS 19691:2025(en)
DRAFT
ISO/DIS 19691:2025(en)
International
Standard
ISO/DIS 19691
ISO/TC 156
Measurement method of corrosion
Secretariat: SAC
for weathering steel structures
Voting begins on:
ICS: 77.060; 91.080.13
Voting terminates on:
THIS DOCUMENT IS A DRAFT CIRCULATED
FOR COMMENTS AND APPROVAL. IT
IS THEREFORE SUBJECT TO CHANGE
AND MAY NOT BE REFERRED TO AS AN
INTERNATIONAL STANDARD UNTIL
PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL,
© ISO 2025
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
STANDARDS MAY ON OCCASION HAVE TO
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
This document is circulated as received from the committee secretariat. BE CONSIDERED IN THE LIGHT OF THEIR
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
or ISO’s member body in the country of the requester.
NATIONAL REGULATIONS.
ISO copyright office
RECIPIENTS OF THIS DRAFT ARE INVITED
CP 401 • Ch. de Blandonnet 8
TO SUBMIT, WITH THEIR COMMENTS,
CH-1214 Vernier, Geneva
NOTIFICATION OF ANY RELEVANT PATENT
Phone: [phone]
RIGHTS OF WHICH THEY ARE AWARE AND TO
PROVIDE SUPPORTING DOCUMENTATION.
Email: [e-mail]
Website: www.iso.org
Published in Switzerland Reference number
ISO/DIS 19691:2025(en)
ii
ISO/DIS 19691:2025(en)

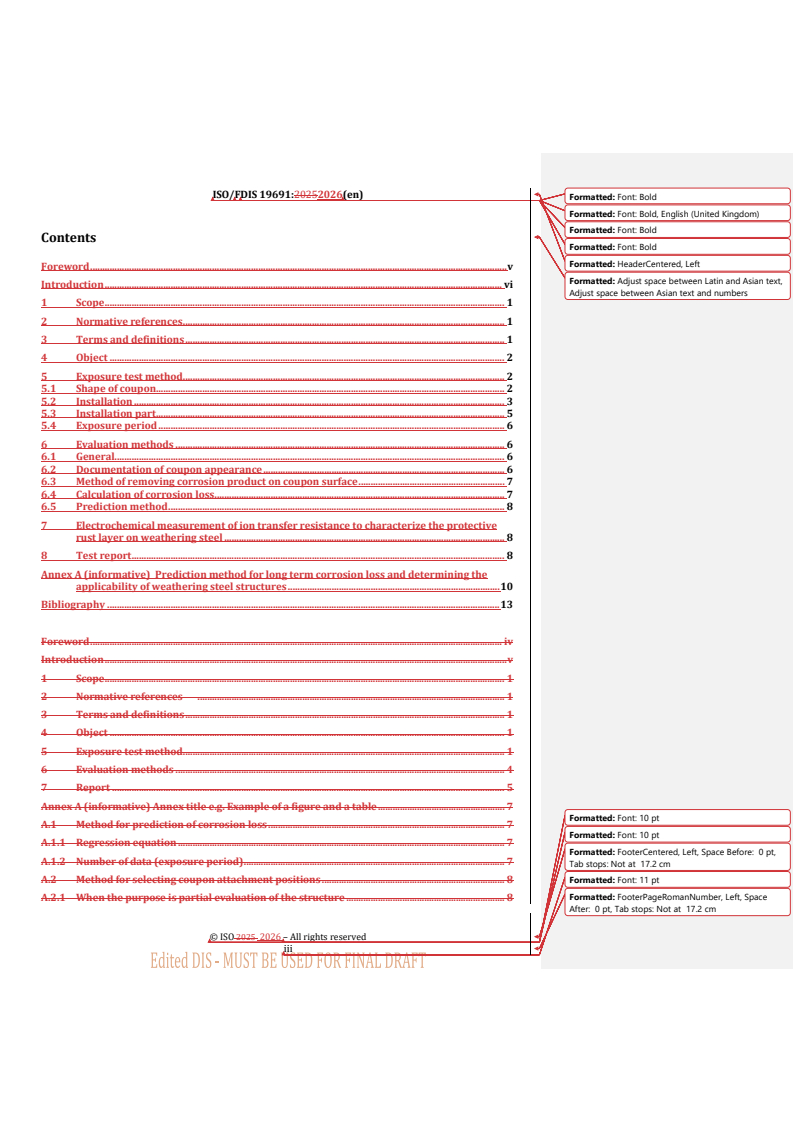

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Object . 1
5 Exposure test method . 2
5.1 Shape of coupon .2
5.2 Installation .2
5.3 Installation part .3
5.4 Exposure period .3
6 Evaluation methods . 4
6.1 Documentation of coupon appearance .4
6.2 Method of removing corrosion product on coupon surface .4
6.3 Calculation of corrosion loss .4
6.4 Prediction method.5
7 Electrochemical measurement of ion transfer resistance to characterize the protective
rust layer on weathering steel . 5
8 Report . 5
Annex A (informative) a prediction method for corrosion loss over a long period from the
measurement results and a method for determining the applicability of existing and
new constructing weathering steel structures. . 6
Bibliography . 9

iii
ISO/DIS 19691:2025(en)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO documents should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of any patent
rights identified during the development of the document will be in the Introduction and/or on the ISO list of
patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee [or Project Committee] ISO/TC [or ISO/PC] 156,
Atmospheric corrosion testing classification of corrosivity of atmosphere
A list of all parts in the ISO ##### series can be found on the ISO website.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
ISO/DIS 19691:2025(en)
Introduction
Weathering steels are environmentally friendly steels that are used in structures without painting. For
example, weathering steel is often used in bridges in mountainous areas in the world. In structural steels,
reduction of the cross section of members due to corrosion can cause deformation and buckling and thus
fracture. For this reason, it is important to understand the corrosion behaviour of each part of structural
members.
Corrosion depends on the microclimate of each part of a member. For example, corrosion is affected by
whether the member is directly exposed to rainfall, whether its surface is horizontal or vertical, how much
de-icing salt is applied, etc.
In the outdoor exposure test using a normal rack of ISO 8565, there is a problem that the corrosion behaviour
of the individual parts of complicated structures cannot be evaluated. Although evaluation is possible by
using a simulation or the actual structure, coring samples cannot be evaluated by weight loss. A method
using a depth gauge and ultrasonic waves is also possible, but has low accuracy for thickness reduction.
To solve the problems mentioned above, a unique exposure test method, in which small steel coupons are
attached to the target parts of members of the actual structure has been studied. This method makes it
possible to measure the corrosion loss on only one side of the members of the structure. It is useful for
making decisions regarding the timing of maintenance, or whether a new structure should be constructed
at the site.
This standard is useful and effective for the security of structures worldwide.

v
DRAFT International Standard ISO/DIS 19691:2025(en)
Measurement method of corrosion for weathering steel
structures
1 Scope
This international standard specifies a method for measuring the corrosion loss of each part of structures
using unpainted steel such as weathering steel by using the attached coupons
Also this standard provides a prediction method for corrosion loss over a long period from the measurement
results and a method for determining the applicability of existing and new constructing weathering steel
structures.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 8407, Corrosion of metals and alloys — Removal of corrosion products from corrosion test specimens
ISO 9223, Corrosion of metals and alloys — Corrosivity of atmospheres — Classification, determination and
estimation
ISO 9224, Corrosion of metals and alloys — Corrosivity of atmospheres — Guiding values for the corrosivity
categories
ISO 9226, Corrosion of metals and alloys — Corrosivity of atmospheres — Determination of corrosion rate of
standard specimens for the evaluation of corrosivity
ISO 22410, Corrosion of metals and alloys — Electrochemical measurement of ion transfer resistance to
characterize the protective rust layer on weathering steel
ISO 8565, Metals and alloys — Atmospheric corrosion testing — General requirements
3 Terms and definitions
3.1
Weathering steel
Weathering steel containing Cu, Ni, P, etc., is widely used for bridges, buildings, towers and other large
structures because of its low maintenance characteristics resulting from the formation of a protective and
adhesive rust layer when exposed to the atmosphere.
4 Object
The object of measurement of corrosion loss by this test is large structures with specific microclimate
for different elements and/or surfaces. The material of the object structures is uncoated steel, such as
weathering steel to which a corrosion protective covering is not applied, and is limited to cases that take the
form of general corrosion.
ISO/DIS 19691:2025(en)
5 Exposure test method
5.1 Shape of coupon
The coupon structure shall be as follows.
a) The standard shape of the coupon is square with a one-side length of 50 mm as shown in Figure 1.
However, square coupons with a one-side length of 40 mm to 150 mm may also be used, provided it is
possible to secure the accuracy of mass measurements.
b) The standard thickness of the coupon is 2 mm. Thicknesses in the range of 1,5 mm to 3 mm should also
be used
...

FINAL DRAFT
International
Standard
ISO/TC 156
Measurement method of corrosion
Secretariat: SAC
for weathering steel structures
Voting begins on:
2026-05-01
Voting terminates on:
2026-06-26
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
IN ADDITION TO THEIR EVALUATION AS
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
Reference number
FINAL DRAFT
International
Standard
ISO/TC 156
Measurement method of corrosion
Secretariat: SAC
for weathering steel structures
Voting begins on:
Voting terminates on:
RECIPIENTS OF THIS DRAFT ARE INVITED TO SUBMIT,
WITH THEIR COMMENTS, NOTIFICATION OF ANY
RELEVANT PATENT RIGHTS OF WHICH THEY ARE AWARE
AND TO PROVIDE SUPPOR TING DOCUMENTATION.
© ISO 2026
IN ADDITION TO THEIR EVALUATION AS
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
BEING ACCEPTABLE FOR INDUSTRIAL, TECHNO­
LOGICAL, COMMERCIAL AND USER PURPOSES, DRAFT
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting on
INTERNATIONAL STANDARDS MAY ON OCCASION HAVE
the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address below
TO BE CONSIDERED IN THE LIGHT OF THEIR POTENTIAL
or ISO’s member body in the country of the requester.
TO BECOME STAN DARDS TO WHICH REFERENCE MAY BE
MADE IN NATIONAL REGULATIONS.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland Reference number
ii

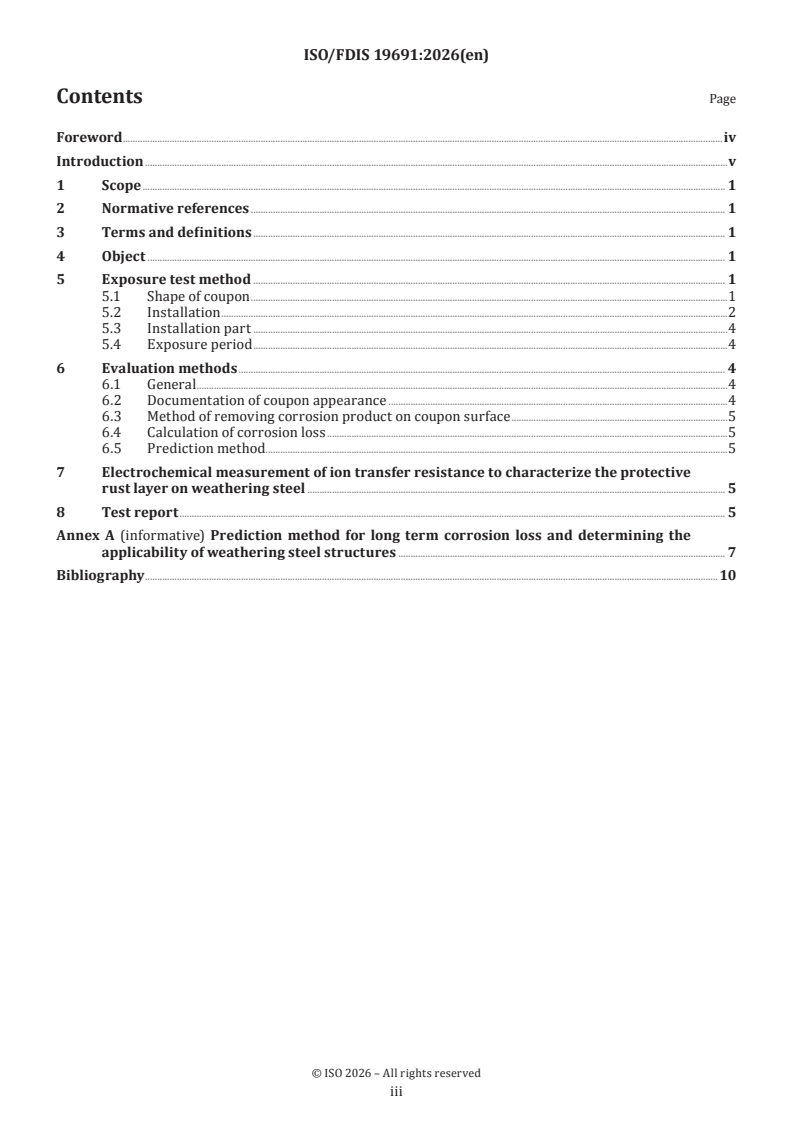

Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Object . 1
5 Exposure test method . 1
5.1 Shape of coupon .1
5.2 Installation .2
5.3 Installation part .4
5.4 Exposure period .4
6 Evaluation methods . 4
6.1 General .4
6.2 Documentation of coupon appearance .4
6.3 Method of removing corrosion product on coupon surface .5
6.4 Calculation of corrosion loss .5
6.5 Prediction method.5
7 Electrochemical measurement of ion transfer resistance to characterize the protective
rust layer on weathering steel . 5
8 Test report . 5
Annex A (informative) Prediction method for long term corrosion loss and determining the
applicability of weathering steel structures . 7
Bibliography .10

iii

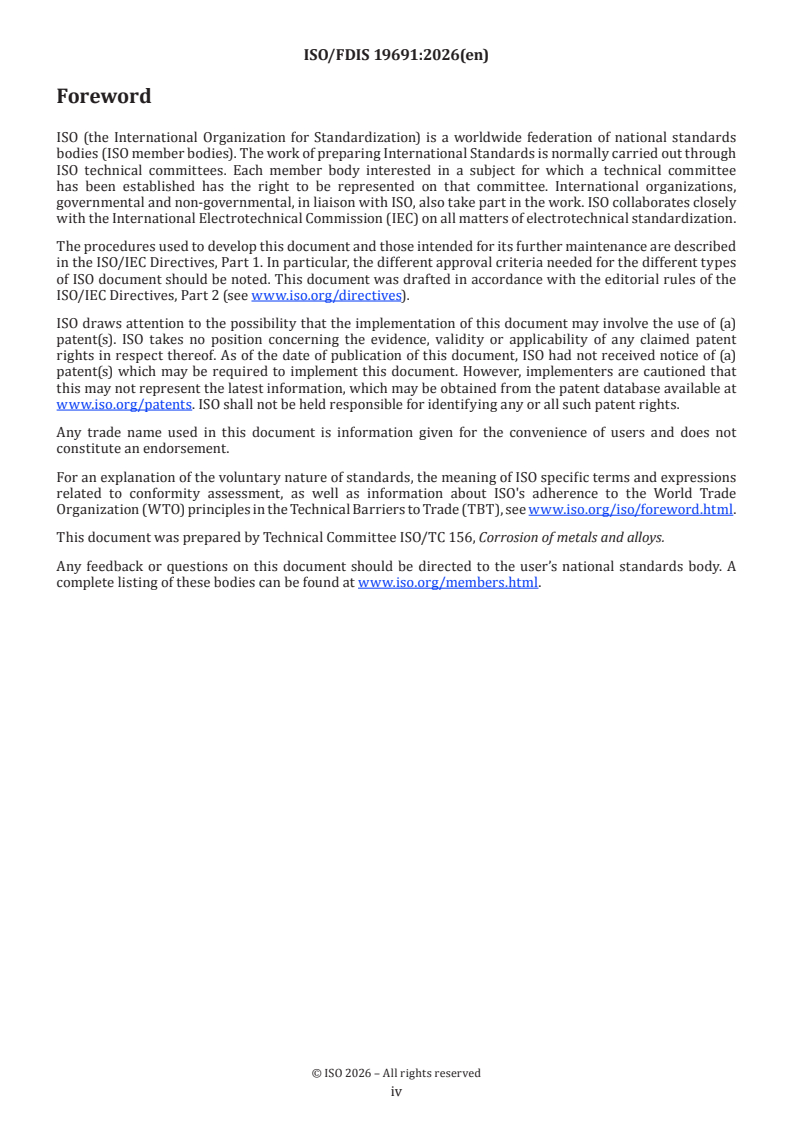

Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
ISO technical committees. Each member body interested in a subject for which a technical committee
has been established has the right to be represented on that committee. International organizations,
governmental and non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely
with the International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types
of ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent
rights in respect thereof. As of the date of publication of this document, ISO had not received notice of (a)
patent(s) which may be required to implement this document. However, implementers are cautioned that
this may not represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents. ISO shall not be held responsible for identifying any or all such patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 156, Corrosion of metals and alloys.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.html.

iv
Introduction
Weathering steels are environmentally friendly steels that are used in structures without painting. For
example, weathering steel is often used in bridges in mountainous areas in the world. In structural steels,
reduction of the cross section of members due to corrosion can cause deformation and buckling and thus
fracture. For this reason, it is important to understand the corrosion behaviour of each part of the structural
members.
Corrosion depends on the microclimate of each part of a member. For example, corrosion is affected by
whether the member is directly exposed to rainfall, whether its surface is horizontal or vertical, how much
de-icing salt is applied, etc.
In the outdoor exposure test using a normal rack, the corrosion behaviour of the individual parts of
complicated structures cannot be evaluated. Although evaluation is possible by using a simulation or the
actual structure, coring samples cannot be evaluated by weight loss. A method using a depth gauge and
ultrasonic waves is also possible but has low accuracy for thickness reduction.
To solve these problems, a unique exposure test method, in which small steel coupons are attached to the
target parts of members of the actual structure, has been established. This method makes it possible to
measure the corrosion loss on only one side of the members of the structure. It is useful for making decisions
regarding the timing of maintenance, or whether a new structure should be constructed at the site.
This document is useful and effective for the security of structures worldwide.

v
FINAL DRAFT International Standard ISO/FDIS 19691:2026(en)
Measurement method of corrosion for weathering steel
structures
1 Scope
This document specifies a method for measuring the corrosion loss of each part of structures using
unpainted steel such as weathering steel by using the attached coupons.
This document also provides a prediction method for corrosion loss over a long period from the measurement
results and a method for determining the applicability of existing and new constructing weathering steel
structures.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at https:// www .electropedia .org/
3.1
weathering steel
low-maintenance steel widely used for large structures
Note 1 to entry: Weathering steel typically contains Cu and Ni. It is widely used for large structures like
bridges, buildings and towers.
Note 2 to entry: This type of steel is low maintenance because a protective and adhesive rust layer forms
when exposed to the atmosphere.
4 Object
For this test, the object of measurement of corrosion loss is large structures with specific microclimates
for either different elements or different surfaces or both. The material of the object structures is uncoated
steel, such as weathering steel, to which a corrosion protective covering is not applied and is limited to cases
that take the form of general corrosion.
5 Exposure test method
5.1 Shape of coupon
The coupon structure shall be as follows:
a) The standard shape of the coupon is square with a one-side length of 50 mm as shown in Figure 1.
However, square coupons with a one-side length of 40 mm to 150 mm may also be used, provided it is
possible to secure the accuracy of mass measurements.

b) The standard thickness of the coupon is 2 mm. Thicknesses in the range of 1,5 mm to 3 mm should be
used.
c) The edges of the coupon shall be chamfered.
d) The material of the coupon shall be the steel material which the formula evaluated. To evaluate corrosion
of each part of the structure, the test coupons should be made of the same alloys of the structure
material.
e) The coupon number shall be marked on the adhesive side of the coupon. Mechanical finishing of both
the front and back of the exposed side should be performed.
Key
1 test piece
2 chamfer
3 exposed side
4 back side
Figure 1 — Standard shape and specifications of test piece
5.2 Installation
The coupon shall be attached as follows:
a) The standard coupon attachment method is shown in Figure 2. Dust shall be removed from the surface
to which the coupon is to be attached, and the coupon shall be attached using double-sided adhesive
tape as the standard method.
b) The double-sided tape shall have sufficient adhesion and durability so that the coupon does not detach
during the exposure period. If an exposure period of 5 or more years is applicable, the panels should be
checked at least every year. Make use of a fa
...

Formatted
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
ISO/TC 156 N7912
Style Definition
...
Style Definition
...
Style Definition
...
ISO/TC 156
Style Definition
...
Secretariat: SAC
Style Definition
...
Style Definition
...
Date: 2025-122026-04-15
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Measurement method of corrosion for weathering steel structures
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
FDIS stage Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
Style Definition
...
St l D fi iti
Formatted: Font: Bold
Formatted: HeaderCentered
Formatted: Default Paragraph Font
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication
Formatted: Right: 1.5 cm, Bottom: 1 cm, Gutter: 0 cm,
may be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying,
Header distance from edge: 1.27 cm, Footer distance
or posting on the internet or an intranet, without prior written permission. Permission can be requested from either ISO
from edge: 0.5 cm
at the address below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: + 41 22 749 01 11
Formatted: French (Switzerland)
EmailE-mail: [e-mail]
Formatted: French (Switzerland)
Website: www.iso.orgwww.iso.org
Formatted: French (Switzerland)
Published in Switzerland
Formatted: Font: 10 pt
Formatted: Font: 10 pt
Formatted: Font: 11 pt
Formatted: FooterPageRomanNumber, Space After: 0
pt, Line spacing: single
ii © ISO #### 2026 – All rights reserved
ii
Formatted: Font: Bold
Formatted: Font: Bold, English (United Kingdom)
Formatted: Font: Bold
Contents
Formatted: Font: Bold
Formatted: HeaderCentered, Left
Foreword . v
Formatted: Adjust space between Latin and Asian text,
Introduction . vi
Adjust space between Asian text and numbers
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Object . 2
5 Exposure test method . 2
5.1 Shape of coupon. 2
5.2 Installation . 3
5.3 Installation part . 5
5.4 Exposure period . 6
6 Evaluation methods . 6
6.1 General. 6
6.2 Documentation of coupon appearance . 6
6.3 Method of removing corrosion product on coupon surface . 7
6.4 Calculation of corrosion loss. 7
6.5 Prediction method . 8
7 Electrochemical measurement of ion transfer resistance to characterize the protective
rust layer on weathering steel . 8
8 Test report . 8
Annex A (informative) Prediction method for long term corrosion loss and determining the
applicability of weathering steel structures . 10
Bibliography . 13

Foreword . iv
Introduction . v
1 Scope . 1
2 Normative references  . 1
3 Terms and definitions . 1
4 Object . 1
5 Exposure test method . 1
6 Evaluation methods . 4
7 Report . 5
Annex A (informative) Annex title e.g. Example of a figure and a table . 7
Formatted: Font: 10 pt
A.1 Method for prediction of corrosion loss . 7
Formatted: Font: 10 pt
A.1.1 Regression equation . 7
Formatted: FooterCentered, Left, Space Before: 0 pt,
A.1.2 Number of data (exposure period) . 7
Tab stops: Not at 17.2 cm
A.2 Method for selecting coupon attachment positions . 8 Formatted: Font: 11 pt
Formatted: FooterPageRomanNumber, Left, Space
A.2.1 When the purpose is partial evaluation of the structure . 8
After: 0 pt, Tab stops: Not at 17.2 cm
iii
Formatted: Font: Bold
Formatted: HeaderCentered
A.2.2 When the purpose is overall evaluation of the structure . 8
A.3 Corrosion prediction method for newly-constructed structures . 8
A.3.1 When a nearby existing structure can be used . 8
A.3.2 When a nearby existing structure cannot be used . 8
A.4 Method for determination of the suitability of the structure . 9
A.4.1 Determination based on required performance . 9
A.4.2 Determination based on the corrosion environment . 9
Bibliography . 10
Formatted: Font: 10 pt
Formatted: Font: 10 pt
Formatted: Font: 11 pt
Formatted: FooterPageRomanNumber, Space After: 0
pt, Line spacing: single
iv © ISO #### 2026 – All rights reserved
iv
Formatted: Font: Bold
Formatted: Font: Bold, English (United Kingdom)
Formatted: Font: Bold
Foreword
Formatted: Font: Bold
ISO (the International Organization for Standardization) is a worldwide federation of national standards
Formatted: HeaderCentered, Left
bodies (ISO member bodies). The work of preparing International Standards is normally carried out through
Formatted: Adjust space between Latin and Asian text,
ISO technical committees. Each member body interested in a subject for which a technical committee has been
Adjust space between Asian text and numbers
established has the right to be represented on that committee. International organizations, governmental and
non-governmental, in liaison with ISO, also take part in the work. ISO collaborates closely with the
International Electrotechnical Commission (IEC) on all matters of electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are described
in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the different types of
ISO document should be noted. This document was drafted in accordance with the editorial rules of the
ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Formatted: English (United Kingdom)
Formatted: Default Paragraph Font, English (United
ISO draws attention to the possibility that the implementation of this document may involve the use of (a)
Kingdom)
patent(s). ISO takes no position concerning the evidence, validity or applicability of any claimed patent rights
in respect thereof. As of the date of publication of this document, ISO had not received notice of (a) patent(s)
which may be required to implement this document. However, implementers are cautioned that this may not
represent the latest information, which may be obtained from the patent database available at
www.iso.org/patents.www.iso.org/patents. ISO shall not be held responsible for identifying any or all such
patent rights.
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and expressions
related to conformity assessment, as well as information about ISO's adherence to the World Trade
Organization (WTO) principles in the Technical Barriers to Trade (TBT), see
www.iso.org/iso/foreword.htmlwww.iso.org/iso/foreword.html.
Formatted: English (United Kingdom)
This document was prepared by Technical Committee ISO/TC 156, Corrosion of metals and alloys.
Formatted: Adjust space between Latin and Asian text,
Adjust space between Asian text and numbers
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www.iso.org/members.htmlwww.iso.org/members.html.
Formatted: Font: 10 pt
Formatted: Font: 10 pt
Formatted: FooterCentered, Left, Space Before: 0 pt,
Tab stops: Not at 17.2 cm
Formatted: Font: 11 pt
Formatted: FooterPageRomanNumber, Left, Space
After: 0 pt, Tab stops: Not at 17.2 cm
v
Formatted: Font: Bold
Formatted: HeaderCentered
Introduction
Weathering steels are environmentally friendly steels that are used in structures without painting. For
example, weathering steel is often used in bridges in mountainous areas in the world. In structural steels,
reduction of the cross section of members due to corrosion can cause deformation and buckling and thus
fracture. For this reason, it is important to understand the corrosion behaviour of each part of the structural
members.
Corrosion depends on the microclimate of each part of a member. For example, corrosion is affected by
whether the member is directly exposed to rainfall, whether its surface is horizontal or vertical, how much de-
icing salt is applied, etc.
In the outdoor exposure test using a normal rack , there is a problem that, the corrosion behaviour of the
individual parts of complicated structures cannot be evaluated. Although evaluation is possible by using a
simulation or the actual structure, coring samples cannot be evaluated by weight loss. A method using a depth
gauge and ultrasonic waves is also possible but has low accuracy for thickness reduction.
To solve these problems, a unique exposure test method, in which small steel coupons are attached to the
target parts of members of the actual structure, has been established. This method makes it possible to
measure the corrosion loss on only one side of the members of the structure. It is useful for making decisions
regarding the timing of maintenance, or whether a new structure should be constructed at the site.
This document is useful and effective for the security of structures worldwide.
Formatted: Font: 10 pt
Formatted: Font: 10 pt
Formatted: Font: 11 pt
Formatted: FooterPageRomanNumber, Space After: 0
pt, Line spacing: single
vi © ISO #### 2026 – All rights reserved
vi
DRAFT International Standard ISO/DIS 19691:2025(en)

Formatted: Left
Measurement method of corrosion for weathering steel structures
Formatted: Right: 1.5 cm, Bottom: 1 cm, Gutter: 0 cm,
1 Scope
Header distance from edge: 1.27 cm, Footer distance
from edge: 0.5 cm
This document specifies a method for measuring the corrosion loss of each part of structures using unpainted
steel such as weathering steel by using the attached coupons.
This document also provides a prediction method for corrosion loss over a long period from the measurement
results and a method for determining the applicability of existing and new constructing weathering steel
structures.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
ISO 8407, Corrosion of metals and alloys — Removal of corrosion products from corrosion test specimens
ISO 9223, Corrosion of metals and alloys — Corrosivity of atmospheres — Classification, determination and
estimation
ISO 9224, Corrosion of metals and alloys — Corrosivity of atmospheres — Guiding values for the corrosivity
categories
ISO 22410, Corrosion of metals and alloys — Electrochemical measurement of ion transfer resistance to
characterize the protective rust layer on weathering steel
There are no normative references in this document.
3 Terms and definitions Formatted: Adjust space between Latin and Asian text,
Adjust space between Asian text and numbers
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
Formatted: English (United Kingdom)
Formatted: Font: 11 pt, English (United Kingdom)
— — ISO Online browsing platform: available at https://www.iso.org/obphttps://www.iso.org/obp
Formatted: English (United Kingdom)
— — IEC Electropedia: available at https://www.electropedia.org/https://www.electropedia.org/
Formatted: English (United Kingdom)
3.1 3.1
Formatted: TermNum2, Adjust space between Latin
weathering steel
and Asian text, Adjust space between Asian text and
low-maintenance steel widely used for large structures numbers
Note 1 to entry: Weathering steel containingtypically contains Cu, and Ni.,. It is widely used for large structures
like bridges, buildings, and towers and other large structures.
Formatted: Adjust space between Latin and Asian text,
Note 2 to entry: This type of steel is low maintenance because of its low maintenance characteristics resulting
Adjust space between Asian text and numbers
from the formation of a protective and adhesive rust layer forms when exposed to the atmosphere.
Formatted: Footer, Left, Space After: 0 pt, Tab stops:
Not at 17.2 cm
Formatted: Font: Bold
Formatted: HeaderCentered
4 Object
TheFor this test, the object of measurement of corrosion loss by this test is large structures with specific
microclimatemicroclimates for either different elements or different surfaces, or both. The material of the
object structures is uncoated steel, such as weathering steel, to which a corrosion protective covering is not
applied and is limited to cases that take the form of general corrosion.
5 Exposure test method
5.1 Shape of coupon
Formatted: Adjust space between Latin and Asian text,
Adjust space between Asian text and numbers, Tab
The coupon structure shall be as follows:
stops: Not at 0.71 cm
Formatted: Adjust space between Latin and Asian text,
a) a) The standard shape of the coupon is square with a one-side length of 50 mm as shown in
Adjust space between Asian text and numbers
Figure 1.Figure 1. However, square coupons with a one-side length of 40 mm to 150 mm may also be used,
Formatted: Numbered + Level: 1 + Numbering Style: a,
provided it is possible to secure the accuracy of mass measurements.
b, c, … + Start at: 1 + Alignment: Left + Aligned at: 0
cm + Indent at: 0 cm, Adjust space between Latin and
b) b) The standard thickness of the coupon is 2 mm. Thicknesses in the range of 1,5 mm to 3 mm
Asian text, Adjust space between Asian text and
should also be used if necessary.
numbers
c) c) The edges of the coupon are toshall be chamfered.
d) d) The material of the coupon shall be the steel material which the formula evaluated. To evaluate
corrosion of each part of the structure, the test coupons should be made of the same alloys of the structure
material.
e) e) The coupon number shall be marked on the adhesive side of the coupon. Mechanical finishing
of both the front and back of the exposed side should be performed.

50 2
2 2
3 4
(unit : mm)
2 2
Formatted: Font: 10 pt
Formatted: Font: 10 pt
Formatted: Font: 11 pt
Formatted: FooterPageNumber, Space After: 0 pt, Line
spacing: single
2 © ISO #### 2026 – All rights reserved
ISO/DISFDIS 19691:20252026(en) Formatted: Font: 11 pt, Bold
Formatted: Font: 11 pt, Bold
Formatted: Font: 11 pt, Bold
Formatted: Font: Bold
Formatted: HeaderCentered, Left

Key
1 test piece
2 chanfer
3 exposed side
4 back side
1 test piece
2 chamfer
3 exposed side
4 back side
Figure 1 — Standard shape and specifications of test piece.
Formatted: None, Adjust space between Latin and
Asian text, Adjust space between Asian text and
numbers
5.2 Installation
Formatted: Adjust space between Latin and Asian text,
The method of attaching the coupon shall be attached as follows: Adjust space between Asian text and numbers, Tab
stops: Not at 0.71 cm
a) a) The standard coupon attachment method is shown in Figure 2.Figure 2. Dust shall be removed
Formatted: Adjust space between Latin and Asian text,
from the surface to which the coupon is to be attached, and the coupon is toshall be attached using double-
Adjust space between Asian text and numbers
sided adhesive tape as the standard method.
Formatted: Numbered + Level: 1 + Numbering Style: a,
b, c, … + Start at: 1 + Alignment: Left + Aligned at: 0
b) b) The double-sided tape shall have sufficient adhesion and durability so that the coupon does
cm + Indent at: 0 cm, Adjust space between Latin and
not detach during the exposure period. If an exposure period of 5 or more years is applicable, the panels
Asian text, Adjust space between Asian text and
should be checked at least every year. Make use of a fall prevention aid, see 5.2,5.2, list item d).
numbers
c) c) The double-sided tape is toshall be set so that it is larger than the dimensions of the coupon.
As a guideline, theThe tape should protrude from the outer periphery of the coupon by approximately
Formatted: Font: Cambria
1 mm.
Formatted: Font: 10 pt
d) d) Examples of the condition of coupon installation are shown in Figure 2Figure 2 and
Formatted: Font: 10 pt
Figure 3.Figure 3. As shown in Figure 3, in orderFigure 3, to prevent the test pieces from falling and
damaging pedestrians, cars, etc., a method is used in which a hole of about 2 mm ⌀ is made in the sample Formatted: FooterCentered, Left, Space Before: 0 pt,
and a wire is passed through it. Tab stops: Not at 17.2 cm
Formatted: Font: 11 pt
Formatted: FooterPageNumber, Left, Space After: 0 pt,
Tab stops: Not at 17.2 cm
Formatted: Font: Bold
Formatted: HeaderCentered
Key
Formatted: Font color: Auto
1 test piece
Formatted: Key Title
2 double-sided tape
3 steel member
4 surface preparation
1 test piece
2 double-sided tape
3 steel member
4 surface preparation
1 1
4 4
Formatted: None, Adjust space between Latin and
Figure 2 — Method of attaching test piece
Asian text, Adjust space between Asian text and
numbers
Formatted: Font: 10 pt
Formatted: Font: 10 pt
Formatted: Font: 11 pt
Formatted: FooterPageNumber, Space After: 0 pt, Line
spacing: single
4 © ISO #### 2026 – All rights reserved
ISO/DISFDIS 19691:20252026(en) Formatted: Font: 11 pt, Bold
Formatted: Font: 11 pt, Bold
Formatted: Font: 11 pt, Bold
Formatted: Font: Bold
Formatted: HeaderCentered, Left

Key
Formatted: Font color: Auto
1 test piece
Formatted: Key Title
2 coated wire
3 steel member
4 Nylon thread
1 test piece
2 coated wire Formatted: None, Adjust space between Latin and
Asian text, Adjust space between Asian text and
3 steel member
numbers
4 Nylon thread
Formatted: List Number 1, Numbered + Level: 1 +
Figure 3 — Outline of test piece attachment
Numbering Style: a, b, c, … + Start at: 1 + Alignment:
Left + Aligned at: 0 cm + Indent at: 0 cm, Adjust space
between Latin and Asian text, Adjust space between
a) In addition, the following conditions apply:
Asian text and numbers
Formatted: List Number 2, Numbered + Level: 1 +
1) — Position the hole in the panel so that it is about 5 mm from the edge and the dripping water
Numbering Style: 1, 2, 3, … + Start at: 1 + Alignment:
does not run over the whole panel, see Figure 3.Figure 3.
Left + Aligned at: 0 c
...
