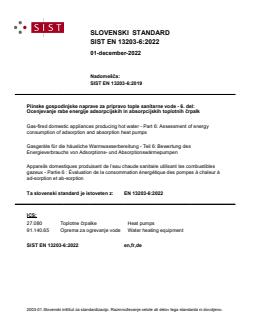

SLOVENSKI STANDARD
SIST EN 13203-6:2022
01-december-2022
Nadomešča:
SIST EN 13203-6:2019
Plinske gospodinjske naprave za pripravo tople sanitarne vode - 6. del:
Ocenjevanje rabe energije adsorpcijskih in absorpcijskih toplotnih črpalk
Gas-fired domestic appliances producing hot water - Part 6: Assessment of energy
consumption of adsorption and absorption heat pumps
Gasgeräte für die häusliche Warmwasserbereitung - Teil 6: Bewertung des
Energieverbrauchs von Adsorptions- und Absorptionswärmepumpen
Appareils domestiques produisant de l’eau chaude sanitaire utilisant les combustibles
gazeux - Partie 6 : Évaluation de la consommation énergétique des pompes à chaleur à
ad-sorption et ab-sorption
Ta slovenski standard je istoveten z: EN 13203-6:2022
ICS:
27.080 Toplotne črpalke Heat pumps
91.140.65 Oprema za ogrevanje vode Water heating equipment
SIST EN 13203-6:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 13203-6:2022

---------------------- Page: 2 ----------------------
SIST EN 13203-6:2022

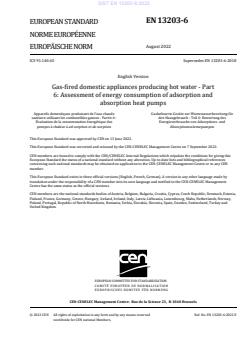

EN 13203-6
EUROPEAN STANDARD

NORME EUROPÉENNE

August 2022
EUROPÄISCHE NORM
ICS 91.140.65 Supersedes EN 13203-6:2018
English Version

Gas-fired domestic appliances producing hot water - Part
6: Assessment of energy consumption of adsorption and
absorption heat pumps
Appareils domestiques produisant de l'eau chaude Gasbefeuerte Geräte zur Warmwasserbereitung für
sanitaire utilisant les combustibles gazeux - Partie 6 : den Hausgebrauch - Teil 6: Bewertung des
Évaluation de la consommation énergétique des Energieverbrauchs von Adsorptions- und
pompes à chaleur à ad-sorption et ab-sorption Absorptionswärmepumpen
This European Standard was approved by CEN on 13 June 2022.

This European Standard was corrected and reissued by the CEN-CENELEC Management Centre on 7 September 2022.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.





EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATIO N

EUROPÄISCHES KOMITEE FÜR NORMUN G

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13203-6:2022 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)

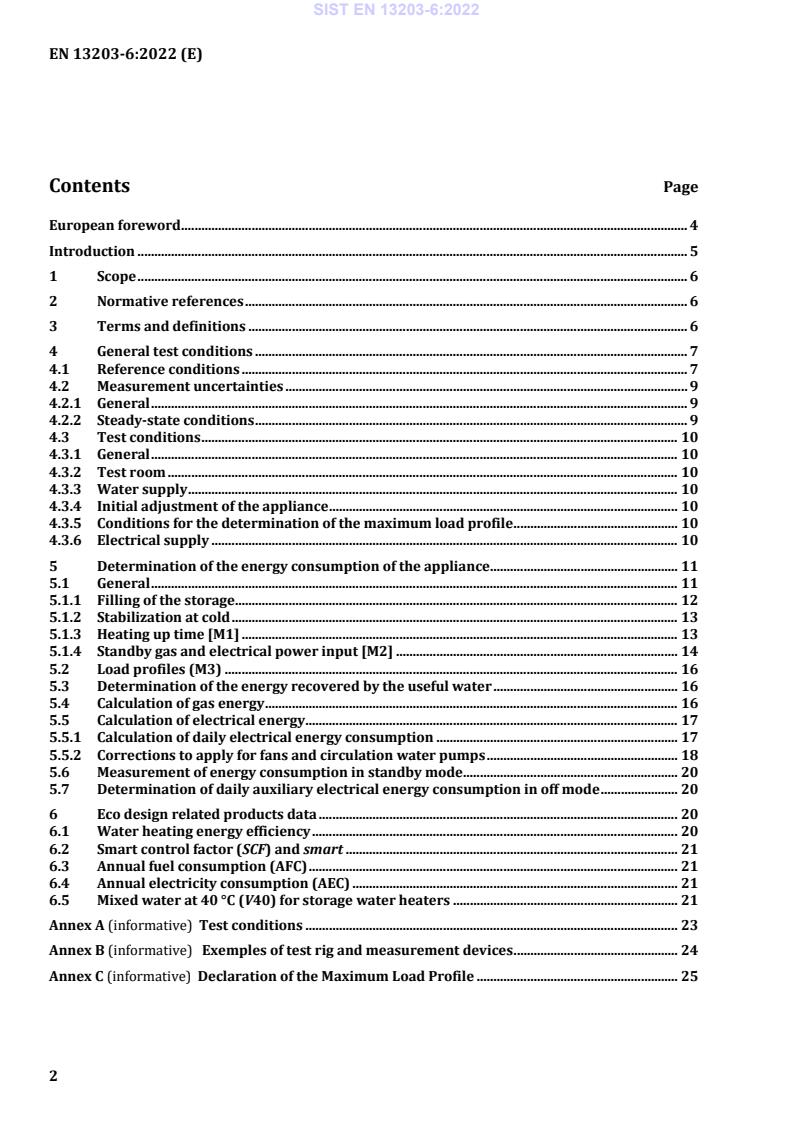

Contents Page
European foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General test conditions . 7
4.1 Reference conditions . 7
4.2 Measurement uncertainties . 9
4.2.1 General . 9
4.2.2 Steady-state conditions . 9
4.3 Test conditions . 10
4.3.1 General . 10
4.3.2 Test room . 10
4.3.3 Water supply . 10
4.3.4 Initial adjustment of the appliance . 10
4.3.5 Conditions for the determination of the maximum load profile . 10
4.3.6 Electrical supply . 10
5 Determination of the energy consumption of the appliance . 11
5.1 General . 11
5.1.1 Filling of the storage. 12
5.1.2 Stabilization at cold . 13
5.1.3 Heating up time [M1] . 13
5.1.4 Standby gas and electrical power input [M2] . 14
5.2 Load profiles (M3) . 16
5.3 Determination of the energy recovered by the useful water . 16
5.4 Calculation of gas energy . 16
5.5 Calculation of electrical energy . 17
5.5.1 Calculation of daily electrical energy consumption . 17
5.5.2 Corrections to apply for fans and circulation water pumps . 18
5.6 Measurement of energy consumption in standby mode . 20
5.7 Determination of daily auxiliary electrical energy consumption in off mode . 20
6 Eco design related products data . 20
6.1 Water heating energy efficiency . 20
6.2 Smart control factor (SCF) and smart . 21
6.3 Annual fuel consumption (AFC) . 21
6.4 Annual electricity consumption (AEC) . 21
6.5 Mixed water at 40 °C (V40) for storage water heaters . 21
Annex A (informative) Test conditions . 23
Annex B (informative)  Exemples of test rig and measurement devices . 24
Annex C (informative) Declaration of the Maximum Load Profile . 25
2

---------------------- Page: 4 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
Annex ZA (informative) Relationship between this European Standard and the ecodesign
requirements of Commission Regulation (EU) n° 814/2013 [OJEU L239 of 6 September
2013] aimed to be covered . 26
Annex ZB (informative) Relationship between this European Standard and the energy labelling
requirements of Commission Delegated Regulation (EU) No 812/2013 [OJEU L239 of 6
September 2013] aimed to be covered . 27
Annex ZC (informative) Relationship between this European Standard and the ecodesign
requirements of Commission Regulation (EU) n° 813/2013 [OJEU L239 of 6 September
2013] aimed to be covered . 29
Annex ZD (informative) Relationship between this European Standard and the energy labelling
requirements of Commission Delegated Regulation (EU) No 811/2013 [OJEU L239 of 6
September 2013] aimed to be covered . 30
Bibliography . 32

3

---------------------- Page: 5 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
European foreword
This document (EN 13203-6:2022) has been prepared by Technical Committee CEN/TC 109 “Central heating
boilers using gaseous fuels”, the secretariat of which is held by NEN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by February 2023, and conflicting national standards shall be withdrawn
at the latest by February 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent
rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 13203-6:2018.
The main technical changes compared to EN 13203-6:2018 are the following:
— to provide a means of conforming to requirements of Commission Delegated Regulation (EC) n°
813/2013, (EC) n° 811/2013, (EC) n° 812/2013 and (EC) n° 814/2013;
— incorporation of ECOTESTS results.
This document has been prepared under a Standardization Request given to CEN by the European
Commission and the European Free Trade Association, and supports essential requirements of EU
Directive(s) / Regulation(s).
For relationship with EU Directive(s) / Regulation(s), see informative Annex ZA, ZB, ZC or ZD, which is an
integral part of this document.
The safety operation of the boiler or water heater is not covered by this document. Safety should be proved by
means of the essential safety requirements of the Gas Appliances Regulation 2016/426/UE. This may be
achieved by compliance with the appropriate existing harmonized standards.
Any feedback and questions on this document should be directed to the users’ national standards body. A
complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North Macedonia,
Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

4

---------------------- Page: 6 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
Introduction
This document refers to clauses of EN 13203-2:2022 or adapts clauses by stating in the corresponding clause,
on the principle:
— shall be according to EN 13203-2:2022, (clause number) with the following modification;
— shall be according to EN 13203-2:2022, (clause number) with the following addition;
— EN 13203-2:2022, (clause number) is replaced with the following;
— EN 13203-2:2022, (clause number) is not applicable.
NOTE Useful standards are series EN 15502 and series EN 12309.

5

---------------------- Page: 7 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
1 Scope
This document is applicable to gas-fired appliances producing domestic hot water. It applies to sorption heat
pumps connected to or including a domestic hot water storage tank. It applies to a package marketed as single
unit or fully specified that have:
— a heat input not exceeding 400 kW;
— a hot water storage tank capacity (if any) not exceeding 2 000 l.
In the case of gas-fired sorption heat pumps, with or without storage tank, domestic hot water production is
integrated or coupled, the whole being marketed as a single unit.
EN 13203-1:2015 sets out in qualitative and quantitative terms the performance in delivery of domestic hot
water for a selected variety of uses. It also gives a system for presenting the information to the user. The
present document sets out a method for assessing the energy performance of the appliances. It specifies a
number of daily load profiles for each domestic hot water use, kitchen, shower, bath and a combination of
these, together with corresponding test procedures, enabling the energy performances of different gas-fired
appliances to be compared and matched to the needs of the user. Where other technologies are combined
with a gas-fired sorption heat pump to produce domestic hot water, specific parts of EN 13203 apply.
Horizontal ground heat sources are not covered by the scope of the present document.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
Shall be according to EN 13203-2:2022, Clause 2, with the following additions:
EN 13203-2:2022, Gas-fired domestic appliances producing hot water — Part 2: Assessment of energy
consumption
EN 14511-3:2018, Air conditioners, liquid chilling packages and heat pumps for space heating and cooling and
process chillers, with electrically driven compressors — Part 3: Test methods
3 Terms and definitions
Shall be according to EN 13203-2:2022, Clause 3, with the following additions:
3.1
indoor ambient air
heat source for a heat pump which absorbs heat by a heat exchanger in direct contact with the air inside a
building without any dedicated duct
3.2
brine
heat transfer medium which has a freezing point depressed relative to water
3.3
sorption heat pump
encased assembly or assemblies designed as an appliance whose primary function is delivery of domestic hot
water or domestic hot water and heating, where the primary function is dependent on circulation of fluid
(refrigerant and/or solution) within the absorption, adsorption or refrigerant circuit(s)
6

---------------------- Page: 8 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
3.4
gas-fired sorption heat pump combined with a gas-fired appliance
appliance which is either placed on the market or specified as a complete package to deliver safely and
effectively domestic hot water and/or heating, comprising as relevant:
— gas-fired sorption heat pump;
— gas-fired appliance;
— ducts if appropriate;
— thermal store
3.5
ground heat source
heat source of a sorption heat pump for which a heat exchanger, vertically embedded into the ground, is used
to extract heat from the surrounding soil or rock by way of a brine circuit through the evaporator
3.6
solar collector source
heat source of a sorption heat pump for which a solar thermal collector is used to capture radiation energy
from the sun by way of a brine circuit through the evaporator
3.7
external static pressure difference (Δp )
e
positive pressure difference measured between the air (or water) outlet section and the air (or water) inlet
section of the unit, which is available for overcoming the pressure drop of any additional ducted air (or water)
circuit
3.8
internal static pressure difference (Δp )
i
negative pressure difference measured between the air (or water) outlet section and the air (or water) inlet
section of the unit, which corresponds to the total pressure drop of all components on the air (or water) side
of the unit
4 General test conditions
4.1 Reference conditions
Shall be according to EN 13203-2:2022, 4.1, with the following additions:
“The tests shall be carried out at the test conditions specified in Table 1 as appropriate.
7

---------------------- Page: 9 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
Table 1 — Test conditions for particular types of systems
Heat source
Heat source inlet
Air Dry (Wet) Range of ambient Ambient
a
Type of heat source bulb temperature of temperature of
/ outlet or bath
temperature heat pump (°C) storage tank (°C)
temperature (°C)
(°C)
Outdoor air heat pump  from 15 to 30 20
(placed indoor side)

Average
7 (6)
Colder
2 (1)
Warmer
14 (13)
Outdoor air heat pump  Heat source 20
(outdoor side) temperature

Average
7 (6)
Colder
2 (1)
Warmer
14 (13)
Non heated space air 15 (12) Heat source 15
temperature
Indoor air 20 (15) Heat source 20
temperature
Exhaust air 20 (12) from 15 to 30 20
Water 10 / 7 from 15 to 30 20
Brine 0 / −3 from 15 to 30 20
Direct evaporation a from 15 to 30 20
4
a
  Brine bath mean temperature for direct evaporation testing case, the ambient temperature.

In addition the permissible variations allowed for the test conditions when the heat pump is running shall not
exceed shall not exceed the values specified in Table 2.
8

---------------------- Page: 10 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
Table 2 — Variations allowed for the test conditions when the heat pump is running
Variations of arithmetical mean values Variations of individual readings from
from specified test conditions specified test conditions
Readings
a Interval D c a b c
Interval H Interval S Interval H Interval D Interval S
b

Air temperature
d ±0,6 K ±1,5 K ±1,0 K ±5,0 K ±2,5 K
dry bulb
wet bulb ±0,4 K ±1,0 K ±0,6 K -
Volume flow ±5 % ±10 %
Static pressure
- ±10 %

difference
ambient
temperature of
the tank (if not ±1,0 K ±2,0 K
used as heat
source)
a
  Interval H applies when the heat pump is operating, except for the first 10 min after termination of a defrost cycle,
and the first 10 min after a restart of the heat pump.
b
  Interval D applies during a defrost cycle and during the first 10 min after the termination of a defrost cycle when the
heat pump is operating in the heating mode.
c
  Interval S applies when the compressor is stopped and during the first 10 min after the hot water thermostat has
started again the heat pump.
d 2
  For units with outdoor heat exchanger surfaces greater than 5 m , the deviation on the air inlet dry bulb temperature
is doubled.
“.
4.2 Measurement uncertainties
4.2.1 General
Shall be according to EN 13203-2:2022, 4.2.1, with the following additions: “
— air as heat source dry bulb temperature: ± 0,2 K;
— air as heat source wet bulb temperature: ± 0,3 K;
— water/brine as heat source: ± 0,15 K;
— brine from ground or solar source: ± 0,2 K.”.
4.2.2 Steady-state conditions
Shall be according to EN 13203-2:2022, 4.2.2.
9

---------------------- Page: 11 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
4.3 Test conditions
4.3.1 General
Shall be according to EN 13203-2:2022, 4.3.1, except the second sentence modified as follows:
“For gas fired appliances combined with gas heat pump, the tests shall be …”.
and the following sentences added:
“If liquid heat transfer media other than water is used, the specific heat capacity and density of such heat
transfer media shall be determined and taken into consideration in the evaluation.
When the gas-fired sorption heat pump combined with a gas-fired appliance does not operate in heat pump
mode for domestic hot water production according to data in Table 1, the test shall be performed according to
EN 13203-2:2022 instead.”.
4.3.2 Test room
Shall be according to EN 13203-2:2022, 4.3.2, with the following additions:
“If the package incorporates an air source outdoor heat exchanger a further test room is needed. The size of
this test room shall be designed to avoid any resistance to air flow at the air inlet and air outlet orifices of the
test object. The air flow through this room shall not cause any short circuit between the two orifices, and
therefore the velocity of air flow at these two locations shall not exceed 1,5 m/s when the test object is
switched off. The air velocity in the room shall also not be greater than the mean velocity through the unit
inlet.
Unless otherwise stated in the technical documentation, the air inlet and air outlet orifices shall not be less
than 1 m from the surfaces of the test room; this also applies to any measuring ducts.
For sorption heat pumps separated from the storage tank, the liquid flow rate has to be set on the liquid outlet
side of the heat pump to the nominal flow rate specified in the installation and/or operation manual.
The sorption heat pump and/or package shall be installed and connected for the test as specified in the
installation instructions.
Temperature and pressure measuring points shall be situated in order to obtain significant mean values.
Set points for internal control equipment of the unit such as thermostats, pressure switches or mixing valves
shall be set to the values stated in the installation and/or operation instructions.
Air and entrained gases shall be removed from all water and other heat transfer liquid systems.
Each water pipe shall be installed in accordance with the installation instructions to the maximum stated
length or 5 m whichever is shorter. Thermal insulation shall be applied to the pipes in accordance with the
installation instructions.”.
4.3.3 Water supply
Shall be according to EN 13203-2:2022, 4.3.3.
4.3.4 Initial adjustment of the appliance
Shall be according to EN 13203-2:2022, 4.3.4.
4.3.5 Conditions for the determination of the maximum load profile
Shall be according to EN 13203-2:2022, 4.3.5.
4.3.6 Electrical supply
Shall be according to EN 13203-2:2022, 4.3.6.
10

---------------------- Page: 12 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
5 Determination of the energy consumption of the appliance
5.1 General
EN 13203-2:2022, 5.1, is replaced by the new clause as follows:
“5.1 Basic principles for the measurements of the performance
This clause specifies the test methods to apply for the determination of the energy consumption of the
covered appliances which consists of the following two preparation tests and the four measurement tests.
— [P1] Filling and storage volume (see 5.1.2);
— [P2] Stabilization at cold conditions (see 5.1.3);
— [M1] Heating up (see 5.1.4);
— [M2] Standby mode for electrical power input and gas input measurements (see 5.1.5);
— [M3] Tapping cycle application with all water draw-offs according to EN 13203-2:2022, 5.2;
— [M4] Mixed water at 40 °C and reference hot water temperature (see 7.7).
The measurement steps 1 to 4 are performed according to in Figure 1.
Each individual test can be performed independently provided that its starting conditions are the same as the
ending conditions of the tests just before.
11

---------------------- Page: 13 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
M1 M2 M3
M4

Key
M1: heating up time
M2: standby power (electric and gas)
M3: water draw-offs (tapping)
M4: mixed water at 40 °C and reference hot water temperature
T : temperature
t : time
a : set point temperature
Figure 1 — Measurements [M1] to [M4]
5.1.1 Filling of the storage
The empty storage tank of the appliance is weighted including the inlet and outlet taps or connections.
Then it is filled with water as stated in the installation and operation instructions at the pressure of the
incoming cold water. When it is filled, the water supply is cut off and the appliance is weighed, including the
taps or connections.
The difference between the two weights (m ) shall be converted into volume, in litres, according to the
act
following formula:
m
act
Vm= 1000 (1)
ρ T
( )
where
V is the rated volume of the hot water storage tank, in l;
m
m is the difference of the two weights, in kg;
act
12

---------------------- Page: 14 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
ρ(T) 3
is the specific volume of cold water, in kg/m ;
T is the temperature of the water used to fill the tank, in °C.

This volume is to be reported in litres to the nearest one-tenth litres.
Filling of the storage are not applicable to heat pump combination heaters.
NOTE The temperature (T) reached after stabilization (see 5.1.2) can be used to calculate the specific volume ρ(T).
5.1.2 Stabilization at cold
The appliance is kept at ambient conditions until all its parts have reached ambient conditions ± 1 K.
NOTE A waiting time of 24 h is enough to reach stabilization.
5.1.3 Heating up time [M1]
The test consists of determining the heating up time (t ) necessary to heat the stored water from its initial
eh
cold state temperature until the first time the gas heat pump is turned off by the set thermostat of the storage
tank. The gas and/or electrical consumption are also measured.
Before launching the test, the cold water is circulated in the tank until the outlet temperature becomes equal
to the inlet temperature within the allowed variation specified (±0,5 K).
When this initial state temperature of the cold water is reached, the gas heat pump is switched on.
After this initial start of the gas heat pump, the gas and electrical supplies are left on for the duration of the
test.
The heating up time (t ) and the corresponding gas input (Q ) and/or electrical (W ) consumptions
eh gas,eh eh
shall be measured from the moment the gas heat pump is switched on until it is shut off by the thermostat of
the storage tank.
The gas consumption is calculated according to the following formula:
Q = K.NCV V (2)
gas,eh g
where
Q is the gas energy consumption to heating up the tank, in kWh;
gas eh
V 3
g is the measured gas consumption during the heating up period, in m ;
NCV 3
is the net calorific value (at 15 °C and 1 013,25 mbar), in kWh/m ;
K is the correction constant and is calculated according to the following formula:
pp+− p
a gs 288,15
K ⋅ (3)
1013,,25 T + 273 15
g
 
5262
 
Ps exp 21,094− (4)
 
273,15+ T
g
 
with
p is the atmospheric pressure, in mbar;
a
13
=
=

---------------------- Page: 15 ----------------------
SIST EN 13203-6:2022
EN 13203-6:2022 (E)
p is the gas pressure, in mbar;
g
p is the saturated vapour pressure of water at T (mbar); if a dry meter is used for the
s g
measurement of the volume, the value of (P ) is equal to zero;
s
T is the gas temperature, in °C.
g

The total electrical energy consumption is calculated according to following formula:
W W − W (5)
eh eh−−M EL Corr
where
W is the total electrical energy consumption during the heating up duration (t ), in kWh;
eh eh
W is the measured electrical energy consumption during the heating up duration, in kWh;
eh-M
W is the correction due to electrical energy consumption of fan or circulating pump during
EL-Corr
the heating up period, in kWh. calculated in 5.5.2 with t equal to heating up duration t .
d eh

If the gas heat pump did not operate during the heat up period the measured value is not corrected and is
determined by the following formula:
W = W (6)
eh eh−M
5.1.4 Standby gas and electrical power
...

SLOVENSKI STANDARD
oSIST prEN 13203-6:2021
01-februar-2021
Plinske gospodinjske naprave za pripravo tople sanitarne vode - 6. del:
Ocenjevanje rabe energije adsorpcijskih in absorpcijskih toplotnih črpalk
Gas-fired domestic appliances producing hot water - Part 6: Assessment of energy
consumption of adsorption and absorption heat pumps
Gasbeheizte Geräte für die sanitäre Warmwasserbereitung für den Hausgebrauch - Teil
6: Bewertung des Energieverbrauchs von gasbeheizten Sorptionswärmepumpen
Appareils domestiques produisant de leau chaude sanitaire utilisant les combustibles
gazeux - Partie 6 : Évaluation de la consommation énergétique des pompes à chaleur à
ad-sorption et ab-sorption
Ta slovenski standard je istoveten z: prEN 13203-6
ICS:
27.080 Toplotne črpalke Heat pumps
91.140.65 Oprema za ogrevanje vode Water heating equipment
oSIST prEN 13203-6:2021 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 13203-6:2021

---------------------- Page: 2 ----------------------
oSIST prEN 13203-6:2021


DRAFT
EUROPEAN STANDARD
prEN 13203-6
NORME EUROPÉENNE

EUROPÄISCHE NORM

February 2021
ICS 91.140.65 Will supersede EN 13203-6:2018
English Version

Gas-fired domestic appliances producing hot water - Part
6: Assessment of energy consumption of adsorption and
absorption heat pumps
Appareils domestiques produisant de l¿eau chaude Gasbeheizte Geräte für die sanitäre
sanitaire utilisant les combustibles gazeux - Partie 6 : Warmwasserbereitung für den Hausgebrauch - Teil 6:
Évaluation de la consommation énergétique des Bewertung des Energieverbrauchs von gasbeheizten
pompes à chaleur à ad-sorption et ab-sorption Sorptionswärmepumpen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 109.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.


EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 13203-6:2021 E
worldwide for CEN national Members.

---------------------- Page: 3 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
Contents Page
European Foreword . 4
Introduction . 5
1 Scope . 6
2 Normative references . 6
3 Terms and definitions . 6
4 General test conditions . 8
4.1 Reference conditions . 8
4.2 Measurement uncertainties . 9
4.2.1 General . 9
4.2.2 Steady-state conditions . 9
4.3 Test conditions . 9
4.3.1 General . 9
4.3.2 Test room . 9
4.3.3 Water supply . 10
4.3.4 Initial adjustment of the appliance . 10
4.3.5 Conditions for the determination of the maximum load profile . 10
4.3.6 Electrical supply . 10
5 Determination of the energy consumption of the appliance . 10
5.1 General . 10
5.1.1 Filling of the storage. 11
5.1.2 Stabilization at cold . 12
5.1.3 Heating up time [M1] . 12
5.1.4 Standby gas and electrical power input [M2] . 13
5.2 Load profiles (M3) . 15
5.3 Determination of the energy recovered by the useful water . 15
5.4 Calculation of gas energy . 15
5.4.1 Calculation of daily electrical energy consumption . 15
5.4.2 Corrections to apply for fans and circulation water pumps . 16
5.5 Calculation of daily electrical energy consumption . 17
5.6 Measurement of energy consumption in standby mode . 17
5.7 Determination of daily auxiliary electrical energy consumption in off mode . 17
6 Determination of the ratio of wasted water to total water . 17
7 Eco design Related Products Data . 17
7.1 Water heating energy efficiency . 17
7.2 Smart control factor (SCF) and smart . 17
7.3 Annual fuel consumption (AFC) . 17
7.4 Annual electricity consumption (AEC) . 17
7.5 Mixed water at 40°C (V40) for storage water heaters . 18
Annex A (informative)  Test conditions . 20
Annex B (informative)  Exemples of test rig and measurement devices . 21
Annex C (informative) Declaration of the Maximum Load Profile . 22
2

---------------------- Page: 4 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
Annex ZA (informative) Relationship between this European Standard and the ecodesign
requirements of Commission Regulation (EU) n° 814/2013 [OJEU L239 of 6 September
2013] aimed to be covered . 23
Annex ZB (informative) Relationship between this European Standard and the energy labelling
requirements of Commission Delegated Regulation (EU) No 812/2013 [OJEU L239 of 6
September 2013] aimed to be covered . 24
Annex ZC (informative) Relationship between this European Standard and the ecodesign
requirements of Commission Regulation (EU) n° 813/2013 [OJEU L239 of 6 September
2013] aimed to be covered . 26
Annex ZD (informative) Relationship between this European Standard and the energy labelling
requirements of Commission Delegated Regulation (EU) No 811/2013 [OJEU L239 of 6
September 2013] aimed to be covered . 27
Bibliography . 29
3

---------------------- Page: 5 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
European Foreword
This document (prEN 13203-6:2021) has been prepared by Technical Committee CEN/TC 109 “Central
heating boilers using gaseous fuels”, the secretariat of which is held by NEN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 13203-6:2018.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For relationship with EU Directive(s), see informative Annex ZA, B, C or D, which is an integral part of this
document.
The main purpose of this revision is to provide a means of conforming to requirements of Commission
Delegated Regulation (EC) n° 813/2013, (EC) n° 811/2013, (EC) n° 812/2013 and (EC) n° 814/2013.
The safety operation of the boiler or water heater is not covered by this standard. Safety should be proved by
means of the essential safety requirements of the Gas Appliances Regulation 2016/426/UE. This may be
achieved by compliance with the appropriate existing harmonized standards.
NOTE Useful standards are series EN 15502 and series EN 12309.
4

---------------------- Page: 6 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
Introduction
This document refers to clauses of prEN 13203-2:2020 or adapts clauses by stating in the corresponding
clause, on the principle:
— shall be according to prEN 13203-2:2020, (clause number) with the following modification;
— shall be according to prEN 13203-2:2020, (clause number) with the following addition;
— prEN 13203-2:2020, (clause number) is replaced by the following;
— prEN 13203-2:2020, (clause number) is not applicable.
5

---------------------- Page: 7 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
1 Scope
This document is applicable to gas-fired appliances producing domestic hot water. It applies to sorption heat
pumps connected to or including a domestic hot water storage tank. It applies to a package marketed as single
unit or fully specified that have:
— a heat input not exceeding 400 kW; and
— a hot water storage tank capacity (if any) not exceeding 2000 l.
In the case of combination boilers, with or without storage tank, domestic hot water production is integrated
or coupled, the whole being marketed as a single unit.
EN 13203-1 sets out in qualitative and quantitative terms the performance in delivery of domestic hot water
for a selected variety of uses. It also gives a system for presenting the information to the user. The present
document sets out a method for assessing the energy performance of the appliances. It defines a number of
daily load profiles for each domestic hot water use, kitchen, shower, bath and a combination of these, together
with corresponding test procedures, enabling the energy performances of different gas-fired appliances to be
compared and matched to the needs of the user. Where other technologies are combined with a gas-fired
boiler or a water heater to produce domestic hot water, specific parts of EN 13203 apply.
Horizontal ground heat sources are not covered by the scope of the present European Standard.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content constitutes
requirements of this document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
prEN 13203-2:2020, Gas-fired domestic appliances producing hot water - Part 2: Assessment of energy
consumption
EN 14511-1:2018, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling - Part 1: Terms, definitions and classification
EN 14511-2:2018, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling - Part 2: Test conditions
EN 14511-3:2018, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling - Part 3: Test methods
EN 14511-4:2018, Air conditioners, liquid chilling packages and heat pumps with electrically driven
compressors for space heating and cooling - Part 4: Operating requirements, marking and instructions
3 Terms and definitions
For the purposes of this document, the terms and definitions given in prEN 13203-2:2020 and the following
apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
6

---------------------- Page: 8 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
3.1
indoor ambient air
heat source for a heat pump which absorbs heat by a heat exchanger in direct contact with the air inside a
building without any dedicated duct
3.2
brine
heat transfer medium which has a freezing point depressed relative to water
3.3
sorption heat pump
encased assembly or assemblies designed as an appliance whose primary function is delivery of domestic hot
water or domestic hot water and heating, where the primary function is dependent on circulation of fluid
(refrigerant and/or solution) within the absorption, adsorption or refrigerant circuit(s)
3.4
gas-fired sorption heat pump combined with a gas-fired appliance
appliance which is either placed on the market or specified as a complete package to deliver safely and
effectively domestic hot water and/or heating, comprising as relevant:
— gas-fired sorption heat pump;
— gas-fired appliance;
— ducts if appropriate;
— thermal store
3.5
ground heat source
heat source of a sorption heat pump for which a heat exchanger, vertically embedded into the ground, is used
to extract heat from the surrounding soil or rock by way of a brine circuit through the evaporator
3.6
solar collector source
heat source of a sorption heat pump for which a solar thermal collector is used to capture radiation energy
from the sun by way of a brine circuit through the evaporator
3.7
external static pressure difference (Δp )
ext
positive pressure difference measured between the air (or water) outlet section and the air (or water) inlet
section of the unit, which is available for overcoming the pressure drop of any additional ducted air (or water)
circuit
3.8
internal static pressure difference (Δp )
int
negative pressure difference measured between the air (or water) outlet section and the air (or water) inlet
section of the unit, which corresponds to the total pressure drop of all components on the air (or water) side
of the unit
7

---------------------- Page: 9 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
4 General test conditions
4.1 Reference conditions
Shall be according to prEN 13203-2:2020, 4.1, with the following additions:
The tests shall be carried out at the test conditions specified in Table 1 as appropriate.
Table 1 — Test conditions for particular types of systems
Type of heat source Heat source Range of ambient Ambient temperature
temperature (°C) temperature for heat a)
of storage tank

pump
(°C)
(°C)
7 ± 0,2
20 ± 3 20 ± 3
Outside air (heat pump
(6 ± 0,3)
indoor) with air duct


7 ± 0,2
Outside air
7 ± 3 20 ± 3
(heat pump outdoor)
(6 ± 0,3)



20 ± 0,2
Exhaust air 20 ± 3 20 ± 3
(12 ± 0,3)


Water (inlet) 10 ± 0,15 20 ± 3 20 ± 3

Brine (inlet) 0 ± 0,15 20 ± 3 20 ± 3

b)
Ground heat source
7 ± 0,2 20 ± 3
(Brine, inlet) 20 ± 3


c)
Solar collector source
12 ± 0,2 20 ± 3 20 ± 3
(Brine, inlet)

a)
In case of outside storage tank the temperature shall be 7 ± 0,2 °C.
b)
Applies to vertical ground heat exchanger with extraction rates lower than 35 W/m, for which brine return
temperatures don't fall below 4°C after 25 years of operation (VDI 4046-2:2001).
c) 2 2
Applies to aperture area to heat extraction ratios of > 3 m /kW for flat plate collectors and > 2 m /kW for vacuum
tube collectors.
NOTE 1 All heat source temperatures are inlet temperatures in °C.
NOTE 2 All air temperatures in (brackets) are wet bulb temperatures in °C.
8

---------------------- Page: 10 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
4.2 Measurement uncertainties
4.2.1 General
Shall be according to prEN 13203-2:2020, 4.2.1, with the following additions:
— air as heat source dry bulb temperature: ± 0,2 K;
— air as heat source wet bulb temperature: ± 0,3 K;
— water/brine as heat source: ± 0,15 K;
— brine from ground or solar source: ± 0,2 K.
4.2.2 Steady-state conditions
Shall be according to prEN 13203-2:2020, 4.2.2.
4.3 Test conditions
4.3.1 General
Shall be according to prEN 13203-2:2020, 4.3.1, except the second sentence modified as follows:
"For gas fired appliances combined with gas heat pump, the tests shall be …".
and the following sentences added:
“If liquid heat transfer media other than water is used, the specific heat capacity and density of such heat
transfer media shall be determined and taken into consideration in the evaluation.”
When the gas-fired sorption heat pump combined with a gas-fired appliance does not operate in heat pump
mode for domestic hot water production according to data in Table 1, the test shall be performed according to
EN 13203-2 instead.”
4.3.2 Test room
Shall be according to prEN 13203-2:2020, 4.3.2, with the following additions:
“If the package incorporates an air source outdoor heat exchanger a further test room is needed. The size of
this test room shall be designed to avoid any resistance to air flow at the air inlet and air outlet orifices of the
test object. The air flow through this room shall not cause any short circuit between the two orifices, and
therefore the velocity of air flow at these two locations shall not exceed 1,5 m/s when the test object is
switched off. The air velocity in the room shall also not be greater than the mean velocity through the unit
inlet.
Unless otherwise stated in the technical documentation, the air inlet and air outlet orifices shall not be less
than 1 m from the surfaces of the test room; this also applies to any measuring ducts.
For sorption heat pumps separated from the storage tank, the liquid flow rate has to be set on the liquid outlet
side of the heat pump to the nominal flow rate specified in the installation and/or operation manual.
The sorption heat pump and/or package shall be installed and connected for the test as specified in the
installation instructions.
Temperature and pressure measuring points shall be situated in order to obtain significant mean values.
Set points for internal control equipment of the unit such as thermostats, pressure switches or mixing valves
shall be set to the values stated in the installation and/or operation instructions.
9

---------------------- Page: 11 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
Air and entrained gases shall be removed from all water and other heat transfer liquid systems.
Each water pipe shall be installed in accordance with the installation instructions to the maximum stated
length or 5 m whichever is shorter. Thermal insulation shall be applied to the pipes in accordance with the
installation instructions.”
4.3.3 Water supply
Shall be according to prEN 13203-2:2020, 4.3.3
4.3.4 Initial adjustment of the appliance
Shall be according to prEN 13203-2:2020, 4.3.4
4.3.5 Conditions for the determination of the maximum load profile
Shall be according to prEN 13203-2:2020, 4.3.5.
4.3.6 Electrical supply
Shall be according to prEN 13203-2:2020, 4.3.6
5 Determination of the energy consumption of the appliance
5.1 General
prEN 13203-2:2020, 5.1, is replaced by the new clause as follows:
"5.1 Basic principles for the measurements of the performance
This clause defines the test methods to apply for the determination of the energy consumption of the covered
appliances which consists of the following two preparation tests and the four measurement tests.
— [P1] Filling and storage volume (see 5.1.2);
— [P2] Stabilization at cold conditions (see 5.1.3);
— [M1] Heating up (see 5.1.4);
— [M2] Standby mode for electrical power input and gas input measurements (see 5.1.5);
— [M3] Tapping cycle application with all water draw-offs according to prEN 13203-2:2020, 5.2;
— [M4] Mixed water at 40 °C and reference hot water temperature (see 7.7).
The measurement steps 1 to 4 are performed according to in Figure 1.
Each individual test can be performed independently provided that its starting conditions are the same as the
ending conditions of the tests just before.
10

---------------------- Page: 12 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)

Key
M1: Heating up time
M2: Standby power (electric and gas)
M3: Water draw-offs (tapping)
M4: Mixed water at 40 °C and reference hot water temperature
T: temperature
t: time
a: set point temperature
Figure 1 — Measurements [M1] to [M4]
5.1.1 Filling of the storage
The empty storage tank of the appliance is weighted including the inlet and outlet taps or connections.
Then it is filled with water as stated in the installation and operation instructions at the pressure of the
incoming cold water. When it is filled, the water supply is cut off and the appliance is weighed, including the
taps or connections.
The difference between the two weights (mact) shall be converted into volume, in litres, according to the
following formula:
m
act
Vm=1000 (1)
ρ T
( )
where
Vm is the rated volume of the hot water storage tank, in l;
mact is the difference of the two weights, in kg;
11

---------------------- Page: 13 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
3
ρ(T) is the specific volume of cold water, in kg/m .
T is the temperature of the water used to fill the tank, in °C.
This volume is to be reported in litres to the nearest one-tenth litres.
Filling of the storage are not applicable to heat pump combination heaters.
NOTE The temperature (T) reached after stabilisation (see 5.1.2) can be used to calculate the specific volume ρ(T).
5.1.2 Stabilization at cold
The appliance is kept at ambient conditions until all its parts have reached ambient conditions ± 1 K.
NOTE A waiting time of 24 h is enough to reach stabilisation.
5.1.3 Heating up time [M1]
The test consists of determining the heating up time (teh) necessary to heat the stored water from its initial
cold state temperature until the first time the gas-heat pump is turned off by the set thermostat of the storage
tank. The gas and/or electrical consumption are also measured.
Before launching the test, the cold water is circulated in the tank until the outlet temperature becomes equal
to the inlet temperature within the allowed variation specified (± 0,5 K).
When this initial state temperature of the cold water is reached, the gas heat pump is switched on.
After this initial start of the gas heat pump, the gas and electrical supplies are left on for the duration of the
test.
The heating up time (teh) and the corresponding gas (Qgas) and/or electrical (Weh-HP) consumptions shall
be measured from the moment the gas heat pump-is switched on until it is shut off by the thermostat of the
storage tank.
The gas consumption is calculated according to the following formula:
QV = K.NCV. (2)
gas,eh g
where
Q is the gas energy consumption to heating up the tank, in kWh;
gas eh
3
V is the measured gas consumption during the heating up period, in m ;
g
3
NCV is the net calorific value (at 15 °C and 1013,25 mbar), in kWh/m .
K is the correction constant and is calculated according to the following formula:

pa+−pg ps 288,15
K= (3)


1013,25 Tg+ 273,15


5262
Ps exp 21,094− (4)


273,15+ T
g

with
pa is the atmospheric pressure, in mbar;
p is the gas pressure, in mbar;
g
p
s
12
=

---------------------- Page: 14 ----------------------
oSIST prEN 13203-6:2021
prEN 13203-6:2021 (E)
is the saturated vapour pressure of water at tg (mbar); If a dry meter is used for the measurement of the
volume, the value of (ps) is equal to zero
T is the gas temperature, in °C.
g
The total electrical energy consumption is calculated according to following formula:
(5)
W WW−
eh−HP eh−−M EL Corr
where
Weh-HP is the total electrical energy consumption during the heating up duration (teh), in kWh;
Weh-M is the measured electrical energy consumption during the heating up duration, in kWh;
WEL-Corr is the correction due to electrical energy consumption of fan during the heating up period,
in kWh.
WEL-Corr is calculated according to the following formula:
t
eh
 
V t ∆
()
1
air p
W = dt (6)
 
EL−Corr

 
3600.1000 η
0 f
 
Where
Ƞ is the efficiency of the fan according to EN 14511-3;
f
3
V (t) is the nominal air flowrate, in m /s;
air
Δp is the measured external or internal static pressure difference, in Pa;
t is the heat up duration, in s.
eh
If the gas heat pump did not operate during the heat up period the measured value is not corrected and is
determined by the following formula:
WW= (7)
eh−HP eh−M
5.1.4 Standby gas and electrical power input [M2]
This test can be launched just after the gas heat pump shut off caused by the thermostat following the heating
up period.
The standby gas and/or electrical consumptions are measured over several on-off cycles of the-gas heat pump
initiated by the thermostat of the storage tank without any water draw-off.
This test shall be performed over a period not less than 48 h except if six on-off cycles have occurred before
reaching 48 h
The time duration (tes), the gas (Qgas,es) and/or the electrical (Wes-HP) energy consumptions at standby are
the values measured at the last on-off cycle.
The gas consumption at standby is calculated according to the following formula:
QV = K.NCV. (8)
( )
gas,es g
where
Qgas,es is the gas energy consumption of the last on/off cycle, in kWh;
3
Vg is the measured gas consumption of the last on/off cycle, in m ;
3
NCV is the net calorific value (at 15 °C and 1013,25 mbar), in kWh/m ;
13
=
