SIST EN 61881-3:2012/A1:2014

Railway applications - Rolling stock equipment - Capacitors for power electronics - Part 3: Electric double-layer capacitors

This part of IEC 61881 applies to d.c. electric double-layer capacitors (cell, module and bank) for power electronics intended to be used on rolling stock. This standard specifies quality requirements and tests, safety requirements, and describes installation and operation information. NOTE Example of the application for capacitors specified in this Standard; d.c. energy storage, etc. Capacitors not covered by this Standard: - IEC 61881-1: Paper/plastic film capacitors; - IEC 61881-2: Aluminium electrolytic capacitors with non-solid electrolyte. Guidance for installation and operation is given in Clause 9.

Bahnanwendungen - Betriebsmittel auf Bahnfahrzeugen - Kondensatoren für Leistungselektronik - Teil 3: Doppelschichtkondensatoren

Applications ferroviaires - Matériel roulant - Condensateurs pour électronique de puissance - Partie 3: Condensateurs électriques à double couche

Železniške naprave - Oprema voznih sredstev - Kondenzatorji za močnostno elektroniko - 3. del: Električni dvoplastni kondenzatorji - Dopolnilo A1 (IEC 61881-3:2012/A1:2013)

Ta del standarda IEC 61881 se nanaša na električne dvoplastne kondenzatorje (celice, module ali banke) z enosmerno napetostjo za močnostno elektroniko, ki se uporablja pri železniških voznih sredstvih. Ta standard določa zahteve kakovosti in preskusov, varnostne zahteve ter vsebuje navodila za namestitev in uporabo. OPOMBA Primer uporabe za kondenzatorje, ki so določeni v tem standardu; shranjevanje energije z enosmerno napetostjo idr. Kondenzatorji, ki niso zajeti v standardu: - IEC 61881-1: papirnati/plastični film kondenzatorji; - IEC 61881-2: aluminijski elektrolitski kondenzatorji z elektrolitom, ki ni v trdem stanju. Navodila za namestitev in uporabo so podana v 9. členu.

General Information

• Status: Published
• Publication Date: 09-Dec-2013
• ICS: 31.060.70 - Power capacitors
• ICS: 45.040 - Materials and components for railway engineering
• Technical Committee: ŽEN - Electrical applications for railways
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 05-Dec-2013
• Due Date: 09-Feb-2014
• Completion Date: 10-Dec-2013
• Ref Project: EN 61881-3:2012/A1:2013 - Railway applications - Rolling stock equipment - Capacitors for power electronics - Part 3: Electric double-layer capacitors

Relations

• Amends: SIST EN 61881-3:2012 - Railway applications - Rolling stock equipment - Capacitors for power electronics - Part 3: Electric double-layer capacitors (IEC 61881-3:2012)
• Effective Date: 04-Jan-2013

Overview

EN 61881-3:2012/A1:2013 is the CENELEC amendment to IEC 61881-3 covering electric double-layer capacitors (EDLCs) used in railway rolling stock power electronics. It updates test methods, definitions and acceptance criteria specific to EDLC cells, modules and banks for traction and on-board power applications. The amendment was approved in 2013 and endorsed for national implementation by CENELEC members.

Key Topics

• Scope: Addresses EDLCs as part of capacitors for power electronics on rolling stock (railway vehicles).
• Definitions: Revises the definition of maximum operating temperature (case temperature at which the capacitor may be operated) and deletes a previous definition (3.19).
• Short-circuit test (replaces “surge discharge test”):
  • Preconditioning and initial measurement of capacitance and internal resistance required.
  • Capacitor charged to rated voltage within 5 minutes, held for 5 minutes, then short‑circuited; repeated five times.
  • Discharge circuit resistance must be ≤ internal resistance of the capacitor or 1 mΩ (whichever is lower).
  • Post-test measurements and acceptance by agreement between manufacturer and purchaser; no visible damage or electrolyte leakage allowed.
• Endurance cycling test (revised procedure):
  • Preconditioning, initial/final capacitance and internal resistance measurements.
  • Test temperature: 10 °C below the maximum operating temperature specified by the manufacturer; temperature measured at the cell case or hottest cell in a module.
  • Charge/discharge cycling steps specified with currents expressed as mA/F per cell (e.g., 5 mA/F and 50 mA/F) and defined voltage hold times.
  • End-of-test criteria: capacitance reaching 70% of initial or internal resistance reaching 200% of initial (module/bank end-of-life when first cell reaches criteria).
  • Acceptance: unless otherwise agreed, capacitance ≥ 70% of initial and internal resistance ≤ 200% of specified; no leakage or visible damage.
• Bibliography addition: IEC 60529 (IP Code) included.

Applications

This standard is used to ensure safe, reliable EDLC performance in railway power electronics such as:

• On-board energy storage and regeneration systems
• DC link smoothing and peak shaving in traction inverters
• Auxiliary power and braking energy recovery systems

Who uses it:

• Rolling stock manufacturers and system integrators
• Capacitor and module manufacturers
• Test laboratories and certification bodies
• Procurement/specification engineers and maintenance teams

Related Standards

• IEC 61881-3:2012 (base international standard)
• IEC 60529 (Degrees of protection / IP Code) - referenced in the bibliography
• CENELEC implementation documents and national adoptions

Keywords: EN 61881-3:2012/A1:2013, electric double-layer capacitors, railway capacitors, rolling stock, power electronics, short-circuit test, endurance cycling test, capacitance, internal resistance, CENELEC.

Standards Content (Sample)

SLOVENSKI STANDARD
01-januar-2014
äHOH]QLãNHQDSUDYH2SUHPDYR]QLKVUHGVWHY.RQGHQ]DWRUML]DPRþQRVWQR
HOHNWURQLNRGHO(OHNWULþQLGYRSODVWQLNRQGHQ]DWRUML'RSROQLOR$,(&
$
Railway applications - Rolling stock equipment - Capacitors for power electronics - Part
3: Electric double-layer capacitors
Bahnanwendungen - Betriebsmittel auf Bahnfahrzeugen - Kondensatoren für
Leistungselektronik - Teil 3: Doppelschichtkondensatoren
Applications ferroviaires - Matériel roulant - Condensateurs pour électronique de
puissance - Partie 3: Condensateurs électriques à double couche
Ta slovenski standard je istoveten z: EN 61881-3:2012/A1:2013
ICS:
31.060.70 0RþQRVWQLNRQGHQ]DWRUML Power capacitors
45.040 Materiali in deli za železniško Materials and components
tehniko for railway engineering
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD
EN 61881-3/A1
NORME EUROPÉENNE
November 2013
EUROPÄISCHE NORM
ICS 45.060
English version
Railway applications -
Rolling stock equipment -
Capacitors for power electronics -
Part 3: Electric double-layer capacitors
(IEC 61881-3:2012/A1:2013)
Applications ferroviaires -  Bahnanwendungen -
Matériel roulant - Betriebsmittel auf Bahnfahrzeugen -
Condensateurs pour électronique Kondensatoren für Leistungselektronik -
de puissance - Teil 3: Doppelschichtkondensatoren
Partie 3: Condensateurs électriques (IEC 61881-3:2012/A1:2013)
à double couche
(CEI 61881-3:2012/A1:2013)
This amendment A1 modifies the European Standard EN 61881-3:2012; it was approved by CENELEC on 2013-
10-21. CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate
the conditions for giving this amendment the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on
application to the CEN-CENELEC Management Centre or to any CENELEC member.

This amendment exists in three official versions (English, French, German). A version in any other language
made by translation under the responsibility of a CENELEC member into its own language and notified to the
CEN-CENELEC Management Centre has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus,
the Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland,
Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung

CEN-CENELEC Management Centre: Avenue Marnix 17, B - 1000 Brussels

© 2013 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.
Ref. No. EN 61881-3:2012/A1:2013 E

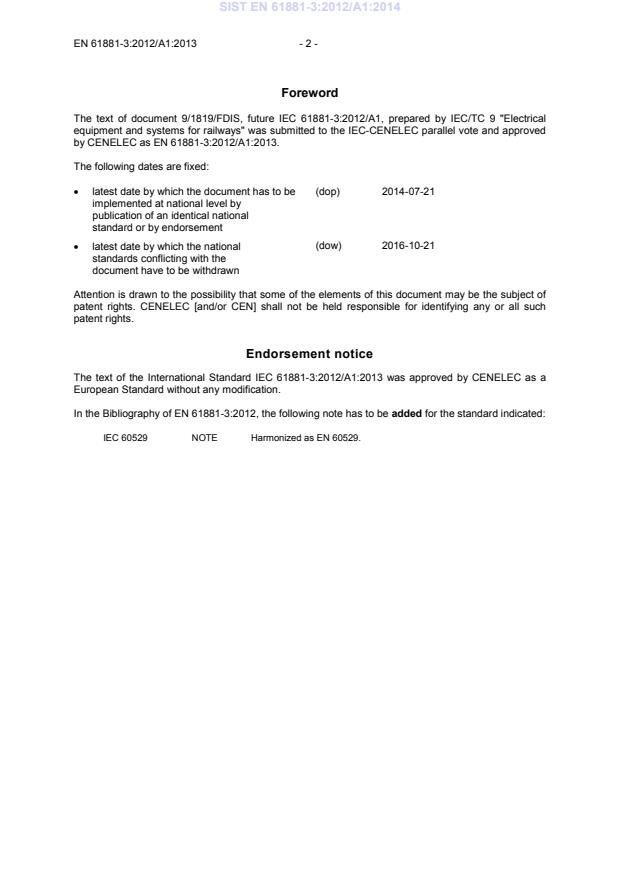

Foreword
