Railway applications - Traction transformers and inductors on board rolling stock

This International Standard applies to traction and auxiliary power transformers installed on
board rolling stock and to the various types of power inductors inserted in the traction and
auxiliary circuits of rolling stock, of dry or liquid-immersed design.
NOTE The requirements of IEC 60076 (all parts) are applicable to transformers and inductors where they do not
conflict with this standard, or with the specialized IEC publications dealing with traction applications.
This standard can also be applied, after agreement between purchaser and manufacturer, to
the traction transformers of three-phase a.c. line-side powered vehicles and to the
transformers inserted in the single-phase or poly-phase auxiliary circuits of vehicles, except
instrument transformers and transformers of a rated output below 1 kVA single-phase or
5 kVA poly-phase.
This standard does not cover accessories such as tap changers, resistors, heat exchangers,
fans, etc., intended for mounting on the transformers or inductors, which are tested separately
according to relevant rules.

Bahnanwendungen - Transformatoren und Drosselspulen auf Bahnfahrzeugen

Applications ferroviaires - Transformateurs de traction et bobines d'inductance à bord du matériel roulant

L'IEC 60310:2016 s'applique aux transformateurs de traction et de puissance auxiliaire à bord du matériel roulant et aux divers types de bobines d'inductance d'alimentation insérées dans les circuits de traction ou auxiliaires du matériel roulant, de conception sèche ou immergée dans un liquide. La présente Norme peut également être appliquée, après accord entre l'acheteur et le fabricant, aux transformateurs de traction des véhicules à courant alternatif triphasé côté réseau et aux transformateurs insérés dans les circuits auxiliaires monophasés ou polyphasés des véhicules, exception faite des transformateurs de mesure et des transformateurs de puissance assignée inférieure à 1 kVA en monophasé ou à 5 kVA en polyphasé. Cette nouvelle édition tient compte des nouvelles normes génériques ferroviaires, en particulier en ce qui concerne les conditions générales de service en référence à l'IEC 62498-1 et les considérations en matière de chocs et de vibrations en référence à l'IEC 61373. Elle inclut également les modifications techniques majeures suivantes par rapport à l'édition précédente:
- limites de températures;
- essai d'échauffement;
- essais diélectriques;
- essai de décharges partielles;
- méthodes de mesure d'inductance;
- essai de tenue à la tension entre bornes; etc.

Železniške naprave - Transformatorji in dušilke vlečnih tokokrogov na voznih sredstvih

Ta mednarodni standard se uporablja za transformatorje vlečnih tokokrogov in pomožne napajalne transformatorje, montirane na voznih sredstvih, ter za različne vrste napajalnih dušilk, vstavljenih v vlečnih in pomožnih tokokrogih voznih sredstev, pri suhih ali tekočinskih oblikah.
OPOMBA: Zahteve standarda IEC 60076 (vsi deli) se uporabljajo za transformatorje in dušilke, ko niso v nasprotju s tem standardom ali s specializiranimi standardi IEC, ki obravnavajo vlečne naprave.
Ta standard se lahko uporablja (po soglasju med kupcem in proizvajalcem) tudi za transformatorje vlečnih tokokrogov trifaznih pogonskih vozil ob progi na izmenično napetost in transformatorje v enofaznih ali večfaznih pomožnih tokokrogih vozil, razen za instrumentne transformatorje in transformatorje z nazivno izhodno močjo pod 1 kVA (enofazno) ali 5 kVA (večfazno). Ta standard ne zajema pripomočkov, kot so odcepni priklopniki, upori, izmenjevalniki toplote, ventilatorji itd. za pritrditev na transformatorje in dušilke, ki so preskušeni ločeno v skladu z ustreznimi pravili.

General Information

Status
Published
Publication Date
07-Jun-2016
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
23-May-2016
Due Date
28-Jul-2016
Completion Date
08-Jun-2016

Relations

Buy Standard

Standard
EN 60310:2016 - BARVE
English language
73 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

SLOVENSKI STANDARD
SIST EN 60310:2016
01-julij-2016
1DGRPHãþD
SIST EN 60310:2004
äHOH]QLãNHQDSUDYH7UDQVIRUPDWRUMLLQGXãLONHYOHþQLKWRNRNURJRYQDYR]QLK
VUHGVWYLK
Railway applications - Traction transformers and inductors on board rolling stock
Bahnanwendungen - Transformatoren und Drosselspulen auf Bahnfahrzeugen
Applications ferroviaires - Transformateurs de traction et bobines d'inductance à bord du
matériel roulant
Ta slovenski standard je istoveten z: EN 60310:2016
ICS:
29.180 Transformatorji. Dušilke Transformers. Reactors
45.060.10 9OHþQDYR]LOD Tractive stock
SIST EN 60310:2016 en
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

SIST EN 60310:2016

---------------------- Page: 2 ----------------------

SIST EN 60310:2016


EUROPEAN STANDARD EN 60310

NORME EUROPÉENNE

EUROPÄISCHE NORM
April 2016
ICS 45.060 Supersedes EN 60310:2004
English Version
Railway applications - Traction transformers and inductors on
board rolling Stock
(IEC 60310:2016)
Applications ferroviaires - Transformateurs de traction et Bahnanwendungen - Transformatoren und Drosselspulen
bobines d'inductance à bord du matériel roulant auf Bahnfahrzeugen
(IEC 60310:2016) (IEC 60310:2016)
This European Standard was approved by CENELEC on 2016-03-02. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.


European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2016 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
 Ref. No. EN 60310:2016 E

---------------------- Page: 3 ----------------------

SIST EN 60310:2016
EN 60310:2016

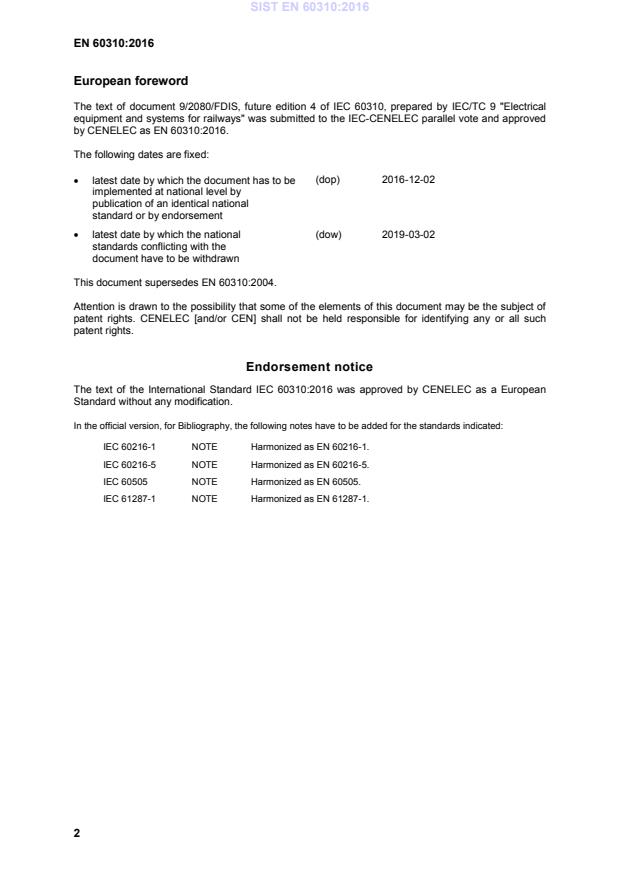

European foreword
The text of document 9/2080/FDIS, future edition 4 of IEC 60310, prepared by IEC/TC 9 "Electrical
equipment and systems for railways" was submitted to the IEC-CENELEC parallel vote and approved
by CENELEC as EN 60310:2016.

The following dates are fixed:
(dop) 2016-12-02
• latest date by which the document has to be
implemented at national level by
publication of an identical national
standard or by endorsement
• latest date by which the national (dow) 2019-03-02
standards conflicting with the
document have to be withdrawn

This document supersedes EN 60310:2004.

Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC [and/or CEN] shall not be held responsible for identifying any or all such
patent rights.

Endorsement notice
The text of the International Standard IEC 60310:2016 was approved by CENELEC as a European
Standard without any modification.
In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 60216-1 NOTE Harmonized as EN 60216-1.
IEC 60216-5 NOTE Harmonized as EN 60216-5.
IEC 60505 NOTE Harmonized as EN 60505.
IEC 61287-1 NOTE Harmonized as EN 61287-1.
2

---------------------- Page: 4 ----------------------

SIST EN 60310:2016
EN 60310:2016
Annex ZA
(normative)

Normative references to international publications
with their corresponding European publications

The following documents, in whole or in part, are normatively referenced in this document and are
indispensable for its application. For dated references, only the edition cited applies. For undated
references, the latest edition of the referenced document (including any amendments) applies.

NOTE 1 When an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.

NOTE 2 Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu

Publication Year Title EN/HD Year

IEC 60050-811 -  International electrotechnical vocabulary - -
(IEV) -
Chapter 811: Electric traction
IEC 60060-1 -  High-voltage test techniques - EN 60060-1 -
Part 1: General definitions and test
requirements
IEC 60060-2 -  High-voltage test techniques - EN 60060-2 -
Part 2: Measuring systems
IEC 60076-1 2011 Power transformers - EN 60076-1 2011
Part 1: General
IEC 60076-2 -  Power transformers - EN 60076-2 -
Part 2: Temperature rise for liquid-
immersed transformers
IEC 60076-3 -  Power transformers - EN 60076-3 -
Part 3: Insulation levels, dielectric tests and
external clearances in air
IEC 60076-4 -  Power transformers - EN 60076-4 -
Part 4: Guide to the lightning impulse and
switching impulse testing - Power
transformers and reactors
IEC 60076-5 -  Power transformers - EN 60076-5 -
Part 5: Ability to withstand short circuit
IEC 60076-6 2007 Power transformers - EN 60076-6 2008
Part 6: Reactors
IEC 60076-7 -  Power transformers - - -
Part 7: Loading guide for oil-immersed
power transformers
IEC 60076-10 -  Power transformers - EN 60076-10 -
Part 10: Determination of sound levels
IEC 60076-11 -  Power transformers - EN 60076-11 -
Part 11: Dry-type transformers
IEC 60076-12 2008 Power transformers - - -
Part 12: Loading guide for dry-type power
transformers
IEC 60076-14 -  Power transformers - EN 60076-14 -
Part 14: Liquid-immersed power
transformers using high-temperature
insulation materials
3

---------------------- Page: 5 ----------------------

SIST EN 60310:2016
EN 60310:2016
Publication Year Title EN/HD Year

IEC 60076-18 -  Power transformers - EN 60076-18 -
Part 18: Measurement of frequency
response
IEC 60077-1 -  Railway applications - Electric equipment EN 60077-1 -
for rolling stock -
Part 1: General service conditions and
general rules
IEC 60085 -  Electrical insulation - Thermal evaluation EN 60085 -
and designation
IEC 60270 -  High-voltage test techniques - Partial EN 60270 -
discharge measurements
IEC 60296 -  Fluids for electrotechnical applications - EN 60296 -
Unused mineral insulating oils for
transformers and switchgear
IEC 60836 -  Specifications for unused silicone EN 60836 -
insulating liquids for electrotechnical
purposes
IEC 60850 -  Railway applications - Supply voltages of - -
traction systems
IEC 61039 -  Classification of insulating liquids EN 61039 -
IEC 61099 -  Insulating liquids - Specifications for EN 61099 -
unused synthetic organic esters for
electrical purposes
IEC 61373 2010 Railway applications - Rolling stock EN 61373 2010
equipment - Shock and vibration tests
IEC 61378-1 2011 Convertor transformers - EN 61378-1 2011
Part 1: Transformers for industrial
applications
IEC 62497-1 -  Railway applications - Insulation - -
coordination -
Part 1: Basic requirements - Clearances
and creepage distances for all electrical
and electronic equipment
IEC 62498-1 -  Railway applications - Environmental - -
conditions for equipment - Part 1:
Equipment on board rolling stock
ISO 3746 -  Acoustics - Determination of sound power EN ISO 3746 -
levels and sound energy levels of noise
sources using sound pressure - Survey
method using an enveloping measurement
surface over a reflecting plane
ISO 9614-1 -  Acoustics - Determination of sound power EN ISO 9614-1 -
levels of noise sources using sound
intensity -
Part 1: Measurement at discrete points
ISO 9614-2 -  Acoustics - Determination of sound power EN ISO 9614-2 -
levels of noise sources using sound
intensity -
Part-2: Measurement by scanning

4

---------------------- Page: 6 ----------------------

SIST EN 60310:2016




IEC 60310

®


Edition 4.0 2016-01




INTERNATIONAL



STANDARD




NORME



INTERNATIONALE
colour

inside










Railway applications – Traction transformers and inductors on board rolling

stock




Applications ferroviaires – Transformateurs de traction et bobines d'inductance

à bord du matériel roulant
















INTERNATIONAL

ELECTROTECHNICAL

COMMISSION


COMMISSION

ELECTROTECHNIQUE


INTERNATIONALE




ICS 45.060 ISBN 978-2-8322-3107-4



Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 7 ----------------------

SIST EN 60310:2016
– 2 – IEC 60310:2016 © IEC 2016
CONTENTS
FOREWORD . 6
1 Scope . 8
2 Normative references. 8
3 Terms and definitions . 9
3.1 General definitions . 10
3.2 Definitions for transformers . 11
3.3 Definitions for inductors . 11
4 Classification . 12
4.1 Classification of transformers . 12
4.2 Classification of inductors . 12
5 Service conditions . 12
6 Rated current and load profile . 13
6.1 Load profile . 13
6.2 Rated current . 13
7 Rated voltage and power of transformer windings . 13
7.1 Rated line-side voltage . 13
7.2 Rated secondary voltage . 13
7.3 Rated power of transformer . 14
8 Transformer tappings . 14
9 Cooling . 14
9.1 Identification of transformers and inductors according to cooling method . 14
9.2 Arrangement of symbols . 15
9.2.1 Enclosed transformers and inductors . 15
9.2.2 Non-enclosed transformers and inductors . 15
9.2.3 Air cooling . 15
10 Temperature limits . 15
10.1 Classification of insulating materials . 15
10.2 Temperature limits of solid insulation . 16
10.3 Temperature limits for liquid . 16
10.4 Temperature limits for other parts . 17
11 Mechanical design . 17
12 Rating plates . 17
13 Tests . 18
13.1 Categories of tests . 18
13.1.1 General . 18
13.1.2 Type tests . 18
13.1.3 Routine tests. 18
13.1.4 Investigation tests . 18
13.2 Tests on transformers . 18
13.2.1 General – List of tests . 18
13.2.2 Tolerances . 20
13.2.3 Visual checks (type, routine test) and functional tests (optional type and
routine test) . 20
13.2.4 Mass (type and optional routine test) . 20
13.2.5 Measurement of winding resistance (type and routine tests) . 21

---------------------- Page: 8 ----------------------

SIST EN 60310:2016
IEC 60310:2016 © IEC 2016 – 3 –
13.2.6 Measurement of voltage ratio, polarities and vector groups (type and
routine tests) . 21
13.2.7 Measurement of no-load primary current and losses (type and routine
tests) . 22
13.2.8 Measurement of impedance voltages or short-circuit impedances (type
and routine tests) . 22
13.2.9 Measurement of fundamental load losses (type and routine tests) . 23
13.2.10 Determination of total losses (type test) . 24
13.2.11 Temperature-rise test (type test) . 24
13.2.12 Insulation resistance test (optional type and routine test) . 28
13.2.13 Dielectric tests (type and routine tests) . 28
13.2.14 Partial discharge test (type or optional routine test for dry-type,
investigation test for immersed type) . 34
13.2.15 Short-circuit withstand test (optional type test) . 36
13.2.16 Shock and vibration test (optional type test). 38
13.2.17 Voltage transmission ratio – VTR (optional type test) . 40
13.2.18 Noise measurement (type test) . 41
13.2.19 Leakage magnetic flux density measurement (optional type test) . 41
13.2.20 Electrical Frequency Response Analysis FRA (investigation test) . 42
13.2.21 Inrush current measurement (optional type test) . 42
13.3 Tests on inductors . 43
13.3.1 List of tests . 43
13.3.2 Tolerances . 43
13.3.3 Visual checks (type and routine test) . 44
13.3.4 Mass (type and optional routine test) . 44
13.3.5 Measurement of winding resistance (type and routine test) . 44
13.3.6 Determination of losses (type test) . 44
13.3.7 Measurement of inductance (type and routine tests) . 45
13.3.8 Temperature-rise test (type tests) . 48
13.3.9 Insulation resistance test (optional type and routine test) . 48
13.3.10 Dielectric tests (type and routine tests) . 48
13.3.11 Partial discharge test (type or optional routine test for the dry-type) . 49
13.3.12 Short-circuit withstand test (optional type test) . 49
13.3.13 Shock and vibration test (optional type test). 50
13.3.14 Vibration test with current flowing (investigation test) . 50
13.3.15 Noise measurement (type test) . 50
13.3.16 Leakage magnetic flux density measurement (optional type test) . 50
Annex A (informative) List of items for which an agreement between purchaser and
manufacturer is needed or for which further information or specifications shall be given
by the purchaser or by the manufacturer . 51
A.1 Items subject to agreement between purchaser and manufacturer . 51
A.1.1 Transformer and inductors . 51
A.1.2 Transformers . 52
A.1.3 Inductors . 53
A.2 Information to be given by purchaser to manufacturer . 54
A.2.1 Transformers and inductors . 54
A.2.2 Transformers . 55
A.2.3 Inductors . 55
A.3 Information to be given by manufacturer to purchaser . 56
A.3.1 Transformers and inductors . 56

---------------------- Page: 9 ----------------------

SIST EN 60310:2016
– 4 – IEC 60310:2016 © IEC 2016
A.3.2 Transformers . 56
A.3.3 Inductors . 56
Annex B (informative) Thermal ageing and insulation life time . 57
B.1 Insulation life time and thermal ageing . 57
B.2 Definitions of thermal endurance . 57
B.3 Thermal endurance calculations . 58
B.4 Special considerations for thermal design and test . 59
B.4.1 General . 59
B.4.2 Cooling medium temperature at the external interface . 59
B.4.3 Rated current . 60
B.4.4 Temperature rise test of a dry-type transformer/inductor . 60
B.5 Thermal conformity of the insulation system . 60
B.6 End of life criterion . 60
Annex C (informative) Example of thermal endurance calculation to demonstrate the
suitability of an insulation system for a specified application . 61
C.1 Preliminary. 61
C.2 Example 1 – Temperature limits for a dry-type transformer/inductor. 61
C.3 Example 2 – Thermal endurance calculation . 61
C.3.1 General . 61
C.3.2 Operating conditions to be provided by the purchaser . 62
C.3.3 Thermal endurance characteristics to be provided by the manufacturer . 62
C.3.4 Temperature rise test results . 62
C.3.5 Calculations . 63
Annex D (informative) Wet dielectric tests for dry-type transformers and inductors . 65
D.1 General . 65
D.2 Wet test 1 (optional type test or optional routine test): short soaking . 65
D.3 Wet test 2 (investigation test or optional type test): misting . 66
D.4 Wet test 3 (investigation test): thermal shock – long soaking – misting . 66
D.4.1 General . 66
D.4.2 Temperature conditioning . 66
D.4.3 Thermal shock . 66
D.4.4 Dielectric test . 66
D.5 Common test procedure and criteria for wet dielectric tests . 66
Annex E (informative) Load profiles . 68
Bibliography . 69

Figure 1 – Examples of set up for induced voltage withstanding tests . 31
Figure 2 – Examples of set up for separate source voltage withstanding tests . 32
Figure 3 – Examples of impulse test connections for traction, inductor and auxiliary
transformers . 33
Figure 4 – Partial discharge test: voltage versus time . 35
Figure 5 – Configurations for VTR test . 41
Figure 6 – Example of test circuit . 42

Table 1 – Letter symbols for cooling method . 14
Table 2 – Order of symbols . 15
Table 3 – Temperature limits of solid insulation . 16

---------------------- Page: 10 ----------------------

SIST EN 60310:2016
IEC 60310:2016 © IEC 2016 – 5 –
Table 4 – Temperature limits for liquid . 16
Table 5 – List of checks and tests to be made on traction transformers . 19
Table 6 – Tolerances . 20
Table 7 – Reference temperatures . 21
Table 8 – Dielectric test voltage . 30
Table 9 – Partial discharge measurements . 35
Table 10 – List of checks and tests to be made on inductors . 43
Table 11 – Tolerances . 44
Table 12 – Test method of voltage between terminals withstand test . 49
Table C.1 – Temperature limits and expected lifetime for a dry-type transformer or
inductor (examples) . 61
Table C.2 – Load cycle histogram . 62
Table C.3 – Temperature histogram . 62
Table C.4 – Temperature rise test results . 63
Table C.5 – Thermal endurance calculation . 63
Table C.6 – Equivalent current and temperatures . 64

---------------------- Page: 11 ----------------------

SIST EN 60310:2016
– 6 – IEC 60310:2016 © IEC 2016
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

RAILWAY APPLICATIONS –
TRACTION TRANSFORMERS AND
INDUCTORS ON BOARD ROLLING STOCK

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
