SIST-TS IEC/TS 62257-8-1:2008

Recommendations for small renewable energy and hybrid systems for rural electrification - Part 8-1: Selection of batteries and battery management systems for stand-alone electrification systems - Specific case of automotive flooded lead-acid batteries available in developing countries

This Technical Specification proposes simple, cheap, comparative tests in order to discriminate easily, in a panel of automotive flooded lead-acid batteries the most acceptable
model for PV Individual Electrification Systems. It could be particularly useful for project implementers to test in laboratories of developing countries, the capability of locally made car or truck batteries to be used for their project. Furthermore battery testing specifications usually need too costly and too much sophisticated test equipment to be applied in developing countries laboratories. The tests provided in this document allow to assess batteries performances according to the general specification of the project (see IEC 62257-2) and batteries associated with their Battery Management System (BMS) in a short time and with common technical means. They can be performed locally, as close as possible to the real site operating conditions.
The document provides also regulations and installation conditions to be complied with in order to ensure the life and proper operation of the installations as well as the safety of people living in proximity to the installation. This document is not a type approval standard. It is a technical specification to be used as guidelines and does not replace any existing IEC standard on batteries.

Priporočila za sisteme malih obnovljivih virov energije in hibridne sisteme za elektrifikacijo podeželja - 8-1. del: Izbira akumulatorjev in sistemov upravljanja akumulatorjev za samostojne sisteme elektrifikacije - Posebni primer za avtomobilske mokre svinčeno-kislinske akumulatorje, ki so na voljo v deželah v razvoju

General Information

• Status: Published
• Public Enquiry End Date: 31-Dec-2006
• Publication Date: 16-Sep-2008
• ICS: 27.190 - Biological sources and alternative sources of energy
• ICS: 29.220.20 - Acid secondary cells and batteries
• Technical Committee: PVS - Solar photovoltaic energy systems
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 16-Sep-2008
• Due Date: 21-Nov-2008
• Completion Date: 17-Sep-2008
• Ref Project: IEC/TS 62257-8-1 - Recommendations for small renewable energy and hybrid systems for rural electrification - Part 8-1: Selection of batteries and battery management systems for stand-alone electrification systems - Specific case of automotive flooded lead-acid batteries available in developing countries

Standards Content (sample)

SLOVENSKI STANDARD
SIST-TS IEC/TS 62257-8-1:2008
01-marec-2008
3ULSRURþLOD]DVLVWHPHPDOLKREQRYOMLYLKYLURYHQHUJLMHLQKLEULGQHVLVWHPH]D

HOHNWULILNDFLMRSRGHåHOMDGHO,]ELUDDNXPXODWRUMHYLQVLVWHPRYXSUDYOMDQMD

DNXPXODWRUMHY]DVDPRVWRMQHVLVWHPHHOHNWULILNDFLMH3RVHEQLSULPHU]D
DYWRPRELOVNHPRNUHVYLQþHQRNLVOLQVNHDNXPXODWRUMHNLVRQDYROMRYGHåHODKY
UD]YRMX

Recommendations for small renewable energy and hybrid systems for rural electrification

- Part 8-1: Selection of batteries and battery management systems for stand-alone

electrification systems - Specific case of automotive flooded lead-acid batteries available

in developing countries
Ta slovenski standard je istoveten z: IEC/TS 62257-8-1
ICS:
27.190 Biološki viri in drugi Biological sources and
alternativni viri energije alternative sources of energy
29.220.20 .LVOLQVNLVHNXQGDUQLþOHQLLQ Acid secondary cells and
EDWHULMH batteries
SIST-TS IEC/TS 62257-8-1:2008 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST-TS IEC/TS 62257-8-1:2008
---------------------- Page: 2 ----------------------
SIST-TS IEC/TS 62257-8-1:2008
TECHNICAL IEC
SPECIFICATION TS 62257-8-1
First edition
2007-06
Recommendations for small renewable energy
and hybrid systems for rural electrification –
Part 8-1:
Selection of batteries and battery management
systems for stand-alone electrification systems –
Specific case of automotive flooded lead-acid
batteries available in developing countries
PRICE CODE
Commission Electrotechnique Internationale T
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue
---------------------- Page: 3 ----------------------
SIST-TS IEC/TS 62257-8-1:2008
– 2 – TS 62257-8-1 © IEC:2007(E)

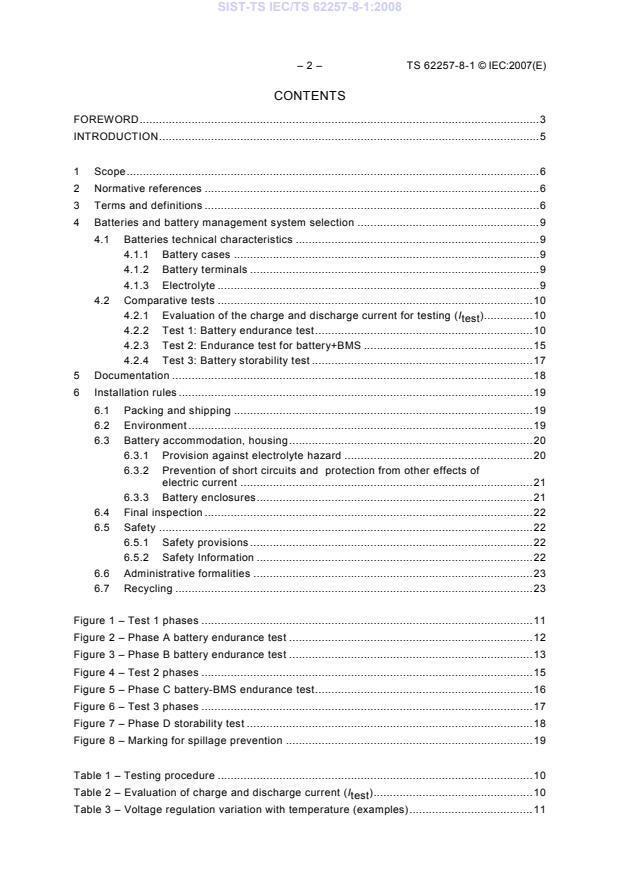

CONTENTS
