(Main)Space - Galileo Timing Receiver - Functional and Performance Requirements and associated Tests
Space - Galileo Timing Receiver - Functional and Performance Requirements and associated Tests
This document is intended to stablish and define functional and performance requirements and associated tests for Galileo Timing Receivers. This document covers the following topics related to Galileo Timing Receivers:
- GNSS constellations and frequencies processed: Galileo plus additionally GPS, with nominal mode being dual-frequency processing,
- Time scales processed, including at least Galileo System Time and Universal Time Coordinate,
- User dynamics, with two operation modes: static users with well-known and static antenna position and dynamics users with moving antenna,
- Holdover devices,
- Nominal and back-up modes, including single-frequency modes, single-constellation modes and holdover mode.
- Processing of timing integrity information disseminated by the Galileo System,
- Time Receiver Autonomous Integrity Monitoring processing,
- Anti-jamming and anti-spoofing capabilities, including Automatic Gain Control monitoring and Galileo Open Service Navigation Message Authentication processing,
- Robustness to multipath.
In addition, this document gives guidelines for the installation and maintenance of the receiver, including antenna, cabling and receiver installation, initial and periodic receiver calibration, and periodic maintenance.
On top of the functional requirements, performance requirements this document defines in terms of different key performance indicators such as:
- Accuracy, availability, continuity and integrity requirements,
- T-RAIM performances, including time to alert,
- Holdover performances including maximum degradation of the timing solution with time and maximum holdover time,
This document also gives a simple test suite to verify the most fundamental requirements of the Galileo Timing Receivers.
Raumfahrt - Galileo Timing Receiver - Funktions- und Leistungsanforderungen und zugehörige Tests
Espace - Récepteur de signaux Galileo pour référence temps - Exigences fonctionnelles et de performances, et essais associés
Vesolje - Časovni sprejemnik Galileo - Funkcionalne in izvedbene zahteve ter s tem povezani preskusi
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-februar-2025
Vesolje - Časovni sprejemnik Galileo - Funkcionalne in izvedbene zahteve ter s
tem povezani preskusi
Space - Galileo Timing Receiver - Functional and Performance Requirements and
associated Tests
Raumfahrt - Galileo Timing Receiver - Funktions- und Leistungsanforderungen und
zugehörige Tests
Espace - Récepteur de signaux Galileo pour référence temps - Exigences fonctionnelles
et de performances, et essais associés
Ta slovenski standard je istoveten z: EN 16605:2024
ICS:
33.070.40 Satelit Satellite
49.140 Vesoljski sistemi in operacije Space systems and
operations
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

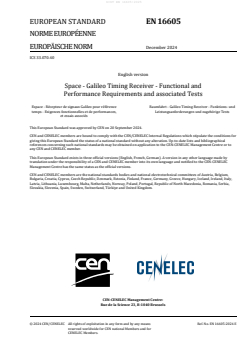

EUROPEAN STANDARD EN 16605
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2024
ICS 33.070.40
English version
Space - Galileo Timing Receiver - Functional and
Performance Requirements and associated Tests
Espace - Récepteur de signaux Galileo pour référence Raumfahrt - Galileo Timing Receiver - Funktions- und
temps - Exigences fonctionnelles et de performances, Leistungsanforderungen und zugehörige Tests
et essais associés
This European Standard was approved by CEN on 20 September 2024.
CEN and CENELEC members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for
giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical
references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to
any CEN and CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN and CENELEC member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN and CENELEC members are the national standards bodies and national electrotechnical committees of Austria, Belgium,
Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia,
Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and United Kingdom.
CEN-CENELEC Management Centre:
Rue de la Science 23, B-1040 Brussels
© 2024 CEN/CENELEC All rights of exploitation in any form and by any means
Ref. No. EN 16605:2024 E
reserved worldwide for CEN national Members and for
CENELEC Members.

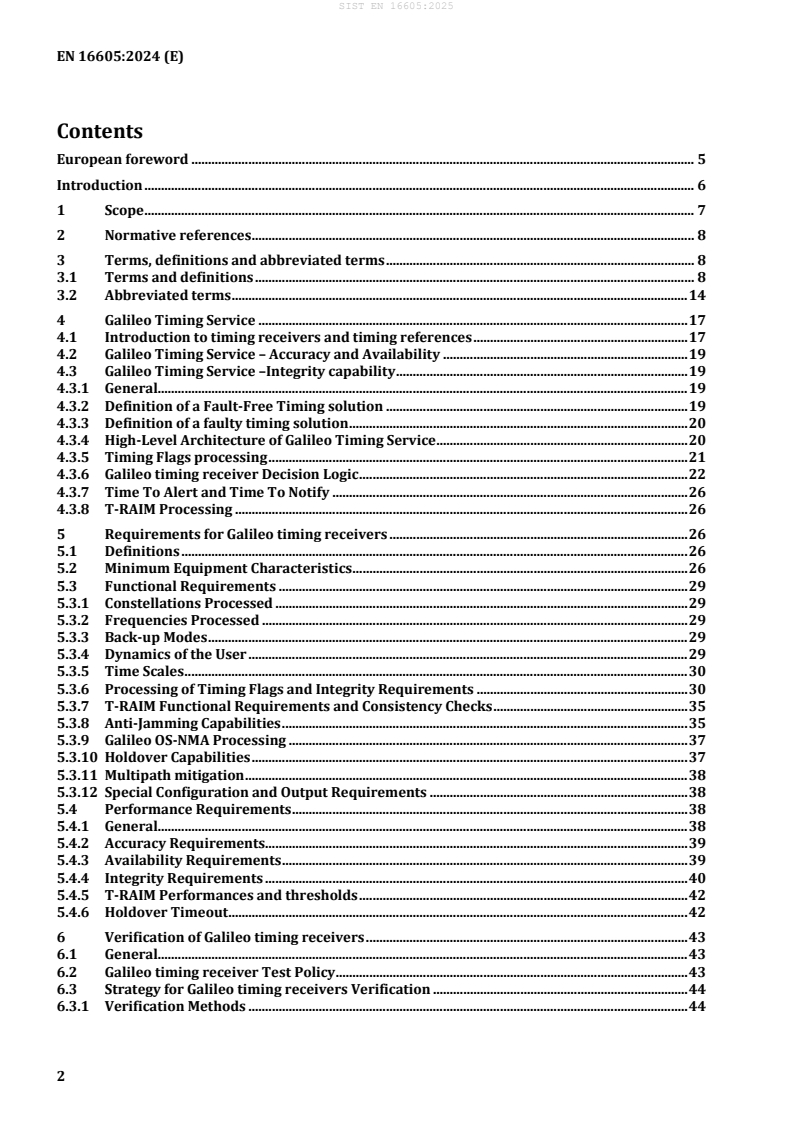

Contents
