SIST IEC 60884-2-7:2011

Plugs and socket-outlets for household and similar purposes - Part 2-7: Particular requirements for cord extension sets

IEC 60884-2-7:2011 applies to cord extension sets, rewirable and non rewirable, with or without earthing contact, with a rated voltage greater than 50 V but not exceeding 440 V and a rated current not exceeding 16 A, intended for household and similar purposes, either indoors or outdoors.
This publication is to be read in conjunction with IEC 60884-1:2002.

Prises de courant pour usages domestiques et analogues - Partie 2-7: Règles particulières pour cordons prolongateurs

La CEI 60884-2-7:2011 s'applique aux cordons prolongateurs, démontables et non démontables, avec ou sans contact de terre, de tension assignée supérieure à 50 V mais ne dépassant pas 440 V et de courant assigné ne dépassant pas 16 A, destinés aux usages domestiques et analogues soit à l'intérieur soit à l'extérieur.
Cette publication doit être lue conjointement avec la CEI 60884-1:2002.

Vtiči in vtičnice za gospodinjstva in podobne namene - 2-7. del: Posebne zahteve za podaljške za kable

General Information

• Status: Not Published
• Publication Date: 09-Jun-2019
• Technical Committee: EPR - Electrical accessories
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 27-May-2019
• Due Date: 01-Aug-2019
• Completion Date: 10-Jun-2019
• Ref Project: IEC 60884-2-7:2011 - Plugs and socket-outlets for household and similar purposes - Part 2-7: Particular requirements for cord extension sets

Standards Content (Sample)

IEC 60884-2-7
®

Edition 1.0 2011-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE


Plugs and socket-outlets for household and similar purposes –
Part 2-7: Particular requirements for cord extension sets

Prises de courant pour usages domestiques et analogues –
Partie 2-7: Exigences particulières pour les cordons prolongateurs

IEC 60884-2-7:2011

---------------------- Page: 1 ----------------------

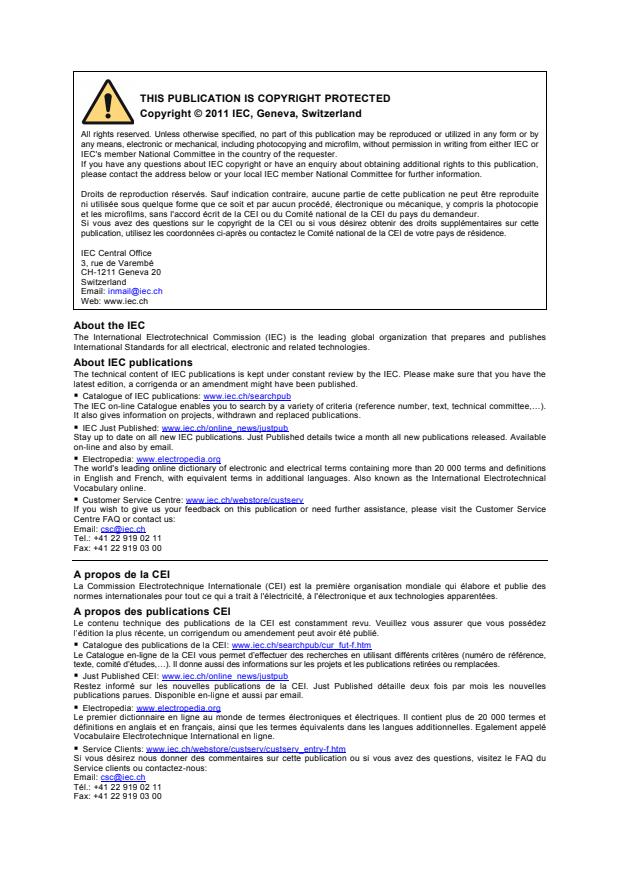

THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2011 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from either IEC or
IEC's member National Committee in the country of the requester.
If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,
please contact the address below or your local IEC member National Committee for further information.


Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite
ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie
et les microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.
Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette
publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office
3, rue de Varembé
CH-1211 Geneva 20
Switzerland
Email: [e-mail]
Web: www.iec.ch

About the IEC
The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes
International Standards for all electrical, electronic and related technologies.

About IEC publications
The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the
latest edition, a corrigenda or an amendment might have been published.
 Catalogue of IEC publications: www.iec.ch/searchpub
The IEC on-line Catalogue enables you to search by a variety of criteria (reference number, text, technical committee,…).
It also gives information on projects, withdrawn and replaced publications.
 IEC Just Published: www.iec.ch/online_news/justpub
Stay up to date on all new IEC publications. Just Published details twice a month all new publications released. Available
on-line and also by email.
 Electropedia: www.electropedia.org
The world's leading online dictionary of electronic and electrical terms containing more than 20 000 terms and definitions
in English and French, with equivalent terms in additional languages. Also known as the International Electrotechnical
Vocabulary online.
 Customer Service Centre: www.iec.ch/webstore/custserv
If you wish to give us your feedback on this publication or need further assistance, please visit the Customer Service
Centre FAQ or contact us:
Email: [e-mail]
Tel.: [phone]
Fax: [phone]


A propos de la CEI
La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des
normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI
Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez
l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
 Catalogue des publications de la CEI: www.iec.ch/searchpub/cur_fut-f.htm
Le Catalogue en-ligne de la CEI vous permet d’effectuer des recherches en utilisant différents critères (numéro de référence,
texte, comité d’études,…). Il donne aussi des informations sur les projets et les publications retirées ou remplacées.
 Just Published CEI: www.iec.ch/online_news/justpub
Restez informé sur les nouvelles publications de la CEI. Just Published détaille deux fois par mois les nouvelles
publications parues. Disponible en-ligne et aussi par email.
 Electropedia: www.electropedia.org
Le premier dictionnaire en ligne au monde de termes électroniques et électriques. Il contient plus de 20 000 termes et
définitions en anglais et en français, ainsi que les termes équivalents dans les langues additionnelles. Egalement appelé
Vocabulaire Electrotechnique International en ligne.
 Service Clients: www.iec.ch/webstore/custserv/custserv_entry-f.htm
Si vous désirez nous donner des commentaires sur cette publication ou si vous avez des questions, visitez le FAQ du
Service clients ou contactez-nous:
Email: [e-mail]
Tél.: [phone]
Fax: [phone]

---------------------- Page: 2 ----------------------
IEC 60884-2-7
®

Edition 1.0 2011-02
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE


Plugs and socket-outlets for household and similar purposes –
Part 2-7: Particular requirements for cord extension sets

Prises de courant pour usages domestiques et analogues –
Partie 2-7: Exigences particulières pour les cordons prolongateurs

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX M
ICS 29.120.30 ISBN 978-2-88912-362-9

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale

---------------------- Page: 3 ----------------------
– 2 – 60884-2-7  IEC:2011

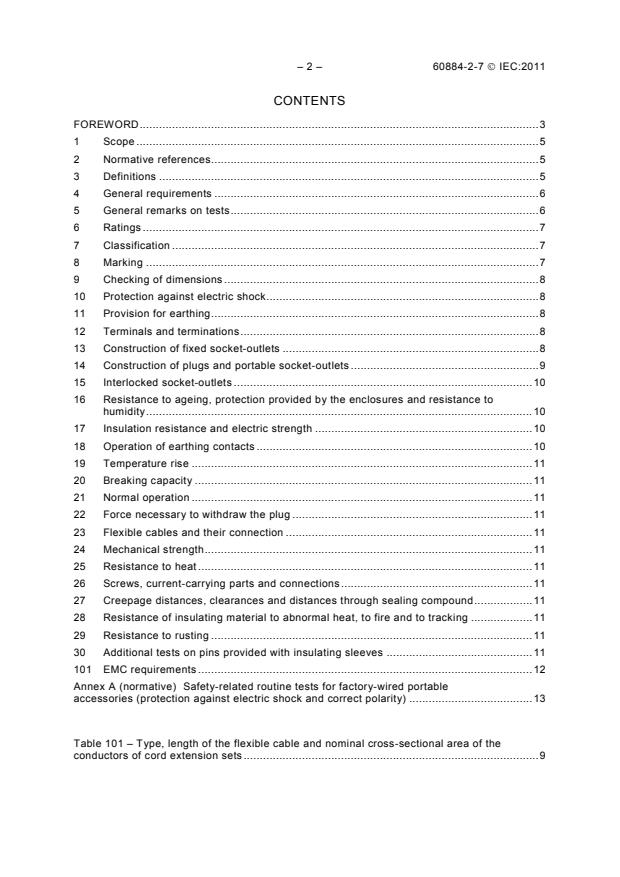

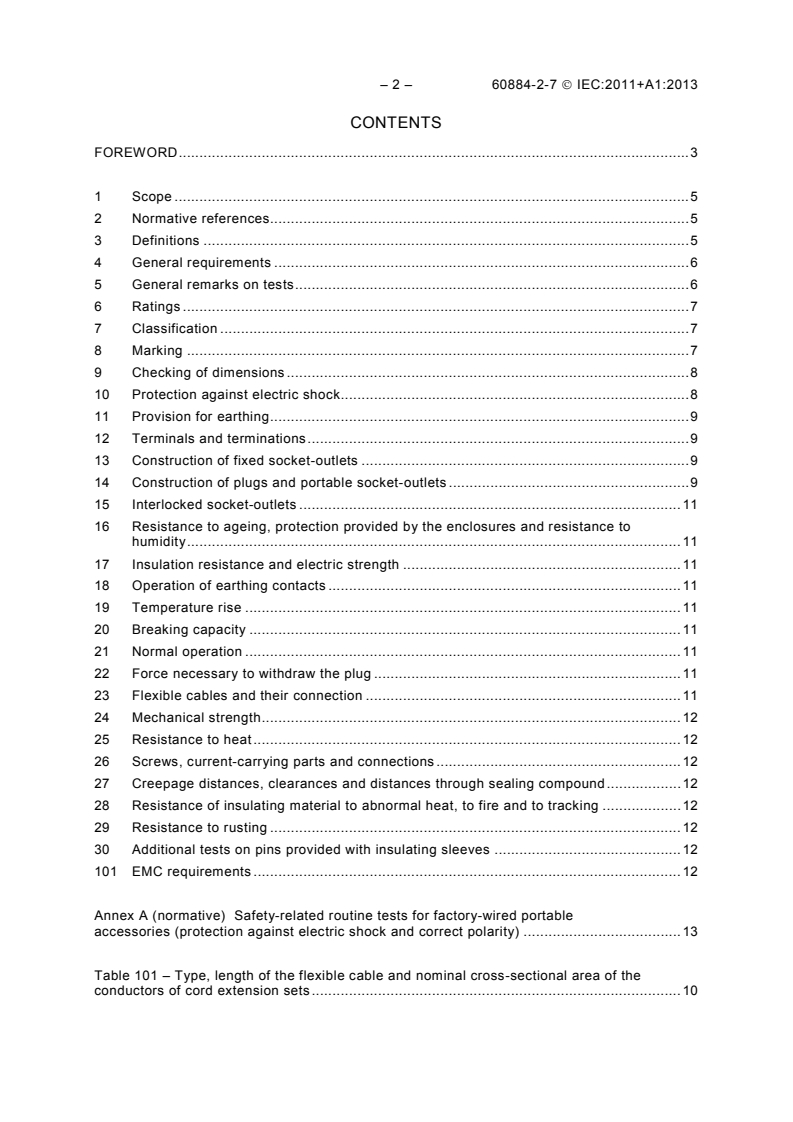

CONTENTS
FOREWORD . 3
1 Scope . 5
2 Normative references. 5
3 Definitions . 5
4 General requirements . 6
5 General remarks on tests . 6
6 Ratings . 7
7 Classification . 7
8 Marking . 7
9 Checking of dimensions . 8
10 Protection against electric shock. 8
11 Provision for earthing . 8
12 Terminals and terminations . 8
13 Construction of fixed socket-outlets . 8
14 Construction of plugs and portable socket-outlets . 9
15 Interlocked socket-outlets . 10
16 Resistance to ageing, protection provided by the enclosures and resistance to
humidity . 10
17 Insulation resistance and electric strength . 10
18 Operation of earthing contacts . 10
19 Temperature rise . 11
20 Breaking capacity . 11
21 Normal operation . 11
22 Force necessary to withdraw the plug . 11
23 Flexible cables and their connection . 11
24 Mechanical strength . 11
25 Resistance to heat . 11
26 Screws, current-carrying parts and connections . 11
27 Creepage distances, clearances and distances through sealing compound . 11
28 Resistance of insulating material to abnormal heat, to fire and to tracking . 11
29 Resistance to rusting . 11
30 Additional tests on pins provided with insulating sleeves . 11
101 EMC requirements . 12
Annex A (normative) Safety-related routine tests for factory-wired portable
accessories (protection against electric shock and correct polarity) . 13

Table 101 – Type, length of the flexible cable and nominal cross-sectional area of the
conductors of cord extension sets . 9

---------------------- Page: 4 ----------------------
60884-2-7  IEC:2011 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________

PLUGS AND SOCKET-OUTLETS FOR HOUSEHOLD
AND SIMILAR PURPOSES –

Part 2-7: Particular requirements for cord extension sets


FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60884-2-7 has been prepared by subcommittee 23B: Plugs, socket-
outlets and switches, of IEC technical committee 23: Electrical accessories.
The text of this standard is based on the following documents:
FDIS Report on voting
23B/977/FDIS 23B/987/RVD

Full information on the voting for the approval of this standard can be found in the report on
voting indicated in the above table.
This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.
This Part 2-7 shall be used in conjunction with IEC 60884-1. It was established on the basis of
the third edition of IEC 60884-1 (2002) and of its Amendment 1 (2006).

---------------------- Page: 5 ----------------------
– 4 – 60884-2-7  IEC:2011
This Part 2-7 supplements or modifies the corresponding clauses in IEC 60884-1, so as to
convert that publication into the IEC Standard: Particular requirements for cord extension
sets.
Where this Part 2-7 states "addition“, "modification“ or "replacement“, the relevant
requirement, test specifications or explanatory matter in Part 1 shall be adapted accordingly.
Subclauses, figures, tables or notes which are additional to those in Part 1 are numbered
starting from 101.
A list of all the parts in the IEC 60884 series, under the general title Plugs and socket-outlets
for household and similar purposes, can be found on the IEC website.
The committee has decided that the contents of this publication will remain unchanged until
the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data
related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

---------------------- Page: 6 ----------------------
60884-2-7  IEC:2011 – 5 –
PLUGS AND SOCKET-OUTLETS FOR HOUSEHOLD
AND SIMILAR PURPOSES –

Part 2-7: Particular requirements for cord extension sets



1 Scope
Replacement:
This Part of IEC 60884 applies to cord extension sets, rewirable and non rewirable, with or
without earthing contact, with a rated voltage greater than 50 V but not exceeding 440 V and
a rated current not exceeding 16 A, intended for household and similar purposes, either
indoors or outdoors.
NOTE 1 In the following countries, cord extension sets only for equipment of class II are not allowed: DE, UK and
CZ.
NOTE 2 In the following country, rewirable cord extension sets are not allowed: ZA.
This standard does not apply to cord extension sets with means for reeling.
This standard also applies to cord extension sets which are intended to be used in a cable
reel, and which therefore become cable reels with a detachable flexible cable. For the
combination of the cord extension set, the reel requirements and tests of IEC 61242 have to
be fulfilled in addition.
Cord extension sets should be suitable for use at ambient temperatures not normally
exceeding +40 ºC, but their average over a period of 24 h does not exceed +35 °C, with a
lower limit of the ambient air temperature of –5 °C.
2 Normative references
This clause of Part 1 is applicable with the following exceptions:
Addition:
− Part 1:
IEC 60884-1:2002, Plugs and socket-outlets for household and similar purposes
General requirements
Amendment 1 (2006)
IEC 60884-2-1, Plugs and socket-outlets for household and similar purposes − Part 2-1:
Particular requirements for fused plugs
IEC 61242, Electrical accessories − Cable reels for household and similar purposes
3 Definitions
This clause of Part 1 is applicable except as follows.
Replacement of NOTE 3:
NOTE 3 The term "portable accessory" covers plugs, portable socket-outlets and cord extension sets. Examples
of the use of accessories are shown in Figure 1a) of IEC 60884-1.

---------------------- Page: 7 ----------------------
– 6 – 60884-2-7  IEC:2011
3.12
cord extension set
Addition:
NOTE 101 The term “plug” covers plugs and fused plugs. The term “socket outlet” covers also socket outlets with
incorporated components such as switches and fuses etc. which are required to comply with the relevant IEC
standard as far as it applies.
3.12.101
rewirable cord extension set
cord extension set so constructed that any of the accessories or the flexible cable can be
replaced with the aid of a general purpose tool
3.12.102
non-rewirable cord extension set
cord extension set so constructed that it forms a complete unit with the flexible cable, the plug
and the socket-outlet after connection and assembly by the manufacturer, the disassembly of
which makes it permanently unfit for any further use
4 General requirements
This clause of Part 1 is applicable except as follows:
Addition of the following paragraph at the end of the clause:
Components (plug, socket-outlets and flexible cable) of the cord extension sets shall be fully
compliant with, and have been verified against, the relevant product standards for those
components.
5 General remarks on tests
Replacement:
5.1 Tests shall be made to prove compliance with the requirements laid down in this
standard.
No extra requirements for components (plugs, socket outlets and flexible cables) have to be
applied and the relevant tests shall not be repeated.
Tests are made as follows:
− type tests shall be made on representative specimens of each assembly;
− routine tests shall be made on each assembly manufactured according to this standard.
Subclauses 5.2 to 5.5 are applicable to type tests and Subclause 5.6 to routine tests.
5.2 The specimens are tested as delivered and under normal conditions of use.
5.3 Unless otherwise specified, the tests are carried out in the order of the clauses, at an
ambient temperature between 15 °C and 35 °C.
In case of doubt, the tests are made at an ambient temperature of (20 ± 5) °C.
5.4 Three specimens are subjected to all the relevant tests.

---------------------- Page: 8 ----------------------
60884-2-7  IEC:2011 – 7 –
5.5 The specimens are submitted to all the relevant tests and the requirements are satisfied
if all the tests are met.
If one specimen does not satisfy a test due to a manufacturing cord extension sets process
fault, that test and any preceding one which may have influenced the results of the test shall
be repeated, and also the tests which follow shall be made in the required sequence on
another full set of specimens, all of which shall comply with the requirements.
NOTE The applicant may submit, together with a number of specimens specified in Subclause 5.4, the additional
set of specimens which may be required, should one specimen fail. The testing station will then, without further
request, test the additional specimens and will only reject them if a further failure occurs. If the additional set of
specimens is not submitted at the same time, the failure of one specimen will entail rejection.
5.6 Routine tests are specified in Annex A.
6 Ratings
This clause of Part 1 is applicable except as follows.
Replacement:
6.2 The rated current of the cord extension set shall be the lowest value from
a) the rated current of the plug; or
b) the arithmetic sum of the highest rated currents of all plugs which can be inserted into
the cord extension set; or
c) the rated current of the protective overcurrent device.
The rated voltage of the cord extension set is that of the plug.
Compliance is checked by inspection of the marking.
7 Classification
This clause of Part 1 is not applicable except for 7.1.1, 7.1.2, 7.1.3 and 7.1.4.
8 Marking
This clause of Part 1 is applicable except as follows.
8.1 Addition after the fourth dashed text:
NOTE 101 This marking for cord extension set is necessary only if the manufacturer of the cord extension set is
different to the manufacturer of the socket-outlet. The marking of the name, trade mark or identification mark of the
manufacturer or responsible vendor may for example be applied on a sleeve or label provided around the cord.
Addition after the fifth dashed text:
NOTE 102 For a cord extension set, the type reference, which may be a catalogue number, may be placed on the
smallest packaging unit.
Addition at the end:
– in case of multiple portable socket-outlets or when there is an overcurrent protective
device, the power in watts.
Addition at the end:

---------------------- Page: 9 ----------------------
– 8 – 60884-2-7  IEC:2011
The marking for power shall be completed by the word MAX.
The power is calculated using the nominal supply voltage in volts and a power factor
cos ϕ = 1.
NOTE 103 These markings may be shown as in the following examples:
MAX 2000 W or 2000 W MAX
The maximum admissible power marking shall not be hidden by any inserted plug.
9 Checking of dimensions
This clause of Part 1 is not applicable.
10 Protection against electric shock
Replacement of the text of Clause 10:
10.1 Cord extension sets shall be so designed and constructed that after they are wired and
assembled as for normal use, live parts are not accessible, even after removal of parts which
can be removed without the use of a tool.
Compliance is checked by inspection and, if necessary, by the following test.
The standard test finger, test probe B of IEC 61032, is applied in every possible position, an
electrical indicator with a voltage between 40 V and 50 V being used to show contact with the
relevant parts.
10.2 Cord extension sets shall be so designed and constructed that after they are wired and
assembled as for normal use, live parts are not accessible, even after removal of parts which
can be removed without the use of a tool.
Compliance is checked by inspection and by applying with a test wire of 1,0 mm diameter
(see Figure 10 of Part 1) a force of 1 N where the cable enters the plug and the portable
socket outlet in every possible position.
During this test, it shall not be possible to touch live parts with the gauge.
An electrical indicator with a voltage between 40 V and 50 V shall be used.
11 Provision for earthing
This clause of Part 1 is not applicable.
12 Terminals and terminations
This clause of Part 1 is not applicable.
13 Construction of fixed socket-outlets
This clause of Part 1 is not applicable.

---------------------- Page: 10 ----------------------
60884-2-7  IEC:2011 – 9 –
14 Construction of plugs and portable socket-outlets
Replacement of the title and text of Clause 14:
14 Construction of cord extension sets
14.1 Socket-outlets to be used in cord extension sets shall have shutters.
NOTE 1 In the following countries socket-outlets to be used in cord extension sets are not required to have
shutters: AU, AT, CA, CH, SG, JP, US.
NOTE 2 In the following country the standards sheets for the portable socket-outlets specify the requirements for
shutters: DK.
Plugs and socket outlets shall comply with IEC 60884-1.
Fused plugs shall comply with IEC 60884-2-1.
Flexible cables shall comply with IEC 60227 or IEC 60245.
The flexible cable shall have the same number of conductors as the poles in the socket-
outlet(s). Earthing contacts, if any, are considered as one pole.
Where an earthing contact is provided in the socket-outlet it shall be connected to the
corresponding earthing contact of the plug.
Compliance is checked by inspection.
14.2 The type, length of the flexible cable and nominal cross-sectional area of the
conductors of cord extension sets shall comply with Table 101.
Table 101 – Type, length of the flexible cable and nominal cross-sectional area
of the conductors of cord extension sets
Minimum nominal
Maximum length of
Rated current Lightest type of cross-sectional area
the flexible cable
of the conductors
A flexible cable
m
2
mm
2,5 60227 IEC 52 0,50 3
60227 IEC 52 0,75
6 5
60227 IEC 53 1,00
60227 IEC 53 or 0,75 5
10
60245 IEC 53
1,00 30
1,00 5
60227 IEC 53 or
13
a
60245 IEC 53 1,50 30
b
60227 IEC 53 or 1,00 2
16
60245 IEC 53 1,50 30
a 2
 In the following countries the minimum nominal cross-sectional area is 1,25 mm : UK and SG.
b
 In the following countries, for cord extension sets with socket outlet of class I, the minimum
2
nominal cross-sectional area is 1,5 mm : DE, FI.
NOTE 1 In the following countries, cord extension sets having a rated current of 6 A and 13 A are not allowed:
CH, DE, FI, IT and NO.
NOTE 2 In the following countries, cord extension sets intended for outdoor use should be provided with cable
type 60245 IEC 53 or equivalent: FI, NO, SA and SE.

---------------------- Page: 11 ----------------------
– 10 – 60884-2-7  IEC:2011
2
NOTE 3 In the following country the nominal cross-sectional area is 1,5 mm for 5 m maximum length and
2
2,5 mm for 30 m maximum length: SA.
The length of the cable is measured between the operating faces of the plug and the socket-
outlet. In the case of multiple socket-outlets the measurement is taken to the socket-outlet
closest to the plug.
Compliance is checked by inspection and measurement.
14.3 The rated current of the plug shall not be lower than the rated current of the socket-
outlet.
In a cord extension set protected against overload (e.g. having a fused plug or a protective
overcurrent device), the rated current of the plug shall not be lower than the rated current of
the protective overcurrent device.
For a cord extension set with a multiple portable socket-outlet and not incorporating a
protective overcurrent device, the rated current of the plug shall be at least the arithmetic sum
of the highest rated currents of all plugs which can be inserted into the cord extension set or
the same as the rated current of the relevant socket outlet of the fixed wiring the plug is
intended to be connected to, whichever is the lower.
NOTE In the following country this requirement is not applicable because it is possible to insert a 10 A, 13 A or 16
A plug into a 10 A, 13 A, or 16 A socket-outlet: DK
Compliance is checked by inspection.
14.4 The rated voltage of the plug and the socket-outlet shall be the same. The rated
voltage of the cable shall not be less than the rated voltage of the plug and socket-outlet.
Compliance is checked by inspection.
15 Interlocked socket-outlets
This clause of Part 1 is not applicable.
16 Resistance to ageing, protection provided by the enclosures and resistance
to humidity
Replacement:
The protection degree of the cord extension set is the same as the lowest protection degree
of the plug and the portable socket outlet.
Compliance is checked by inspection.
17 Insulation resistance and electric strength
This clause of Part 1 is not applicable.
18 Operation of earthing contacts
This clause of Part 1 is not applicable.

---------------------- Page: 12 ----------------------
60884-2-7  IEC:2011 – 11 –
19 Temperature rise
This clause of Part 1 is not applicable.
20 Breaking capacity
This clause of Part 1 is not applicable.
21 Normal operation
This clause of Part 1 is not applicable.
22 Force necessary to withdraw the plug
This clause of Part 1 is not applicable.
23 Flexible cables and their connection
This clause of Part 1 is not applicable.
24 Mechanical strength
This clause of Part 1 is not applicable.
25 Resistance to heat
This clause of Part 1 is not applicable.
26 Screws, current-carrying parts and connections
This clause of Part 1 is not applicable.
27 Creepage distances, clearances and distances through sealing compound
This clause of Part 1 is not applicable.
28 Resistance of insulating material to abnormal heat, to fire and to tracking
This clause of Part 1 is not applicable.
29 Resistance to rusting
This clause of Part 1 is not applicable.
30 Additional tests on pins provided with insulating sleeves
This clause of Part 1 is not applicable.

---------------------- Page: 13 ----------------------
– 12 – 60884-2-7  IEC:2011
Addition:
101 EMC requirements
101.1 Immunity
The operation of cord extension sets within the scope of this standard, in normal use, is not
affected by electromagnetic disturbances.
101.2 Emission
Cord extension sets within the scope of this standard are intended for continuous use; in
normal use they do not generate electromagnetic disturbances.

...
