SIST EN 4705:2020
EN 4705
EUROPEAN STANDARD
NORME EUROPÉENNE
February 2020
EUROPÄISCHE NORM
ICS 49.095
English Version
Aerospace series - Measurement methods regarding the
lifetime behaviour of light units in a standardized aircraft-
related environment

Série aérospatiale - Méthodes de mesure du Luft- und Raumfahrt - Messverfahren zur Bestimmung

comportement lié à la durée de vie des systèmes der Lebenszeit von Leuchten in einem standardisierten

d'éclairage dans un environnement normalisé destiné luftfahrzeugnahen Umfeld
aux aéronefs
This European Standard was approved by CEN on 14 July 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2020 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4705:2020 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 4705:2020
EN 4705:2020 (E)

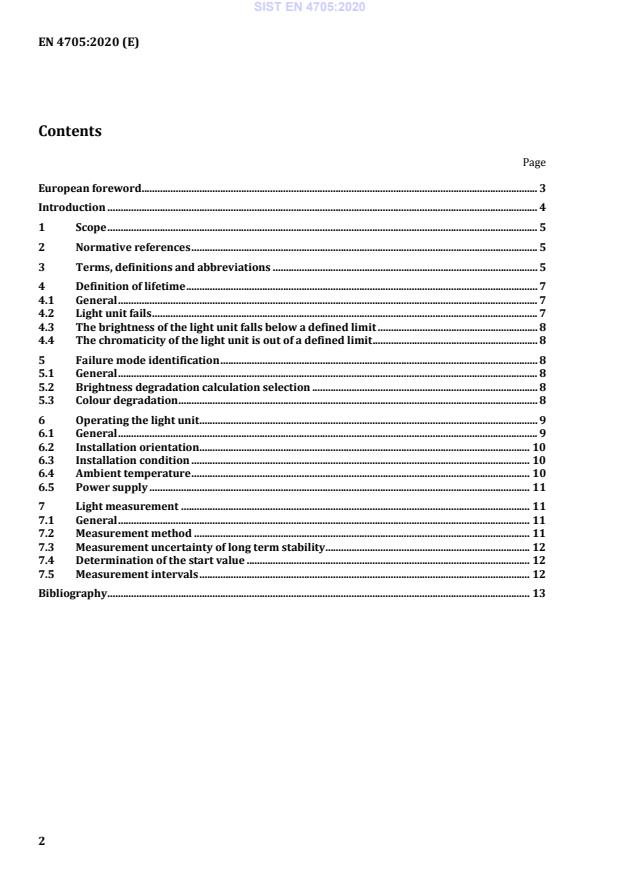

Contents
Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms, definitions and abbreviations ..................................................................................................... 5

4 Definition of lifetime ...................................................................................................................................... 7

4.1 General ................................................................................................................................................................ 7

4.2 Light unit fails ................................................................................................................................................... 7

4.3 The brightness of the light unit falls below a defined limit ............................................................. 8

4.4 The chromaticity of the light unit is out of a defined limit ............................................................... 8

5 Failure mode identification ......................................................................................................................... 8

5.1 General ................................................................................................................................................................ 8

5.2 Brightness degradation calculation selection ...................................................................................... 8

5.3 Colour degradation ......................................................................................................................................... 8

6 Operating the light unit ................................................................................................................................. 9

6.1 General ................................................................................................................................................................ 9

6.2 Installation orientation .............................................................................................................................. 10

6.3 Installation condition ................................................................................................................................. 10

6.4 Ambient temperature ................................................................................................................................. 10

6.5 Power supply ................................................................................................................................................. 11

7 Light measurement ..................................................................................................................................... 11

7.1 General ............................................................................................................................................................. 11

7.2 Measurement method ................................................................................................................................ 11

7.3 Measurement uncertainty of long term stability .............................................................................. 12

7.4 Determination of the start value ............................................................................................................ 12

7.5 Measurement intervals .............................................................................................................................. 12

Bibliography ................................................................................................................................................................. 13

---------------------- Page: 4 ----------------------
SIST EN 4705:2020
EN 4705:2020 (E)
European foreword

This document (EN 4705:2020) has been prepared by the Aerospace and Defence Industries

Association of Europe - Standardization (ASD-STAN).

After enquiries and votes carried out in accordance with the rules of this Association, this Standard has

received the approval of the National Associations and the Official Services of the member countries of

ASD, prior to its presentation to CEN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by August 2020, and conflicting national standards shall

be withdrawn at the latest by August 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 4705:2020
EN 4705:2020 (E)
Introduction

The light output of all light sources decreases over time and also the chromaticity coordinates may

change. Because of a longer lifetime of modern light sources, like LEDs, a brightness decrease or a

chromaticity locus shift can be expected more often than a complete failure of the light source.

This document is applicable to all kind of aircraft cabin light sources including those with means for

ageing compensation.
---------------------- Page: 6 ----------------------
SIST EN 4705:2020
EN 4705:2020 (E)
1 Scope

This document describes the measurement method for the lifetime behaviour of aircraft cabin light

units in a standardized aircraft-related environment.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 4706, Aerospace series — LED colour and brightness ranking

EN 13032-4, Light and lighting — Measurement and presentation of photometric data of lamps and

luminaires — Part 4: LED lamps, modules and luminaires
IES LM-80-08, Approved Method: Measuring Lumen Maintenance of LED Light Sources
3 Terms, definitions and abbreviations
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

 IEC Electropedia: available at http://www.electropedia.org/
 ISO Online browsing platform: available at http://www.iso.org/obp
3.1
light-emitting diode
LED

solid state device embodying a p-n junction, emitting optical radiation when excited by an electric

current
3.2
luminance

photometric measure of the luminous intensity per unit area of light travelling in a given direction

Note 1 to entry: The unit is cd/m .
3.3
illuminance

photometric measure of the total luminous flux incident on a surface, per unit area

Note 1 to entry: The unit is lx.
3.4
colour space

description model to define light colours in a two-dimensional (colour without intensity, e.g. xy space

CIE 1931) or three-dimensional space, (colour and intensity, e.g. Yxy CIE 1931)

1 Published as ASD-STAN Prestandard at the date of publication of this standard by AeroSpace and Defence

Industries Association of Europe – Standardization (ASD-STAN) (www.asd-stan.org).

2 Published by Illumination Engineering Society (IES), 120 Wall Street, Floor 17, New York NY 10005-4001, USA

---------------------- Page: 7 ----------------------
SIST EN 4705:2020
EN 4705:2020 (E)
3.5
CIE 1931 colour space
description of a two-dimensional colour space for light colours

Note 1 to entry: In the CIE 1931 diagram the colour coordinates x and y describe the chromaticity locus in the

diagram. For this document the CIE 1931 2° observer is applicable.
3.6
chromaticity coordinate

two-dimensional data representation of the colour in the corresponding colour space, e.g. x and y for the

CIE 1931
3.7
MacAdam ellipse

area in the corresponding colour space (e.g. CIE 1931) in which all colours have the same visual

imp
...
