SIST HD 60364-7-711:2019

Low voltage electrical installation - Part 7-711: Requirements for special installations or locations - Exhibitions, shows and stands

NEW!IEC 60364-7-711:2018 is available as IEC 60364-7-711:2018 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.

IEC 60364-7-711:2018 gives requirements applying to the temporary electrical installations in exhibitions, shows and stands (including mobile and portable displays and equipment) to protect users. This second edition cancels and replaces the first edition published in 2007. This edition constitutes a technical revision. This edition includes the following significant technical changes with respect to the previous edition:
a) in 711.3.1 and 711.3.2 addition of "outdoors" to the list of suitable locations;
b) alignment with IEC 60364-4-41.

Errichten von Niederspannungsanlagen - Teil 7-711: Anforderungen für Betriebsstätten, Räume und Anlagen besonderer Art - Ausstellungen, Shows und Stände

Installations électriques basse tension - Exigences pour les installations ou emplacements spéciaux - Expositions, spectacles et stands

NEW!IEC 60364-7-711:2018 est disponible sous forme de IEC 60364-7-711:2018 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.

L'IEC 60364-7-711:2018 les exigences particulières de la présente partie de l’IEC 60364 s’appliquent aux installations électriques temporaires des expositions, spectacles et stands (y compris les étalages et les matériels mobiles et portables). Cette deuxième édition annule et remplace la première édition parue en 2007. Cette édition constitue une révision technique. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) en 711.3.1 et 711.3.2, ajout de «à l’extérieur» à la liste des emplacements appropriés;
b) alignement sur l’IEC 60364-4-41.

Nizkonapetostne električne inštalacije - 7-711. del: Zahteve za posebne inštalacije ali prostore - Razstave, predstave in stojnice

Posebne zahteve iz tega dela standarda IEC 60364 se uporabljajo za začasne električne inštalacije razstav, predstav in stojnic (vključno z mobilnimi in prenosnimi zasloni in opremo).

General Information

• Status: Published
• Publication Date: 11-Jun-2019
• ICS: 91.140.50 - Electricity supply systems
• ICS: 97.200.99 - Other equipment for entertainment
• Technical Committee: ELI - Electrical and communication installations
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 19-Apr-2019
• Due Date: 24-Jun-2019
• Completion Date: 12-Jun-2019
• Ref Project: HD 60364-7-711:2019 - Low-voltage electrical installations - Part 7-711: Requirements for special installations or locations - Exhibitions, shows and stands

Relations

• Replaces: SIST HD 384.7.711 S1:2004 - Electrical installations of buildings -- Part 7-711: Requirements for special installations or locations - Exhibitions, shows and stands
• Effective Date: 01-Jul-2019
• Revised: kSIST FprHD 60364-7-711:2025 - Low-voltage electrical installations - Part 7-711: Requirements for special installations or locations - Temporary electrical installations for exhibitions and entertainment related purposes
• Effective Date: 04-Jan-2022

Overview

HD 60364-7-711:2019 (adopting IEC 60364-7-711:2018) is the harmonized CENELEC/CLC standard that sets safety requirements for low-voltage temporary electrical installations in exhibitions, shows and stands. It covers fixed, mobile and portable displays and equipment used in indoor and outdoor event locations. This edition replaces the 2007 version, is a technical revision, and aligns requirements with IEC 60364-4-41 (protection against electric shock). The IEC Redline (RLV) version shows technical changes compared to the previous edition.

Key topics and technical requirements

• Scope and definitions: applicability to temporary installations, mobile displays and stands; terms used for supplies and structure of installations.
• Protection for safety:
  • Protection against electric shock (alignment with IEC 60364-4-41).
  • Measures such as automatic disconnection of supply and use of SELV/PELV where applicable.
  • Additional protection (supplementary measures for user safety).
• Protection against thermal effects and fire: precautions where particular fire risk exists for event environments.
• Selection and erection of electrical equipment:
  • Common rules for installation practice and site conditions (including outdoors).
  • Wiring systems and approved types for temporary use, plus guidance on electrical connections.
• Isolation, switching and control: coordination of protective devices, requirements for isolation and switching of temporary supplies.
• Other equipment: specific considerations for luminaires, lighting installations and similar equipment used in exhibition contexts.
• National conditions and deviations: Annexes list country-specific requirements (examples include France, Germany, Ireland, Czech Republic) that modify or add to the harmonized text.

Practical applications

• Designing and specifying temporary power distribution for trade shows, fairs, concerts, pop‑up events and exhibition stands.
• Selecting protective devices and wiring systems for stand builders, rental suppliers and lighting/AV contractors.
• Preparing site electrical layouts, earthing/bonding schemes and risk assessments for event safety.
• Creating compliance documentation for venue managers, health & safety officers and electrical inspectors.

Who should use this standard

• Electrical designers and consultants for events and exhibitions
• Stand contractors, riggers and temporary installation electricians
• Venue operators, exhibition organizers and safety officers
• Certification bodies and inspectors assessing compliance with low-voltage installation rules

Related standards and references

HD 60364-7-711 references and aligns with other IEC/HD standards in the 60364 series (notably IEC 60364-4-41) and with standards for cables, plugs/outlets (IEC 60227, 60309 series) and lighting equipment. Consult the normative references in the standard for complete cross-references.

Keywords: HD 60364-7-711:2019, IEC 60364-7-711, low-voltage installations, exhibitions shows stands, temporary electrical installations, protection against electric shock, wiring systems, event electrical safety.

Standards Content (Sample)

SLOVENSKI STANDARD
01-julij-2019
Nadomešča:
SIST HD 384.7.711 S1:2004
Nizkonapetostne električne inštalacije - 7-711. del: Zahteve za posebne inštalacije
ali prostore - Razstave, predstave in stojnice
Low voltage electrical installation - Part 7-711: Requirements for special installations or
locations - Exhibitions, shows and stands
Errichten von Niederspannungsanlagen - Teil 7-711: Anforderungen für Betriebsstätten,
Räume und Anlagen besonderer Art - Ausstellungen, Shows und Stände
Installations électriques basse tension - Exigences pour les installations ou
emplacements spéciaux - Expositions, spectacles et stands
Ta slovenski standard je istoveten z: HD 60364-7-711:2019
ICS:
91.140.50 Sistemi za oskrbo z elektriko Electricity supply systems
97.200.99 Druga oprema za razvedrilo Other equipment for
entertainment
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

HARMONIZATION DOCUMENT HD 60364-7-711

DOCUMENT D'HARMONISATION
HARMONISIERUNGSDOKUMENT
April 2019
ICS 29.020; 91.140.50
English Version
Low-voltage electrical installations - Part 7-711: Requirements
for special installations or locations - Exhibitions, shows and
stands
(IEC 60364-7-711:2018)
Installations électriques basse tension - Exigences pour les Errichten von Niederspannungsanlagen - Teil 7-711:
installations ou emplacements spéciaux - Expositions, Anforderungen für Betriebsstätten, Räume und Anlagen
spectacles et stands besonderer Art - Ausstellungen, Shows und Stände
(IEC 60364-7-711:2018) (IEC 60364-7-711:2018)
This Harmonization Document was approved by CENELEC on 2018-04-12. CENELEC members are bound to comply with the
CEN/CENELEC Internal Regulations which stipulate the conditions for implementation of this Harmonization Document at national level.
Up-to-date lists and bibliographical references concerning such national implementations may be obtained on application to the CEN-
CENELEC Management Centre or to any CENELEC member.
This Harmonization Document exists in three official versions (English, French, German).
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden,
Switzerland, Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. HD 60364-7-711:2019 E

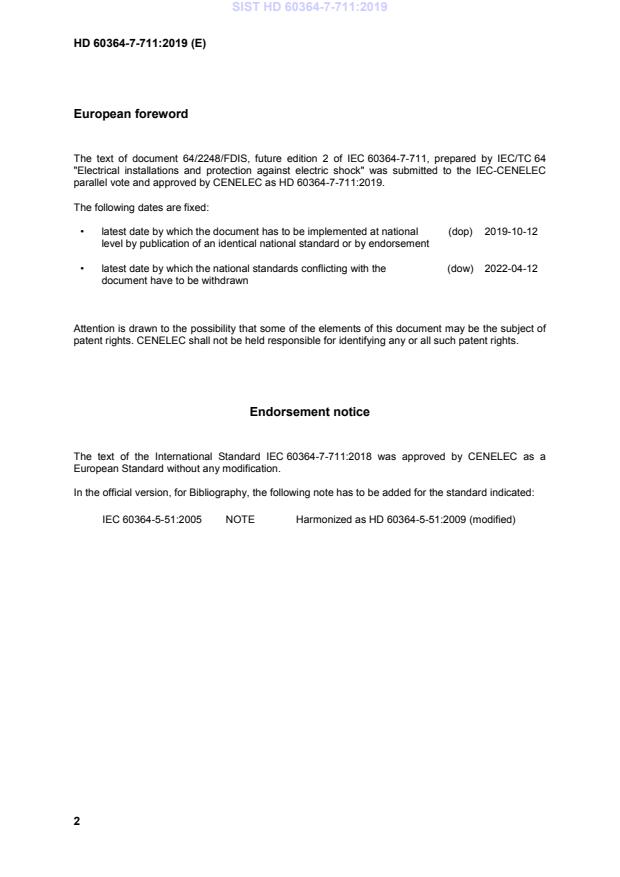

European foreword
The text of document 64/2248/FDIS, future edition 2 of IEC 60364-7-711, prepared by IEC/TC 64
"Electrical installations and protection against electric shock" was submitted to the IEC-CENELEC
parallel vote and approved by CENELEC as HD 60364-7-711:2019.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2019-10-12
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2022-04-12
document have to be withdrawn
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.

Endorsement notice
The text of the International Standard IEC 60364-7-711:2018 was approved by CENELEC as a
European Standard without any modification.
In the official version, for Bibliography, the following note has to be added for the standard indicated:
IEC 60364-5-51:2005 NOTE Harmonized as HD 60364-5-51:2009 (modified)

Annex ZA
(normative)
Special national conditions
Special national condition: National characteristic or practice that cannot be changed even
over a long period, e.g. climatic conditions, electrical earthing conditions.
NOTE  If it affects harmonization, it forms part of the Harmonization Document.
For the countries in which the relevant special national conditions apply these provisions are
normative, for other countries they are informative.
Clause/Subclause Special national condition
711 France
In France, the rules are given in a national regulation ("Arrêté du 25 juin 1980")
711.410.3.101 Czech Republic
In the Czech Republic, the maximum rated current for the overcurrent
protective device for lighting circuits is 25 A.
711.411.3 Germany
In Germany, subclause 711.411.3 does not apply.
711.411.3.2.101 Ireland
In Ireland, a residual current protective device having a rated operating current
not exceeding 300 mA is required at the origin of the installation.
711.415.2 Germany
In Germany, all electrically conductive parts which can assume dangerous
contact voltages have to be connected with each other low resistive to the main
earth terminal or to the protective conductor of the origin of the electrical
installation.
Electrically conductive parts, between which potential differences can occur,
include:
- trusses;
- tripods;
- stage and scaffolding constructions (platforms, railings, scenes);
- Metal structures, among others for fairs and exhibitions;
- tent constructions.
711.52.101 France
In France, the sentence “Conductors shall have a cross-sectional area of not
less than 1,5 mm² copper or equivalent” does not apply.
- Ireland
In Ireland, Switchgear and control gear shall be located in enclosures affording
a degree of protection of at least IP44.

Annex ZB
(normative)
A-deviations
A-deviation: National deviation due to regulations, the alteration of which is for the time being
outside the competence of the CEN/CENELEC national member.
This European Standard does not fall under any Directive of the EC.
In the relevant CEN/CENELEC countries, these A-deviations are valid instead of the
provisions of the European Standard until they have been removed.
Clause Deviation
711 France
In France, electrical installations in exhibitions, shows and stands shall comply
with the following national regulation: Arrêté of 25th June 1980 modified, related
to general dispositions for safety regarding fire and panic in communal facilities.

Annex ZC
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod), the relevant
EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available here:
www.cenelec.eu.
Publication Year Title EN/HD Year
IEC 60227 series Polyvinyl chloride insulated cables of rated -
voltages up to and including 450/750 V -
IEC 60245 series Rubber insulated cables - Rated voltages -
up to and including 450/750 V
IEC 60309-1 -  Plugs, socket-outlets and couplers for EN 60309-1 -
industrial purposes - Part 1: General
requirements
IEC 60309-2 -  Plugs, socket-outlets and couplers for EN 60309-2 -
industrial purposes - Part 2: Dimensional
interchangeability requirements for pin and
contact-tube accessories
IEC 60332-1-1 -  Tests on electric and optical fibre cables EN 60332-1-1 -
under fire conditions - Part 1-1: Test for
vertical flame propagation for a single
insulated wire or cable - Apparatus
Tests on electric and optical fibre cables
IEC 60332-3 series EN IEC 60332-3 series
under fire conditions - Part 3: Test for
vertical flame spread of vertically-mounted
bunched wires or cables
+ A1 2017  - -
IEC 60364-4-41 2005 Low-voltage electrical installations - Part 4- HD 60364-4-41 2017
(mod) 41: Protection for safety - Protection
against electric shock
- -  + A11 2017
IEC 60364-7-705 -  Low-voltage electrical installations - Part 7- HD 60364-7-705 -
705: Requirements for special installations
or locations - Agricultural and horticultural
premises
IEC 61034 series Measurement of smoke density of cables EN 61034 series
burning under defined conditions
IEC 61084 series Cable trunking and ducting systems for -
electrical installations
Publication Year Title EN/HD Year
IEC 61347 series Lamp controlgear EN 61347 series
IEC 61386 series Conduit system for electrical installations EN 61386 series
IEC 61558 series Safety of power transformers, power EN 61558 series
supply units and similar
IEC 60364-7-711 ®
Edition 2.0 2018-03
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Low voltage electrical installations –

Part 7-711: Requirements for special installations or locations – Exhibitions,

shows and stands
Installations électriques a basse tension –

Partie 7-711: Exigences pour les installations ou emplacements spéciaux –

Expositions, spectacles et stands

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 29.020; 91.140.50 ISBN 978-2-8322-5358-8

– 2 – IEC 60364-7-711:2018 © IEC 2018
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
711 Exhibitions, shows and stands . 6
711.1 Scope . 6
711.2 Normative references . 6
711.3 Terms and definitions . 7
711.31 Purposes, supplies and structure . 7
711.313 Supplies . 7
711.4 Protection for safety . 8
711.41 Protection against electric shock . 8
711.410 Introduction . 8
711.411 Protective measure: automatic disconnection of supply . 8
711.414 Protective measure: extra-low voltage provided by SELV and PELV . 8
711.415 Additional protection . 9
711.42 Protection against thermal effects . 9
711.422 Precautions where particular risks of fire exist . 9
711.5 Selection and erection of electrical equipment . 9
711.51 Common rules . 9
711.52 Wiring systems . 10
711.521 Types of wiring systems . 10
711.526 Electrical connections . 10
711.53 Isolation, switching and control . 10
711.535 Co-ordination of various protective devices . 10
711.536 Isolation and switching . 10
711.55 Other equipment . 11
711.559 Luminaires and lighting installations . 11
Annex A (informative) List of notes concerning certain countries . 12
Bibliography . 13

IEC 60364-7-711:2018 © IEC 2018 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
LOW VOLTAGE ELECTRICAL INSTALLATIONS –

Part 7-711: Requirements for special installations or locations –
Exhibitions, shows and stands
FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote
international co-operation on all questions concerning standardization in the electrical and electronic fields. To
this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,
Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC
Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested
in the subject dealt with may participate in this preparatory work. International, governmental and non-
governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely
with the International Organization for Standardization (ISO) in accordance with conditions determined by
agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence
between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in
the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of
patent rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60364-7-711 has been prepared by IEC technical committee 64:
Electrical installations and protection against electric shock.
This second edition cancels and replaces the first edition published in 2007. This e
...
