SIST EN IEC 60309-1:2022
(Main)Plugs, fixed or portable socket-outlets and appliance inlets for industrial purposes - Part 1: General requirements (IEC 60309-1:2021)
Plugs, fixed or portable socket-outlets and appliance inlets for industrial purposes - Part 1: General requirements (IEC 60309-1:2021)
This document applies to plugs, fixed or portable socket-outlets and appliance inlets hereinafter
referred to as accessories, with a rated operating voltage not exceeding 1 000 V DC or
1 000 V AC with a frequency not exceeding 500 Hz and a rated current not exceeding 800 A,
primarily intended for industrial use, either indoors or outdoors.
These accessories are intended to be installed by instructed persons or skilled persons only.
The list of preferred ratings is not intended to exclude other ratings.
This document applies to accessories for use when the ambient temperature is normally within
the range of −25 °C to +40 °C.
These accessories are intended to be connected to cables of copper or copper alloy only.
This document applies to accessories with screwless-type terminals or insulation piercing
terminals, with a rated current up to and including 32 A for series I and 30 A for series II.
The use of these accessories on building sites and for agricultural, commercial and domestic
applications is not precluded.
Fixed socket-outlets or appliance inlets incorporated in or fixed to electrical equipment are
within the scope of this document. This document also applies to accessories intended to be
used in extra-low voltage installations.
This document does not apply to accessories primarily intended for domestic and similar
general purposes.
This document does not cover single-pole accessories.
In locations where special conditions prevail, for example on board ship or where explosions
are liable to occur, additional requirements can be necessary.
Stecker, ortsfeste oder ortsveränderliche Steckdosen und Gerätestecker für industrielle Anwendungen - Teil 1: Allgemeine Anforderungen (IEC 60309-1:2021)
Fiches, socles fixes de prise de courant, prises mobiles et socles de connecteur pour usages industriels - Partie 1: Exigences générales (IEC 60309-1:2021)
L'IEC 60309-1:2021 s’applique aux fiches, socles fixes de prise de courant, prises mobiles et socles de connecteur, ci-après désignés par le terme les "appareils", de tension nominale d’emploi ne dépassant pas 1 000 V en courant continu ou 1 000 V en courant alternatif, de fréquence ne dépassant pas 500 Hz, et de courant nominal ne dépassant pas 800 A, destinés essentiellement aux usages industriels, à l’intérieur ou à l’extérieur des bâtiments.
Cette cinquième édition annule et remplace la quatrième édition parue en 1999, son Amendement 1:2005 et son Amendement 2:2012. Elle constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
- ajout d'une classification, d’exigences et d’essais relatifs aux appareils équipés d’obturateurs;
- marquage supplémentaire pour indiquer la borne du neutre et/ou la borne de terre;
- remplacement du terme "connecteur" par le terme "prise mobile".
Vtiči, fiksne ali prenosne vtičnice in aparatne spojke za industrijsko rabo - 1. del: Splošne zahteve (IEC 60309-1:2021)
Ta dokument se uporablja za vtiče, fiksne ali prenosne vtičnice in vtičnice aparatov (v nadaljevanju besedila: pribor) z nazivno obratovalno napetostjo, ki ne presega 1000 V enosmerne ali izmenične napetosti in frekvence 500 Hz, ter nazivnim tokom, ki ne presega 800 A, namenjene predvsem za industrijsko uporabo v notranjih prostorih ali na prostem.
Ta pribor je namenjen za namestitev s strani izključno usposobljenih ali kvalificiranih oseb. Seznam prednostnih nazivnih vrednosti ni namenjen izključitvi drugih nazivnih vrednosti.
Ta dokument se uporablja za pribor za uporabo pri temperaturi okolja med –25 °C in +40 °C.
Ta pribor se lahko priključi samo na kable z vodniki iz bakra ali bakrove zlitine. Ta dokument se uporablja za pribor z brezvijačnimi priključki ali priključki, ki predirajo izolacijo, z nazivnim tokom do vključno 32 A za serijo I in 30 A za serijo II.
Uporaba teh priključkov na gradbiščih ter za kmetijsko, komercialno ali domačo uporabo ni izključena.
Področje uporabe tega dokumenta zajema fiksne vtičnice ali vtičnice za aparate, ki so vgrajene v električno opremo ali so nanjo pritrjene. Ta dokument se uporablja tudi za pribor, namenjen uporabi pri izjemno nizkonapetostnih inštalacijah.
Ta dokument se ne uporablja za pribor, namenjen za domačo uporabo ali podobne splošne namene.
Ta dokument ne zajema enopolnega pribora.
Na mestih, kjer prevladujejo posebne okoliščine, na primer na ladji ali na mestih, kjer so možne eksplozije, so lahko potrebne dodatne zahteve.
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
SIST EN IEC 60309-1:2022
01-december-2022
Nadomešča:
SIST EN 60309-1:2000
SIST EN 60309-1:2000/A1:2008
SIST EN 60309-1:2000/A1:2008/AC:2014
SIST EN 60309-1:2000/A11:2006
SIST EN 60309-1:2000/A2:2012
Vtiči, fiksne ali prenosne vtičnice in aparatne spojke za industrijsko rabo - 1. del:
Splošne zahteve (IEC 60309-1:2021)
Plugs, fixed or portable socket-outlets and appliance inlets for industrial purposes - Part
1: General requirements (IEC 60309-1:2021)
Stecker, ortsfeste oder ortsveränderliche Steckdosen und Gerätestecker für industrielle
Anwendungen - Teil 1: Allgemeine Anforderungen (IEC 60309-1:2021)
Fiches, socles fixes de prise de courant, prises mobiles et socles de connecteur pour
usages industriels - Partie 1: Exigences générales (IEC 60309-1:2021)
Ta slovenski standard je istoveten z: EN IEC 60309-1:2022
ICS:
29.120.30 Vtiči, vtičnice, spojke Plugs, socket-outlets,
couplers
SIST EN IEC 60309-1:2022 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN IEC 60309-1:2022
---------------------- Page: 2 ----------------------
SIST EN IEC 60309-1:2022
EUROPEAN STANDARD EN IEC 60309-1
NORME EUROPÉENNE
EUROPÄISCHE NORM June 2022
ICS 29.120.30 Supersedes EN 60309-1:1999 + A1:2007 + A2:2012 +
A1:2007/AC:2014
English Version
Plugs, fixed or portable socket-outlets and appliance inlets for
industrial purposes - Part 1: General requirements
(IEC 60309-1:2021)
Fiches, socles fixes de prise de courant, prises mobiles et Stecker, ortsfeste oder ortsveränderliche Steckdosen und
socles de connecteur pour usages industriels - Partie 1: Gerätestecker für industrielle Anwendungen - Teil 1:
Exigences générales Allgemeine Anforderungen
(IEC 60309-1:2021) (IEC 60309-1:2021)
This European Standard was approved by CENELEC on 2021-09-08. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60309-1:2022 E
---------------------- Page: 3 ----------------------
SIST EN IEC 60309-1:2022
EN IEC 60309-1:2022 (E)

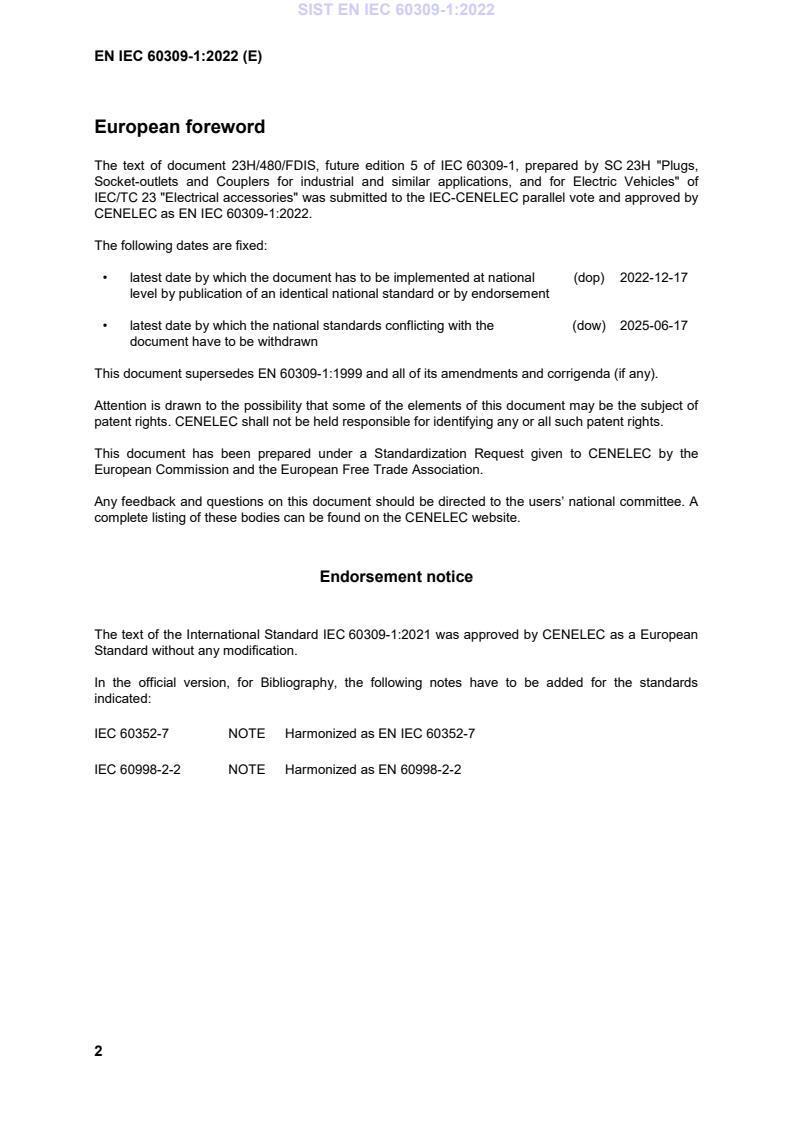

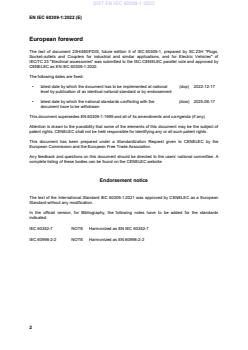

European foreword
