EN 1807-2:2013

Safety of woodworking machines - Band sawing machines - Part 2: Log sawing machines

This European Standard deals with all significant hazards, hazardous situations and events as listed in Clause 4 which are relevant to stationary and displaceable log band sawing machines with either manual or automatic loading and/or unloading, hereinafter referred to as machines, designed to cut solid wood, when they are used as intended and under the conditions foreseen by the manufacturer, including reasonably foreseeable misuse.
This European Standard does not apply to:
a)   table band saws and band re-saws;
NOTE 1   Table band saws and band re-saws are covered by EN 1807-1.
b)   specific hazards related to automatic loading and/or unloading;
c)   any hazards relating to the combination of a single machine being used with any other machine (as part of a line e.g. loading and/or unloading automated systems);
d)   any hazards arising from any other machining processes (e.g. milling and sawing) related to associated machines or cutting groups, e.g. canters and circular saws.
This European Standard does not deal with the specific hazards related to thermal engine and P.T.O. equipment fitted to the machine.
This European Standard is not applicable to machines manufactured before the date of its publication as EN.
NOTE 2   Machines with manual loading and/or unloading covered by this document are listed under 4 of Annex IV of the Machinery Directive.

Sicherheit von Holzbearbeitungsmaschinen - Bandsägemaschinen - Teil 2: Blockbandsägemaschinen

Diese Europäische Norm behandelt alle im Abschnitt 4 aufgeführten signifikanten Gefährdungen, Gefährdungssituationen und Ereignisse, die auf stationäre und verschiebbare Blockbandsägemaschinen mit Beschickung entweder von Hand oder automatisch und/oder Entnahme im Folgenden als Maschinen bezeichnet, die konstruiert sind zum Schneiden von Massivholz, wenn sie bestimmungsgemäß und entsprechend den durch den Hersteller vorhersehbaren Bedingungen einschließlich vernünftigerweise vorhersehbarer Fehlanwendung verwendet werden.
Diese Europäische Norm gilt nicht für:
a)   Tischbandsägemaschinen und Trennbandsägemaschinen;
ANMERKUNG 1   Tischbandsägemaschinen und Trennbandsägemaschinen sind in FprEN 1807-1:2012 erfasst.
b)   spezifische Gefährdungen im Zusammenhang mit automatischer Beschickung und/oder Entnahme;
c)   jegliche Gefährdungen im Zusammenhang mit der Kombination einer einzelnen Maschine, die mit irgend¬einer anderen Maschine verwendet wird (als Teil einer Linie z. B. Beschickung und/oder Entnahme mit automatischen Systemen);
d)   jegliche Gefährdungen im Zusammenhang mit jeglichen anderen Bearbeitungsarten (z. B. Fräsen und Sägen), die damit verbundenen Maschinen oder Bearbeitungsgruppen, z. B. Zerspanern und Kreissäge-maschinen, zuzuordnen sind.
Diese Europäische Norm behandelt nicht die spezifischen Gefährdungen im Zusammenhang mit einer Wärmekraftmaschine und einem Zapfwellenantrieb (PTO), mit denen die Maschine ausgerüstet ist.
Diese Europäische Norm gilt nicht für Maschinen, die vor seiner Veröffentlichung als EN hergestellt wurden.
ANMERKUNG 2   Maschinen mit Handbeschickung und/oder Handentnahme, die in diesem Dokument erfasst sind, sind unter A.4 des Anhangs IV der Maschinenrichtlinie genannt.

Sécurité des machines pour le travail du bois - Machines à scier à ruban - Partie 2: Scies à grumes

Le présent document traite des phénomènes dangereux, situations et événements dangereux significatifs, tels qu'énumérés à l'Article 4, qui sont pertinents pour les machines à scier à ruban à grumes, fixes et transportables, munies d'un système de chargement et/ou de déchargement manuel ou automatique ci-après désignées "machines" conçues pour la coupe de bois massif, durant l'utilisation normale et dans les conditions prévues par le fabricant, incluant une mauvaise utilisation raisonnablement prévisible.
La présente Norme européenne n'est pas applicable aux :
a)   scies à ruban à table et aux scies à ruban à refendre ;
NOTE 1   Les scies à ruban à table et les scies à ruban à refendre sont couvertes par le FprEN 1807-1:2012.
b)   phénomènes dangereux spécifiques relatifs au chargement et/ou déchargement automatique ;
c)   tous phénomènes dangereux relatifs à la combinaison d'une machine simple utilisée avec toute autre machine (faisant partie d'une ligne de production par exemple, systèmes automatisés de chargement et/ou déchargement) ;
d)   tous phénomènes dangereux engendrés par d'autres procédés d'usinage (par exemple, fraisage et sciage) relatifs à des machines ou groupes de coupe associés, par exemple équarrisseuse et scies circulaires.
La présente Norme Européenne ne traite pas des phénomènes dangereux spécifiques relatifs à un moteur thermique et à un équipement de PTO montés sur la machine.
La présente Norme européenne n’est pas applicable aux machines qui ont été fabriquées avant sa date de publication comme EN.
NOTE 2   Les machines avec chargement manuel et/ou déchargement couvertes par le présent document sont énumérées dans la Directive "Machines", Annexe IV, 4.

Varnost lesnoobdelovalnih strojev - Tračne žage - 2. del: Žage za razrez hlodovine

V tem evropskem standardu so obravnavane vse večje nevarnosti, nevarne razmere in dogodki iz točke 4 v zvezi z ročnimi ali avtomatskimi stacionarnimi in premostljivimi tračnimi žagami (v nadaljevanju: »stroji«), ki so namenjene rezanju polnega lesa, ivernih plošč, vlaknenih plošč in vezanih plošč, ko se uporabljajo v skladu z namenom in pod pogoji, ki jih je predvidel proizvajalec, vključno z razumno predvideno nepravilno uporabo. Ta evropski standard se ne uporablja za:
a) namizne tračne žage in žage za rezanje desk;
OPOMBA 1: Namizne tračne žage in žage za rezanje desk so obravnavane v standardu FprEN 1807-1:2012.
b) specifične nevarnosti v zvezi z avtomatskim nalaganjem in/ali odstranjevanjem;
c) nevarnosti v zvezi s kombinacijo posameznega stroja v uporabi s katerim drugim strojem (kot del linije – npr. avtomatizirani sistemi za nalaganje in/ali odstranjevanje);
d) nevarnosti, ki izvirajo iz postopkov drugih strojev (npr. rezkanje in žaganje), v zvezi s povezanimi stroji ali rezilnimi skupinami, npr. tračnimi in krožnimi žagami. V tem evropskem standardu niso obravnavane specifične nevarnosti v zvezi s toplotnim motorjem in opremo priključne gredi stroja. Ta evropski standard ne velja za stroje, ki so bili izdelani, preden je bil objavljen kot standard EN.
OPOMBA 2: Ročni stroji, ki so obravnavani v tem dokumentu, so navedeni v točki 4 Priloge IV k direktivi o strojih.

General Information

• Status: Published
• Publication Date: 26-Mar-2013
• Withdrawal Date: 29-Sep-2013
• ICS: 79.120.10 - Woodworking machines
• ICS: 79.120.20 - Woodworking tools
• Technical Committee: CEN/TC 142 - Woodworking machines - Safety
• Drafting Committee: CEN/TC 142/WG 14 - Safety of manually fed machines
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 03-Jun-2024
• Completion Date: 03-Jun-2024
• Directive: 2006/42/EC - Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC (recast)
• Mandate: M/079 - Mandate to CEN and CENELEC for standardization in the field of machines
• Mandate: M/396 - Mandate to CEN and Cenelec for standardisation in the field of machinery
• Ref Project: SIST EN 1807-2:2013 - Safety of woodworking machines - Band sawing machines - Part 2: Log sawing machines

Relations

• Replaces: EN 1807:1999+A1:2009 - Safety of woodworking machines - Band sawing machines
• Effective Date: 08-Jun-2022

Overview - EN 1807-2:2013 (CEN)

EN 1807-2:2013 is the European harmonised safety standard for band sawing machines - Part 2: Log sawing machines, published by CEN to support compliance with the Machinery Directive (2006/42/EC). It covers stationary and displaceable log band sawing machines (manual or automatic loading/unloading) designed to cut solid wood, addressing all significant hazards and foreseeable misuse as described in Clause 4. The standard excludes table band saws/band re-saws (covered by EN 1807-1), machine combinations in production lines, specific automatic loading/unloading hazards, other machining processes, and thermal engine/PTO-specific hazards. Machines built before publication are not covered.

Key topics and technical requirements

EN 1807-2 defines practical safety measures and testing methods. Major topics include:

• Controls and control systems - safety and reliability requirements; mode selection; emergency stop; tracking; speed control. Performance Level requirements reference EN ISO 13849-1 (superseding older EN 954-1 categories).
• Protection against mechanical hazards - blade holder and blade design, prevention of access to moving parts, stability, risk of break-up, guard design and guard-locking (interlocks). Guard-locking of type N (EN 1088) is required when blade run-down ≤ 10 s and type M when > 10 s.
• Braking and run-down tests - test procedures and acceptance for unbraked and braked run-down times (Annex D).
• Emission controls - requirements for dust and chip containment and measurement; noise emission measurement procedures (Annex B).
• Non-mechanical hazards - fire, noise, electrical safety, ergonomics, hydraulics/pneumatics, vibration, electromagnetic compatibility, static electricity.
• Maintenance and information for use - marking, instruction handbook and operator information essential for safe operation.
• Normative test methods - impact tests for guards (Annex C) and guard adjustment tests (Annex A).

Practical applications - who uses EN 1807-2:2013

• Manufacturers and designers of log band sawing machines - to design machines that meet harmonised European safety requirements and enable CE marking.
• Safety engineers and compliance officers - to assess machine conformity with the Machinery Directive and manage risk assessments.
• Testing laboratories and certification bodies - to perform braking, noise, impact and guard tests described in the annexes.
• Purchasers and plant managers - to specify safer equipment, ensure installation meets guarding/control requirements, and support safe maintenance and operation.

Related standards

• EN 1807-1 (Table band saws and band re-saws)
• EN ISO 12100 (general machine safety / risk assessment)
• EN ISO 13849-1 (safety-related control systems / Performance Levels)
• EN 1088 (interlocking devices)
• EN 614-1, EN 894 series (ergonomics, controls and displays)

Keywords: EN 1807-2:2013, log sawing machines, band sawing machines, machine safety, CEN, Machinery Directive, guarding, interlocks, braking tests, dust emission, noise measurement.

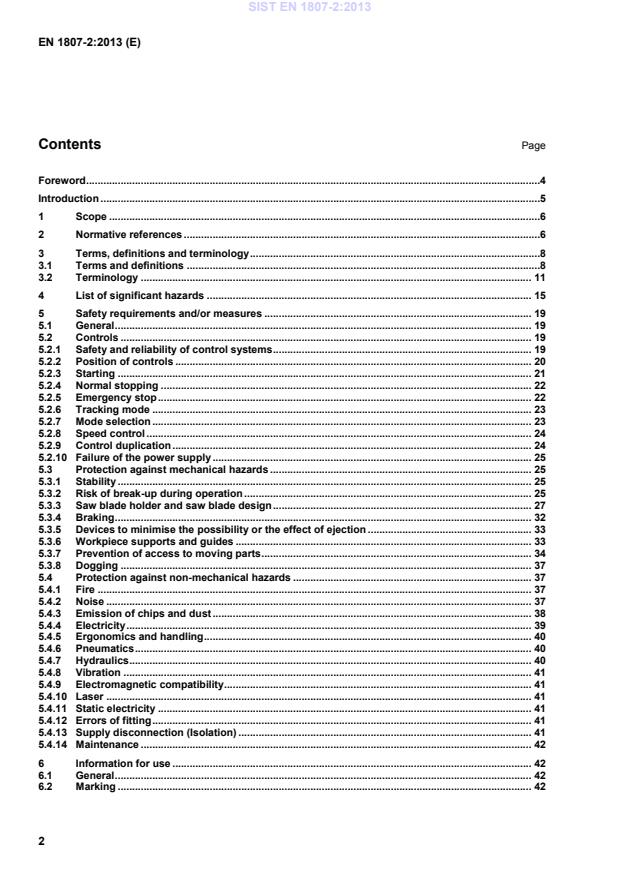

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Sicherheit von Holzbearbeitungsmaschinen - Bandsägemaschinen - Teil 2: BlockbandsägemaschinenSécurité des machines pour le travail du bois - Machines à scier à ruban - Partie 2 : Scies à grumesSafety of woodworking machines - Band sawing machines - Part 2: Log sawing machines79.120.10Lesnoobdelovalni strojiWoodworking machines25.080.60Strojne žageSawing machinesICS:Ta slovenski standard je istoveten z:EN 1807-2:2013SIST EN 1807-2:2013en,fr,de01-junij-2013SIST EN 1807-2:2013SLOVENSKI
STANDARDSIST EN 1807:2000+A1:2009oSIST prEN 1807-2:20091DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 1807-2
March 2013 ICS 79.120.10 Supersedes EN 1807:1999+A1:2009English Version
Safety of woodworking machines - Band sawing machines - Part 2: Log sawing machines
Sécurité des machines pour le travail du bois - Machines à scier à ruban - Partie 2: Scies à grumes
Sicherheit von Holzbearbeitungsmaschinen - Bandsägemaschinen - Teil 2: Blockbandsägemaschinen This European Standard was approved by CEN on 13 January 2013.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2013 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 1807-2:2013: ESIST EN 1807-2:2013

Test for adjustable guard over cutting area of saw blade . 47 Annex B (normative)
Operating conditions for noise emission measurement . 49 B.1 General . 49 B.2 General data sheet . 49 Annex C (normative)
Impact test method for guards . 52 C.1 General . 52 C.2 Test method . 52 C.2.1 Preliminary remarks . 52 C.2.2 Testing equipment . 52 C.2.3 Projectile for guards . 52 C.2.4 Sampling. 52 C.2.5 Test procedure . 52 C.3 Results . 53 C.4 Assessment . 53 C.5 Test report . 53 C.6 Test equipment for impact test . 53 Annex D (normative)
Braking tests . 55 D.1 Conditions for all tests . 55 D.2 Tests . 55 D.2.1 Unbraked run-down time . 55 D.2.2 Run-up time . 55 D.2.3 Braked run-down time . 55 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC . 57 Bibliography . 60
The following significant technical changes have been made in this new edition: • for controls, the requirement of Performance Level according to EN ISO 13849-1 instead of categories according to EN 954-1; • a more complete clause with set of requirements for "Emission of chips and dust"; • requirement for guard-locking on interlocked movable guards to prevent access to moving parts, of type N of EN 1088 when the band saw blade run-down time is maximum 10 s and of type M when the run-down time exceeds 10 s. EN 1807, Safety of woodworking machines  Band sawing machines consists of the following parts:  Part 1 Table band saws and band re-saws;  Part 2 Log sawing machines. Organisations contributing to the preparation of this European Standard include European Committee of Woodworking Machinery Manufacturers Association "EUMABOIS". The European Standards produced by CEN/TC 142 are particular to woodworking machines and complement the relevant A and B Standards on the subject of general safety (see Introduction of EN ISO 12100:2010 for a description of A, B and C standards). According to the CEN/CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 1807-2:2013

2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 614-1:2006+A1:2009, Safety of machinery — Ergonomic design principles — Part 1: Terminology and general principles EN 894-1:1997+A1:2008, Safety of machinery — Ergonomics requirements for the design of displays and control actuators — Part 1: General principles for human interactions with displays and control actuators EN 894-2:1997+A1:2008, Safety of machinery — Ergonomics requirements for the design of displays and control actuators — Part 2: Displays EN 894-3:2000+A1:2008, Safety of machinery — Ergonomics requirements for the design of displays and control actuators — Part 3: Control actuators EN 1005-1:2001+A1:2008, Safety of machinery — Human physical performance — Part 1: Terms and definitions EN 1005-2:2003+A1:2008, Safety of machinery — Human physical performance — Part 2: Manual handling of machinery and component parts of machinery EN 1005-3:2002+A1:2008, Safety of machinery — Human physical performance — Part 3: Recommended force limits for machinery operation SIST EN 1807-2:2013

(IEC 60825-1:2007) EN 61310-1:2008, Safety of machinery — Indication, marking and actuation — Part 1: Requirements for visual, acoustic and tactile signals (IEC 61310-1:2007) EN 61800-5-2:2007, Adjustable speed electrical power drive systems — Part 5-2: Safety requirements — Functional (IEC 61800-5-2:2007) EN ISO 3743-1:2010, Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure — Engineering methods for small movable sources in reverberant fields — Part 1: Comparison method for hard-walled test rooms (ISO 3743-1:2010) EN ISO 3743-2:2009, Acoustics — Determination of sound power levels of noise sources using sound pressure — Engineering methods for small, movable sources in reverberant fields — Part 2: Methods for special reverberation test rooms (ISO 3743-2:1994) EN ISO 3744:2010, Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure — Engineering methods for an essentially free field over a reflecting plane (ISO 3744:1994) EN ISO 3745:2012, Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure — Precision methods for anechoic rooms and hemi-anechoic rooms (ISO 3745:2012) EN ISO 3746:2010, Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure — Survey method using an enveloping measurement surface over a reflecting plane (ISO 3746:2010) EN ISO 4413:2010, Hydraulic fluid power — General rules and safety requirements for systems and their components (ISO 4413:2010)
1) This document is impacted by the stand-alone amendment EN 60439-1:1999/A1:2004, Low-voltage switchgear and controlgear assemblies  Part 1: Type-tested and partially type-tested assemblies (IEC 60439-1:1999/A1:2004). 2) This document is impacted by the stand-alone amendment EN 60529:1991/A1:2000, Degrees of protection provided by enclosures (IP Code) (IEC 60529:1989/A1:2000). SIST EN 1807-2:2013

Note 1 to entry: See Figure 8. SIST EN 1807-2:2013

Note 1 to entry: See Figure 9. 3.1.5 dogging means of securing a log for cutting 3.1.6 log band saw band sawing machine designed for the primary conversion of logs 3.1.6.1 travelling table log saw hand fed or power fed log band saw fitted with a travelling table and dogging
Note 1 to entry: See Figure 1. 3.1.6.2 reciprocating carriage log saw power fed log band saw fitted with a reciprocating carriage and dogging
Note 1 to entry: See Figure 2. 3.1.6.3 conveyor log saw log band saw fitted with a conveyor as an integrated feed device
Note 1 to entry: See Figure 3. 3.1.6.4 moving head rig log saw (gantry log saw) log band saw with a moving saw unit
Note 1 to entry: See Figure 4. 3.1.7 manual control situation where each process movement is initiated by the operator 3.1.8 machine actuator power mechanism used to effect motion of the machine 3.1.9 hand feed manual holding and/or guiding of the workpiece, which includes the use of a hand operated carriage on which the workpiece is placed manually or clamped and the use of a demountable power feed unit SIST EN 1807-2:2013

area where the saw blade is not involved in the cutting process 3.1.17 displaceable machine machine which is located on the floor, stationary during use and equipped with a device, normally wheels, which allows it to be moved between locations 3.1.18 stationary machine
machine designed to be located on or fixed to the floor or other parts of the structure of the premises and to be stationary during use 3.1.19 PTO-driven machine displaceable machine designed to be mounted to a moveable work machine, e.g. tractor, and which is powered by PTO 3.1.20 information of the supplier statements, sales literature, leaflets or other documents, where the manufacturer (or supplier) declares either the characteristics or the compliance of the material or product to a relevant standard 3.1.21 safety function function of a machine whose failure can result in an immediate increase of the risk(s)
[SOURCE: EN ISO 12100:2010, 3.30] SIST EN 1807-2:2013

[SOURCE: EN ISO 13849-1:2008, 3.1.1] 3.1.23 embedded software SRESW firmware system software software that is part of the system supplied by the control manufacturer and which is not accessible for modification by the user of the machinery
[SOURCE: EN ISO 13849-1:2008, 3.1.37] 3.1.24 application software
SRASW software specific to the application, implemented by the machine manufacturer, and generally containing logic sequences, limits and expressions that control the appropriate inputs, outputs, calculations and decisions necessary to meet the SRP/CS requirements
[SOURCE: EN ISO 13849-1:2008, 3.1.36] Note 1 to entry: Firmware or system software are synonymous with embedded software. Note 2 to entry: Manufacturer means manufacturer of the system. Note 3 to entry: For example the operating system of a speed monitoring device. 3.1.25 performance level PL discrete level used to specify the ability of safety-related parts of control systems to perform a safety function under foreseeable conditions [SOURCE: EN ISO 13849-1:2008, 3.1.23] 3.1.26 safety programmable logic controller
PLC programmable logic controller dedicated to safety related application designed in the required PL according to EN ISO 13849-1:2008 3.2 Terminology The names of the main parts of the machines are shown in Figures 1 to 4 and Tables 1 to 4. SIST EN 1807-2:2013

Figure 1 — Example of travelling table log saw Table 1 — Terminology for travelling table log saw 1 Travelling table 2 Dogging 3 Fence 4 Saw blade 5 Band wheel guards 6 Adjustable guard for saw blade 7 Below travelling table height by not more than 100 mm SIST EN 1807-2:2013

Figure 2 — Example of reciprocating carriage log saw Table 2 — Terminology for reciprocating carriage log saw 1 Reciprocating log carriage 2 Band wheel guard 3 Saw guides 4. Saw blade 5 Adjustable guard for saw blade 6 Dust extraction outlet 7 Pit SIST EN 1807-2:2013

Figure 3 — Example of conveyor fed log saw Table 3 — Terminology for conveyor fed log saw 1 Conveyor 2 Saw blade 3 Spiked idle roller 4 Band wheel guards
Figure 4 — Example of moving head rig log saw Table 4 — Terminology for moving head rig log saw 1 Moving head rig 2 Saw blade 3 Band wheel guard
4 List of significant hazards This clause contains all significant hazards, hazardous situations and events (see EN ISO 12100:2010), identified by risk assessment as significant for the machines as defined in the scope and which require action to eliminate or reduce the risk. This document deals with these significant hazards by defining safety requirements and/or measures or by reference to relevant standards. These hazards are listed in Table 5. SIST EN 1807-2:2013

a) shape; 6.2.2.1, 6.2.2.2, 6.3 5.3.2, 5.3.7.1, 5.3.7.3, 5.3.8, 5.4.3, 5.4.12
b) relative location; 5.2.2, 5.3.3,
5.3.7, 5.3.8, 5.4.5, 5.4.10, 5.4.14
c) mass and stability (potential energy of elements which may move under the effect of gravity); 5.2.5, 5.2.10, 5.3.3, 5.4.5, 5.4.14
d) mass and velocity (kinetic energy of elements in controlled or uncontrolled motion); 5.2.3, 5.2.4, 5.2.8, 5.3.4, 5.3.7, 5.4.5
e) mechanical strength; 5.3.2, 5.3.4, Annex A, Annex C
accumulation of energy inside the machinery:
f) liquids and gases under pressure; 6.2.10, 6.3.5.4 5.4.6, 5.4.7 1.1 Crushing hazard
5.2.3, 5.2.4, 5.2.5, 5.2.7, 5.2.8, 5.2.9, 5.3.4, 5.3.6, 5.3.7, 5.3.8, 5.4.14,
6.3 1.2 Shearing hazard 5.2.3, 5.2.4, 5.2.5, 5.2.7, 5.2.8, 5.2.9, 5.3.4, 5.3.6, 5.3.7, 5.3.8, 5.4.14,
6.3 1.3 Cutting or severing hazard 5.2.3, 5.2.4, 5.2.5, 5.2.7, 5.2.8, 5.2.9, 5.3.4, 5.3.6, 5.3.7, 5.3.8, 5.4.14,
6.3 SIST EN 1807-2:2013
5.2.3, 5.2.4, 5.2.5, 5.2.7, 5.2.8, 5.2.9, 5.3.4, 5.3.6, 5.3.7, 5.3.8, 5.4.14,
6.3 1.5 Drawing-in or trapping hazard 5.2.3, 5.2.4, 5.2.5, 5.2.7, 5.2.8, 5.2.9, 5.3.4, 5.3.6, 5.3.7, 5.3.8, 5.4.14,
6.3 1.6 Impact hazard 5.2.3, 5.2.4, 5.2.5, 5.2.7, 5.2.8, 5.2.9, 5.3.4, 5.3.6, 5.3.7, 5.4.14, 6.3 1.8 Friction or abrasion hazard 5.2.3, 5.2.4, 5.2.7, 5.2.9, 5.3.4,
5.3.7, 5.3.8, 5.4.14, 6.3 1.9 High pressure fluid injection or ejection hazard 5.4.6, 5.4.7 2 Electrical hazards due to: 2.1 Contact of persons with live parts (direct contact) 6.2.9, 6.3.5.4 5.4.4, 5.4.13 2.2 Contact of persons with parts which have become live under faulty conditions (indirect contact) 6.2.9 5.4.4, 5.4.13 2.4 Electrostatic phenomena 6.2.9 5.4.11 4 Hazards generated by noise, resulting in: 4.1 Hearing loss (deafness), other physiological disorders (loss of balance, loss of awareness) 6.2.2.2, 6.3 5.4.2, Annex B 4.2 Interference with speech communication, acoustic signals
6.3 6 Hazards generated by radiation 6.5 Lasers 6.3.4.5 5.4.10, 6.3 SIST EN 1807-2:2013

7 Hazards generated by materials and substances (and their constituent elements) processed or used by the machinery 7.1 Hazards from contact with or inhalation of harmful fluids and dusts 6.2.3, 6.2.4
5.4.3, 6.3 7.2 Fire hazard 6.2.4
5.4.1 8 Hazards generated by neglecting ergonomic principles in machinery design related to: 8.1 Unhealthy postures or excessive effort 6.2.7, 6.2.8, 6.2.11.12, 6.3.5.5, 6.3.5.6 5.2.2, 5.4.5 8.2 Hand-arm or foot-leg anatomy 6.2.8.3 5.4.5 8.4 Local lighting 6.2.8.6 6.3 8.5 Mental overload and underload, stress 6.2.8.5 6.3 8.6 Human error, human behaviour 6.2.8, 6.2.11.8, 6.2.11.10, 6.3.5.2, 6.4 6.3 8.7 Design, location or identification of manual controls 6.2.8.f, 6.2.11.8 5.2.2, 5.4.5 8.8 Design or location of visual display units 6.2.8, 6.4.2 5.2.2, 5.4.5 9 Unexpected start up, unexpected overrun/overspeed (or any similar malfunction) from: 9.1 Failure/disorder of the control system 6.2.11, 6.3.5.4 5.2.1, 5.2.11, 5.4.13 9.2 Restoration of energy supply after an interruption 6.2.11.4
5.2.10, 5.4.6, 5.4.7 9.3 External influences on electrical equipment 6.2.11.11 5.4.9 9.5 Errors in the software 6.2.11.7 5.2.1.3 9.6 Errors made by the operator (due to mismatch of machinery with human characteristics and abilities, see 8.6) 6.2.8, 6.2.11.8, 6.2.11.10, 6.3.5.2, 6.4 5.4.5, 6.3 10 Impossibility of stopping the machine in the best possible conditions 6.2.11.1, 6.2.11.3, 6.3.5.2
5.2.4, 5.2.5, 5.2.7, 5.4.13 11 Variations in the rotational speed of tools 6.2.2.2, 6.2.3 5.2.8 12 Failure of the power supply 6.2.11.1, 6.2.11.4 5.2.10 13 Failure of the control circuit 6.2.11, 6.3.5.4
5.2.11 SIST EN 1807-2:2013
5.3.2, 5.3.3, 5.3.5, Annex C 17 Loss of stability / overturning of machinery 6.3.2.6
5.3.1
5 Safety requirements and/or measures 5.1 General The machine shall comply with the safety requirements and/or protective measures of Clause 5. In addition, the machine should be designed according to the principles of EN ISO 12100:2010 for hazards relevant but not significant, which are not dealt with by this document (e.g. sharp edges of the machine frame). For guidance in connection with risk reduction by design, see EN ISO 12100:2010, 6.2, and for safeguarding measures, see EN ISO 12100:2010, 6.3. 5.2 Controls 5.2.1 Safety and reliability of control systems 5.2.1.1 General For the purpose of this document safety related part of a control system means the system from the initial device, e.g. actuator or position detector or sensor, up to and including the power control element of the final machine actuator, e.g. motor or brake. Safety related parts of the control system of this machine comprise parts concerning the following functions and they shall fulfil the requirements of the PL given in the clauses listed below, in accordance with the requirements of EN ISO 13849-1:2008:  Starting and restarting: PL = c (see 5.2.3);  normal stopping: PL = c (see 5.2.4);  emergency stop (if required): PL = c (see 5.2.5);  speed changing by belt position: PL = c (see 5.2.8);  speed monitoring: PL = c (see 5.2.8);  interlocking: PL = c (see 5.2.3, 5.2.8, 5.3.4, 5.3.7.1.2, 5.3.7.1.3.1,);  interlocking with guard locking: PL = c (see 5.2.8, 5.3.7.2);  mode selection (if required): PL = c (see 5.2.7);  opening/closing the adjustable saw blade guard during movement of the reciprocating carriage, moving head rig, conveyor feed or travelling table: PL = c (see 5.3.7.1.3);  braking function: PL = b or PL = c (see 5.3.4.1); SIST EN 1807-2:2013

a) be positioned at least 1,2 m from the cutting area as shown in Figure 5; or b) be separated from the cutting area by a deterring/impeding device which creates a reach distance of 1,2 m to the saw blade. NOTE This doesn't apply for machines equipped with a control cabin (see 5.4.5). Setting controls which are not required during the normal processing operation may be positioned within 1,2 m of the cutting area. Control devices shall not be located in the path of the reciprocating carriage, conveyor feed, moving head rig, travelling table, other handling equipment or logs. In all cases, the operator shall, from the normal operating position, be able to see (directly or by means of auxiliary device e.g. mirror, CCTV) the exposed part of the saw blade and the entire path of the reciprocating carriage or other relevant movement, unless the machine is located within perimeter fencing and the controls are sited in a separate control cabin.
Verification: By checking the relevant drawings and/or circuit diagrams, measurement, visual inspection of the machine and functional testing of the machine. SIST EN 1807-2:2013

1 1 200 mm to saw line Figure 5— Log saws - Danger area around the blade 5.2.3 Starting Before starting or restarting the machine all interlocked guard(s) (where fitted as indicated in 5.3.7) shall be in place and functional. This is achieved by the interlocking arrangements described in 5.3.7. For non interlocked guards provisions before starting, see 6.3, list entry c), sub-entry 6). Start or restart shall only be possible by actuation of the start control device provided for that purpose. For electrically operated machines the requirements of 9.2.5.2 of EN 60204-1:2006 apply but the exceptions described in 9.2.5.2 of EN 60204-1:2006 are not relevant. The drive motor for the driven band wheel shall only become operable after any interlocked guards are in place and functional. In the automatic cutting mode, the integrated feed shall not be capable to start before the band saw is running. In any other mode where the operator is close to the machine the band saw drive need not to be activated. NOTE
This can be achieved by means of a star delta start control device or a time delay device. The safety related part of the control systems (see also 5.2.1) for starting and for the interlocking arrangements as indicated in 5.3.7 shall be at least PL = c in accordance with the requirements of EN ISO 13849-1:2008
At log band saws under manual control the controls for integrated feed movement shall be of the 'hold-to-run' type unless the machine is located within an interlocked with guard locking perimeter fence. At log band saws under manual control the controls which operate the log turning devices shall be of the hold-to-run type unless the log turning device is enclosed in an interlocked with guard locking perimeter fence. The safety related part of the control systems (also see 5.2.1) for hold-to-run shall be at least PL = c in accordance with the requirements of EN ISO 13849-1:2008. SIST EN 1807-2:2013
...
