EN 10223-7:2012
(Main)Steel wire and wire products for fencing and netting - Part 7: Steel wire welded panels for fencing
Steel wire and wire products for fencing and netting - Part 7: Steel wire welded panels for fencing
This European Standard specifies requirements for steel wire welded mesh panels for fencing. The panels are used for fencing parks, schools, sport stadia, public buildings, factories, airports, military sites, etc.
This European Standard specifies the general characteristics of welded mesh supplied as panels and recommended coatings, properties and tolerances. This European Standard is applicable to panels made from round or shaped wires not thicker than 10 mm.
The panels have round, rectangular or triangular wires and double horizontal wires. The use of V-shaped vertical wires is optional.
Stahldraht und Drahterzeugnisse für Zäune und Drahtgeflechte - Teil 7: Geschweißte Gittermatten für Zäune
Diese Europäische Norm legt die Anforderungen für geschweißte Gittermatten aus Stahldraht für Zäune fest. Die Gittermatten finden Einsatz bei der Umzäunung von Parkanlagen, Schulen, Sportstadien, öffentlichen Gebäuden, Fabriken, Flughäfen, militärischen Einrichtungen usw.
Diese Europäische Norm legt die allgemeinen Eigenschaften von geschweißten Gittern, die als Gittermatten geliefert werden, sowie die empfohlenen Beschichtungen, Eigenschaften und Toleranzen fest. Diese Europäische Norm gilt für Gittermatten aus Rund oder Formdrähten, die nicht dicker als 10 mm sind.
Die Gittermatten bestehen aus vertikalen Drähten mit rundem, rechteckigem oder dreieckigem Querschnitt und horizontalen Einzel- oder Doppeldrähten. Die Verwendung von V förmigen vertikalen Drähten ist wahlweise freigestellt.
Fils et produits tréfilés en acier pour clôtures et grillages - Partie 7: Panneaux en acier soudés pour clôturage
La présente Norme européenne spécifie les prescriptions relatives aux panneaux grillagés en acier soudés destinés au clôturage. Les panneaux sont utilisés pour clôturer des parcs, des écoles, des stades de sport, des bâtiments publics, des usines, des aéroports, des sites militaires, etc.
La présente Norme européenne spécifie les caractéristiques générales du grillage soudé livré en panneaux, ainsi que les revêtements, caractéristiques et tolérances recommandés. Elle s’applique aux panneaux fabriqués à partir de fils ronds ou profilés de diamètre ou épaisseur inférieur(e) ou égal(e) à 10 mm.
Les panneaux ont des fils verticaux ronds, rectangulaires ou triangulaires et des fils simples horizontaux ou doubles horizontaux. L’utilisation de fils verticaux en V est facultative.
Jeklena žica in žični izdelki za ograje - 7. del: Iz jeklenih žic zvarjene ograjne plošče
Ta evropski standard določa zahteve za iz jeklenih žic zvarjene ograjne plošče. Plošče se uporabljajo za ograjene parke, šole, športne stadione, javne zgradbe, tovarne, letališča, vojaške objekte idr. Ta evropski standard določa splošne značilnosti zvarjenih mrež, oblikovane v ploščo, in priporočene prevleke, lastnosti in tolerance. Ta evropski standard velja za plošče, ki so narejene iz okrogle ali oblikovane žice, ki ni debelejša od 10 mm. Plošče imajo okrogle, pravokotne ali trikotne navpične žice in enojne ali dvojne vodoravne žice. Uporaba navpičnih žic oblike V je izbirna.
General Information
- Status
- Published
- Publication Date
- 27-Nov-2012
- Withdrawal Date
- 30-May-2013
- Technical Committee
- ECISS/TC 106 - Wire rod and wires
- Drafting Committee
- ECISS/TC 106 - Wire rod and wires
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 06-Feb-2025
- Completion Date
- 14-Apr-2025
Relations
- Effective Date
- 05-Dec-2012
Overview
EN 10223-7:2012 is the CEN European Standard that defines requirements for steel wire welded mesh panels for fencing. It covers panels manufactured from round or shaped wires (not thicker than 10 mm), produced by electrical resistance welding and used for fencing parks, schools, sports stadia, airports, factories, military sites and other external structures. The standard specifies general characteristics, recommended coatings, mechanical properties, dimensional tolerances and test methods for welded wire panels.
Key topics and technical requirements
- Scope and materials
- Panels made from round, rectangular or triangular vertical wires; single or double horizontal wires; V-shaped vertical wires optional.
- Base metal: low carbon steel.
- Mechanical properties
- Tensile strength of horizontal and vertical wires: 350–950 MPa. Range in a lot shall not exceed 200 MPa.
- Weld shear strength: average of four weld-loads ≥ 50% of the breaking load of the smallest wire (test method in Annex A).
- Dimensions and tolerances
- Wire diameter ≤ 10 mm; round-wire tolerances per EN 10218-2:2012 (level T3).
- Mesh size tolerances after coating: <50 mm ±2.0 mm; 50–199 mm ±3.0 mm; ≥200 mm ±4.0 mm. Mesh variation max ±3.0 mm per metre.
- Coatings
- Zinc or Zn–Al (Zn95/Al5) coating classes per EN 10244-2:2009; panels coated after fabrication to comply with EN ISO 1461.
- Organic (polymer) coatings allowed; performance requirements include adhesion (lift ≤5 mm), humidity resistance (1 000 h), salt spray, SO2 exposure (240 h), and weathering (1 000 h) per EN 10245 series and referenced EN ISO tests.
- Stiffness classification
- Heavy: > 1.0 kPa·m4; Medium: 0.5–1.0 kPa·m4; Light: < 0.5 kPa·m4.
- Testing & sampling
- Sampling per EN 10021; wire tensile test EN 10218-1; dimensional and coating tests as referenced.
Applications and users
EN 10223-7:2012 is used by:
- Fence manufacturers and fabricators to design and certify welded mesh panels.
- Specifiers, architects and procurement teams selecting fencing for public, commercial, industrial and military projects.
- Testing laboratories and quality inspectors for compliance verification.
- Installers and asset owners requiring defined durability, mechanical performance and coating systems (galvanized and/or organic).
Related standards
- EN 10223 series (Parts 1–8) - other fencing wire products
- EN 10218-1 / EN 10218-2 - wire test methods and dimensions
- EN 10244-2 - zinc/zinc-alloy coatings on wire
- EN ISO 1461 - hot-dip galvanizing on fabricated articles
- EN 10245 series - organic coatings on wire
Keywords: EN 10223-7:2012, steel wire welded panels, welded mesh panels for fencing, galvanised fencing panels, welded fence panels, wire mesh fencing standard.
Frequently Asked Questions
EN 10223-7:2012 is a standard published by the European Committee for Standardization (CEN). Its full title is "Steel wire and wire products for fencing and netting - Part 7: Steel wire welded panels for fencing". This standard covers: This European Standard specifies requirements for steel wire welded mesh panels for fencing. The panels are used for fencing parks, schools, sport stadia, public buildings, factories, airports, military sites, etc. This European Standard specifies the general characteristics of welded mesh supplied as panels and recommended coatings, properties and tolerances. This European Standard is applicable to panels made from round or shaped wires not thicker than 10 mm. The panels have round, rectangular or triangular wires and double horizontal wires. The use of V-shaped vertical wires is optional.
This European Standard specifies requirements for steel wire welded mesh panels for fencing. The panels are used for fencing parks, schools, sport stadia, public buildings, factories, airports, military sites, etc. This European Standard specifies the general characteristics of welded mesh supplied as panels and recommended coatings, properties and tolerances. This European Standard is applicable to panels made from round or shaped wires not thicker than 10 mm. The panels have round, rectangular or triangular wires and double horizontal wires. The use of V-shaped vertical wires is optional.
EN 10223-7:2012 is classified under the following ICS (International Classification for Standards) categories: 77.140 - Iron and steel products; 77.140.65 - Steel wire, wire ropes and link chains. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 10223-7:2012 has the following relationships with other standards: It is inter standard links to EN 10223-7:2002. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
You can purchase EN 10223-7:2012 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.SORãþHStahldraht und Drahterzeugnisse für Zäune - Teil 7: Geschweisste Paneele für ZäuneFils et produits tréfilés en acier pour clôtures - Partie 7: Panneaux en acier soudés pour clôturageSteel wire and wire products for fences - Part 7: Steel wire welded panels for fencing91.090Konstrukcije zunaj stavbExternal structures77.140.65Jeklene žice, jeklene vrvi in verigeSteel wire, wire ropes and link chainsICS:Ta slovenski standard je istoveten z:EN 10223-7:2012SIST EN 10223-7:2013en,fr,de01-marec-2013SIST EN 10223-7:2013SLOVENSKI
STANDARDSIST EN 10223-7:20031DGRPHãþD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 10223-7
November 2012 ICS 77.140.65 Supersedes EN 10223-7:2002English Version
Steel wire and wire products for fencing and netting - Part 7: Steel wire welded panels for fencing
Fils et produits tréfilés en acier pour clôtures et grillages - Partie 7: Panneaux en acier soudés pour clôturage
Stahldraht und Drahterzeugnisse für Zäune und Drahtgeflechte - Teil 7: Geschweißte Paneele für Zäune This European Standard was approved by CEN on 13 October 2012.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 10223-7:2012: ESIST EN 10223-7:2013

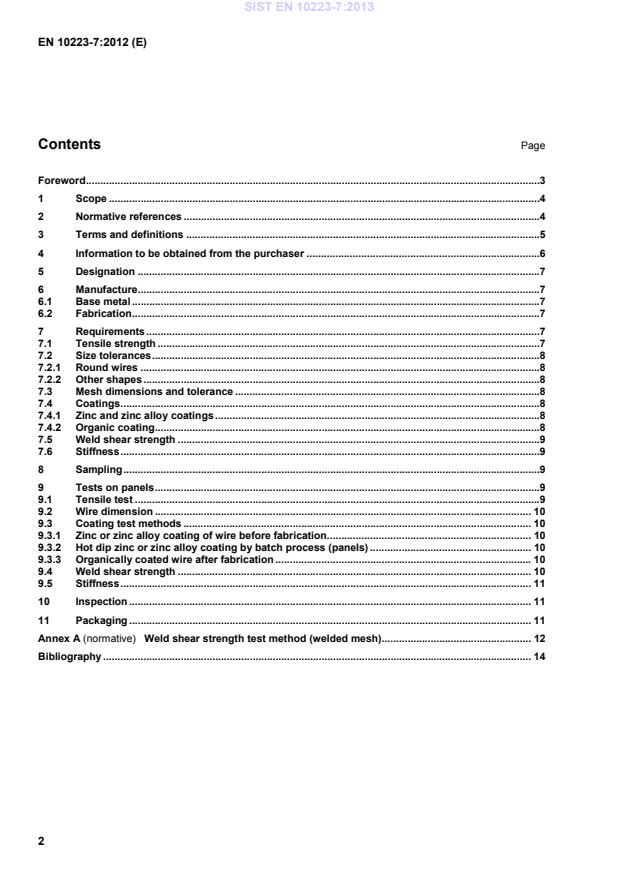

Weld shear strength test method (welded mesh) . 12Bibliography . 14 SIST EN 10223-7:2013
...
