Insulated means of transport for temperature sensitive goods - Requirements and testing - Part 1: Container

This document applies to all thermally insulated means of transport, including: trucks, trailers, tanks, vans, wagons, containers for land transport, small containers, packaging. It is related to every type of insulation. If certain temperatures are due to be maintained independently of external conditions, the above means of transport could be additionally provided with a cooling and/or heating device.
This document specifies the terminology, the requirements for thermal insulation, air tightness, test provisions, dimensioning of containers with and without cooling and/or heating device.
This document also specifies the test provisions for new and in service equipment(s).
This document specifies the terminology, the requirements for thermal insulation, air tightness, test provisions for K-value. This document does not specify further land transport requirements with regard to dimensions, weights, etc. This document does not cover safety requirements. This document does not specify special requirements for sea containers covered by ISO 1496-2.

Wärmegedämmte Transportmittel für temperaturempfindliche Produkte - Anforderungen und Prüfung - Teil 1: Container

Dieses Dokument gilt für alle wärmegedämmten Transportmittel, einschließlich: LKW, Anhänger, Tanks, Transporter, Güterwagen, Behälter für den Landtransport, kleine Behälter und Verpackungen. Sie bezieht sich auf alle Arten der Dämmung. Wenn bestimmte Temperaturen unabhängig von den äußeren Bedingungen aufrechterhalten werden müssen, können die oben genannten Transportmittel zusätzlich mit einer Kühl- und/oder Heizeinrichtung ausgestattet werden.
Dieses Dokument legt die Terminologie, die Anforderungen an die Wärmedämmung, die Luftdichtheit, die Prüfvorschriften sowie die Maße der Behälter mit und ohne Kühl- und/oder Heizeinrichtung fest.
Dieses Dokument legt ebenfalls die Prüfvorschriften für neue und bereits eingesetzte Einrichtung(en) fest.
Dieses Dokument legt die Terminologie, die Anforderungen an die Wärmedämmung, die Luftdichtheit und die Prüfvorschriften für den K-Wert fest. Dieses Dokument gibt keine weiteren Anforderungen an den Landtransport hinsichtlich der Maße, Gewichte usw. an. Dieses Dokument befasst sich außerdem nicht mit Sicherheitsanforderungen. Dieses Dokument legt keine Sonderanforderungen an Seefrachtcontainer fest, die durch ISO 1496-2 abgedeckt werden.

Moyen de transport isotherme pour les marchandises sensibles à la température - Exigences et essais - Partie 1 : Cellule isotherme

Le présent document s’applique à tous les moyens de transport isothermes, y compris : camions, remorques, citernes, fourgonnettes, wagons, cellules pour le transport terrestre, petits conteneurs, emballage. Il porte sur tous les types d’isolation. Si certaines températures doivent être maintenues, indépendamment des conditions externes, les moyens de transport susmentionnés pourraient être également équipés d'un dispositif de chauffage et/ou de réfrigération.
Le présent document spécifie la terminologie, les exigences relatives à l'isolation thermique, à l'étanchéité à l'air, aux dispositions d'essai, ainsi qu'au dimensionnement des cellules, équipées ou non d'un dispositif de chauffage et/ou de réfrigération.
Le présent document spécifie également les dispositions d'essai pour les équipements nouveaux et en service.
Le présent document spécifie la terminologie, les exigences en matière d'isolation thermique et d'étanchéité à l'air, ainsi que les dispositions d'essai pour le coefficient K. Le présent document ne spécifie pas d'exigences supplémentaires en matière de transport terrestre relatives aux dimensions, au poids, etc. Le présent document ne couvre pas les exigences de sécurité. Le présent document ne spécifie pas d'exigences spéciales pour les conteneurs maritimes couverts par l'ISO 1496-2.

Izolirana transportna sredstva za toplotno občutljivo blago - Zahteve in preskušanje - 1. del: Kontejner

Ta standard se uporablja za toplotno izolirana prevozna sredstva pri prevozu toplotno občutljivega blaga za omejevanje toplotne izmenjave z zunanjimi pogoji. Če je treba zagotoviti vzdrževanje določenih temperatur, se lahko zgornja prevozna sredstva dodatno opremi s hladilno in/ali grelno napravo. Ta standard določa terminologijo, zahteve za toplotno izolacijo, zračno nepropustnost, določila za opravljanje preskusov, dimenzioniranje opreme z nameščeno hladilno in/ali grelno napravo. Ta standard podaja tudi določila za opravljanje preskusov za novo opremo in opremo, ki je že v uporabi. Ta del določa terminologijo, zahteve za toplotno izolacijo, zračno nepropustnost in določila za opravljanje preskusov za koeficient k. Ta standard ne določa podrobnih zahtev za kopenski prevoz glede dimenzij, teže itd. Ta standard ne zajema varnostnih zahtev. Ta standard ne določa posebnih zahtev za pomorske kontejnerje, ki so obravnavani v standardu ISO 1496-2. Skupino standardov sestavljajo naslednji deli: 1. del: Kontejner;
2. del: Oprema;
3. del: Majhni kontejnerji.

General Information

Status
Published
Publication Date
23-Jul-2019
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Due Date
24-Jul-2019
Completion Date
24-Jul-2019

Buy Standard

Standard
EN 17066-1:2019
English language
27 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN 17066-1:2019
01-oktober-2019
Izolirana transportna sredstva za toplotno občutljivo blago - Zahteve in
preskušanje - 1. del: Kontejner

Insulated means of transport for temperature sensitive goods - Requirements and testing

- Part 1: Container

Wärmegedämmte Transportmittel für temperaturempfindliche Produkte - Anforderungen

und Prüfung - Teil 1: Container
Moyen de transport isotherme pour les marchandises sensibles à la température -
Exigences et essais - Partie 1: Cellule isotherme
Ta slovenski standard je istoveten z: EN 17066-1:2019
ICS:
27.200 Hladilna tehnologija Refrigerating technology
55.180.10 Večnamenski kontejnerji General purpose containers
SIST EN 17066-1:2019 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 17066-1:2019
---------------------- Page: 2 ----------------------
SIST EN 17066-1:2019
EN 17066-1
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2019
EUROPÄISCHE NORM
ICS 27.200; 55.180.10
English Version
Insulated means of transport for temperature sensitive
goods - Requirements and testing - Part 1: Container

Moyen de transport isotherme pour les marchandises Wärmegedämmte Transportmittel für

sensibles à la température - Exigences et essais - Partie temperaturempfindliche Produkte - Anforderungen

1 : Cellule isotherme und Prüfung - Teil 1: Container
This European Standard was approved by CEN on 19 May 2019.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17066-1:2019 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)

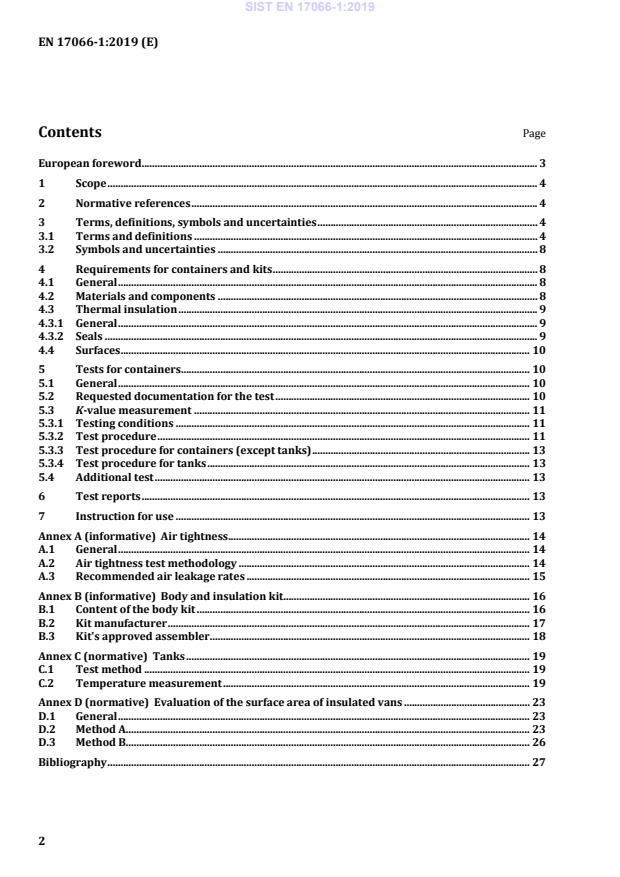

Contents Page

European foreword ....................................................................................................................................................... 3

1 Scope .................................................................................................................................................................... 4

2 Normative references .................................................................................................................................... 4

3 Terms, definitions, symbols and uncertainties .................................................................................... 4

3.1 Terms and definitions ................................................................................................................................... 4

3.2 Symbols and uncertainties .......................................................................................................................... 8

4 Requirements for containers and kits ..................................................................................................... 8

4.1 General ................................................................................................................................................................ 8

4.2 Materials and components .......................................................................................................................... 8

4.3 Thermal insulation ......................................................................................................................................... 9

4.3.1 General ................................................................................................................................................................ 9

4.3.2 Seals ..................................................................................................................................................................... 9

4.4 Surfaces ............................................................................................................................................................ 10

5 Tests for containers ..................................................................................................................................... 10

5.1 General ............................................................................................................................................................. 10

5.2 Requested documentation for the test ................................................................................................. 10

5.3 K-value measurement ................................................................................................................................ 11

5.3.1 Testing conditions ....................................................................................................................................... 11

5.3.2 Test procedure .............................................................................................................................................. 11

5.3.3 Test procedure for containers (except tanks) ................................................................................... 13

5.3.4 Test procedure for tanks ........................................................................................................................... 13

5.4 Additional test ............................................................................................................................................... 13

6 Test reports .................................................................................................................................................... 13

7 Instruction for use ....................................................................................................................................... 13

Annex A (informative) Air tightness ................................................................................................................... 14

A.1 General ............................................................................................................................................................. 14

A.2 Air tightness test methodology ............................................................................................................... 14

A.3 Recommended air leakage rates ............................................................................................................ 15

Annex B (informative) Body and insulation kit.............................................................................................. 16

B.1 Content of the body kit ............................................................................................................................... 16

B.2 Kit manufacturer .......................................................................................................................................... 17

B.3 Kit's approved assembler .......................................................................................................................... 18

Annex C (normative) Tanks ................................................................................................................................... 19

C.1 Test method ................................................................................................................................................... 19

C.2 Temperature measurement ..................................................................................................................... 19

Annex D (normative) Evaluation of the surface area of insulated vans ................................................ 23

D.1 General ............................................................................................................................................................. 23

D.2 Method A.......................................................................................................................................................... 23

D.3 Method B.......................................................................................................................................................... 26

Bibliography ................................................................................................................................................................. 27

---------------------- Page: 4 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)
European foreword

This document (EN 17066-1:2019) has been prepared by Technical Committee CEN/TC 413 “Insulated

means of transport for temperature sensitive goods with or without cooling and/or heating device”, the

secretariat of which is held by DIN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by January 2020, and conflicting national standards shall

be withdrawn at the latest by January 2020.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

The European Standard EN 17066, Insulated means of transport for temperature sensitive goods —

Requirements and testing, consist of the following parts:
— Part 1: Container;
— Part 2: Equipment ;
— Part 3: Small containers .

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,

Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,

Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of

North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the

United Kingdom.
Under preparation.
---------------------- Page: 5 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)
1 Scope

This document applies to all thermally insulated means of transport, including: trucks, trailers, tanks,

vans, wagons, containers for land transport, small containers, packaging. It is related to every type of

insulation. If certain temperatures are due to be maintained independently of external conditions, the

above means of transport could be additionally provided with a cooling and/or heating device.

This document specifies the terminology, the requirements for thermal insulation, air tightness, test

provisions, dimensioning of containers with and without cooling and/or heating device.

This document also specifies the test provisions for new and in service equipment(s).

This document specifies the terminology, the requirements for thermal insulation, air tightness, test

provisions for K-value. This document does not specify further land transport requirements with regard

to dimensions, weights, etc. This document does not cover safety requirements. This document does not

specify special requirements for sea containers covered by ISO 1496-2.
2 Normative references
There are no normative references in this document.
3 Terms, definitions, symbols and uncertainties
3.1 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1.1 General
3.1.1.1
goods

temperature-sensitive products to be transported within a defined temperature range

3.1.1.2
van

light commercial vehicle with integrated insulation for the transport of goods, of which the occupant

compartment and the load space are thermally separated from the driver's cabin

Note 1 to entry: This is not applicable to vans with inserted insulated container fixed or removable.

3.1.1.3
container

insulated bodywork or vessel built for the carriage of the goods intended to be or not be equipped with

a cooling and/or heating device, including tanks, bodywork for trucks or trailers, swap bodies, railway

wagons, integrated insulation body work for vans, small containers
---------------------- Page: 6 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)
3.1.1.4
small container

non-stationary reusable container with an internal volume inclusive for 0,02 ≤ V ≤ 2,00 m used for the

storage and the transport of the goods and equipped or not equipped with a cooling and/or heating

device

Note 1 to entry: A small container is built either as bodywork or from a completely moulded structure and can

be fitted optionally with wheels or fork lift pockets or lifting lugs or handles.

3.1.1.5
tank

road tank vehicle, rail tank, tank container or tank swap body, all being insulated, intended to transport

liquid or granulated or powdered goods
3.1.1.6
compartment

tight part of a container built for the carriage of the goods equipped or not with a cooling and/or

heating device
3.1.1.7
body kit

complete set of parts to build container, delivered in a non-assembled form, consisting of parts such as

side walls, roof, floor, wheel boxes, front end and rear end including closure type and/or door(s), as

well as their means of connection
3.1.1.8
insulation kit

set of shaped insulating panels specifically designed to cover the inside of a particular van model

delivered in a non-assembled form, consisting of parts such as side walls, roof, floor, wheel boxes if any,

front end and rear end, as well as their means of connection to build a container

3.1.1.9
covering

part of the insulation panel, which is the self-supporting material covering the internal and/or external

surface of the insulation panel
3.1.1.10
equipment
container equipped with a cooling and/or heating device
3.1.1.11
insulated packaging
material used to contain goods to protect them from temperature variation
3.1.2 Dimensions
3.1.2.1
load space

volume inside a container or a compartment available for loading the goods including any required

accessories (i.e. shelves, meat rails, etc.)
---------------------- Page: 7 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)
3.1.2.2
inner volume

total inner volume, in m , of a container or a compartment including load space and space for air

circulation
3.1.2.3
projected internal surface area of the container

surface area determined by taking into consideration the projected internal surface areas of specific

design features of the equipment or irregularities of its surface such as curves, corrugations, wheel

arches, etc.
3.1.2.4
projected external surface area of the container

surface area determined by taking into consideration the projected external surface areas of specific

design features of the equipment or irregularities of its surface such as curves, corrugations, wheel

arches, etc.
3.1.2.5
mean surface area

geometrical mean of the projected internal surface area S and the projected external surface area S ,

i e
in m
S SS⋅ (1)
m i e
3.1.3 Temperatures and K-value
3.1.3.1
mean internal temperature
arithmetic mean of all the temperatures measured inside the container/packaging

Note 1 to entry: The number and the position of the temperature sensors are defined are defined in Table 2.

3.1.3.2
mean external temperature
arithmetic mean of all the temperatures measured outside the container/packaging

Note 1 to entry: The number and the position of the temperature sensors are defined in Table 2.

---------------------- Page: 8 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)
3.1.3.3
mean wall temperature

arithmetic mean of the mean external temperature T and the mean internal temperature T

e i
T + T
T = in °C (2)
3.1.3.4
temperature difference

difference between the mean internal temperature T and the mean external temperature T

i e
∆T TT− in K (3)
3.1.3.5
heat load

heating power delivered into the container by electrical heating elements and their fans during the

determination of the K-value
3.1.3.6
K-value

overall heat transfer coefficient K which is calculated using the following formula:

K= in W/(m ·K) (4)
ST⋅∆
where

P is the total heat load, required in the steady-state condition to maintain a constant

temperature difference ∆T , in W;

is the temperature difference between the mean external temperature T and the mean

internal temperature T of a container having a mean surface area S , in K;
i m
T mean external temperature, in °C;
T mean internal temperature, in °C;
S 2
m mean surface area, in m .

Note 1 to entry: The overall heat transfer coefficient taking into account thermal losses through all outer

boundaries, thermal bridges and air leakage.
3.1.4 Testing
3.1.4.1
conditioned test room
room where the test conditions can be maintained at a constant level
---------------------- Page: 9 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)
3.1.4.2
steady-state conditions

test operation in which the measured values remain within the specified ranges and without any

permanent tendency during the defined time period
3.2 Symbols and uncertainties

The requirements regarding maximal measurement uncertainties or calculation are given in Table 1:

Table 1 — Symbols and uncertainties
Symbol Measured quantity Unit Uncertainties
L linear dimension < 0,050 m m ±0,2 mm
L linear dimension: 0,050 m ≤ x ≤ 1 m m ±2 mm
L linear dimensions > 1 m m ±0,2 %
P heat load W ±1 %
S projected internal surface area of the equipment m ±1,5 %
S projected external surface area of the equipment m ±1,5 %
S mean surface area for containers except vans or m ±1,5 %
small containers
mean surface area for vans or small containers m ±2 %
T mean internal temperature °C ±0,5 K
T mean external temperature °C ±0,5 K
T mean wall temperature °C ±0,5 K
ΔT temperature difference K ±0,5 K
K K-value W/(m ·K) ±5 %

NOTE 1 The uncertainties are either the maximal measurement uncertainties for the measured quantity or the

uncertainties of the determination of quantities when those are calculated.
All uncertainties are given with a coverage factor equal to 2.

NOTE 2 The linear dimensions L1, L2, L3 apply to the following symbols used in Figure D.1: W, H, L, l, a,

b, c.
4 Requirements for containers and kits
4.1 General

All containers shall be designed in order to reach the relevant K-value for its application.

4.2 Materials and components

The materials shall be durable and shall not encourage the development of mould or emit odours.

Internal and external coverings shall be resistant to wear and capable of being cleaned effectively and

hygienically. They shall not crack, chip, flake, rub off or soften under normal conditions of use or during

---------------------- Page: 10 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)

cleaning. Detergents and disinfectants, cleaning and disinfection procedures, recommended by the

equipment manufacturer, shall be used.

Metal parts, used in the construction of equipment, shall have resistance to corrosion appropriate to

their location and function.

Internal and external coverings and insulation shall be resistant to temperature ranges intended to be

applied.

When the container is intended to be loaded with unpacked goods, the internal covering materials and

articles shall comply with further requirements for materials and articles intended to come into contact

with goods, if applicable.

The materials shall be resistant to moisture and shall neither be toxic nor contaminate the foodstuff.

Safety devices already integrated in the vehicle (for example: inside unlocking of doors, exit aids) shall

not be interfered by fitting of the insulation to the load space.
4.3 Thermal insulation
4.3.1 General
When selecting the insulating material, it shall be ensured that it:
— is odourless and resistant to uptake of odours;
— shows only moisture absorption that the selected layer material allows;
— is decay-resistant;

— shows dimensional stability in the temperature range from −40°C to +80°C and has sufficient

strength and dimensional stability for all intended ranges of application;
— has a good thermal insulation with low ageing properties.

NOTE For reasons of energy savings, maintaining the temperature of the goods during transport and

operational costs, the level of insulation of the container could take into account:

— the temperature difference between inside and outside temperature ranges which is intended to be met

during use of the container;
— the optimization of Europallet transport.

For energy savings of the cooling and/or heating devices only, not including traction energy

consumption, it is strongly recommended to choose a K-value with the following formula:

K≤ (5)
TT−
( )
4.3.2 Seals

The doors or other openings and their frames shall be provided with sufficient seal.

When selecting the seals, it shall be ensured that:
— they are fully serviceable at temperatures between −40 °C and +80 °C;
— they shall be fitted in a way that they can be replaced;
---------------------- Page: 11 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)
— they can be cleaned easily and thoroughly.

The used detergents and disinfectants as well as cleaning and disinfection procedures shall not

negatively affect the seals.
4.4 Surfaces

The surface areas S and S shall be determined for the calculation of the mean surface area S .

e i

For insulated vans the external surface area shall be considered as given in Annex D.

Tanks are calculated taking into account all geometrical surfaces areas, as cylinder, cone, partial cone

shaped and their ends, as ellipse, ovoid, torns, lone, sphere.
5 Tests for containers
5.1 General
All measuring instruments used for measurements shall be calibrated.
5.2 Requested documentation for the test

Before the test is carried out, the following documents and information shall be made available to the

test facilities:

a) drawings clearly representing the construction of the container and all its essential components;

b) description of the container, its design and construction;

c) the dimensions (internal and external dimensions, calculation of the internal and external surfaces,

wall thickness and volume);

d) the insulating material and its fixing (material, type of processing, thickness, density, coefficient of

thermal conductivity at +20 °C, blowing agent);
e) the type of external covering (material, thickness);
f) the type of internal covering (material, thickness);

g) special accessories (part floor protection, partition walls, hanging rails, double deck, lashing rails,

wheel arches, etc.);
h) number, size, location and shape of apertures;
i) the length, profile number of the seals;

j) information about the manufacturer of the insulation material and if applicable about the

assembler of the body kit, insulation kit respectively;

k) only for tanks: information about any special equipment: mounting supports, baffles, spill boxes,

venting nozzles or pipes, and their locations, etc.);
l) only for tanks: number, size and shape of manholes.
---------------------- Page: 12 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)
5.3 K-value measurement
5.3.1 Testing conditions

Distinction is made between containers in general and tanks during testing. The quality of the thermal

insulation of the container is tested in the steady-state conditions using the internal heating method.

The heat dissipated by the electrical resistance fan heaters shall not exceed a heat dissipation of

1 W/cm and the heater units shall be protected by a casing of low emissivity.

The air in the conditioned test room shall be continuously circulated in horizontal and longitudinal

direction so that its velocity at a distance of 100 mm ± 10 mm of the walls of the container shall be

between 1 m/s and 2 m/s, except for small container where the air is limited between 0,4 m/s and

0,6 m/s. The air velocity shall be verified in the centre of the lateral surfaces.

For determination of the internal and external temperatures the accuracy of the temperature

measurement chain shall be within ±0,3 K.

All temperature and active power consumption measurements shall be made with automatic recording

devices. All temperature sensors shall be measured at the same time (that means within a period of less

than 10 s) and the arithmetic mean shall be calculated for each recorded values. The arithmetic mean of

each individual temperature sensor shall be recorded for all intervals during a sequence of 120 s

maximum.

Electrical cable losses between the heat input measuring instrument and the tested container shall be

established by a measurement or calculation and subtracted from the total heat input measured.

Equipment for the generation and distribution of heat shall be arranged on the inside of the empty

container. The heat exchangers or electrical heating appliances shall be fitted with fans sufficient to

obtain an air flow of (60 ± 15) % times per hour related to the inner volume of the tested container, in

the case of small containers (40 ± 20) %, to ensure that a homogeneous temperature inside the

container. Each measurement involves uncertainties caused by the measurement arrangement, the

method of measurement and the measuring instruments, as well as the readings.
The calculated overall uncertainties shall not exceed the limits of Table 1.
5.3.2 Test procedure

The container shall be located at minimum 0,30 m from the floor. The air shall be free to circulate under

the tested container during the test.

The container shall be fitted with temperatures measuring sensors located at a distance of 100 mm

from the walls internally and externally. The number and position of temperature sensors shall be

determined, depending of the container inner volume, according to Table 2:
---------------------- Page: 13 ----------------------
SIST EN 17066-1:2019
EN 17066-1:2019 (E)

Table 2 —Number and position of temperature measuring points inside and outside the

container, during K-value measurement, according to the inner volume

Container inner Number and position of the inside Number and position of the outside

volume temperature measuring points temperature measuring points
0,02 ≤ V ≤ 0,10 2 2
in front bottom right and rear top left symmetrically of the inside
corners corresponding sensor from its nearest
wall
0,10 < V ≤ 0,50 4 4
in the 4 corners of the plan section symmetrically of the inside
located on the middle of the height corresponding sensor, from its nearest
angle line
0,50 < V ≤ 2,00 8 8
in the 8 corners symmetrically of the inside
corresponding sensor, from its nearest
angle line
V > 2,00 12 12
in the 8 corners and 4 in the centre of Symmetrically of the inside
the four largest internal surface areas corresponding sensor

If the surfaces of the container are not parallel, the points of measurement for the main corners and

main surface areas shall be distributed such that it corresponds best to the actual shape.

For a compartment which is a fixed part of a container, the temperatures should be measured at the

corresponding points of this compartment.

After closing doors and hatches, the equipment for the generation and distribution of heat and the

measurement devices for determination of the heating capacity and the heat equivalent of the air-

circulating fans shall be started up.

The test shall be continued until the steady-state conditions have been verified.

After reaching the steady-state conditions, the temperature difference between the points of

measurement showing the highest and lowest temperatures shall not exceed 2 K except tanks (see C.1)

for both the external and internal air temperatures of the container and temperatures shall not vary by

more than ±1,0 K during the preceding 6 h.

The mean inside and outside temperatures from the beginning until the end of the calculation period of

at least 6 h shall not differ by more than 0,2 K.

The difference between the heating power measured over two periods of not less than 3 h at the start

and at the end of the steady-state period, and separated by at least 6 h, shall be less than 3 %.

The mean values of the temperatures and heating capacity over at least the last 6 h of the steady-

...
