EUROPEAN STANDARD
EN 614-2:2000+A1
NORME EUROPÉENNE
EUROPÄISCHE NORM
September 2008
ICS 13.110; 13.180 Supersedes EN 614-2:2000
English Version
Safety of machinery - Ergonomic design principles - Part 2:
Interactions between the design of machinery and work tasks
Sécurité des machines - Principes ergonomiques de Sicherheit von Maschinen - Ergonomische
conception - Partie 2: Interactions entre la conception des Gestaltungsgrundsätze - Teil 2: Wechselwirkungen
machines et les tâches du travail zwischen der Gestaltung von Maschinen und den
Arbeitsaufgaben
This European Standard was approved by CEN on 30 June 2000 and includes Amendment 1 approved by CEN on 14 August 2008.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European
Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national
standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the
official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Cyprus, Czech Republic, Denmark, Estonia, Finland,
France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal,
Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2008 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 614-2:2000+A1:2008: E
worldwide for CEN national Members.

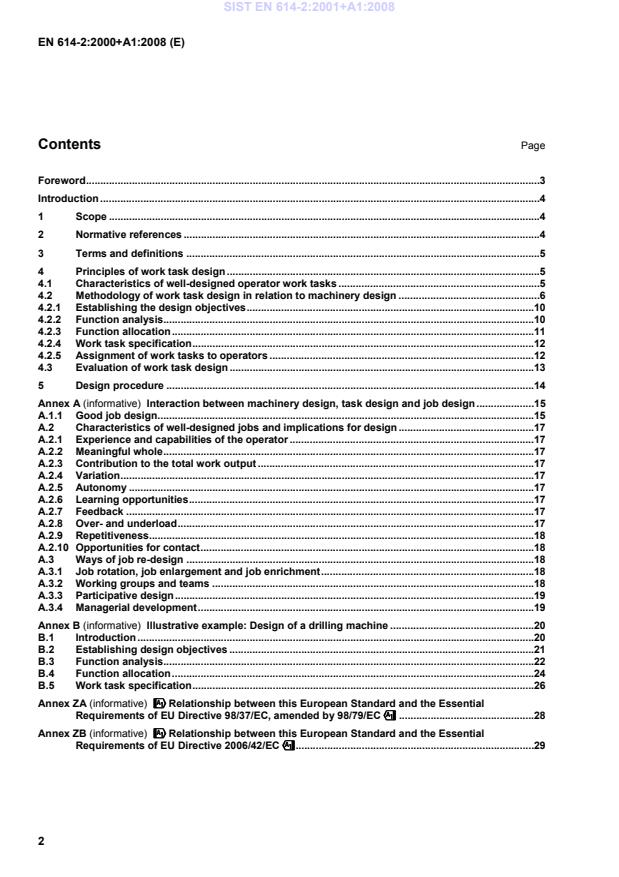

Contents Page
Foreword.3
Introduction .4
1 Scope.4
2 Normative references.4
3 Terms and definitions .5
4 Principles of work task design.5
4.1 Characteristics of well-designed operator work tasks .5
4.2 Methodology of work task design in relation to machinery design .6
4.2.1 Establishing the design objectives.10
4.2.2 Function analysis.10
4.2.3 Function allocation.11
4.2.4 Work task specification.12
4.2.5 Assignment of work tasks to operators .12
4.3 Evaluation of work task design.13
5 Design procedure.14
Annex A (informative) Interaction between machinery design, task design and job design.15
A.1.1 Good job design.15
A.2 Characteristics of well-designed jobs and implications for design.17
A.2.1 Experience and capabilities of the operator .17
A.2.2 Meaningful whole.17
A.2.3 Contribution to the total work output .17
A.2.4 Variation.17
A.2.5 Autonomy.17
A.2.6 Learning opportunities.17
A.2.7 Feedback.17
A.2.8 Over- and underload.17
A.2.9 Repetitiveness.18
A.2.10 Opportunities for contact.18
A.3 Ways of job re-design .18
A.3.1 Job rotation, job enlargement and job enrichment.18
A.3.2 Working groups and teams .18
A.3.3 Participative design.19
A.3.4 Managerial development.19
Annex B (informative) Illustrative example: Design of a drilling machine .20
B.1 Introduction.20
B.2 Establishing design objectives .21
B.3 Function analysis.22
B.4 Function allocation.24
B.5 Work task specification.26
Annex ZA (informative) !!Relationship between this European Standard and the Essential
!!
Requirements of EU Directive 98/37/EC, amended by 98/79/EC"""" .28
Annex ZB (informative) !!!!Relationship between this European Standard and the Essential
Requirements of EU Directive 2006/42/EC"""".29
Foreword
This document (EN 614-2:2000+A1:2008) has been prepared by Technical Committee CEN/TC 122
"Ergonomics", the secretariat of which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an identical
text or by endorsement, at the latest by March 2009, and conflicting national standards shall be withdrawn at
the latest by December 2009.
This document includes Amendment 1, approved by CEN on 2008-08-14.
This document supersedes EN 614-2:2000.
The start and finish of text introduced or altered by amendment is indicated in the text by tags ! ".
This European Standard has been prepared under a mandate given to CEN by the European Commission
and the European Free Trade Association, and supports essential requirements of EU Directive(s).
!For relationship with EU Directive(s), see informative Annexes ZA and ZB, which are integral parts of this
document."
EN 614 consists of the following Parts, under the general title Safety of machinery – Ergonomic design
principles:
Part 1: Terminology and general principles
Part 2: Interactions between the design of machinery and work tasks.
According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following
countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Cyprus, Czech
Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,
Sweden, Switzerland and United Kingdom.
Introduction
This European Standard helps the designer in applying ergonomics principles to the design of machinery,
focusing especially on the interaction between the design of machinery and work tasks.
This is essential since the quality of design and safety of machinery depends on the prospective operators
being able to perform their tasks with the machinery in a safe and competent manner. Applying ergonomics
principles to the design of machinery and work tasks aims at minimizing the discomfort, fatigue and other
impairing effects faced by the operator and thus contributes to the optimal functioning of the work system (EN
292-2:1991, Annex A.1, 1.1.2 (d)) and reduces the risks of negative health effects. Therefore, good design
follows ergonomics principles, starts with the specification of system functions and anticipates how the
prospective operator will interact with the machinery and other work equipment.
In the design of machinery and work tasks, the physical aspects of the operator's activities are not the only
design parameters to be dealt with. Operator activities also include the perception and processing of
information, determination of strategies, decision making and communication.
1 Scope
This European Standard establishes the ergonomics principles and procedures to be followed during the
design process of machinery and operator work tasks.
This European Standard deals specifically with task design in the context of machinery design, but the
principles and methods may also be applied to job design.
This European Standard is directed to designers and manufacturers of machinery and other work equipment.
It will also be helpful to those who are concerned with the use of machinery and work equipment, e.g. to
managers, organizers, operators and supervisors.
In this European Standard the designer refers to the person or group of persons responsible for the design.
2 Normative references
This European Standard incorporates by dated or undated reference, provisions from other publications.
These normative references are cited at the appropriate places in the text and the publications are listed
hereafter. For dated reference subsequent amendments to, or revisions of, any of these publications apply to
this European Standard only when incorporated in it by amendment or revision. For undated references the
latest edition of the publication referred to applies (including amendments).
EN 614-1:1995, Safety of machinery – Ergonomic design principles – Part 1: Terminology and general
principles.
EN 894-1, Safety of machinery – Ergonomics requirements for the design of displays and control actuators –
Part 1: General principles for human interactions with displays and control actuators.
EN 292-1, Safety of machinery - Basic concepts, general principles for design - Part 1: Basic terminology,
methodology.
EN 292-2:1991/A1:1995, Safety of machinery - Basic concepts, general principles for design - Part 2:
Technical principles and specifications.
3 Terms and definitions
For the purposes of this European Standard, the terms and definitions given in EN 614-1 apply.
4 Principles of work task design
Work task design covers the analysis and specification of functions and their allocation to the machine or the
operator as part of the design process, and aims at contributing to the optimal functioning of work systems.
Therefore, good design follows ergonomics principles and gives special attention to the intended operator
population. Principles of good ergonomic design are given in EN 61
...
