EN 15875:2011
(Main)Characterization of waste - Static test for determination of acid potential and neutralisation potential of sulfidic waste
Characterization of waste - Static test for determination of acid potential and neutralisation potential of sulfidic waste
This European standard specifies methods to determine the potential of sulfide bearing materials for the formation of acidic drainage. Specified are methods for determining both the acid potential (AP) and the neutralisation potential (NP) of the material. From these results the net neutralisation potential (NNP) and the neutralisation potential ratio (NPR) are calculated.
This European standard is applicable to all sulfide bearing wastes from the extractive industries excluding wastes which will have pH < 2 in the initial step of the procedure described in 8.2.3.
Charakterisierung von Abfällen - Statische Prüfung zur Bestimmung des Säurebildungspotenzials und des Neutralisationspotenzials von sulfidhaltigen Abfällen
Diese Europäische Norm legt Verfahren zur Bestimmung des Potenzials von sulfidhaltigen Materialien zur
Säurebildung fest. Festgelegt werden Verfahren zur Bestimmung sowohl des Säurebildungspotenzials
(en: acid potential, AP) als auch des Neutralisationspotenzials (en: neutralisation potential, NP) des Materials.
Aus diesen Ergebnissen werden das Nettoneutralisationspotenzial (en: net neutralisation potential, NNP) und
der Pufferungsquotient (en: neutralisation potential ratio, NPR) berechnet.
Diese Europäische Norm ist auf sämtliche sulfidhaltigen Abfälle aus der mineralgewinnenden Industrie
anwendbar, mit Ausnahme von Abfällen, deren pH-Wert beim ersten Schritt des in 8.2.3 beschriebenen
Verfahrens kleiner als 2 ist.
Caractérisation des déchets - Essai statique pour la détermination du potentiel de génération d'acide et du potentiel de neutralisation des déchets sulfurés
La présente Norme européenne spécifie des méthodes permettant de déterminer le potentiel des matériaux sulfurés à former des eaux de drainage acides. Les méthodes spécifiées permettent de déterminer à la fois le potentiel de génération d’acide (AP) et le potentiel de neutralisation (NP) du matériau. A partir de ces résultats, le potentiel de neutralisation net (NNP) et le rapport de potentiel de neutralisation (NPR) sont calculés.
La présente Norme européenne est applicable à tous les déchets sulfurés de l’industrie extractive, à l’exclusion des déchets qui auront un pH inférieur à 2 lors de l’étape initiale du mode opératoire décrit en 8.2.3.
Karakterizacija odpadkov - Statični preskus za določevanje kislinske in nevtralizacijske kapacitete odpadkov, ki vsebujejo sulfid
Ta evropski standard določa metode za določevanje kapacitete materialov, ki vsebujejo sulfid, za tvorbo kisle drenaže. Opredeljene so metode za določevanje kislinske (AP) in nevtralizacijske kapacitete (NP) materiala. Iz teh rezultatov se računa neto nevtralizacijska kapaciteta (NNP) in razmerje nevtralizacijske kapacitete (NPR). Ta evropski standard se uporablja za vse odpadke ekstraktivne industrije, ki vsebujejo sulfid, razen odpadkov, katerih pH v prvi fazi postopka, opisanega v 8.2.3, znaša < 2.
General Information
Relations
Standards Content (Sample)

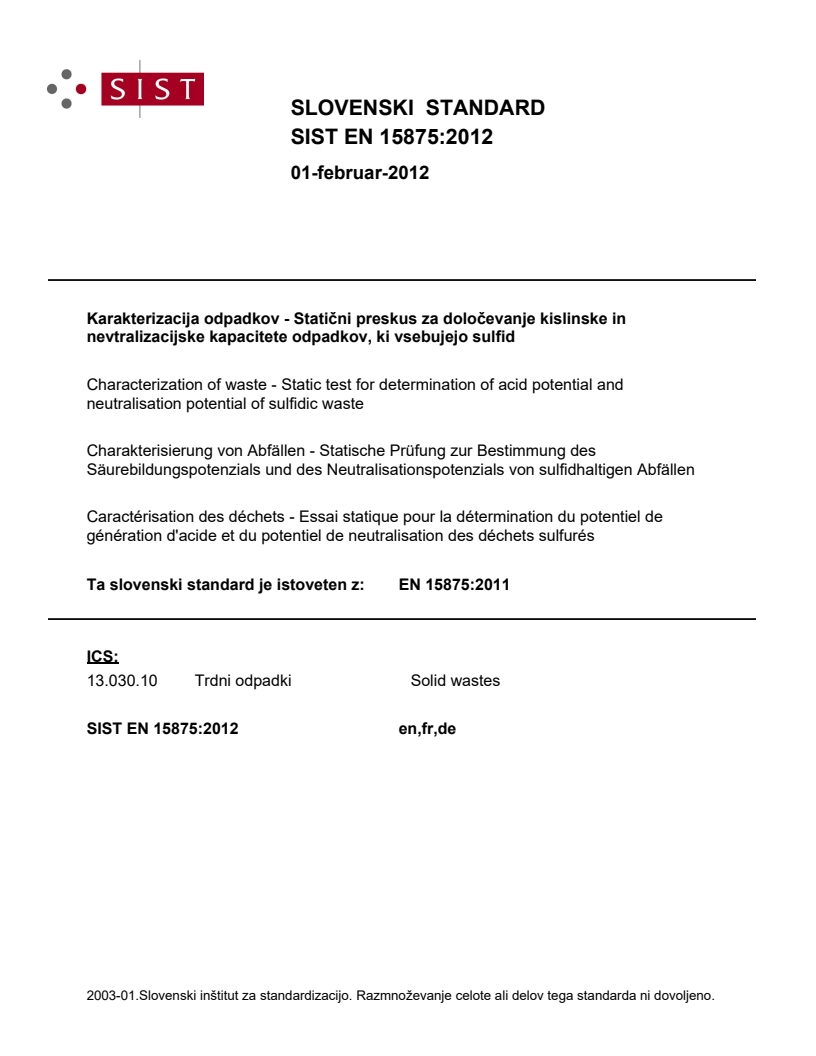

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Charakterisierung von Abfällen - Statische Prüfung zur Bestimmung des Säurebildungspotenzials und des Neutralisationspotenzials von sulfidhaltigen AbfällenCaractérisation des déchets - Essai statique pour la détermination du potentiel de génération d'acide et du potentiel de neutralisation des déchets sulfurésCharacterization of waste - Static test for determination of acid potential and neutralisation potential of sulfidic waste13.030.10Trdni odpadkiSolid wastesICS:Ta slovenski standard je istoveten z:EN 15875:2011SIST EN 15875:2012en,fr,de01-februar-2012SIST EN 15875:2012SLOVENSKI
STANDARD

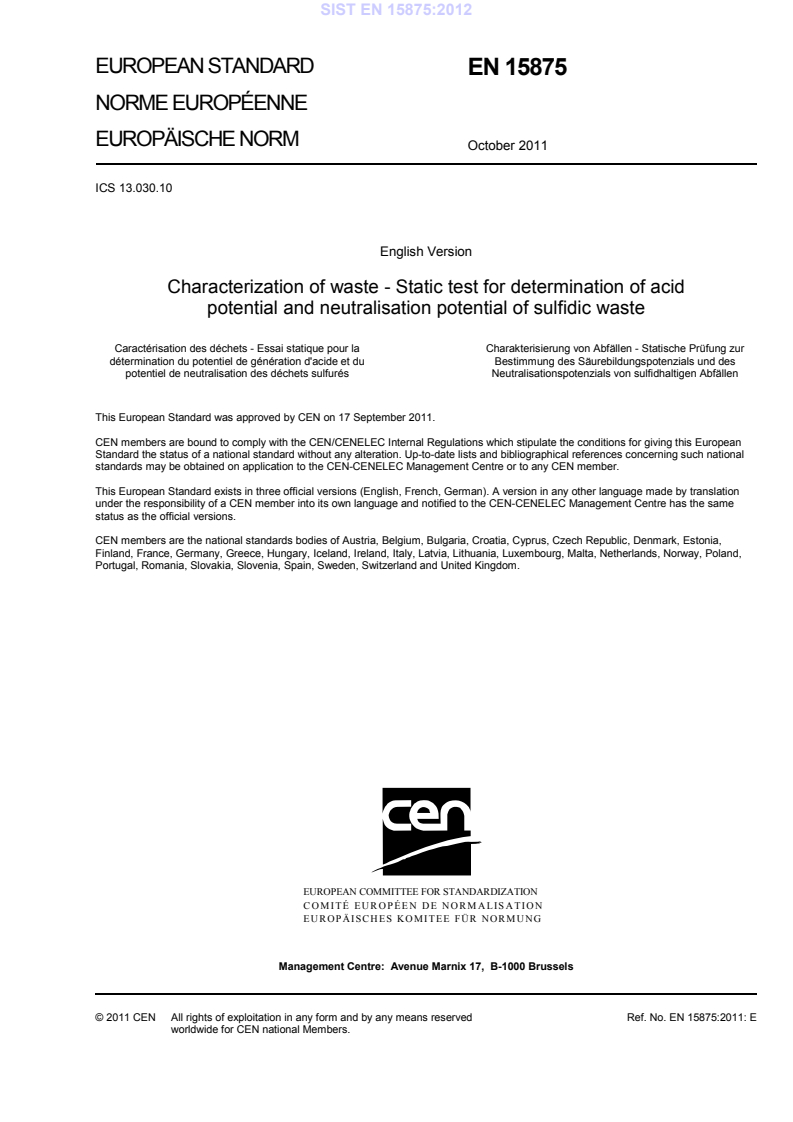

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 15875
October 2011 ICS 13.030.10 English Version
Characterization of waste - Static test for determination of acid potential and neutralisation potential of sulfidic waste
Caractérisation des déchets - Essai statique pour la détermination du potentiel de génération d'acide et du potentiel de neutralisation des déchets sulfurés
Charakterisierung von Abfällen - Statische Prüfung zur Bestimmung des Säurebildungspotenzials und des Neutralisationspotenzials von sulfidhaltigen Abfällen This European Standard was approved by CEN on 17 September 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2011 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 15875:2011: ESIST EN 15875:2012

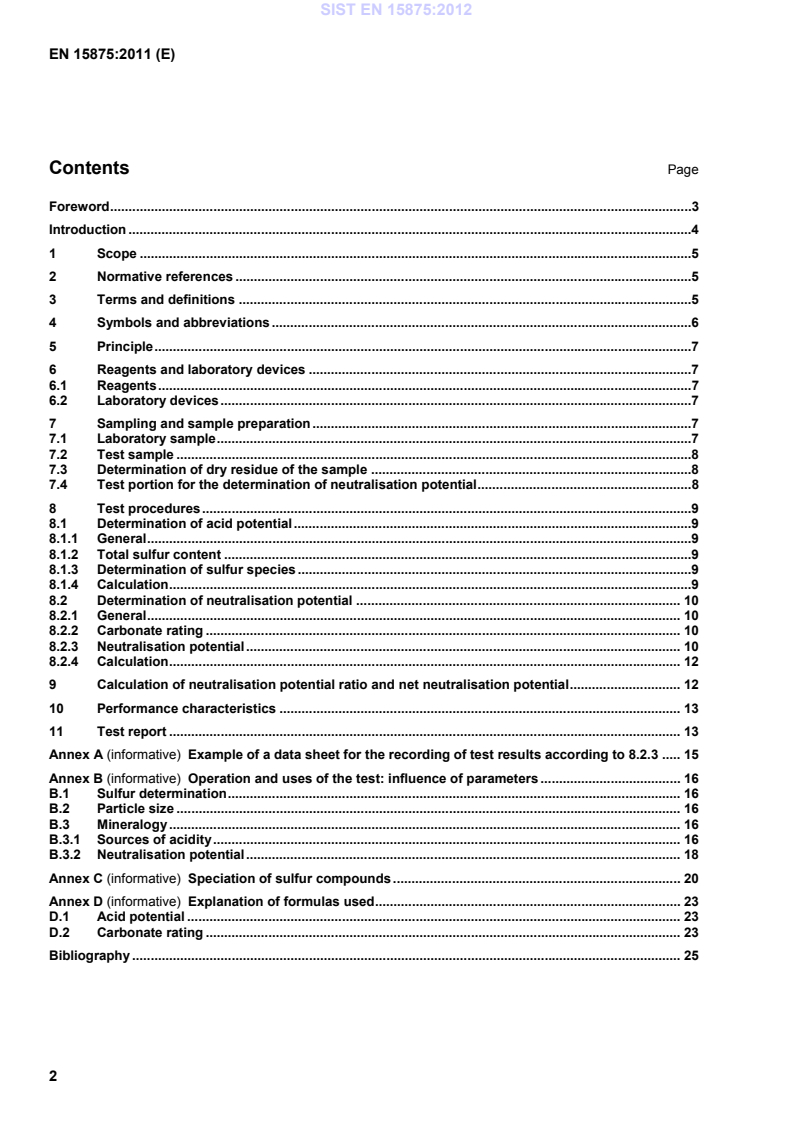

Example of a data sheet for the recording of test results according to 8.2.3 . 15Annex B (informative)
Operation and uses of the test: influence of parameters . 16B.1 Sulfur determination . 16B.2 Particle size . 16B.3 Mineralogy . 16B.3.1 Sources of acidity . 16B.3.2 Neutralisation potential . 18Annex C (informative)
Speciation of sulfur compounds . 20Annex D (informative)
Explanation of formulas used . 23D.1 Acid potential . 23D.2 Carbonate rating . 23Bibliography . 25 SIST EN 15875:2012
To carry out a more precise assessment of the acid generation potential and buffering capacity mineralogical information is required. A number of special cases can be identified: e.g. presence of sulfate (e.g. gypsum), non-acid producing sulfides or carbonates with no buffering capacity. Acid neutralisation behaviour as obtained by other methods can provide additional information in circumstances of uncertainty.
This European standard is applicable to all sulfide bearing wastes from the extractive industries excluding wastes which will have pH < 2 in the initial step of the procedure described in 8.2.3. 2 Normative references The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 13137:2001, Characterization of waste — Determination of total organic carbon (TOC) in waste, sludges and sediments EN 14346, Characterization of waste — Calculation of dry matter by determination of dry residue or water content EN 14582, Characterization of waste — Halogen and sulfur content — Oxygen combustion in closed systems and determination methods
EN 14899, Characterization of waste — Sampling of waste materials — Framework for the preparation and application of a Sampling Plan EN 15002, Characterization of waste — Preparation of test portions from the laboratory sample ISO 3310-1, Test sieves — Technical requirements and testing — Part 1: Test sieves of metal wire cloth ISO 15178, Soil quality — Determination of total sulfur by dry combustion ISO 16720, Soil quality — Pretreatment of samples by freeze-drying for subsequent analysis 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 laboratory sample
sample sent to or received by the laboratory 3.2 test sample sample, prepared from the laboratory sample, from which test portions are removed for testing or analysis 3.3 test portion
quantity of material of proper size, for measurement of the concentration or other properties of interest, taken from the test sample NOTE The test portion may be taken from the laboratory sample directly if no preparation of sample is required (e.g. samples of proper homogeneity, size and fineness). SIST EN 15875:2012
maximum potential acid generation from a sample assuming that all sulfur occurs as pyrite and that acidity will result from its complete oxidation
3.5 neutralisation potential
capacity of a sample to neutralise the generated acidity 3.6 carbonate rating
carbonate content of the sample used to specify the volume(s) of acid to be added during the procedure NOTE In this European standard the carbonate rating to specify the volume(s) of acid to be added during the procedure is described in 8.2.3. 3.7 net neutralisation potential difference between neutralisation potential and acid potential 3.8 neutralisation potential ratio
ratio of neutralisation potential and acid potential 4 Symbols and abbreviations AP acid potential NP neutralisation potential CR carbonate rating Md dry mass of the test portion Mw un-dried mass of the test portion md mass after drying at 105 °C mw mass before drying
Ms
molecular weight of sulfur NNP net neutr
...
