(Main)Characterization of waste - Sampling of waste from extractive industries
Characterization of waste - Sampling of waste from extractive industries
This Technical Report gives additional and specific information on sampling for testing of waste from the extractive industry to support the development of appropriate sampling plans. This supplementary guidance to EN 14899 is required because waste from the extractive industry differs considerably from the waste types and sampling scenarios covered in the existing technical reports (CEN/TR 15310-1 to -5) that support the Framework Standard. This guidance document should be used in conjunction with EN 14899 and its supporting technical reports CEN/TR 15310-1 to -5.
The approach to sampling described in this document is primarily focused on the requirements to undertake mineralogical and geochemical testing of the waste. Whilst much of the background information provided is also relevant to geotechnical investigations there may be important additional requirements or differences in approach for determining relevant physical parameters. For example, many geotechnical parameters are determined using field tests, which are not discussed in this document. References to alternative source documentation are provided.
The guidance provided in this document applies only to above-ground exposure to radio-nuclides present in the undisturbed earth crust and not to the production, processing, handling use, holding, storage, transport, or disposal of radioactive substances that are or have been processed for their radioactive, fissile or fertile properties.
This Technical Report provides some discussion of current best practice, but is not exhaustive. To clarify the text, the document provides a number of worked examples in the Annexes.
Charakterisierung von Abfällen - Probenahme von Abfällen der mineralgewinnenden Industrie
Caractérisation des déchets - Echantillonnage des déchets issus des industries extractives
Karakterizacija odpadkov - Vzorčenje odpadkov iz industrije bogatenja mineralnih surovin
To tehnično poročilo podaja dodatne in specifične informacije o vzorčenju za preskušanje odpadkov iz industrije bogatenja mineralnih surovin, da se podpre razvoj ustreznih načrtov vzorčenja. Ti dodatni napotki k standardu EN 14899 so potrebni zato, ker se odpadki iz industrije bogatenja mineralnih snovi znatno razlikujejo od vrst odpadkov in primerov vzorčenja, opisanih v obstoječih tehničnih poročilih (CEN/TR 15310-1 do -5), ki podpirajo okvirni standard. Ta dokument z napotki naj bi se uporabljal skupaj s standardom EN 14899 in z njegovimi podpornimi tehničnimi poročili CEN/TR 15310-1 do -5. Pristop k vzorčenju, opisan v tem dokumentu, se osredotoča predvsem na zahteve za izvajanje mineraloških in geokemičnih preskusov odpadkov. Velik del podanih dodatnih informacij velja tudi za geotehnične raziskave, vendar lahko obstajajo pomembne dodatne zahteve ali razlike v pristopu za ugotavljanje ustreznih fizičnih parametrov. Številni geotehnični parametri se na primer določijo s terenskimi preskusi, ki jih ta dokument ne obravnava. Podani so sklici na dokumentacijo iz drugih virov. Smernice iz tega dokumenta se uporabljajo samo za nadtalno izpostavljenost radionuklidom, ki so prisotni v nemoteni zemeljski skorji, ne pa tudi za proizvodnjo, predelavo, ravnanje, uporabo, zadrževanje, shranjevanje, prevoz ali odstranjevanje radioaktivnih snovi, ki se predelujejo ali so se predelovale zaradi svojih radioaktivnih, cepljivih ali oplodnih lastnosti. To tehnično poročilo vsebuje razpravo o sedanjih najboljših praksah, vendar ta razprava ni izčrpna. V dodatkih dokumenta so za pojasnitev besedila navedeni številni delujoči primeri.
General Information
Standards Content (Sample)
SLOVENSKI STANDARD
01-januar-2013
.DUDNWHUL]DFLMDRGSDGNRY9]RUþHQMHRGSDGNRYL]LQGXVWULMHERJDWHQMDPLQHUDOQLK
VXURYLQ
Characterization of waste - Sampling of waste from extractive industries
Charakterisierung von Abfällen - Probenahme von Abfällen aus der mineralgewinnenden
Industrie
Caractérisation des déchets - Echantillonnage des déchets issus des industries
extractives
Ta slovenski standard je istoveten z: CEN/TR 16365:2012
ICS:
13.030.10 Trdni odpadki Solid wastes
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
TECHNICAL REPORT
CEN/TR 16365
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
October 2012
ICS 13.030.10; 73.020
English Version
Characterization of waste - Sampling of waste from extractive
industries
Caractérisation des déchets - Echantillonnage des déchets Charakterisierung von Abfällen - Probenahme von Abfällen
issus des industries extractives aus der mineralgewinnenden Industrie
This Technical Report was approved by CEN on 13 May 2012. It has been drawn up by the Technical Committee CEN/TC 292.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United
Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 16365:2012: E
worldwide for CEN national Members.

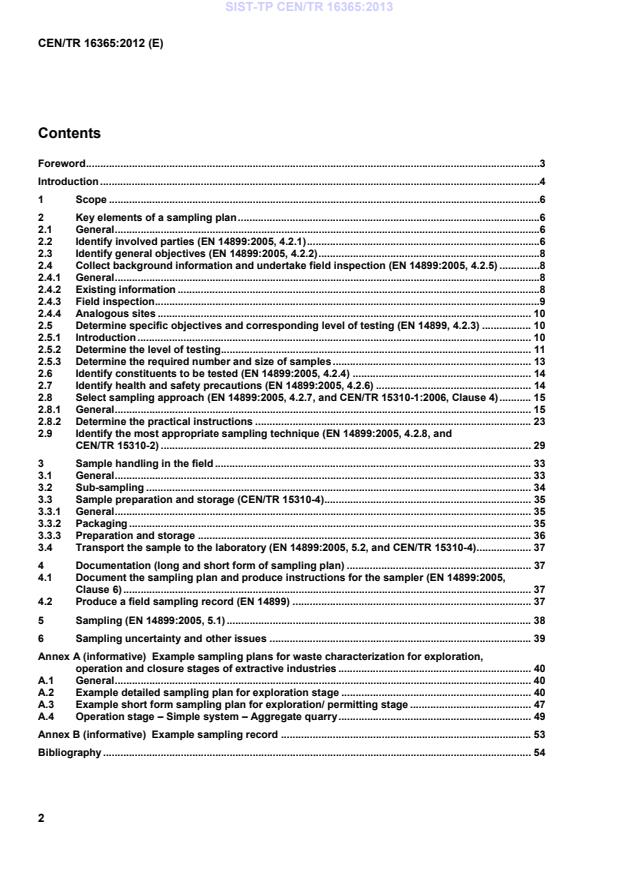

Contents
