Railway applications - Heating, ventilation and air conditioning systems for rolling stock - Part 1: Terms and definitions (ISO 19659-1:2017)

ISO 19659-1:2017 is applicable to rail vehicles and specifies the terms, definitions, symbols and abbreviated terms to be used in the ISO 19659 series, heating, ventilation and air conditioning for rolling stock.

Bahnanwendungen - Heizung, Lüftung und Klimatisierung von Schienenfahrzeugen - Teil 1: Begriffe und Definitionen (ISO 19659-1:2017)

Dieses Dokument ist anwendbar für Schienenfahrzeuge und legt die Begriffe, Definitionen, Symbole und Abkürzungen fest, die in der Normenreihe ISO 19659, Heizungs , Lüftungs- und Klimaanlagen für Schienenfahrzeuge, zu verwenden sind.

Applications ferroviaires - Systèmes de chauffage, ventilation et climatisation pour le matériel roulant - Partie 1: Termes et définitions (ISO 19659-1:2017)

ISO 19659-1:2017 s'applique aux véhicules ferroviaires et spécifie les termes, définitions, symboles et abréviations à utiliser dans la série ISO 19659 pour le chauffage, la ventilation et la réfrigération pour le matériel roulant.

Železniške naprave - Ogrevalni, prezračevalni in klimatski sistemi za vozna sredstva - 1. del: Izrazi in definicije (ISO 19659-1:2017)

Ta dokument se uporablja za železniška vozila in določa izraze, definicije, simbole in okrajšave izrazov, ki se uporabljajo v skupini standardov ISO 19659, za ogrevalne, prezračevalne in klimatske sisteme za vozna sredstva.

General Information

Status
Published
Publication Date
29-Aug-2023
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
30-Aug-2023
Due Date
02-Jun-2025
Completion Date
30-Aug-2023

Buy Standard

Standard
EN ISO 19659-1:2023
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

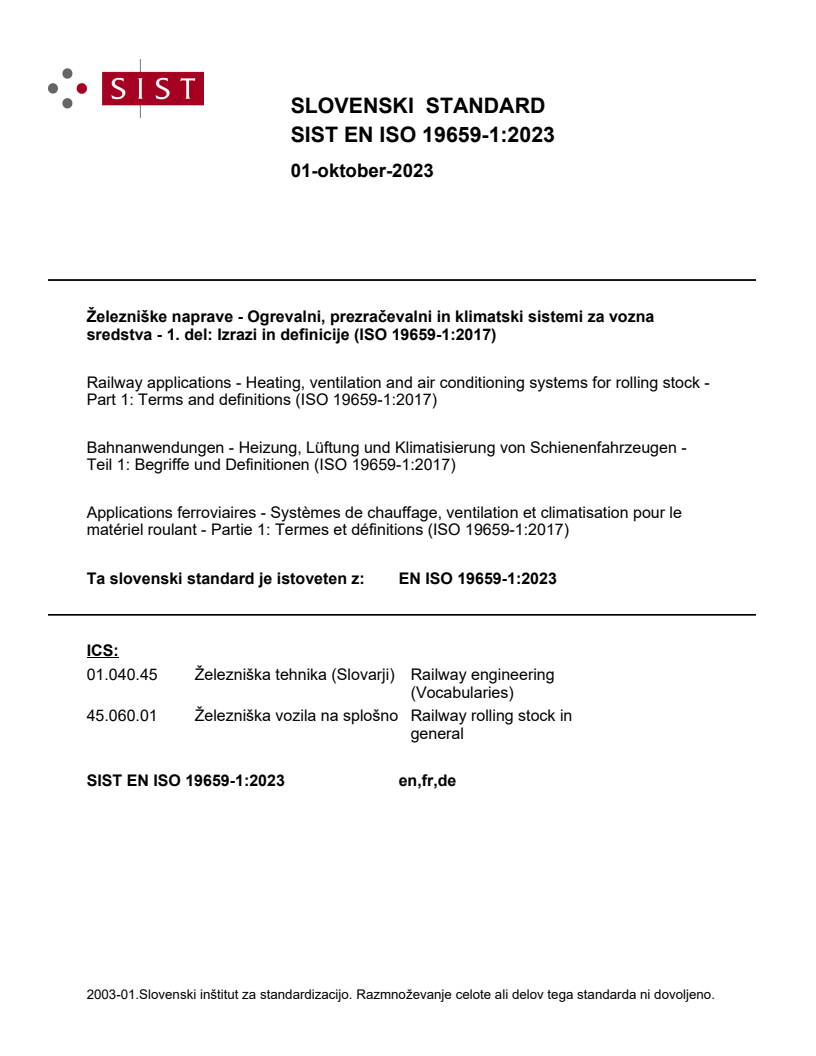

SLOVENSKI STANDARD
01-oktober-2023
Železniške naprave - Ogrevalni, prezračevalni in klimatski sistemi za vozna
sredstva - 1. del: Izrazi in definicije (ISO 19659-1:2017)
Railway applications - Heating, ventilation and air conditioning systems for rolling stock -
Part 1: Terms and definitions (ISO 19659-1:2017)
Bahnanwendungen - Heizung, Lüftung und Klimatisierung von Schienenfahrzeugen -
Teil 1: Begriffe und Definitionen (ISO 19659-1:2017)
Applications ferroviaires - Systèmes de chauffage, ventilation et climatisation pour le
matériel roulant - Partie 1: Termes et définitions (ISO 19659-1:2017)
Ta slovenski standard je istoveten z: EN ISO 19659-1:2023
ICS:
01.040.45 Železniška tehnika (Slovarji) Railway engineering
(Vocabularies)
45.060.01 Železniška vozila na splošno Railway rolling stock in
general
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN ISO 19659-1
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2023
EUROPÄISCHE NORM
ICS 45.060.01
English Version
Railway applications - Heating, ventilation and air
conditioning systems for rolling stock - Part 1: Terms and
definitions (ISO 19659-1:2017)
Applications ferroviaires - Systèmes de chauffage, Bahnanwendungen - Heizung, Lüftung und
ventilation et climatisation pour le matériel roulant - Klimatisierung von Schienenfahrzeugen - Teil 1:
Partie 1: Termes et définitions (ISO 19659-1:2017) Begriffe und Definitionen (ISO 19659-1:2017)
This European Standard was approved by CEN on 24 August 2023.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2023 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 19659-1:2023 E
worldwide for CEN national Members.

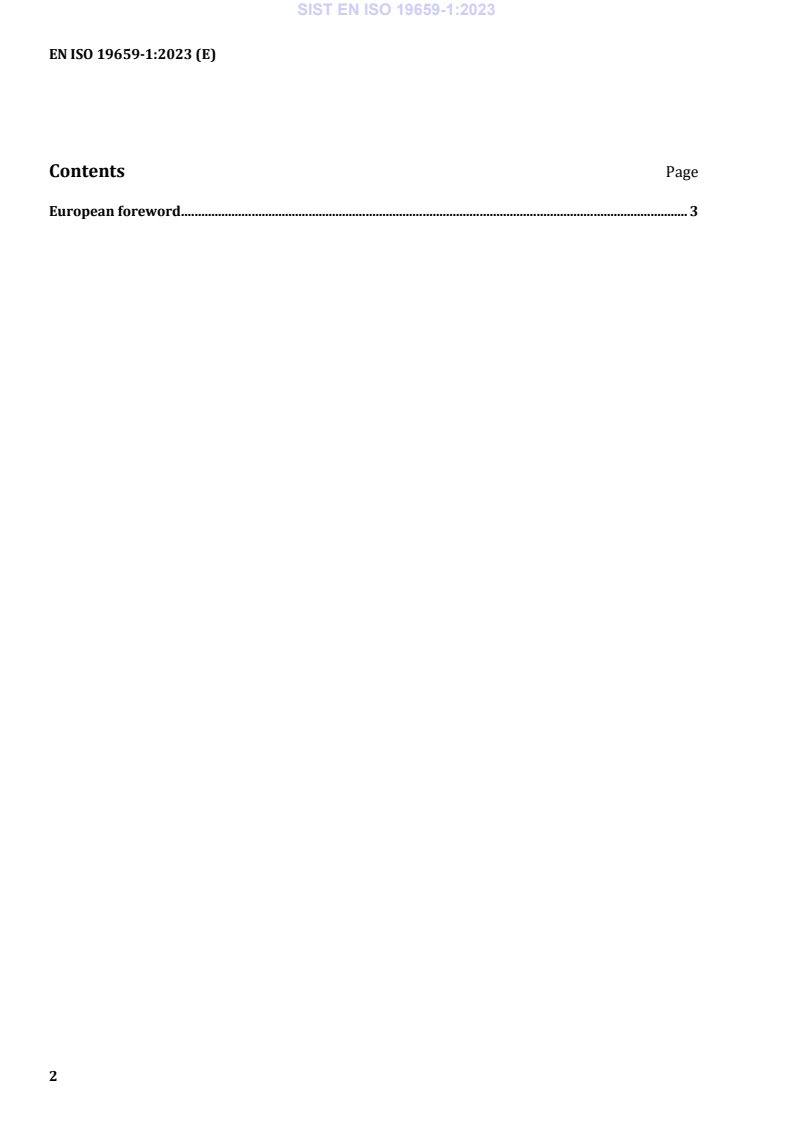

Contents Page
European foreword . 3

European foreword
The text of ISO 19659-1:2017 has been prepared by Technical Committee ISO/TC 269 "Railway
applications” of the International Organization for Standardization (ISO) and has been taken over as
which is held by DIN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by February 2024, and conflicting national standards
shall be withdrawn at the latest by February 2024.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Endorsement notice
The text of ISO 19659-1:2017 has been approved by CEN as EN ISO 19659-1:2023 without any
modification.
INTERNATIONAL ISO
STANDARD 19659-1
First edition
2017-08
Railway applications — Heating,
ventilation and air conditioning
systems for rolling stock —
Part 1:
Terms and definitions
Applications ferroviaires — Systèmes de chauffage, ventilation et
climatisation pour le matériel roulant —
Partie 1: Termes et définitions
Reference number
ISO 19659-1:2017(E)
©
ISO 2017
ISO 19659-1:2017(E)
© ISO 2017, Published in Switzerland
All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized otherwise in any form
or by any means, electronic or mechanical, including photocopying, or posting on the internet or an intranet, without prior
written permission. Permission can be requested from either ISO at the address below or ISO’s member body in the country of
the requester.
ISO copyright office
Ch. de Blandonnet 8 • CP 401
CH-1214 Vernier, Geneva, Switzerland
Tel. +41 22 749 01 11
Fax +41 22 749 09 47
copyright@iso.org
www.iso.org
ii © ISO 2017 – All rights reserved

ISO 19659-1:2017(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Symbols and abbreviated terms .18
4.1 Symbols .18
4.2 Abbreviated terms .19
Bibliography .20
ISO 19659-1:2017(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www.iso.org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www.iso.org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www.iso.org/iso/foreword.html.
This document was prepared by Technical Committee ISO/TC 269, Railway applications, Subcommittee
SC 2, Rolling stock.
A list of all parts in the ISO 19659 series can be found on the ISO website.
iv © ISO 2017 – All rights reserved

ISO 19659-1:2017(E)
Introduction
The ISO 19659 series defines terms, thermal comfort, energy efficiency and system installation of
heating, ventilation and air conditioning (HVAC) for rolling stock.
The purpose of this document is to standardize the terms, definitions, symbols and abbreviated terms
used throughout trains systems for the cooling, heating and internal air circulation that are commonly
known as heating, ventilation and air conditioning (HVAC). These can be broken down into multiples of
these functions and as an example, ventilation and air conditioning (VAC), etc.
INTERNATIONAL STANDARD ISO 19659-1:2017(E)
Railway applications — Heating, ventilation and air
conditioning systems for rolling stock —
Part 1:
Terms and definitions
1 Scope
This document is applicable to rail vehicles and specifies the terms, definitions, symbols and abbreviated
terms to be used in the ISO 19659 series, heating, ventilation and air conditioning for rolling stock.
2 Normative references
There are no normative references in this document.
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http://www.electropedia.org/
— ISO Online browsing platform: available at http://www.iso.org/obp
3.1 HVAC system
3.1.1 Function
3.1.1.1
cooling
process which enables the interior temperature to be lowered or maintained
3.1.1.2
pre-cooling
process which enables the interior temperature to be lowered (without the presence of passengers)
3.1.1.3
dehumidification
process which removes water vapour from air to reduce the absolute humidity
[SOURCE: ISO/TR 16344:2012, 2.1.32, modified — “relative humidity” has been changed to “absolute
humidity”.]
3.1.1.4
heating
process which enables the interior temperature to be raised or maintained
3.1.1.5
pre-heating
process which enables the interior temperature to be raised (without the presence of passengers)
ISO 19659-1:2017(E)
3.1.1.6
supplementary heating
additional heating (3.1.1.4) which provides support for the HVAC system
Note 1 to entry: This can also be referred to as “auxiliary heating”.
3.1.1.7
ventilation
movement of fresh (outside) air to and/or recirculating air in an enclosed space
3.1.1.8
natural air ventilation
air circulation generated without a mechanical action
3.1.1.9
forced air ventilation
air circulation generated by a mechanical action
3.1.1.10
emergency ventilation
ventilation (3.1.1.7) if main power source has failed
3.1.1.11
filtering
process which removes particles from the air
3.1.1.12
purifying
process which removes non-particulate contaminants from the air
Note 1 to entry: Odours and pathogens are examples of non-particulate contaminants from the air.
3.1.1.13
heat recovery
process which transfers heat (latent/sensible) between fresh air (3.4.1) and exhaust air (3.4.10)
3.1.2 Position
3.1.2.1
centralized system
system which consists of one set of HVAC unit (3.1.3.1) per car
3.1.2.2
decentralized system
system which consists of two or more sets of HVAC unit (3.1.3.1) per car
Note 1 to entry: This can also be referred to as “dispersed system”.
3.1.3 Equipment
3.1.3.1
HVAC unit
unit intended for cooling (3.1.1.1) and/or dehumidification (3.1.1.3) and/or heating (3.1.1.4), and/or
ventilation (3.1.1.7)
3.1.3.2
controller unit
unit which operates the HVAC system in a predetermined behaviour while exchanging data with
external devices
2 © ISO 2017 – All rights reserved

ISO 19659-1:2017(E)
3.1.3.3
cooling unit
system which provides cooling
...
