Standards Content (sample)

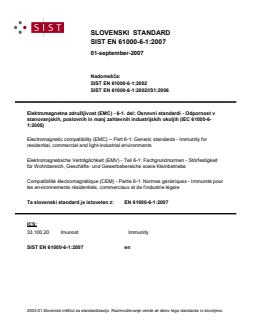

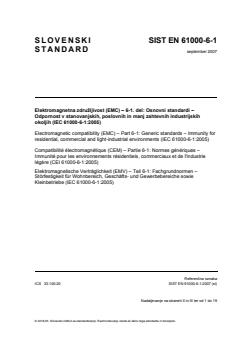

SLOVENSKI STANDARD
SIST EN 61000-6-1:2007
01-september-2007
1DGRPHãþD
SIST EN 61000-6-1:2002
SIST EN 61000-6-1:2002/IS1:2006
Elektromagnetna združljivost (EMC) - 6-1. del: Osnovni standardi - Odpornost v
stanovanjskih, poslovnih in manj zahtevnih industrijskih okoljih (IEC 61000-6-
1:2005)

Electromagnetic compatibility (EMC) -- Part 6-1: Generic standards - Immunity for

residential, commercial and light-industrial environments

Elektromagnetische Verträglichkeit (EMV) - Teil 6-1: Fachgrundnormen - Störfestigkeit

für Wohnbereich, Geschäfts- und Gewerbebereiche sowie Kleinbetriebe

Compatibilité électromagnétique (CEM) - Partie 6-1: Normes génériques - Immunité pour

les environnements résidentiels, commerciaux et de l'industrie légere
Ta slovenski standard je istoveten z: EN 61000-6-1:2007
ICS:
33.100.20 Imunost Immunity
SIST EN 61000-6-1:2007 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------

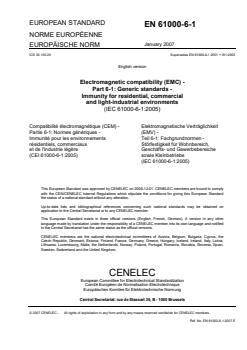

EUROPEAN STANDARD
EN 61000-6-1
NORME EUROPÉENNE
January 2007
EUROPÄISCHE NORM
ICS 33.100.20 Supersedes EN 61000-6-1:2001 + IS1:2005
English version
Electromagnetic compatibility (EMC) -
Part 6-1: Generic standards -
Immunity for residential, commercial
and light-industrial environments
(IEC 61000-6-1:2005)
Compatibilité électromagnétique (CEM) - Elektromagnetische Verträglichkeit
Partie 6-1: Normes génériques - (EMV) -
Immunité pour les environnements Teil 6-1: Fachgrundnormen -
résidentiels, commerciaux Störfestigkeit für Wohnbereich,
et de l'industrie légère Geschäfts- und Gewerbebereiche
(CEI 61000-6-1:2005) sowie Kleinbetriebe
(IEC 61000-6-1:2005)

This European Standard was approved by CENELEC on 2006-12-01. CENELEC members are bound to comply

with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard

the status of a national standard without any alteration.

Up-to-date lists and bibliographical references concerning such national standards may be obtained on

application to the Central Secretariat or to any CENELEC member.

This European Standard exists in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CENELEC member into its own language and notified

to the Central Secretariat has the same status as the official versions.

CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Cyprus, the

Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,

Sweden, Switzerland and the United Kingdom.
CENELEC
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Central Secretariat: rue de Stassart 35, B - 1050 Brussels

© 2007 CENELEC - All rights of exploitation in any form and by any means reserved worldwide for CENELEC members.

Ref. No. EN 61000-6-1:2007 E
---------------------- Page: 2 ----------------------
EN 61000-6-1:2007 - 2 -

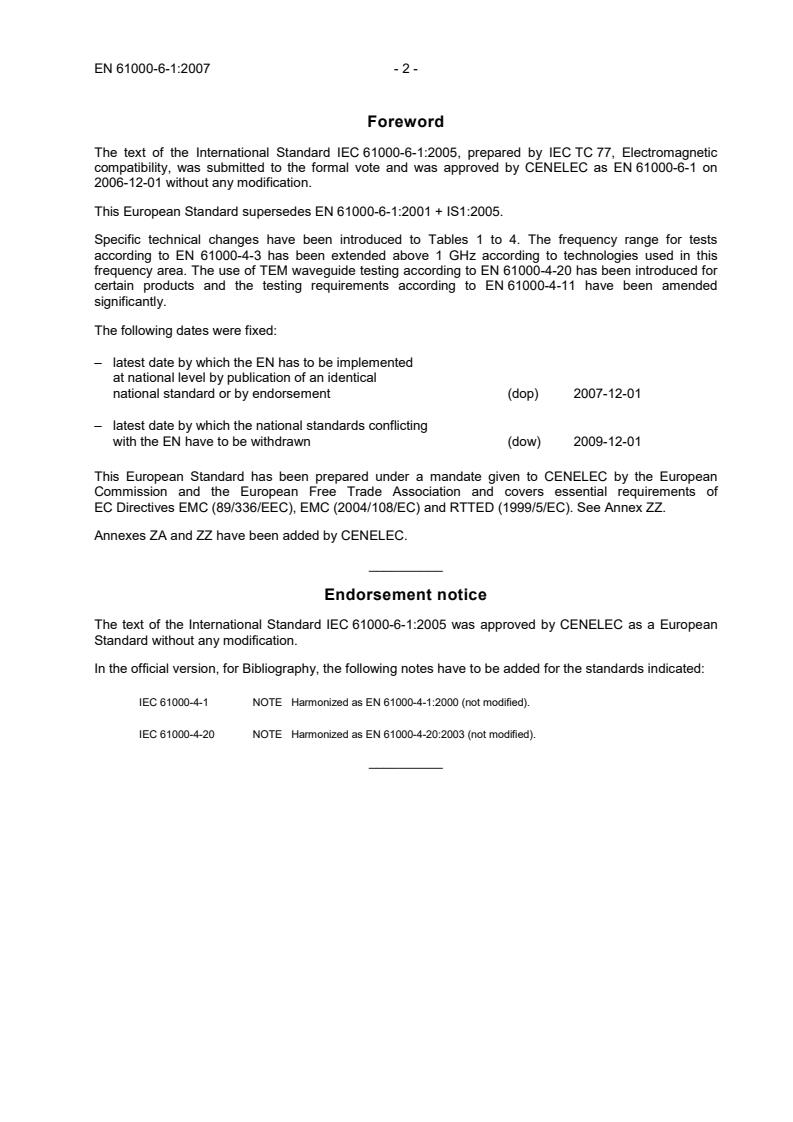

Foreword

The text of the International Standard IEC 61000-6-1:2005, prepared by IEC TC 77, Electromagnetic

compatibility, was submitted to the formal vote and was approved by CENELEC as EN 61000-6-1 on

2006-12-01 without any modification.
This European Standard supersedes EN 61000-6-1:2001 + IS1:2005.

Specific technical changes have been introduced to Tables 1 to 4. The frequency range for tests

according to EN 61000-4-3 has been extended above 1 GHz according to technologies used in this

frequency area. The use of TEM waveguide testing according to EN 61000-4-20 has been introduced for

certain products and the testing requirements according to EN 61000-4-11 have been amended

significantly.
The following dates were fixed:
– latest date by which the EN has to be implemented
at national level by publication of an identical
national standard or by endorsement (dop) 2007-12-01
– latest date by which the national standards conflicting
with the EN have to be withdrawn (dow) 2009-12-01

This European Standard has been prepared under a mandate given to CENELEC by the European

Commission and the European Free Trade Association and covers essential requirements of

EC Directives EMC (89/336/EEC), EMC (2004/108/EC) and RTTED (1999/5/EC). See Annex ZZ.

Annexes ZA and ZZ have been added by CENELEC.
__________
Endorsement notice

The text of the International Standard IEC 61000-6-1:2005 was approved by CENELEC as a European

Standard without any modification.

In the official version, for Bibliography, the following notes have to be added for the standards indicated:

IEC 61000-4-1 NOTE Harmonized as EN 61000-4-1:2000 (not modified).
IEC 61000-4-20 NOTE Harmonized as EN 61000-4-20:2003 (not modified).
__________
---------------------- Page: 3 ----------------------
- 3 - EN 61000-6-1:2007
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications

The following referenced documents are indispensable for the application of this document. For dated

references, only the edition cited applies. For undated references, the latest edition of the referenced

document (including any amendments) applies.

NOTE When an international publication has been modified by common modifications, indicated by (mod), the relevant EN/HD

applies.
Publication Year Title EN/HD Year
IEC 60050-161 - International Electrotechnical Vocabulary - -
(IEV) -
Chapter 161: Electromagnetic compatibility
1) 2)
IEC 61000-4-2 - Electromagnetic compatibility (EMC) - EN 61000-4-2 1995
Part 4-2: Testing and measurement
techniques - Electrostatic discharge immunity
test
1) 2)
IEC 61000-4-3 - Electromagnetic compatibility (EMC) - EN 61000-4-3 2006
Part 4-3: Testing and measurement
techniques - Radiated, radio-frequency,
electromagnetic field immunity test
1) 2)
IEC 61000-4-4 - Electromagnetic compatibility (EMC) - EN 61000-4-4 2004
Part 4-4: Testing and measurement
techniques - Electrical fast transient/burst
immunity test
1) 2)
IEC 61000-4-5 - Electromagnetic compatibility (EMC) - EN 61000-4-5 2006
Part 4-5: Testing and measurement
techniques - Surge immunity test
IEC 61000-4-6 - Electromagnetic compatibility (EMC) - - -
Part 4-6: Testing and measurement
techniques - Immunity to conducted
disturbances, induced by radio-frequency
fields
1) 2)
IEC 61000-4-8 - Electromagnetic compatibility (EMC) - EN 61000-4-8 1993
Part 4-8: Testing and measurement
techniques - Power frequency magnetic field
immunity test
1) 2)
IEC 61000-4-11 - Electromagnetic compatibility (EMC) - EN 61000-4-11 2004
Part 4-11: Testing and measurement
techniques - Voltage dips, short interruptions
and voltage variations immunity tests
1) 2)
CISPR 22 (mod) - Information technology equipment - Radio EN 55022 2006
disturbance characteristics - Limits and
methods of measurement
Undated reference.
Valid edition at date of issue.
---------------------- Page: 4 ----------------------
EN 61000-6-1:2007 - 4 -
Annex ZZ
(informative)
Coverage of Essential Requirements of EC Directives

This European Standard has been prepared under a mandate given to CENELEC by the European

Commission and the European Free Trade Association and within its scope the standard covers the

essential requirements as given in Article 4(b) of the EC Directive 89/336/EEC and Annex I Article 1(b) of

the EC Directive 2004/108/EC, and the essential requirements of Article 3.1(b) (immunity only) of the

EC Directive 1999/5/EC.

Compliance with this standard provides one means of conformity with the specified essential

requirements of the Directives concerned.

WARNING: Other requirements and other EC Directives may be applicable to the products falling within

the scope of this standard.
_________
---------------------- Page: 5 ----------------------
INTERNATIONAL IEC
STANDARD 61000-6-1
Second edition
2005-03
Electromagnetic compatibility (EMC) –
Part 6-1:
Generic standards –
Immunity for residential, commercial and
light-industrial environments
 IEC 2005 Copyright - all rights reserved

No part of this publication may be reproduced or utilized in any form or by any means, electronic or mechanical,

including photocopying and microfilm, without permission in writing from the publisher.

International Electrotechnical Commission, 3, rue de Varembé, PO Box 131, CH-1211 Geneva 20, Switzerland

Telephone: +41 22 919 02 11 Telefax: +41 22 919 03 00 E-mail: inmail@iec.ch Web: www.iec.ch

PRICE CODE
Commission Electrotechnique Internationale
International Electrotechnical Commission
МеждународнаяЭлектротехническаяКомиссия
For price, see current catalogue
---------------------- Page: 6 ----------------------
61000-6-1  IEC:2005 – 3 –
CONTENTS

FOREWORD ........................................................................................................................5

INTRODUCTION ..................................................................................................................9

1 Scope and object..........................................................................................................11

2 Normative references ...................................................................................................13

3 Terms and definitions ...................................................................................................15

4 Performance criteria .....................................................................................................17

5 Conditions during testing ..............................................................................................17

6 Product documentation.................................................................................................19

7 Applicability..................................................................................................................19

8 Immunity test requirements...........................................................................................19

Bibliography .......................................................................................................................31

Figure 1 – Examples of ports ..............................................................................................15

Table 1 – Immunity – Enclosure port ...................................................................................23

Table 2 – Immunity – Signal ports .......................................................................................25

Table 3 – Immunity – Input and output DC power ports........................................................27

Table 4 – Immunity – Input and output AC power ports........................................................29

---------------------- Page: 7 ----------------------
61000-6-1  IEC:2005 – 5 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
ELECTROMAGNETIC COMPATIBILITY (EMC) –
Part 6-1: Generic standards –
Immunity for residential, commercial
and light-industrial environments
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an

international consensus of opinion on the relevant subjects since each technical committee has representation

from all interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC provides no marking procedure to indicate its approval and cannot be rendered responsible for any

equipment declared to be in conformity with an IEC Publication.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 61000-6-1 has been prepared by IEC technical committee 77:

Electromagnetic compatibility.

This second edition cancels and replaces the first edition published in 1997. It constitutes a

technical revision. Specific technical changes have been introduced to Tables 1 to 4. The

frequency range for tests according to IEC 61000-4-3 has been extended above 1 GHz

according to technologies used in this frequency area. The use of TEM waveguide testing

according to IEC 61000-4-20 has been introduced for certain products and the testing

requirements according to IEC 61000-4-11 have been amended significantly.
---------------------- Page: 8 ----------------------
61000-6-1  IEC:2005 – 7 –
The text of this standard is based on the following documents:
FDIS Report on voting
77/294A/FDIS 77/300/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

The publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

The committee has decided that the contents of this publication will remain unchanged until

the maintenance result date indicated on the IEC web site under "http://webstore.iec.ch" in

the data related to the specific publication. At this date, the publication will be

• reconfirmed;
• withdrawn;
• replaced by a revised edition, or
• amended.
---------------------- Page: 9 ----------------------
61000-6-1  IEC:2005 – 9 –
INTRODUCTION
IEC 61000 is published in separate parts according to the following structure:
Part 1: General
General considerations (introduction, fundamental principles)
Definitions, terminology
Part 2: Environment
Description of the environment
Classification of the environment
Compatibility levels
Part 3: Limits
Emission limits

Immunity limits (insofar as they do not fall under the responsibility of the product

committees)
Part 4: Testing and measurement techniques
Measurement techniques
Testing techniques
Part 5: Installation and mitigation guidelines
Installation guidelines
Mitigation methods and devices
Part 6: Generic standards
Part 9: Miscellaneous

Each part is further subdivided into several parts, published either as International Standards

or as technical specifications or technical reports, some of which have already been

published as sections. Others will be published with the part number followed by a dash and

a second number identifying the subdivision (example: 61000-6-1).
---------------------- Page: 10 ----------------------
61000-6-1  IEC:2005 – 11 –
ELECTROMAGNETIC COMPATIBILITY (EMC) –
Part 6-1: Generic standards –
Immunity for residential, commercial
and light-industrial environments
1 Scope and object

This part of IEC 61000 for EMC immunity requirements applies to electrical and electronic

apparatus intended for use in residential, commercial and light-industrial environments.

Immunity requirements in the frequency range 0 Hz to 400 GHz are covered. No tests need to

be performed at frequencies where no requirements are specified.

This generic EMC immunity standard is applicable if no relevant dedicated product or

product-family EMC immunity standard exists.

This standard applies to apparatus intended to be directly connected to a low-voltage public

mains network or connected to a dedicated DC source which is intended to interface between

the apparatus and the low-voltage public mains network. This standard applies also to

appara
...

SLOVENSKI SIST EN 61000-6-1
STANDARD
september 2007
Elektromagnetna združljivost (EMC) – 6-1. del: Osnovni standardi –
Odpornost v stanovanjskih, poslovnih in manj zahtevnih industrijskih
okoljih (IEC 61000-6-1:2005)

Electromagnetic compatibility (EMC) – Part 6-1: Generic standards – Immunity for

residential, commercial and light-industrial environments (IEC 61000-6-1:2005)
Compatibilité électromagnétique (CEM) – Partie 6-1: Normes génériques –
Immunité pour les environnements résidentiels, commerciaux et de l'industrie
légère (CEI 61000-6-1:2005)
Elektromagnetische Verträglichkeit (EMV) – Teil 6-1: Fachgrundnormen –
Störfestigkeit für Wohnbereich, Geschäfts- und Gewerbebereiche sowie
Kleinbetriebe (IEC 61000-6-1:2005)
Referenčna oznaka
ICS 33.100.20 SIST EN 61000-6-1:2007 (sl)
Nadaljevanje na straneh II in III ter od 1 do 19

© 2016-05. Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

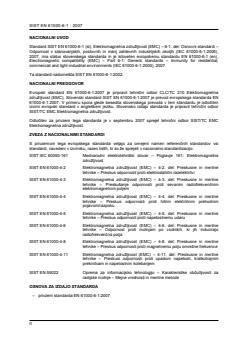

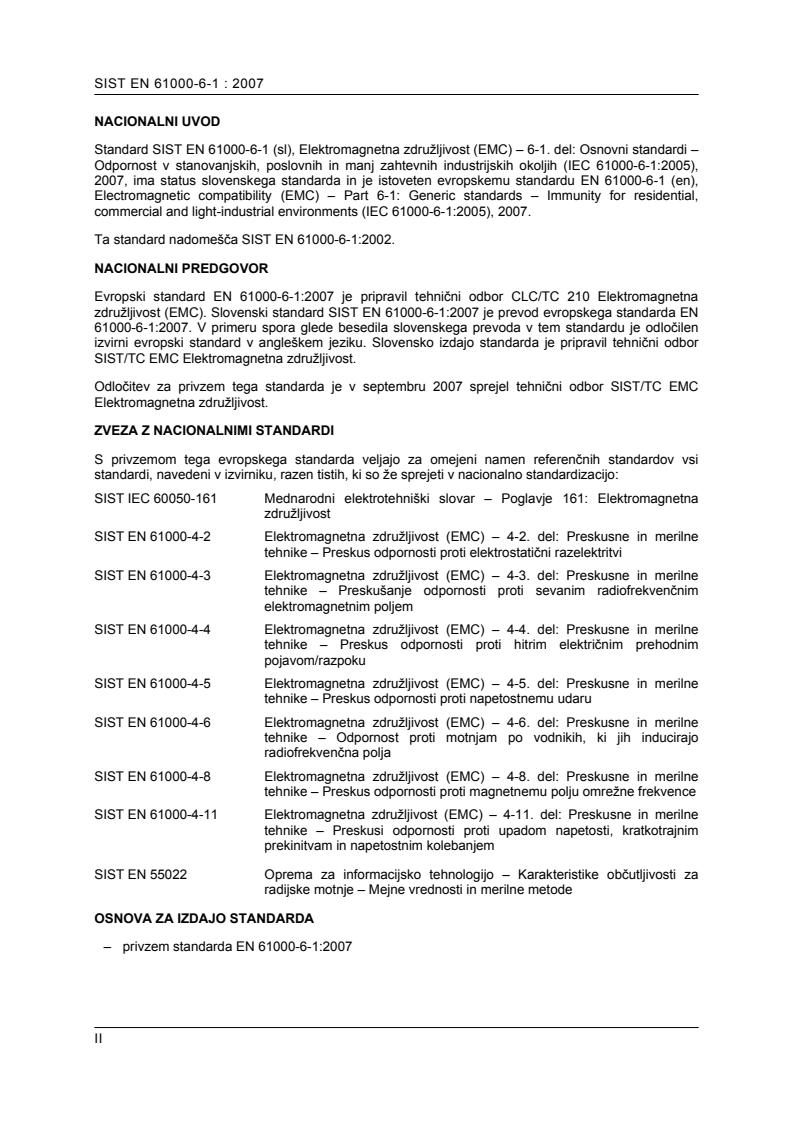

---------------------- Page: 1 ----------------------
SIST EN 61000-6-1 : 2007
NACIONALNI UVOD

Standard SIST EN 61000-6-1 (sl), Elektromagnetna združljivost (EMC) – 6-1. del: Osnovni standardi –

Odpornost v stanovanjskih, poslovnih in manj zahtevnih industrijskih okoljih (IEC 61000-6-1:2005),

2007, ima status slovenskega standarda in je istoveten evropskemu standardu EN 61000-6-1 (en),

Electromagnetic compatibility (EMC) – Part 6-1: Generic standards – Immunity for residential,

commercial and light-industrial environments (IEC 61000-6-1:2005), 2007.
Ta standard nadomešča SIST EN 61000-6-1:2002.
NACIONALNI PREDGOVOR

Evropski standard EN 61000-6-1:2007 je pripravil tehnični odbor CLC/TC 210 Elektromagnetna

združljivost (EMC). Slovenski standard SIST EN 61000-6-1:2007 je prevod evropskega standarda EN

61000-6-1:2007. V primeru spora glede besedila slovenskega prevoda v tem standardu je odločilen

izvirni evropski standard v angleškem jeziku. Slovensko izdajo standarda je pripravil tehnični odbor

SIST/TC EMC Elektromagnetna združljivost.

Odločitev za privzem tega standarda je v septembru 2007 sprejel tehnični odbor SIST/TC EMC

Elektromagnetna združljivost.
ZVEZA Z NACIONALNIMI STANDARDI

S privzemom tega evropskega standarda veljajo za omejeni namen referenčnih standardov vsi

standardi, navedeni v izvirniku, razen tistih, ki so že sprejeti v nacionalno standardizacijo:

SIST IEC 60050-161 Mednarodni elektrotehniški slovar – Poglavje 161: Elektromagnetna

združljivost

SIST EN 61000-4-2 Elektromagnetna združljivost (EMC) – 4-2. del: Preskusne in merilne

tehnike – Preskus odpornosti proti elektrostatični razelektritvi

SIST EN 61000-4-3 Elektromagnetna združljivost (EMC) – 4-3. del: Preskusne in merilne

tehnike – Preskušanje odpornosti proti sevanim radiofrekvenčnim
elektromagnetnim poljem

SIST EN 61000-4-4 Elektromagnetna združljivost (EMC) – 4-4. del: Preskusne in merilne

tehnike – Preskus odpornosti proti hitrim električnim prehodnim
pojavom/razpoku

SIST EN 61000-4-5 Elektromagnetna združljivost (EMC) – 4-5. del: Preskusne in merilne

tehnike – Preskus odpornosti proti napetostnemu udaru

SIST EN 61000-4-6 Elektromagnetna združljivost (EMC) – 4-6. del: Preskusne in merilne

tehnike – Odpornost proti motnjam po vodnikih, ki jih inducirajo
radiofrekvenčna polja

SIST EN 61000-4-8 Elektromagnetna združljivost (EMC) – 4-8. del: Preskusne in merilne

tehnike – Preskus odpornosti proti magnetnemu polju omrežne frekvence

SIST EN 61000-4-11 Elektromagnetna združljivost (EMC) – 4-11. del: Preskusne in merilne

tehnike – Preskusi odpornosti proti upadom napetosti, kratkotrajnim
prekinitvam in napetostnim kolebanjem

SIST EN 55022 Oprema za informacijsko tehnologijo – Karakteristike občutljivosti za

radijske motnje – Mejne vrednosti in merilne metode
OSNOVA ZA IZDAJO STANDARDA
– privzem standarda EN 61000-6-1:2007
---------------------- Page: 2 ----------------------
SIST EN 61000-6-1 : 2007
PREDHODNA IZDAJA

– SIST EN 61000-6-1:2002, Electromagnetic compatibility (EMC) – Part 6-1: Generic standards –

Immunity for residential, commercial and light-industrial environments (IEC 61000-6-1:1997)

OPOMBE

– Povsod, kjer se v besedilu standarda uporabljata izraza "evropski" standard in "mednarodni"

standard, v SIST EN 61000-6-1:2007 to pomeni "slovenski" standard.
– Uvod in nacionalni predgovor nista sestavni del standarda.

– Ta nacionalni dokument je istoveten EN 61000-6-1:2007 in je objavljen z dovoljenjem

CEN/CENELEC
Upravni center
Avenue Marnix 17
B-1000 Bruselj

This national document is identical with EN 61000-6-1:2007 and is published with the permission of

CEN/CENELEC
Management Centre
Avenue Marnix 17
B-1000 Brussels
III
---------------------- Page: 3 ----------------------
EVROPSKI STANDARD EN 61000-6-1
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM januar 2007
ICS: 33.100.20 Nadomešča EN 61000-6-1:2001+IS1:2005
Slovenska izdaja
Elektromagnetna združljivost (EMC) – 6-1. del: Osnovni standardi –
Odpornost v stanovanjskih, poslovnih in manj zahtevnih industrijskih okoljih
(IEC 61000-6-1:2005)

Electromagnetic compatibility Compatibilité électromagnétique Elektromagnetische Verträglichkeit

(EMC) – Part 6-1: Generic (CEM) – Partie 6-1: Normes (EMV) – Teil 6-1: Fachgrundnormen

standards – Immunity for génériques – Immunité pour les – Störfestigkeit für Wohnbereich,

residential, commercial and environnements résidentiels, Geschäfts- und Gewerbebereiche

light-industrial environments commerciaux et de l'industrie légère sowie Kleinbetriebe (IEC 61000-6-

(IEC 61000-6-1:2005) (CEI 61000-6-1:2005) 1:2005)

Ta evropski standard je CENELEC sprejel 1. decembra 2006. Člani CENELEC morajo izpolnjevati

notranje predpise CEN/CENELEC, s katerimi so predpisani pogoji za privzem tega evropskega

standarda na nacionalno raven brez kakršnihkoli sprememb.

Najnovejši seznami teh nacionalnih standardov z njihovimi bibliografskimi podatki se na zahtevo lahko

dobijo pri Centralnem sekretariatu ali kateremkoli članu CENELEC.

Ta evropski standard obstaja v treh uradnih izdajah (angleški, francoski in nemški). Izdaje v drugih

jezikih, ki jih člani CENELEC na lastno odgovornost prevedejo in izdajo ter prijavijo pri Centralnem

sekretariatu, veljajo kot uradne izdaje.

Člani CENELEC so nacionalni elektrotehniški komiteji Avstrije, Belgije, Bolgarije, Cipra, Češke

republike, Danske, Estonije, Finske, Francije, Grčije, Islandije, Irske, Italije, Latvije, Litve,

Luksemburga, Madžarske, Malte, Nemčije, Nizozemske, Norveške, Poljske, Portugalske, Romunije,

Slovaške, Slovenije, Španije, Švedske, Švice in Združenega kraljestva.
CENELEC
Evropski komite za standardizacijo v elektrotehniki
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
Centralni sekretariat: Rue de Stassart 35, B-1050 Bruselj

© 2007 CENELEC Lastnice avtorskih pravic so vse države članice CENELEC. Ref. št. EN 61000-6-1:2007 E

---------------------- Page: 4 ----------------------
SIST EN 61000-6-1 : 2007
VSEBINA Stran

Predgovor k evropskemu standardu ....................................................................................................... 3

Dodatek ZA (normativni): Sklicevanje na mednarodne publikacije z njihovimi ustreznimi

evropskimi publikacijami ..................................................................................................................... 4

Dodatek ZZ (informativni): Vključitev bistvenih zahtev direktiv ES ......................................................... 6

Predgovor k mednarodnemu standardu .................................................................................................. 7

Uvod ........................................................................................................................................................ 9

1 Področje uporabe in namen .............................................................................................................. 10

2 Zveze s standardi .............................................................................................................................. 11

3 Izrazi in definicije ............................................................................................................................... 11

4 Merilo zmogljivosti ............................................................................................................................. 12

5 Pogoji med preskušanjem ................................................................................................................. 13

6 Dokumentacija o proizvodu ............................................................................................................... 13

7 Uporabnost ........................................................................................................................................ 13

8 Zahteve za preskus odpornosti .......................................................................................................... 13

Literatura................................................................................................................................................ 19

Preglednica 1: Odpornost – port ohišja ................................................................................................. 15

Preglednica 2: Odpornost – signalni porti ............................................................................................. 16

Preglednica 3: Odpornost – Vhodni in izhodni enosmerni napajalni porti ............................................. 17

Preglednica 3: Odpornost – Vhodni in izhodni izmenični napajalni porti .............................................. 19

---------------------- Page: 5 ----------------------
SIST EN 61000-6-1 : 2007
Predgovor k evropskemu standardu

Besedilo mednarodnega standarda IEC 61000-6-1:2005, ki ga je pripravil tehnični odbor IEC/TC 77

Elektromagnetna združljivost, je CENELEC po formalnem glasovanju 1. decembra 2006 sprejel kot

EN 61000-6-1 brez kakršnihkoli sprememb.
Ta evropski standard nadomešča EN 61000-6-1:2001+IS1:2005.

Posebne tehnične spremembe so bile uvedene v preglednicah 1 do 4. Frekvenčno območje za

preskuse po EN 61000-4-3 je bilo razširjeno nad 1 GHz ustrezno s tehnologijami, ki so uporabljene v

tem frekvenčnem območju. Uporaba preskušanja v TEM-valovodu v skladu z EN 61000-4-20 je bila

uvedena za določene proizvode in znatno so bile dopolnjene zahteve za preskušanje v skladu z EN

61000-4-11.
Določena sta bila naslednja datuma:
– zadnji datum, do katerega mora EN dobiti status
nacionalnega standarda bodisi z objavo istovetnega besedila
ali z razglasitvijo (dop) 2007-12-01
– zadnji datum, ko je treba razveljaviti nacionalne standarde,
ki so z EN v nasprotju (dow) 2009-12-01

Ta evropski standard je bil pripravljen v okviru mandata, ki sta ga Evropska komisija in Evropsko

združenje za prosto trgovino dala CENELEC, in podpira bistvene zahteve direktiv ES EMC

(89/336/EGS), EMC (2004/108/ES) in RTTED (1999/5/ES). Glej dodatek ZZ.
Dodatka ZA in ZZ je dodal CENELEC.
Razglasitvena objava

Besedilo mednarodnega standarda IEC 61000-6-1:2005 je CENELEC odobril kot evropski standard

brez kakršnihkoli sprememb.
V uradni verziji je treba v Literaturi dodati opombo k naslednjima standardoma:
IEC 61000-4-1 OPOMBA Harmoniziran kot EN 61000-4-1:2000 (nespremenjen)
IEC 61000-4-20 OPOMBA Harmoniziran kot EN 61000-4-20 (nespremenjen)
---------------------- Page: 6 ----------------------
SIST EN 61000-6-1 : 2007
Dodatek ZA
(normativni)
Sklicevanje na mednarodne publikacije z njihovimi ustreznimi evropskimi
publikacijami

Pri uporabi tega dokumenta so nujno potrebni naslednji referenčni dokumenti. Pri datiranih

sklicevanjih velja le navedena izdaja dokumenta. Pri nedatiranih sklicevanjih se uporablja zadnja

izdaja publikacije (vključno z dopolnili).

OPOMBA: Kadar je mednarodna publikacija spremenjena in so spremembe označene z (mod), se uporablja ustrezni

dokument EN/HD.
Standard Leto Naslov EN/HD Leto
IEC 60050-161 - Mednarodni elektrotehniški slovar – - -
Poglavje 161: Elektromagnetna združljivost
1) 2)
IEC 61000-4-2 - Elektromagnetna združljivost (EMC) – EN 61000-4-2 1995
4-2. del: Preskusne in merilne tehnike –
Preskus odpornosti proti elektrostatični
razelektritvi
1) 2)
IEC 61000-4-3 - Elektromagnetna združljivost (EMC) – EN 61000-4-3 2006
4-3. del: Preskusne in merilne tehnike –
Preskušanje odpornosti proti sevanim
radiofrekvenčnim elektromagnetnim poljem
1) 2)
IEC 61000-4-4 - Elektromagnetna združljivost (EMC) – EN 61000-4-4 2004
4-4. del: Preskusne in merilne tehnike –
Preskus odpornosti proti hitrim električnim
prehodnim pojavom/razpoku
1) 2)
IEC 61000-4-5 - Elektromagnetna združljivost (EMC) – EN 61000-4-5 2006
4-5. del: Preskusne in merilne tehnike –
Preskus odpornosti proti napetostnemu
udaru
IEC 61000-4-6 - Elektromagnetna združljivost (EMC) – - -
4-6. del: Preskusne in merilne tehnike –
Odpornost proti motnjam po vodnikih, ki jih
inducirajo radiofrekvenčna polja
1) 2)
IEC 61000-4-8 - Elektromagnetna združljivost (EMC) – EN 61000-4-8 1993
4-8. del: Preskusne in merilne tehnike –
Preskus odpornosti proti magnetnemu
polju omrežne frekvence
Nedatirano sklicevanje.
Veljavna izdaja ob izidu.
---------------------- Page: 7 ----------------------
SIST EN 61000-6-1 : 2007
Standard Leto Naslov EN/HD Leto
1) 2)
IEC 61000-4-11 - Elektromagnetna združljivost (EMC) – EN 61000-4-11 2004
4-11. del: Preskusne in merilne tehnike –
Preskusi odpornosti proti upadom
napetosti, kratkotrajnim prekinitvam in
napetostnim kolebanjem
1) 2)
CISPR 22 (mod) - Oprema za informacijsko tehnologijo – EN 55022 2006
Karakteristike občutljivosti za radijske
motnje – Mejne vrednosti in merilne
metode
Nedatirano sklicevanje
Veljavna izdaja ob izidu.
---------------------- Page: 8 ----------------------
SIST EN 61000-6-1 : 2007
Dodatek ZZ
(informativni)
Vključitev bistvenih zahtev direktiv ES

Ta evropski standard je bil pripravljen v okviru mandata, ki sta ga Evropska komisija in Evropsko

združenje za prosto trgovino dala CENELEC, in v obsegu svojega področja uporabe vključuje bistvene

zahteve, kot so podane v členu 4(b) Direktive ES 89/336/EGS in v členu 1(b) Priloge I k Direktivi

2004/108/ES ter bistvene zahteve člena 3.1(b) (samo odpornost) Direktive ES 1999/5/ES.

Skladnost s tem standardom je eden od načinov doseganja skladnosti z določenimi bistvenimi

zahtevami zadevnih direktiv.

OPOZORILO: Za izdelke, ki jih zajema ta standard, lahko veljajo tudi druge zahteve in druge direktive.

---------------------- Page: 9 ----------------------
SIST EN 61000-6-1 : 2007
MEDNARODNA ELEKTROTEHNIŠKA KOMISIJA
Elektromagnetna združljivost (EMC) –
6-1. del: Osnovni standardi – Odpornost v stanovanjskih, poslovnih in manj
zahtevnih industrijskih okoljih (IEC 61000-6-1:2005)
Predgovor k mednarodnemu standardu

1) IEC (Mednarodna elektrotehniška komisija) je svetovna organizacija za standardizacijo, ki združuje vse nacionalne

elektrotehnične komiteje (nacionalni komiteji IEC). Cilj IEC je pospeševati mednarodno sodelovanje v vseh vprašanjih

standardizacije s področja elektrotehnike in elektronike. V ta namen poleg drugih aktivnosti izdaja mednarodne standarde,

tehnične specifikacije, tehnična poročila, javnosti dostopne specifikacije (PAS) in vodila (v nadaljevanju: publikacije IEC). Za

njihovo pripravo so odgovorni tehnični odbori. Vsak nacionalni komite IEC, ki ga zanima obravnavana tema, lahko sodeluje

v tem pripravljalnem delu. Prav tako lahko v pripravi sodelujejo mednarodne organizacije ter vladne in nevladne ustanove, ki

so povezane z IEC. IEC deluje v tesni povezavi z mednarodno organizacijo za standardizacijo ISO skladno s pogoji,

določenimi v soglasju med obema organizacijama.

2) Uradne odločitve ali sporazumi IEC o tehničnih vprašanjih, pripravljeni v tehničnih odborih, v katerih so prisotni vsi

nacionalni komiteji, ki jih tema zanima, izražajo, kolikor je mogoče, mednarodno soglasje o obravnavani temi.

3) Publikacije IEC imajo obliko priporočil za njihovo uporabo na mednarodni ravni in jih kot takšne sprejmejo nacionalni

komiteji IEC. Čeprav IEC skuša na vse primerne načine zagotavljati točnost tehničnih vsebin v publikacijah IEC, IEC ne

more biti odgovoren za način, kako se določila uporabljajo, ter za morebitne napačne razlage končnih uporabnikov.

...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
