2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Radio Equipment and Systems (RES); ElectroMagnetic Compatibility (EMC) for European digitalcellular telecommunications system (GSM 900 MHz and DCS 1 800 MHz); Part 1: Mobile and portable radio and ancillary equipment33.100.01Elektromagnetna združljivost na splošnoElectromagnetic compatibility in general33.070.50Globalni sistem za mobilno telekomunikacijo (GSM)Global System for Mobile Communication (GSM)33.060.20Sprejemna in oddajna opremaReceiving and transmitting equipmentICS:Ta slovenski standard je istoveten z:ETS 300 342-1 Edition 1SIST EN 300 342-1:2003en01-december-2003SIST EN 300 342-1:2003SLOVENSKI
STANDARD
SIST EN 300 342-1:2003
Draft ETSI EN 300 342-1 V1.3.1 (1999-07)European Standard (Telecommunications series)Electromagnetic compatibilityand Radio spectrum Matters (ERM);ElectroMagnetic Compatibility (EMC) forEuropean digital cellular telecommunications system(GSM 900 MHz and DCS 1 800 MHz);Part 1: Mobile and portable radio and ancillary equipmentSIST EN 300 342-1:2003

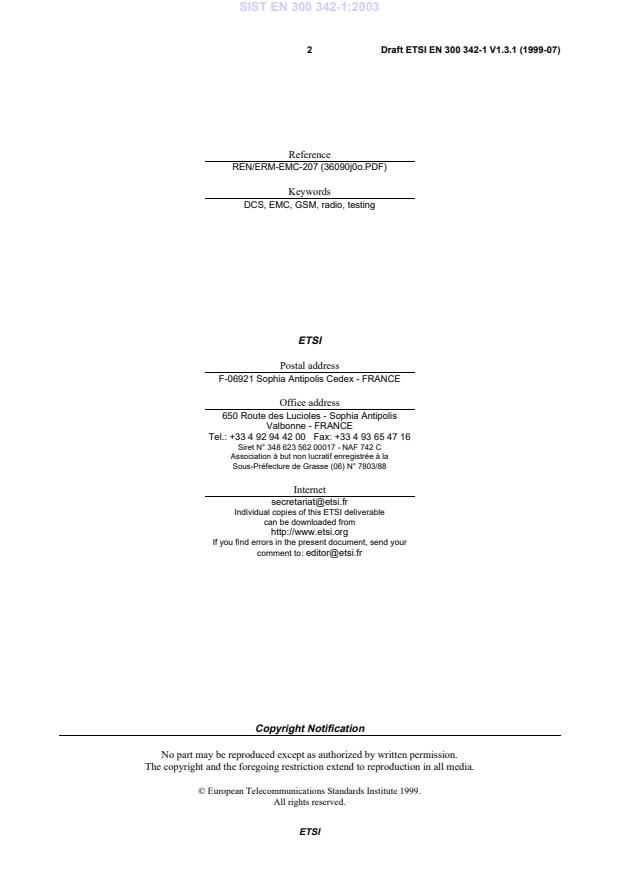

ETSIDraft ETSI EN 300 342-1 V1.3.1 (1999-07)2ReferenceREN/ERM-EMC-207 (36090j0o.PDF)KeywordsDCS, EMC, GSM, radio, testingETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/88Internetsecretariat@etsi.frIndividual copies of this ETSI deliverablecan be downloaded fromhttp://www.etsi.orgIf you find errors in the present document, send yourcomment to: editor@etsi.frCopyright NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1999.All rights reserved.SIST EN 300 342-1:2003
ETSIDraft ETSI EN 300 342-1 V1.3.1 (1999-07)3ContentsIntellectual Property Rights.5Foreword.51Scope.62References.63Definitions and abbreviations.83.1Definitions.83.2Abbreviations.94Test conditions.94.1General.94.2Arrangements for establishing a communication link.104.2.1Calibration of audio levels.104.2.2Measurement of audio levels.104.3Arrangements for test signals at the input of the transmitter.114.4Arrangements for test signals at the output of the transmitter.124.5Arrangements for test signals at the input of the receiver.124.6Arrangements for test signals at the output of the receiver.124.7Receiver and duplex transceiver exclusion band.124.8Transmitter exclusion band.124.9Narrow band responses on receivers and duplex transceivers.134.10Idle mode.135Performance assessment.135.1General.135.2Equipment which can provide a communication link.145.2.1Equipment with analogue speech circuits.145.2.2Equipment without analogue speech circuits.145.3Equipment which does not provide a communication link.145.4Conformance of ancillary equipment.145.5Equipment classification.146Performance criteria.146.1Performance criteria for Continuous phenomena applied to Transmitters (CT).156.2Performance criteria for Transient phenomena applied to Transmitters (TT).156.3Performance criteria for Continuous phenomena applied to Receivers (CR).156.4Performance criteria for Transient phenomena applied to Receivers (TR).167Applicability overview tables.167.1Emission.167.2Immunity.178Methods of measurement and limits for EMC emissions.178.1Test configurations.178.2Radiated emissions (Enclosure, ancillary equipment).188.2.1Definition.188.2.2Test method.188.2.3Limits.188.3Conducted emission DC power input/output port.188.3.1Definition.188.3.2Test method.198.3.3Limits.198.4Conducted emissions, AC mains power input/output port.198.4.1Definition.198.4.2Test method.198.4.3Limits.20SIST EN 300 342-1:2003
ETSIDraft ETSI EN 300 342-1 V1.3.1 (1999-07)48.5Harmonic current emissions (AC mains input port).208.6Voltage fluctuations and flicker (AC mains input port).209Test methods and levels for immunity tests.209.1Test configurations.209.2RF electromagnetic field (80 MHz to 1 000 MHz).219.2.1Definition.219.2.2Test method and level.219.2.3Performance criteria.219.3Electrostatic discharge.229.3.1Definition.229.3.2Test method and level.229.3.3Performance criteria.229.4Fast transients common mode.229.4.1Definition.229.4.2Test method and level.239.4.3Performance criteria.239.5RF common mode, 0,15 MHz to 80 MHz (current clamp injection).239.5.1Definition.239.5.2Test method and level.239.5.3Performance criteria.249.6Transients and surges, vehicular environment.249.6.1Definition.249.6.2Test method and level.249.6.3Performance criteria.259.7Voltage dips and interruptions.269.7.1Definition.269.7.2Test method and level.269.7.3Performance criteria.269.8Surges, common and differential mode.279.8.1Definition.279.8.2Test method and level.279.8.3Performance criteria.27Annex A (normative):Clauses and/or subclauses of the present document
relevant forcompliance with the essential requirements
of EC CouncilDirectives.28History.29SIST EN 300 342-1:2003
ETSIDraft ETSI EN 300 342-1 V1.3.1 (1999-07)5Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on theETSI Web server (http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by ETSI Technical CommitteeElectromagnetic compatibility and Radio spectrum Matters (ERM), and is now submitted for the Public Enquiry phaseof the ETSI standards Two-step Approval Procedure.The present document has been produced by ETSI in response to a mandate from the European Commission issuedunder the Council Directive 98/34/EC (as amended) laying down a procedure for the provision of information in thefield of technical standards and regulation.The present document is intended to become a Harmonized EMC Standard, the reference of which will be published inthe Official Journal of the European Communities referencing the Council Directive on the approximation of the laws ofthe Member States relating to electromagnetic compatibility (the "EMC Directive" 89/336/EEC [22] as amended).Technical specifications relevant to the EMC Directive are given in annex A.The present document is part 1 of a multi-part EN covering Electromagnetic compatibility and Radio spectrum Matters(ERM); ElectroMagnetic Compatibility (EMC) for European digital cellular radio telecommunications systems (GSM900 MHz and DCS 1 800 MHz), as identified below:Part 1:"Mobile and portable radio and ancillary equipment";Part 2:"Base station radio and ancillary equipment" (ETS 300 342-2 [24]);Part 3:"Base station radio and ancillary equipment and repeaters meeting Phase 2 GSM requirements"(ETS 300 342-3 [25]).The present document is based upon the Generic Standards EN 50081-1 [1] and EN 50082-1 [2] and other standards,where appropriate, to meet the essential requirements of Council Directive 89/336/EEC [22].For equipment which can be connected to the AC main supply, the requirements of EN 61000-3-2 [17] andEN 61000-3-3 [18] apply where appropriate from 2001-1-1.Proposed national transposition datesDate of latest announcement of this EN (doa):3 months after ETSI publicationDate of latest publication of new National Standardor endorsement of this EN (dop/e):6 months after doaDate of withdrawal of any conflicting National Standard (dow):36 months after doaSIST EN 300 342-1:2003
ETSIDraft ETSI EN 300 342-1 V1.3.1 (1999-07)61ScopeThe present document covers the assessment of radio communications and ancillary equipment in respect ofElectromagnetic Compatibility (EMC).Technical specifications related to the antenna port and emissions from the enclosure port of radio equipment are foundin the related product standards for the effective use of the radio spectrum.The present document specifies the applicable EMC tests, the methods of measurement, the frequency range, the limitsand the minimum performance criteria for Phase 1, Phase 2, and Phase 2+ GSM 900 MHz and DCS 1 800 MHz digitalcellular mobile and portable radio equipment, transmitting and receiving speech and/or data, and the associated ancillaryequipment.Base station equipment operating within network infrastructure is outside the scope of the present document. However,the present document does cover mobile and portable equipment that is intended to be operated in a fixed location whileconnected to the AC mains.The environment classification used in the present document refers to the environment classification used in the GenericStandards EN 50081-1 [1], EN 50082-1 [2], except the vehicular environment class which refers to ISO 7637-1 [3] andISO 7637-2 [4].The EMC requirements have been selected to ensure an adequate level of compatibility for apparatus in residential,commercial, light industrial and vehicular environments. The levels however, do not cover extreme cases which mayoccur in any location but with low probability of occurrence.The present document may not cover those cases where a potential source of interference which is producingindividually repeated transient phenomena, or a continuous phenomena, is permanently present, e.g. a radar or broadcastsite in the near vicinity. In such a case it may be necessary to use special protection applied to either the source ofinterference or the interfered part or both.Compliance of radio equipment to the requirements of the present document does not signify compliance to anyrequirement related to the use of the equipment (i.e. licensing requirements).Compliance to the requirements of the present document does not signify compliance to any safety requirement.However, it is the responsibility of the assessor of the equipment that any observation regarding the equipmentbecoming dangerous or unsafe as a result of the application of the tests called for in the present document should berecorded in the test report.The present document is based on the considerations and guidance given in ETR 238 [21].2ReferencesThe following documents contain provisions which, through reference in this text, constitute provisions of the presentdocument.· References are either specific (identified by date of publication, edition number, version number, etc.) ornon-specific.· For a specific reference, subsequent revisions do not apply.· For a non-specific reference, the latest version applies.· A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.[1]EN 50081-1 (1992): "Electromagnetic compatibility - Generic emission standard. Part 1:Residential, commercial and light industry".[2]EN 50082-1 (1997): "Electromagnetic compatibility - Generic immunity standard. Part 1:Residential, commercial and light industry".SIST EN 300 342-1:2003
ETSIDraft ETSI EN 300 342-1 V1.3.1 (1999-07)7[3]ISO 7637-1 (1990): "Road vehicles - Electrical disturbance by conduction and coupling - Part 1:Passenger cars and light commercial vehicles with nominal 12 V supply voltage - Electricaltransient conduction along supply lines only".[4]ISO 7637-2 (1990): "Road vehicles - Electrical disturbance by conduction and coupling - Part 2:Commercial vehicles with nominal 24 V supply voltage - Electrical transient conduction alongsupply lines only".[5]I-ETS 300 034-1: "European digital cellular telecommunications system (Phase 1); Radiosubsystem link control (GSM 05.08)".[6]I-ETS 300 034-2: "European digital cellular telecommunications system (Phase 1); Radiosubsystem link control; Part 2: DCS extension (GSM 05.08-DCS)".[7]ETS 300 578: "Digital cellular telecommunications system (Phase 2); Radio subsystem link control(GSM 05.08)".[8]EN 55022 : "Limits and methods of measurement of radio disturbance characteristics ofinformation technology equipment".[9]CISPR 16-1: "Specification for radio disturbance and immunity measuring apparatus and methods- Part 1: Radio disturbance and immunity measuring apparatus".[10]EN 61000-4-3: "Electromagnetic Compatibility (EMC) - Part 4: Testing and measurementstechniques - Section 3: Radiated, radio-frequency, electromagnetic field immunity test".[11]EN 61000-4-2: "Electromagnetic Compatibility (EMC) - Part 4: Testing and measurementstechniques - Section 2: Electrostatic discharge immunity test. Basic EMC publication".[12]EN 61000-4-4: "Electromagnetic Compatibility (EMC); Part 4: Testing and measurementstechniques - Section 4: Electrical fast transient/burst immunity test. Basic EMC publication".[13]EN 61000-4-6: "Electromagnetic Compatibility (EMC) - Part 4: Testing and measurementstechniques - Section 6: Immunity to conducted disturbances induced by radio-frequency fields".[14]EN 61000-4-11: "Electromagnetic Compatibility (EMC); Part 4: Testing and measurementstechniques - Section 11: Voltage dips, short interruptions and voltage variations immunity tests".[15]EN 61000-4-5: "Electromagnetic Compatibility (EMC) - Part 4: Testing and measurementstechniques - Section 5: Surge immunity test".[16]ITU-T Recommendation P.64: "Telephone transmission quality, Telephone installations, Local linenetworks, Objective electro-acoustical measurements. Determination of sensitivity/frequencycharacteristics of local telephone systems".[17]EN 61000-3-2 (1995): "Electromagnetic compatibility (EMC) - Part 3: Limits - Section 2:Limits for harmonic current emissions (equipment input current less than or equal to 16 A perphase)".[18]EN 61000-3-3 (1994): "Electromagnetic compatibility (EMC) - Part 3: Limits - Section 3:Limitation of voltage fluctuations and flicker in low-voltage supply systems for equipment withrated current less than or equal to 16 A".[19]ETS 300 911: "Digital cellular telecommunications system (Phase 2+); Radio subsystem linkcontrol (GSM 05.08 version 5.9.0 Release 1996)".[20]ITU-T Recommendation P.76: "Telephone transmission quality, Measurements related to speechloudness, Determination of loudness ratings; Fundamental principles, Annex A".[21]ETR 238: "ETSI/CENELEC standardization programme for the development of HarmonizedStandards related to Electro-Magnetic Compatibility (EMC) in the field of telecommunications".[22]89/336/EEC: "Council Directive on the approximation of laws of the Member States relating toElectromagnetic Compatibility".SIST EN 300 342-1:2003
ETSIDraft ETSI EN 300 342-1 V1.3.1 (1999-07)8[23]TS 100 910 (V6.2): "Digital cellular telecommunications system (Phase 2+); Radio transmissionand reception (GSM 05.05 version 6.2.0, Release 1997)".[24]ETS 300 342-2: "Radio Equipment and Systems (RES); ElectroMagnetic Compatibility (EMC) forEuropean digital cellular telecommunications system (GSM 900 MHz and DCS 1 800 MHz); Part2: Base station radio and ancillary equipment".[25]ETS 300 342-3: "Electromagnetic compatibility and Radio spectrum Matters (ERM);ElectroMagnetic Compatibility (EMC) for European digital cellular telecommunications system(GSM 900 MHz and DCS 1 800 MHz); Part 3: Base station radio and ancillary equipment andrepeaters meeting Phase 2 GSM requirements".3Definitions and abbreviations3.1DefinitionsFor the purposes of the present document, the following terms and definitions apply:ancillary equipment: equipment (apparatus), used in connection with a receiver, transmitter or transceiver, isconsidered as an ancillary equipment (apparatus) if:-the equipment is intended for use in conjunction with a receiver, transmitter or transceiver to provide additionaloperational and/or control features to the radio equipment (e.g. to extend control to another position or location);and-the equipment cannot be used on a stand alone basis to provide user functions independently of a receiver,transmitter or transceiver; and-the receiver, transmitter or transceiver to which it is connected, is capable of providing some intended operationsuch as transmitting and/or receiving without the ancillary equipment (i.e. it is not a sub-unit of the mainequipment essential to the main equipment basic functions).base station equipment: mobile or portable equipment that is also intended to operate in a fixed location and poweredfrom the AC mains.idle mode: mode of operation of a receiver or a transceiver, where the Equipment Under Test (EUT) is powered,available for service and available to respond to a request to set up a call.integral antenna equipment: equipment fitted with an antenna designed to be connected to the equipment without theuse of an external connector and considered to be part of the equipment. An integral antenna may be fitted internally orexternally to the equipment.mobile equipment: receiver, transmitter or transmitter/receiver (transceiver) that is intended for installation and use in avehicle, and powered by the main battery of the vehicle.portable equipment: stand alone receiver, transmitter or transmitter/receiver (transceiver) powered by its own integralbattery.port: particular interface of the specified equipment (apparatus) with the electromagnetic environment.APPARATUSEnclosure portAC power portDC power portEarth portSignal/control portFigure 1: Examples of portsSIST EN 300 342-1:2003
ETSIDraft ETSI EN 300 342-1 V1.3.1 (1999-07)9radio communications equipment: apparatus which includes one or more transmitters and/or receivers and/or partsthereof. This type of equipment (apparatus) can be used in a fixed, mobile or a portable application.RXQUAL: measure of the received signal quality, which is generated by the mobile or portable equipment, for use as acriterion in the Radio Frequency (RF) power control and handover processes. For more information see:-I-ETS 300 034-1 [5] subclause 8.2 for Phase 1 GSM 900 equipment;-I-ETS 300 034-2 [6] subclause 8.2 for Phase 1 DCS 1800 equipment; or-ETS 300 578 [7] subclause 8.2 for Phase 2 GSM 900 or Phase 2 DCS 1800 equipment;-ETS 300 911 [19] subclause 8.2 for Phase 2+ GSM 900 or Phase 2+ DCS 1800 equipment.3.2AbbreviationsFor the purposes of the present document, the following abbreviations apply:ACAlternating CurrentARFCNAbsolute Radio Frequency Channel Number *)BCCHBroadcast Control Channel *)BSBase StationCCCHCommon Control Channel *)CRContinuous phenomena applied to Receivers (subclause 6.3)CTContinuous phenomena applied to Transmitters (subclause 6.1)DCDirect CurrentDTXDiscontinuous Transmission *)EMCElectromagnetic CompatibilityERPEar Reference Point (artificial head)EUTEquipment Under TestLISNLine Impedance Stabilizing NetworkMRPMouth Reference Point (artificial head)RFRadio Frequencyrmsroot mean squareRXQUALReceiver Quality *)SPLSound Pressure LevelTRTransient phenomena applied to Receivers (subclause 6.4)TTTransient phenomena applied to Transmitters (subclause 6.2)*) refer to GSM standards for further details.4Test conditions4.1GeneralThe equipment shall be tested under normal test conditions according to the relevant product and basic standards or tothe information accompanying the equipment, which are within the manufacturers declared range of humidity,temperature and supply voltage. The test conditions shall be recorded in the test report.The test configuration shall be as close to normal intended use as possible and shall be recorded in the test report.Whenever the Equipment Under Test (EUT) is provided with a detachable antenna, the EUT shall be tested
...
