SIST EN 4681-005:2019

Aerospace series - Cables, electric, general purpose, with conductors in aluminium or copper-clad aluminium - Part 005: AZ family, single, for use in low pressure atmosphere - Product standard

This European Standard specifies the characteristics of electrical wires AZ family for use in the on board:
   115 V (phase to neutral) or 200 V (phase to phase) electrical network of aircraft.
   230 V (phase to neutral) or 400 V (phase to phase) electrical network of aircraft and particularly use in non-pressurized areas.
This cable family is used at operating temperature between  65 °C and 180 °C.

Luft- und Raumfahrt - Elektrische Leitungen, zur allgemeinen Verwendung, mit Leitern aus Aluminium oder kupferbeschichtetem Aluminium - Teil 005: AZ-Familie, einadrig, zur Anwendung bei niedrigem Luftdruck - Produktnorm

Série aérospatiale - Câbles, électriques, d'usage général, avec conducteurs en aluminium ou en aluminium chemisé cuivre - Partie 005: Famille AZ, fil simple, pour emploi en basse pression - Norme de produit

La présente Norme Européenne spécifie les caractéristiques de la famille de fils électriques AZ pour utilisation dans les systèmes à bord :
   réseau électrique d’aéronef 115 V (phase à neutre) ou 200 V (phase à phase) ;
   réseau électrique d’aéronef 230 V (phase à neutre) ou 400 V (phase à phase) et utilisation spécifique en zones non pressurisées.
La température de fonctionnement de cette famille de câbles est comprise entre  65 °C et 180 °C.

Aeronavtika - Kabli, električni, za splošne namene, z vodniki iz aluminija ali pobakrenega aluminija - 005. del: Družina AZ, enožilni, za uporabo v nizkotlačnih atmosferah - Standard za proizvod

Ta evropski standard določa značilnosti električnih kablov družine AZ za uporabo v:
– električnih omrežjih na letalih 115 V (fazna napetost) ali 200 V (medfazna napetost);
– električnih omrežjih na letalih 230 V (fazna napetost) ali 400 V (medfazna napetost) in zlasti v prostorih, ki niso pod tlakom.
Ta družina kablov se uporablja pri temperaturah med −65 °C in 180 °C.

General Information

• Status: Published
• Publication Date: 01-Jul-2019
• ICS: 29.060.20 - Cables
• ICS: 49.025.20 - Aluminium
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 20-Jun-2019
• Due Date: 25-Aug-2019
• Completion Date: 02-Jul-2019
• Ref Project: EN 4681-005:2019 - Aerospace series - Cables, electric, general purpose, with conductors in aluminium or copper-clad aluminium - Part 005: AZ family, single, for use in low pressure atmosphere - Product standard

Relations

• Replaces: SIST EN 4681-005:2015 - Aerospace series - Cables, electric, general purpose, with conductors in aluminium or copper-clad aluminium - Part 005: AZ family, single, for use in low pressure atmosphere - Product standard
• Effective Date: 19-Jun-2019
• Revised: SIST EN 4681-005:2015 - Aerospace series - Cables, electric, general purpose, with conductors in aluminium or copper-clad aluminium - Part 005: AZ family, single, for use in low pressure atmosphere - Product standard
• Effective Date: 10-Aug-2016

Overview

EN 4681-005:2019 is the CEN product standard for the AZ family of single-core, general-purpose aerospace electrical cables intended for use in low-pressure atmospheres. The standard covers cables for aircraft electrical networks at 115 V (phase to neutral) / 200 V (phase to phase) and 230 V / 400 V networks, with particular emphasis on use in non-pressurized areas. Operating temperature range is -65 °C to 180 °C.

These cables use conductors made from nickel-plated aluminium alloy (code D) in accordance with EN 3719 and are manufactured as single cores with defined colour coding and identification per EN 4681-002 and EN 4681-001.

Key Topics

• Conductor material: Nickel-plated aluminium alloy (code D) for specified nominal section codes.
• Construction: Single-core design; insulation materials must satisfy Clause 5 characteristics; foamed insulation is forbidden.
• Electrical ratings: Suitable for 115/200 V and 230/400 V aircraft networks.
• Temperature range: Qualified for continuous operation between -65 °C and 180 °C.
• Partial discharge control: Insulation design limits cavities and gas traps; no external wrinkles at minimum bend radius.
• Testing and qualification: Requirements reference EN 3475-100 test methods and EN 4681-001 technical specification. Key tests include visual, dimensions, ohmic resistance, voltage proof, insulation resistance, corona extinction voltage (at 45 000 ft and 150 °C with PDIV ≥ 566 Vr.m.s. and PDEV ≥ 509 Vr.m.s.), thermal ageing and flammability.
• Mechanical characteristics: Minimum bend radius follows EN 4681-001 Table 4; flexibility and tensile parameters referenced in the standard.
• Marking and packaging: Identification, marking and delivery lengths follow EN 4681-002 and EN 4681-001.

Applications

EN 4681-005:2019 AZ family cables are optimized for practical aerospace uses where weight, thermal endurance and low-pressure performance are required. Typical uses include:

• Internal aircraft power distribution in non-pressurized zones.
• Systems requiring stable performance across a wide temperature envelope (-65 °C to 180 °C).
• Installations where aluminium-based conductors are preferred for weight savings with nickel plating for conductivity and corrosion resistance.

Benefits for design and procurement:

• Assured compatibility with aerospace network voltages.
• Standardized testing and qualification paths reduce development risk.
• Clear marking and designation simplify inventory and installation.

Related Standards

• EN 3719 - Aluminium or aluminium alloy conductors (product standard)
• EN 4681-001 - Technical specification for the cable family
• EN 4681-002 - General requirements and colour coding
• EN 3475-100 - Test methods (general)
• EN 9133 - Quality management and qualification procedure for aerospace standard products

For designers and procurement teams, EN 4681-005:2019 provides a concise product standard that ensures AZ family single-core cables meet the electrical, mechanical and environmental demands of modern aircraft low-pressure applications.

Standards Content (Sample)

SLOVENSKI STANDARD
01-september-2019
Nadomešča:
SIST EN 4681-005:2015
Aeronavtika - Kabli, električni, za splošne namene, z vodniki iz aluminija ali
pobakrenega aluminija - 005. del: Družina AZ, enožilni, za uporabo v nizkotlačnih
atmosferah - Standard za proizvod
Aerospace series - Cables, electric, general purpose, with conductors in aluminium or
copper-clad aluminium - Part 005: AZ family, single, for use in low pressure atmosphere -
Product standard
Luft- und Raumfahrt - Elektrische Leitungen, zur allgemeinen Verwendung, mit Leitern
aus Aluminium oder kupferbeschichtetem Aluminium - Teil 005: AZ-Familie, einadrig, zur
Anwendung bei niedrigem Luftdruck - Produktnorm
Série aérospatiale - Câbles, électriques, d'usage général, avec conducteurs en
aluminium ou en aluminium chemisé cuivre - Partie 005: Famille AZ, fil simple, pour
emploi en basse pression - Norme de produit
Ta slovenski standard je istoveten z: EN 4681-005:2019
ICS:
29.060.20 Kabli Cables
49.025.20 Aluminij Aluminium
49.060 Letalska in vesoljska Aerospace electric
električna oprema in sistemi equipment and systems
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 4681-005
EUROPEAN STANDARD
NORME EUROPÉENNE
June 2019
EUROPÄISCHE NORM
ICS 49.060 Supersedes EN 4681-005:2015
English Version
Aerospace series - Cables, electric, general purpose, with
conductors in aluminium or copper-clad aluminium - Part
005: AZ family, single, for use in low pressure atmosphere
- Product standard
Série aérospatiale - Câbles, électriques, d'usage Luft- und Raumfahrt - Elektrische Leitungen, zur
général, avec conducteurs en aluminium ou en allgemeinen Verwendung, mit Leitern aus Aluminium
aluminium chemisé cuivre - Partie 005: Famille AZ, fil oder kupferbeschichtetem Aluminium - Teil 005: AZ-
simple, pour emploi en basse pression - Norme de Familie, einadrig, zur Anwendung bei niedrigem
produit Luftdruck - Produktnorm
This European Standard was approved by CEN on 6 August 2018.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2019 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 4681-005:2019 E
worldwide for CEN national Members.

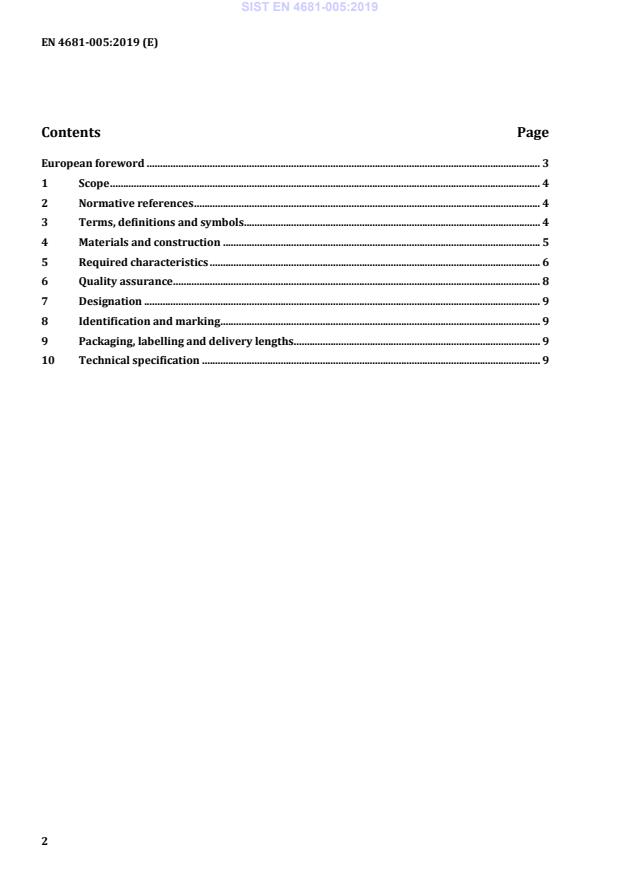

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references . 4
3 Terms, definitions and symbols . 4
4 Materials and construction . 5
5 Required characteristics . 6
6 Quality assurance . 8
7 Designation . 9
8 Identification and marking . 9
9 Packaging, labelling and delivery lengths . 9
10 Technical specification . 9

European foreword
This document (EN 4681-005:2019) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by December 2019, and conflicting national standards shall
be withdrawn at the latest by December 2019.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 4681-005:2015.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands,
Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
the United Kingdom.
1 Scope
This European Standard specifies the characteristics of electrical wires AZ family for use in the on board:
 115 V (phase to neutral) or 200 V (phase to phase) electrical network of aircraft.
 230 V (phase to neutral) or 400 V (phase to phase) electrical network of aircraft and particularly use
in non-pressurized areas.
This cable family is used at operating temperature between − 65 °C and 180 °C.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
1)
EN 3475-100, Aerospace series — Cables, electrical, aircraft use — Test methods — Part 100: General
EN 3719, Aerospace series — Aluminium or aluminium alloy conductors for electrical cables —
Product st
...
