ETSI EN 301 489-10 V1.2.1 (2001-11)Candidate Harmonized European Standard (Telecommunications series) Electromagnetic compatibilityand Radio spectrum Matters (ERM);ElectroMagnetic Compatibility (EMC)standard for radio equipment and services;Part 10: Specific conditions for First (CT1 and CT1+) andSecond Generation Cordless Telephone (CT2) equipment SIST EN 301 489-10:2002
ETSI ETSI EN 301 489-10 V1.2.1 (2001-11)2

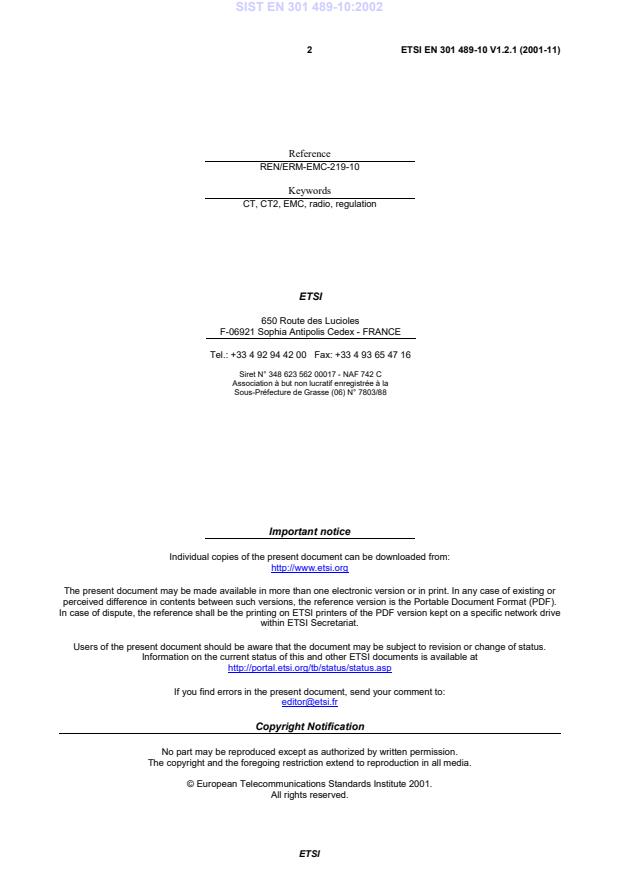

Reference REN/ERM-EMC-219-10 Keywords CT, CT2, EMC, radio, regulation ETSI 650 Route des Lucioles F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00
Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C Association à but non lucratif enregistrée à la Sous-Préfecture de Grasse (06) N° 7803/88
Important notice Individual copies of the present document can be downloaded from: http://www.etsi.org The present document may be made available in more than one electronic version or in print. In any case of existing or perceived difference in contents between such versions, the reference version is the Portable Document Format (PDF). In case of dispute, the reference shall be the printing on ETSI printers of the PDF version kept on a specific network drive within ETSI Secretariat. Users of the present document should be aware that the document may be subject to revision or change of status. Information on the current status of this and other ETSI documents is available at http://portal.etsi.org/tb/status/status.asp If you find errors in the present document, send your comment to: editor@etsi.fr Copyright Notification No part may be reproduced except as authorized by written permission. The copyright and the foregoing restriction extend to reproduction in all media.
© European Telecommunications Standards Institute 2001. All rights reserved.
SIST EN 301 489-10:2002
ETSI ETSI EN 301 489-10 V1.2.1 (2001-11)3 Contents Intellectual Property Rights.5 Foreword.5 1 Scope.7 2 References.7 3 Definitions and abbreviations.8 3.1 Definitions.8 3.2 Abbreviations.8 4 Test conditions.9 4.1 General.9 4.2 Arrangements for test signals.9 4.2.1 Arrangements for test signals at the input of transmitters.9 4.2.1.1 Speech equipment.9 4.2.1.2 Non-speech equipment.9 4.2.2 Arrangements for test signals at the output of transmitters.9 4.2.3 Arrangements for test signals at the input of receivers.9 4.2.4 Arrangements for test signals at the output of receivers.9 4.2.5 Arrangements for testing transmitter and receiver together (as a system).9 4.3 Exclusion bands.10 4.3.1 CT2 equipment.10 4.3.2 CT1 and CT1+ equipment.10 4.4 Narrow band responses on receivers or receivers which are part of transceivers.10 4.4.1 Identification criteria for speech equipment.10 4.4.2 Identification criteria for non-speech equipment.10 4.4.3 Nominal frequency offset used for the identification of narrow band responses.10 4.5 Normal test modulation.10 5 Performance assessment.11 5.1 General.11 5.2 Arrangements for the assessment of host dependant equipment and plug-in cards.11 5.2.1 Alternative A: composite equipment.11 5.2.2 Alternative B: use of a test jig and three hosts.11 5.3 Assessment procedures.12 5.3.1 Loss of user control functions or stored user defined data.12 5.3.2 Audio breakthrough.12 5.4 Ancillary equipment.13 5.5 Equipment classification.13 6 Performance criteria.13 6.1 General.13 6.2 Performance criteria for Continuous phenomena of Transceivers (CT).14 6.2.1 Speech equipment.14 6.2.2 Non-speech equipment.14 6.3 Performance criteria for Transient phenomena applied to Transceivers (TT).14 6.4 Performance criteria for Continuous phenomena applied to Receive-only equipment (CR).15 6.5 Performance criteria for Transient phenomena applied to Receive-only equipment (TR).15 6.6 Performance criteria for ancillary equipment tested on a stand alone basis.15 7 Applicability overview.15 7.1 Emission.15 7.1.1 General.15 7.1.2 Special conditions.15 7.2 Immunity.15 7.2.1 General.15 7.2.2 Special conditions.16 SIST EN 301 489-10:2002
ETSI ETSI EN 301 489-10 V1.2.1 (2001-11)4 Annex A (informative): Definitions of types of Cordless Telephone equipment in the scope of the present document.17 A.1 Second generation Cordless Telephone apparatus (CT2) for operation in the frequency band 864,1 MHz to 868,1 MHz.17 A.2 First generation Cordless Telephone apparatus (CT1) for operation in the frequency band 914 MHz to 915 MHz and 959 MHz to 960 MHz.17 A.3 First generation Cordless Telephone apparatus (CT1+) for operation in the frequency band 885 MHz to 887 MHz and 930 MHz to 932 MHz.17 A.4 First generation Cordless Telephone apparatus (CT1) for operation in the frequency band 1,6 MHz to 1,7 MHz for base stations (CFP) and 47 MHz for handsets (CPP).18 A.5 First generation Cordless Telephone apparatus (CT1) for operation in the frequency band 47 MHz for base stations (CFP) and 77 MHz for handsets (CPP).18 A.6 First generation Cordless Telephone apparatus (CT1) for operation in the frequency band 31 MHz for base stations (CFP) and 39 - 40 MHz for handsets (CPP).18 Annex B (informative): Bibliography.19 History.20
SIST EN 301 489-10:2002
ETSI ETSI EN 301 489-10 V1.2.1 (2001-11)5 Intellectual Property Rights IPRs essential or potentially essential to the present document may have been declared to ETSI. The information pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web server (http://webapp.etsi.org/IPR/home.asp). Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web server) which are, or may be, or may become, essential to the present document. Foreword This Candidate Harmonized European Standard (Telecommunications series) has been produced by ETSI Technical Committee Electromagnetic compatibility and Radio spectrum Matters (ERM). The present document has been produced by ETSI in response to a mandate from the European Commission issued under Council Directive 98/34/EC [5] (as amended) laying down a procedure for the provision of information in the field of technical standards and regulations. The present document is intended to become a Harmonized Standard, the reference of which will be published in the Official Journal of the European Communities referencing the Council Directive on the approximation of the laws of the Member States relating to electromagnetic compatibility ("the EMC Directive") (89/336/EEC [3] as amended) and Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity ("the R&TTE Directive [2]"). The present document is part 10 of a multi-part deliverable covering the ElectroMagnetic Compatibility (EMC) standard for radio equipment and services, as identified below: Part 1: "Common technical requirements"; Part 2: "Specific conditions for radio paging equipment"; Part 3: "Specific conditions for Short-Range Devices (SRD) operating on frequencies between 9 kHz and 40 GHz"; Part 4: "Specific conditions for fixed radio links and ancillary equipment and services"; Part 5: "Specific conditions for Private land Mobile Radio (PMR) and ancillary equipment (speech and non-speech)"; Part 6: "Specific conditions for Digital Enhanced Cordless Telecommunications (DECT) equipment"; Part 7: "Specific conditions for mobile and portable radio and ancillary equipment of digital cellular radio telecommunications systems (GSM and DCS)"; Part 8: "Specific conditions for GSM base stations"; Part 9: "Specific conditions for wireless microphones and similar Radio Frequency (RF) audio link equipment, cordless audio and in-ear monitoring devices"; Part 10: "Specific conditions for First (CT1 and CT1+) and Second Generation Cordless Telephone (CT2) equipment"; Part 11: "Specific conditions for analogue terrestrial sound broadcasting (Amplitude Modulation (AM) and Frequency Modulation (FM)) service transmitters"; Part 12: "Specific conditions for Very Small Aperture Terminal, Satellite Interactive Earth Stations operated in the frequency ranges between 4 GHz and 30 GHz in the Fixed Satellite Service (FSS)"; SIST EN 301 489-10:2002
ETSI ETSI EN 301 489-10 V1.2.1 (2001-11)6 Part 13: "Specific conditions for Citizens' Band (CB) radio and ancillary equipment (speech and non-speech)"; Part 14: "Specific conditions for analogue and digital terrestrial TV broadcasting service transmitters"; Part 15: "Specific conditions for commercially available amateur radio equipment"; Part 16: "Specific conditions for analogue cellular radio communications equipment, mobile and portable"; Part 17: "Specific conditions for Wideband data and HIPERLAN equipment"; Part 18: "Specific conditions for Terrestrial Trunked Radio (TETRA) equipment"; Part 19: "Specific conditions for Receive Only Mobile Earth Stations (ROMES) operating in the 1,5 GHz band providing data communications"; Part 20: "Specific conditions for Mobile Earth Stations (MES) used in the Mobile Satellite Services (MSS)"; Part 22: "Specific conditions for ground based VHF aeronautical mobile and fixed radio equipment"; Part 23: "Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) Base Station (BS) radio, repeater and ancillary equipment"; Part 24: "Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary equipment"; Part 25:
"Specific conditions for IMT-2000 CDMA Multi-carrier Mobile Stations and ancillary equipment"; Part 26: "Specific conditions for IMT-2000 CDMA Multi-carrier Base Stations and ancillary equipment".
National transposition dates Date of adoption of this EN: 23 November 2001 Date of latest announcement of this EN (doa): 28 February 2002 Date of latest publication of new National Standard or endorsement of this EN (dop/e):
31 August 2002 Date of withdrawal of any conflicting National Standard (dow): 31 August 2003
SIST EN 301 489-10:2002
ETSI ETSI EN 301 489-10 V1.2.1 (2001-11)7 1 Scope The present document, together with EN 301 489-1 [1], covers the assessment of First Generation (CT1 and CT1+) and Second Generation (CT2) Cordless Telephone equipment, and associated ancillary equipment, in respect of ElectroMagnetic Compatibility (EMC). Technical specifications related to the antenna port and emissions from the enclosure port of the radio equipment are not included in the present document. Such technical specifications are found in the relevant product standards for the effective use of the radio spectrum. The present document specifies the applicable test conditions, performance assessment and performance criteria for First Generation (CT1 and CT1+) and Second Generation (CT2) Cordless Telephone equipment, and associated ancillary equipment.
Definitions of types of Cordless Telephone equipment covered by the present document are given in annex A. In case of differences (for instance concerning special conditions, definitions, abbreviations) between the present document and EN 301 489-1 [1], the provisions of the present document take precedence. The environmental classification and the emission and immunity requirements used in the present document are as stated in EN 301 489-1 [1], except for any special conditions included in the present document. 2 References The following documents contain provisions which, through reference in this text, constitute provisions of the present document. • References are either specific (identified by date of publication and/or edition number or version number) or non-specific. • For a specific reference, subsequent revisions do not apply. • For a non-specific reference, the latest version applies. [1] ETSI EN 301 489-1 (V1.3.1): "Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements". [2] Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. [3] Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of the Member States relating to electromagnetic compatibility. [4] ETSI EN 300 176 (all parts): "Digital Enhanced Cordless Telecommunications (DECT); Approval test specification". [5] Directive 98/34/EC of the European Parliament and of the Council of 22 June 1998 laying down a procedure for the provision of information in the field of technical standards and regulations. SIST EN 301 489-10:2002
ETSI ETSI EN 301 489-10 V1.2.1 (2001-11)8 3 Definitions and abbreviations 3.1 Definitions For the purposes of the present document, the terms and definitions given in EN 301 489-1 [1] and the following apply: CT1 equipment: first generation Cordless Telephone apparatus which includes one or more transceivers and/or receivers and/or parts thereof which operate in the frequency bands detailed in clauses A2, A4, A5, and A6 of EN 301 489-10 CT1+ equipment: first generation Cordless Telephone apparatus which includes one or more transceivers and/or receivers and/or parts thereof which operate in the frequency bands 885 MHz to 887 MHz and 930 MHz to 932 MHz CT2 equipment: second generation Cordless Telephone apparatus which includes one or more transceivers and/or receivers and/or parts thereof which operate in the frequency band 864,1 MHz to 868,1 MHz host equipment: any equipment which has a complete user functionality when not connected to the cordless telephone or similar radio communications equipment, and to which this radio equipment provides additional functionality, and to which connection is necessary for this radio equipment to offer functionality, and in which the transceiver part of the radio equipment is physically installed non-speech equipment: cordless telephone or similar communications equipment intended for the provision and reception of digital data either originating from or destined to external digital speech processing circuitry or other external equipment speech equipment: cordless telephone or similar communications equipment containing transducers such as microphones and/or loudspeakers intended for the provision and reception of acoustic audio signals 3.2 Abbreviations For the purposes of the present document, the following abbreviations apply: BER Bit Error Ratio BPF Band Pass Filter BW BandWidth CF Carrier Frequency CFP Cordless Fixed Part
CPP Cordless Portable Part CR Continuous phenomena applied to cordless telephone or communication Receive-only equipment CT Continuous phenomena applied to cordless telephone or communication Transceivers CT1 Cordless Telephone, first generation CT1+ Cordless Telephone, first generation. Different frequency range from CT1 CT2 Cordless Telephone, second generation ERP Ear Reference Point MRP Mouth Reference Point SPL Sound Pressure Level TR Transient phenomena applied to cordless telephone or communication Receive-only equipment TT Transient phenomena applied to cordless telephone or communication Transceivers SIST EN 301 489-10:2002
ETSI ETSI EN 301 489-10 V1.2.1 (2001-11)9 4 Test conditions 4.1 General For the purposes of the present document, the test conditions of EN 301 489-1 [1], clause 4, shall apply as appropriate. Further product-related test conditions for cordless telephone or communications equipment are specified in the present document, clauses 4.2 to 4.5. 4.2 Arrangements for test signals The provisions of EN 301 489-1 [1], clause 4.2 shall apply. 4.2.1 Arrangements for test signals at the input of transmitters The provisions of EN 301 489-1 [1], clause 4.2.1 shall apply with the following modification. The transmitter part of the particular type of cordless telephone or communications equipment shall be modulated with normal test modulation as specified for that type of equipment (see clause 4.5). 4.2.1.1 Speech equipment Audio input signals may be provided to the EUT either by a non-metallic acoustic tube or, if provided, electrical connections. The equipment shall not be modified to provide any electrical connection ports for the purposes of EMC tests only. Suitable test arrangements for the acoustic tube are described e.g. in EN 300 176 [4]. 4.2.1.2 Non-speech equipment Digital (data) input signals shall be supplied to the EUT by electrical connection to the modulation input port via an appropriate connecting cable, test jig, or host equipment (see clauses 5.2.1 and 5.2.2). 4.2.2 Arrangements for test signals at the output of transmitters The provisions of EN 301 489-1 [1], clause 4.2.2 shall apply. 4.2.3 Arrangements for test signals at the input of receivers The provisions of EN 301 489-1 [1], clause 4.2.3 shall apply with the following modification. The receiver part or stand alone receiver of the particular type of cordless telephone or communications equipment shall be provided with the appropriate wanted RF signal modulated as specified for that type of equipment (see clause 4.5). 4.2.4 Arrangements for test signals at the output of receivers The provisions of EN 301 489-1 [1], clause 4.2.4 shall apply. 4.2.5 Arrangements for testing transmitter and receiver together (as a system) The provisions of EN 301 489-1 [1], clause 4.2.5 shall apply with the following modification. The normal test modulation shall be transmitted by the test system and looped back in the radio equipment, as described in the corresponding product specifications referred to in clause 2 and annex A.
SIST EN 301 489-10:2002
ETSI ETSI EN 301 489-10 V1.2.1 (2001-11)10 4.3 Exclusion bands The frequencies on which the transmitter part of the EUT is intended to operate shall be excluded from conducted and radiated emission measurements when performed in transmit mode of operation. There shall be no frequency exclusion band applied to emission measurements of the receiver part of transceivers or the stand-alone receiver under test, and/or associated ancillary equipment. The emission measurement and immunity test exclusions are referred to as "exclusion bands" and are defined in the clauses 4.3.1 and 4.3.2 of the present document. 4.3.1 CT2 equipment The exclusion band for the transmitter and/or receiver part of the CT2 equipment under test shall extend from 820,9 MHz to 911,5 MHz. 4.3.2 CT1 and CT1+ equipment The exclusion band for receivers is the receiver operating frequency band, extended at each end by 5 % of the centre operating frequency. For transmitters the exclusion band is ±50 kHz of the transmitter operating frequency. 4.4 Narrow band responses on receivers or receivers which are part of transceivers The provision of EN 301 489-1 [1], clause 4.4 shall apply with the following modification. No immunity tests shall be carried out on frequencies of identified narrow band responses, i.e. spurious responses, of the receiver parts of cordless telephone and similar communications equipment. 4.4.1 Identification criteria for speech equipment For speech equipment, an increase above the permitted level (see clause 6.2.1) in the measured value of the speech output signal level shall be used as criterion for the identification of narrow band responses. Alternatively, a drop of the communications link may be used for this identification. 4.4.2 Identification criteria for non-speech equipment For non-speech equipment, an increase in the Bit Error Ratio (BER) of the looped back data from the EUT in the measured value of BER shall be used as criterion for the identification of narrow band responses (see clause 6.2.2). Alternatively, a drop of the communications link may be used for this identification. 4.4.3 Nominal frequency offset used for the identification of narrow band responses For CT2, CT1 and CT1+ receivers, the nominal frequency offset to be used for the identification of narrowband responses shall be ±1 MHz for the first part of the identification procedure, and ±1,5 MHz for the second part of the identification procedure. 4.5 Normal test modulation The provision of EN 301 489-1 [1], clause 4.5 shall apply with the product related modifications set out in the corresponding product specifications referred to in clause 2 and annex A. SIST EN 301 489-10:2002
ETSI ETSI EN 301 489-10 V1.2.1 (2001-11)11 5 Performance assessment 5.1 General The provision of EN 301 489-1 [1], clause 5.1 shall apply. 5.2 Arrangements for the assessment of host dependant equipment and plug-in cards For equipment parts for which integration with a host equipment is necessary in order to offer functionality, two alternative approaches defined in clauses 5.2.1 and 5.2.2 may be used. The manufacturer shall declare which alternative shall be used. 5.2.1 Alternative A: composite equipment A combination of the radio equipment part and a specific type of host equipment may be used for assessment according to the present document. Where more than one such combination is intended, each combination shall be tested separately. Where a specific combination of host equipment and a radio equipment part is tested as a composite system for compliance, repeat testing shall not be required for: - those other combinations of hosts and radio equipment parts which are based on substantially similar host models in the circumstance that the variations in mechanical and electrical properties between such host models are unlikely to significantly influence the intrinsic immunity and unwanted emissions of the radio equipment part;
- the radio equipment part which cannot be used without mechanical, electrical, or software modification in variations of host equipment different from those represented by the units for which compliance to the present document has been demonstrated. 5.2.2 Alternative B: use of a test jig and three hosts Where the radio equipment part is intended for use with a variety of host equipment, the manufacturer shall supply a suitable test jig to enable compliance with the present document to be assessed. The test jig shall be designed such that alteration of the radio equipment part's intrinsic immunity and unwanted emissions is minimized. Where connection between the radio equipment part and the host equipment control and/or power ports is by cables, optical fibres, or other similar means, this connection to the host shall be considered as a suitable test jig. The test jig shall allow the radio equipment part to be powered and
...
