Side curtains ventilation systems - Safety

This European standard specifies the standardisation of side curtain ventilation systems supplied for environmental control, installed on farm buildings, that use a barrier made from a flexible foil or fabric which move via a rolling or folding action, or rigid panels that slide; as far as safety aspects, performance and sustainebility issues are concerned. Included are machines that operate using the potential energy stored by the earlier application of human or animal force, such as stretched springs.

Lüftungssysteme mit Seitenvorhang - Sicherheit

1.1 Allgemeines
Diese Europäische Norm legt die Normung für in landwirtschaftlichen Gebäuden eingebaute Lüftungssysteme mit Seitenvorhang zur Umweltkontrolle fest, die eine Absperrung aus einer flexiblen Folie oder einem Gewebe, welche durch Rollen oder Falten bewegt werden kann, oder gleitende starre Paneele aufweisen, soweit Sicherheitsaspekte sowie Fragen der Leistung und Nachhaltigkeit betroffen sind. Sie schließt Maschinen ein, die mittels potenzieller Energie betrieben werden, die nach vorheriger Kraftausübung durch Menschen oder Tiere gespeichert wird, wie z. B. in gespannten Federn.
Diese Europäische Norm gilt nicht für den Betrieb in Umgebungen, in denen über die Festlegungen in EN 61000-6-3 hinausgehende elektromagnetische Störungen auftreten.
1.2 Ausschlüsse
Diese Europäische Norm gilt nicht für folgende Einrichtungen, die für einen anderen Verwendungszweck vorgesehen sind:
— Türen und als Türen verwendete Seitenvorhänge nach EN 13241-1:2003+A1:2011;
— mit Luft gefüllte Systeme;
— Seitenvorhänge für den Brand- oder Rauchschutz;
— Seitenvorhänge, die sich unmittelbar durch Kraftausübung eines Menschen bewegen;
— Seitenvorhänge zur Steuerung von Lüftungsbedingungen in toxischen oder explosiven Umgebungen.
Diese Europäische Norm gilt nicht für den Funkteil von Seitenvorhangsystemen. Wenn eine Funk-Bedienvorrichtung verwendet wird, sollten zusätzlich die einschlägigen ETSI-Normen gelten.

Systèmes de ventilation à rideau latéral - Sécurité

1.1 Généralités
La présente Norme européenne spécifie la normalisation des aspects relatifs à la sécurité, aux performances et à la durabilité des systèmes de ventilation à rideau latéral destinés au contrôle environnemental, installés dans les bâtiments agricoles et qui utilisent un rideau constitué d’un film métallique ou d’un tissu souple mû par un mécanisme d’enroulement ou de pliage, ou encore de panneaux rigides coulissants. Elle couvre également les machines fonctionnant avec l’énergie potentielle stockée par l’application antérieure d’une force humaine ou animale comme des ressorts tendus.
La présente Norme européenne ne couvre pas le fonctionnement dans des environnements où les perturbations électromagnétiques ne tombent pas dans la plage spécifiée dans l’EN 61000-6-3.
1.2 Exclusions
La présente Norme européenne ne s’applique pas aux éléments suivants qui sont prévus pour une autre utilisation :
 les portes et les rideaux latéraux utilisés en tant que portes et spécifiés dans l’EN 13241-1:2003+A1:2011 ;
 les systèmes gonflables à l’air ;
 les écrans destinés à la maîtrise du feu ou de la fumée ;
 les rideaux à déplacement instantané sur application d’une force humaine ;
 les rideaux latéraux pour la maîtrise des conditions de ventilation dans des environnements toxiques ou explosifs.
La présente Norme européenne ne couvre pas la partie radiocommandée des rideaux latéraux. En cas d’utilisation d’un dispositif radiocommandé, il convient d’appliquer également les normes ETSI pertinentes.

Sistemi prezračevanja stranskih zaves - Varnost

General Information

Status
Published
Public Enquiry End Date
08-Nov-2017
Publication Date
21-Jul-2021
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
21-Jul-2021
Due Date
25-Sep-2021
Completion Date
22-Jul-2021

Buy Standard

Standard
SIST EN 17088:2021 - BARVE
English language
64 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day
Draft
oSIST prEN 17088:2017 - BARVE
English language
93 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

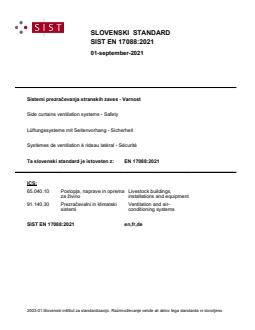

SLOVENSKI STANDARD
SIST EN 17088:2021
01-september-2021
Sistemi prezračevanja stranskih zaves - Varnost
Side curtains ventilation systems - Safety
Lüftungssysteme mit Seitenvorhang - Sicherheit
Systèmes de ventilation à rideau latéral - Sécurité
Ta slovenski standard je istoveten z: EN 17088:2021
ICS:
65.040.10 Poslopja, naprave in oprema Livestock buildings,
za živino installations and equipment
91.140.30 Prezračevalni in klimatski Ventilation and air-
sistemi conditioning systems
SIST EN 17088:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 17088:2021
---------------------- Page: 2 ----------------------
SIST EN 17088:2021

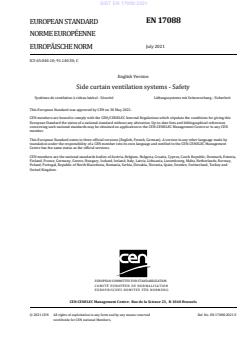

EN 17088
EUROPEAN STANDARD
NORME EUROPÉENNE
July 2021
EUROPÄISCHE NORM
ICS 65.040.10; 91.140.30; C
English Version
Side curtain ventilation systems - Safety

Systèmes de ventilation à rideau latéral - Sécurité Lüftungssysteme mit Seitenvorhang - Sicherheit

This European Standard was approved by CEN on 30 May 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17088:2021 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 17088:2021
EN 17088:2021 (E)

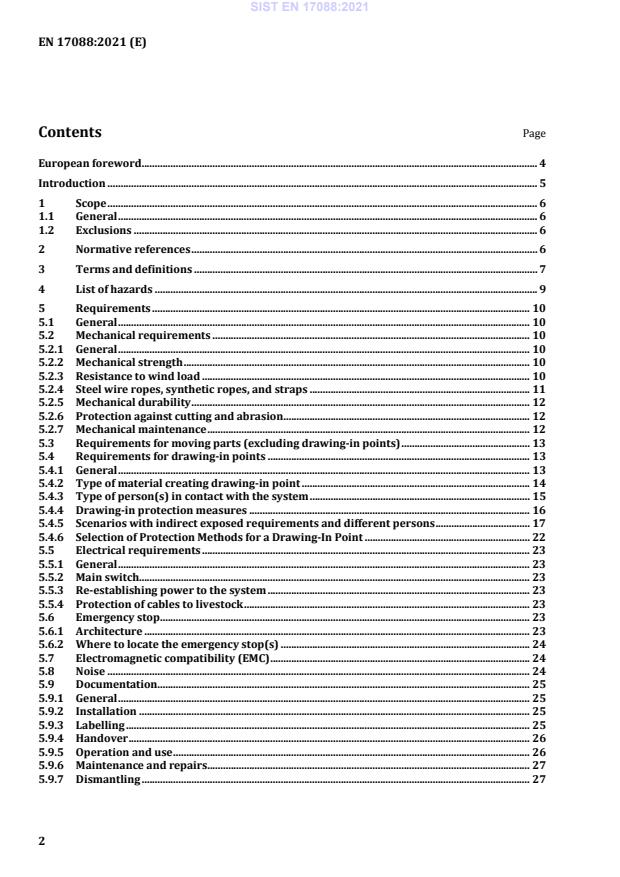

Contents Page

European foreword ....................................................................................................................................................... 4

Introduction .................................................................................................................................................................... 5

1 Scope .................................................................................................................................................................... 6

1.1 General ................................................................................................................................................................ 6

1.2 Exclusions .......................................................................................................................................................... 6

2 Normative references .................................................................................................................................... 6

3 Terms and definitions ................................................................................................................................... 7

4 List of hazards .................................................................................................................................................. 9

5 Requirements ................................................................................................................................................ 10

5.1 General ............................................................................................................................................................. 10

5.2 Mechanical requirements ......................................................................................................................... 10

5.2.1 General ............................................................................................................................................................. 10

5.2.2 Mechanical strength .................................................................................................................................... 10

5.2.3 Resistance to wind load ............................................................................................................................. 10

5.2.4 Steel wire ropes, synthetic ropes, and straps .................................................................................... 11

5.2.5 Mechanical durability ................................................................................................................................. 12

5.2.6 Protection against cutting and abrasion.............................................................................................. 12

5.2.7 Mechanical maintenance ........................................................................................................................... 12

5.3 Requirements for moving parts (excluding drawing-in points) ................................................. 13

5.4 Requirements for drawing-in points .................................................................................................... 13

5.4.1 General ............................................................................................................................................................. 13

5.4.2 Type of material creating drawing-in point ....................................................................................... 14

5.4.3 Type of person(s) in contact with the system .................................................................................... 15

5.4.4 Drawing-in protection measures ........................................................................................................... 16

5.4.5 Scenarios with indirect exposed requirements and different persons .................................... 17

5.4.6 Selection of Protection Methods for a Drawing-In Point ............................................................... 22

5.5 Electrical requirements ............................................................................................................................. 23

5.5.1 General ............................................................................................................................................................. 23

5.5.2 Main switch..................................................................................................................................................... 23

5.5.3 Re-establishing power to the system .................................................................................................... 23

5.5.4 Protection of cables to livestock ............................................................................................................. 23

5.6 Emergency stop ............................................................................................................................................. 23

5.6.1 Architecture ................................................................................................................................................... 23

5.6.2 Where to locate the emergency stop(s) ............................................................................................... 24

5.7 Electromagnetic compatibility (EMC) ................................................................................................... 24

5.8 Noise ................................................................................................................................................................. 24

5.9 Documentation .............................................................................................................................................. 25

5.9.1 General ............................................................................................................................................................. 25

5.9.2 Installation ..................................................................................................................................................... 25

5.9.3 Labelling .......................................................................................................................................................... 25

5.9.4 Handover ......................................................................................................................................................... 26

5.9.5 Operation and use ........................................................................................................................................ 26

5.9.6 Maintenance and repairs........................................................................................................................... 27

5.9.7 Dismantling .................................................................................................................................................... 27

---------------------- Page: 4 ----------------------
SIST EN 17088:2021
EN 17088:2021 (E)

6 Evaluation of Conformity ........................................................................................................................... 27

6.1 General ............................................................................................................................................................. 27

6.2 Statement of applicable hazards ............................................................................................................. 28

6.3 Curtain testing ............................................................................................................................................... 28

6.3.1 Initial type test ............................................................................................................................................... 28

6.3.2 Test on site ...................................................................................................................................................... 28

6.4 Verification of requirements .................................................................................................................... 28

6.4.1 General ............................................................................................................................................................. 28

6.4.2 Mechanical Requirements ( 5.2) ............................................................................................................. 30

6.4.3 Mechanical maintenance (5.2.7) ............................................................................................................. 30

6.4.4 Moving parts, excluding drawing-in points (5.3) .............................................................................. 30

6.4.5 Drawing-in points (5.4) .............................................................................................................................. 30

6.4.6 Electrical (5.5) ............................................................................................................................................... 30

6.4.7 Noise (5.8) ....................................................................................................................................................... 30

6.4.8 Production control ....................................................................................................................................... 30

Annex A (informative) Some example forms of side curtains ..................................................................... 32

Annex B (informative) Roles and responsibilities in the supply chain .................................................... 37

Annex C (informative) List of significant hazards ............................................................................................ 39

Annex D (normative) Clarification of the requirements for pull out load .............................................. 42

Annex E (informative) Form risk analysis, assessment and reduction .................................................... 46

Annex F (normative) Resistance to wind ............................................................................................................ 48

Annex G (informative) Clarification of the requirements for safety barrier to provide 'In-

directly Exposed' criteria for drawing-in hazards ............................................................................ 52

Annex H (informative) Environmental aspects for Side Curtain Ventilation Systems ....................... 54

Annex ZA (informative) Relationship between this European Standard and the

requirements of Directive 2006/42/EC aimed to be covered ...................................................... 61

Bibliography ................................................................................................................................................................. 63

---------------------- Page: 5 ----------------------
SIST EN 17088:2021
EN 17088:2021 (E)
European foreword

This document (EN 17088:2021) has been prepared by Technical Committee CEN/TC 422 “Side curtains

ventilation systems - safety”, the secretariat of which is held by NEN.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by January 2022, and conflicting national standards shall

be withdrawn at the latest by January 2022.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

This document has been prepared under a standardization request given to CEN by the European

Commission and the European Free Trade Association, and supports essential requirements of

EU Directive 2006/42/EC.

For relationship with EU Directive, see informative Annex ZA, which is an integral part of this document.

Any feedback and questions on this document should be directed to the users’ national standards body.

A complete listing of these bodies can be found on the CEN website.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,

Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,

Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North

Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United

Kingdom.
---------------------- Page: 6 ----------------------
SIST EN 17088:2021
EN 17088:2021 (E)
Introduction

In 2010, there was a fatal accident when a child of a farmer was trapped by an automatic stable display.

This accident happened both in the Netherlands and Belgium.

This accident triggered some Dutch experts to use the existing Dutch Technical Agreement NTA 8344:

2012 “Side curtains – Safety” for the development of the first European Standard “Side systems curtains

ventilation systems – Safety”.
This standard is a type-C standard as specified in EN ISO 12100:2010.

The machinery concerned and the extent to which hazards are covered are indicated in the scope of this

standard. These hazards are specified to the Side curtains ventilation systems.

Where provisions of this type C are different from those which are stated by type A or B standards, the

provisions of this type C standard take precedence over the provisions of the other standards, for

machines that have been designed and built according to the provisions of this type C standard.

In order to make the objective of this concept clear and eliminate uncertainties when reading it, the

following assumptions are made:
a) components without specific requirements are components

1) designed according to the common design and calculation methods, including all failure

mechanisms;
2) of a solid mechanical and electrical construction;
3) manufactured from sufficiently strong material with a suitable quality;

4) of which general electrical hazards are dealt with by application of the standards for electrical

installations, such as EN 60204-1:2018;

b) with the exception of the following provisions, is a mechanical supply built according to the

requirements of good craftsmanship and the requirements in this standard concept:

1) agreements between the manufacturer and the buyer about the special conditions of use, and

place where the screen is used in connection with health and safety;
2) the location of the installation will be suitable for this;
3) the place of installation will allow a safe use of the screen.

These assumptions do not limit the need for sufficient information in this concept standard before use.

---------------------- Page: 7 ----------------------
SIST EN 17088:2021
EN 17088:2021 (E)
1 Scope
1.1 General

This document specifies the standardization of side curtain ventilation systems as defined in 3.1. This

document specifies the safety aspects and performance. Included are machines that operate using the

potential energy stored by the earlier application of human or animal force, such as stretched springs.

This document addresses the following significant hazards associated with side curtain systems:

— crushing;
— cutting or severing;
— drawing-in or trapping;
— entanglement;
— shearing;
— suffocation;
— electrocution and shock;
— incorrect design, location or identification of control devices.
1.2 Exclusions

This document does not apply to the following, which are intended for a different use:

— doors and side curtains when used as doors which are specified in EN 13241:2003+A2:2016;

— systems inflated by air;
— screens supplied for the control of fire or smoke;
— screens that move instantaneously upon the application of human force;

— side curtains when used to control ventilation conditions in a toxic or explosive environment.

This document is not applicable to side curtain ventilation systems manufactured before the date of its

publication.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN 1991-1-4:2005 , Eurocode 1: Actions on structures - Part 1-4: General actions - Wind actions

EN 14717:2005, Welding and allied processes - Environmental check list
1) As impacted by EN 1991-1-4:2005/A1:2010.
---------------------- Page: 8 ----------------------
SIST EN 17088:2021
EN 17088:2021 (E)

EN 60204-1:2018, Safety of machinery - Electrical equipment of machines - Part 1: General requirements

(IEC 60204-1:2016)

EN IEC 61000-6-2:2019, Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity

standard for industrial environments (IEC 61000-6-2:2016)

EN 61000-6-3:2007 , Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission

standard for residential, commercial and light-industrial environments (IEC 61000-6-3:2006)

EN 62061:2005 , Safety of machinery - Functional safety of safety-related electrical, electronic and

programmable electronic control systems (IEC 62061:2005)

EN ISO 12100:2010, Safety of machinery - General principles for design - Risk assessment and risk reduction

(ISO 12100:2010)

EN ISO 13849-1:2015, Safety of machinery - Safety-related parts of control systems - Part 1: General

principles for design (ISO 13849-1:2015)

EN ISO 13849-2:2012, Safety of machinery - Safety-related parts of control systems - Part 2: Validation (ISO

13849-2:2012)

EN ISO 13850:2015, Safety of machinery - Emergency stop function - Principles for design (ISO 13850:2015)

EN ISO 13857:2019, Safety of machinery - Safety distances to prevent hazard zones being reached by upper

and lower limbs (ISO 13857:2019)
3 Terms and definitions

For the purposes of this document, the terms and definitions given in EN ISO 12100:2010 and the

following apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

• ISO Online browsing platform: available at https://www.iso.org/obp
• IEC Electropedia: available at https://www.electropedia.org/
3.1
side curtain ventilation systems

systems supplied for environmental control, installed on farm buildings, that use a barrier made from a

flexible foil or fabric which moves via a rolling or folding action, or rigid panels that slide

3.2
automatic control
action where the screen is operated without human intervention
2) As impacted by EN 61000-6-3:2007/A1:2011.
3) As impacted by EN 62061:2005/A1:2013 and EN 62061:2005/A2:2015.
---------------------- Page: 9 ----------------------
SIST EN 17088:2021
EN 17088:2021 (E)
3.3
environmental aspect

element of an organization's activities or products or services that can interact with the environment

Note 1 to entry: A significant environmental aspect has or can have a significant environmental impact.

[SOURCE: EN ISO 14001:2015, 3.2.2 – modified, Note 1 to entry has been modified and Note 2 to entry

has been deleted.]
3.4
environmental impact

change to the environment, whether adverse or beneficial, wholly or partially resulting from an

organization's environmental aspects
[SOURCE: EN ISO 14001:2015, 3.2.4]
3.5
folded screen
curtain which is mounted in such a way when opened it is folded

Note 1 to entry: In Annex A, some versions of side curtain ventilation systems with their operating principles are

mentioned.
3.6
life cycle assessment
LCA

compilation and evaluation of the inputs, outputs and the potential environmental impacts of a product

system throughout its life cycle
[SOURCE: CEN/TR 13910:2010, 3.1]
3.7
moveable curtain

automatically- or manually-operated, mechanical- or electric-powered protection against, among other

things, weather influences, capable of moving

Note 1 to entry: The curtain has a power drive: this can be mechanical, electrical, pneumatic or hydraulic.

3.8
packaging

all items made of any material of any nature to be used for the containment, protection, handling, delivery

and presentation of goods, from raw materials to processed goods, from the producer to the user or the

consumer

Note 1 to entry: In this report, the goods are referred to as “packaged product” or “product”, in order to

distinguish it from the packaging.
[SOURCE: CEN/TR 13910:2010, 3.5]
---------------------- Page: 10 ----------------------
SIST EN 17088:2021
EN 17088:2021 (E)
3.9
prevention of pollution

use of processes, practices, techniques, materials, products, services or energy to avoid, reduce or control

(separately or in combination) the creation, emission or discharge of any type of pollutant or waste, in

order to reduce adverse environmental impacts

Note 1 to entry: Prevention of pollution can include source reduction or elimination, process, product or service

changes, efficient use of resources, material and energy substitution, reuse, recovery, recycling, reclamation and

treatment.
[SOURCE: EN ISO 14001:2015, 3.2.7]
3.10
rigid panel

vertical lifting panel for ventilation purposes manually and/or power operated and interlinked by a

flexible device (e.g. cable, chain, rope…)
Note 1 to entry: The rigid panel is installed on the wall of a building.
3.11
roller blind
rollable curtain where the screen rolls on a tube during opening and closing
3.12
integrated safety component

component which fulfils a safety function within the completed machine and cannot be separated from

machinery without modification in the design, therefore cannot be independently placed on the market

3.13
single rolling curtain

rolling element of the curtain, usually at the lower extremity of the curtain, takes in a single foil as it

rotates, as shown in Annex A Type D, Type F and Type H
3.14
double rolling curtain

rolling element of the curtain, usually situated in the centre of the curtain, takes in two foils as it rotates,

as shown in Annex A Type E, Type G and Type I
3.15
pulse action

amount an automated side curtain will be driven in a continuous movement before stopping

3.16
pause interval

period of time an automated side curtain will remain stationary between two pulse actions

4 List of hazards

This clause contains all the significant hazards, risk areas and hazardous situations and events as far as

they are dealt with in this document, identified by risk assessment performed according to

EN ISO 12100:2010 as significant for this type of machinery and which require action to eliminate or

reduce the risk. See Annex C, Table C.1.
---------------------- Page: 11 ----------------------
SIST EN 17088:2021
EN 17088:2021 (E)
5 Requirements
5.1 General

Machinery shall comply with the safety requirements and/or protective/risk reduction measures of this

clause. In addition, the machine shall be designed according to the principles in EN ISO 12100:2010 for

relevant but not significant hazards which are not dealt with by this document.

The manufacturer shall perform a risk analyses, assessment and reduction process. For an example how

to perform such a process, see Annex E.
5.2 Mechanical requirements
5.2.1 General

Side curtain systems shall be designed and constructed so that they are capable of being installed,

maintained, repaired, used and dismantled in a safe manner.
5.2.2 Mechanical strength

The side curtain and its components, including its fixings for attachment to the building, shall be designed

so that, during normal operation, no part of the system, including the fixings, shall be permanently

deformed.

The side curtain shall be designed so that elastic deformations under operational forces or torques which

occur during normal use do not affect the function of the system.

The design shall be in accordance with recognized engineering stress/yield calculations or test methods

using adequate safety factors, see Table 1, taking into account the most unfavourable static and dynamic

forces occurring during the operating cycle or the use of the safety equipment within the side curtain.

Table 1 —Safety factors
Loading conditions Safety factors for calculation Safety factor for testing
purposes purposes
Stress due to differential 1,5 min breaking stress 1,0
pressure
Stress due to other loads 1,5 min breaking stress 1,0
(e.g. dead weight)
5.2.3 Resistance to wind load

The resistance to wind load of a side curtain is its capacity to withstand a specified differential wind

pressure.

NOTE The construction of the side curtain system depends on the pressure of a number of factors including,

e.g. the maximum wind speed anticipated in the area, the location, height, size and shape of the building, and the

position of the side curtain on the building.

When definite wind load classes or pressures are not stated by the specifier, side curtains shall be

designed in order to resist specified differential wind pressure, and shall be classified with the wind load

classes as specified in Annex F. See Figure F.1 for a typical wind map of Europe.

The requirements of this clause apply to the ability of the closed side curtain and not to their ability to be

opened or closed under wind load.
---------------------- Page: 12 ----------------------
SIST EN 17088:2021
EN 17088:2021 (E)

For correct operation of side curtains, the manufacturer shall state the maximum wind speed (within the

operating instructions, 5.9.4) where the system can be operated without risk of failure of the system.

The deflection of the curtain or other elements resulting from the differential pressure specified shall not

cause permanent deformations which will affect the functioning of the system or create any risk of

jamming.
5.2.4 Steel wire ropes, synthetic ropes, and straps
5.2.4.1 General

Steel wire ropes, synthetic ropes, and straps, etc. shall be suitable for the intended application with

regards to strength, durability and corrosion resistance.

For suspension elements, a single wire rope, synthetic rope, or strap, etc. can only be used if a failure of

the element will result in the curtain falling under gravity in a safe manner, i.e. the falling curtain will be

restrained in a controlled manner that would not expose people near to it to increased risk of crushing,

shearing, entanglement, drawing-in or trapping.

Where two or more suspension elements are used, it shall be ensured that the dead loads are shared in a

pre-determined way.

The guaranteed minimum breaking strength of such a suspension element determined by calculations of

the maximum load it has to support, multiplied by the safety factor (Table 1).
All such suspension elements shall have terminations a
...

SLOVENSKI STANDARD
oSIST prEN 17088:2017
01-november-2017
6LVWHPLSUH]UDþHYDQMDVWUDQVNLK]DYHV9DUQRVW
Side curtains ventilation systems - Safety
Lüftungssysteme mit Seitenvorhang - Sicherheit
Systèmes de ventilation à rideau latéral - Sécurité
Ta slovenski standard je istoveten z: prEN 17088
ICS:
65.040.10 Poslopja, naprave in oprema Livestock buildings,
za živino installations and equipment
91.140.30 3UH]UDþHYDOQLLQNOLPDWVNL Ventilation and air-
VLVWHPL conditioning systems
oSIST prEN 17088:2017 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
oSIST prEN 17088:2017
---------------------- Page: 2 ----------------------
oSIST prEN 17088:2017
DRAFT
EUROPEAN STANDARD
prEN 17088
NORME EUROPÉENNE
EUROPÄISCHE NORM
August 2017
ICS 65.040.10; 91.140.30
English Version
Side curtains ventilation systems - safety

Systèmes de ventilation à rideau latéral - Sécurité Lüftungssysteme mit Seitenvorhang - Sicherheit

This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee

CEN/TC 422.

If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations

which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.

This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other

language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC

Management Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

Turkey and United Kingdom.

Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are

aware and to provide supporting documentation.

Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without

notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2017 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 17088:2017 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 17088:2017
prEN 17088:2017 (E)
Contents Page

European Foreword ...................................................................................................................................................... 7

Introduction .................................................................................................................................................................... 8

1 Scope .................................................................................................................................................................... 9

1.1 General ................................................................................................................................................................ 9

1.2 Exclusions .......................................................................................................................................................... 9

2 Normative references .................................................................................................................................... 9

3 Terms and definitions ................................................................................................................................ 10

4 Symbols and abbreviations ...................................................................................................................... 14

5 Hazards and Risk Assessment ................................................................................................................. 14

5.1 Identification of hazards ........................................................................................................................... 14

5.1.1 General ............................................................................................................................................................. 14

5.1.2 Methods to identify hazards ..................................................................................................................... 14

5.2 Hazard Overview .......................................................................................................................................... 15

5.3 Risk Evaluation ............................................................................................................................................. 15

5.4 Principles of Safety Integration .............................................................................................................. 15

6 Requirements ................................................................................................................................................ 15

6.1 General ............................................................................................................................................................. 15

6.1.1 General requirements ................................................................................................................................ 15

6.1.2 Degree of Automation ................................................................................................................................. 15

6.1.3 Influence of the type of use on the level of risk ................................................................................. 16

6.2 Mechanical requirements ......................................................................................................................... 16

6.2.1 General ............................................................................................................................................................. 16

6.2.2 Mechanical Strength .................................................................................................................................... 16

Table 1 —Safety Factors ........................................................................................................................................... 17

6.2.3 Resistance to Wind Load ........................................................................................................................... 17

6.2.4 Steel Wire Ropes, Synthetic Ropes, and Straps ................................................................................. 17

6.2.5 Mechanical durability ................................................................................................................................. 18

6.2.6 Protection against cutting and abrasion.............................................................................................. 19

6.2.7 Resistance to Burning ................................................................................................................................. 19

6.2.8 Noise ................................................................................................................................................................. 19

6.2.9 Release of dangerous substances ........................................................................................................... 19

6.2.10 Lightning ......................................................................................................................................................... 19

6.2.11 Mechanical maintenance ........................................................................................................................... 19

6.3 Requirements for moving parts (excluding drawing-in points) ................................................. 21

6.4 Requirements for drawing-in points .................................................................................................... 21

6.4.1 General ............................................................................................................................................................. 21

6.4.2 Type of material creating drawing-in point ....................................................................................... 21

6.4.3 Type of Person(s) in contact with the system .................................................................................... 22

6.4.4 Drawing-In Protection Measures ........................................................................................................... 22

6.4.5 Scenarios with indirect exposed requirements and different persons .................................... 24

Table 2 — Requirements for drawing-in points of non-flexible material ............................................. 28

Table 3 — Requirements for drawing-in points of flexible material ...................................................... 29

6.5 Electrical Requirements ............................................................................................................................ 29

---------------------- Page: 4 ----------------------
oSIST prEN 17088:2017
prEN 17088:2017 (E)

6.5.1 General.............................................................................................................................................................. 29

6.5.2 Main switch (or emergency switching off device) ............................................................................. 29

6.5.3 Re-establishing Power to System ............................................................................................................ 29

6.5.4 Emergency Stop Device ............................................................................................................................... 29

6.5.5 Protection of Cables to Livestock ............................................................................................................ 31

6.6 Electromagnetic compatibility (EMC) ................................................................................................... 31

6.7 Documentation .............................................................................................................................................. 31

6.7.1 General.............................................................................................................................................................. 31

6.7.2 Installation ...................................................................................................................................................... 31

6.7.3 Labelling ........................................................................................................................................................... 32

6.7.4 Handover ......................................................................................................................................................... 32

6.7.5 Operation and use......................................................................................................................................... 33

6.7.6 Maintenance and repairs ........................................................................................................................... 33

6.7.7 Dismantling ..................................................................................................................................................... 34

6.7.8 Changing and/or upgrading ...................................................................................................................... 34

7 Evaluation of Conformity ........................................................................................................................... 34

7.1 Manufacturer Requirements .................................................................................................................... 34

7.2 Production control ....................................................................................................................................... 35

8 8 Environmental aspects for side curtains ventilation systems .................................................. 35

8.1 Introduction .................................................................................................................................................... 35

8.2 Environmental aspects to be considered for systematically addressing environmental

issues ................................................................................................................................................................. 36

8.3 Design ................................................................................................................................................................ 37

8.4 Procurement ................................................................................................................................................... 37

Table 4 — Acquisition of raw material, pre-manufactured material and components .................... 37

8.5 Production ....................................................................................................................................................... 38

8.5.1 General.............................................................................................................................................................. 38

8.5.2 Measures to reduce environmental impact ........................................................................................ 39

Table 5 — Production ................................................................................................................................................ 39

8.6 Customer information ................................................................................................................................. 39

8.7 Packaging ......................................................................................................................................................... 40

8.8 Transportation .............................................................................................................................................. 40

8.9 Product operation and reuse .................................................................................................................... 40

8.9.1 Durability of the product, maintenance and repair ......................................................................... 40

8.9.2 Reconditioning and reuse of equipment .............................................................................................. 40

Table 6 — Durability of the product, maintenance and repair .................................................................. 40

8.10 End of life ......................................................................................................................................................... 41

Table 4 — End of life .................................................................................................................................................. 41

Annex A (informative) Some example forms of side curtains .................................................................. 42

A.1 Type A: Single curtain with one drive unit (1:1 Drop Screen/Rigid panel) ............................. 42

A.2 Type B: Double folding curtain with one drive unit (2:1 Drop Screen) .................................... 43

A.3 Type C: Folding curtain with one drive unit, opening from the top (Drop Folding Screen)43

A.4 Type D: Winding curtain with a drive unit(s), winding from the bottom (Single Rolling /

Bottom Opening Screen) ............................................................................................................................ 44

A.5 Type E: Winding curtain with drive unit(s), winding from the middle (Double Rolling /

Bottom Opening Screen) ............................................................................................................................ 45

---------------------- Page: 5 ----------------------
oSIST prEN 17088:2017
prEN 17088:2017 (E)

A.6 Type F Winding curtain with one drive unit, winding from the bottom and opening from

the top (Single Rolling / Top Opening Screen) .................................................................................. 46

A.7 Type G: Winding curtain with one drive unit, winding from the middle and opening from

the top (Double Rolling/Top Opening Screen) .................................................................................. 47

A.8 Type H Winding curtain with two independent drive units, opening from the bottom and /

or the top and winding at bottom side (Single Rolling, Top and Bottom opening) .............. 48

A.9 Type I: Winding curtain with two independent drive units, opening from the bottom and /

or the top and winding in the middle (Double Rolling, Top and bottom opening) .............. 49

Annex B (informative) Roles and responsibilities in the supply chain ................................................. 50

B.1 Introduction ................................................................................................................................................... 50

B.2 Manufacture, distribution and installation of side curtains......................................................... 50

B.2.1 Manufacture of components .................................................................................................................... 50

B.2.2 Manufacture of the system ........................................................................................................................ 50

B.2.3 Distribution of the System ........................................................................................................................ 50

B.2.4 Installation ..................................................................................................................................................... 50

B.2.5 Initial Commissioning ................................................................................................................................. 51

B.2.6 Operation ........................................................................................................................................................ 51

Annex C (informative) Risk-assessment ........................................................................................................... 52

Figure C.1 — Schematic representation of risk reduction process including iterative three-step

method ............................................................................................................................................................. 52

Figure C.2 — Risk reduction process from point of view of designer...................................................... 53

C.1 General ............................................................................................................................................................. 54

C.2 Risk Analyses ................................................................................................................................................. 54

C.2.1 General ............................................................................................................................................................. 54

C.2.2 Determine the limits of the machine ..................................................................................................... 54

C.2.3 Risk assessment ............................................................................................................................................ 54

Figure C.3 — Risk Evaluation Graph .................................................................................................................... 55

C.2.4 Risk reduction methods ............................................................................................................................. 55

C.2.5 Risk conclusion ............................................................................................................................................. 56

C.3 Risk assessment and the technical file ................................................................................................. 56

C.4 Example Risk Assessment ......................................................................................................................... 56

C.4.1 General ............................................................................................................................................................. 56

C.4.2 Step 1: Making the hazard intrinsically safe ...................................................................................... 56

C.4.3 Step 2: Consideration of protective methods ..................................................................................... 56

C.4.4 Step 3: Risk Conclusion and Residual Risks ....................................................................................... 57

Annex D (normative) Dangers (checklist) in accordance with Table B.1 from EN-ISO 12100:2010

............................................................................................................................................................................. 58

Table D.1 — Dangers checklist .............................................................................................................................. 58

---------------------- Page: 6 ----------------------
oSIST prEN 17088:2017
prEN 17088:2017 (E)

Annex E (informative) Clarification of the requirements for pull out load .......................................... 63

E.1 Definition ......................................................................................................................................................... 63

E.2 Ways to measure ........................................................................................................................................... 63

Figure E.1 — Hand model ......................................................................................................................................... 64

Figure E.3 — Upwards pull-out-direction .......................................................................................................... 65

Figure E.4 — Downwards pull-out-direction .................................................................................................... 66

Figure E.5 — Horizontal pull-out-direction ....................................................................................................... 66

Figure E.6 — Horizontal pull-out-direction ....................................................................................................... 67

Figure E.7 — Horizontal pull-out-direction ....................................................................................................... 68

Annex F (informative) Form risk analysis, assessment and reduction .................................................. 69

Annex G (informative) Information in relation to performance .............................................................. 71

G.1 Resistance to wind ........................................................................................................................................ 71

G.1.1 General.............................................................................................................................................................. 71

Figure G.1 — Typical wind map of Europe ......................................................................................................... 72

G.1.2 Classification................................................................................................................................................... 72

Table G.1 — Wind Load Classes ............................................................................................................................. 73

G.1.3 Calculation ....................................................................................................................................................... 73

Table G.2 —Safety Factors ....................................................................................................................................... 73

G.1.4 Failure Criteria .............................................................................................................................................. 74

G.1.5 Marking ............................................................................................................................................................ 74

G.2 Resistance to burning .................................................................................................................................. 74

Table G.3 — Equivalence in reaction to fire performance classification in Europe ........................... 74

Annex H (informative) Clarification of the requirements for stopping the Ventilation System in

an emergency ................................................................................................................................................. 76

Figure H.1 — Ventilation system ........................................................................................................................... 76

Figure H.2 — Hold to run .......................................................................................................................................... 77

Figure H3 — Automatic Computerized controller (Case I) .......................................................................... 78

Figure H.4 - Automatic Computerized Controller (Case II) .......................................................................... 79

Figure H.5 - Automatic Computerized Controller (Case III) ........................................................................ 80

Figure H.6 - Automatic Computerized Controller (Case IV) ......................................................................... 81

Figure H.7 - Automatic Computerized Controller (Case V) .......................................................................... 82

Annex I (informative) Clarification of the requirements for safety barrier to provide ‘In-directly

Exposed’ criteria for drawing-in hazards ............................................................................................ 83

Figure I.1 — Safety Barrier Deflection Requirements ................................................................................... 83

Figure I.2 — Safety Barrier Penetration Requirements ................................................................................ 84

Annex J (informative) List of resin identification codes (RIC) and codes defined by the European

Commission ..................................................................................................................................................... 85

---------------------- Page: 7 ----------------------
oSIST prEN 17088:2017
prEN 17088:2017 (E)

Annex K (informative) Environmental Checklist .......................................................................................... 89

Annex ZA (informative) Relationship between this European Standard and the Essential

Requirements of EU Machinery Directive 2006/42/EC ................................................................. 91

Bibliography ................................................................................................................................................................. 93

---------------------- Page: 8 ----------------------
oSIST prEN 17088:2017
prEN 17088:2017 (E)
European Foreword

This document (prEN 17088:2017) has been prepared by Technical Committee CEN/TC 422 “PC Side curtains

ventilation systems”, the secretariat of which is held by NEN.
This document is currently submitted to the CEN Enquiry.

This document has been prepared under a mandate given to CEN by the European Commission and the

European Free Trade Association, and supports essential requirements of EU Directive 2006/42/EC.

For relationship with EU Directive 2006/42/EC, see informative Annex ZA, which is an integral part of this

document.
---------------------- Page: 9 ----------------------
oSIST prEN 17088:2017
prEN 17088:2017 (E)
Introduction

In 2010, an accident occurred in both the Netherlands and Belgium where the child of a farmer was trapped

by an automatic stable display and later died.

The Dutch Technical Agreement (NTA) 8344 came about upon the initiative of the Labour Inspectorate in the

Netherlands, and this standard was created building on the work carried out by the NTA.

This standard is a type-C standard as specified in EN ISO 12100.

The machinery concerned and the extent to which hazards are covered are indicated in the scope of this

standard. These hazards are specified to the Side curtains ventilation systems.

Where provisions of this type C are different from those which are stated by type A or B standards, the

provisions of this type C standard take precedence over the provisions of th
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
