Protective footwear for motorcycle riders - Requirements and test methods

This European Standard applies to protective footwear for motorcycle riders for use while riding motorcycles for on or off road activities. It specifies the requirements for protection, ergonomic characteristics, innocuousness, mechanical properties, marking and information for users. It also specifies the appropriate test methods.

Schutzschuhe für Motorradfahrer - Anforderungen und Prüfverfahren

Diese Europäische Norm findet Anwendung auf Schutzschuhe für Motorradfahrer beim Fahren von Motorrädern auf Straßen oder im Gelände. Sie legt die Anforderungen an den Schutz, die ergonomischen Merkmale, die Unschädlichkeit, die mechanischen Eigenschaften, die Kennzeichnung und die Information für Anwender fest. Sie legt darüber hinaus die entsprechenden Prüfverfahren fest.

Chaussures de protection pour motocyclistes - Exigences et méthodes d'essai

La présente Norme européenne s'applique aux chaussures de protection destinées aux motocyclistes lors de la pratique du motocyclisme sur et hors routes. Elle spécifie les exigences relatives à la protection, aux caractéristiques ergonomiques, à l'innocuité, aux propriétés mécaniques, au marquage et aux informations pour les utilisateurs. Elle décrit également les méthodes d'essai appropriées.

Varovalna obutev za voznike motornih koles - Zahteve in preskusne metode

Ta evropski standard se uporablja za varovalno obutev za voznike motornih koles, in sicer za uporabo pri vožnji motornih koles po cestiščih ali zunaj njih. Določa zahteve glede zaščite, ergonomske lastnosti, neškodljivosti, mehanskih lastnosti, označevanja in informacij za uporabnike. Določa tudi ustrezne preskusne metode.

General Information

Status
Published
Public Enquiry End Date
19-May-2017
Publication Date
18-Jan-2018
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
05-Jan-2018
Due Date
12-Mar-2018
Completion Date
19-Jan-2018

RELATIONS

Buy Standard

Standard
SIST EN 13634:2018
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Varovalna obutev za voznike motornih koles - Zahteve in preskusne metodeSchutzschuhe für Motorradfahrer - Anforderungen und PrüfverfahrenChaussures de protection pour motocyclistes - Exigences et méthodes d'essaiProtective footwear for motorcycle riders - Requirements and test methods43.140Motorna kolesa in mopediMotorcycles and mopeds13.340.50Varovanje nog in stopalLeg and foot protectionICS:Ta slovenski standard je istoveten z:EN 13634:2017SIST EN 13634:2018en,fr,de01-februar-2018SIST EN 13634:2018SLOVENSKI

STANDARDSIST EN 13634:20161DGRPHãþD
SIST EN 13634:2018
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13634
December
t r s y ICS
s uä u v rä w r Supersedes EN
s u x u vã t r s wEnglish Version

Protective footwear for motorcycle riders æ Requirements and test methods Chaussures de protection pour motocyclistes æ Exigences et méthodes d 5essai

Schutzschuhe für Motorradfahrer æ Anforderungen und Prüfverfahren This European Standard was approved by CEN on

t y September
t r s yä

egulations which stipulate the conditions for giving this European Standard the status of a national standard without any alterationä Upætoædate lists and bibliographical references concerning such national standards may be obtained on application to the CENæCENELEC Management Centre or to any CEN memberä

translation under the responsibility of a CEN member into its own language and notified to the CENæCENELEC Management Centre has the same status as the official versionsä

CEN members are the national standards bodies of Austriaá Belgiumá Bulgariaá Croatiaá Cyprusá Czech Republicá Denmarká Estoniaá Finlandá Former Yugoslav Republic of Macedoniaá Franceá Germanyá Greeceá Hungaryá Icelandá Irelandá Italyá Latviaá Lithuaniaá Luxembourgá Maltaá Netherlandsá Norwayá Polandá Portugalá Romaniaá Serbiaá Slovakiaá Sloveniaá Spainá Swedená Switzerlandá Turkey and United Kingdomä

EUROPEAN COMMITTEE FOR STANDARDIZATION COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre:
Rue de la Science 23,
B-1040 Brussels

t r s y CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Membersä Refä Noä EN

s u x u vã t r s y ESIST EN 13634:2018

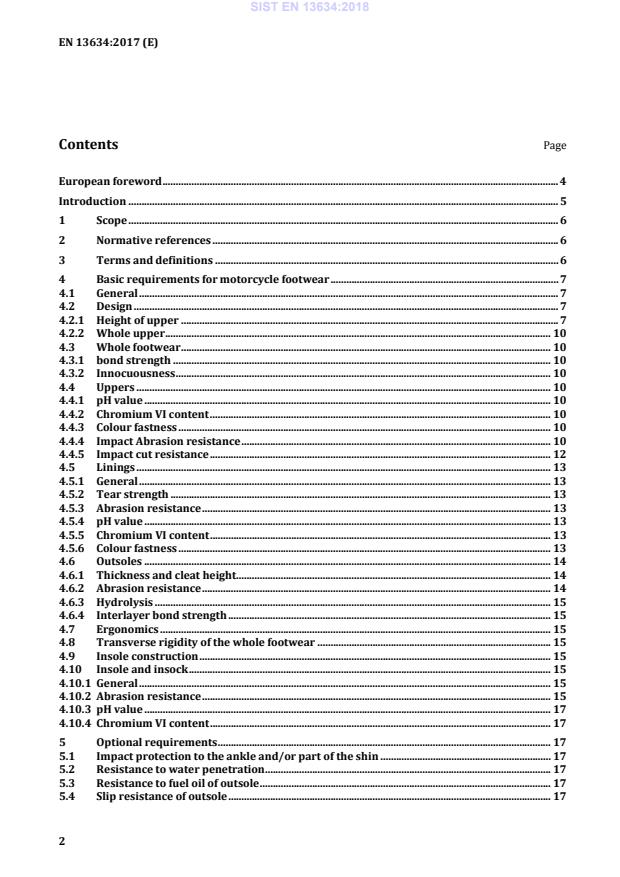

EN 13634:2017 (E) 2 Contents Page European foreword ....................................................................................................................................................... 4 Introduction .................................................................................................................................................................... 5 1 Scope .................................................................................................................................................................... 6 2 Normative references .................................................................................................................................... 6 3 Terms and definitions ................................................................................................................................... 6 4 Basic requirements for motorcycle footwear ....................................................................................... 7 4.1 General ................................................................................................................................................................ 7 4.2 Design .................................................................................................................................................................. 7 4.2.1 Height of upper ................................................................................................................................................ 7 4.2.2 Whole upper ................................................................................................................................................... 10 4.3 Whole footwear ............................................................................................................................................. 10 4.3.1 bond strength ................................................................................................................................................ 10 4.3.2 Innocuousness ............................................................................................................................................... 10 4.4 Uppers .............................................................................................................................................................. 10 4.4.1 pH value ........................................................................................................................................................... 10 4.4.2 Chromium VI content .................................................................................................................................. 10 4.4.3 Colour fastness .............................................................................................................................................. 10 4.4.4 Impact Abrasion resistance ...................................................................................................................... 10 4.4.5 Impact cut resistance .................................................................................................................................. 12 4.5 Linings .............................................................................................................................................................. 13 4.5.1 General ............................................................................................................................................................. 13 4.5.2 Tear strength ................................................................................................................................................. 13 4.5.3 Abrasion resistance ..................................................................................................................................... 13 4.5.4 pH value ........................................................................................................................................................... 13 4.5.5 Chromium VI content .................................................................................................................................. 13 4.5.6 Colour fastness .............................................................................................................................................. 13 4.6 Outsoles ........................................................................................................................................................... 14 4.6.1 Thickness and cleat height........................................................................................................................ 14 4.6.2 Abrasion resistance ..................................................................................................................................... 14 4.6.3 Hydrolysis ....................................................................................................................................................... 15 4.6.4 Interlayer bond strength ........................................................................................................................... 15 4.7 Ergonomics ..................................................................................................................................................... 15 4.8 Transverse rigidity of the whole footwear ......................................................................................... 15 4.9 Insole construction ...................................................................................................................................... 15 4.10 Insole and insock .......................................................................................................................................... 15 4.10.1 General ............................................................................................................................................................. 15 4.10.2 Abrasion resistance ..................................................................................................................................... 15 4.10.3 pH value ........................................................................................................................................................... 17 4.10.4 Chromium VI content .................................................................................................................................. 17 5 Optional requirements ............................................................................................................................... 17 5.1 Impact protection to the ankle and/or part of the shin ................................................................. 17 5.2 Resistance to water penetration ............................................................................................................. 17 5.3 Resistance to fuel oil of outsole ............................................................................................................... 17 5.4 Slip resistance of outsole ........................................................................................................................... 17 SIST EN 13634:2018

EN 13634:2017 (E) 3 5.5 Permeable uppers ......................................................................................................................................... 18 5.6 Insole/Insocks, Water absorption and desorption........................................................................... 18 6 Test methods .................................................................................................................................................. 18 6.1 Determination of the transverse rigidity of the footwear .............................................................. 18 6.1.1 Principle ........................................................................................................................................................... 18 6.1.2 Apparatus......................................................................................................................................................... 18 6.1.3 Test piece ......................................................................................................................................................... 18 6.1.4 Preparation of the test piece ..................................................................................................................... 18 6.1.5 Test procedure ............................................................................................................................................... 18 6.2 Impact energy protection of ankle and shin ....................................................................................... 19 6.2.1 Principle ........................................................................................................................................................... 19 6.2.2 Apparatus......................................................................................................................................................... 19 6.2.3 Test piece ......................................................................................................................................................... 20 6.2.4 Zones of protection ....................................................................................................................................... 20 6.2.5 Procedure ........................................................................................................................................................ 21 7 Marking ............................................................................................................................................................. 21 8 Wearer information and instructions for use .................................................................................... 23 Annex A (normative)

Ergonomic and size testing .......................................................................................... 24 A.1 Principle ........................................................................................................................................................... 24 A.2 Assessors .......................................................................................................................................................... 24 A.3 Procedure for footwear size verification ............................................................................................. 24 A.4 Procedure for ergonomic evaluation ..................................................................................................... 24 Annexe ZA (informative)

Relationship between this European Standard and the essential requirements of EU Directive 89/686/EEC Personal Protective Equipment aimed to be covered .............................................................................................................. 26 Bibliography .................................................................................................................................................................. 28 SIST EN 13634:2018

EN 13634:2017 (E) 4 European foreword This document (EN 13634:2017) has been prepared by Technical Committee CEN/TC 161 “Foot and leg protectors”, the secretariat of which is held by BSI. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by June 2018, and conflicting national standards shall be withdrawn at the latest by June 2018. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN shall not be held responsible for identifying any or all such patent rights. This document supersedes EN 13634:2015. This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. The following significant technical changes have been introduced in comparison with the former edition EN 13634:2015: a) the requirement for an overall performance level has been removed and the associated user information requirement amended accordingly; b) the marking requirement has been changed with an additional mandatory marking number for the upper height; c) Table 3 has been revised to include an additional column for H1 requirements; d) the sampling requirements have been clarified in 4.4.4 and 4.4.5; e) Annex B (informative) has been replaced by a note in 4.1; f) clarification of the “assessor” has been included in Annex A. According to the CEN-CENELEC Internal Regulations, the national standards organisations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom. SIST EN 13634:2018

EN 13634:2017 (E) 5 Introduction Motorcyclists’ footwear is intended to give a degree of mechanical protection to the foot, optionally the ankle and/or part of the shin in accidents without significantly reducing the ability of the rider to control the motorcycle and operate the foot controls. The particular hazards in motorcycle accidents are abrasion with the road surface plus impacts with the motorcycle, conflicting vehicles, road furniture and road surfaces. Road surface injuries are worse when the foot is trapped under the motorcycle during sliding impacts. The standard sets out a number of basic requirements considered essential for this type of footwear including a number of ergonomic requirements. This European Standard includes several properties which have two performance levels in terms of the protection afforded. These cover the degree of risk or hazard that a motorcyclist will face in terms of the type of riding and the nature of the accident. Where riders feel that their riding style or sport exposes them to an increased accident risk ‘Level 2’ of each of these performance features offers increased performance. However it is likely that this higher performance level has an increased penalty for the weight and comfort so may not be acceptable to all riders. SIST EN 13634:2018

EN 13634:2017 (E) 6 1 Scope This European Standard applies to protective footwear for motorcycle riders for use while riding motorcycles for on or off road activities. It specifies the requirements for protection, ergonomic characteristics, innocuousness, mechanical properties, marking and information for users. It also specifies the appropriate test methods. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. EN 1621-1, Motorcyclists' protective clothing against mechanical impact - Part 1: Motorcyclists' limb joint impact protectors - Requirements and test methods EN 13595-2:2002, Protective clothing for professional motorcycle riders - Jackets, trousers and one-piece or divided suits - Part 2: Test method for determination of impact abrasion resistance EN 13595-4:2002, Protective clothing for professional motorcycle riders - Jackets, trousers and one-piece or divided suits - Part 4: Test method for determination of impact cut resistance EN ISO 4045, Leather - Chemical tests - Determination of pH (ISO 4045) EN ISO 11642, Leather - Tests for colour fastness - Colour fastness to water (ISO 11642) EN ISO 17075-1, Leather - Chemical determination of chromium(VI) content in leather - Part 1: Colorimetric method (ISO 17075-1) EN ISO 17075-2, Leather - Chemical determination of chromium(VI) content in leather - Part 2: Chromatographic method (ISO 17075-2) EN ISO 20344:2011, Personal protective equipment - Test methods for footwear (ISO 20344:2011) EN ISO 20345:2011, Personal protective equipment - Safety footwear (ISO 20345:2011) ISO 4649:2017, Rubber, vulcanized or thermoplastic — Determination of abrasion resistance using a rotating cylindrical drum device ISO 5423:1992, Moulded plastics footwear — Lined or unlined polyurethane boots for general industrial use — Specification 3 Terms and definitions For the purposes of this document, the following terms and definitions apply. 3.1 optional requirement additional requirement(s) claimed by the footwear manufacturer and associated with a specific marking SIST EN 13634:2018

EN 13634:2017 (E) 7 4 Basic requirements for motorcycle footwear 4.1 General The minimum number of samples to be tested in order to check compliance with the requirements specified in this standard is detailed in Table 1. Unless otherwise specified, all samples shall be conditioned and tested in an environment of (23 ± 2) °C and (50 ± 5) % rh (relative humidity). This standard defines 4 specific properties for motorcycle footwear with 2 possible performance level (height of the upper, impact abrasion, impact cut, transverse rigidity). To comply with this European Standard, the motorcycle footwear shall achieve at least performance level 1 for all four properties. For each of the required measurements performed in accordance with this standard, a corresponding estimate of the uncertainty of measurement should be evaluated. One of the following approaches should be used: - a statistical method, e.g. that given in ISO 5725-2 [2]; - a mathematical method, e.g. that given in ISO/IEC Guide 98-3 [3]; - uncertainty and conformity assessment as given in ISO/IEC Guide 98-4 [4]; - JCGM 100:2008[1]. 4.2 Design 4.2.1 Height of upper All footwear shall be classified as either performance level 1 or performance level 2: Performance level 1:

Footwear shall meet the minimum upper height requirements in accordance with Table 2. Performance level 2: Footwear shall meet the minimum upper height requirements in accordance with Table 3. SIST EN 13634:2018

EN 13634:2017 (E) 8 Table 1 — Minimum number of samples and test specimens and their origin Property Clause Samples Take test specimens only from footwear Height of the upper 4.2.1 One pair in each of 3 sizes YES Upper/outsole bond strength 4.3.1 One shoe in each of 3 sizes YES Upper pH value 4.4.1 One sample only of each leather NO Upper Chromium VI content 4.4.2 One sample only of each leather NO Upper Colour Dye fastness 4.4.3 One sample only of each material NO Upper impact abrasion resistance 4.4.4 One sample from each combination of material NO Upper Impact cut resistance 4.4.5 One sample from each combination of material NO Lining Tear strength 4.5.2 One sample only of each material NO Lining Abrasion resistance 4.5.3 One sample only of each material NO Lining pH value 4.5.4 One sample only of each leather NO Lining Chromium VI content 4.5.5 One sample only of each leather NO Lining colour fastness 4.5.6 One sample from each material NO Outsole thickness and cleat height 4.6.1 One shoe in each of 3 sizes YES Outsole abrasion resistance 4.6.2 One shoe in each of 3 sizes YES Outsole hydrolysis 4.6.3 One shoe in each of 3 sizes YES Outsole interlayer bond strength 4.6.4 One shoe in each of 3 sizes YES Ergonomics 4.7 3 pairs in different sizes YES Transverse rigidity of the whole footwear 4.8 One pair in each of 3 sizes YES Insole/Insock abrasion 4.10.2 1 shoe from each of 3 sizes or material NO Insole/Insock pH value 4.10.3 One sample of each leather NO Insole/Insock chromium VI content 4.10.4 One sample of each leather NO Impact energy protection ankle / shin 5.1 One pair in each of 3 sizes YES Water resistance 5.2 3 pair of shoes (minimum of 2 different sizes) YES Resistance to fuel oil of the outsole 5.3 One shoe in each of 3 sizes YES Slip resistance of outsoles 5.4 One shoe in each of 3 sizes YES Permeable uppers 5.5 One sample only of each material YES Insole and Insocks water absorption and desorption 5.6 1 shoe from each of 3 sizes or material NO SIST EN 13634:2018

EN 13634:2017 (E) 9 Table 2 — Minimum height of upper of performance level 1 Footwear size H2 (Figure 1)

in mm H1 (Figure 1)
in mm Paris Point UK

36 and below Up to 3 ½ 103 64 37 and 38 4 to 5 105 66 39 and 40 5 ½ to 6 ½ 109 68 41 and 42 7 to 8 113 70 43 and 44 8 ½

to 10 117 72 45 and above 10 ½ and above 121 73 Table 3 — Minimum height of upper of performance level 2 Footwear size H2 (Figure 1) in mm H1 (Figure 1)

in mm Paris Point UK

36 and below Up to 3 ½ 162 113 37 and 38 4 to 5 165 115 39 and 40 5 ½ to 6 ½ 172 119 41 and 42 7 to 8 178 123 43 and 44 8 ½ to 10 185 127 45 and above 10 ½ and above 192 131

Figure 1 — Footwear minimum upper height definition of H1 and H2 SIST EN 13634:2018

EN 13634:2017 (E) 10 4.2.2 Whole upper Upper material shall meet the requirements of 4.4. 4.3 Whole footwear 4.3.1 bond strength When footwear is tested in accordance with the method specified in EN ISO 20344:2011, 5.2, the bond strength shall be not less than 4,0 N/mm unless there is tearing of the sole material in which case the bond strength shall be not less than 3,0 N/mm. 4.3.2 Innocuousness Footwear protecting against risks when riding a motorcycle shall not adversely affect the health or hygiene of the user. Footwear protecting against risks when riding a motorcycle shall be made of materials, such as textiles, leather, rubbers, plastics that have been shown to be chemically suitable. The materials shall not in the foreseeable conditions of normal use release or degrade to release substances generally known to be toxic, carcinogenic, mutagenic, allergenic, toxic to reproduction or otherwise harmful. Information claiming that the product is innocuous shall be checked. NOTE:

Information about critical substances in footwear and footwear components can be found in ISO/TR 16178. 4.4 Uppers 4.4.1 pH value When leathers are tested in accordance with EN ISO 4045, the pH value shall be not less than 3,2 and, if the pH is less than 4, the difference figure shall be less than 0,7. All individual leathers shall be assessed. 4.4.2 Chromium VI content The quantity of Chromium VI in footwear containing leather shall not exceed 3,0 mg/kg when determined according to the test method specified in EN ISO 17075-1 or EN ISO 17075-2. If the footwear includes different types of leather, whether in contact with the skin or not, each leather type shall be tested separately and comply with the above requirement. One sample shall be taken from different items of footwear for each leather type. 4.4.3 Colour fastness Footwear shall not be manufactured from material containing dyes which will readily migrate when it becomes wet with water. When any inner surfaces of the upper that will be adjacent to the wearers foot or hose (unnecessary if not coloured or if the footwear has a lining, in this case apply 4.5.6) are tested in accordance with EN ISO 11642, the change in colour of any component of the multifibre fabric shall be not worse than Grey Scale rating 3. 4.4.4 Impact Abrasion resistance When the full thickness of the upper (i.e. upper + lining) for each combination (sample) of materials present is tested in accordance with the procedure in EN 13595-2:2002 (with a deviation to test 3 specimens of each combination instead of 6), the impact abrasion resistance shall be classified as in Table 4. All material type combinations shall be tested and the upper classified on the lowest mean result from all combinations present (see Table 4): SIST EN 13634:2018

EN 13634:2017 (E) 11 Table 4 — Requirements for upper resistance to impact abrasion

Minimum impact abrasion resistance (in second) Areas (see Figure 2 and Table 6) Level 1 Level 2 A 1,5 s 2,5 s B 5 s 12 s Table 5 — Dimensions for Impact Zones and Material Areas shown in Figure 2 (Dimensions in mm) Size (Paris Points) Size (English) C D E r F G min. min. min. max. min. max. 38 and below 5 and below 70 45 80 17 40 120 39 to 42 5,5 to 8 75 50 90 19 50 125 43 and above 8,5 and above 80 55 95 21 55 130 In order to accommodate different ergonomic requirements for different riding disciplines small deviations of Area A (see Table 5 and Figure 2) material are permitted in Area B (see Table 5 and Figure 2) provided the total infiltration is not greater than 8 cm2 per boot. The lower tangent of zone 2 is used to define the lower limits for measurements F and G. Zone 2 is located by centering point X over the natural centre of the ankle as felt through the footwear worn by an appropriate subject. SIST EN 13634:2018

EN 13634:2017 (E) 12
Key 1
= zone 1 shin region 2
= zone 2 ankle region r radius curvature keys for C D E F G see Table 5
= Area A

= Area B Figure 2 — Impact zones and material areas (see Table 5) 4.4.5 Impact cut resistance When the full thickness of the upper (i.e. upper + lining) is tested in accordance with the procedure in EN 13595-4:2002, with 1 test specimen from each combination (sample) of material and six test cuts being carried out on each specimen, the impact cut resistance of the upper shall be classified as below. All material type combinations shall be tested and the upper classified on the lowest mean result of all combinations present (see Table 6): SIST EN 13634:2018

EN 13634:2017 (E) 13 Table 6 — Requirements for upper resistance to impact cut Areas (see Figure 2 and Table 5) Level 1 Level 2 A Impact speed 2,0 m/s, maximum knife penetration 25 mm Impact speed 2,0 m/s, maximum knife penetration 25 mm B Impact speed 2,8 m/s, maximum knife penetration 25 mm Impact speed 2,8 m/s, maximum knife penetration 15 mm 4.5 Linings 4.5.1 General When present, all lining materials shall conform to the following requirements. 4.5.2 Tear strength The tear strength of the lining shall be in accordance with EN ISO 20345:2011, 5.5.1. 4.5.3 Abrasion resistance When tested in accordance with EN ISO 20344:2011, 6.12, the wearing surface of the lining shall not develop any holes before the following number of cycles has been performed: — dry: 25 600 cycles; — wet: 12 800 cycles. 4.5.4 pH value When leather linings are tested in accordance with EN ISO 4045 the pH value shall be not less than 3,2 and, if the pH is less than 4, the difference figure shall be less than 0,7. All individual leathers shall be assessed. 4.5.5 Chromium VI content The quantity of Chromium VI in footwear containing leather shall not exceed 3,0 mg/kg when determined according to the test method specified in EN ISO 17075-1 or EN ISO 17075-2. If the footwear includes different types of leather, whether in contact with the skin or not, each leather type shall be tested separately and comply with the above requirement. One sample shall be taken from different items of footwear for each leather type. 4.5.6 Colour fastness Footwear shall not be manufactured from material containing dyes which will readily migrate when it becomes wet with water. When any inner surfaces of the lining that will be adjacent to the wearers foot or hose (unnecessary if not coloured) are tested in accordance with EN ISO 11642, the change in colour of any component of the multifibre fabric shall be not worse than Grey

...
