SIST ISO 49:2001/Amd 1:2018

Malleable cast iron fittings threaded to ISO 7-1 - Chemical composition of the zinc coating - Adjustment to actual requirements regarding hazardous substances

Raccords en fonte malléable filetés conformément à l'ISO 7-1 - Composition chimique du revêtement de zinc - Ajustement aux exigences réelles concernant les substances dangereuses

Fitingi iz temprane litine z navoji po ISO 7-1 - Kemijska sestava cinkovih prevlek - Prilagoditev dejanskim zahtevam glede nevarnih snovi - Dopolnilo Amd 1

General Information

• Status: Published
• Public Enquiry End Date: 12-Jun-2018
• Publication Date: 07-Nov-2018
• ICS: 23.040.40 - Metal fittings
• ICS: 25.220.40 - Metallic coatings
• Technical Committee: TLP - Pressure vessels
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 16-Oct-2018
• Due Date: 21-Dec-2018
• Completion Date: 08-Nov-2018
• Ref Project: ISO 49:1994/Amd 1:2018 - Malleable cast iron fittings threaded to ISO 7-1 - Amendment 1: Chemical composition of the zinc coating - adjustment to actual requirements regarding hazardous substances

Relations

• Amends: SIST ISO 49:2001 - Malleable cast iron fittings threaded to ISO 7-1
• Effective Date: 01-Dec-2018
• Child: SIST ISO 49:2001 - Malleable cast iron fittings threaded to ISO 7-1
• Effective Date: 14-Jan-2017

Overview

SIST ISO 49:2001/Amd 1:2018 is an important amendment to the original ISO 49:1994 standard, focusing on malleable cast iron fittings threaded to ISO 7-1. This amendment specifically addresses the chemical composition of the zinc coating applied to these fittings. Its core purpose is to adjust the zinc coating requirements to align with contemporary regulations concerning hazardous substances. The standard was developed and published by the International Organization for Standardization (ISO) in 2018.

This update ensures that the zinc coatings used on malleable cast iron fittings conform to safer environmental and health standards by limiting the presence of substances considered hazardous. Consequently, SIST ISO 49:2001/Amd 1:2018 promotes safer manufacturing practices while maintaining product quality and performance.

Key Topics

• Chemical composition of zinc coatings
  The amendment defines maximum permissible mass percentages of trace elements in the zinc coatings to reduce hazardous substances:

  • Aluminium (Al): max 0.10%
  • Antimony (Sb): max 0.01%
  • Arsenic (As): max 0.02%
  • Bismuth (Bi): max 0.01%
  • Cadmium (Cd): max 0.01%
  • Copper (Cu): max 0.10%
  • Lead (Pb): max 0.10%
  • Tin (Sn): max 0.10%

• Harmonization with related ISO standards
  The amendment updates normative references, replacing earlier editions with current ISO standards including:

  • ISO 228-1 for pipe threads dimensions and tolerances
  • ISO 2859 series for sampling procedures and inspection by attributes
  • ISO 5922 for malleable cast iron
  • ISO 6708 for nomimal size definitions of pipework components

• Compliance with hazardous substances regulations
  Ensures zinc coatings meet actual hazardous substance requirements pertinent to safety and environmental protection, minimizing toxic elements.

• Quality and testing procedures
  References standards related to coating thickness measurement (ISO 2178), hot-dip galvanizing evaluation (ISO 1460), and quality management (ISO 9001).

Applications

SIST ISO 49:2001/Amd 1:2018 applies broadly to industries utilizing malleable cast iron fittings with threaded pipe connections, including:

• Plumbing and piping systems
  Ensuring pipe fittings used in water supply, heating, and gas installations meet safety and environmental standards.

• Industrial pipelines
  Facilitates reliable and safe connections in chemical, oil, and gas industries requiring corrosion-resistant components.

• Construction and municipal infrastructure
  Compliance allows fittings to be safely embedded in infrastructure systems while adhering to hazardous substance restrictions.

• Manufacturing and quality assurance
  Enables producers to maintain manufacturing consistency with established limits on toxic substances in protective coatings.

Related Standards

• ISO 7-1 and ISO 7-2 – Specifications and verification for pipe threads where pressure-tight joints are made on threads.
• ISO 228-1 and ISO 228-2 – Dimensions and verification of pipe threads where pressure-tight joints are not made on threads.
• ISO 1460 – Gravimetric determination method for hot dip galvanized coatings on ferrous materials.
• ISO 2178 – Magnetic method for measuring coating thickness on magnetic substrates.
• ISO 2859 series – Sampling procedures for inspection by attributes, relevant to lot-by-lot and skip-lot inspection.
• ISO 5922 – Specifications related to malleable cast iron.
• ISO 6708 – Definitions and selection of nominal pipe sizes.
• ISO 9001 – Quality management system requirements ensuring consistent product quality.

---

Keywords: ISO 49 amendment, malleable cast iron fittings, zinc coating composition, hazardous substances, threaded pipe fittings, metallic coatings, ISO 7-1 threads, ISO standards, plumbing fittings, pipe thread standards, toxic substance limits, environmental compliance.

Standards Content (Sample)

INTERNATIONAL ISO
STANDARD 49
Second edition
1994-12-22
AMENDMENT 1
2018-04
Malleable cast iron fittings threaded
to ISO 7-1
AMENDMENT 1: Chemical composition
of the zinc coating — adjustment to
actual requirements regarding hazardous
substances
Raccords en fonte malléable filetés conformément à l'ISO 7-1
AMENDEMENT 1: Composition chimique du revêtement de zinc
— Ajustement aux exigences réelles concernant les substances
dangereuses
Reference number
ISO 49:1994/Amd.1:2018(E)
©
ISO 2018
ISO 49:1994/Amd.1:2018(E)
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

ISO 49:1994/Amd.1:2018(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about
...

NORME ISO
INTERNATIONALE 49
Deuxième édition
1994-12-22
AMENDEMENT 1
2018-04
Raccords en fonte malléable filetés
conformément à l'ISO 7-1
AMENDEMENT 1: Composition chimique
du revêtement de zinc — Ajustement
aux exigences réelles concernant les
substances dangereuses
Malleable cast iron fittings threaded to ISO 7-1
AMENDMENT 1: Chemical composition of the zinc coating —
adjustment to actual requirements regarding hazardous substances
Numéro de référence
ISO 49:1994/Amd.1:2018(F)
©
ISO 2018
ISO 49:1994/Amd.1:2018(F)

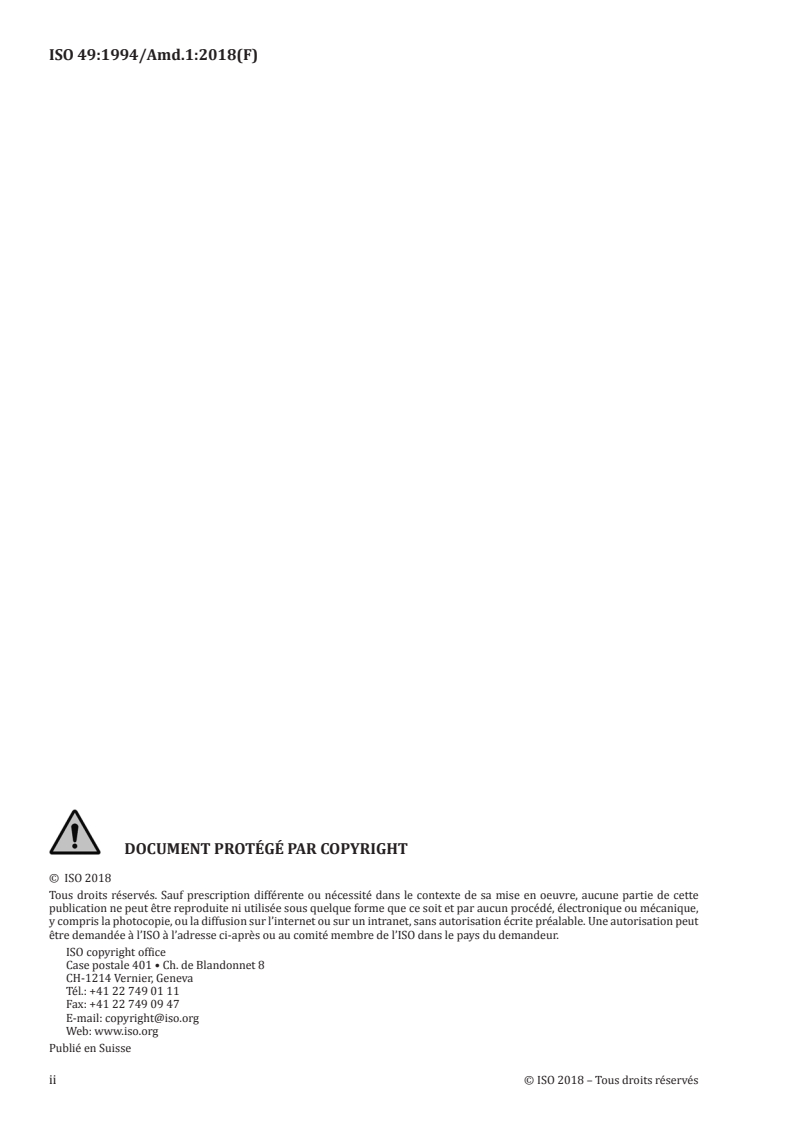

DOCUMENT PROTÉGÉ PAR COPYRIGHT
© ISO 2018
Tous droits réservés. Sauf prescription différente ou nécessité dans le contexte de sa mise en oeuvre, aucune partie de cette
publication ne peut être reproduite ni utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique,
y compris la photocopie, ou la diffusion sur l’internet ou sur un intranet, sans autorisation écrite préalable. Une autorisation peut
être demandée à l’ISO à l’adresse ci-après ou au comité membre de l’ISO dans le pays du demandeur.
ISO copyright office
Case postale 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Tél.: [phone]
Fax: [phone]
E-mail: [e-mail]
Web: www.iso.org
Publié en Suisse
ii © ISO 2018 – Tous droits réservés

ISO 49:1994/Amd.1:2018(F)
Avant-propos
L'ISO (Organisation internationale de normalisation) est une fédération mondiale d'organismes
nationaux de normalisation (comités membres de l'ISO). L'élaboration des Normes internationales est
en général confiée aux comités techniques de l'ISO. Chaque comité membre intéressé par une étude
a le droit de faire partie du comité technique créé à cet effet. Les organisations internationales,
gouvernementales et non gouvernementales, en liaison avec l'ISO participent également aux travaux.
L'ISO collabore étroitement avec la Commission électrotechnique internationale (IEC) en ce qui
concerne la normalisation électrotechnique.
Les procédures utilisées pour élaborer le présent document et celles destinées à sa mise à jour sont
décrites dans les Directives ISO/IEC, Partie 1. Il convient, en particulier de prendre note des différents
critères d'approbation requis pour les différents types de documents ISO. Le présent document a été
rédigé conformément aux règles de rédaction données dans les Directives ISO/IEC, Partie 2 (voir www
.iso .org/directives).
L'attention est attirée sur le fait que certains des éléments du présent document peuvent faire l'objet de
droits de propriété intellectuelle ou de droits analogues. L'ISO ne saurait être tenue pour responsable
de ne pas avoir identifié de tels droits de propriété et averti de leur existence. Les détails concernant
les références aux droits de propriété intellectuelle ou autres droits analogues identifiés lors de
l'élaboration du document sont indiqués dans l'Introduction et/ou dans la liste des déclarations de
brevets reçues par l'ISO (voir www .iso .org/brevets).
Les appellations commerciales éventuellement mentionnées dans le présent document sont données
pour information, par souci de commodité, à l’intention des utilisateurs et ne sauraient constituer un
engagement.
Pour une explication de la nature volontaire des normes, la signification des termes et expressions
spécifiques de l'ISO liés à l'évaluation de la conform
...

SLOVENSKI STANDARD
01-december-2018
Fitingi iz temprane litine z navoji po ISO 7-1 - Kemijska sestava cinkovih prevlek -
Prilagoditev dejanskim zahtevam glede nevarnih snovi - Dopolnilo Amd 1
Malleable cast iron fittings threaded to ISO 7-1 - Chemical composition of the zinc
coating - Adjustment to actual requirements regarding hazardous substances
Raccords en fonte malléable filetés conformément à l'ISO 7-1 - Composition chimique du
revêtement de zinc - Ajustement aux exigences réelles concernant les substances
dangereuses
Ta slovenski standard je istoveten z: ISO 49:1994/Amd 1:2018
ICS:
23.040.40 Kovinski fitingi Metal fittings
25.220.40 Kovinske prevleke Metallic coatings
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

INTERNATIONAL ISO
STANDARD 49
Second edition
1994-12-22
AMENDMENT 1
2018-04
Malleable cast iron fittings threaded
to ISO 7-1
AMENDMENT 1: Chemical composition
of the zinc coating — adjustment to
actual requirements regarding hazardous
substances
Raccords en fonte malléable filetés conformément à l'ISO 7-1
AMENDEMENT 1: Composition chimique du revêtement de zinc
— Ajustement aux exigences réelles concernant les substances
dangereuses
Reference number
ISO 49:1994/Amd.1:2018(E)
©
ISO 2018
ISO 49:1994/Amd.1:2018(E)
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved

ISO 49:1994/Amd.1:2018(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held r
...
