SIST EN 17678-1:2023
(Main)Installation of post-tensioning kits for prestressing of structures - Part 1: Competence of personnel
Installation of post-tensioning kits for prestressing of structures - Part 1: Competence of personnel
This document indicates the minimum training and registration requirements for post-tensioning personnel involved in the installation of PT kits in concrete structures using bonded or unbonded tendons in accordance with the relevant execution specifications, product standard and/or European Technical Assessment (ETA).
This document describes the tasks that the various categories of PT personnel can undertake.
For the purposes of this document, PT personnel means: PT-Manager, Supervisors, Operatives and Trainees who are directly employed or indirectly employed on a sub-contract basis.
This document does not cover general safety and health aspects.
This document does not cover contractual issues.
prEN 17678-2 deals with the assessment of competence.
Note: It is within the concept of this document that supplementing requirements can be given in the execution specification or in a national annex.
Ausführung von Arbeiten von Spannverfahren mit nachträglichem Verbund in Tragwerken - Teil 1: Personalkompetenz
Dieses Dokument gibt die Mindestanforderungen an die Ausbildung und Registrierung von Personal für Spannverfahren an, das sich mit dem Einbau von Spannverfahren in Betontragwerken unter Verwendung von Spanngliedern mit oder ohne Verbund entsprechend den maßgebenden bautechnischen Unterlagen für die Bauausführung, der Produktnorm und/oder Europäischen Technischen Bewertung (ETA, en: European Technical Assessment) befasst.
Dieses Dokument beschreibt die Aufgaben, die Personal für Spannverfahren der verschiedenen Kategorien ausführen kann.
Für die Zwecke dieses Dokuments bedeutet Personal für Spannverfahren: Fachbauleiter für Spannverfahren, Vorarbeiter für Spannverfahren, Arbeiter für Spannverfahren und Auszubildende für Spannverfahren, welche direkt angestellt oder indirekt auf Basis eines Untervertrags angestellt sind.
Dieses Dokument deckt keine allgemeinen Arbeitsschutzaspekte ab.
Dieses Dokument behandelt keine vertraglichen Fragen.
prEN 17678-2 behandelt die Bewertung der Kompetenz.
Mise en oeuvre de kits de post-tension pour la précontrainte des structures - Partie 1 : Compétences du personnel
Le présent document indique les exigences minimales de formation et d’enregistrement pour le personnel de post-tension impliqué dans la mise en oeuvre de kits de précontrainte par post-tension dans les structures en béton à l’aide de câbles adhérents ou non adhérents, conformément aux spécifications d’exécution, à la norme produit et/ou à l’Agrément Technique Européen (ATE) applicable(s).
Le présent document décrit les tâches que les différentes catégories de personnel PT peuvent entreprendre.
Pour les besoins du présent document, personnel PT signifie : directeur de travaux en précontrainte, chargés de la mise en précontrainte, opérateurs et apprentis qui sont employés directement ou indirectement sur la base d’un contrat de sous-traitance.
Le présent document ne couvre pas les aspects généraux concernant l’hygiène et la sécurité.
Le présent document n’aborde pas les questions contractuelles.
Le prEN 17678-2 traite de l’évaluation des compétences.
Vgradnja sistemov za naknadno prednapenjanje konstrukcij - 1. del: Pristojnosti osebja
Ta dokument navaja minimalne zahteve glede usposabljanja in registracije za osebje, ki izvaja prednapenjanje in sodeluje pri vgradnji kompletov prednapenjanja (PT) v betonske konstrukcije z uporabo vezanih ali nevezanih kablov v skladu z ustreznimi izvedbenimi specifikacijami, standardom za izdelek in/ali evropsko tehnično oceno (ETA).
Dokument opisuje naloge, ki jih lahko opravljajo različne kategorije osebja PT.
Za namene tega dokumenta osebje PT sestavljajo: vodja PT, nadzorniki, izvajalci in pripravniki, ki so neposredno ali posredno zaposleni na podlagi pogodbe.
Ta dokument ne zajema splošnih varnostnih in zdravstvenih vidikov.
Dokument tudi ne zajema zadev v zvezi s pogodbami.
Oceno usposobljenosti obravnava predlog standarda prEN 17678-2.
Opomba: Dokument omogoča, da so lahko dodatne zahteve podane v izvedbeni specifikaciji ali v nacionalnem dodatku.
General Information
Standards Content (Sample)

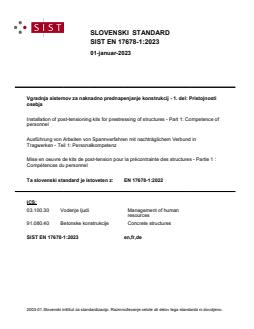

SLOVENSKI STANDARD
SIST EN 17678-1:2023
01-januar-2023
Vgradnja sistemov za naknadno prednapenjanje konstrukcij - 1. del: Pristojnosti
osebja
Installation of post-tensioning kits for prestressing of structures - Part 1: Competence of
personnel
Ausführung von Arbeiten von Spannverfahren mit nachträglichem Verbund in
Tragwerken - Teil 1: Personalkompetenz
Mise en oeuvre de kits de post-tension pour la précontrainte des structures - Partie 1 :
Compétences du personnel
Ta slovenski standard je istoveten z: EN 17678-1:2022
ICS:
03.100.30 Vodenje ljudi Management of human
resources
91.080.40 Betonske konstrukcije Concrete structures
SIST EN 17678-1:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 17678-1:2023
---------------------- Page: 2 ----------------------
SIST EN 17678-1:2023
EN 17678-1
EUROPEAN STANDARD
NORME EUROPÉENNE
October 2022
EUROPÄISCHE NORM
ICS 03.100.30; 91.080.40
English Version
Installation of post-tensioning kits for prestressing of
structures - Part 1: Competence of personnel
Mise en oeuvre de kits de post-tension pour la Ausführung von Arbeiten von Spannverfahren mit
précontrainte des structures - Partie 1 : Compétences nachträglichem Verbund in Tragwerken - Teil 1:
du personnel Personalkompetenz
This European Standard was approved by CEN on 19 September 2022.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17678-1:2022 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 17678-1:2023
EN 17678-1:2022 (E)

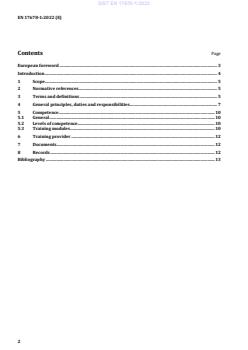

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General principles, duties and responsibilities . 7
5 Competence . 10
5.1 General. 10
5.2 Levels of competence. 10
5.3 Training modules . 10
6 Training provider . 12
7 Documents . 12
8 Records . 12
Bibliography . 13
2
---------------------- Page: 4 ----------------------
SIST EN 17678-1:2023
EN 17678-1:2022 (E)
European foreword
This document (EN 17678-1:2022) has been prepared by Technical Committee CEN/TC 104 “Concrete
and related products”, the secretariat of which is held by SN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by April 2023, and conflicting national standards shall be
withdrawn at the latest by April 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
3
---------------------- Page: 5 ----------------------
SIST EN 17678-1:2023
EN 17678-1:2022 (E)
Introduction
The market for the post-tensioning (PT) kits exists worldwide but the first area of concern is Europe.
The main motivating factor for creating this document on competence of personnel is:
— safety and quality considerations during the installation of the PT kits;
— safeguarding the integrity of structures during their service life;
— facilitating free movement of PT personnel, both between PT specialist companies and member
states.
The requirements for the competence and assessment of prestressing personnel are based on the
experience of CWA 14646:2003 [2].
The CWA was initiated by the PT providers and the CEN workshop represented all groups of stakeholders
related to the installation of PT kits.
As CWA 14646 has expired and to fill this gap, an initiative by the same group of stakeholders was taken
to replace and update the provisions on competence in CWA 14646 with this document.
This document supplements the general requirements of personnel given in EN 13670.
Part 1 of this document deals with the minimum competence personnel working with PT installations
shall possess, and with the tasks the personnel is qualified to undertake.
Part 2 of this document gives the framework for how to assess the competence of PT personnel and issue
certificates to candidates fulfilling the requirements.
Additional requirements and requirements beyond the minimum formulated in this document may be
specified in a project specification or in a national annex to this document.
4
---------------------- Page: 6 ----------------------
SIST EN 17678-1:2023
EN 17678-1:2022 (E)
1 Scope
This document specifies the minimum training and registration requirements for post-tensioning
personnel involved in the installation of PT kits. These PT kits are typically used in concrete structures
using bonded or unbonded tendons in accordance with the relevant execution specifications, product
standard and / or appropriate technical assessment.
This document specifies the tasks that the various categories of PT personnel can undertake.
For the purposes of this document, PT personnel means: PT Manager, PT Supervisors, PT Operatives and
PT Trainees who are directly employed or indirectly employed on a sub-contract basis.
This document does not cover general safety and health aspects.
This document does not cover contractual issues.
prEN 17678-2:2022 deals with the assessment of competence.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 445, Grout for prestressing tendons – Test methods
EN 446, Grout for prestressing tendons – Grouting procedures
EN 447, Grout for prestressing tendons - Basic requirements
EN 1992-1-1, Eurocode 2: Design of concrete structures - Part 1-1: General rules and rules for buildings
EN 13670, Execution of concrete structures
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
client
body for which the PT installation works are being carried out
3.2
ETA
European Technical Assessment (ETA) for a construction product, a favourable technical assessment of
its fitness for the intended use, based on the contribution made by this product to the fulfilment of the
seven Essential Requirements, as stated in the Construction Products Regulation (CPR) for the
construction works in which the product is installed
Note 1 to entry: ETAs are issued by approved Technical Approval bodies under the guidance of “European
Organisation for Technical Assessment (EOTA)”.
5
---------------------- Page: 7 ----------------------
SIST EN 17678-1:2023
EN 17678-1:2022 (E)
3.3
hold point
defined point in the post-tensioning installation process which require inspection or verification of the
satisfactory completion of all the necessary processes up to that point and prior to the commencement of
the next stage of the process
3.4
inspection and test plan
document which summarises the inspection requirements of each stage of the PT installation process,
including receipt and safe storage
Note 1 to entry: Hold points and the person(s) responsible for release will be clearly specified in the document.
3.5
post-tensioning kit
(PT kit)
arrangement of tendons and anchorages to carry out post-tensioning
Note 1 to entry: Such a kit, as defined in the relevant technical specifications and approvals may include some or
all of the following components:
— Anchorage. A mechanical device, usually consisting of several components designed to retain the force
in the stressed tendon and to transmit it to the concrete;
— Bursting reinforcement. The reinforcement in the anchorage zone to resist transverse tensile forces due
to the introduction of prestressing force;
— Coupler. A device to join tendons;
— Duct (sheathing). An enclosure in which the prestressing steel is placed, and which temporarily or
permanently allows relative movement between the prestressing steel and the surrounding concrete;
— Tendon. One or a number of prestressing steel elements, i.e. wire, strand, bar.
3.6
grout
homogeneous mixture of cement and water, it may contain admixtures and additions
[SOURCE: EN 445:2007]
3.7
method statement
documentation describing the methods and procedures to be used to perform the work
[SOURCE: EN 13670:2009]
...
SLOVENSKI STANDARD
oSIST prEN 17678-1:2021
01-september-2021
Vgradnja sistemov za naknadno prednapenjanje konstrukcij – 1. del: Pristojnosti
osebja
Installation of post-tensioned kits for prestressing of structures – Part 1: Competence of
personnel
Ausführung von Arbeiten von Spannverfahren mit nachträglichem Verbund in
Tragwerken - Teil 1: Personalkompetenz
Mise en oeuvre de kits de post-tension pour la précontrainte des structures — Partie 1 :
Compétences du personnel
Ta slovenski standard je istoveten z: prEN 17678-1
ICS:
03.100.30 Vodenje ljudi Management of human
resources
91.080.40 Betonske konstrukcije Concrete structures
oSIST prEN 17678-1:2021 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 17678-1:2021
---------------------- Page: 2 ----------------------
oSIST prEN 17678-1:2021
DRAFT
EUROPEAN STANDARD
prEN 17678-1
NORME EUROPÉENNE
EUROPÄISCHE NORM
June 2021
ICS 03.100.30; 91.080.40
English Version
Installation of post-tensioned kits for prestressing of
structures - Part 1: Competence of personnel
Ausführung von Arbeiten von Spannverfahren mit
nachträglichem Verbund in Tragwerken - Teil 1:
Personalkompetenz
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 104.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 17678-1:2021 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 17678-1:2021
prEN 17678-1:2021 (E)
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 General principles, duties and responsibilities . 8
5 Competence . 10
5.1 General. 10
5.2 Levels of competence. 10
5.3 Training modules . 11
6 Training provider . 12
7 Documents . 12
8 Records . 12
2
---------------------- Page: 4 ----------------------
oSIST prEN 17678-1:2021
prEN 17678-1:2021 (E)
European foreword
This document (prEN 17678-1:2021) has been prepared by Technical Committee CEN/TC 104 “Concrete
and related products”, the secretariat of which is held by SN.
This document is currently submitted to the CEN Enquiry.
3
---------------------- Page: 5 ----------------------
oSIST prEN 17678-1:2021
prEN 17678-1:2021 (E)
Introduction
The market for the post-tensioning (PT) kits exists worldwide but the first area of concern is Europe.
The main motivating factor for creating a European standard on competence of personnel is:
— safety and quality considerations during the installation of the kits;
— safeguarding the integrity of structures during their service life;
— facilitating free movement of PT personnel, both between PT specialist companies and member
states.
The requirements for the competence and assessment of prestressing personnel are based on the
experience of CWA 14646:2003, “Requirements for the installation of post-tensioning kits for prestressing
of structures and qualification of the specialist company and its personnel”.
The CWA was initiated by the PT providers and the CEN workshop represented all groups of stakeholders
related to the installation of PT kits.
As CWA 14649 has expired and to fill this gap, an initiative by the same group of stakeholders was taken
to replace and update the provisions on competence in CWA 14646 with this document.
This document supplements the general requirements of personnel given in EN 13670, “Execution of
concrete structures”.
Part 1 of this document deals with the minimum competence personnel dealing with PT installations shall
possess and on the tasks the personnel are qualified to undertake.
prEN 17678-2 gives the framework for how to assess the competence of PT personnel and issuing
certificates to candidates fulfilling the requirements.
Additional requirements to those given in this document may be specified in the execution specification
or in a national annex to this document.
4
---------------------- Page: 6 ----------------------
oSIST prEN 17678-1:2021
prEN 17678-1:2021 (E)
1 Scope
This document indicates the minimum training and registration requirements for post-tensioning
personnel involved in the installation of PT kits in concrete structures using bonded or unbonded tendons
in accordance with the relevant execution specifications, product standard and/or European Technical
Assessment (ETA).
This document describes the tasks that the various categories of PT personnel can undertake.
For the purposes of this document, PT personnel means: PT-Manager, Supervisors, Operatives and
Trainees who are directly employed or indirectly employed on a sub-contract basis.
This document does not cover general safety and health aspects.
This document does not cover contractual issues.
prEN 17678-2 deals with the assessment of competence.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 445, Grout for prestressing tendons – Test methods
EN 446, Grout for prestressing tendons – Grouting procedures
EN 447, Grout for prestressing tendons – Basic requirements
EN 13391:2004, Mechanical tests for post tensioning systems
EN 13670, Execution of concrete structures
EN 1992-1-1, Eurocode 2: Design of concrete structures - Part 1-1: General rules and rules for buildings
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at https://www.electropedia.org/
— ISO Online browsing platform: available at https://www.iso.org/obp
3.1
client
the body for which the PT installation works are being carried out
3.2
EOTA
European Organisation for Technical Assessment (EOTA), an international non-profit association
responsible for laying down the harmonised conditions for the marketing and technical assessment of
construction products under the CPR
5
---------------------- Page: 7 ----------------------
oSIST prEN 17678-1:2021
prEN 17678-1:2021 (E)
3.3
ETA
European Technical Assessment (ETA) for a construction product, a favourable technical assessment of
its fitness for an intended use, based on the contribution made by this product to the fulfilment of the
seven Essential Requirements, as stated in the Construction Products Regulation (CPR) for the
construction works in which the product is installed
Note 1 to entry: ETA’s are issued by approved Technical Approval bodies under the guidance of EOTA
3.4
hold point
defined point in the post-tensioning installation process which require inspection or verification of the
satisfactory completion of all of the necessary processes up to that point and prior to the commencement
of the next stage of the process
3.5
inspection and test plan
document which summarises the inspection requirements of each stage of the PT installation process,
including receipt and safe storage
Note 1 to entry: Hold points and the person(s) responsible for release will be clearly defined in the document
3.6
post-tensioning kit
(PT kit)
arrangement of tendons and anchorages to carry out post-tensioning
Note 1 to entry: Such a kit, as defined in the relevant ETA may include some or all of the following components:
— Anchorage. A mechanical device, usually consisting of several components designed to retain the force
in the stressed tendon and to transmit it to the concrete;
— Bursting reinforcement. The reinforcement in the anchorage zone to resist transverse tensile forces due
to the introduction of prestressing force;
— Coupler. A device to join tendons;
— Duct (sheathing). An enclosure in which the prestressing steel is placed and which temporarily or
permanently allows relative movement between the prestressing steel and the surrounding concrete;
— Tendon. One or a number of prestressing steel elements, i.e. wire, strand, bar.
3.7
grout
homogeneous mixture of cement and water, it may contain admixtures and additions
Note 1 to entry: Pre-bagged grout is grout comprising a pre-bagged blended mixture of cement admixture and
additives mixed with water
Note 2 to entry: Site blended grout is grout blended on site using a defined menu of cement, admixture, additives
mixed with water.
[SOURCE: EN 445:2007, definition 3.1]
6
---------------------- Page: 8 ----------------------
oSIST prEN 17678-1:2021
prEN 17678-1:2021 (E)
3.8
method statement
documentation describing the methods and procedures to be used to perform the work
[SOURCE: EN 13670:2009, definition 3.12]
3.9
prestressing
controlled generation of permanent forces and deformations in a structural concrete member to
co
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
