Environmental Engineering (EE) - Measurement methods for energy efficiency of router and switch equipment

The present document defines the methodology and the test conditions to measure the power consumption of router and
switch equipment.
The present document is applicable to Core, edge and access routers.
Home gateways are not included in the present document.

Okoljski inženiring (EE) - Metode merjenja energijske učinkovitosti opreme usmerjalnikov in stikal

Ta dokument določa metodologijo in preskusne pogoje za merjenje porabe električne energije usmerjevalnika in preklopne opreme.
Trenutni dokument se nanaša na jedrne, robne in dostopovne usmerjevalnike.
Domači prehodi niso vključeni v trenutni dokument.

General Information

Status
Published
Public Enquiry End Date
22-Oct-2017
Publication Date
26-Mar-2018
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
19-Mar-2018
Due Date
24-May-2018
Completion Date
27-Mar-2018
Mandate

Buy Standard

Standard
ETSI ES 203 136 V1.2.1 (2017-10) - Environmental Engineering (EE); Measurement methods for energy efficiency of router and switch equipment
English language
15 pages
sale 15% off
Preview
sale 15% off
Preview
Standard
ETSI ES 203 136 V1.2.0 (2017-08) - Environmental Engineering (EE); Measurement methods for energy efficiency of router and switch equipment
English language
15 pages
sale 15% off
Preview
sale 15% off
Preview
Standardization document
SIST ES 203 136 V1.2.1:2018
English language
15 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

ETSI ES 203 136 V1.2.1 (2017-10)
ETSI STANDARD
Environmental Engineering (EE);
Measurement methods for energy efficiency
of router and switch equipment
---------------------- Page: 1 ----------------------
2 ETSI ES 203 136 V1.2.1 (2017-10)
Reference
RES/EE-EEPS30
Keywords
configuration, EEER, router, switch
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the

print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying

and microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2017.
All rights reserved.
TM TM TM

DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

3GPP and LTE™ are trademarks of ETSI registered for the benefit of its Members and

of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members.

GSM® and the GSM logo are trademarks registered and owned by the GSM Association.

ETSI
---------------------- Page: 2 ----------------------
3 ETSI ES 203 136 V1.2.1 (2017-10)
Contents

Intellectual Property Rights ................................................................................................................................ 4

Foreword ............................................................................................................................................................. 4

Modal verbs terminology .................................................................................................................................... 4

Introduction ........................................................................................................................................................ 4

1 Scope ........................................................................................................................................................ 5

2 References ................................................................................................................................................ 5

2.1 Normative references ......................................................................................................................................... 5

2.2 Informative references ........................................................................................................................................ 5

3 Definitions and abbreviations ................................................................................................................... 6

3.1 Definitions .......................................................................................................................................................... 6

3.2 Abbreviations ..................................................................................................................................................... 6

4 Equipment Classification ......................................................................................................................... 6

4.1 Router ................................................................................................................................................................. 6

4.2 Switch ................................................................................................................................................................. 7

5 Definitions of the Equipment Energy Efficiency Ratio for Router and Switch ....................................... 7

6 Measurement Methods ........................................................................................................................... 10

6.1 Measurement conditions ................................................................................................................................... 10

6.2 Equipment Configuration ................................................................................................................................. 11

6.3 Measurement Procedures ................................................................................................................................. 11

6.4 Alternative Measurement Method .................................................................................................................... 13

History .............................................................................................................................................................. 15

ETSI
---------------------- Page: 3 ----------------------

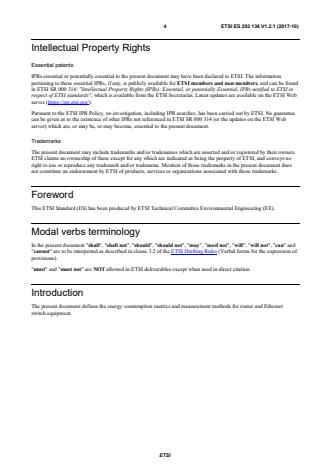

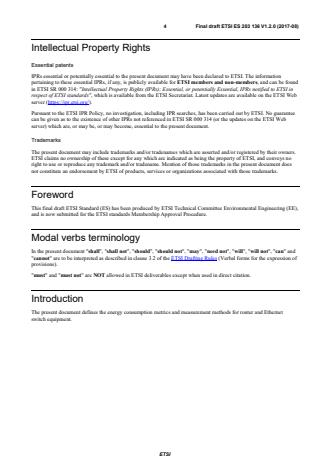

4 ETSI ES 203 136 V1.2.1 (2017-10)
Intellectual Property Rights
Essential patents

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (https://ipr.etsi.org/).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Trademarks

The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.

ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no

right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does

not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.

Foreword

This ETSI Standard (ES) has been produced by ETSI Technical Committee Environmental Engineering (EE).

Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

Introduction

The present document defines the energy consumption metrics and measurement methods for router and Ethernet

switch equipment.
ETSI
---------------------- Page: 4 ----------------------
5 ETSI ES 203 136 V1.2.1 (2017-10)
1 Scope

The present document defines the methodology and the test conditions to measure the power consumption of router and

switch equipment.
The present document is applicable to Core, edge and access routers.
Home gateways are not included in the present document.
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

https://docbox.etsi.org/Reference/.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ATIS-0600015.03.2009: "Energy Efficiency for Telecommunication Equipment: Methodology for

Measurement and Reporting for Router and Ethernet Switch Products".

[2] ATIS-0600015: "Energy Efficiency for Telecommunication Equipment: Methodology for

Measurement and Reporting - General Requirements".
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.

[i.1] ETSI EN 300 132-2: "Environmental Engineering (EE); Power supply interface at the input to

telecommunications and datacom (ICT) equipment; Part 2: Operated by -48 V direct current (dc)".

ETSI
---------------------- Page: 5 ----------------------
6 ETSI ES 203 136 V1.2.1 (2017-10)
3 Definitions and abbreviations
3.1 Definitions

For the purposes of the present document, the following terms and definitions apply:

aggregation mode: mode in which, a few (typically higher bandwidth) ports on the equipment are considered UPLINK

ports; while majority (typically lower bandwidth) ports are considered user ports

NOTE: In this configuration the data flow is strictly from user ports to uplink ports and vice versa. User ports do

not communicate with each other through this equipment.

core mode: mode in which all ports are considered similar and have similar bandwidth

NOTE: In this configuration the data flow is so that each port communicate with one another.

maximum configuration: configuration with maximum capacity where whole slots of the equipment are configured

with maximum interface bandwidth line cards, all of the interfaces can work at the maximum data rate

3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
ATM Asynchronous Transfer Mode
DC Direct Current
EE Energy Efficiency
EEER Equipment Energy Efficiency Ratio
EER Energy Efficiency Rating
EUT Equipment Under Test
FDDI Fibre Distributed Data Interface
FE Fast Ethernet
GE Giga Ethernet
IMIX Internet MIX traffic
IP Internet Protocol
MPU Main Processing Unit
NDR Non Drop Rate
OSI Open System Interconnection
PAR Peak to Average Ratio
PoE Power other Ethernet
QoS Quality of Service
4 Equipment Classification
4.1 Router

Routers are typical packet switching equipment running at the network layer of OSI layer 3. The router selects the

optimal route according to the destination address of the received packet through a network and forwards the packet to

the next router. The last router is responsible for sending the packet to the destination host.

Routers connect different physical networks and manually configure and run standard protocols to obtain the

information of each subnet such as label, number of devices, names and addresses, etc. and thus generate and maintain a

live forwarding routing table. Based on this table, each IP packet passing these routers will be assigned an optimal path

according to the longest matching rules and be forwarded to the right path, if the path searching of the packet fails, this

packet will be abandoned.
ETSI
---------------------- Page: 6 ----------------------
7 ETSI ES 203 136 V1.2.1 (2017-10)

The router can connect two or more independent and flexible logical networks using different data packets method and

media access method. Routers have not any requirements for hardware in each subnet but run the software using the

same network layer protocol.

In light of the router different application scenarios, they can be classified into core routers, service routers, broadband

access routers, and aggregation routers (Core, Edge, access routers in ATIS 0600015.03.2009 [1] classification).

Routers have the following typical features:

1) Provide multiple protocols on network layer to connect different types of networks.

2) Provide multiple types of interfaces so as to realize the conversion between the packets with different

encapsulations and transmission across different networks.
3) Support packet fragmentation and reassembly.

4) Provide large-scale packet buffers so as to support QoS and traffic engineering.

5) Provide large-scale routing tables and support large-scale Layer 3 services within intra-networks or

inter-networks.
4.2 Switch

Switches generally refer to equipment that exchange information in a communications system. They include Ethernet

switches, ATM switches, FDDI switches, and token ring switches, Ethernet switch is widely used because of fast

development of Ethernet technologies and its low costs, therefore, switches in the present document refer to Ethernet

switches.

Switches are typical packet switching devices at the data link layer of OSI layer 2. Based on the destination data link

layer addresses in the Layer 2 switching tables, each received packet, will be assigned an optimal path according to the

accurate matching rule and be forwarded to the right path, if the path searching of the packet fails, this packet will be

sent to the broadcast domain to which it belongs. The Layer 2 switching table is generated by switch network

self-learning.

The main function of switches is packet switching at the data link layer, but with the development of network

technologies, the relationship between network hierarchy and hardware equipment has become ambiguous, it is not

limited to Layer 2 services, the routing function is also integrated into most switches to support Layer 3 services, if the

path searching of packets entering the switch fails in Layer 2, then it will be delivered to the routing module for

...

Final draft ETSI ES 203 136 V1.2.0 (2017-08)
ETSI STANDARD
Environmental Engineering (EE);
Measurement methods for energy efficiency
of router and switch equipment
---------------------- Page: 1 ----------------------
2 Final draft ETSI ES 203 136 V1.2.0 (2017-08)
Reference
RES/EE-EEPS30
Keywords
configuration, EEER, router, switch
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the

print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying

and microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2017.
All rights reserved.
TM TM TM

DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

3GPP and LTE™ are trademarks of ETSI registered for the benefit of its Members and

of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members.

GSM® and the GSM logo are trademarks registered and owned by the GSM Association.

ETSI
---------------------- Page: 2 ----------------------
3 Final draft ETSI ES 203 136 V1.2.0 (2017-08)
Contents

Intellectual Property Rights ................................................................................................................................ 4

Foreword ............................................................................................................................................................. 4

Modal verbs terminology .................................................................................................................................... 4

Introduction ........................................................................................................................................................ 4

1 Scope ........................................................................................................................................................ 5

2 References ................................................................................................................................................ 5

2.1 Normative references ......................................................................................................................................... 5

2.2 Informative references ........................................................................................................................................ 5

3 Definitions and abbreviations ................................................................................................................... 5

3.1 Definitions .......................................................................................................................................................... 5

3.2 Abbreviations ..................................................................................................................................................... 6

4 Equipment Classification ......................................................................................................................... 6

4.1 Router ................................................................................................................................................................. 6

4.2 Switch ................................................................................................................................................................. 7

5 Definitions of the Equipment Energy Efficiency Ratio for Router and Switch ....................................... 7

6 Measurement Methods ........................................................................................................................... 10

6.1 Measurement conditions ................................................................................................................................... 10

6.2 Equipment Configuration ................................................................................................................................. 11

6.3 Measurement Procedures ................................................................................................................................. 11

6.4 Alternative Measurement Method .................................................................................................................... 13

History .............................................................................................................................................................. 15

ETSI
---------------------- Page: 3 ----------------------
4 Final draft ETSI ES 203 136 V1.2.0 (2017-08)
Intellectual Property Rights
Essential patents

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (https://ipr.etsi.org/).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Trademarks

The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.

ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no

right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does

not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.

Foreword

This final draft ETSI Standard (ES) has been produced by ETSI Technical Committee Environmental Engineering (EE),

and is now submitted for the ETSI standards Membership Approval Procedure.
Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

Introduction

The present document defines the energy consumption metrics and measurement methods for router and Ethernet

switch equipment.
ETSI
---------------------- Page: 4 ----------------------
5 Final draft ETSI ES 203 136 V1.2.0 (2017-08)
1 Scope

The present document defines the methodology and the test conditions to measure the power consumption of router and

switch equipment.
The present document is applicable to Core, edge and access routers.
Home gateways are not included in the present document.
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

https://docbox.etsi.org/Reference/.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ATIS-0600015.03.2009: "Energy Efficiency for Telecommunication Equipment: Methodology for

Measurement and Reporting for Router and Ethernet Switch Products".

[2] ATIS-0600015: "Energy Efficiency for Telecommunication Equipment: Methodology for

Measurement and Reporting - General Requirements".
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.

[i.1] ETSI EN 300 132-2: "Environmental Engineering (EE); Power supply interface at the input to

telecommunications and datacom (ICT) equipment; Part 2: Operated by -48 V direct current (dc)".

3 Definitions and abbreviations
3.1 Definitions

For the purposes of the present document, the following terms and definitions apply:

aggregation mode: mode in which, a few (typically higher bandwidth) ports on the equipment are considered UPLINK

ports; while majority (typically lower bandwidth) ports are considered user ports

ETSI
---------------------- Page: 5 ----------------------
6 Final draft ETSI ES 203 136 V1.2.0 (2017-08)

NOTE: In this configuration the data flow is strictly from user ports to uplink ports and vice versa. User ports do

not communicate with each other through this equipment.

core mode: mode in which all ports are considered similar and have similar bandwidth

NOTE: In this configuration the data flow is so that each port communicate with one another.

maximum configuration: configuration with maximum capacity where whole slots of the equipment are configured

with maximum interface bandwidth line cards, all of the interfaces can work at the maximum data rate

3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
ATM Asynchronous Transfer Mode
DC Direct Current
EE Energy Efficiency
EEER Equipment Energy Efficiency Ratio
EER Energy Efficiency Rating
EUT Equipment Under Test
FDDI Fibre Distributed Data Interface
FE Fast Ethernet
GE Giga Ethernet
IMIX Internet MIX traffic
IP Internet Protocol
MPU Main Processing Unit
NDR Non Drop Rate
OSI Open System Interconnection
PAR Peak to Average Ratio
PoE Power other Ethernet
QoS Quality of Service
4 Equipment Classification
4.1 Router

Routers are typical packet switching equipment running at the network layer of OSI layer 3. The router selects the

optimal route according to the destination address of the received packet through a network and forwards the packet to

the next router. The last router is responsible for sending the packet to the destination host.

Routers connect different physical networks and manually configure and run standard protocols to obtain the

information of each subnet such as label, number of devices, names and addresses, etc. and thus generate and maintain a

live forwarding routing table. Based on this table, each IP packet passing these routers will be assigned an optimal path

according to the longest matching rules and be forwarded to the right path, if the path searching of the packet fails, this

packet will be abandoned.

The router can connect two or more independent and flexible logical networks using different data packets method and

media access method. Routers have not any requirements for hardware in each subnet but run the software using the

same network layer protocol.

In light of the router different application scenarios, they can be classified into core routers, service routers, broadband

access routers, and aggregation routers (Core, Edge, access routers in ATIS 0600015.03.2009 [1] classification).

Routers have the following typical features:

1) Provide multiple protocols on network layer to connect different types of networks.

2) Provide multiple types of interfaces so as to realize the conversion between the packets with different

encapsulations and transmission across different networks.
ETSI
---------------------- Page: 6 ----------------------
7 Final draft ETSI ES 203 136 V1.2.0 (2017-08)
3) Support packet fragmentation and reassembly.

4) Provide large-scale packet buffers so as to support QoS and traffic engineering.

5) Provide large-scale routing tables and support large-scale Layer 3 services within intra-networks or

inter-networks.
4.2 Switch

Switches generally refer to equipment that exchange information in a communications system. They include Ethernet

switches, ATM switches, FDDI switches, and token ring switches, Ethernet switch is widely used because of fast

development of Ethernet technologies and its low costs, therefore, switches in the present document refer to Ethernet

switches.

Switches are typical packet switching devices at the data link layer of OSI layer 2. Based on the destination data link

layer addresses in the Layer 2 switching tables, each received packet, will be assigned an optimal path according to the

accurate matching rule and be forwarded to the right path, if the path searching of the packet fails, this packet will be

sent to the broadcast domain to which it belongs. The Layer 2 switching table is generated by switch network

self-learning.

The main function of switches is packet switching at the data link layer, but with the development of network

technologies, the relationship between network hierarchy and hardware equipment has become ambiguous, it is not

limited to Layer 2 services, the routing function is also integrated into most switches to support Layer 3 services, if the

path searching of packets entering the switch fails in Layer
...

SLOVENSKI STANDARD
SIST ES 203 136 V1.2.1:2018
01-maj-2018
2NROMVNLLQåHQLULQJ (( 0HWRGHPHUMHQMDHQHUJLMVNHXþLQNRYLWRVWLRSUHPH
XVPHUMDOQLNRYLQVWLNDO

Environmental Engineering (EE) - Measurement methods for energy efficiency of router

and switch equipment
Ta slovenski standard je istoveten z: ETSI ES 203 136 V1.2.1 (2017-10)
ICS:
19.040 Preskušanje v zvezi z Environmental testing
okoljem
27.015 (QHUJLMVNDXþLQNRYLWRVW Energy efficiency. Energy
2KUDQMDQMHHQHUJLMHQD conservation in general
VSORãQR
33.040.01 Telekomunikacijski sistemi Telecommunication systems
na splošno in general
SIST ES 203 136 V1.2.1:2018 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST ES 203 136 V1.2.1:2018
---------------------- Page: 2 ----------------------
SIST ES 203 136 V1.2.1:2018
ETSI ES 203 136 V1.2.1 (2017-10)
ETSI STANDARD
Environmental Engineering (EE);
Measurement methods for energy efficiency
of router and switch equipment
---------------------- Page: 3 ----------------------
SIST ES 203 136 V1.2.1:2018
2 ETSI ES 203 136 V1.2.1 (2017-10)
Reference
RES/EE-EEPS30
Keywords
configuration, EEER, router, switch
ETSI
650 Route des Lucioles
F-06921 Sophia Antipolis Cedex - FRANCE
Tel.: +33 4 92 94 42 00 Fax: +33 4 93 65 47 16
Siret N° 348 623 562 00017 - NAF 742 C
Association à but non lucratif enregistrée à la
Sous-Préfecture de Grasse (06) N° 7803/88
Important notice
The present document can be downloaded from:
http://www.etsi.org/standards-search

The present document may be made available in electronic versions and/or in print. The content of any electronic and/or

print versions of the present document shall not be modified without the prior written authorization of ETSI. In case of any

existing or perceived difference in contents between such versions and/or in print, the only prevailing document is the

print of the Portable Document Format (PDF) version kept on a specific network drive within ETSI Secretariat.

Users of the present document should be aware that the document may be subject to revision or change of status.

Information on the current status of this and other ETSI documents is available at

https://portal.etsi.org/TB/ETSIDeliverableStatus.aspx

If you find errors in the present document, please send your comment to one of the following services:

https://portal.etsi.org/People/CommiteeSupportStaff.aspx
Copyright Notification

No part may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying

and microfilm except as authorized by written permission of ETSI.

The content of the PDF version shall not be modified without the written authorization of ETSI.

The copyright and the foregoing restriction extend to reproduction in all media.
© ETSI 2017.
All rights reserved.
TM TM TM

DECT , PLUGTESTS , UMTS and the ETSI logo are trademarks of ETSI registered for the benefit of its Members.

3GPP and LTE™ are trademarks of ETSI registered for the benefit of its Members and

of the 3GPP Organizational Partners.
oneM2M logo is protected for the benefit of its Members.

GSM® and the GSM logo are trademarks registered and owned by the GSM Association.

ETSI
---------------------- Page: 4 ----------------------
SIST ES 203 136 V1.2.1:2018
3 ETSI ES 203 136 V1.2.1 (2017-10)
Contents

Intellectual Property Rights ................................................................................................................................ 4

Foreword ............................................................................................................................................................. 4

Modal verbs terminology .................................................................................................................................... 4

Introduction ........................................................................................................................................................ 4

1 Scope ........................................................................................................................................................ 5

2 References ................................................................................................................................................ 5

2.1 Normative references ......................................................................................................................................... 5

2.2 Informative references ........................................................................................................................................ 5

3 Definitions and abbreviations ................................................................................................................... 6

3.1 Definitions .......................................................................................................................................................... 6

3.2 Abbreviations ..................................................................................................................................................... 6

4 Equipment Classification ......................................................................................................................... 6

4.1 Router ................................................................................................................................................................. 6

4.2 Switch ................................................................................................................................................................. 7

5 Definitions of the Equipment Energy Efficiency Ratio for Router and Switch ....................................... 7

6 Measurement Methods ........................................................................................................................... 10

6.1 Measurement conditions ................................................................................................................................... 10

6.2 Equipment Configuration ................................................................................................................................. 11

6.3 Measurement Procedures ................................................................................................................................. 11

6.4 Alternative Measurement Method .................................................................................................................... 13

History .............................................................................................................................................................. 15

ETSI
---------------------- Page: 5 ----------------------
SIST ES 203 136 V1.2.1:2018
4 ETSI ES 203 136 V1.2.1 (2017-10)
Intellectual Property Rights
Essential patents

IPRs essential or potentially essential to the present document may have been declared to ETSI. The information

pertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be found

in ETSI SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in

respect of ETSI standards", which is available from the ETSI Secretariat. Latest updates are available on the ETSI Web

server (https://ipr.etsi.org/).

Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guarantee

can be given as to the existence of other IPRs not referenced in ETSI SR 000 314 (or the updates on the ETSI Web

server) which are, or may be, or may become, essential to the present document.
Trademarks

The present document may include trademarks and/or tradenames which are asserted and/or registered by their owners.

ETSI claims no ownership of these except for any which are indicated as being the property of ETSI, and conveys no

right to use or reproduce any trademark and/or tradename. Mention of those trademarks in the present document does

not constitute an endorsement by ETSI of products, services or organizations associated with those trademarks.

Foreword

This ETSI Standard (ES) has been produced by ETSI Technical Committee Environmental Engineering (EE).

Modal verbs terminology

In the present document "shall", "shall not", "should", "should not", "may", "need not", "will", "will not", "can" and

"cannot" are to be interpreted as described in clause 3.2 of the ETSI Drafting Rules (Verbal forms for the expression of

provisions).

"must" and "must not" are NOT allowed in ETSI deliverables except when used in direct citation.

Introduction

The present document defines the energy consumption metrics and measurement methods for router and Ethernet

switch equipment.
ETSI
---------------------- Page: 6 ----------------------
SIST ES 203 136 V1.2.1:2018
5 ETSI ES 203 136 V1.2.1 (2017-10)
1 Scope

The present document defines the methodology and the test conditions to measure the power consumption of router and

switch equipment.
The present document is applicable to Core, edge and access routers.
Home gateways are not included in the present document.
2 References
2.1 Normative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

Referenced documents which are not found to be publicly available in the expected location might be found at

https://docbox.etsi.org/Reference/.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are necessary for the application of the present document.

[1] ATIS-0600015.03.2009: "Energy Efficiency for Telecommunication Equipment: Methodology for

Measurement and Reporting for Router and Ethernet Switch Products".

[2] ATIS-0600015: "Energy Efficiency for Telecommunication Equipment: Methodology for

Measurement and Reporting - General Requirements".
2.2 Informative references

References are either specific (identified by date of publication and/or edition number or version number) or

non-specific. For specific references, only the cited version applies. For non-specific references, the latest version of the

referenced document (including any amendments) applies.

NOTE: While any hyperlinks included in this clause were valid at the time of publication, ETSI cannot guarantee

their long term validity.

The following referenced documents are not necessary for the application of the present document but they assist the

user with regard to a particular subject area.

[i.1] ETSI EN 300 132-2: "Environmental Engineering (EE); Power supply interface at the input to

telecommunications and datacom (ICT) equipment; Part 2: Operated by -48 V direct current (dc)".

ETSI
---------------------- Page: 7 ----------------------
SIST ES 203 136 V1.2.1:2018
6 ETSI ES 203 136 V1.2.1 (2017-10)
3 Definitions and abbreviations
3.1 Definitions

For the purposes of the present document, the following terms and definitions apply:

aggregation mode: mode in which, a few (typically higher bandwidth) ports on the equipment are considered UPLINK

ports; while majority (typically lower bandwidth) ports are considered user ports

NOTE: In this configuration the data flow is strictly from user ports to uplink ports and vice versa. User ports do

not communicate with each other through this equipment.

core mode: mode in which all ports are considered similar and have similar bandwidth

NOTE: In this configuration the data flow is so that each port communicate with one another.

maximum configuration: configuration with maximum capacity where whole slots of the equipment are configured

with maximum interface bandwidth line cards, all of the interfaces can work at the maximum data rate

3.2 Abbreviations
For the purposes of the present document, the following abbreviations apply:
AC Alternating Current
ATM Asynchronous Transfer Mode
DC Direct Current
EE Energy Efficiency
EEER Equipment Energy Efficiency Ratio
EER Energy Efficiency Rating
EUT Equipment Under Test
FDDI Fibre Distributed Data Interface
FE Fast Ethernet
GE Giga Ethernet
IMIX Internet MIX traffic
IP Internet Protocol
MPU Main Processing Unit
NDR Non Drop Rate
OSI Open System Interconnection
PAR Peak to Average Ratio
PoE Power other Ethernet
QoS Quality of Service
4 Equipment Classification
4.1 Router

Routers are typical packet switching equipment running at the network layer of OSI layer 3. The router selects the

optimal route according to the destination address of the received packet through a network and forwards the packet to

the next router. The last router is responsible for sending the packet to the destination host.

Routers connect different physical networks and manually configure and run standard protocols to obtain the

information of each subnet such as label, number of devices, names and addresses, etc. and thus generate and maintain a

live forwarding routing table. Based on this table, each IP packet passing these routers will be assigned an optimal path

according to the longest matching rules and be forwarded to the right path, if the path searching of the packet fails, this

packet will be abandoned.
ETSI
---------------------- Page: 8 ----------------------
SIST ES 203 136 V1.2.1:2018
7 ETSI ES 203 136 V1.2.1 (2017-10)

The router can connect two or more independent and flexible logical networks using different data packets method and

media access method. Routers have not any requirements for hardware in each subnet but run the software using the

same network layer protocol.

In light of the router different application scenarios, they can be classified into core routers, service routers, broadband

access routers, and aggregation routers (Core, Edge, access routers in ATIS 0600015.03.2009 [1] classification).

Routers have the following typical features:

1) Provide multiple protocols on network layer to connect different types of networks.

2) Provide multiple types of interfaces so as to realize the conversion between the packets with different

encapsulations and transmission across different networks.
3) Support packet fragmentation and reassembly.

4) Provide large-scale packet buffers so as to support QoS and traffic engineering.

5) Provide large-scale routing tables and support large-scale Layer 3 services within intra-networks or

inter-networks.
4.2 Switch

Switches generally refer to equipment that exchange information in a communications system. They include Ethernet

switches, ATM switches, FDDI switches, and token ring switches, Ethernet switch is widely used because of fast

development of Ethernet technologies and its low costs, therefore, switches in the present document refer to Ethernet

switches.

Switches are typical packet switching devices at the data link layer of OSI layer 2. Based on the destination data link

layer addresses in the Layer 2 switching tables, each received packet, will be assigned an optimal path according to the

accurate matching rule and be forwarded to the right path, if the path searching of the packet fails, this packet will be

sent to the broadcast domain to which it belongs. The Layer 2 switching table is generated by switch network

self-learning.
The main function of switches is packet sw
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
