SIST EN 573-3:2026

Aluminium and aluminium alloys - Chemical composition and form of wrought products - Part 3: Chemical composition and form of products

This document specifies the chemical composition limits of wrought aluminium and wrought aluminium alloys and form of products.
NOTE   The chemical composition limits of aluminium and aluminium alloys specified herein are completely identical with those registered with the Aluminium Association, 1525, Wilson Boulevard, Suite 600, Arlington, VA 22209, USA, for the corresponding alloys.

Aluminium und Aluminiumlegierungen - Chemische Zusammensetzung und Form von Halbzeug - Teil 3: Chemische Zusammensetzung und Erzeugnisformen

Dieses Dokument legt die Grenzwerte für die chemische Zusammensetzung von Aluminium und Aluminium-Knetlegierungen und die Erzeugnisformen fest.
ANMERKUNG   Die hier festgelegten Grenzwerte für die chemische Zusammensetzung von Aluminium und Aluminiumlegierungen stimmen völlig mit den entsprechenden Legierungen überein, die bei der Aluminium Association, 1525, Wilson Boulevard, Suite 600, Arlington, VA 22209, USA, registriert sind.

Aluminium et alliages d'aluminium - Composition chimique et forme des produits corroyés - Partie 3 : Composition chimique et forme des produits

Le présent document spécifie les limites de composition chimique des aluminiums et alliages d’aluminium corroyés et les formes de produits.
NOTE   Les limites de composition chimique de l’aluminium et des alliages d’aluminium spécifiées ici sont strictement identiques à celles enregistrées auprès de l’Aluminium Association, 1525 Wilson Boulevard, Suite 600, Arlington, VA 22209, États-Unis, pour les alliages correspondants.

Aluminij in aluminijeve zlitine - Kemična sestava in oblika gnetenih izdelkov - 3. del: Kemična sestava in oblika izdelkov

Ta dokument določa mejne vrednosti kemijske sestave kovanega aluminija in kovanih aluminijevih zlitin ter obliko izdelkov.
OPOMBA Mejni vrednosti kemijske sestave aluminija in aluminijevih zlitin, določene v tem dokumentu, so popolnoma enake tistim, ki so registrirane pri Aluminium Association, 1525, Wilson Boulevard, Suite 600, Arlington, VA 22209, ZDA, za ustrezne zlitine.

General Information

• Status: Published
• Public Enquiry End Date: 09-Jun-2025
• Publication Date: 08-Apr-2026
• ICS: 77.040.30 - Chemical analysis of metals
• ICS: 77.120.10 - Aluminium and aluminium alloys
• ICS: 77.150.10 - Aluminium products
• Technical Committee: INEK - Nonferrous metals
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 31-Mar-2026
• Due Date: 05-Jun-2026
• Completion Date: 09-Apr-2026
• Ref Project: EN 573-3:2026 - Aluminium and aluminium alloys - Chemical composition and form of wrought products - Part 3: Chemical composition and form of products

Relations

• Referred By: SIST EN 541:2007 - Aluminium and aluminium alloys - Rolled products for cans, closures and lids - Specifications
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 1715-3:2008 - Aluminium and aluminium alloys - Drawing stock - Part 3: Specific requirements for mechanical uses (excluding welding)
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 1305:2018 - Inland navigation vessels - Connections for the discharge of oily mixture
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 1396:2023 - Aluminium and aluminium alloys - Coil coated sheet and strip for general applications - Specifications
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 603-3:2021 - Aluminium and aluminium alloys - Wrought forging stock - Part 3: Tolerances on dimensions and form
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 14286:2008 - Aluminium and aluminium alloys - Weldable rolled products for tanks for the storage and transportation of dangerous goods
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 3719:2018 - Aerospace series - Aluminium or aluminium alloy conductors for electrical cables - Product standard
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 4632-002:2008 - Aerospace series - Welded and brazed assemblies for aerospace constructions - Weldability and brazeability of materials - Part 002: Homogeneous assemblies aluminium and aluminium alloys
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 755-1:2016 - Aluminium and aluminium alloys- Extruded rod/bar, tube and profiles - Part 1: Technical conditions for inspection and delivery
• Effective Date: 25-Mar-2026
• Referred By: SIST EN ISO 13918:2008 - Welding - Studs and ceramic ferrules for arc stud welding (ISO 13918:2008)
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 546-1:2007 - Aluminium and aluminium alloys - Foil - Part 1: Technical conditions for inspection and delivery
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 12206-1:2005 - Paints and varnishes - Coating of aluminium and aluminium alloys for architectural purposes - Part 1: Coatings prepared from coating powder
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 586-1:1998 - Aluminium and aluminium alloys - Forgings - Part 1: Technical conditions for inspection and delivery
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 13195:2010 - Aluminium and aluminium alloys - Specifications for wrought and cast products for marine applications (shipbuilding, marine and offshore)
• Effective Date: 25-Mar-2026
• Referred By: SIST EN 14604:2005 - Smoke alarm devices
• Effective Date: 25-Mar-2026

Overview

The kSIST FprEN 573-3:2025 standard, published by the European Committee for Standardization (CEN), defines the chemical composition limits and form of wrought aluminium and aluminium alloys. This specification is essential for manufacturers, engineers, and quality controllers to ensure consistency, compatibility, and performance of aluminium products used in diverse industries. The standard aligns closely with the Aluminium Association's registered chemical compositions, promoting global harmonization.

Key Topics

• Chemical Composition Limits
  kSIST FprEN 573-3:2025 details the permissible chemical limits for alloying elements and impurities in wrought aluminium alloys, specified as percentages by mass. Elements such as silicon, iron, copper, manganese, magnesium, chromium, nickel, zinc, titanium, gallium, and vanadium are listed with defined ranges or maximums.

  • Unalloyed aluminium is specified by a minimum aluminium content or remainder after other elements.
  • Detailed rounding rules and writing rules establish consistent expression and testing criteria for chemical analysis.

• Alloy Designations
  The document enforces the use of the numerical designation system identical to that of the Aluminium Association, with the prefix "EN AW-" for European conformity. Both numerical and chemical symbol-based designations are documented for cross-reference purposes.

• Forms of Wrought Products
  Annex A covers the allowed forms of wrought aluminium products, specifying shapes and product forms in accordance with their chemical compositions, which supports production planning and technical documentation standards.

• Introduction of New Alloys
  Annex B provides guidelines to introduce new wrought aluminium alloys into CEN standards, allowing industry stakeholders to stay updated with technological advances and material evolution.

• Compliance and Testing
  Specific rounding and analytic methodologies ensure chemical analysis is accurate, reproducible, and consistent with international practices. This provides a reliable basis for conformance testing during manufacturing and quality assurance.

Applications

kSIST FprEN 573-3:2025 is crucial for industries relying on high-quality aluminium and aluminium alloys including:

• Aerospace and Automotive: Ensuring alloy chemical composition matches performance requirements for strength, corrosion resistance, and weight optimization.
• Construction and Architecture: Use in panels, frames, and structural components requiring known chemical purity and alloy characteristics.
• Electrical and Electronics: Control of elemental content to meet conductivity and mechanical standards for wiring and components.
• Packaging and Consumer Goods: Manufacture of food-safe and durable aluminium foils, cans, and containers.
• Machinery and Equipment Manufacturing: Reliable material specifications for parts subject to wear and environmental exposure.

Related Standards

kSIST FprEN 573-3:2025 operates alongside several related European and international standards to form a comprehensive framework for aluminium products:

• EN 485-2 – Mechanical Properties of Aluminium Sheets, Strips, and Plates
• EN 573-1 – Numerical Designation System for Aluminium and Alloys
• EN 573-2 – Chemical Symbol Based Designation System
• EN 754 series – Mechanical Property Specifications for Rod, Bar, and Tube
• EN 755 series – Extruded Rod, Bar, Tube, and Profiles Mechanical Properties
• EN 570 & EN 586-2 – Specifications and Mechanical Properties for Impact Extrusion Slugs and Forgings
• ISO and IEC Terminology Databases – For consistent term definition used in metal analysis and standardization

Conclusion

kSIST FprEN 573-3:2025 is a vital standard for ensuring the chemical integrity and product form of wrought aluminium alloys within Europe and harmonized globally. Adhering to these precise composition limits and product form specifications guarantees material performance, quality control, and interoperability across industries. The standard supports manufacturers and users in delivering reliable, high-quality aluminium products tailored to modern industrial applications.

Keywords: Aluminium standard, wrought aluminium alloys, chemical composition limits, alloy designation, EN AW designation, aluminium products, aluminium chemical analysis, CEN standards, wrought aluminium forms, alloy specification, metal quality compliance.

Standards Content (Sample)

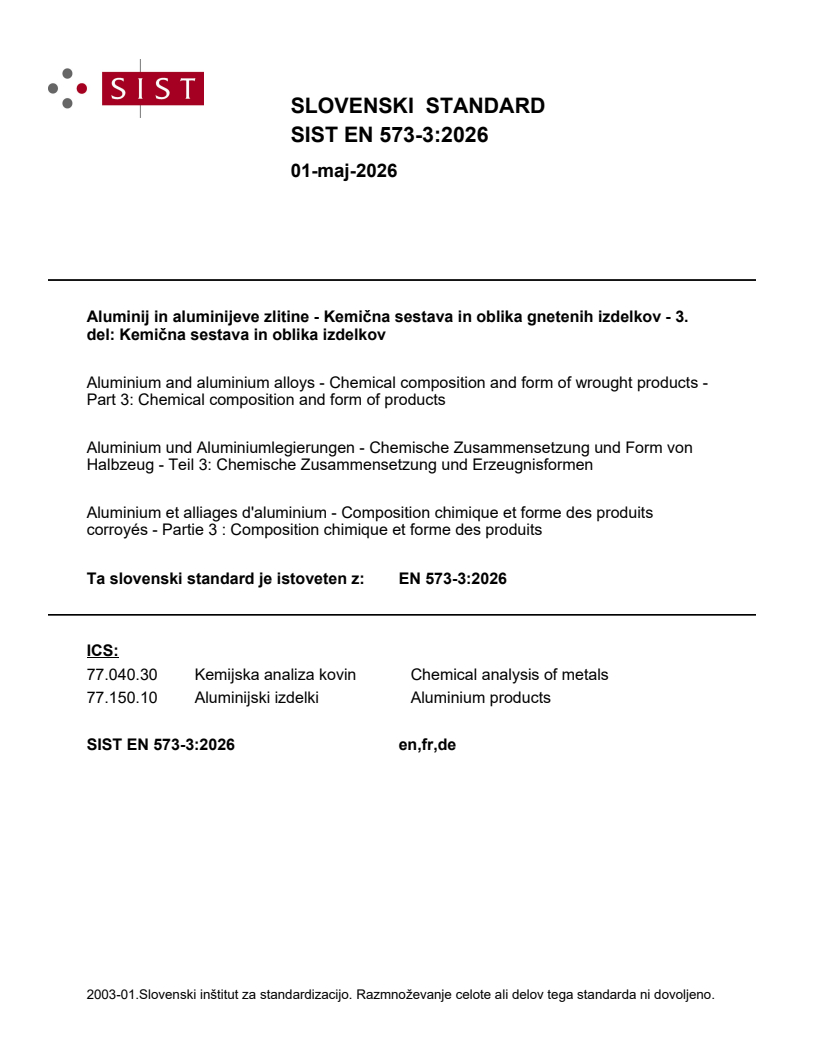

SLOVENSKI STANDARD
01-maj-2026
Aluminij in aluminijeve zlitine - Kemična sestava in oblika gnetenih izdelkov - 3.
del: Kemična sestava in oblika izdelkov
Aluminium and aluminium alloys - Chemical composition and form of wrought products -
Part 3: Chemical composition and form of products
Aluminium und Aluminiumlegierungen - Chemische Zusammensetzung und Form von
Halbzeug - Teil 3: Chemische Zusammensetzung und Erzeugnisformen
Aluminium et alliages d'aluminium - Composition chimique et forme des produits
corroyés - Partie 3 : Composition chimique et forme des produits
Ta slovenski standard je istoveten z: EN 573-3:2026
ICS:
77.040.30 Kemijska analiza kovin Chemical analysis of metals
77.150.10 Aluminijski izdelki Aluminium products
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

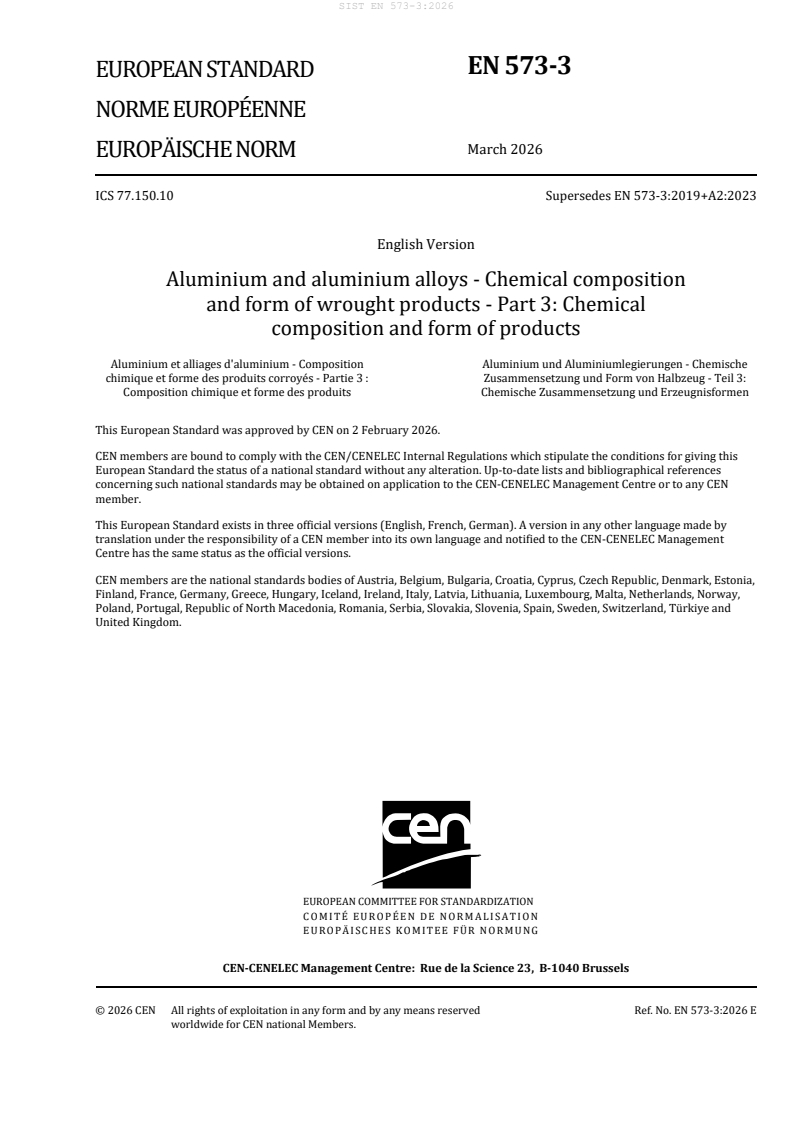

EN 573-3
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2026
EUROPÄISCHE NORM
ICS 77.150.10 Supersedes EN 573-3:2019+A2:2023
English Version
Aluminium and aluminium alloys - Chemical composition
and form of wrought products - Part 3: Chemical
composition and form of products
Aluminium et alliages d'aluminium - Composition Aluminium und Aluminiumlegierungen - Chemische
chimique et forme des produits corroyés - Partie 3 : Zusammensetzung und Form von Halbzeug - Teil 3:
Composition chimique et forme des produits Chemische Zusammensetzung und Erzeugnisformen
This European Standard was approved by CEN on 2 February 2026.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2026 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 573-3:2026 E
worldwide for CEN national Members.

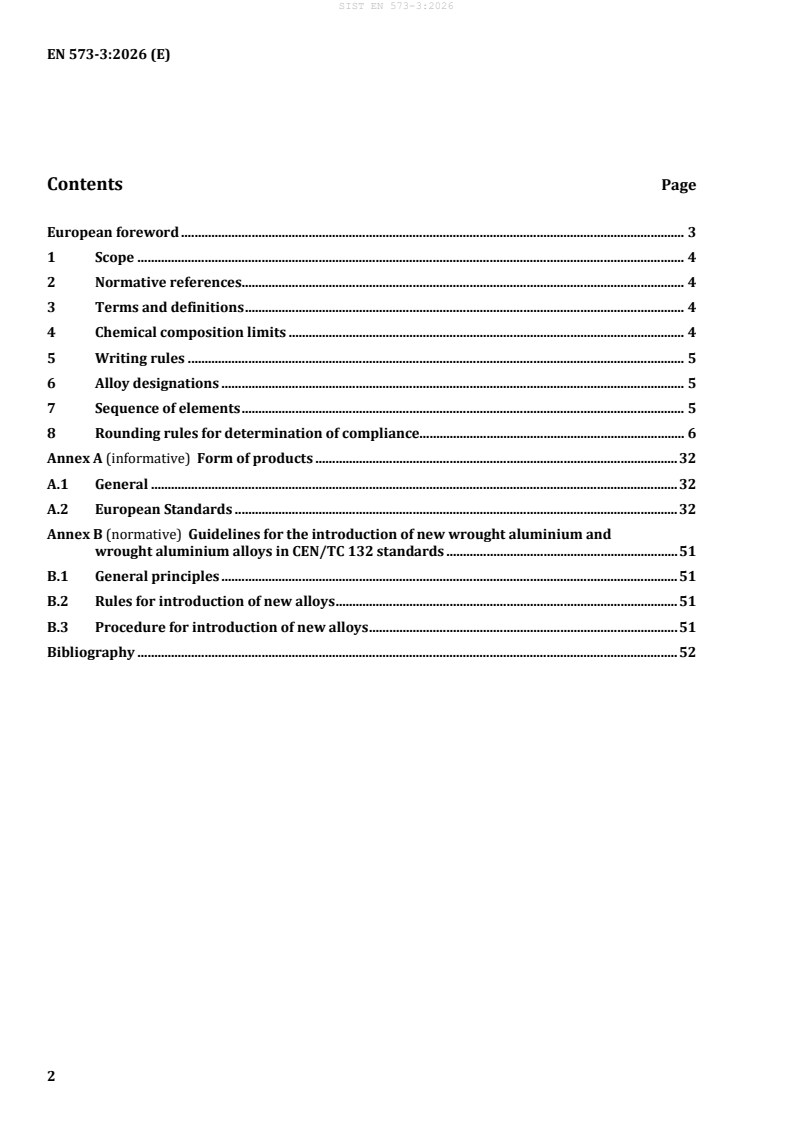

Contents Page
European foreword . 3
1 Scope . 4
2 Normative references. 4
3 Terms and definitions . 4
4 Chemical composition limits . 4
5 Writing rules . 5
6 Alloy designations . 5
7 Sequence of elements . 5
8 Rounding rules for determination of compliance. 6
Annex A (informative) Form of products . 32
A.1 General . 32
A.2 European Standards . 32
Annex B (normative) Guidelines for the introduction of new wrought aluminium and
wrought aluminium alloys in CEN/TC 132 standards . 51
B.1 General principles . 51
B.2 Rules for introduction of new alloys . 51
B.3 Procedure for introduction of new alloys . 51
Bibliography . 52

European foreword
This document (EN 573-3:2026) has been prepared by Technical Committee CEN/TC 132 “Aluminium
and aluminium alloys”, the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2026, and conflicting national standards shall
be withdrawn at the latest by September 2026.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 573-3:2019+A2:2023.
EN 573-3:2019+A2:2023:
— addition of the alloy EN AW-2007C in Tables 2 and A.2;
— addition of the alloy EN AW-2079 in Tables 2 and A.2;
— addition of the alloy EN AW-4115A in Tables 4 and A.4;
— addition of the alloy EN AW-6084 in Tables 6 and A.6;
— modification of the order of alloys to conform with Aluminium Association System.
EN 573 comprises the following parts under the general title Aluminium and aluminium alloys — Chemical
composition and form of wrought products:
— Part 1: Numerical designation system;
— Part 2: Chemical symbol based designation system;
— Part 3: Chemical composition and form of products;
— Part 4: Forms of products;
— Part 5: Codification of standardized wrought products.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,
Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North
Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the United
Kingdom.
1 Scope
This document specifies the chemical composition limits of wrought aluminium and wrought aluminium
alloys and form of products.
NOTE The chemical composition limits of aluminium and aluminium alloys specified herein are completely
identical with those registered with the Aluminium Association, 1525, Wilson Boulevard, Suite 600, Arlington,
VA 22209, USA, for the corresponding alloys.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 573-1, Aluminium and aluminium alloys — Chemical composition and form of wrought products — Part
1: Numerical designation system
EN 573-2, Aluminium and aluminium alloys — Chemical composition and form of wrought products — Part
2: Chemical symbol based designation system
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminology databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
4 Chemical composition limits
The chemical composition of aluminium and aluminium alloys is specified in percentage by mass in
Table 1 to Table 8. Limits of impurities are expressed as a maximum; limits of alloying elements shown
as a range. Aluminium is specified as a minimum for unalloyed aluminium, and as a remainder for
aluminium alloys.
The chemical composition of internationally registered wrought aluminium and wrought aluminium
alloys not listed in this document can be found in Teal sheets [2] or their Addendum [3].
Analysis shall be made for elements which are specified, for example Pb, Sn, Bi, Sb, Zr.
5 Writing rules
5.1 Standard limits for alloying elements and impurities are expressed in percentage by mass to the
following decimal places:
— less than 0,001 % 0,000X;
— 0,001 % but less than 0,01 % 0,00X;
— 0,01 % but less than 0,10 %:
— unalloyed aluminium made by a refining 0,0XX;
process
— others 0,0X;
— 0,10 % to 0,55 % 0,XX;
— over 0,55 % 0,X; X,X; XX,X.
Exception: combined Si + Fe limits for 1xxx designations shall be expressed as 0,XX or 1,XX.
5.2 The aluminium content for unalloyed aluminium made by a refining process is the difference
between 100,00 % and the sum of all other metallic elements present in amounts of 0,001 0 % or more
each, expressed to the third decimal place before determining the sum, which is rounded to the second
decimal place before subtracting.
For unalloyed aluminium not made by a refining process, the aluminium content is the difference
between 100,00 % and the sum of all other metallic elements present in amounts of 0,010 % or more each
expressed to the second decimal place before determining the sum.
6 Alloy designations
To introduce new wrought aluminium and wrought aluminium alloys in standards, Annex B shall be
followed.
The numerical designation systems used in Teal sheets and European Standards for wrought aluminium
alloys are identical. As specified in EN 573-1 the prefix “EN AW-“ shall be added to the 4-digits designation
of the alloy.
The alternative chemical symbol based alloy designation system shall be based on EN 573-2.
Both the numerical and the chemical symbol based designations are indicated in Table 1 to Table 8. The
list of applicable form(s) of products for a specific alloy is provided at Annex A.
The International numerical system is the preferred one. The chemical symbol based designations are
indicated for reference only.
7 Sequence of elements
Standard limits for alloying elements and impurities are expressed in the following sequence: silicon, iron,
copper, manganese, magnesium, chromium, nickel, zinc, titanium, gallium, vanadium, remarks, other
elements - each, other elements - total, aluminium.
Limits of additional specified elements are inserted in alphabetical order of their chemical symbols under
“Remarks”.
8 Rounding rules for determination of compliance
In recording chemical analysis test results, the number representing the result for any element specified
in this document shall be expressed to the same number of decimal places as the corresponding number
in this document. For unalloyed aluminium, the aluminium content is derived as described in 5.2.
The following rounding rules shall be used for determination of compliance with this document:
a) when the figure immediately after the last figure to be retained is less than 5, the last figure to be
retained remains unchanged;
b) when the figure immediately after the last figure to be retained is greater than 5, or equal to 5 and
followed by at least one figure other than 0, the last figure to be retained is increased by 1;
c) when the figure immediately after the last figure to be retained is equal to 5 and followed by zeros
only, the last figure to be retained remains unchanged if even and is increased by 1 if odd.

Table 1 — Aluminium — 1000 series
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical Total
Numerical Each min.
b
symbols
c
EN AW-1050A EN AW-Al 99,5 0,25 0,40 0,05 0,05 0,05 - - 0,07 0,05 - - - 0,03 -
99,50
c
EN AW-1060 EN AW-Al 99,6 0,25 0,35 0,05 0,03 0,03 - - 0,05 0,03 - 0,05 - 0,03 -
99,60
c
EN AW-1070A EN AW-Al 99,7 0,20 0,25 0,03 0,03 0,03 - - 0,07 0,03 - - - 0,03 -
99,70
EN AW-Al
c
e
EN AW-1080A 0,15 0,15 0,03 0,02 0,02 - - 0,06 0,02 0,03 - 0,02 -
99,80
99,8(A)
EN AW-Al
c
EN AW-1085 0,10 0,12 0,03 0,02 0,02 - - 0,03 0,02 0,03 0,05 - 0,01 -
99,85
99,85
EN AW-Al
c
EN AW-1090 0,07 0,07 0,02 0,01 0,01 - - 0,03 0,01 0,03 0,05 - 0,01 -
99,90
99,90
EN AW-Al
d
EN AW-1098 0,010 0,006 0,003 - - - - 0,015 0,003 - - - 0,003 -
99,98
99,98
EN AW-Al 0,05–
c
EN AW-1100 0,95 Si + Fe 0,05 - - - 0,10 - - - e 0,05 0,15
99,00
99,0Cu 0,20
e c
EN AW-1200 EN AW-Al 99,0 1,00 Si + Fe 0,05 0,05 - - - 0,10 0,05 - - 0,05 0,15
99,00
EN AW-Al
c
EN AW-1200A 1,00 Si + Fe 0,10 0,30 0,30 0,10 - 0,10 - - - - 0,05 0,15
99,00
99,0(A)
0,02B;
c
EN AW-1110 EN AW-Al 99,1 0,30 0,8 0,04 0,01 0,25 0,01 – – – – – 0,03 0,15
99,10
0,03V + Ti
EN AW-Al
c
EN AW-1235 0,65 Si + Fe 0,05 0,05 0,05 - - 0,10 0,06 - 0,05 - 0,03 -
99,35
99,35
0,05 B;
c
EN AW-1350 EN AW-Al 99,5 0,10 0,40 0,05 0,01 - 0,01 - 0,05 - 0,03 - 0,03 0,10
99,50
0,02 V + Ti
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical Total
Numerical Each min.
b
symbols
EN AW-Al 0,03 Cr + Mn
c
EN AW-1350A 0,25 0,40 0,02 - 0,05 - - 0,05 - - - 0,03 -
99,50
99,5(A) + Ti + V
EN AW-Al 0,10–
c
EN AW-1450 0,25 0,40 0,05 0,05 0,05 - - 0,07 - - e 0,03 -
99,50
99,5Ti 0,20
0,02 B;
c
EN AW-1370 EN AW-Al 99,7 0,10 0,25 0,02 0,01 0,02 0,01 - 0,04 - 0,03 - 0,02 0,10
99,70
0,02 V + Ti
EN AW-Al
d
EN AW-1198 0,010 0,006 0,006 0,006 - - - 0,010 0,006 0,006 - - 0,003 -
99,98
99,98(A)
EN AW-Al
d
EN AW-1199 0,006 0,006 0,006 0,002 0,006 - - 0,006 0,002 0,005 0,005 - 0,002 -
99,99
99,99
a
“Others” includes listed elements for which no specific limit is shown as well as unlisted metallic elements. The producer may analyse samples for trace elements not specified in the registration
or specification. However, such analysis is not required and might not cover all metallic “Other” elements. Should any analysis by the producer or the purchaser establish that an “Others” element
exceeds the limit of “Each” or that the aggregate of several “Others” elements exceeds the limit of “Total”, the material shall be considered non-conforming.
b
The sum of those “Others” metallic elements 0,010 % or more each, expressed to the second decimal place before determining the sum.
c
The aluminium content for unalloyed aluminium not made by a refining process is the difference between 100,00 % and the sum of all other metallic elements present in amounts of 0,010 % or
more each, expressed to the second decimal place before determining the sum.
d
The aluminium content for unalloyed aluminium made by a refining process is the difference between 100,00 % and the sum of all other metallic elements present in amounts of 0,001 0 % or more
each, expressed to the third decimal before determining the sum, which is rounded to the second decimal place before subtracting.
e
0,000 3 max. Be for welding electrode, welding rod and filler wire only.
Table 2 — Aluminium alloys — 2000 series — Al Cu
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical
b
Numerical Each min.
Total
symbols
EN AW-Al 5,2– 0,15 – 0,20 –
c
EN AW-2001 0,20 0,20 0,10 0,05 0,10 0,20 - - 0,05 0,15 Remainder
0,05 Zr
Cu5,5MgMn 6,0 0,50 0,45
EN AW-Al 3,3– 0,50 – 0,40 –
EN AW-2007 0,8 0,8 0,10 0,20 0,8 0,20 - - d 0,10 0,30 Remainder
Cu4PbMgMn 4,6 1,0 1,8
0,10 – 1,0 Bi
EN AW-Al 3,3 – 0,20 – 0,40 –
EN AW-2007C 0,8 0,8 0,10 0,20 0,8 0,20 - - 0,05 0,15 Remainder
Cu4MgMnBi(C) 4,6 1,0 1,8
0,10 Pb
EN AW-Al 5,0 –
EN AW-2011 0,40 0,7 - - - - 0,30 - - - e 0,05 0,15 Remainder
Cu6BiPb 6,0
EN AW-Al 4,5 –
e
EN AW-2011A 0,40 0,50 - - - - 0,30 - - - 0,05 0,15 Remainder
Cu6BiPb(A) 6,0
EN AW-Al 3,9 – 0,40 – 0,20 –
f
EN AW-2014 0,50 – 1,2 0,7 0,10 - 0,25 0,15 - - 0,05 0,15 Remainder
Cu4SiMg 5,0 1,2 0,8
EN AW-Al 3,9 – 0,40 – 0,20 –
EN AW-2014A 0,50 – 0,9 0,50 0,10 0,10 0,25 0,15 - - 0,20 Zr+Ti 0,05 0,15 Remainder
Cu4SiMg(A) 5,0 1,2 0,8
EN AW-Al 3,9 – 0,40 – 0,20 –
f
EN AW-2214 0,50 – 1,2 0,30 0,10 - 0,25 0,15 - - 0,05 0,15 Remainder
Cu4SiMg(B) 5,0 1,2 0,8
Ag 0,30 – 0,7
EN AW-Al 3,5 – 0,10 – 0,30 – 0,05 –
EN AW-2016 0,30 – 0,7 0,15 - - - - - 0,05 0,15 Remainder
Cu4SiMgAg 4,5 0,50 0,8 0,15
Zr 0,10 – 0,25
EN AW-Al 3,5 – 0,40 – 0,40 –
EN AW-2017A 0,20 – 0,8 0,7 0,10 - 0,25 - - - 0,25 Zr+Ti 0,05 0,15 Remainder
Cu4MgSi(A) 4,5 1,0 1,0
EN AW-Al 2,2 – 0,20 –
EN AW-2117 0,8 0,7 0,20 0,10 - 0,25 - - - - 0,05 0,15 Remainder
Cu2,5Mg 3,0 0,50
EN AW-Al 0,15 – 1,8 – 0,8 –
EN AW-2618A 0,9 – 1,4 0,25 1,2 – 1,8 - 0,15 0,20 - - 0,25 Zr+Ti 0,05 0,15 Remainder
Cu2Mg1,5Ni 0,25 2,7 1,4
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical
b
Numerical Each min.
Total
symbols
5,8 – 0,20 – 0,02 – 0,05–
EN AW-2219 EN AW-Al Cu6Mn 0,20 0,30 0,02 - - 0,10 - 0,10 – 0,25 Zr 0,05 0,15 Remainder
6,8 0,40 0,10 0,15
0,10 – 0,25 Zr
EN AW-Al 5,8 – 0,20 – 0,10 – 0,05–
EN AW-2319 0,20 0,30 0,02 - - 0,10 - 0,05 0,15 Remainder
h
Cu6Mn(A) 6,8 0,40 0,20 0,15
3,8 – 0,30 –
f
EN AW-2024 EN AW-Al Cu4Mg1 0,50 0,50 1,2 – 1,8 0,10 - 0,25 0,15 - - 0,05 0,15 Remainder
4,9 0,9
EN AW-Al 3,8 – 0,30 –
EN AW-2124 0,20 0,30 1,2 – 1,8 0,10 - 0,25 0,15 - - f 0,05 0,15 Remainder
Cu4Mg1(A) 4,9 0,9
EN AW-Al 3,3 – 0,20 – 0,50 – 0,20 Bi ; 0,8–
EN AW-2030 0,8 0,7 0,10 - 0,50 0,20 - - 0,10 0,30 Remainder
Cu4PbMg 4,5 1,0 1,3 1,5 Pb
EN AW-Al 1,8 – 0,6 –
EN AW-2031 0,50 – 1,3 0,6–1,2 0,50 0,6 – 1,2 - 0,20 0,20 - - - 0,05 0,15 Remainder
Cu2,5NiMg 2,8 1,4
EN AW-Al 2,2 – 0,40 – 0,20 –
EN AW-2033 0,10 – 1,2 0,7 0,15 0,15 0,50 0,10  Bi: 0,05 − 0,8 0,05 0,15 Remainder
Cu2,5MnSiMgBi 2,7 1,0 0,6
Li: 0,15
Bi: 0,20 – 0,9
EN AW-Al 4,0 −
EN AW-2077 0,40 – 1,0 0,7 0,6 – 1,2 0,6 – 1,2 0,20 0,20 0,25 0,15  0,05 0,15 Remainder
Cu4,5MgMnSiBi 5,0
Ag: 0,15
Zr: 0,15
0,8 – 1,0 Li
EN AW-Al 3,0 – 0,10 – 0,05 – 0,8 –
EN AW-2079 0,12 0,15 - - 0,10 - - 0,05 0,15 Remainder
Cu3,5Zn1Li1 3,8 0,35 0,35 1,2
0,05 – 0,15 Zr
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical
b
Numerical Each min.
Total
symbols
0,04 – 0,16 Zr
EN AW-Al 1,8 –
EN AW-2091 0,20 0,30 0,10 1,1 – 1,9 0,10 - 0,25 0,10 - - 0,05 0,15 Remainder
Cu2Li2Mg1,5 2,5 g
a
“Others” includes listed elements for which no specific limit is shown as well as unlisted metallic elements. The producer may analyse samples for trace elements not specified in the registration
or specification. However, such analysis is not required and might not cover all metallic “Other” elements. Should any analysis by the producer or the purchaser establish that an “Others” element
exceeds the limit of “Each” or that the aggregate of several “Others” elements exceeds the limit of “Total”, the material shall be considered non-conforming.
b
The sum of those “Others” metallic elements 0,010 % or more each, expressed to the second decimal place before determining the sum.
c
0,003 max. Pb.
d
0,20 Bi; 0,8–1,5 Pb; 0,20 Sn.
e
0,20–0,6 Bi; 0,20–0,6 Pb.
f
Zr + Ti limit of 0,20 maximum may be used for extruded and forged products if mutually agreed by supplier or manufacturer and purchaser.
g
1,7–2,3 Li.
h
0,000 3 max. Be for welding electrode, welding rod and filler wire only.
Table 3 — Aluminium alloys — 3000 series — Al Mn
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
b
Numerical Chemical Symbols Each min.
Total
EN AW-3002 EN AW-Al Mn0,2Mg0,1 0,08 0,10 0,15 0,05 – 0,25 0,05 – 0,20 - - 0,05 0,03 - 0,05 - 0,03 0,10 Remainder
EN AW-3102 EN AW-Al Mn0,2 0,40 0,7 0,10 0,05 – 0,40 - - - 0,30 0,10 - - - 0,05 0,15 Remainder
EN AW-3003 EN AW-Al Mn1Cu 0,6 0,7 0,05 – 0,20 1,0 – 1,5 - - - 0,10 - - - - 0,05 0,15 Remainder
c
EN AW-3103 EN AW-Al Mn1 0,50 0,7 0,10 0,9 – 1,5 0,30 0,10 - 0,20 - - - 0,05 0,15 Remainder
0,10 Zr+Ti
EN AW-3103A EN AW-Al Mn1(A) 0,50 0,7 0,10 0,7 – 1,4 0,30 0,10 - 0,20 0,10 - - 0,10 Zr+Ti 0,05 0,15 Remainder
EN AW-3004 EN AW-Al Mn1Mg1 0,30 0,7 0,25 1,0 – 1,5 0,8 – 1,3 - - 0,25 - - - - 0,05 0,15 Remainder
EN AW-3104 EN AW-Al Mn1Mg1Cu 0,6 0,8 0,05 – 0,25 0,8 – 1,4 0,8 – 1,3 - - 0,25 0,10 0,05 0,05 - 0,05 0,15 Remainder
EN AW-3005 EN AW-Al Mn1Mg0,5 0,6 0,7 0,30 1,0 – 1,5 0,20 – 0,6 0,10 - 0,25 0,10 - - - 0,05 0,15 Remainder
EN AW-Al
EN AW-3005A 0,7 0,8 0,30 1,0 – 1,5 0,20 – 0,6 0,10 - 0,40 0,10 - - - 0,05 0,15 Remainder
Mn1Mg0,5(A)
EN AW-3105 EN AW-Al Mn0,5Mg0,5 0,6 0,7 0,30 0,30 – 0,8 0,20 – 0,8 0,20 - 0,40 0,10 - - - 0,05 0,15 Remainder
EN AW-Al
EN AW-3105A 0,6 0,7 0,30 0,30 – 0,8 0,20 – 0,8 0,20 - 0,25 0,10 - - - 0,05 0,15 Remainder
Mn0,5Mg0,5(A)
EN AW-3105B EN AW-Al Mn0,6Mg0,5 0,7 0,9 0,30 0,30 – 0,9 0,20 – 0,8 0,20 - 0,50 0,10 - - 0,10 Pb 0,05 0,15 Remainder
EN AW-3017 EN AW-Al Mn1Cu0,3 0,25 0,25 – 0,45 0,25 – 0,40 0,8 – 1,2 0,10 0,15 - 0,10 0,05 - - - 0,05 0,15 Remainder
EN AW-3207 EN AW-Al Mn0,6 0,30 0,45 0,10 0,40 – 0,8 0,10 - - 0,10 - - - - 0,05 0,10 Remainder
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
b
Numerical Chemical Symbols Each min.
Total
EN AW-3207A EN AW-Al Mn0,6(A) 0,35 0,6 0,25 0,30 – 0,8 0,40 0,20 - 0,25 - - - - 0,05 0,15 Remainder
a
“Others” includes listed elements for which no specific limit is shown as well as unlisted metallic elements. The producer may analyse samples for trace elements not specified in the registration
or specification. However, such analysis is not required and might not cover all metallic “Other” elements. Should any analysis by the producer or the purchaser establish that an “Others” element
exceeds the limit of “Each” or that the aggregate of several “Others” elements exceeds the limit of “Total”, the material shall be considered non-conforming.
b
The sum of those “Others” metallic elements 0,010 % or more each, expressed to the second decimal place before determining the sum.
c
0,000 3 max. Be for welding electrode, welding rod and filler wire only.
Table 4 — Aluminium alloys — 4000 series — Al Si
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
b
Numerical Chemical symbols Each min.
Total
EN AW-4004 EN AW-Al Si10Mg1,5 9,0 – 10,5 0,8 0,25 0,10 1,0 – 2,0 - - 0,20 - - - - 0,05 0,15 Remainder
0,02 –
EN AW-4104 EN AW-Al Si10MgBi 9,0 – 10,5 0,8 0,25 0,10 1,0 – 2,0 - - 0,20 - - - 0,05 0,15 Remainder
0,20 Bi
0,50 –
EN AW-4006 EN AW-Al Si1Fe 0,8 – 1,2 0,10 0,05 0,01 0,20 - 0,05 - - - - 0,05 0,15 Remainder
0,8
0,40 – 0,8 – 0,05 – 0,15 –
EN AW-4007 EN AW-Al Si1,5Mn 1,0 – 1,7 0,20 0,20 0,10 0,10 - - 0,05 Co 0,05 0,15 Remainder
1,0 1,5 0,25 0,7
0,6 – 0,10 –
EN AW-4015 EN AW-Al Si2Mn 1,4 – 2,2 0,7 0,20 - - 0,20 - - - - 0,05 0,15 Remainder
1,2 0,50
EN AW-Al 0,10 – 0,6 – 0,10 –
EN AW-4115 1,8 – 2,2 0,7 - - 0,20 - - - - 0,05 0,15 Remainder
Si2MnMgCu 0,50 1,2 0,50
EN AW-Al 0,10 – 0,6 – 0,10 –
EN AW-4115A 1,8 – 2,2 0,7 - - 0,20 0,15 - - - 0,05 0,15 Remainder
Si2MnMgCu(A) 0,50 1,2 0,50
0,6 – 0,50 –
EN AW-4016 EN AW-Al Si2MnZn 1,4 – 2,2 0,7 0,20 0,10 - - - - - - 0,05 0,15 Remainder
1,2 1,3
0,10 – 0,6 – 0,10 –
EN AW-4017 EN AW-Al SiMnMgCu 0,6 – 1,6 0,7 - - 0,20 - - - - 0,05 0,15 Remainder
0,50 1,2 0,50
0,50 –
c
EN AW-4018 EN AW-Al Si7Mg 6,5 – 7,5 0,20 0,05 0,10 - - 0,10 0,20 - - 0,05 0,15 Remainder
0,8
EN AW- Al 0,30 – 0,6 – 0,10 –
EN AW-4025 1,2 – 2,2 0,7 - - 0,20 0,20 - - - 0,05 0,15 Remainder
Si2MnCuMg 0,7 1,2 0,50
EN AW-Al 11,0 – 0,50 – 0,50 –
EN AW-4032 1,0 - 0,8 – 1,3 0,10 0,25 - - - - 0,05 0,15 Remainder
Si12,5MgCuNi 13,5 1,3 1,3
EN AW-4043A EN AW-Al Si5(A) 4,5 – 6,0 0,6 0,30 0,15 0,20 - - 0,10 0,15 - - - 0,05 0,15 Remainder
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
b
Numerical Chemical symbols Each min.
Total
EN AW-4343 EN AW-AI Si7,5 6,8 – 8,2 0,8 0,25 0,10 - - - 0,20 - - - - 0,05 0,15 Remainder
EN AW-4045 EN AW-Al Si10 9,0 – 11,0 0,8 0,30 0,05 0,05 - - 0,10 0,20 - - - 0,05 0,15 Remainder
0,20 –
EN AW-4046 EN AW-Al Si10Mg 9,0 – 11,0 0,50 0,03 0,40 - - 0,10 0,15 - - c 0,05 0,15 Remainder
0,50
11,0 –
c
EN AW-4047A EN AW-Al Si12(A) 0,6 0,30 0,15 0,10 - - 0,20 0,15 - - 0,05 0,15 Remainder
13,0
a
“Others” includes listed elements for which no specific limit is shown as well as unlisted metallic elements. The producer may analyse samples for trace elements not specified in the registration
or specification. However, such analysis is not required and might not cover all metallic “Other” elements. Should any analysis by the producer or the purchaser establish that an “Others” element
exceeds the limit of “Each” or that the aggregate of several “Others” elements exceeds the limit of “Total”, the material shall be considered non-conforming.
b
The sum of those “Others” metallic elements 0,010 % or more each, expressed to the second decimal place before determining the sum.
c
0,000 3 max. Be for welding electrode, welding rod and filler wire only.
Table 5 — Aluminium alloys — 5000 series — Al Mg
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical
b
Numerical Each min.
Total
symbols
0,50 –
EN AW-5005 EN AW-Al Mg1(A) 0,30 0,7 0,20 0,20 0,10 - 0,25 - - - - 0,05 0,15 Remainder
1,1
0,7 –
EN AW-5005A EN AW-Al Mg1(A) 0,30 0,45 0,05 0,15 0,10 - 0,20 - - - - 0,05 0,15 Remainder
1,1
EN AW-Al 0,7 –
EN AW-5305 0,08 0,08 - 0,03  - 0,05 0,02 - - - 0,02 - Remainder
99,85Mg1 1,1
EN AW-Al 0,8 –
EN AW-5505 0,06 0,04 - 0,03  - 0,04 0,01 - - - 0,01 - Remainder
99,9Mg1 1,1
EN AW-Al 0,8 – 0,008
EN AW-5605 0,01 0,008 - -  - 0,01 0,008 - - 0,003 - Remainder
99,98Mg1 1,1 Fe+Ti
EN AW-Al 0,40 – 0,8 –
EN AW-5006 0,40 0,80 0,10 0,10 - 0,25 0,10 - - - 0,05 0,15 Remainder
Mg1Mn0,5 0,8 1,3
EN AW-Al 0,10 – 0,20 –
EN AW-5010 0,40 0,7 0,25 0,15 - 0,30 0,10 - - - 0,05 0,15 Remainder
Mg0,5Mn 0,30 0,6
EN AW-Al 0,30 –
EN AW-5110 0,08 0,08 - 0,03 - - 0,05 0,02 - - - 0,02 - Remainder
99,85Mg0,5 0,6
EN AW-Al 0,35 –
EN AW-5210 0,06 0,04 - 0,03 - - 0,04 0,01 - - - 0,01 - Remainder
99,9Mg0,5 0,6
EN AW-Al 0,35 – 0,008
EN AW-5310 0,01 0,008 - - - - 0,01 0,008 - - 0,003 - Remainder
99,98Mg0,5 0,6 Fe+Ti
0,20 – 0,6
EN AW-Al 0,20 – 2,6 –
EN AW-5018 0,25 0,40 0,10 0,30 - 0,20 0,15 - - 0,05 0,15 Remainder
c
Mg3Mn0,4 0,6 3,6
Mn+Cr
EN AW-Al 0,40 – 2,9 –
EN AW-5018B 0,25 0,40 0,10 0,30 - 0,20 0,15 - - - 0,05 0,15 Remainder
Mg3Mn0,6 0,7 3,6
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical
b
Numerical Each min.
Total
symbols
0,10 – 4,5 – 0,10 – 0,6
EN AW-5019 EN AW-Al Mg5 0,40 0,50 0,10 0,20 - 0,20 0,20 - - 0,05 0,15 Remainder
0,6 5,6 Mn+Cr
0,20 – 0,6
0,20 – 4,5 –
EN AW-5119 EN AW-Al Mg5(A) 0,25 0,40 0,05 0,30 - 0,20 0,15 - - 0,05 0,15 Remainder
c
0,6 5,6
Mn+Cr
0,20 – 0,6
0,20 – 4,5 –
EN AW-5119A EN-AW Al Mg5(B) 0,25 0,40 0,05 0,30 - 0,20 0,15   0,05 0,15 Remainder
e
0,6 5,6
Mn+Cr
EN AW-Al 0,55 – 0,20 – 0,6 – 3,9 –
EN AW-5026 0,10 – 0,8 0,30 - 1,0 0,20 - - 0,30Zr 0,05 0,15 Remainder
Mg4,5MnSiFe 1,4 1,0 1,8 4,9
EN AW-Al 0,9 – 1,0 – 0,10 –
EN AW-5040 0,30 0,7 0,25 - 0,25 - - - - 0,05 0,15 Remainder
Mg1,5Mn 1,4 1,5 0,30
EN AW-Al 0,20 – 3,0 –
EN AW-5042 0,20 0,35 0,15 0,10 - 0,25 0,10 - - - 0,05 0,15 Remainder
Mg3,5Mn 0,50 4,0
EN AW-Al 0,50 – 1,6 –
EN AW-5049 0,40 0,50 0,10 0,30 - 0,20 0,10 - - - 0,05 0,15 Remainder
Mg2Mn0,8 1,1 2,5
EN AW-Al 0,50 – 1,6 –
EN AW-5149 0,25 0,40 0,05 0,30 - 0,20 0,15 - - - 0,05 0,15 Remainder
Mg2Mn0,8(A) 1,1 2,5
0,10 – 0,20
EN AW-Al 0,50 – 1,6 –
EN AW-5249 0,25 0,40 0,05 0,30 - 0,20 0,15 - - 0,05 0,15 Remainder
c
Mg2Mn0,8Zr 1,1 2,5
Zr
EN AW-Al 0,6 – 1,6 –
EN AW-5449 0,40 0,7 0,30 0,30 - 0,30 0,10 - - - 0,05 0,15 Remainder
Mg2Mn0,8 1,1 2,6
EN AW-Al 0,6 – 1,6 –
EN AW-5449A 0,6 1,2 0,30 0,30 0,10 0,30 0,10 - - 0,10 Sn 0,05 0,15 Remainder
Mg2Mn0,8(A) 1,1 2,6
1,1 –
EN AW-5050 EN AW-Al Mg1,5 0,40 0,7 0,20 0,10 0,10 - 0,25 - - - - 0,05 0,15 Remainder
1,8
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical
b
Numerical Each min.
Total
symbols
EN AW-Al 1,1 –
EN AW-5050A 0,40 0,7 0,20 0,30 0,10 - 0,25 - - - - 0,05 0,15 Remainder
Mg1,5(A) 1,8
1,4 –
EN AW-5051A EN AW-Al Mg2(A) 0,30 0,45 0,05 0,25 0,30 - 0,20 0,10 - - - 0,05 0,15 Remainder
2,1
EN AW-Al 0,10 – 1,7 –
EN AW-5251 0,40 0,50 0,15 0,15 - 0,15 0,15 - - - 0,05 0,15 Remainder
Mg2Mn0,3 0,50 2,4
2,2 – 0,15 –
EN AW-5052 EN AW-Al Mg2,5 0,25 0,40 0,10 0,10 - 0,10 - - - - 0,05 0,15 Remainder
2,8 0,35
EN AW-Al 2,2 –
EN AW-5252 0,08 0,10 0,10 0,10 - - 0,05 - - 0,05 - 0,03 0,10 Remainder
Mg2,5(B) 2,8
EN AW-Al 2,2 –
EN AW-5352 0,45 Si+Fe 0,10 0,10 0,10 - 0,10 0,10 - - - 0,05 0,15 Remainder
Mg2,5(A) 2,8
0,10 – 0,50
EN AW-Al 3,1 –
EN AW-5154A 0,50 0,50 0,10 0,50 0,25 - 0,20 0,20 - - 0,05 0,15 Remainder
c
Mg3,5(A) 3,9
Mn+Cr
EN AW-Al 0,15 – 3,2 –
EN AW-5154B 0,35 0,45 0,05 0,10 0,01 0,15 0,15 - - - 0,05 0,15 Remainder
Mg3,5Mn0,3 0,45 3,8
EN AW-Al 0,50 – 2,4 – 0,05 – 0,10 – 0,20
EN AW-5354 0,25 0,40 0,05 - 0,25 0,15 - - 0,05 0,15 Remainder
Mg2,5MnZr 1,0 3,0 0,20 Zr
0,50 – 2,4 – 0,05 –
EN AW-5454 EN AW-Al Mg3Mn 0,25 0,40 0,10 - 0,25 0,20 - - - 0,05 0,15 Remainder
1,0 3,0 0,20
EN AW-Al 0,50 – 2,4 – 0,05 – 0,05 –
c
EN AW-5554 0,25 0,40 0,10 - 0,25 - - 0,05 0,15 Remainder
Mg3Mn(A) 1,0 3,0 0,20 0,20
EN AW-Al 3,1 – 0,15 – 0,05 –
EN AW-5654 0,45 Si+Fe 0,05 0,01 - 0,20 - - c 0,05 0,15 Remainder
Mg3,5Cr 3,9 0,35 0,15
EN AW-Al 3,1 – 0,15 – 0,05 –
e
EN AW-5654A 0,45 Si+Fe 0,05 0,01 - 0,20 - - 0,05 0,15 Remainder
Mg3,5Cr(A) 3,9 0,35 0,15
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical
b
Numerical Each min.
Total
symbols
0,10 – 0,6
2,6 –
EN AW-5754 EN AW-Al Mg3 0,40 0,40 0,10 0,50 0,30 - 0,20 0,15 - - 0,05 0,15 Remainder
c
3,6
Mn+Cr
EN AW-Al 0,05 – 4,5 – 0,05 – 0,06 –
EN AW-5356 0,25 0,40 0,10 - 0,10 - - c 0,05 0,15 Remainder
Mg5Cr(A) 0,20 5,5 0,20 0,20
EN AW-Al 0,05 – 4,5 – 0,05 – 0,06 –
e
EN AW-5356A 0,25 0,40 0,10 - 0,10 - - 0,05 0,15 Remainder
Mg5Cr(B) 0,20 5,5 0,20 0,20
EN AW-Al 0,50 – 4,7 – 0,05 –
EN AW-5456 0,25 0,40 0,10 - 0,25 0,20 - - - 0,05 0,15 Remainder
Mg5Mn1 1,0 5,5 0,20
EN AW-Al 0,7 – 4,5 – 0,05 –
EN AW-5456A 0,25 0,40 0,05 - 0,25 0,15 - - c 0,05 0,15 Remainder
Mg5Mn1(A) 1,1 5,2 0,25
EN AW-Al 0,7 – 4,5 – 0,05 –
e
EN AW-5456B 0,25 0,40 0,05 - 0,25 0,15 - - 0,05 0,15 Remainder
Mg5Mn1(B) 1,1 5,2 0,25
0,6 – 5,0 – 0,05 – 0,05 –
EN AW-5556A EN AW-Al Mg5Mn 0,25 0,40 0,10 - 0,20 - - c 0,05 0,15 Remainder
1,0 5,5 0,20 0,20
EN AW-Al 0,6 – 5,0 – 0,05 – 0,05 –
e
EN AW-5556B 0,25 0,40 0,10 - 0,20 - - 0,05 0,15 Remainder
Mg5Mn(A) 1,0 5,5 0,20 0,20
EN AW-Al 0,6 –
EN AW-5657 0,08 0,10 0,10 0,03 - - 0,05 - 0,03 0,05 - 0,02 0,05 Remainder
99,85Mg1(A) 1,0
EN AW-Al 4,5 – 1,2 – 1,8
EN AW-5058 0,40 0,50 0,10 0,20 0,10 - 0,20 0,20 - - 0,05 0,15 Remainder
Mg5Pb1,5 5,6 Pb
EN-AW-Al 0,6 – 5,0 – 0,40 – 0,05 – 0,25
EN AW-5059 0,45 0,50 0,25 0,25 - 0,20 - - 0,05 0,15 Remainder
Mg5,5MnZnZr 1,2 6,0 0,9 Zr
EN AW-Al 0,40 – 3,5 – 0,40 –
EN AW-5070 0,25 0,40 0,25 0,30 - 0,15 - - - 0,05 0,15 Remainder
Mg4MnZn 0,8 4,5 0,8
4,0 –
EN AW-5082 EN AW-Al Mg4,5 0,20 0,35 0,15 0,15 0,15 - 0,25 0,10 - - - 0,05 0,15 Remainder
5,0
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical
b
Numerical Each min.
Total
symbols
EN AW-Al 0,20 – 4,0 –
EN AW-5182 0,20 0,35 0,15 0,10 - 0,25 0,10 - - - 0,05 0,15 Remainder
Mg4,5Mn0,4 0,50 5,0
EN AW-Al 0,40 – 4,0 – 0,05 –
EN AW-5083 0,40 0,40 0,10 - 0,25 0,15 - - - 0,05 0,15 Remainder
Mg4,5Mn0,7 1,0 4,9 0,25
EN AW-Al 0,50 – 4,3 – 0,05 –
c
EN AW-5183 0,40 0,40 0,10 - 0,25 0,15 - - 0,05 0,15 Remainder
Mg4,5Mn0,7(A) 1,0 5,2 0,25
EN AW-Al 0,50 – 4,3 – 0,05 –
e
EN AW-5183A 0,40 0,40 0,10 - 0,25 0,15 - - 0,05 0,15 Remainder
Mg4,5Mn0,7(C) 1,0 5,2 0,25
EN AW-Al 0,50 – 4,5 –
d
EN AW-5283A 0,30 0,30 0,03 0,05 0,03 0,10 0,03 - - 0,05 0,15 Remainder
0,05 Zr
Mg4,5Mn0,7(B) 1,0 5,1
EN AW-Al 0,7 – 4,0 –
EN AW-5383 0,25 0,25 0,20 0,25 - 0,40 0,15 - - 0,20 Zr 0,05 0,15 Remainder
Mg4,5Mn0,9 1,0 5,2
0,20 – 3,5 – 0,05 –
EN AW-5086 EN AW-Al Mg4 0,40 0,50 0,10 - 0,25 0,15 - - - 0,05 0,15 Remainder
0,7 4,5 0,25
EN AW-Al 0,20 – 3,8 –
EN AW-5186 0,40 0,45 0,25 0,15 - 0,40 0,15 - - 0,05 Zr 0,05 0,15 Remainder
Mg4Mn0,4 0,50 4,8
0,10 – 0,20
EN AW-Al 0,7 – 4,5 – 0,05 –
EN AW-5087 0,25 0,40 0,05 - 0,25 0,15 - - 0,05 0,15 Remainder
c
Mg4,5MnZr 1,1 5,2 0,25
Zr
0,10 – 0,20
EN AW-Al 0,7 – 4,5 – 0,05 –
EN AW-5187 0,25 0,40 0,05 - 0,25 0,15 - - 0,05 0,15 Remainder
e
Mg4,5MnZr 1,1 5,2 0,25
Zr
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical
b
Numerical Each min.
Total
symbols
EN AW-Al 0,10 – 0,20 – 4,7 – 0,20 –
EN AW-5088 0,20 0,25 0,15 - - - - 0,15Zr 0,05 0,15 Remainder
Mg5Mn0,4 0,35 0,50 5,5 0,40
a
“Others” includes listed elements for which no specific limit is shown as well as unlisted metallic elements. The producer may analyse samples for trace elements not specified in the registration
or specification. However, such analysis is not required and might not cover all metallic “Other” elements. Should any analysis by the producer or the purchaser establish that an “Others” element
exceeds the limit of “Each” or that the aggregate of several “Others” elements exceeds the limit of “Total”, the material shall be considered non-conforming.
b
The sum of those “Others” metallic elements 0,010 % or more each, expressed to the second decimal place before determining the sum.
c
0,000 3 max. Be for welding electrode, welding rod and filler wire only.
d
0,003 max. Pb.
e
0,000 5 % max Be for welding electrode, welding rod and filler wire.
Table 6 — Aluminium alloys — 6000 series — Al MgSi
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical Total
Numerical Each min.
b
symbols
0,35 –
EN AW-6101 EN AW-Al MgSi 0,30 – 0,7 0,50 0,10 0,03 0,03 - 0,10 - - - 0,06 B 0,03 0,10 Remainder
0,8
0,40 –
EN AW-6101A EN AW-Al MgSi(A) 0,30 – 0,7 0,40 0,05 - - - - - - - - 0,03 0,10 Remainder
0,9
0,10– 0,35 –
EN AW-6101B EN AW-Al MgSi(B) 0,30 – 0,6 0,05 0,05 - - 0,10 - - - - 0,03 0,10 Remainder
0,30 0,6
EN AW-6201 EN AW-Al Mg0,7Si 0,50 – 0,9 0,50 0,10 0,03 0,6 – 0,9 0,03 - 0,10 - - - 0,06 B 0,03 0,10 Remainder
EN AW-Al 0,05 – 0,35 –
EN AW-6401 0,35 – 0,7 0,04 0,03 - - 0,04 0,01 - - - 0,01 - Remainder
99,9MgSi 0,20 0,7
EN AW-Al
EN AW-6003 0,35 – 1,0 0,6 0,10 0,8 0,8 – 1,5 0,35 - 0,20 0,10 - - - 0,05 0,15 Remainder
Mg1Si0,8
0,40 –
EN AW-6005 EN AW-Al SiMg 0,6 – 0,9 0,35 0,10 0,10 0,10 - 0,10 0,10 - - - 0,05 0,15 Remainder
0,6
0,40 – 0,12 – 0,50
EN AW-6005A EN AW-Al SiMg(A) 0,50 – 0,9 0,35 0,30 0,50 0,30 - 0,20 0,10 - - 0,05 0,15 Remainder
0,7 Mn+Cr
0,40 –
EN AW-6005B EN AW-Al SiMg(B) 0,45 – 0,8 0,30 0,10 0,10 0,10 - 0,10 0,10 - - - 0,05 0,15 Remainder
0,8
0,05 – 0,40 –
EN AW-6106 EN AW-Al MgSiMn 0,30 – 0,6 0,35 0,25 0,20 - 0,10 - - - - 0,05 0,10 Remainder
0,20 0,8
0,40 – 0,05 –
EN AW-6008 EN AW-Al SiMgV 0,50 – 0,9 0,35 0,30 0,30 0,30 - 0,20 0,10 - - 0,05 0,15 Remainder
0,7 0,20
EN AW-Al 0,30 – 0,30 – 0,05 –
EN AW-6110A 0,7 – 1,1 0,50 0,7 – 1,1 - 0,20 - - - 0,20 Ti+Zr 0,05 0,15 Remainder
Mg0,9Si0,9MnCu 0,8 0,9 0,25
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical Total
Numerical Each min.
b
symbols
EN AW-Al 0,40 –
EN AW-6011 0,6 – 1,2 1,0 0,8 0,6 – 1,2 0,30 0,20 1,5 0,20 - - - 0,05 0,15 Remainder
Mg0,9Si0,9Cu 0,9
0,40 – 0,7 Bi; 0,40 – 2,0
EN AW-6012 EN AW-Al MgSiPb 0,6 – 1,4 0,50 0,10 0,6 – 1,2 0,30 - 0,30 0,20 - - 0,05 0,15 Remainder
1,0 Pb
0,20 – 0,7 Bi; 0,40 – 2,0
EN AW-6012A EN AW-Al MgSiSn 0,6 – 1,4 0,50 0,40 0,6 – 1,2 0,30 - 0,30 0,20   0,05 0,15 Remainder
1,0 Sn
EN AW-Al 0,20 –
EN AW-6013 0,6 – 1,0 0,50 0,6 – 1,1 0,8 – 1,2 0,10 - 0,25 0,10 - - - 0,05 0,15 Remainder
Mg1Si0,8CuMn 0,8
EN AW-Al 0,05 – 0,40 – 0,05 –
EN AW-6014 0,30 – 0,6 0,35 0,25 0,20 - 0,10 0,10 - - 0,05 0,15 Remainder
Mg0,6Si0,6V 0,20 0,8 0,20
EN AW-Al 0,20 – 0,10– 0,10 –
EN AW-6015 0,10 0,8 – 1,1 0,10 - 0,10 0,10 - - - 0,05 0,15 Remainder
Mg1Si0,3Cu 0,40 0,30 0,25
EN AW-Al 0,25 –
EN AW-6016 1,0 – 1,5 0,50 0,20 0,20 0,10 - 0,20 0,15 - -  0,05 0,15 Remainder
Si1,2Mg0,4 0,6
EN AW-Al 0,15 – 0,30 –
c
EN AW-6018 0,50 – 1,2 0,7 0,6 – 1,2 0,10 - 0,30 0,20 - - 0,05 0,15 Remainder
Mg1SiPbMn 0,40 0,8
EN AW-Al 0,20 – 0,20 – 0,40 – 0,30 – 0,8 Bi, 0,6
EN AW-6023 0,6 – 1,4 0,50 - - - - - - 0,05 0,15 Remainder
Si1Sn1MgBi 0,50 0,6 0,9 – 1,2Sn
EN AW-Al 0,20 –
EN AW-6025 0,8 – 1,5 0,7 0,6 – 1,4 2,1 – 3,0 0,20 - 0,50 0,20 - - 0,05 0,15 Remainder

Mg2,5SiMnCu 0,7
0,60 – 0,20 – 0,20 – 0,60 – 0,50–1,5 Bi;
EN AW-6026 EN AW-Al MgSiBi 0,70 0,30 - 0,30 0,20 - - 0,05 0,15 Remainder
1,40 0,50 1,0 1,2 0,40 Pb; 0,05 Sn
EN AW-Al 0,40 –
EN AW-6035 0,7 – 1,4 0,50 0,6 – 1,0 0,6 – 1,0 0,25 - 0,20 0,20 - - 0,07 – 0,20 Zr 0,05 0,15 Remainder
Mg0,9Si0,9MnCu 1,0
EN AW- Al 0,15 – 0,20 – 0,50 – 0,05 – 0,20–
EN AW- 6050 1,2 – 1,8 1,3 – 1,8 0,25 0,10   0,05 0,15 Remainder

Si1,5FeMgNi 0,50 0,7 0,9 0,25 1,0
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical Total
Numerical Each min.
b
symbols
EN AW-Al 0,40 – 0,40 –
EN AW-6351 0,7 – 1,3 0,50 0,10 - - 0,20 0,20 - - - 0,05 0,15 Remainder
SiMg0,5Mn 0,8 0,8
EN AW-Al 0,40 – 0,40 –
EN AW-6351A 0,7 – 1,3 0,50 0,10 - - 0,20 0,20 - - e 0,05 0,15 Remainder
SiMg0,5Mn(A) 0,8 0,8
EN AW-Al 0,20 – 0,15 – 0,40 –
EN AW-6951 0,8 0,10 - - 0,20 - - - - 0,05 0,15 Remainder
MgSi0,3Cu 0,50 0,40 0,8
EN AW-Al 0,50 – 0,40 – 0,10–
EN AW-6056 0,7 – 1,3 0,50 0,6 – 1,2 0,25 - d - - d 0,05 0,15 Remainder
Si1MgCuMn 1,1 1,0 0,7
0,10 – 0,35 –
EN AW-6060 EN AW-Al MgSi 0,30 – 0,6 0,10 0,10 0,05 - 0,15 0,10 - - - 0,05 0,15 Remainder
0,30 0,6
0,10 – 0,02 – 0,25 –
EN AW-6360 EN AW-Al SiMgMn 0,35 – 0,8 0,15 0,05 - 0,10 0,10 - - - 0,05 0,15 Remainder
0,30 0,15 0,45
EN AW-Al 0,15 – 0,04 –
EN AW-6061 0,40 – 0,8 0,7 0,15 0,8 – 1,2 0,25 0,15  0,05 0,15 Remainder
Mg1SiCu 0,40 0,35
EN AW-Al 0,15 – 0,04 –
EN AW-6061A 0,40 – 0,8 0,7 0,15 0,8 – 1,2 - 0,25 0,15 - - e 0,05 0,15 Remainder
Mg1SiCu(A) 0,40 0,35
EN AW-Al 0,15 – 0,20 –
EN AW-6261 0,40 – 0,7 0,40 0,7 – 1,0 0,10 - 0,20 0,10 - - - 0,05 0,15 Remainder
Mg1SiCuMn 0,40 0,35
EN AW-Al 0,15 – 0,04 –
EN AW-6262 0,40 – 0,8 0,7 0,15 0,8 – 1,2 - 0,25 0,15 - - f 0,05 0,15 Remainder
Mg1SiPb 0,40 0,14
0,40 – 0,9 Bi;
0,15 – 0,04 –
EN AW-6262A EN AW-Al Mg1SiSn 0,40 – 0,8 0,7 0,15 0,8 – 1,2 - 0,25 0,10 - - 0,05 0,15 Remainder
0,40 0,14
0,40 – 1,0 Sn
0,45 –
EN AW-6063 EN AW-Al Mg0,7Si 0,20 – 0,6 0,35 0,10 0,10 0,10 - 0,10 0,10 - - - 0,05 0,15 Remainder
0,9
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical Total
Numerical Each min.
b
symbols
EN AW-Al 0,15 –
EN AW-6063A 0,30 – 0,6 0,10 0,15 0,6 – 0,9 0,05 - 0,15 0,10 - - - 0,05 0,15 Remainder
Mg0,7Si(A) 0,35
EN AW-Al 0,45 –
EN AW-6463 0,20 – 0,6 0,15 0,20 0,05 - - 0,05 - - - - 0,05 0,15 Remainder
Mg0,7Si(B) 0,9
0,40 – 0,8 Bi;
0,15 – 0,04 –
EN AW-6064A EN AW-Al Mg1SiBi 0,40 – 0,8 0,7 0,15 0,8 – 1,2 - 0,25 0,15 - - 0,05 0,15 Remainder
0,40 0,14
0,20 – 0,40 Pb
EN AW-Al 0,15 – 0,50 – 1,5 Bi;
EN AW-6065 0,40 – 0,8 0,7 0,15 0,8 – 1,2 0,15 - 0,25 0,10 - - 0,05 0,15 Remainder
Mg1Bi1Si 0,40 0,05 Pb; 0,15 Zr
EN AW-Al 0,10 –
EN AW-6081 0,7 – 1,1 0,50 0,10 0,6 – 1,0 0,10 - 0,20 0,15 - - - 0,05 0,15 Remainder
Si0,9MgMn 0,45
EN AW-6181 EN AW-Al SiMg0,8 0,8 – 1,2 0,45 0,10 0,15 0,6 – 1,0 0,10 - 0,20 0,10 - - - 0,05 0,15 Remainder
EN AW-Al 0,40 –
EN AW-6082 0,7 – 1,3 0,50 0,10 0,6 – 1,2 0,25 - 0,20 0,10 - - - 0,05 0,15 Remainder
Si1MgMn 1,0
EN AW-Al 0,40 –
EN AW-6082A 0,7 – 1,3 0,50 0,10 0,6 – 1,2 0,25 - 0,20 0,10 - - e 0,05 0,15 Remainder
Si1MgMn(A) 1,0
0,50 –
EN AW-6182 EN AW-Al Si1MgZr 0,9 – 1,3 0,50 0,10 0,7 – 1,2 0,25 - 0,20 0,10 - - 0,05 – 0,20 Zr 0,05 0,15 Remainder
1,0
a
Alloy designation Aluminium
Others
Si Fe Cu Mn Mg Cr Ni Zn Ti Ga V Remarks
Chemical Total
Numerical Each min.
b
symbols
0,20 – 0,8 Bi
EN AW-Al 0,15 – 0,04 –
EN AW-6084 0,40 – 1,0 0,7 0,20 0,7 – 1,2 - 0,30 0,15 - - 0,05 0,15 Remainder
Mg1SiCuBi 0,50 0,20
0,10 Pb
a
“Others” includes listed elements for which no specific limit is shown as well as unlisted metallic elements. The producer may analyse samples for trace elements not specified in the registration
or specification. However, such analysis is not required and might not cover all metallic “Other” elements. Should any analysis by the producer or the purchaser establish that an “Others” element
exceeds the limit of “Each” or that the aggregate of several “Others” elements exceeds the limit of “Total”, the
...
