SIST EN IEC 60704-2-1:2021

Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for vacuum cleaners

IEC 60704-2-1:2020 is available as IEC 60704-2-1:2020 RLV which contains the International Standard and its Redline version, showing all changes of the technical content compared to the previous edition.

IEC 60704-2-1:2020 is applicable for the determination of airborne acoustical noise of mains operated and cordless dry vacuum cleaners for household use or under conditions similar to those in households. This part of IEC 60704 does not apply to vacuum cleaners for industrial or professional purposes. This edition includes the following significant technical changes with respect to the previous edition:
a) product scope is extended to cordless and similar vacuum cleaners;
b) definitions of "cleaning head", "active nozzle" and "standard Wilton test carpet" have been added;
c) specification of standard Wilton test carpet has been removed; reference is made to IEC/TS 62885-1;
d) specific requirements on equipping and pre-conditioning have been added;
e) topic ageing of test carpet is addressed.
This Part 2-1 supplements or modifies the corresponding clauses in IEC 60704-1:2010.

Elektrische Geräte für den Hausgebrauch und ähnliche Zwecke - Prüfvorschrift für die Bestimmung der Luftschallemission - Teil 2-1: Besondere Anforderungen an Trockensauger

Appareils électrodomestiques et analogues - Code d'essai pour la détermination du bruit aérien - Partie 2-1: Exigences particulières pour les aspirateurs

IEC 60704-2-1:2020 est disponible sous forme de IEC 60704-2-1:2020 RLV qui contient la Norme internationale et sa version Redline, illustrant les modifications du contenu technique depuis l'édition précédente.

L'IEC 60704-2-1:2020 s'applique pour la détermination du bruit aérien des aspirateurs à sec qui fonctionnent sur secteur et des aspirateurs à sec sans cordon destinés à un usage domestique ou dans des conditions analogues à celles des foyers domestiques. La présente partie de l'IEC 60704 ne s'applique pas aux aspirateurs destinés à des usages industriels ou professionnels. Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:
a) le domaine d'application des produits a été étendu aux aspirateurs sans cordon et appareils analogues;
b) les définitions des termes "tête de nettoyage", "suceur actif" et "tapis d'essai normalisé Wilton" ont été ajoutées;
c) la spécification du tapis d'essai normalisé Wilton a été supprimée; il est fait référence à l'IEC TS 62885-1;
d) des exigences spécifiques pour l'équipement et le conditionnement préalable ont été ajoutées;
e) le sujet du vieillissement du tapis d'essai est traité.
La présente Partie 2-1 complète ou modifie les articles correspondants de l'IEC 60704-1:2010.

Gospodinjski in podobni električni aparati - Postopek preskušanja za ugotavljanje zvočnega hrupa v zraku - 2-1. del: Posebne zahteve za sesalnike

General Information

• Status: Published
• Publication Date: 17-Jan-2021
• ICS: 17.140.20 - Noise emitted by machines and equipment
• ICS: 97.080 - Cleaning appliances
• Technical Committee: FGA - Consumer information related to household electrical appliances
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 07-Jan-2021
• Due Date: 14-Mar-2021
• Completion Date: 18-Jan-2021
• Directive: 666/2013 - Commission Regulation (EU) No 666/2013 of 8 July 2013 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for vacuum cleaner
• Mandate: M/540 - [C(2015)8753] Standardization request on Ecodesign and energy labelling of vacuum cleaners
• Ref Project: EN IEC 60704-2-1:2020 - Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for dry vacuum cleaners

Relations

• Replaces: SIST EN 60704-2-1:2015 - Household and similar electrical appliances - Test code for the determination of airborne acoustical noise -- Part 2-1: Particular requirements for vacuum cleaners
• Effective Date: 01-Feb-2021
• Revised: oSIST prEN IEC 60704-2-1:2025 - Household and similar electrical appliances - Test code for the determination of airborne acoustical noise - Part 2-1: Particular requirements for dry vacuum cleaners
• Effective Date: 18-Jul-2023

Overview

EN IEC 60704-2-1:2020 (also published as IEC 60704-2-1:2020) is the Part 2-1 test code for the determination of airborne acoustical noise emitted by dry vacuum cleaners intended for household or similar use. This fourth edition updates the previous 2014 version and is intended to be used together with IEC 60704-1:2010 (Part 1: General requirements). It defines measurement conditions and particular requirements to produce reproducible sound pressure and sound power level results for mains-operated and cordless vacuum cleaners. The standard excludes industrial or professional vacuum cleaners.

Key Topics

• Scope and object: Applies to household dry vacuum cleaners (mains and cordless) and does not cover industrial/professional appliances.
• Measurement methods: Permits use of established engineering methods such as ISO 3743-1, ISO 3743-2 and ISO 3744 for determining sound power and sound pressure.
• Definitions added: New definitions for terms like cleaning head, active nozzle and standard Wilton test carpet to clarify test configurations.
• Test material and reference: The explicit specification for the standard Wilton test carpet was removed from this edition and reference is made to IEC/TS 62885-1 for test material and equipment.
• Equipping and pre-conditioning: New requirements on how to equip appliances for test (accessories, nozzles, hoses) and pre-condition them prior to measurement to ensure consistent results.
• Ageing of test carpet: The standard addresses the effect of test carpet ageing and related handling to maintain measurement validity.
• Reporting and uncertainty: Specifies information to be recorded and reported, and addresses measurement uncertainty and statistical deviations for declaration and verification.

Applications

EN IEC 60704-2-1:2020 is used by:

• Manufacturers and product developers for acoustic design, benchmarking and optimizing vacuum cleaner noise performance.
• Independent test laboratories for standardized noise testing and sound power level determination.
• Compliance and certification bodies when assessing conformity with noise-related product requirements.
• Procurement teams and retailers who require comparable noise data for product selection.
• Acoustical engineers and R&D teams conducting validation tests, quality control and comparative testing across models (including cordless designs).

Practical outcomes include consistent measurement data for product labeling, design improvement, regulatory compliance and consumer information on vacuum cleaner noise levels.

Related Standards

• IEC 60704-1:2010 - Part 1: General requirements (to be used in conjunction)
• IEC/TS 62885-1 - Surface cleaning appliances: test material and equipment (referenced for test carpet)
• ISO 3743-1, ISO 3743-2, ISO 3744 - Accepted acoustics methods for sound power/pressure testing
• Other parts of the IEC 60704 series covering different appliance types and test conditions

Keywords: EN IEC 60704-2-1:2020, vacuum cleaners, airborne acoustical noise, test code, cordless vacuum, noise measurement, sound power level, IEC 60704-1.

Standards Content (Sample)

SLOVENSKI STANDARD
01-februar-2021
Nadomešča:
SIST EN 60704-2-1:2015
Gospodinjski in podobni električni aparati - Postopek preskušanja za ugotavljanje
zvočnega hrupa v zraku - 2-1. del: Posebne zahteve za sesalnike
Household and similar electrical appliances - Test code for the determination of airborne
acoustical noise - Part 2-1: Particular requirements for vacuum cleaners
Appareils électrodomestiques et analogues - Code d'essai pour la détermination du bruit
aérien - Partie 2-1: Exigences particulières pour les aspirateurs
Ta slovenski standard je istoveten z: EN IEC 60704-2-1:2020
ICS:
17.140.20 Emisija hrupa naprav in Noise emitted by machines
opreme and equipment
97.080 Aparati za čiščenje Cleaning appliances
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60704-2-1

NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2020
ICS 17.140.20; 97.080 Supersedes EN 60704-2-1:2015 and all of its
amendments and corrigenda (if any)
English Version
Household and similar electrical appliances - Test code for the
determination of airborne acoustical noise - Part 2-1: Particular
requirements for dry vacuum cleaners
(IEC 60704-2-1:2020)
Appareils électrodomestiques et analogues - Code d'essai Elektrische Geräte für den Hausgebrauch und ähnliche
pour la détermination du bruit aérien - Partie 2-1: Exigences Zwecke - Prüfvorschrift für die Bestimmung der
particulières pour les aspirateurs à sec Luftschallemission - Teil 2-1: Besondere Anforderungen an
(IEC 60704-2-1:2020) Trockensauger
(IEC 60704-2-1:2020)
This European Standard was approved by CENELEC on 2020-12-04. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2020 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60704-2-1:2020 E

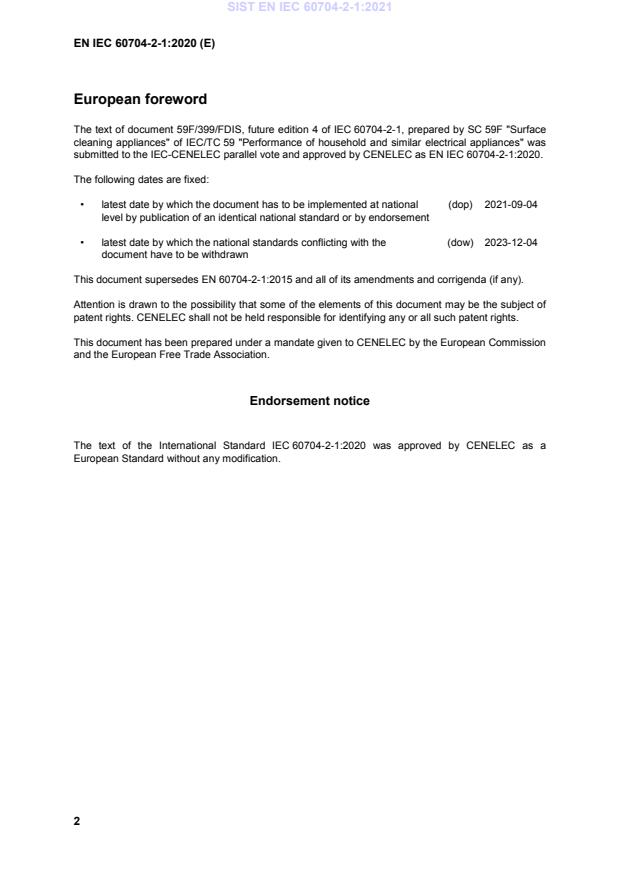

European foreword
The text of document 59F/399/FDIS, future edition 4 of IEC 60704-2-1, prepared by SC 59F "Surface
cleaning appliances" of IEC/TC 59 "Performance of household and similar electrical appliances" was
submitted to the IEC-CENELEC parallel vote and approved by CENELEC as EN IEC 60704-2-1:2020.
The following dates are fixed:
• latest date by which the document has to be implemented at national (dop) 2021-09-04
level by publication of an identical national standard or by endorsement
• latest date by which the national standards conflicting with the (dow) 2023-12-04
document have to be withdrawn
This document supersedes EN 60704-2-1:2015 and all of its amendments and corrigenda (if any).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CENELEC shall not be held responsible for identifying any or all such patent rights.
This document has been prepared under a mandate given to CENELEC by the European Commission
and the European Free Trade Association.
Endorsement notice
The text of the International Standard IEC 60704-2-1:2020 was approved by CENELEC as a
European Standard without any modification.
Annex ZA
(normative)
Normative references to international publications
with their corresponding European publications
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments)
applies.
NOTE 1  Where an International Publication has been modified by common modifications, indicated by (mod),
the relevant EN/HD applies.
NOTE 2  Up-to-date information on the latest versions of the European Standards listed in this annex is available
here: www.cenelec.eu.
Annex ZA of EN 60704-1:2010 is applicable except as follows:
Add the following references:
Publication Year Title EN/HD Year
IEC/TS 62885-1 - Surface cleaning appliances - Part 1: - -
General requirements on test material
and test equipment
ISO 3743-1 2010 Acoustics - Determination of sound EN ISO 3743-1 2010
power levels and sound energy levels of
noise sources using sound pressure -
Engineering methods for small movable
sources in reverberant fields - Part 1:
Comparison method for a hard-walled
test room
ISO 3744 2010 Acoustics - Determination of sound EN ISO 3744 2010
power levels and sound energy levels of
noise sources using sound pressure -
Engineering methods for an essentially
free field over a reflecting plane

IEC 60704-2-1 ®
Edition 4.0 2020-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
Household and similar electrical appliances – Test code for the determination

of airborne acoustical noise –

Part 2-1: Particular requirements for dry vacuum cleaners

Appareils électrodomestiques et analogues – Code d'essai pour la détermination

du bruit aérien –
Partie 2-1: Exigences particulières pour les aspirateurs à sec

INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
INTERNATIONALE
ICS 17.140.20; 97.080 ISBN 978-2-8322-8724-8

– 2 – IEC 60704-2-1:2020 © IEC 2020
CONTENTS
FOREWORD . 3
INTRODUCTION . 5
1 Scope and object . 6
1.1 Scope . 6
1.1.1 General . 6
1.1.2 Types of noise . 6
1.1.3 Size of the source . 6
1.2 Object . 6
1.3 Measurement uncertainty . 7
2 Normative references . 8
3 Terms and definitions . 8
4 Measurement methods and acoustical environments . 9
5 Instrumentation . 9
5.1 Instrumentation for measuring acoustical data . 9
6 Operation and location of appliances under test . 9
6.1 Equipping and pre-conditioning of appliances . 9
6.2 Supply of electric energy and of water or gas . 11
7 Measurement of sound pressure levels . 14
8 Calculation of sound pressure and sound power levels . 14
9 Information to be recorded . 14
10 Information to be reported . 14
Annexes . 18
Annex A (normative) Standard test table . 18
Bibliography . 19

Figure 101 – Appliance with cleaning head connected directly . 16
Figure 102 – Appliance with the cleaning head connected by hose and connecting tube . 17

Table 101 – Standard deviations of sound power levels determined on carpets . 7
Table 102 – Standard deviations of sound power levels determined on hard floors . 7
Table 103 – Standard deviations for declaration and verification for vacuum cleaners
for carpets . 7
Table 104 – Standard deviations for declaration and verification for vacuum cleaners
for hard floors . 8

IEC 60704-2-1:2020 © IEC 2020 – 3 –
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
TEST CODE FOR THE DETERMINATION
OF AIRBORNE ACOUSTICAL NOISE –

Part 2-1: Particular requirements for dry vacuum cleaners

FOREWORD
1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising
all national electrotechnical committees (IEC National Committees). The object of IEC is to promote international
co-operation on all questions concerning standardization in the electrical and electronic fields. To this end and
in addition to other activities, IEC publishes International Standards, Technical Specifications, Technical Reports,
Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC Publication(s)”). Their
preparation is entrusted to technical committees; any IEC National Committee interested in the subject dealt with
may participate in this preparatory work. International, governmental and non-governmental organizations liaising
with the IEC also participate in this preparation. IEC collaborates closely with the International Organization for
Standardization (ISO) in accordance with conditions determined by agreement between the two organizations.
2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international
consensus of opinion on the relevant subjects since each technical committee has representation from all
interested IEC National Committees.
3) IEC Publications have the form of recommendations for international use and are accepted by IEC National
Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC
Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any
misinterpretation by any end user.
4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications
transparently to the maximum extent possible in their national and regional publications. Any divergence between
any IEC Publication and the corresponding national or regional publication shall be clearly indicated in the latter.
5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity
assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any
services carried out by independent certification bodies.
6) All users should ensure that they have the latest edition of this publication.
7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and
members of its technical committees and IEC National Committees for any personal injury, property damage or
other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and
expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC
Publications.
8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is
indispensable for the correct application of this publication.
9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of patent
rights. IEC shall not be held responsible for identifying any or all such patent rights.
International Standard IEC 60704-2-1 has been prepared by subcommittee 59F: Surface
cleaning appliances, of IEC technical committee 59: Performance of household and similar
electrical appliances.
This fourth edition cancels and replaces the third edition published in 2014. This edition
constitutes a technical revision.
This edition includes the following significant technical changes with respect to the previous
edition:
a) product scope is extended to cordless and similar vacuum cleaners;
b) definitions of "cleaning head", "active nozzle" and "standard Wilton test carpet" have been
added;
c) specification of standard Wilton test carpet has been removed; reference is made to
IEC TS 62885-1;
– 4 – IEC 60704-2-1:2020 © IEC 2020
d) specific requirements on equipping and pre-conditioning have been added;
e) topic ageing of test carpet is addressed.
The text of this International Standard is based on the following documents:
FDIS Report on voting
59F/399/FDIS 59F/408/RVD
Full information on the voting for the approval of this International Standard can be found in the
report on voting indicated in the above table.
This document has been drafted in accordance with the ISO/IEC Directives, Part 2.
This Part 2-1 is intended to be used in conjunction with IEC 60704-1:2010, Household and
similar electrical appliances – Test code for the determination of airborne acoustical noise –
Part 1: General requirements.
NOTE When "Part 1" is mentioned in this standard, it refers to IEC 60704-1:2010.
The relevant text of Part 1 as amended by this document establishes the test code for vacuum
cleaners.
This Part 2-1 supplements or modifies the corresponding clauses in IEC 60704-1:2010. When
a particular subclause of Part 1 is not mentioned in this Part 2-1, that subclause is applicable
as far as reasonable. Where this standard states "addition", "modification" or "replacement",
the relevant requirements, test specifications or explanatory matter in Part 1 should be adapted
accordingly.
Subclauses, tables, and figures that are additional to those in Part 1 are numbered starting from
101. Additional annexes are lettered AA, BB, etc.
Unless notes are in a new subclause or involve notes in Part 1, they are numbered starting from
101, including those in a replaced clause or subclause.
A list of all the parts in the IEC 60704 series, published under the general title Household and
similar electrical appliances – Test code for the determination of airborne acoustical noise, can
be found on the IEC website.
The committee has decided that the contents of this document will remain unchanged until the
stability date indicated on the IEC website under "http://webstore.iec.ch" in the data related to
the specific document. At this date, the document will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.
IEC 60704-2-1:2020 © IEC 2020 – 5 –
INTRODUCTION
The measuring conditions specified in this part of IEC 60704 provide for sufficient accuracy in
determining the noise emitted and comparing the results of measurements taken by different
laboratories, whilst simulating as far as possible the practical use of vacuum cleaners.
It is recommended to consider the determination of noise levels as part of a comprehensive
testing procedure covering many aspects of properties and performance of household vacuum
cleaners.
NOTE As stated in the introduction to IEC 60704-1, this test code is concerned with airborne noise only.

– 6 – IEC 60704-2-1:2020 © IEC 2020
HOUSEHOLD AND SIMILAR ELECTRICAL APPLIANCES –
TEST CODE FOR THE DETERMINATION
OF AIRBORNE ACOUSTICAL NOISE –

Part 2-1: Particular requirements for dry vacuum cleaners

1 Scope and object
This clause of Part 1 is applicable except as follows:
1.1 Scope
1.1.1 General
Replacement:
This part of IEC 60704 is applicable for the determination of airborne acoustical noise of mains
operated and cordless dry vacuum cleaners for household use or under conditions similar to
those in households.
This part of IEC 60704 does not apply to vacuum cleaners for industrial or professional
purposes.
NOTE Particular requirements for dry cleaning robots are specified in IEC 60704-2-17.
1.1.2 Types of noise
Replacement:
The methods specified in ISO 3743-1, ISO 3743-2 and ISO 3744 can be used for measuring
noise emitted by electric vacuum cleaners.
1.1.3 Size of the source
Replacement:
The method specified in ISO 3744 is applicable to noise sources of any size. When applying
ISO 3743-1 and ISO 3743-2, the maximum size of the appliance under test should fulfil the
requirements specified in 1.2 of ISO 3743-1:2010 and 1.3 of ISO 3743-2:1994.
1.2 Object
Addition:
This part of IEC 60704 describes the determination of the noise emission of vacuum cleaners
under normal operating conditions on carpet and hard floor in accordance with 4.6 of
IEC 62885-2.
NOTE 101 For determining and verifying noise emission values declared in product specifications, see
IEC 60704-3.
IEC 60704-2-1:2020 © IEC 2020 – 7 –
1.3 Measurement uncertainty
Replacement:
For vacuum cleaners designed for cleaning carpets the estimated values of standard deviations
of sound power levels determined in accordance with this part of IEC 60704 are provided in
Table 101.
Table 101 – Standard deviations of sound power levels determined on carpets
Standard deviation (dB)
σ (repeatability) σ (reproducibility)
r R
0,3 0,8
For vacuum cleaners designed for cleaning hard floors the estimated values of standard
deviations of sound power levels determined in accordance with this part of IEC
...
