Devices to prevent pollution by backflow of potable water - Mechanical disconnector, flow actuated - Family G, Type B

This document specifies the dimensional, physical-chemical, design, hydraulic, mechanical and acoustic characteristics of mechanical disconnectors, flow actuated Family G, Type B.
This document is applicable to mechanical disconnectors flow actuated in nominal sizes DN 8 up to DN 250, intended to prevent the return of water having lost its original sanitary and drinking qualities (called “polluted water” in this document), into the potable water distribution system whenever the pressure of the latter is temporarily lower than in the polluted circuit.
This document covers the mechanical disconnectors of PN 10 that are capable of working without modification or adjustment:
— at any pressure up to 1,0 MPa (10 bar);
— in permanent duty at a limit temperature of 65 °C and 90 °C for 1 h maximum.
It specifies also the test methods and requirements for verifying these characteristics, the marking and the presentation at delivery.

Sicherungseinrichtungen zum Schutz des Trinkwassers gegen Verschmutzung durch Rückfließen - Rohrtrenner, durchflussgesteuert - Familie G, Typ B

Dieses Dokument legt die maßlichen und physikalisch-chemischen Anforderungen, die Anforderungen an die Konstruktion, die hydraulischen, mechanischen und akustischen Anforderungen an durchflussgesteuerte Rohrtrenner, Familie G, Typ B, fest.
Dieses Dokument ist anzuwenden für durchflussgesteuerte Rohrtrenner der Nennweiten DN 8 bis DN 250, die verhindern sollen, dass Wasser, das seine ursprüngliche Qualität für sanitäre Zwecke und als Trinkwasser verloren hat (in diesem Dokument „verunreinigtes Wasser“ genannt) in das Trinkwasserversorgungsnetz zurückfließt, wenn der Druck in diesem Netz vorübergehend niedriger ist als in dem verunreinigten Kreislauf.
Dieses Dokument behandelt die mechanischen Rohrtrenner mit der Druckstufe PN 10, die ohne Abänderung oder Nachstellung funktionsfähig sind:
—   bei jedem Druck bis 1,0 MPa (10 bar);
—   unter Dauerbelastung bei einer Grenztemperatur von 65 °C sowie bei 90 °C für höchstens 1 h.
Dieses Dokument legt ferner die Prüfverfahren und die Anforderungen für den Nachweis dieser Eigenschaften, die Kennzeichnung und den Lieferzustand fest.

Dispositifs de protection contre la pollution par retour de l’eau potable - Disconnecteur mécanique actionné en fonction du débit - Famille G, type B

Le présent document spécifie les caractéristiques dimensionnelles, physico chimiques, de conception, hydrauliques, mécaniques et acoustiques des disconnecteurs mécaniques actionnés en fonction du débit de famille G, type B.
Le présent document s’applique aux disconnecteurs mécaniques actionnés en fonction du débit dont le diamètre nominal va de DN 8 à DN 250, destinés à éviter le retour d’une eau ayant perdu ses qualités sanitaires et alimentaires d’origine (appelée « eau polluée » dans le présent document) dans le réseau d’eau potable lorsque la pression dans ce dernier est temporairement plus faible que dans le circuit pollué.
Le présent document couvre les disconnecteurs mécaniques de PN 10 pouvant fonctionner sans modification ni réglage :
— à toute pression jusqu’à 1,0 MPa (10 bar) ;
— en service continu à une température limite de 65 °C et 90 °C pendant une durée d’une heure maximum.
Il spécifie également les méthodes d’essai et les exigences pour vérifier leurs caractéristiques, le marquage et la présentation à la livraison.

Naprave za varovanje pitne vode pred onesnaženjem zaradi povratnega toka - Mehanski ločilniki, aktivirani s pretokom - Družina G, tip B

Ta dokument določa dimenzijske, fizikalno-kemijske, konstrukcijske, hidravlične, mehanske in akustične lastnosti mehanskih ločilnikov, aktiviranih s pretokom, družina G, tip B.
Ta dokument se uporablja za mehanske ločilnike, aktivirane s pretokom, nazivnih velikosti od DN 8 do DN 250, namenjene preprečevanju povratnega toka vode, ki je izgubila prvotne sanitarne in pitne lastnosti (v tem dokumentu imenovana »onesnažena voda«), v sistem za distribucijo pitne vode, kadar koli je tlak v sistemu začasno nižji kot v onesnaženem krogotoku.
Ta dokument zajema mehanske ločilnike PN 10, ki lahko delujejo brez spreminjanja ali prilagajanja:
– pri poljubnem tlaku do 1,0 MPa (10 bar);
– pri trajnem obratovanju največ 1 uro ob mejni temperaturi 65 °C in 90 °C.
Določa tudi preskusne metode in zahteve za preverjanje teh lastnosti, označevanje in predstavitev ob dobavi.

General Information

Status
Published
Publication Date
21-Dec-2021
Withdrawal Date
29-Jun-2022
Current Stage
6060 - Definitive text made available (DAV) - Publishing
Start Date
22-Dec-2021
Due Date
12-Mar-2022
Completion Date
22-Dec-2021

Buy Standard

Standard
EN 13434:2022
English language
28 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)


SLOVENSKI STANDARD
01-februar-2022
Naprave za varovanje pitne vode pred onesnaženjem zaradi povratnega toka -
Mehanski ločilniki, aktivirani s pretokom - Družina G, tip B
Devices to prevent pollution by backflow of potable water - Mechanical disconnector, flow
actuated - Family G, Type B
Sicherungseinrichtungen zum Schutz des Trinkwassers gegen Verschmutzung durch
Rückfließen - Rohrtrenner, durchflussgesteuert - Familie G, Typ B
Dispositifs de protection contre la pollution par retour de l’eau potable - Disconnecteur
mécanique actionné en fonction du débit - Famille G, type B
Ta slovenski standard je istoveten z: EN 13434:2021
ICS:
13.060.20 Pitna voda Drinking water
23.060.50 Blokirni ventili Check valves
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EN 13434
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2021
EUROPÄISCHE NORM
ICS 23.060.50
English Version
Devices to prevent pollution by backflow of potable water
- Mechanical disconnector, flow actuated - Family G, Type
B
Dispositifs de protection contre la pollution par retour Sicherungseinrichtungen zum Schutz des Trinkwassers
de l'eau potable - Disconnecteur mécanique actionné gegen Verschmutzung durch Rückfließen -
en fonction du débit - Famille G, type B Rohrtrenner, durchflussgesteuert - Familie G, Typ B
This European Standard was approved by CEN on 8 November 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION

EUROPÄISCHES KOMITEE FÜR NORMUNG

CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13434:2021 E
worldwide for CEN national Members.

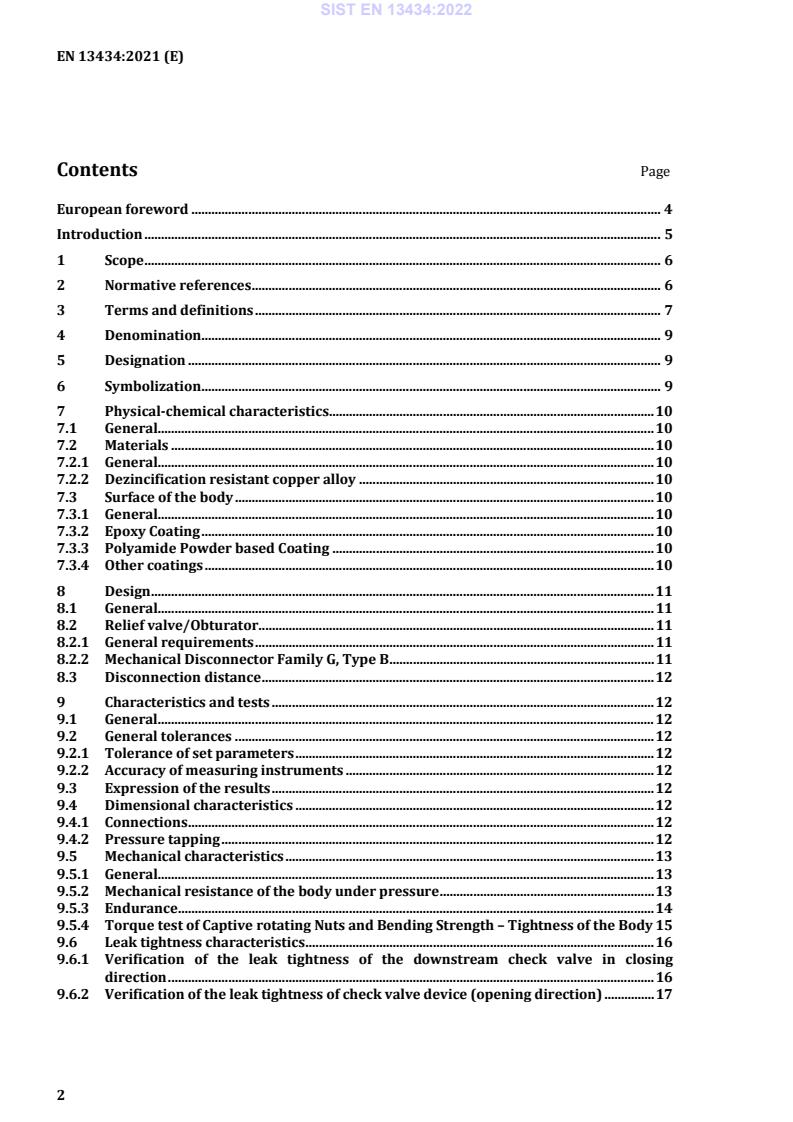

Contents Page
