EN 13541:2012

Glass in building - Security glazing - Testing and classification of resistance against explosion pressure

This European Standard specifies a test method, performance requirements and classification for explosion pressure resistant glazing for use in buildings.
The explosion pressure resistant glazing is intended to offer resistance against explosives with respect to human safety.
This European Standard concerns a method of test against blast waves generated using a shock tube or similar facility to simulate a high explosive detonation.
The classification is only valid for tested glass sizes of about 1 m2. Based on theoretical considerations and/or experimental work, the results can be used for estimating the explosion-pressure-resistance of other glass sizes.
NOTE 1   The resistance classes are not assigned to specific situations. For each individual case the individual who specifies, if necessary with the help of experts in the field of explosion, should be consulted.
NOTE 2   The protection provided by explosion-resistant-glazing not only depends on the product itself, but also on the design and fixing of the glass.

Glas im Bauwesen - Sicherheitssonderverglasung - Prüfverfahren und Klasseneinteilung des Widerstandes gegen Sprengwirkung

Diese Europäische Norm legt ein Prüfverfahren, Leistungsanforderungen und die Klasseneinteilung von sprengwirkungshemmenden Sicherheitssonderverglasungen für das Bauwesen fest.
Die Hauptanforderung an sprengwirkungshemmende Verglasungen ist es, Menschen gegen Explosionsdruck-wellen zu schützen.
Diese Europäische Norm beschreibt ein Verfahren zur Prüfung der sprengwirkungshemmenden Eigenschaften von Ver¬glasungen, bei denen der erforderliche Druckstoß in einem Stoßrohr oder einer ähnlichen Einrichtung erzeugt wird, um die Detonation einer Sprengladung nachzuahmen.
Die Klasseneinteilung gilt nur für die geprüften Verglasungsgrößen von etwa 1 m2. Aufgrund theore¬tischer Über¬legungen und/oder experimenteller Erkenntnisse können die Ergebnisse jedoch für Aussagen über die Sprengwirkungshemmung anderer Verglasungsgrößen verwendet werden.
ANMERKUNG 1   Die Widerstandsklassen sind nicht speziellen Anwendungsfällen zugeordnet. In jedem Einzelfall sollte der Planer, gegebenenfalls unterstützt durch Sprengstoffexperten, hinzugezogen werden.
ANMERKUNG 2   Der Schutz durch sprengwirkungshemmende Verglasungen hängt nicht nur vom Erzeugnis selbst, sondern auch vom Aufbau und Einbau des Glases ab.

Verre dans la construction - Vitrage de sécurité - Mise à essai et classification de la résistance à la pression d'explosion

La présente norme européenne spécifie une méthode d'essai, des exigences de performance et la classification des vitrages résistant à la pression des explosions utilisés dans le bâtiment.
Les vitrages résistant à la pression des explosions sont destinés à résister au souffle d'explosions en vue d'assurer la sécurité des personnes.
La présente norme européenne traite d'une méthode d'essai contre les ondes de choc engendrées par un tube à onde de choc ou un dispositif similaire simulant une détonation à haut pouvoir explosif.
La classification n'est valable que pour des dimensions de vitrage d'essai d'environ 1 m2. Les résultats correspondants peuvent être utilisés pour une appréciation de la résistance à la pression des explosions d'autres dimensions de vitrages en s'appuyant sur des considérations théoriques et/ou des travaux expérimentaux.
NOTE 1   Les classes de résistance ne sont pas conçues pour des situations spécifiques. Pour chaque cas particulier, il convient de consulter le demandeur, si nécessaire avec l'aide d’experts dans le domaine de l'explosion.
NOTE 2   La protection apportée par un vitrage résistant à la pression des explosions ne dépend pas uniquement du produit lui-même, mais également de la conception et du mode de fixation du vitrage.

Steklo v gradbeništvu - Varnostna zasteklitev - Preskušanje in razvrščanje odpornosti proti zvočnemu tlaku pri eksploziji

Ta evropski standard določa preskusno metodo, zahtevane lastnosti in razvrščanje za zasteklitev, odporno proti zvočnemu tlaku pri eksploziji v gradbeništvu. Zasteklitev, odporna proti zvočnemu tlaku pri eksploziji, je namenjena zagotavljanju odpornosti proti eksplozijam, da se zagotovi varnost ljudi. Ta evropski standard zajema preskusno metodo za ugotavljanje odpornosti proti udarnim valovom, ki nastanejo pri uporabi detonacijskih cevi ali podobnih naprav za simulacijo izjemno eksplozivne detonacije. Klasifikacija je veljavna le za preskušene velikosti stekla s površino približno m2. Rezultati se lahko na podlagi teoretičnih predpostavk in/ali poskusov uporabljajo za oceno odpornosti stekla drugih velikosti proti zvočnemu tlaku pri eksploziji.

General Information

• Status: Published
• Publication Date: 28-Feb-2012
• Withdrawal Date: 30-Aug-2012
• ICS: 13.230 - Explosion protection
• ICS: 81.040.20 - Glass in building
• Technical Committee: CEN/TC 129 - Glass in building
• Drafting Committee: CEN/TC 129/WG 14 - Security - Anti-bullet and anti-explosion
• Current Stage: 9060 - Closure of 2 Year Review Enquiry - Review Enquiry
• Start Date: 28-Nov-2022
• Completion Date: 28-Nov-2022
• Directive: 305/2011 - Regulation (eu) No 305/2011 of the European Parliament and of the Council of 9 march 2011 laying down harmonised conditions for the marketing of construction products and repealing council directive 89/106/eec
• Directive: 89/106/EEC - Construction products
• Mandate: M/135 - Mandate to CEN/CENELEC concerning the execution of standardization work for harmonized standards on flat glass, profiled glass and glass block products
• Ref Project: SIST EN 13541:2012 - Glass in building - Security glazing - Testing and classification of resistance against explosion pressure

Relations

• Replaces: EN 13541:2000 - Glass in building - Security glazing - Testing and classification of resistance against explosion pressure
• Effective Date: 07-Mar-2012

Overview

EN 13541:2012 - "Glass in building - Security glazing - Testing and classification of resistance against explosion pressure" is a CEN European Standard that defines a laboratory test method, performance requirements and a classification system for explosion pressure resistant glazing (blast-resistant/security glazing) used in buildings. The standard specifies shock-tube based blast testing to simulate high-explosive detonation effects, and assigns classes (ER1–ER4) based on the reflected peak overpressure, positive specific impulse and overpressure duration.

Key topics and technical requirements

• Scope: Test method and classification for glazing intended to protect human safety against explosive blast loads; classification is valid for tested glass sizes of about 1 m².
• Test method: Use of a shock tube or similar device to generate a plane shock wave normal to the specimen’s attack face to simulate a spherical detonation.
• Classification basis: Maximum reflected overpressure (Pr), positive specific impulse (i+) and duration of the positive overpressure phase (t+). Four classes (ER1 to ER4) are defined with increasing load levels.
• Specimen requirements:
  • Nominal dimensions: 1100 × 900 mm (± 5 mm).
  • Sample size: three test pieces per attack face and per class (one extra recommended for transport damage).
• Performance criteria:
  • No through-holes allowed after test.
  • No openings between frame and specimen that penetrate full thickness.
  • Test pieces achieving a class automatically achieve all lower classes.
  • Optional notation S/NS to indicate splintering (S) or no splintering (NS) of the protected rear face.
• Test apparatus and conditions:
  • Rigid specimen holder, clamped on all edges over (50 ± 10) mm with rubber strips (50 ± 2 mm × 4 ± 1 mm; 50 ± 10 IRHD).
  • Clamping pressure: (14 ± 3) N/cm².
  • Specimen temperature: surface/mass (18 ± 5) °C; stored at this temperature ≥12 h prior to test.
  • Measuring devices must determine reflected overpressure-time history with ±5% accuracy.

Applications and users

EN 13541:2012 is used by:

• Glazing manufacturers and product developers to design and certify blast-resistant glazing.
• Independent testing laboratories performing shock-tube blast tests.
• Façade engineers, architects and security consultants specifying explosion pressure resistant glazing for critical infrastructure, government buildings, transportation hubs and high-risk sites.
• Building owners and authorities assessing glazing options for anti-terrorism, public safety and protective construction projects.

Related standards

Relevant complementary documents include:

• EN 13123-1 / EN 13123-2 (Windows, doors and shutters - Explosion resistance)
• EN 13124-1 / EN 13124-2 (Test methods)
• EN ISO 12543 series (Laminated glass)
• EN 14449 (Laminated glass - conformity/product standard)

Keywords: EN 13541:2012, explosion pressure resistant glazing, security glazing testing, blast-resistant glazing, shock tube, ER1 ER2 ER3 ER4.

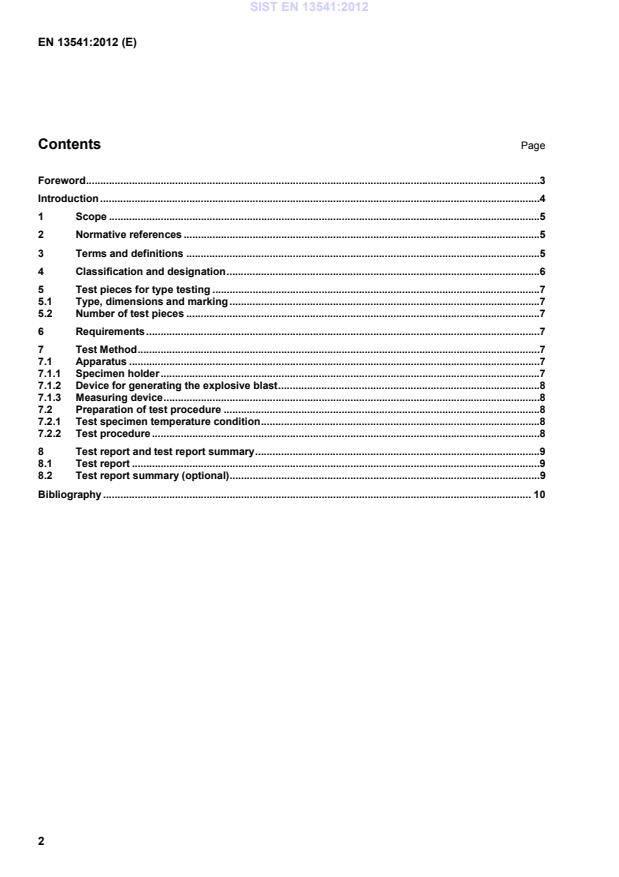

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.]YUãþDQMHGlas im Bauwesen - Sicherheitssonderverglasung - Prüfverfahren und Klasseneinteilung des Widerstandes gegen SprengwirkungVerre dans la construction - Vitrage de sécurité - Mise à essai et classification de la résistance à la pression d'explosionGlass in building - Security glazing - Testing and classification of resistance against explosion pressure81.040.20Steklo v gradbeništvuGlass in building13.230Varstvo pred eksplozijoExplosion protectionICS:Ta slovenski standard je istoveten z:EN 13541:2012SIST EN 13541:2012en,fr,de01-maj-2012SIST EN 13541:2012SLOVENSKI
STANDARDSIST EN 13541:20011DGRPHãþD

EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 13541
February 2012 ICS 13.230; 81.040.20 Supersedes EN 13541:2000English Version
Glass in building - Security glazing - Testing and classification of resistance against explosion pressure
Verre dans la construction - Vitrage de sécurité - Mise à essai et classification de la résistance à la pression d'explosion
Glas im Bauwesen - Sicherheitssonderverglasung - Prüfverfahren und Klasseneinteilung des Widerstandes gegen Sprengwirkung This European Standard was approved by CEN on 31 December 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 13541:2012: ESIST EN 13541:2012

The classification of explosion pressure resistance is based on the maximum overpressure of the reflected shock wave and the duration of the overpressure phase. SIST EN 13541:2012
...
