EN 4623:2010

Aerospace series - Inserts, MJ threads, self-locking, with self-broaching keys, in heat resisting nickel base alloy NI-PH2601 (Inconel 718), silver plated

This standard specifies the characteristics of self-locking, MJ thread inserts, self-broaching keys, in NI PH2601, silver plated, for aerospace applications.
Classification: 1 550 MPa / 600 °C

Luft- und Raumfahrt - Gewindeeinsätze, MJ-Gewinden, selbstsichernd, mit selbsträumenden Stiften, aus hochwarmfeste Nickellegierung NI-PH2601 (Inconel 718), versilbert

Diese Norm legt die Eigenschaften von selbstsichernden Gewindeeinsätzen aus NI-PH2601, versilbert,
MJ-Gewinde und mit selbsträumenden Stiften für Anwendungen in der Luft- und Raumfahrt fest.
Klasse: 1 550 MPa1)/600 °C2).

Série aérospatiale - Douilles filetées, à filetage MJ, à freinage interne, à clavettes auto-brochantes, en alliage résistant à chaud à base de nickel NI-PH2601 (Inconel 718), argentées

Aeronavtika - Vložki, navoj MJ, samozapiralni, s samozagozdnim ključem, iz toplotnoodporne zlitine na nikljevi osnovi NI-PH2601 (Inconel 718), posrebreni

Ta standard opredeljuje značilnosti samozapiralnih vložkov z MJ navojem, s samozagozdnimi ključi, iz NI-PH2601, posrebrenih, za uporabo v aeronavtiki. Klasifikacija: 1550 MPa/600 °C.

General Information

• Status: Published
• Publication Date: 20-Apr-2010
• Withdrawal Date: 30-Oct-2010
• ICS: 49.030.10 - Screw threads
• ICS: 49.030.30 - Nuts
• Technical Committee: ASD-STAN - Aerospace
• Drafting Committee: ASD-STAN/D 3 - Mechanical
• Current Stage: 6060 - Definitive text made available (DAV) - Publishing
• Start Date: 21-Apr-2010
• Completion Date: 21-Apr-2010
• Ref Project: SIST EN 4623:2010 - Aerospace series - Inserts, MJ threads, self-locking, with self-broaching keys, in heat resisting nickel base alloy NI-PH2601 (Inconel 718), silver plated

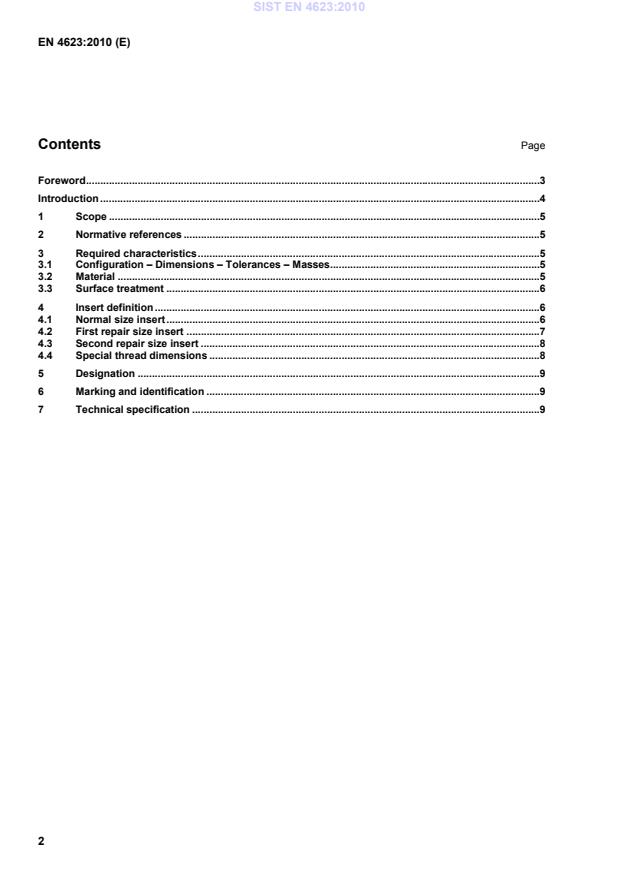

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Luft- und Raumfahrt - Gewindeeinsätze, MJ-Gewinden, selbstsichernd, mit selbsträumenden Stiften,aus Hochwarmfeste Nickellegierung NI-PH2601 (Inconel 718), VersilbertSérie aérospatiale - Douilles filetées, à filetage MJ, à freinage interne, à clavettes auto-brochantes, en alliage résistant à chaud à base de nickel NI-PH2601 (Inconel 718), argentéesAerospace series - Inserts, MJ threads, self-locking, with self-broaching keys, in heat resisting nickel base alloy NI-PH2601 (Inconel 718), silver plated49.030.10NavojiScrew threadsICS:Ta slovenski standard je istoveten z:EN 4623:2010SIST EN 4623:2010en01-julij-2010SIST EN 4623:2010SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4623
April 2010 ICS 49.030.30 English Version
Aerospace series - Inserts, MJ threads, self-locking, with self-broaching keys, in heat resisting nickel base alloy NI-PH2601 (Inconel 718), silver plated
Série aérospatiale - Douilles filetées, à filetage MJ, à freinage interne, à clavettes auto-brochantes, en alliage résistant à chaud à base de nickel NI-PH2601 (Inconel 718), argentées
Luft- und Raumfahrt - Gewindeeinsätze, MJ-Gewinden, selbstsichernd, mit selbsträumenden Stiften, aus Hochwarmfeste Nickellegierung NI-PH2601 (Inconel 718), Versilbert This European Standard was approved by CEN on 16 January 2010.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2010 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 4623:2010: ESIST EN 4623:2010
...
