EN 13850:2002/prA1
(Amendment)Postal service - Quality of service - Measurement of the transit time of end-to end-services for single piece priority mail and first class mail
Postal service - Quality of service - Measurement of the transit time of end-to end-services for single piece priority mail and first class mail
Modifications because of:
When EN 13850 was developed it was decided to base it on existing measuring systems already in use among the European Union member states. Since the publication of EN 13850 in 2002 more countries have joined the European Union which have increased the number of cross-border mail flows significantly and therefore made it necessary to adapt the standard accordingly.
Amendment 1 to this European Standard has been developed to make it possible to economically measure a larger number of mail flows from a wider range of countries than the original versions of the standard were made for.
Amendment 1 to this European Standard gives information on how to categorize mail flows for measuring purposes and explain how required accuracy for small and medium sized mail flows can be obtained by measuring under a consecutive number of years.
Postalische Dienstleitungen - Dienstqualität - Laufzeitmessung end to end für Vorrangsendungen und Sendungen erster Klasse
Services postaux - Qualité de service - Mesure du délai d´acheminement des services de bout en bout pour le courrier prioritaire égrené et de première classe
Poštne storitve – Kakovost storitev – Merjenje časa prenosa od sprejema do vročitve za posamične pošiljke prednostne pošte in pošte prvega razreda – Razširitev standarda, da upošteva tudi tokove manjših pošiljk v razširjeni EU
General Information
Relations
Standards Content (Sample)
SLOVENSKI SIST EN
13850:2004/oprA1:2005
PREDSTANDARD
december 2005
Poštne storitve – Kakovost storitev – Merjenje časa prenosa od sprejema do
vročitve za posamične pošiljke prednostne pošte in pošte prvega razreda –
Razširitev standarda, da upošteva tudi tokove manjših pošiljk v razširjeni EU
Postal service - Quality of service - Measurement of the transit time of end-to end
services for single piece priority mail and first class mail - Extension of the standard
to cover flows with smaller mail volumes in an enlarged EU
ICS 03.240 Referenčna številka
SIST EN 13850:2004/oprA1:2005(en)
© Standard je založil in izdal Slovenski inštitut za standardizacijo. Razmnoževanje ali kopiranje celote ali delov tega dokumenta ni dovoljeno
---------------------- Page: 1 ----------------------
EUROPEAN STANDARD
DRAFT
EN 13850:2002
NORME EUROPÉENNE
EUROPÄISCHE NORM
prA1
September 2005
ICS
English Version
Postal service - Quality of service - Measurement of the transit
time of end-to end services for single piece priority mail and first
class mail - Extension of the standard to cover flows with smaller
mail volumes in an enlarged EU
Services Postaux - Qualité de service - Mesure du délai
d'acheminement des services de bout en bout pour le
courrier prioritaire égrené et de première classe - Extension
de la norme pour traiter les flux dont le volume de courrier
est plus petit, au sein d'une UE élargie
This draft amendment is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee CEN/TC 331.
This draft amendment A1, if approved, will modify the European Standard EN 13850:2002. If this draft becomes an amendment, CEN
members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for inclusion of this amendment
into the relevant national standard without any alteration.
This draft amendment was established by CEN in three official versions (English, French, German). A version in any other language made
by translation under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status
as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France,
Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia,
Slovenia, Spain, Sweden, Switzerland and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are aware and to
provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without notice and
shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels
© 2005 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 13850:2002/prA1:2005: E
worldwide for CEN national Members.
---------------------- Page: 2 ----------------------
EN 13850:2002/prA1:2005 (E)

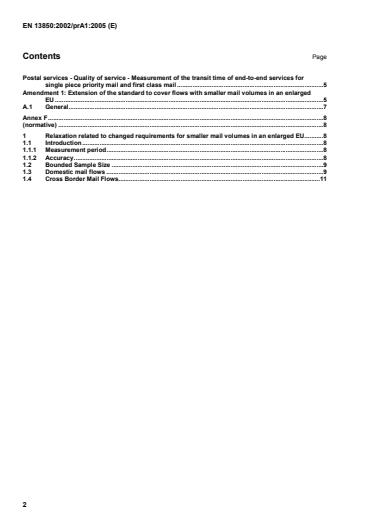

Contents Page
Postal services - Quality of service - Measurement of the transit time of end-to-end services for
single piece priority mail and first class mail .5
Amendment 1: Extension of the standard to cover flows with smaller mail volumes in an enlarged
EU .5
A.1 General.7
Annex F.8
(normative) .8
1 Relaxation related to changed requirements for smaller mail volumes in an enlarged EU.8
1.1 Introduction.8
1.1.1 Measurement period.8
1.1.2 Accuracy.8
1.2 Bounded Sample Size .9
1.3 Domestic mail flows .9
1.4 Cross Border Mail Flows.11
2
---------------------- Page: 3 ----------------------
EN 13850:2002/prA1:2005 (E)
Foreword
This document (EN 13850:2002/prA1:2005) has been prepared by Technical Committee CEN/TC 331 “Postal
services”, the secretariat of which is held by NEN.
This document is currently submitted to the CEN Enquiry.
3
---------------------- Page: 4 ----------------------
EN 13850:2002/prA1:2005 (E)
Introduction
When EN 13850 Postal service – Quality of service – Measurement of the transit time of end-to-end services
for single piece priority mail and first class mail was developed it was decided to base it on existing measuring
systems already in use among the European Union member states. Since the publication of EN 13850 in 2002
more countries have joined the European Union which have increased the number of cross-border mail flows
significantly and therefore made it necessary to adapt the standard accordingly.
This amendment to the standard has been developed to make it possible to economically measure a larger
number of mail flows from a wider range of countries than the original versions of the standard were made for.
The Amendment gives information on how to categorize mail flows for measuring purposes and explain how
required accuracy for small and medium sized mail flows can be obtained by measuring under a consecutive
number of years.
4
---------------------- Page: 5 ----------------------
EN 13850:2002/prA1:2005 (E)
Postal services - Quality of service - Measurement of the transit time
of end-to-end services for single piece priority mail and first class mail
Amendment 1: Extension of the standard to cover flows with smaller mail volumes in an
enlarged EU
th
Page 12, subclause 4.1 after 4 paragraph
Add the following
using a test period of 1, 2 or 3 years according to Annex F. (Note)
For cross border mail flows in categories 2 or 3 according to Annex F it will take 2 or 3 years, respectively to
reach the required accuracy for the particular size of mail flow.
th
Page 12, subclause 4.1 after 8 paragraph
Add the following
A field of study shall not be modified during a yearly test period or over the full period of the years needed for
full accuracy.
Page 12, end of subclause 4.2.2
Add the following
In the cross-border case it shall be continuous for a field of study over the full period of the years needed for
full accuracy. This does not necessarily mean that for cross-border mail flows all dates in a year must be
covered. For example, it may be sufficient to select three out of five possible induction days randomly or
according to a systematic rotation plan in each week of the year.
th
Page 14, just above the 4 paragraph from the end of subclause 5.3
Add the following
Note: The intrinsic accuracy of the real mail studies may therefore be lower for those fields of study where less
measurement accuracy is required.
Page 15, end of subclause 5.4.4
Add the following
For cross-border mail flows in categories 2 or 3 according to Annex F, the representative stratification does
not have to be achieved annually but it should be tried to come as close as possible in order to be able to
reach a representative stratification for each full multi-year result.
5
---------------------- Page: 6 ----------------------
EN 13850:2002/prA1:2005 (E)
For cross-border mails flows in categories 2 or 3 according to Annex F the annual sample sizes that compose
a multi-year result shall be spread evenly over the test period and not differ relatively by more or less than
20% in any one year.
If the survey design is changed during the test period then checks shall be made that the results of the survey
before and after the design change shall be combined in a way which is representative of real mail.
Page 17, subclause 5.6.2 replace whole subclause with
$
For the estimation P , i = 1,2, the prescribed accuracy is given by the maximum length 2ε of the confidence
i i
interval for p , for a given confidence level (1 - α ).
i 1
• for a domestic result per year, the confidence level is set to be 1 - α = 95 %, and the maximum length
1
of the confidence interval is set to (see Annex F for definition of country categories)
Category 1 Category 2 Category 3
$
J+n performance P
1
90 % or more
2ε =0,0200 2ε =0,0200 2ε =0,0200
1 1 1
85 % to 90 % 2ε =0,0200 2ε =0,0200 2ε =0,0237
1 1 1
80 % to 85 % 2ε =0,0200 2ε =0,0222 2ε =0,0266
1 1 1
75 % to 80 %
2ε =0,0200 2ε =0,0241 2ε =0,0287
1 1 1
70 % to 75 %
2ε =0,0200 2ε =0,0255 2ε =0,0304
1 1 1
65 % to 70 % 2ε =0,0200 2ε =0,0265 2ε =0,0317
1 1 1
60 % to 65 %
2ε =0,0200 2ε =0,0272 2ε =0,0325
1 1 1
55 % to 60 %
2ε =0,0200 2ε =0,0276 2ε =0,0330
1 1 1
50 % to 55 %
2ε =0,0200 2ε =0,0278 2ε =0,0332
1 1 1
A maximum length of the confidence interval of for example 2ε =0,0200 means an accuracy level of ±
1
0,01.
• for a cross-border flow result per test period (1, 2 or 3 years according to flow categories in Annex F),
the confidence level is set to1 - α = 95 %, and the maximum length of the confidence interval is set to:
2
Category 1 Category 2 Category 3
$
J+n performance
P
2
75 % or more
2ε=0,1000 2ε=0,1000 2ε =0,1000
2 2 2
70 % to 75 %
2ε=0,1000 2ε=0,1057 2ε =0,1057
2 2 2
65 % to 70 % 2ε=0,1000 2ε=0,1100 2ε =0,1100
2 2 2
60 % to 65 %
2ε=0,1000 2ε=0,1130 2ε =0,1130
2 2 2
55 % to 60 %
2ε=0,1000 2ε=0,1148 2ε =0,1148
2 2 2
50 % to 55 %
2ε=0,1000 2ε=0,1153 2ε =0,1153
2 2 2
A maximum length of the confidence interval of for example 2ε =0,1000 means an accuracy level of ± 0,05.
2
6
---------------------- Page: 7 ----------------------
EN 13850:2002/prA1:2005 (E)
Page 17, subclause 5.6.3 after 2nd paragraph
Add the following
For cross-border mail flows in categories 2 or 3 according to Annex F, the results shall be cumulative over 2 or
3 years during the test period according to Annex F.
Page 18, end of subclause 5.7.2
Add the following
Due to small sample sizes for countries in categories 2 and 3, see Annex F, for domestic measurement, the
above constraints are relaxed to an interval of [0,2 ; 5] and a maximum relative deviation of 30% and only
when relevant.
For cross-border mail flows in categories 2 or 3 according to Annex F, the above constraints do not have to be
fulfilled annually but only per full multi-year result and only when relevant.
Page 18, subclause 6.1 first paragraph
Delete the following
“in accordance with ISO 11180”
Page 21, Annex A.1 General, delete first two bullet points after the following sentence:
A.1 General
5.6.2 sets requirements for the accuracy of the estimator of the on-time probability P.
Page 52
Add the following annex before the Bibliography.
7
---------------------- Page: 8 ----------------------
EN 13850:2002/prA1:2005 (E)
Annex F
(normative)
This Annex gives information on
...
