Switches for household and similar fixed electrical installations - Part 2-5: Particular requirements - Switches and related accessories for use in home and building electronic systems (HBES)

IEC 60669-2-5:2013 applies to HBES switches with a working voltage not exceeding 250 V a.c. and a rated current up to and including 16 A for household and similar fixed electrical installations either indoors or outdoors and to associated electronic extension units.

Interrupteurs pour installations électriques fixes domestiques et analogues - Partie 2-5: Prescriptions particulières - Interrupteurs et appareils associés pour usage dans les systèmes électroniques des foyers domestiques et bâtiments (HBES)

La CEI 60669-2-5:2013 s'applique aux interrupteurs HBES de tension locale ne dépassant pas 250 V en courant alternatif et de courant assigné inférieur ou égal à 16 A, pour installations électriques fixes domestiques et analogues intérieures ou extérieures et pour les éléments électroniques périphériques.

General Information

Status
Published
Publication Date
27-Feb-2023
Current Stage
WPUB - Publication withdrawn
Completion Date
28-Feb-2023
Ref Project

Buy Standard

Standard
IEC 60669-2-5:2013 - Switches for household and similar fixed electrical installations - Part 2-5: Particular requirements - Switches and related accessories for use in home and building electronic systems (HBES)
English and French language
91 pages
sale 15% off
Preview
sale 15% off
Preview

Standards Content (Sample)

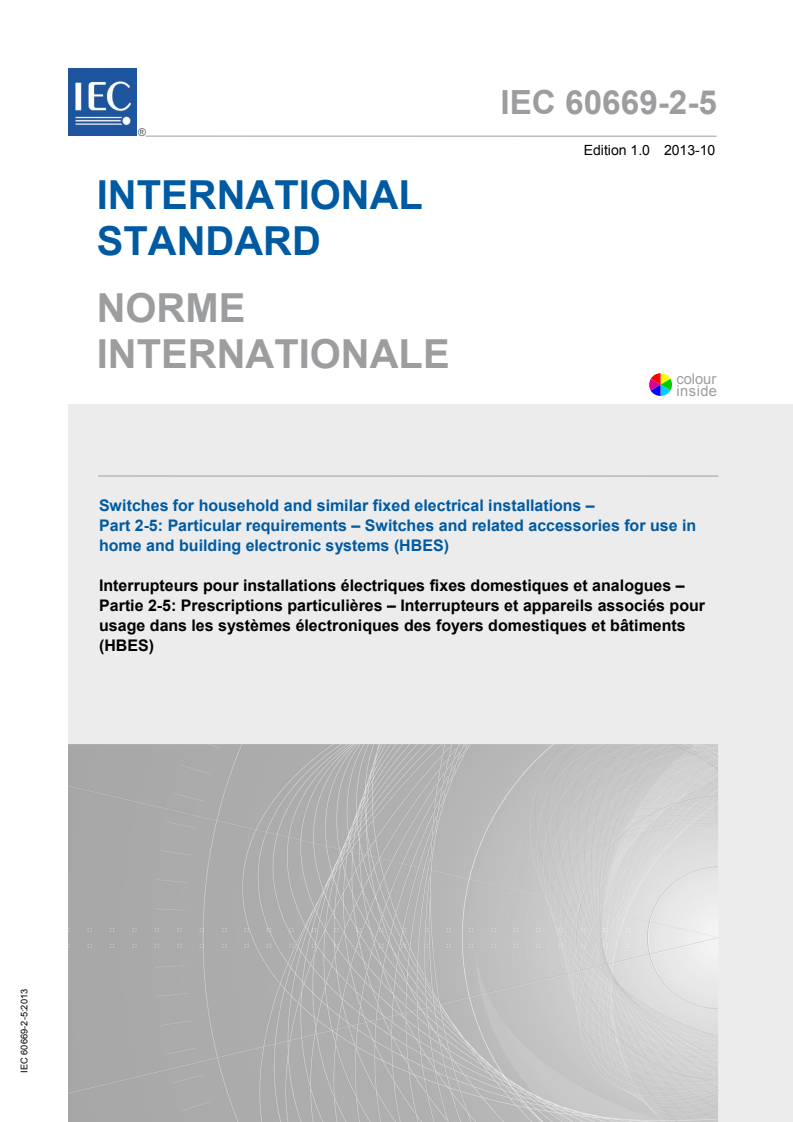

IEC 60669-2-5
Edition 1.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Switches for household and similar fixed electrical installations –
Part 2-5: Particular requirements – Switches and related accessories for use in
home and building electronic systems (HBES)
Interrupteurs pour installations électriques fixes domestiques et analogues –

Partie 2-5: Prescriptions particulières – Interrupteurs et appareils associés pour

usage dans les systèmes électroniques des foyers domestiques et bâtiments
(HBES)
IEC 60669-2-5:2013
---------------------- Page: 1 ----------------------
THIS PUBLICATION IS COPYRIGHT PROTECTED
Copyright © 2013 IEC, Geneva, Switzerland

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form

or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from

either IEC or IEC's member National Committee in the country of the requester.

If you have any questions about IEC copyright or have an enquiry about obtaining additional rights to this publication,

please contact the address below or your local IEC member National Committee for further information.

Droits de reproduction réservés. Sauf indication contraire, aucune partie de cette publication ne peut être reproduite ni

utilisée sous quelque forme que ce soit et par aucun procédé, électronique ou mécanique, y compris la photocopie et les

microfilms, sans l'accord écrit de la CEI ou du Comité national de la CEI du pays du demandeur.

Si vous avez des questions sur le copyright de la CEI ou si vous désirez obtenir des droits supplémentaires sur cette

publication, utilisez les coordonnées ci-après ou contactez le Comité national de la CEI de votre pays de résidence.

IEC Central Office Tel.: +41 22 919 02 11
3, rue de Varembé Fax: +41 22 919 03 00
CH-1211 Geneva 20 info@iec.ch
Switzerland www.iec.ch
About the IEC

The International Electrotechnical Commission (IEC) is the leading global organization that prepares and publishes

International Standards for all electrical, electronic and related technologies.
About IEC publications

The technical content of IEC publications is kept under constant review by the IEC. Please make sure that you have the

latest edition, a corrigenda or an amendment might have been published.
Useful links:

IEC publications search - www.iec.ch/searchpub Electropedia - www.electropedia.org

The advanced search enables you to find IEC publications The world's leading online dictionary of electronic and

by a variety of criteria (reference number, text, technical electrical terms containing more than 30 000 terms and

committee,…). definitions in English and French, with equivalent terms in

It also gives information on projects, replaced and additional languages. Also known as the International

withdrawn publications. Electrotechnical Vocabulary (IEV) on-line.

IEC Just Published - webstore.iec.ch/justpublished Customer Service Centre - webstore.iec.ch/csc

Stay up to date on all new IEC publications. Just Published If you wish to give us your feedback on this publication

details all new publications released. Available on-line and or need further assistance, please contact the

also once a month by email. Customer Service Centre: csc@iec.ch.
A propos de la CEI

La Commission Electrotechnique Internationale (CEI) est la première organisation mondiale qui élabore et publie des

Normes internationales pour tout ce qui a trait à l'électricité, à l'électronique et aux technologies apparentées.

A propos des publications CEI

Le contenu technique des publications de la CEI est constamment revu. Veuillez vous assurer que vous possédez

l’édition la plus récente, un corrigendum ou amendement peut avoir été publié.
Liens utiles:

Recherche de publications CEI - www.iec.ch/searchpub Electropedia - www.electropedia.org

La recherche avancée vous permet de trouver des Le premier dictionnaire en ligne au monde de termes

publications CEI en utilisant différents critères (numéro de électroniques et électriques. Il contient plus de 30 000

référence, texte, comité d’études,…). termes et définitions en anglais et en français, ainsi que

Elle donne aussi des informations sur les projets et les les termes équivalents dans les langues additionnelles.

publications remplacées ou retirées. Egalement appelé Vocabulaire Electrotechnique

International (VEI) en ligne.
Just Published CEI - webstore.iec.ch/justpublished
Service Clients - webstore.iec.ch/csc
Restez informé sur les nouvelles publications de la CEI.

Just Published détaille les nouvelles publications parues. Si vous désirez nous donner des commentaires sur

Disponible en ligne et aussi une fois par mois par email. cette publication ou si vous avez des questions

contactez-nous: csc@iec.ch.
---------------------- Page: 2 ----------------------

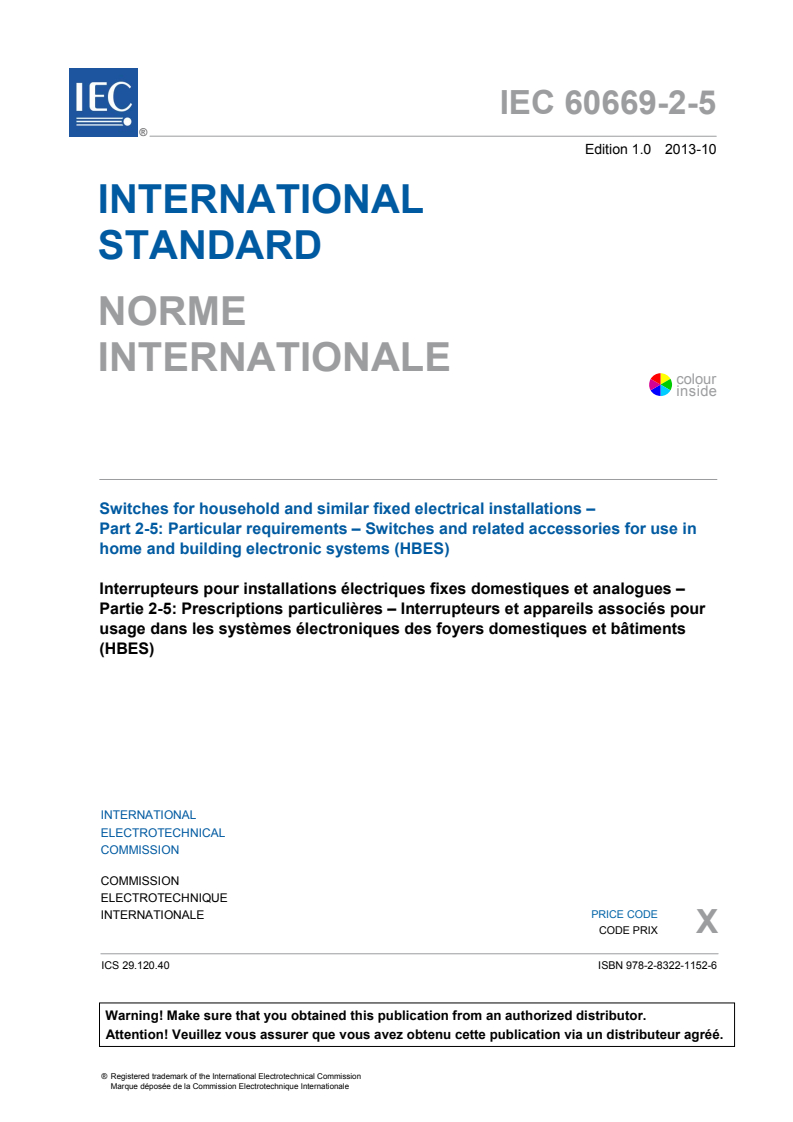

IEC 60669-2-5
Edition 1.0 2013-10
INTERNATIONAL
STANDARD
NORME
INTERNATIONALE
colour
inside
Switches for household and similar fixed electrical installations –
Part 2-5: Particular requirements – Switches and related accessories for use in
home and building electronic systems (HBES)
Interrupteurs pour installations électriques fixes domestiques et analogues –

Partie 2-5: Prescriptions particulières – Interrupteurs et appareils associés pour

usage dans les systèmes électroniques des foyers domestiques et bâtiments
(HBES)
INTERNATIONAL
ELECTROTECHNICAL
COMMISSION
COMMISSION
ELECTROTECHNIQUE
PRICE CODE
INTERNATIONALE
CODE PRIX X
ICS 29.120.40 ISBN 978-2-8322-1152-6

Warning! Make sure that you obtained this publication from an authorized distributor.

Attention! Veuillez vous assurer que vous avez obtenu cette publication via un distributeur agréé.

® Registered trademark of the International Electrotechnical Commission
Marque déposée de la Commission Electrotechnique Internationale
---------------------- Page: 3 ----------------------

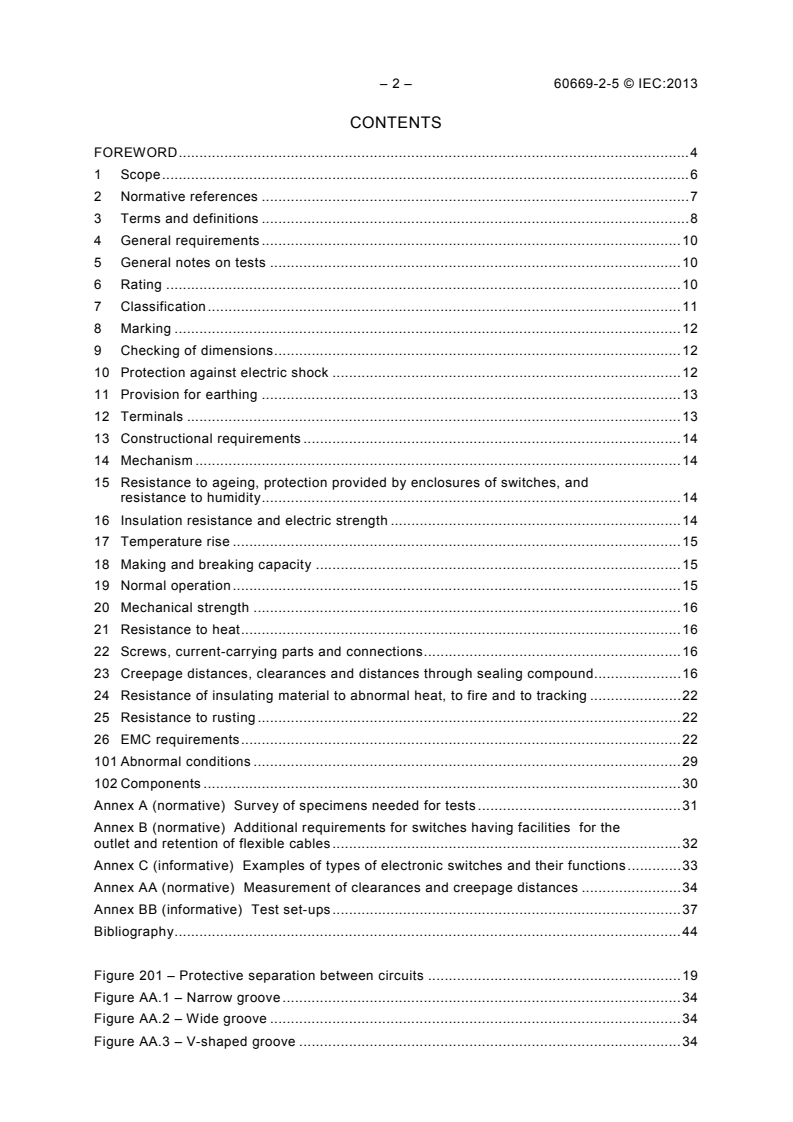

– 2 – 60669-2-5 © IEC:2013
CONTENTS

FOREWORD ........................................................................................................................... 4

1 Scope ............................................................................................................................... 6

2 Normative references ....................................................................................................... 7

3 Terms and definitions ....................................................................................................... 8

4 General requirements ..................................................................................................... 10

5 General notes on tests ................................................................................................... 10

6 Rating ............................................................................................................................ 10

7 Classification .................................................................................................................. 11

8 Marking .......................................................................................................................... 12

9 Checking of dimensions .................................................................................................. 12

10 Protection against electric shock .................................................................................... 12

11 Provision for earthing ..................................................................................................... 13

12 Terminals ....................................................................................................................... 13

13 Constructional requirements ........................................................................................... 14

14 Mechanism ..................................................................................................................... 14

15 Resistance to ageing, protection provided by enclosures of switches, and

resistance to humidity ..................................................................................................... 14

16 Insulation resistance and electric strength ...................................................................... 14

17 Temperature rise ............................................................................................................ 15

18 Making and breaking capacity ........................................................................................ 15

19 Normal operation ............................................................................................................ 15

20 Mechanical strength ....................................................................................................... 16

21 Resistance to heat .......................................................................................................... 16

22 Screws, current-carrying parts and connections .............................................................. 16

23 Creepage distances, clearances and distances through sealing compound..................... 16

24 Resistance of insulating material to abnormal heat, to fire and to tracking ...................... 22

25 Resistance to rusting ...................................................................................................... 22

26 EMC requirements .......................................................................................................... 22

101 Abnormal conditions ....................................................................................................... 29

102 Components ................................................................................................................... 30

Annex A (normative) Survey of specimens needed for tests ................................................. 31

Annex B (normative) Additional requirements for switches having facilities for the

outlet and retention of flexible cables .................................................................................... 32

Annex C (informative) Examples of types of electronic switches and their functions ............. 33

Annex AA (normative) Measurement of clearances and creepage distances ........................ 34

Annex BB (informative) Test set-ups .................................................................................... 37

Bibliography .......................................................................................................................... 44

Figure 201 – Protective separation between circuits ............................................................. 19

Figure AA.1 – Narrow groove ................................................................................................ 34

Figure AA.2 – Wide groove ................................................................................................... 34

Figure AA.3 – V-shaped groove ............................................................................................ 34

---------------------- Page: 4 ----------------------
60669-2-5 © IEC:2013 – 3 –

Figure AA.4 – Rib ................................................................................................................. 35

Figure AA.5 – Uncemented joint with narrow groove ............................................................. 35

Figure AA.6 – Uncemented joint with wide groove ................................................................. 35

Figure AA.7 – Uncemented joint with narrow and wide grooves............................................. 35

Figure AA.8 – Intervening, unconnected conductive part ....................................................... 36

Figure AA.9 – Narrow recess ................................................................................................ 36

Figure AA.10 – Wide recess .................................................................................................. 36

Figure BB.1 – Test setup for AC mains connection according to IEC 61000-4-4 .................... 37

Figure BB.2 – Test setup for bus and DC mains connection according to IEC 61000-4-4 ...... 38

Figure BB.3 – Test setup for AC mains connection according to IEC 61000-4-5 .................... 39

Figure BB.4 – Test setup for bus and DC mains connection according to IEC 61000-4-5 ...... 40

Figure BB.5 – Test setup for the ESD according to IEC 61000-4-2 ........................................ 41

Figure BB.6 – Test setup for AC mains connection according to IEC 61000-4-6 .................... 42

Figure BB.7 – Test setup for bus and DC mains connection according to

IEC 61000-4-6 ...................................................................................................................... 43

Table 201 – Test loads for HBES switches for heating installations ....................................... 16

Table 202 – Relation between the rated voltage of the HBES switch, the rated

insulation voltage and the rated impulse voltage ................................................................... 17

Table 203 – Minimum clearances without verification test ..................................................... 19

Table 204 – Test voltages and corresponding altitudes ......................................................... 20

Table 205 – Minimum clearances with verification test .......................................................... 20

Table 206 – Minimum creepage distances of basic, supplementary and reinforced

insulation without verification test ......................................................................................... 21

Table 207 – Minimum creepage distances of basic, supplementary and reinforced

insulation with verification test .............................................................................................. 21

Table 208 – Immunity tests (overview) .................................................................................. 24

Table 209 – Voltage dip and short-interruption test values .................................................... 24

Table 210 – Surge immunity test voltages ............................................................................. 25

Table 211 – Fast transient test values .................................................................................. 26

Table 212 – Values for radiated electromagnetic field test of IEC 61000-4-3 ......................... 27

---------------------- Page: 5 ----------------------
– 4 – 60669-2-5 © IEC:2013
INTERNATIONAL ELECTROTECHNICAL COMMISSION
____________
SWITCHES FOR HOUSEHOLD AND
SIMILAR FIXED ELECTRICAL INSTALLATIONS –
Part 2-5: Particular requirements –
Switches and related accessories for use in home
and building electronic systems (HBES)
FOREWORD

1) The International Electrotechnical Commission (IEC) is a worldwide organization for standardization comprising

all national electrotechnical committees (IEC National Committees). The object of IEC is to promote

international co-operation on all questions concerning standardization in the electrical and electronic fields. To

this end and in addition to other activities, IEC publishes International Standards, Technical Specifications,

Technical Reports, Publicly Available Specifications (PAS) and Guides (hereafter referred to as “IEC

Publication(s)”). Their preparation is entrusted to technical committees; any IEC National Committee interested

in the subject dealt with may participate in this preparatory work. International, governmental and non-

governmental organizations liaising with the IEC also participate in this preparation. IEC collaborates closely

with the International Organization for Standardization (ISO) in accordance with conditions determined by

agreement between the two organizations.

2) The formal decisions or agreements of IEC on technical matters express, as nearly as possible, an international

consensus of opinion on the relevant subjects since each technical committee has representation from all

interested IEC National Committees.

3) IEC Publications have the form of recommendations for international use and are accepted by IEC National

Committees in that sense. While all reasonable efforts are made to ensure that the technical content of IEC

Publications is accurate, IEC cannot be held responsible for the way in which they are used or for any

misinterpretation by any end user.

4) In order to promote international uniformity, IEC National Committees undertake to apply IEC Publications

transparently to the maximum extent possible in their national and regional publications. Any divergence

between any IEC Publication and the corresponding national or regional publication shall be clearly indicated in

the latter.

5) IEC itself does not provide any attestation of conformity. Independent certification bodies provide conformity

assessment services and, in some areas, access to IEC marks of conformity. IEC is not responsible for any

services carried out by independent certification bodies.

6) All users should ensure that they have the latest edition of this publication.

7) No liability shall attach to IEC or its directors, employees, servants or agents including individual experts and

members of its technical committees and IEC National Committees for any personal injury, property damage or

other damage of any nature whatsoever, whether direct or indirect, or for costs (including legal fees) and

expenses arising out of the publication, use of, or reliance upon, this IEC Publication or any other IEC

Publications.

8) Attention is drawn to the Normative references cited in this publication. Use of the referenced publications is

indispensable for the correct application of this publication.

9) Attention is drawn to the possibility that some of the elements of this IEC Publication may be the subject of

patent rights. IEC shall not be held responsible for identifying any or all such patent rights.

International Standard IEC 60669-2-5 has been prepared by subcommittee 23B: Plugs,

socket-outlets and switches, of IEC technical committee 23: Electrical accessories.

The text of this standard is based on the following documents:
FDIS Report on voting
23B/1110/FDIS 23B/1129/RVD

Full information on the voting for the approval of this standard can be found in the report on

voting indicated in the above table.

This publication has been drafted in accordance with the ISO/IEC Directives, Part 2.

---------------------- Page: 6 ----------------------
60669-2-5 © IEC:2013 – 5 –

This part of IEC 60669 is partially based on IEC 60669-1:1998, its Amendment 1:1999 and

Amendment 2:2006 and IEC 60669-2-1:2002 and its Amendment 1:2008. In cases where

parts of these standards apply, this will be mentioned explicitly by a normative cross-

reference describing the extent to which the referenced element (clause, subclause, figure,

table, etc.) applies. Subclauses, figures, tables or notes which are additional to those in

IEC 60669-1 and IEC 60669-2-1 and their amendments are numbered starting from 101 and

201 respectively, additional annexes are lettered AA, BB, etc.

This part of IEC 60669 lists the changes necessary to convert those standards into a specific

standard for home and building electronic systems (HBES) switches and related accessories.

In this standard, the following print types are used:
– requirements proper: in roman type;
– test specifications: in italic type;
– notes: in smaller roman type.

A list of all parts in the IEC 60669 series, published under the general title Switches for

household and similar fixed-electrical installations, can be found on the IEC website.

The following differences exist in the countries indicated below.
– Clause 26: all CENELEC countries.

The committee has decided that the contents of this publication will remain unchanged until

the stability date indicated on the IEC web site under "http://webstore.iec.ch" in the data

related to the specific publication. At this date, the publication will be
• reconfirmed,
• withdrawn,
• replaced by a revised edition, or
• amended.

IMPORTANT – The 'colour inside' logo on the cover page of this publication indicates

that it contains colours which are considered to be useful for the correct

understanding of its contents. Users should therefore print this document using a

colour printer.
---------------------- Page: 7 ----------------------
– 6 – 60669-2-5 © IEC:2013
SWITCHES FOR HOUSEHOLD AND
SIMILAR FIXED ELECTRICAL INSTALLATIONS –
Part 2-5: Particular requirements –
Switches and related accessories for use in home
and building electronic systems (HBES)
1 Scope

This part of IEC 60669 applies to HBES switches with a working voltage not exceeding 250 V

a.c. and a rated current up to and including 16 A for household and similar fixed electrical

installations either indoors or outdoors and to associated electronic extension units.

It applies to:

– HBES switches for the operation of lamp circuits and the control of the brightness of lamps

(dimmers) as well as the control of the speed of motors (e.g. those used in ventilating

fans) and for other purposes (e.g. heating installations);

– sensors, actuators, switched-socket-outlets, associated electronic extension units, etc.

In the present standard the word "HBES switch" is applied to describe all kinds of HBES

devices e.g. switches, sensors, actuators, switched-socket-outlets, associated electronic

extension units, etc.
The operation and control are performed:

– intentionally by a person via an actuating member, a key, a card, etc., via a sensing

surface or a sensing unit, by means of touch, proximity, turn, optical, acoustic, thermal;

– by physical means, e.g. light, temperature, humidity, time, wind velocity, presence of

people;
– by any other influence;
and transmitted:

– by an electronic signal via several media, e.g. powerline (mains), twisted pair, optical

fibre, radio frequency, infra-red, etc.

HBES switches complying with this standard are suitable for use at ambient temperatures not

normally exceeding 25 °C, but occasionally reaching 35 °C.

This part of IEC 60669also applies to mounting boxes for HBES switches, with the exception

of those for flush-type HBES switches which are covered by IEC 60670-1.

NOTE 1 In the following country flush mounted boxes are covered by both EN 60670-1 and BS 4662: UK

Functional safety aspects of HBES switches are not covered by this standard. Functional

safety requirements are covered by the standards of the devices which are controlled by the

HBES.

In locations where special conditions prevail, e.g. higher temperature, special constructions

may be required.

NOTE 2 This standard is not intended to cover devices falling within the scope of IEC 60730.

---------------------- Page: 8 ----------------------
60669-2-5 © IEC:2013 – 7 –

NOTE 3 Within this Part 2-5, for any reference to IEC 60669-2-1 and its Amendment 1:2008, the term “electronic

switches” is replaced by “HBES switches”.

NOTE 4 In the following country, HBES switches complying with this standard are suitable for use at ambient

temperatures not normally exceeding 35 °C, but occasionally reaching 40 °C: CN.
2 Normative references

The following documents, in whole or in part, are normatively referenced in this document and

are indispensable for its application. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any
amendments) applies.
IEC 60050 (all parts), International Electrotechnical Vocabulary, available at:

IEC 60664-1:2007, Insulation coordination for equipment within low-voltage systems – Part 1:

Principles, requirements and tests

IEC 60669-1:1998, Switches for household and similar fixed-electrical installations – Part 1:

General requirements
Amendment 1:1998
Amendment 2:2006

IEC 60669-2-1:2002, Switches for household and similar fixed electrical installations –

Part 2-1: Particular requirements – Electronic switches
Amendment 1:2008

IEC 60364-4-41, Low-voltage electrical installations– Part 4-41: Protection for safety –

Protection against electric shock

IEC 60664-3, Insulation coordination for equipment within low-voltage systems – Part 3: Use

of coating, potting or moulding for protection against pollution

IEC 60670-1, Boxes and enclosures for electrical accessories for household and similar fixed

electrical installations – Part 1: General requirements

IEC 60715, Dimensions of low-voltage switchgear and controlgear – Standardized mounting

on rails for mechanical support of electrical devices in switchgear and controlgear installations

IEC 60990, Methods of measurement of touch current and protective conductor current

IEC 61000-2-2, Electromagnetic compatibility (EMC) – Part 2-2: Environment – Compatibility

levels for low-frequency conducted disturbances and signalling in public low-voltage power

supply systems

IEC 61000-3-2, Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic

current emissions (equipment input current ≤ 16A per phase)

IEC 61000-3-3, Electromagnetic compatibility (EMC) – Part 3-3: Limits – Limitation of voltage

changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment

with rated current ≤ 16 A per phase and not subject to conditional connection

IEC 61000-4-2, Electromagnetic compatibility (EMC) − Part 4-2: Testing and measurement

techniques − Electrostatic discharge immunity test
---------------------- Page: 9 ----------------------
– 8 – 60669-2-5 © IEC:2013
− Part 4-3: Testing and measurement
IEC 61000-4-3, Electromagnetic compatibility (EMC)
techniques − Radiated, radio-frequency, electromagnetic field immunity test

IEC 61000-4-4, Electromagnetic compatibility (EMC) − Part 4-4: Testing and measurement

techniques − Electrical fast transient/burst immunity test

IEC 61000-4-5, Electromagnetic compatibility (EMC) − Part 4-5: Testing and measurement

techniques − Surge immunity test

IEC 61000-4-6, Electromagnetic compatibility (EMC) − Part 4-6: Testing and measurement

techniques − Immunity to conducted disturbances, induced by radio-frequency fields

IEC 61000-4-8, Electromagnetic compatibility (EMC) – Part 4-8: Testing and measurement

techniques –Power frequency magnetic field immunity test

IEC 61000-4-11, Electromagnetic compatibility (EMC) − Part 4-11: Testing and measurement

techniques − Voltage dips, short interruptions and voltage variations immunity tests

IEC 61000-4-20:2010, Electromagnetic compatibility (EMC) – Part 4-20: Testing and

measurement techniques – Emission and immunity testing in transverse electromagnetic

(TEM) waveguides
IEC 61058-1, Switches for appliances – Part 1: General requirements
Amendment 1:2000
Amendment 2:2007

IEC 61140:2001, Protection against electric shock – Common aspects for installation and

equipment

IEC 61558-2-6, Safety of transformers, reactors, power supply units and similar products for

supply voltages up to 1 100 V – Part 2-6: Particular requirements and tests for safety isolating

transformers and power supply units incorporating safety isolating transformers

CISPR 14 (all parts), Electromagnetic compatibility – Requirements for household appliances,

electric tools and similar apparatus

CISPR 15, Limits and methods of measurement of radio disturbance characteristics of

electrical lighting and similar equipment

CISPR 22, Information technology equipment – Radio disturbance characteristics – Limits and

methods of measurement
3 Terms and definitions

Clause 3 of IEC 60669-2-1:2002 and its Amendment 1:2008 is applicable with the following

additions:
3.201
HBES
home and building electronic systems

multi-application systems where functions are decentrally distributed and linked through a

common communication process

Note 1 to entry: HBES is used in homes and buildings plus their surroundings. Functions of the system are for

example: switching, open loop controlling, closed loop controlling, monitoring and supervising.

Note 2 to entry: This note applies to the French language only.
---------------------- Page: 10 ----------------------
60669-2-5 © IEC:2013 – 9 –
[SOURCE: ISO/IEC 14762:2009, 3.1.10]
3.202
HBES switch

electronic switch intended to be used in an HBES system, used for two way communication

and designed to make or break and/or to control, directly (e.g. actuator) or indirectly (e.g.

sensor), the current in one or more electric circuits

Note 1 to entry: The communication can use different media e.g. Twisted Pair (TP), Power Line (PL), Infra-Red

(IR) and Radio Frequency (RF).

Note 2 to entry: To make or break and/or to control directly means that an actuator makes or breaks the current

and/or controls the current.
3.203
ELV
extra-low voltage

for the purpose of this standard, a voltage not exceeding 50 V a.c. or d.c. between

conductors, or in the case of three-phase circuits, not exceeding 29 V between conductors

and neutral, the no-load voltage of the circuit not exceeding 50 V and 29 V, respectively

Note 1 to entry: The use of ELV other than for protection by SELV or PELV in such circuits is not a protective

measure.
3.204
FELV
functional extra-low voltage circuit

electrical circuit in which the voltage cannot exceed ELV used for functional purposes and

having simple separation from LV.
Note 1 to entry: FELV does not fulfil the requirements for SELV (or PELV).
...

Questions, Comments and Discussion

Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
