Standards Content (sample)

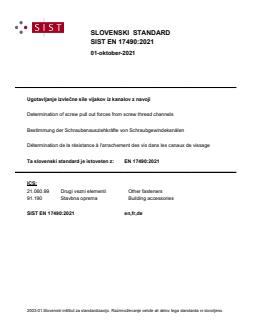

SLOVENSKI STANDARD
SIST EN 17490:2021
01-oktober-2021
Ugotavljanje izvlečne sile vijakov iz kanalov z navoji
Determination of screw pull out forces from screw thread channels
Bestimmung der Schraubenausziehkräfte von Schraubgewindekanälen

Détermination de la résistance à l'arrachement des vis dans les canaux de vissage

Ta slovenski standard je istoveten z: EN 17490:2021
ICS:
21.060.99 Drugi vezni elementi Other fasteners
91.190 Stavbna oprema Building accessories
SIST EN 17490:2021 en,fr,de

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN 17490:2021
---------------------- Page: 2 ----------------------
SIST EN 17490:2021
EN 17490
EUROPEAN STANDARD
NORME EUROPÉENNE
August 2021
EUROPÄISCHE NORM
ICS 21.060.99
English Version
Determination of screw pull out forces from screw thread
channels

Détermination de la résistance à l'arrachement des vis Bestimmung der Schraubenausziehkräfte von

dans les canaux de vissage Schraubgewindekanälen
This European Standard was approved by CEN on 4 July 2021.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this

European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references

concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN

member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by

translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management

Centre has the same status as the official versions.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,

Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and

United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels

© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 17490:2021 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 17490:2021
EN 17490:2021 (E)

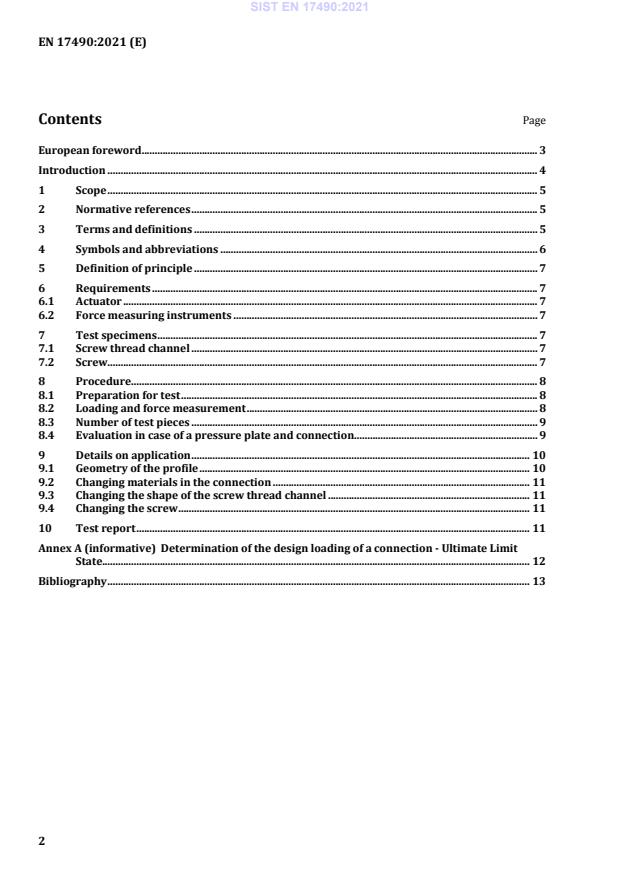

Contents Page

European foreword ....................................................................................................................................................... 3

Introduction .................................................................................................................................................................... 4

1 Scope .................................................................................................................................................................... 5

2 Normative references .................................................................................................................................... 5

3 Terms and definitions ................................................................................................................................... 5

4 Symbols and abbreviations ......................................................................................................................... 6

5 Definition of principle ................................................................................................................................... 7

6 Requirements ................................................................................................................................................... 7

6.1 Actuator .............................................................................................................................................................. 7

6.2 Force measuring instruments .................................................................................................................... 7

7 Test specimens ................................................................................................................................................. 7

7.1 Screw thread channel .................................................................................................................................... 7

7.2 Screw.................................................................................................................................................................... 7

8 Procedure........................................................................................................................................................... 8

8.1 Preparation for test ........................................................................................................................................ 8

8.2 Loading and force measurement ............................................................................................................... 8

8.3 Number of test pieces .................................................................................................................................... 9

8.4 Evaluation in case of a pressure plate and connection...................................................................... 9

9 Details on application ................................................................................................................................. 10

9.1 Geometry of the profile .............................................................................................................................. 10

9.2 Changing materials in the connection .................................................................................................. 11

9.3 Changing the shape of the screw thread channel ............................................................................. 11

9.4 Changing the screw ...................................................................................................................................... 11

10 Test report ...................................................................................................................................................... 11

Annex A (informative) Determination of the design loading of a connection - Ultimate Limit

State................................................................................................................................................................... 12

Bibliography ................................................................................................................................................................. 13

---------------------- Page: 4 ----------------------
SIST EN 17490:2021
EN 17490:2021 (E)
European foreword

This document (EN 17490:2021) has been prepared by Technical Committee CEN/TC 33 “Doors,

windows, shutters, building hardware and curtain walling”, the secretariat of which is held by AFNOR.

This European Standard shall be given the status of a national standard, either by publication of an

identical text or by endorsement, at the latest by February 2022, and conflicting national standards shall

be withdrawn at the latest by February 2022.

Attention is drawn to the possibility that some of the elements of this document may be the subject of

patent rights. CEN shall not be held responsible for identifying any or all such patent rights.

Any feedback and questions on this document should be directed to the users’ national standards body.

A complete listing of these bodies can be found on the CEN website.

According to the CEN-CENELEC Internal Regulations, the national standards organisations of the

following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia,

Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland,

Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of North

Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United

Kingdom.
---------------------- Page: 5 ----------------------
SIST EN 17490:2021
EN 17490:2021 (E)
Introduction

This document provides a test method for assessing the screw pull out forces from screw thread channels

used frequently in the fenestration (doors, windows and curtain walling) market.

Using the results from this test method, a manufacturer has the ability to determine the number of screws

to be applied to make sure that a given connection is able to withstand a particular loading scenario.

---------------------- Page: 6 ----------------------
SIST EN 17490:2021
EN 17490:2021 (E)
1 Scope

This document provides a test method for determining the bearing capacity (pull out force) of a

connection consisting of a screw in a screw thread channel, which cannot be calculated in accordance

with current codes or conventional calculations. This document can be applied to screw thread channels

used in several products, including doors, windows and curtain walling.

This document is applicable to screw thread channels made out of metal, as well as metal screws.

The pull out forces of such connections can already be assessed indirectly with another test method e.g.

wind load resistance for doors/windows according to EN 12211 or curtain walling kits according to

EN 12179. Additional information with respect to the mechanical performance of connections and direct

applications can be determined with the test method described in this document.

The bearing capacity of non-metallic components under the combination of high temperature and load is

not considered in the standard. Additional verifications are performed depending on the type of the non-

metallic material used.
2 Normative references

The following documents are referred to in the text in such a way that some or all of their content

constitutes requirements of this document. For dated references, only the edition cited applies. For

undated references, the latest edition of the referenced document (including any amendments) applies.

EN ISO 7500-1, Metallic materials - Calibration and verification of static uniaxial testing machines - Part 1:

Tension/compression testing machines - Calibration and verification of the force-measuring system (ISO

7500-1)
3 Terms and definitions
For the purposes of this document, the following terms and definitions apply.

ISO and IEC maintain terminological databases for use in standardization at the following addresses:

— ISO Online browsing platform: available at https://www.iso.org/obp
— IEC Electropedia: available at https://www.electropedia.org/
3.1
connection

set of components consisting of a screw and a screw thread channel designed to transfer loads between

different framing members
Note 1 to entry: See Figur
...
