SIST EN ISO 22868:2021
(Main)Forestry and gardening machinery - Noise test code for portable hand-held machines with internal combustion engine - Engineering method (Grade 2 accuracy) (ISO 22868:2021)
Forestry and gardening machinery - Noise test code for portable hand-held machines with internal combustion engine - Engineering method (Grade 2 accuracy) (ISO 22868:2021)
This document specifies a noise test code for determining, efficiently and under standardized
conditions, the common noise emission characteristics of portable, hand-held, combustion engine
powered forest and garden machines, and specific requirements for chain-saws, brush-cutters, grasstrimmers,
edgers, pole-mounted powered pruners, hedge-trimmers and garden blowers/vacuums/
knapsack mist blowers. Noise emission characteristics include the A-weighted emission sound pressure
level at the operator position and the A-weighted sound power level.
Noise test codes as described in this document enable the manufacturer to verify the effort regarding
low noise design.
Forst- und Gartenmaschinen - Geräuschmessnorm für handgehaltene Maschinen mit Verbrennungsmotor - Verfahren der Genauigkeitsklasse 2 (ISO 22868:2021)
Dieses Dokument legt ein Geräuschmessverfahren zur effizienten Ermittlung der Geräuschemissionsdaten von tragbaren handgeführten forstwirtschaftlichen Maschinen und Gartengeräten mit Verbrennungsmotor unter einheitlichen Bedingungen und besondere Anforderungen für Kettensägen, Freischneider, Grastrimmer, Kantenschneider, motorbetriebene Hochentaster, Heckenscheren und Laubbläser/Laubsauger/rückentragbare Sprühgeräte fest. Geräuschemissions-Kennwerte schließen den A-bewerteten Emissions-Schalldruckpegel am Ort der Bedienungsperson und den A-bewerteten Schallleistungspegel ein.
Die in diesem Dokument beschriebenen Prüfmessverfahren ermöglichen dem Hersteller, die Bemühungen in Bezug auf geräuscharme Konstruktion zu prüfen.
VORSICHT – Einige der in diesem Dokument festgelegten Prüfverfahren beinhalten Vorgänge, die zu einer Gefährdungssituation führen können. Jede Person, die Prüfungen nach diesem Dokument durchführt, muss für die auszuführenden Arbeiten geschult sein.
Machines forestières et machines de jardin - Code d'essai acoustique pour machines portatives tenues à la main à moteur à combustion interne - Méthode d'expertise (classe de précision 2) (ISO 22868:2021)
Le présent document spécifie un code d'essai acoustique pour déterminer, avec efficacité et dans des conditions normalisées, les caractéristiques acoustiques d'émission des machines forestières et des machines de jardin portatives tenues à la main à moteur à combustion interne, telles que les scies à chaîne, débroussailleuses, coupe-herbe, meuleuses, perches élagueuses à moteur, taille-haies et souffleurs/aspirateurs de jardin/nébulisateurs portés à dos. Les caractéristiques acoustiques d'émission comprennent le niveau de pression acoustique d'émission pondéré A au poste de travail et le niveau de puissance acoustique pondéré A.
Les codes d'essai acoustique décrits dans le présent document permettent au fabricant de vérifier l'effort de conception à faible bruit.
Gozdarski in vrtnarski stroji - Standard za meritev hrupa ročno vodenih strojev, gnanih z motorjem z notranjim zgorevanjem - Postopek meritve (razred natančnosti 2) (ISO 22868:2021)
General Information
Relations
Standards Content (Sample)

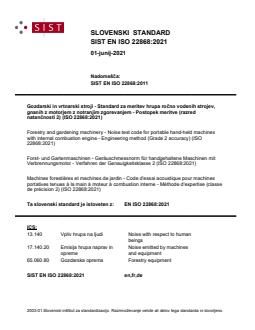

SLOVENSKI STANDARD
SIST EN ISO 22868:2021
01-junij-2021
Nadomešča:
SIST EN ISO 22868:2011
Gozdarski in vrtnarski stroji - Standard za meritev hrupa ročno vodenih strojev,
gnanih z motorjem z notranjim zgorevanjem - Postopek meritve (razred
natančnosti 2) (ISO 22868:2021)
Forestry and gardening machinery - Noise test code for portable hand-held machines
with internal combustion engine - Engineering method (Grade 2 accuracy) (ISO
22868:2021)
Forst- und Gartenmaschinen - Geräuschmessnorm für handgehaltene Maschinen mit
Verbrennungsmotor - Verfahren der Genauigkeitsklasse 2 (ISO 22868:2021)
Machines forestières et machines de jardin - Code d'essai acoustique pour machines
portatives tenues à la main à moteur à combustion interne - Méthode d'expertise (classe
de précision 2) (ISO 22868:2021)
Ta slovenski standard je istoveten z: EN ISO 22868:2021
ICS:
13.140 Vpliv hrupa na ljudi Noise with respect to human
beings
17.140.20 Emisija hrupa naprav in Noise emitted by machines
opreme and equipment
65.060.80 Gozdarska oprema Forestry equipment
SIST EN ISO 22868:2021 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN ISO 22868:2021
---------------------- Page: 2 ----------------------
SIST EN ISO 22868:2021
EN ISO 22868
EUROPEAN STANDARD
NORME EUROPÉENNE
March 2021
EUROPÄISCHE NORM
ICS 13.140; 17.140.20; 65.060.80 Supersedes EN ISO 22868:2011
English Version
Forestry and gardening machinery - Noise test code for
portable hand-held machines with internal combustion
engine - Engineering method (Grade 2 accuracy) (ISO
22868:2021)
Machines forestières et machines de jardin - Code Forst- und Gartenmaschinen - Geräuschmessnorm für
d'essai acoustique pour machines portatives tenues à handgehaltene Maschinen mit Verbrennungsmotor -
la main à moteur à combustion interne - Méthode Verfahren der Genauigkeitsklasse 2 (ISO 22868:2021)
d'expertise (classe de précision 2) (ISO 22868:2021)
This European Standard was approved by CEN on 23 August 2020.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 22868:2021 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN ISO 22868:2021
EN ISO 22868:2021 (E)

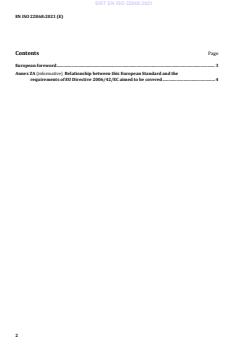

Contents Page
European foreword . 3
Annex ZA (informative) Relationship between this European Standard and the
requirements of EU Directive 2006/42/EC aimed to be covered . 4
2
---------------------- Page: 4 ----------------------
SIST EN ISO 22868:2021
EN ISO 22868:2021 (E)
European foreword
This document (EN ISO 22868:2021) has been prepared by Technical Committee ISO/TC 23 "Tractors
and machinery for agriculture and forestry" in collaboration with Technical Committee CEN/TC 144
“Tractors and machinery for agriculture and forestry” the secretariat of which is held by AFNOR.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by September 2021, and conflicting national standards
shall be withdrawn at the latest by September 2021.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN ISO 22868:2011.
This document has been prepared under a mandate given to CEN by the European Commission and the
European Free Trade Association, and supports essential requirements of EU Directive(s).
For the relationship with EU Directive(s) see informative Annex ZA, which is an integral part of this
document.
According to the CEN-CENELEC Internal Regulations, the national standards organizations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the
United Kingdom.
Endorsement notice
The text of ISO 22868:2021 has been approved by CEN as EN ISO 22868:2021 without any modification.
3
---------------------- Page: 5 ----------------------
SIST EN ISO 22868:2021
EN ISO 22868:2021 (E)
Annex ZA
(informative)
Relationship between this European Standard and the requirements of EU
Directive 2006/42/EC aimed to be covered
This European Standard has been prepared under a Commission’s standardization request
“M/396 Mandate to CEN and CENELEC for Standardisation in the field of machinery” to provide one
voluntary means of conforming to essential requirements of Directive 2006/42/EC of the European
Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC
(recast).
Once this standard is cited in the Official Journal of the European Union under that Directive,
compliance with the normative clauses of this standard given in Table ZA.1 confers, within the limits of
the scope of this standard, a presumption of conformity with the corresponding Essential Requirements
of that Directive, and associated EFTA regulations.
Table ZA.1 — Correspondence between this European Standard
and Annex I of Directive 2006/42/EC
The relevant Clause(s)/sub-clause(s) Remarks/Notes
Essential Requirements of of this EN
Directive 2006/42/EC
1.5.8 Noise 4, 5, 6, 7, 8, 9 and Annexes A to
E
1.7.4.2(u) Contents of the 4, 5, 6, 7, 8, 9 and Annexes A to Annexes A, B, D and E do not
instructions — information E provide presumption of
on airborne noise emissions conformity regarding the
determination of the A-
weighted sound power level
WARNING 1 — Presumption of conformity stays valid only as long as a reference to this European
Standard is maintained in the list published in the Official Journal of the European Union. Users of this
standard should consult frequently the latest list published in the Official Journal of the European
Union.
WARNING 2 — Other Union legislation may be applicable to the product(s) falling within the scope of
this standard.
4
---------------------- Page: 6 ----------------------
SIST EN ISO 22868:2021
INTERNATIONAL ISO
STANDARD 22868
Third edition
2021-01
Forestry and gardening machinery —
Noise test code for portable hand-
held machines with internal
combustion engine — Engineering
method (Grade 2 accuracy)
Machines forestières et machines de jardin — Code d'essai
acoustique pour machines portatives tenues à la main à moteur à
combustion interne — Méthode d'expertise (classe de précision 2)
Reference number
ISO 22868:2021(E)
©
ISO 2021
---------------------- Page: 7 ----------------------
SIST EN ISO 22868:2021
ISO 22868:2021(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2021
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2021 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 22868:2021
ISO 22868:2021(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 2
4 Quantities to be measured and quantities to be determined . 2
5 A-weighted sound power level determination . 2
6 A-weighted emission sound pressure level measurement at the operator position .4
6.1 General . 4
6.2 Requirements for artificial surface . 4
6.3 Requirements for natural ground surface . 5
7 Testing and operating conditions . 5
8 Information to be reported . 6
8.1 General . 6
8.2 A-weighted emission sound pressure level determination . 7
8.3 A-weighted surface average sound pressure level determination . 7
8.4 A-weighted sound power level determination . 8
9 Declaration and verification of noise emission values . 9
Annex A (normative) Specific conditions for chain-saws (see Clause 7) .10
Annex B (normative) Specific conditions for brush-cutters, grass-trimmers and edgers
(see Clause 7) .14
Annex C (normative) Specific conditions for pole-mounted powered pruners (see Clause 7).20
Annex D (normative) Specific conditions for hedge-trimmers (see Clause 7) .24
Annex E (normative) Specific conditions for garden blowers/vacuums/knapsack mist
blowers (see Clause 7) .28
Annex F (informative) Example of water brake mounted on chain-saw guide bar to simulate
cutting .35
Annex G (informative) Summary of results from round robin tests 2007 and 2008 on single
chain-saw, brush-cutter and grass-trimmer .36
Annex H (informative) A-weighted sound power level determination and declaration
according to the EU Directive on noise emission in the environment by equipment
for use outdoors, 2000/14/EC .37
© ISO 2021 – All rights reserved iii
---------------------- Page: 9 ----------------------
SIST EN ISO 22868:2021
ISO 22868:2021(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular, the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/ directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/ patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation of the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT), see www .iso .org/
iso/ foreword .html.
This document was prepared by Technical Committee ISO/TC 23, Tractors and machinery for agriculture
and forestry, Subcommittee SC 17, Manually portable forest machinery, in collaboration with the European
Committee for Standardization (CEN) Technical Committee CEN/TC 144, Tractors and machinery for
agriculture and forestry, in accordance with the Agreement on technical cooperation between ISO and
CEN (Vienna Agreement).
This third edition cancels and replaces the second edition (ISO 22868:2011), which has been technically
revised. The main changes compared to the previous edition are as follows:
— inclusion of edgers and knapsack mist blowers in the scope;
— correction of the calculation of microphone positions for the hemisphere (Figure 1) according to
ISO 3744:2010;
— alignment of the operation conditions for the determination of the sound power level with those for
the determination of the emission sound pressure level;
— lateral width of the test timber for chain-saw testing reduced to 150 mm to account for small
machines with short guide bars;
— inclusion of edgers in the specific conditions described in Annex B;
— amendments in Annex E to include knapsack mist blowers and better describe the set-up of the
machines with different blower tubes;
— editorial corrections and update of all figures as well as addition of new figures for edgers and mist
blowers;
— several text changes have been made for better understanding.
Any feedback or questions on this document should be directed to the user’s national standards body. A
complete listing of these bodies can be found at www .iso .org/ members .html.
iv © ISO 2021 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 22868:2021
ISO 22868:2021(E)
Introduction
This document is a type-C standard as stated in ISO 12100.
This document is of relevance, in particular, for the following stakeholder groups representing the
market players with regard to machinery safety:
— machine manufacturers (small, medium and large enterprises);
— health and safety bodies (regulators, accident prevention organisations, market surveillance, etc.)
Others can be affected by the level of machinery safety achieved with the means of the document by the
above-mentioned stakeholder groups:
— machine users/employers (small, medium and large enterprises);
— machine users/employees (e.g. trade unions, organizations for people with special needs);
— service providers, e.g. for maintenance (small, medium and large enterprises);
— consumers (in case of machinery intended for use by consumers).
The above-mentioned stakeholder groups have been given the possibility to participate at the drafting
process of this document.
The machinery concerned and the extent to which hazards, hazardous situations or hazardous events
are covered are indicated in the Scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or B
standards, the requirements of this type-C standard take precedence over the requirements of the
other standards for machines that have been designed and built according to the requirements of this
type-C standard.
During the first steps in the preparation of this document, it became obvious that the repeatability
of the test results could become better if the operator were to be replaced by a simulation process,
representing the normal operating modes with chain-saws and grass-trimmers/brush-cutters.
Furthermore, it was found that the cutting process performed with chain-saws causes considerable
deviations, which are not related to the measured object but to the test procedure itself.
Based on these observations, it was concluded that the operators in both test procedures, i.e. for chain-
saws and grass-trimmers/brush-cutters, ought to be replaced by a defined fixture and the cutting
process with chain-saws by a brake simulating the load. In this manner, the operating conditions during
measurement would simulate normal operating conditions.
The determination of noise emission characteristics is primarily intended for
— the manufacturers' declarations of noise emitted,
— comparing the noise emitted by machines in the family concerned, and
— purposes of noise control at source at the design stage.
The use of this noise test code will ensure reproducibility of the determination of the noise emission
characteristics within specified limits determined by the grade of accuracy of the basic noise
measurement method used. Noise measurement methods allowed by this document give results with
Grade 2 accuracy.
The operating modes specified for the tests are consistent with those involved in the assessment of the
exposure sound pressure levels, for example, over a typical working day.
NOTE Exposure sound pressure levels are the mean sound pressure levels experienced by the operator over
a defined period of time.
© ISO 2021 – All rights reserved v
---------------------- Page: 11 ----------------------
SIST EN ISO 22868:2021
ISO 22868:2021(E)
The work cycles chosen for this test code are based on the following considerations of application:
3
a) chain-saws with an engine of < 80 cm are used for various operations, including felling, bucking
and delimbing;
3
b) chain-saws with an engine of ≥ 80 cm are normally used for felling and bucking.
Delimbing will cause the chain-saw to run at racing speed; therefore, racing is included only for chain-
3
saws with a < 80 cm engine.
For brush-cutters, grass-trimmers, edgers, hedge-trimmers and pole-mounted powered pruners, the
cutting mode (full load) is estimated to be valid only for short periods, while racing and idling are the
two dominant modes. Moreover, it has also been found to be diverse and not able to be performed under
repeatable conditions.
For grass-trimmers, the full load and the racing modes are integrated in one single mode due to the
loading effect of the flexible line.
For brush-cutters, edgers, hedge-trimmers and pole-mounted powered pruners, it is not possible to
simulate the full load mode in a feasible way since there are no constant load conditions comparable
to chain-saws. Since the operating mode “racing” is anyhow the worst case, it is used as representative.
For garden blowers and knapsack mist blowers, full load and idling are the two dominant modes.
In either case, transport and other tasks between operations will cause the machine to run at idling.
Experience has led to the conclusion that, except for hedge-trimmers and blowers/knapsack mist
blowers, equal duration for the different working modes is a good estimation of daily exposure.
For hedge-trimmers, experience has shown that the machine is used 1/5 at idling and 4/5 at racing,
while for garden blowers/knapsack mist blowers it is used 1/7 at idling and 6/7 at racing.
A summary of results from “round-robin” tests, carried out between 2007 and 2008 in up to eight test
laboratories on a single chain-saw, brush-cutter and grass-trimmer, is given in Annex G.
vi © ISO 2021 – All rights reserved
---------------------- Page: 12 ----------------------
SIST EN ISO 22868:2021
INTERNATIONAL STANDARD ISO 22868:2021(E)
Forestry and gardening machinery — Noise test code for
portable hand-held machines with internal combustion
engine — Engineering method (Grade 2 accuracy)
CAUTION — Some of the test procedures specified in this document involve processes which
could lead to a hazardous situation. Any person performing tests in accordance with this
document shall be appropriately trained in the type of work to be carried out.
1 Scope
This document specifies a noise test code for determining, efficiently and under standardized
conditions, the common noise emission characteristics of portable, hand-held, combustion engine
powered forest and garden machines, and specific requirements for chain-saws, brush-cutters, grass-
trimmers, edgers, pole-mounted powered pruners, hedge-trimmers and garden blowers/vacuums/
knapsack mist blowers. Noise emission characteristics include the A-weighted emission sound pressure
level at the operator position and the A-weighted sound power level.
Noise test codes as described in this document enable the manufacturer to verify the effort regarding
low noise design.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 354:2003, Acoustics — Measurement of sound absorption in a reverberation room
ISO 3744:2010, Acoustics — Determination of sound power levels and sound energy levels of noise sources
using sound pressure — Engineering methods for an essentially free field over a reflecting plane
ISO 4871:1996, Acoustics — Declaration and verification of noise emission values of machinery and
equipment
ISO 6531:2017, Machinery for forestry — Portable chain-saws — Vocabulary
ISO 7112:2018, Machinery for forestry — Portable brush-cutters and grass-trimmers — Vocabulary
ISO 7293:1997, Forestry machinery — Portable chain saws — Engine performance and fuel consumption
ISO 8893:1997, Forestry machinery — Portable brush-cutters and grass-trimmers — Engine performance
and fuel consumption
ISO 10517:2019, Powered hand-held hedge trimmers — Safety
ISO 11201:2010, Acoustics — Noise emitted by machinery and equipment — Determination of emission
sound pressure levels at a work station and at other specified positions in an essentially free field over a
reflecting plane with negligible environmental corrections
ISO 11680-1:2011, Machinery for forestry — Safety requirements and testing for pole-mounted powered
pruners — Part 1: Machines fitted with an integral combustion engine
ISO 11680-2:2011, Machinery for forestry — Safety requirements and testing for pole-mounted powered
pruners — Part 2: Machines for use with back-pack power source
© ISO 2021 – All rights reserved 1
---------------------- Page: 13 ----------------------
SIST EN ISO 22868:2021
ISO 22868:2021(E)
ISO 11789:1999, Powered edgers with rigid cutting means — Definitions, safety requirements and test
procedures
ISO 12100:2010, Safety of machinery — General principles for design — Risk assessment and risk reduction
ISO 19932-1:2013, Equipment for crop protection — Knapsack sprayers — Part 1: Safety and environmental
requirements
ISO 28139:2019, Agricultural and forestry machinery — Knapsack combustion-engine-driven airblast
sprayers — Safety and environmental requirements and test methods
IEC 61672-1:2013, Electroacoustics — Sound level meters — Part 1: Specifications
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 12100, ISO 6531, ISO 7112,
ISO 11789, ISO 11680-1, ISO 11680-2, ISO 10517, ISO 19932-1 and ISO 28139 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— ISO Online browsing platform: available at https:// www .iso .org/ obp
— IEC Electropedia: available at http:// www .electropedia .org/
4 Quantities to be measured and quantities to be determined
The quantities to be measured are the time averaged sound pressure levels defined in the relevant basic
noise measurement standards (ISO 3744, ISO 11201), A-weighted and — if required — in frequency bands.
The quantities to be determined are the sound power levels and the emission sound pressure levels,
A-weighted and — if required — in frequency bands.
5 A-weighted sound power level determination
For the determination of the A-weighted sound power level, ISO 3744 shall be used, subject to the
following modifications or additions.
a) The microphone array shall be six microphone positions, in accordance with Figure 1 and the
coordinates described by Tables 1 and 2.
NOTE 1 The six microphone array is permitted because experimental data have shown that use of this
array does not yield results that differ significantly from those obtained with the 10 microphone array
specified in ISO 3744.
b) The measurement surface shall be a hemisphere with a radius, r, of ≥ 2 d , preferably 4 m; d is
O O
determined by the reference box and its defined location above ground, see Figure 1. If a bigger
radius is needed it shall be chosen from 6 m, 8 m and 10 m. A smaller radius is permitted if it is
demonstrated that the results are within 0,5 dB compared with measurements with a hemisphere
of r = 4 m.
NOTE 2 The smaller radius can be necessary in an anechoic room where a radius of 4 m cannot be
provided.
c) The conditions for the particular type of machine to be tested and its mounting and orientation
shall be according to the corresponding annex of this document.
d) Environmental conditions shall be within the limits specified by the manufacturer of the measuring
equipment. The ambient air temperature shall be in the range −10 °C to 30 °C and the wind speed
shall be less than 5 m/s. A microphone windscreen shall be used for all outdoor testing, and for
indoor testing whenever the speed of ventilation air over the microphone exceeds 1 m/s.
2 © ISO 2021 – All rights reserved
---------------------- Page: 14 ----------------------
SIST EN ISO 22868:2021
ISO 22868:2021(E)
e) Measurements shall be made using an integrating averaging sound level meter as defined in
IEC 61672
...
SLOVENSKI STANDARD
oSIST prEN ISO 22868:2018
01-september-2018
*R]GDUVNLLQYUWQDUVNLVWURML6WDQGDUG]DPHULWHYKUXSDURþQRYRGHQLKVWURMHY
JQDQLK]PRWRUMHP]QRWUDQMLP]JRUHYDQMHP3RVWRSHNPHULWYH UD]UHG
QDWDQþQRVWL ,62',6
Forestry and gardening machinery - Noise test code for portable hand-held machines
with internal combustion engine - Engineering method (Grade 2 accuracy) (ISO/DIS
22868:2018)
Forst- und Gartenmaschinen - Geräuschmessnorm für handgehaltene Maschinen mit
Verbrennungsmotor - Verfahren der Genauigkeitsklasse 2 (ISO/DIS 22868:2018)
Machines forestières et machines de jardin - Code d'essai acoustique pour machines
portatives tenues à la main à moteur à combustion interne - Méthode d'expertise (classe
de précision 2) (ISO/DIS 22868:2018)
Ta slovenski standard je istoveten z: prEN ISO 22868
ICS:
13.140 Vpliv hrupa na ljudi Noise with respect to human
beings
17.140.20 Emisija hrupa naprav in Noise emitted by machines
opreme and equipment
65.060.80 Gozdarska oprema Forestry equipment
oSIST prEN ISO 22868:2018 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN ISO 22868:2018
---------------------- Page: 2 ----------------------
oSIST prEN ISO 22868:2018
DRAFT INTERNATIONAL STANDARD
ISO/DIS 22868
ISO/TC 23/SC 17 Secretariat: SIS
Voting begins on: Voting terminates on:
2018-06-07 2018-08-30
Forestry and gardening machinery — Noise test code for
portable hand-held machines with internal combustion
engine — Engineering method (Grade 2 accuracy)
Machines forestières et machines de jardin — Code d'essai acoustique pour machines portatives tenues à la
main à moteur à combustion interne — Méthode d'expertise (classe de précision 2)
ICS: 13.140; 65.060.80; 17.140.20
THIS DOCUMENT IS A DRAFT CIRCULATED
This document is circulated as received from the committee secretariat.
FOR COMMENT AND APPROVAL. IT IS
THEREFORE SUBJECT TO CHANGE AND MAY
NOT BE REFERRED TO AS AN INTERNATIONAL
STANDARD UNTIL PUBLISHED AS SUCH.
IN ADDITION TO THEIR EVALUATION AS
ISO/CEN PARALLEL PROCESSING
BEING ACCEPTABLE FOR INDUSTRIAL,
TECHNOLOGICAL, COMMERCIAL AND
USER PURPOSES, DRAFT INTERNATIONAL
STANDARDS MAY ON OCCASION HAVE TO
BE CONSIDERED IN THE LIGHT OF THEIR
POTENTIAL TO BECOME STANDARDS TO
WHICH REFERENCE MAY BE MADE IN
Reference number
NATIONAL REGULATIONS.
ISO/DIS 22868:2018(E)
RECIPIENTS OF THIS DRAFT ARE INVITED
TO SUBMIT, WITH THEIR COMMENTS,
NOTIFICATION OF ANY RELEVANT PATENT
RIGHTS OF WHICH THEY ARE AWARE AND TO
©
PROVIDE SUPPORTING DOCUMENTATION. ISO 2018
---------------------- Page: 3 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
COPYRIGHT PROTECTED DOCUMENT
© ISO 2018
All rights reserved. Unless otherwise specified, or required in the context of its implementation, no part of this publication may
be reproduced or utilized otherwise in any form or by any means, electronic or mechanical, including photocopying, or posting
on the internet or an intranet, without prior written permission. Permission can be requested from either ISO at the address
below or ISO’s member body in the country of the requester.
ISO copyright office
CP 401 • Ch. de Blandonnet 8
CH-1214 Vernier, Geneva
Phone: +41 22 749 01 11
Fax: +41 22 749 09 47
Email: copyright@iso.org
Website: www.iso.org
Published in Switzerland
ii © ISO 2018 – All rights reserved
---------------------- Page: 4 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
Contents Page
Foreword .iv
Introduction .v
1 Scope . 1
2 Normative references . 1
3 Terms and definitions . 1
4 Quantities to be measured and quantities to be determined . 2
5 A-weighted sound power level determination . 2
6 A-weighted emission sound pressure level measurement at the operator position .4
6.1 General . 4
6.2 Requirements for artificial surface . 4
6.3 Requirements for natural ground surface . 4
7 Testing and operating conditions . 5
8 Information to be reported . 5
9 Declaration and verification of noise emission values . 8
Annex A (normative) Specific conditions for chain-saws.10
Annex B (normative) Specific conditions for brush-cutters, grass-trimmers and edgers .14
Annex C (normative) Specific conditions for pole-mounted pruners .20
Annex D (normative) Specific conditions for hedge-trimmers .24
Annex E (normative) Specific conditions for garden blowers / vacuums / knapsack mist
blowers .28
Annex F (informative) Example of water brake mounted on chain-saw bar to simulate cutting .33
Annex G (informative) Summary of results from round robin tests 2007/2008on single
chain-saw, brush-cutter and grass-trimmer .34
Annex H (informative) A-weighted sound power level declaration according to the EU
Directive on noise emission in the environment by equipment for use outdoors,
2000/14/EC .35
Annex ZA (informative) Relationship between this International Standard and the essential
requirements of Directive 2006/42/EC aimed to be covered .36
© ISO 2018 – All rights reserved iii
---------------------- Page: 5 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
Foreword
ISO (the International Organization for Standardization) is a worldwide federation of national standards
bodies (ISO member bodies). The work of preparing International Standards is normally carried out
through ISO technical committees. Each member body interested in a subject for which a technical
committee has been established has the right to be represented on that committee. International
organizations, governmental and non-governmental, in liaison with ISO, also take part in the work.
ISO collaborates closely with the International Electrotechnical Commission (IEC) on all matters of
electrotechnical standardization.
The procedures used to develop this document and those intended for its further maintenance are
described in the ISO/IEC Directives, Part 1. In particular the different approval criteria needed for the
different types of ISO documents should be noted. This document was drafted in accordance with the
editorial rules of the ISO/IEC Directives, Part 2 (see www .iso .org/directives).
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. ISO shall not be held responsible for identifying any or all such patent rights. Details of
any patent rights identified during the development of the document will be in the Introduction and/or
on the ISO list of patent declarations received (see www .iso .org/patents).
Any trade name used in this document is information given for the convenience of users and does not
constitute an endorsement.
For an explanation on the voluntary nature of standards, the meaning of ISO specific terms and
expressions related to conformity assessment, as well as information about ISO's adherence to the
World Trade Organization (WTO) principles in the Technical Barriers to Trade (TBT) see the following
URL: www .iso .org/iso/foreword .html.
This document was prepared by Technical Committee ISO/TC 23, Tractors and machinery for agriculture
and forestry, Subcommittee SC17, Manually portable forest machinery.
iv © ISO 2018 – All rights reserved
---------------------- Page: 6 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
Introduction
1)
This document is a type-C standard as stated in ISO 12100.
The machinery concerned and the extent to which hazards, hazardous situations or hazardous events
are covered are indicated in the Scope of this document.
When requirements of this type-C standard are different from those which are stated in type-A or B
standards, the requirements of this type-C standard take precedence over the requirements of the
other standards for machines that have been designed and built according to the requirements of this
type-C standard.
During the first steps in the preparation of this International Standard it became obvious that the
repeatability of the test results could become better if the operator were to be replaced by a simulation
process, representing the normal operating modes with chain-saws and trimmers/brush-cutters.
Furthermore, it was found that the cutting process performed with chain-saws causes considerable
deviations, which are not related to the measured object but to the test procedure itself.
Based on these observations, it was concluded that the operators in both test procedures, i.e. for chain-
saws and trimmers/brush-cutters, ought to be replaced by a defined fixture and the cutting process
with chain-saws by a brake simulating the load. In this manner, the operating conditions during
measurement would simulate normal operating conditions.
The determination of noise emission characteristics is primarily intended for
— manufacturers' declarations of noise emitted,
— comparing the noise emitted by machines in the family concerned, and
— purposes of noise control at source at the design stage.
The use of this noise test code will ensure reproducibility of the determination of the noise emission
characteristics within specified limits determined by the grade of accuracy of the basic noise
measurement method used. Noise measurement methods allowed by this International Standard give
results with Grade 2 accuracy.
The operating modes specified for the tests are consistent with those involved in the assessment of the
exposure sound pressure levels, for example, over a typical working day.
NOTE Exposure sound pressure levels are the mean sound pressure levels experienced by the operator over
a defined period of time.
The work cycles chosen for this test code are based on the following considerations of application:
3
a) chain-saws with an engine of < 80 cm are used for various operations, including felling, bucking
and delimbing;
3
b) chain-saws with an engine of ≥ 80 cm are normally used for felling and bucking.
Delimbing will cause the saw to run at racing speed; therefore, racing is included only for saws with a
3
< 80 cm engine.
For brush-cutters, grass-trimmers, edgers, hedge-trimmers and pole-mounted powered pruners, the
cutting mode (full load) is estimated to be valid only for short periods, while racing and idling are the
two dominant modes. Moreover, it has also been found to be diverse and not able to be performed under
repeatable conditions.
For trimmers, the full load and the racing modes are integrated in one single mode due to the loading
effect of the flexible line.
1) Safety of machinery - General principles for design - Risk assessment and risk reduction
© ISO 2018 – All rights reserved v
---------------------- Page: 7 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
For brush-cutters, edgers, hedge-trimmers and pole-mounted powered pruners, it is not possible to
simulate the full load mode in a feasible way since there are no constant load conditions comparable
to chain-saws. Since the operating mode “racing” is anyhow the worst case, it is used as representative.
For garden blowers and knapsack mist blowers, full load and idling are the two dominant modes.
In either case, transport and other tasks between operations will cause the machine to run at idling.
Experience has lead to the conclusion that, except for hedge-trimmers and blowers/knapsack mist
blowers, equal duration for the different working modes is a good estimation of daily exposure.
For hedge-trimmers, experience has shown that the machine is used 1/5 at idling and 4/5 at racing,
while for garden blowers/knapsack mist blowers it is used 1/7 at idling and 6/7 at racing.
A summary of results from “round robin” tests, carried out between 2007 and 2008 in up to eight test
laboratories on a single chain-saw, brush-cutter and grass-trimmer, is given in Annex G.
vi © ISO 2018 – All rights reserved
---------------------- Page: 8 ----------------------
oSIST prEN ISO 22868:2018
DRAFT INTERNATIONAL STANDARD ISO/DIS 22868:2018(E)
Forestry and gardening machinery — Noise test code for
portable hand-held machines with internal combustion
engine — Engineering method (Grade 2 accuracy)
CAUTION — Some of the test procedures specified in this International Standard involve processes
which could lead to a hazardous situation. Any person performing tests in accordance with this
International Standard shall be appropriately trained in the type of work to be carried out.
1 Scope
This International Standard specifies a noise test code for determining, efficiently and under
standardized conditions, the noise emission characteristics of portable, hand held, combustion engine
powered forest and garden machines, including chain-saws, brush-cutters, grass-trimmers, edgers,
pole-mounted powered pruners, hedge-trimmers and garden blowers/vacuums/knapsack mist
blowers. Noise emission characteristics include the A-weighted emission sound pressure level at the
operator position and the A-weighted sound power level.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
ISO 354, Acoustics — Measurement of sound absorption in a reverberation room
ISO 3744:2010, Acoustics — Determination of sound power levels and sound energy levels of noise sources
using sound pressure — Engineering methods for an essentially free field over a reflecting plane
ISO 4871:1996, Acoustics — Declaration and verification of noise emission values of machinery and
equipment
ISO 6531, Machinery for forestry — Portable chain-saws — Vocabulary
ISO 7112, Machinery for forestry — Portable brush-cutters and grass-trimmers — Vocabulary
ISO 7293, Forestry machinery — Portable chain saws — Engine performance and fuel consumption
ISO 8893, Forestry machinery — Portable brush-cutters and grass-trimmers — Engine performance and
fuel consumption
ISO 11201, Acoustics — Noise emitted by machinery and equipment — Determination of emission sound
pressure levels at a work station and at other specified positions in an essentially free field over a reflecting
plane with negligible environmental corrections
IEC 61672-1, Electroacoustics — Sound level meters — Part 1: Specifications
3 Terms and definitions
For the purposes of this document, the terms and definitions given in ISO 6531 and ISO 7112 apply.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
— IEC Electropedia: available at http: //www .electropedia .org/
— ISO Online browsing platform: available at http: //www .iso .org/obp.
© ISO 2018 – All rights reserved 1
---------------------- Page: 9 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
4 Quantities to be measured and quantities to be determined
The quantities to be measured are the time averaged sound pressure levels defined in the relevant basic
noise measurement standards (ISO 3744, ISO 11201), A-weighted and — if required — in frequency bands.
The quantities to be determined are the sound power levels and the emission sound pressure levels,
A-weighted and — if required — in frequency bands.
5 A-weighted sound power level determination
For the determination of the A-weighted sound power level, ISO 3744:2010 shall be used, subject to the
following modifications or additions.
a) The microphone array shall be six microphone positions, in accordance with Figure 1 and the co-
ordinates described by Tables 1 and 2.
NOTE 1 The six microphone array is permitted because experimental data have shown that use of this
array does not yield results that differ significantly from those obtained with the 10 microphone array
specified in ISO 3744.
b) The measurement surface shall be a hemisphere with a radius, r, of ≥ 2 d , preferably 4 m; d is
O O
determined by the reference box and its defined location above ground, see Figure 1. If a bigger
radius is needed it shall be chosen from 6 m, 8 m and 10 m. A smaller radius is permitted if it is
demonstrated that the results are within 0,5 dB compared with measurements with a hemisphere
of r = 4 m.
NOTE 2 The smaller radius could be necessary in an anechoic room where a radius of 4 m cannot be
provided.
c) The conditions for the particular type of machine to be tested and its mounting and orientation
shall be according to the corresponding annex of this International Standard.
d) Environmental conditions shall be within the limits specified by the manufacturer of the measuring
equipment. The ambient air temperature shall be in the range −10 °C to 30 °C and the wind speed
shall be less than 5 m/s. A microphone windscreen shall be used for all outdoor testing, and for
indoor testing whenever the speed of ventilation air over the microphone exceeds 1 m/s.
e) Measurements shall be made using an integrating averaging sound level meter as defined in
IEC 61672-1; alternatively, instruments with the time weighting characteristics “slow”, as defined
in IEC 61672-1, may be used.
f) The value of K , determined in accordance with ISO 3744:2010, Annex A, shall at maximum be 2 dB.
2A
2 © ISO 2018 – All rights reserved
---------------------- Page: 10 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
Key
A reference box
characteristic source dimension
d
O
r
hemisphere radius ≥ 2d
O
Figure 1 — Microphone positions on hemisphere
Table 1 — Coordinates of microphone positions
Position No. Coordinates
1 1
x/r y/r z/r z
1 + 0,707 a + 0,707 a - 1,5 m
2 − 0,707 a + 0,707 a - 1,5 m
3 − 0,707 a − 0,707 a - 1,5 m
4 + 0,707 a − 0,707 a - 1,5 m
5 - O,27 r + 0,65 r 0,71
6 + 0,27 r − 0,65 r 0,71
1
The constant a depends on the hemisphere radius and is taken from Table 2
Table 2 — Values of the constant, a
r [m] a
4 0,927
6 0,968
8 0,982
10 0,989
If a non-preferred hemisphere radius is used, microphone positions 1 to 4 shall be maintained at a
height z of 1,5 m and the value of a shall be determined by:
r²,−15²
a=
r
© ISO 2018 – All rights reserved 3
---------------------- Page: 11 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
6 A-weighted emission sound pressure level measurement at the operator
position
6.1 General
For the measurement of the A-weighted emission sound pressure level, ISO 11201 shall be used, subject
to the following modifications and additions.
a) The conditions for the particular type of machine to be tested and its mounting shall be in
accordance with the corresponding annex of this International Standard.
b) The surface shall comply with the provisions of either 6.2 or 6.3. Reproducibility of results using
natural grass or other organic material is likely to be worse than that required for Grade 2 of
accuracy. In case of dispute, measurements shall be carried out in the open air and on the artificial
surface (see 6.2).
c) Environmental conditions shall be within the limits specified for the measuring equipment. The
ambient air temperature shall be in the range −10 °C to 30 °C, and the wind speed shall be less
than 5 m/s. A microphone windscreen shall be used for all outdoor testing, and for indoor testing
whenever the speed of ventilation air over the microphone exceeds 1 m/s.
d) Measurements shall be made using an integrating averaging sound level meter as defined in
IEC 61672-1; alternatively, instruments with the time weighting characteristics “slow”, as defined
in IEC 61672-1, may be used.
e) The location of a particular type of machinery respective to the microphone array shall be in
accordance with the corresponding annex of this International Standard.
6.2 Requirements for artificial surface
The artificial surface shall have absorption coefficients in accordance with Table 3, measured according
to ISO 354.
Table 3 — Absorption coefficient
Frequencies Absorption coefficients Tolerance
Hz
125 0,1 ± 0,1
250 0,3 ± 0,1
500 0,5 ± 0,1
1 000 0,7 ± 0,1
2 000 0,8 ± 0,1
4 000 0,9 ± 0,1
The artificial surface shall be placed on a hard, reflecting surface at the centre of the test environment
and shall have a size of at least 3,6 m × 3,6 m. The construction of the supporting structure shall be
such that the requirements for acoustic properties are met with the absorptive material in place. The
structure shall support the test set up such that compression of the absorbing material is avoided.
6.3 Requirements for natural ground surface
The ground at the centre of the test site shall be flat and have good sound absorbing properties. The
surface shall be either forest ground or grass, with the grass or other organic material having a height
of (50 ± 20) mm.
4 © ISO 2018 – All rights reserved
---------------------- Page: 12 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
7 Testing and operating conditions
Measurements shall be carried out on a new, normal production machine fitted with standard
equipment in accordance with the instruction handbook.
The engine and the machine shall be run in prior to the test in accordance with the manufacturer's
instructions. The engine shall be at normal stable operating temperature before the test is started.
The carburettor shall be set to give the specific machine conditions required by the corresponding
annex of this standard.
The cutting devices shall be lubricated in accordance with the instruction handbook. No alterations to
the initial settings are permitted once measurements have commenced.
An engine speed indicator shall be used to check the speed of the engine. It shall have a measurement
uncertainty of ± 1,0 % of the reading. The indicator and its engagement with the machine shall not
affect the operation during testing.
NOTE 1 The specific conditions for a particular machine are given in the corresponding annexes.
Noise emission quantities shall be determined under the specific conditions for the particular type of
machine specified in the corresponding annex. The following additionally applies.
a) Perform a minimum of four measurements with a short break and significant change of speed
between each measurement. Separate each measurement at, for example, idle, by a short period of
racing, and vice versa. After this speed variation, stable speed conditions shall be obtained before
testing is continued.
At least four separate periods of noise data shall be obtained, totalling at least 20 s.
Each signal duration used shall be at least 2 s over which the engine speed is within ± 3,5 r/s .
NOTE 2 The collection of data for the different operating modes need not be carried out in any fixed sequence.
b) The range of all values noted for each operating mode shall not be greater than 2 dB. If this range
is exceeded, repeat the tests until four consecutive results fall within a range of 2 dB. The final
value to be retained for each microphone position is the arithmetical mean of these four successive
values satisfying this requirement.
For all the conditions specified in the annexes, carry out this procedure when measuring the A-weighted
emission sound pressure levels. When determining the A-weighted sound power level, this procedure
shall be applied to the sound pressure levels averaged over the six microphone positions.
8 Information to be reported
The following information, as applicable, shall be recorded and reported for all measurements:
a) machine under test:
1) description of the machine (including its engine displacement, manufacturer, type and serial
number, and cutting attachment);
2) operating conditions, as listed in Tables 4 and 5, during acoustical evaluation;
3) dimensions of the log (when applicable);
b) acoustic environment (description of test environment):
1) if outdoors, a sketch showing the location of the machine with respect to the surrounding
terrain, including a physical description of the test environment including a description of the
nature of the ground plane;
© ISO 2018 – All rights reserved 5
---------------------- Page: 13 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
2) if indoors, a description of the physical treatment of walls, ceiling and floor, including a sketch
showing the location of the machine and room contents;
3) value of K ;
2A
c) instrumentation:
1) equipment used for the measurements, including name, type, serial number and manufacturer;
2) method used to calibrate the instrumentation system;
3) date and place of the most recent calibration of the acoustical calibrator;
d) acoustical and other data:
1) A-weighted sound pressure levels of the background noise at the microphone positions;
2) measured values and mean values in accordance with Tables 4, 5 and 6;
3) remarks, if any;
4) air temperature and wind speed;
5) date and place of the measurements.
Table 4 — A-weighted emission sound pressure level determination — Reporting measured
values, mean values and emission values
Operating con- E n g i n e Measured A-weighted sound Arithmetic Correction A-weighted
dition speed pressure levels mean value factor emission sound
pressure levels
L' K
pA 1A
L'
pXA
L
pAX
dB
Test no.
r/s 1 2 3 4 n dB dB dB
Idling (Id)
a
Full load (Fl)
a
Racing (Ra)
The emission sound pressure level for the respective operating condition X is calculated from
LL=−' K
pAXpAX 1A
where K is the background noise correction according to ISO 11201.
1A
a
According to the test procedure for the machine type (see corresponding annex).
Table 5 — A-weighted sound power level determination - Reporting measured A-weighted
sound pressure levels
E n g i n e L'pA1 L'pA2 L' L' L' L'
pA3 pA4 pA5 pA6
L'
Operating
speed pA
Test
condition
r/s dB dB dB dB dB dB dB
a
1 Full load (Fl)
a
Racing (Ra)
a
2 Full load (Fl)
a
Racing (Ra)
a
3 Full load (Fl)
a
Racing (Ra)
6 © ISO 2018 – All rights reserved
---------------------- Page: 14 ----------------------
oSIST prEN ISO 22868:2018
ISO/DIS 22868:2018(E)
Table 5 (continued)
E n g i n e L'pA1 L'pA2 L' L' L' L'
pA3 pA4 pA5 pA6
L'
Operating
speed pA
Test
condition
r/s dB dB dB dB dB dB dB
a
4 Full load (Fl)
a
Racing (Ra)
a
n Full load (Fl)
a
Racing (Ra)
A v e r a g e
Full load (Fl) L' = dB
sound pres- pAFl
sure level
Racing (Ra) L' = dB
pRa
L'
pXA
L' to L' are the measured time-averaged sound pressure levels at the corresponding microphone positions.
pA1 pA6
L' is the average of sound pressure levels L' to L' according to ISO 3744:2010, Equation (12).
pA1 pA6
pA
L' is the arithmetic average of the values for L' from each test for the respective operating condition (Fl
pXA pA
and Ra).
Individual values f
...
