SIST EN 4608-003:2012

Aerospace series - Cable, electrical, fire resistant - Single and twisted multicore assembly, screened (braided) and jacketed - Operating temperatures between - 65 °C and 260 °C - Part 003: DN family - lightweight - UV Laser printable - Product standard

This European Standard specifies the characteristics of a light weight fire resistant, screened, electrical cables for use in the on-board electrical systems of aircraft at operating temperature between -65 °C and 260 °C.
These cables are UV Laser printable in accordance with EN 3838.

Luft- und Raumfahrt - Feuerberständige elecktrische Leitungen - Einzel- und mehradrig verdrillte Leitungen, geschirmt (Geflecht) und ummantelt - Betriebstemperaturen zwischen - 65 °C und 260 °C - Teil 003: DN Familie - leichte Bauweise - UV Laser bedruckbar - Produktnorm

Diese Europäische Norm legt die Eigenschaften von feuerbeständigen, geschirmten elektrischen Leitungen in leichter Bau¬weise (gewichtsoptimiert) zur Verwendung in elektrischen Bordnetzen von Luftfahrzeugen bei Be-triebs¬temperaturen zwischen -65 °C und 260 °C fest.
Diese Leitungen sind nach EN 3838 UV-Laser bedruckbar.

Série aérospatiale - Câbles électriques blindés résistant au feu - Simple et multifilaire blindé (tresse) gainé - Températures de fonctionnement comprises entre - 65 °C et 260 °C - Partie 003 : Famille DN - fil allégé - marquable laser UV - Norme de produit

La présente Norme Européenne spécifie les caractéristiques des câbles électriques, blindés, résistant au feu, allégés pour une utilisation dans les systèmes embarqués sur aéronefs à une température d'utilisation comprise entre – 65°C et 260°C.
Ces câbles sont marquables au laser UV selon l'EN 3838.

Aeronavtika - Električni ognjevzdržni kabli - Enožilni in večžilni prepleteni kabli, oklopljeni (opleteni) in oplaščeni - Delovne temperature med -65 °C in 260 °C - 003. del: Družina DN - Lahka izvedba - Možnost UV-laserskega tiskanja - Standard za izdelek

Ta evropski standard določa lastnosti lahkih ognjevzdržnih oplaščenih električnih kablov za uporabo v električnih sistemih na krovu letala pri obratovalni temperaturi med –65 in 260 °C. Na te kable je mogoče tiskati z UV-laserjem v skladu s standardom EN 3838.

General Information

• Status: Published
• Publication Date: 27-Mar-2012
• ICS: 13.220.99 - Other standards related to protection against fire
• ICS: 49.060 - Aerospace electric equipment and systems
• Technical Committee: I13 - Imaginarni 13
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 23-Mar-2012
• Due Date: 28-May-2012
• Completion Date: 28-Mar-2012
• Ref Project: EN 4608-003:2012 - Aerospace series - Cable, electrical, fire resistant - Single and twisted multicore assembly, screened (braided) and jacketed - Operating temperatures between -65 °C and 260 °C - Part 003: DN family - Lightweight - UV Laser printable - Product standard

Overview

SIST EN 4608-003:2012 is a European standard developed by CEN that specifies the technical requirements for lightweight, fire resistant electrical cables used in aerospace applications. These cables are designed for on-board electrical systems of aircraft, with operational temperature capabilities ranging from -65 °C up to 260 °C. A key feature of this standard is that the cables are UV laser printable in accordance with EN 3838, enabling durable and high-precision marking essential for traceability and maintenance in aerospace environments.

The cables covered in EN 4608-003 are screened (braided) and jacketed, available in single and twisted multicore assembly configurations. They are intended to deliver reliable electrical performance while meeting stringent fire resistance and durability criteria demanded by the aerospace industry.

Key Topics

• Cable Construction and Materials
  Cables are constructed with nickel-plated copper braided screens and sintered wrapped PTFE outer jackets, ensuring fire resistance and mechanical protection. The cores meet specifications outlined in EN 2346-004, with 1 to 3 cores twisted together as per EN 4608-001.

• Operating Conditions
  Designed for extreme environments, cables withstand continuous use in temperatures ranging from -65 °C to 260 °C, and support operating voltages up to 600 V AC and frequencies up to 2000 Hz.

• Fire Resistance and Safety
  These cables exhibit fire resistance tested via EN 3475 series, including flammability tests with extinction times below 3 seconds and thermal shock resistance, supporting aircraft safety requirements.

• UV Laser Printability
  The outer PTFE jacket allows UV laser marking compliant with EN 3838, enabling permanent and high-contrast cable identification crucial for aerospace quality assurance and maintenance.

• Performance Testing and Quality Assurance
  The standard mandates extensive testing such as electrical resistance, voltage proof, bending, cold bend tests, abrasion resistance, and dynamic cut-through. Quality assurance aligns with EN 9133 to maintain consistent manufacturing standards.

Applications

EN 4608-003 cables are primarily used in aerospace electrical systems where weight, fire safety, and reliability are critical. Typical applications include:

• On-board wiring for commercial and military aircraft electrical systems
• Signal and power transmission cables requiring fire resistant properties
• Environments expecting exposure to wide temperature ranges and mechanical stresses
• Aerospace assemblies where cable traceability and durability are key, enabled by UV laser print marking

The lightweight construction optimizes aircraft weight without compromising safety or electrical performance, making these cables suitable for high-demand aerospace environments.

Related Standards

• EN 2346-004 – Defines core construction for cables operating between -65 °C and 260 °C with UV laser printable properties.
• EN 4608-001 & EN 4608-002 – Provide technical specifications and general requirements for fire resistant, screened, and jacketed aerospace cables.
• EN 3475 – Series focused on testing methods for aircraft electrical cables, including electrical, mechanical, thermal, and fire performance tests.
• EN 3838 – Requirements and tests for UV laser markings on aircraft electrical cables.
• EN 9133 – Quality management system standard for qualification of aerospace standard parts.

---

SIST EN 4608-003:2012 ensures aerospace electrical cable solutions meet rigorous safety, performance, and identification standards. Its implementation supports critical aerospace operations requiring durable, fire resistant wiring able to withstand harsh thermal environments while maintaining traceability through UV laser marking. This standard is essential for aerospace manufacturers, suppliers, and maintenance providers committed to safety and high-quality performance in on-board electrical systems.

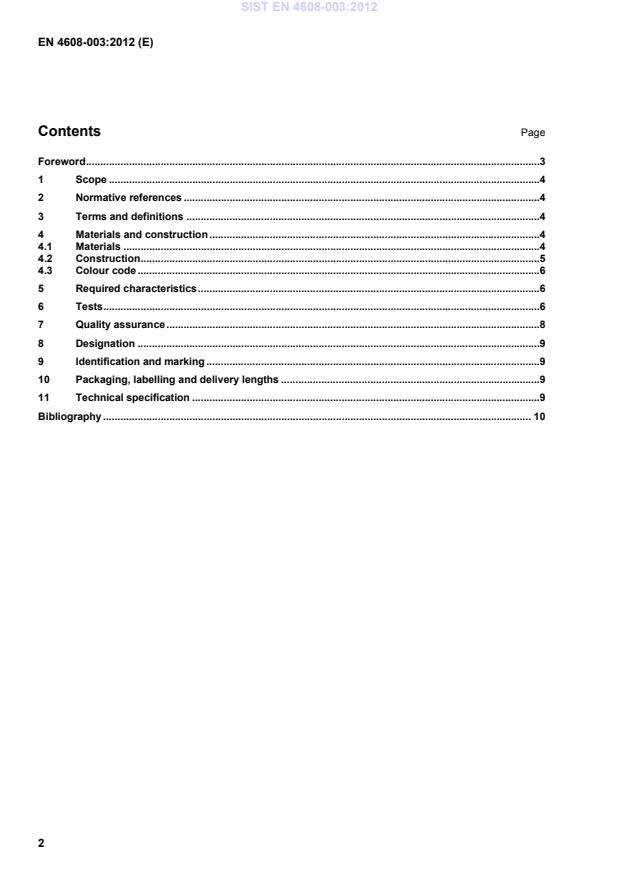

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.L]GHOHNLuft- und Raumfahrt - Feuerberständige elecktrische Leitungen - Einzel- und mehradrig verdrillte Leitungen, geschirmt (Geflecht) und ummantelt - Betriebstemperaturen zwischen - 65 °C und 260 °C - Teil 003: DN Familie - leichte Bauweise - UV Laser bedruckbar - ProduktnormSérie aérospatiale - Câbles électriques blindés résistant au feu - Simple et multifilaire blindé (tresse) gainé - Températures de fonctionnement comprises entre - 65 °C et 260 °C - Partie 003 : Famille DN - fil allégé -
marquable laser UV - Norme de produitAerospace series - Cable, electrical, fire resistant - Single and twisted multicore assembly, screened (braided) and jacketed - Operating temperatures between - 65 °C and 260 °C - Part 003: DN
family - lightweight - UV Laser printable - Product standard49.060Aerospace electric equipment and systems13.220.99Drugi standardi v zvezi z varstvom pred požaromOther standards related to protection against fireICS:Ta slovenski standard je istoveten z:EN 4608-003:2012SIST EN 4608-003:2012en01-maj-2012SIST EN 4608-003:2012SLOVENSKI
STANDARD
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 4608-003
February 2012 ICS 49.060 English Version
Aerospace series - Cable, electrical, fire resistant - Single and twisted multicore assembly, screened (braided) and jacketed - Operating temperatures between -65 °C and 260 °C - Part 003: DN
family - Lightweight - UV Laser printable - Product standard Série aérospatiale - Câbles électriques blindés résistant au feu - Simple et multifilaire blindé (tressé) et gainé - Températures de fonctionnement comprises entre - 65 °C et 260 °C - Partie 003: Famille DN - Fil allégé - Marquable laser UV - Norme de produit
Luft- und Raumfahrt - Feuerberständige elecktrische Leitungen - Einzel- und mehradrig verdrillte Leitungen, geschirmt (Geflecht) und ummantelt - Betriebstemperaturen zwischen -65 °C und 260 °C - Teil 003: DN Familie - leichte Bauweise - UV Laser bedruckbar - Produktnorm This European Standard was approved by CEN on 27 August 2011.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2012 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 4608-003:2012: ESIST EN 4608-003:2012
...
