SIST EN 301 195 V1.1.1:2003

• Abstract:

  Interaction channel through the Global System for Mobile communications (GSM)

• Status: Published
• Publication Date: 30-Nov-2003
• ICS: 33.070.50 - Global System for Mobile Communication (GSM)
• ICS: 33.170 - Television and radio broadcasting
• Technical Committee: SS EIT - Technical Board for the electrotechnical, information technology and telecommunications fields
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 01-Dec-2003
• Due Date: 01-Dec-2003
• Completion Date: 01-Dec-2003
• Ref Project: ETSI EN 301 195 V1.1.1 (1999-02) - Digital Video Broadcasting (DVB); Interaction channel through the Global System for Mobile communications (GSM)

SIST EN 301 195 V1.1.1:2003 is the Slovenian adoption of ETSI EN 301 195 V1.1.1, a European telecommunications standard for Digital Video Broadcasting (DVB) interaction channels through the Global System for Mobile communications (GSM). It specifies how GSM can be used to provide the narrowband return path and related interworking needed for interactive DVB services. The standard is written for DVB system designers, terminal suppliers, and network operators that need a GSM-based interaction channel.

What does SIST EN 301 195 V1.1.1:2003 specify?

SIST EN 301 195 V1.1.1:2003 specifies the baseline solution for providing a DVB interaction channel over GSM. It focuses on the GSM-specific part of the interaction network and on how that network connects the user terminal to the service provider.

The document is organized into:

• Clause 1 - scope
• Clause 2 - references
• Clause 3 - abbreviations
• Clause 4 - reference model
• Clause 5 - DVB interaction channel specification for GSM
• Annex A - informative background on GSM
• Annex B - informative interworking types

Annex	What it covers
Annex A	Basic characteristics of GSM and future GSM data services
Annex B	Interworking types, including PSTN and ISDN

The scope states that the GSM solution can be used with satellite, cable, MATV, SMATV, terrestrial, microwave, or other DVB broadcasting and distribution systems. The document also treats the GSM-based interaction channel as one option within a wider set of interactive service solutions.

What are the key requirements of SIST EN 301 195 V1.1.1:2003?

The standard defines the GSM part of the DVB interaction channel in terms of architecture, interfaces, call handling, and interworking.

Reference model and layering

Clause 4 uses a simplified model with a Physical layer and a Transport layer. The application layer is left outside the document, which matters because service providers can implement different interactive applications while keeping the same GSM transport solution. Clause 4 also separates the Broadcast Channel (BC) from the Interaction Channel (IC), with the IC split into a return interaction path and a forward interaction path.

User terminal structure

Clause 4 identifies the user terminal as a Set Top Box (STB) made up of the Network Interface Unit (NIU) and the Set Top Unit (STU). The NIU includes the Broadcast Interface Module (BIM) and the Interactive Interface Module (IIM). In practice, this tells integrators where the GSM connection sits and which part of the terminal handles interaction traffic.

GSM as the interaction network

Clause 5 states that GSM can provide the wireless bi-directional path for the interaction channel. The user terminal needs a GSM Mobile Station (MS) as the IIM, and the GSM network may be complemented by another network, commonly Public Switched Telephone Network (PSTN) or Integrated Services Digital Network (ISDN), to reach the service provider. This matters because the end-to-end path may include more than GSM alone.

Physical interfaces

Subclause 5.1 distinguishes external and integrated MS configurations. An external MS follows the user-terminal to MS interface requirements of GSM 07.06 and EN 50201 modem-interface practice. An integrated MS follows the same requirements, except for the 9-pin connector. This is the section to use when designing hardware connections and cabling.

Calling procedures and disconnection

Subclause 5.2 requires connection establishment according to the GSM 04 series, with signalling described by GSM 04.08. If the service provider cannot be reached, upper layers are responsible for retrying the call or informing the user. Subclause 5.3 allows forced disconnection for emergency calls through upper-layer signalling.

Interworking choices

Annex B explains how GSM can interwork with PSTN and ISDN. The document notes that GSM-ISDN interworking is preferable when possible because it gives an end-to-end digital link and shorter setup times. For readers planning network integration, this is the practical section for choosing bearer capabilities and interworking behavior.

What terms does SIST EN 301 195 V1.1.1:2003 define?

• Broadcast Channel (BC) - The one-way broadband path from the service provider to users, carrying broadcast content and possibly forward interaction data.
• Interaction Channel (IC) - The two-way channel used for requests, replies, and other interactive service communication.
• Set Top Box (STB) - The user terminal that combines broadcast and interaction functions.
• Interactive Interface Module (IIM) - The part of the user terminal that connects to the interaction network.
• Mobile Station (MS) - The GSM terminal used as the interaction interface.
• Network Interface Unit (NIU) - The user-terminal unit made up of the BIM and IIM.
• PSTN - The Public Switched Telephone Network used as a possible interworking network.
• ISDN - The Integrated Services Digital Network used as another possible interworking network.

Who uses SIST EN 301 195 V1.1.1:2003?

SIST EN 301 195 V1.1.1:2003 is used by people defining and implementing interactive DVB services over GSM. Typical users include:

• DVB and broadcast system architects
• Set-top box and terminal designers
• GSM network planners and interworking engineers
• Service providers building return-channel services
• Test and integration teams checking call setup, bearer choice, and terminal interfaces
• Procurement and quality teams confirming that a DVB terminal supports a GSM-based interaction channel

Which standards are used with SIST EN 301 195 V1.1.1:2003?

The document relies on several related ETSI and CENELEC texts:

• ETS 300 802 - network-independent protocols for DVB interactive services
• EN 50201 - modem interface requirements for DVB-IRD equipment
• GSM 07.01 and GSM 07.02 - terminal adaptation functions for Mobile Stations
• GSM 07.06 - V. series DTE-DCE interface at the Mobile Station
• GSM 04.08 - Layer 3 signalling used for call setup
• GSM 09.03 and GSM 09.07 - interworking between GSM and ISDN/PSTN
• DVB-A008 - commercial requirements for asymmetric interactive services
• ETS 300 500, 501, 522, 528, 550, 551, 552, 554, 555, 562, and GSM 04.22 - the GSM service, bearer, network, access, data link, and rate-adaptation background used by the specification

What does the SIST EN 301 195 V1.1.1:2003 document contain?

The document contains a reference model for narrowband interaction channels in a broadband DVB scenario, including figures for the protocol stack and the system architecture. Clause 5 sets out the GSM-based physical interface, calling procedure, and forced-disconnection behavior. Annex A summarizes GSM characteristics and data services, including SMS, bearer services, and newer packet or high-speed services. Annex B describes PSTN and ISDN interworking, including bearer capability mapping and the role of interworking functions. A table in Annex B compares bearer service categories across GSM, ISDN, and PSTN, which is useful when selecting the right end-to-end connection type.

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Digitalna videoradiodifuzija (DVB) – Povratni kanal prek globalnega sistema mobilnih komunikacij (GSM)Digital Video Broadcasting (DVB); Interaction channel through the Global System for Mobile communications (GSM)33.170Televizijska in radijska difuzijaTelevision and radio broadcasting33.070.50Globalni sistem za mobilno telekomunikacijo (GSM)Global System for Mobile Communication (GSM)ICS:Ta slovenski standard je istoveten z:EN 301 195 Version 1.1.1SIST EN 301 195 V1.1.1:2003en01-december-2003SIST EN 301 195 V1.1.1:2003SLOVENSKI
STANDARD
EN 301 195 V1.1.1 (1999-02)European Standard (Telecommunications series)Digital Video Broadcasting (DVB);Interaction channel through the Global Systemfor Mobile communications (GSM)EBUUEREuropean Broadcasting UnionUnion Européenne de Radio-TélévisionSIST EN 301 195 V1.1.1:2003

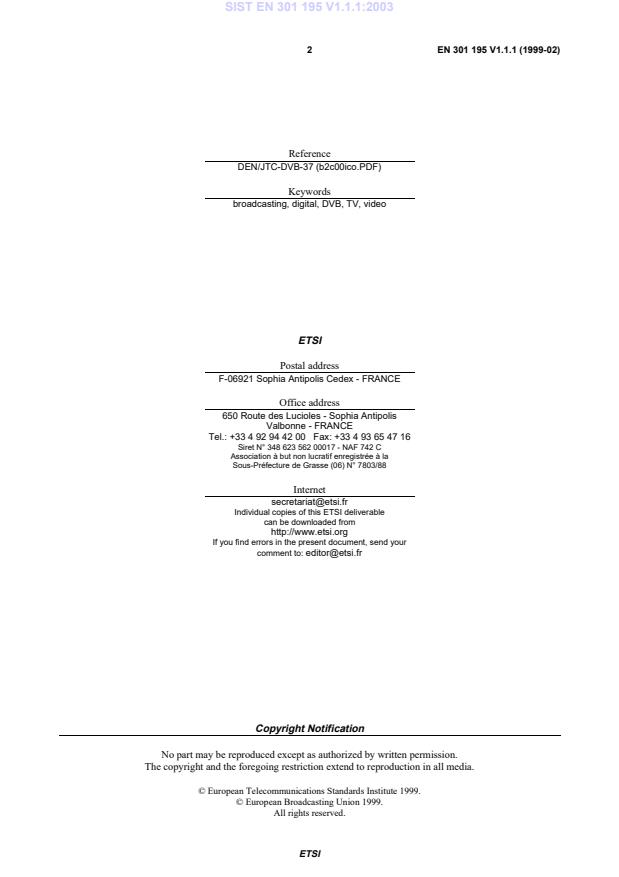

ETSIEN 301 195 V1.1.1 (1999-02)2ReferenceDEN/JTC-DVB-37 (b2c00ico.PDF)Keywordsbroadcasting, digital, DVB, TV, videoETSIPostal addressF-06921 Sophia Antipolis Cedex - FRANCEOffice address650 Route des Lucioles - Sophia AntipolisValbonne - FRANCETel.: [phone]
Fax: [phone]Siret N° 348 623 562 00017 - NAF 742 CAssociation à but non lucratif enregistrée à laSous-Préfecture de Grasse (06) N° 7803/[e-mail] copies of this ETSI deliverablecan be downloaded fromhttp://www.etsi.orgIf you find errors in the present document, send yourcomment to: [e-mail] NotificationNo part may be reproduced except as authorized by written permission.The copyright and the foregoing restriction extend to reproduction in all media.© European Telecommunications Standards Institute 1999.© European Broadcasting Union 1999.All rights reserved.SIST EN 301 195 V1.1.1:2003

ETSIEN 301 195 V1.1.1 (1999-02)3ContentsIntellectual Property Rights.4Foreword.41Scope.52References.53Abbreviations.64Reference model.74.1Protocol Stack Model.74.2System Model.85DVB interaction channel specification for GSM.95.1Physical interfaces.95.1.1External MS.95.1.2Integrated MS.95.2Calling procedures.105.3Forced disconnection.10Annex A (informative):Basic characteristics of GSM.11A.1GSM, general.11A.2Future GSM data services.11Annex B (informative):Interworking types.12B.1Interworking to PSTN.12B.2Interworking to ISDN.13History.14SIST EN 301 195 V1.1.1:2003

ETSIEN 301 195 V1.1.1 (1999-02)4Intellectual Property RightsIPRs essential or potentially essential to the present document may have been declared to ETSI. The informationpertaining to these essential IPRs, if any, is publicly available for ETSI members and non-members, and can be foundin SR 000 314: "Intellectual Property Rights (IPRs); Essential, or potentially Essential, IPRs notified to ETSI in respectof ETSI standards", which is available free of charge from the ETSI Secretariat. Latest updates are available on theETSI Web server (http://www.etsi.org/ipr).Pursuant to the ETSI IPR Policy, no investigation, including IPR searches, has been carried out by ETSI. No guaranteecan be given as to the existence of other IPRs not referenced in SR 000 314 (or the updates on the ETSI Web server)which are, or may be, or may become, essential to the present document.ForewordThis European Standard (Telecommunications series) has been produced by the Joint Technical Committee (JTC)Broadcast of the European Broadcasting Union (EBU), Comité Européen de Normalisation ELECtrotechnique(CENELEC) and the European Telecommunications Standards Institute (ETSI).NOTE:The EBU/ETSI JTC Broadcast was established in 1990 to co-ordinate the drafting of standards in thespecific field of broadcasting and related fields. Since 1995 the JTC Broadcast became a tripartite bodyby including in the Memorandum of Understanding also CENELEC, which is responsible for thestandardization of radio and television receivers. The EBU is a professional association of broadcastingorganizations whose work includes the co-ordination of its members' activities in the technical, legal,programme-making and programme-exchange domains. The EBU has active members in about 60countries in the European broadcasting area; its headquarters is in Geneva.European Broadcasting UnionCH-1218 GRAND SACONNEX (Geneva)SwitzerlandTel:[phone]Fax:[phone]Digital Video Broadcasting (DVB) ProjectFounded in September 1993, the DVB Project is a marked-led consortium of public and private sector organizations inthe television industry. Its aim is to establish the framework for the introduction of MPEG-2 based digital televisionservices. Now comprising over 200 organizations from more than 25 countries around the world, DVB fostersmarked-led systems, which meet the real needs, and economic circumstances, of the consumer electronics and thebroadcast industry.National transposition datesDate of adoption of this EN:5 February 1999Date of latest announcement of this EN (doa):31 May 1999Date of latest publication of new National Standardor endorsement of this EN (dop/e):30 November 1999Date of withdrawal of any conflicting National Standard (dow):30 November 1999SIST EN 301 195 V1.1.1:2003

ETSIEN 301 195 V1.1.1 (1999-02)51ScopeThe present document is the baseline specification for the provision of an interaction channel based on Global Systemfor Mobile communications (GSM) to Digital Video Broadcasting (DVB) systems.The DVB project does not intend to specify an interaction channel solution associated to each broadcast system becausethe interoperability of different delivery media to transport the interaction channel is desirable. Therefore the GSMsolution for the interaction channel apply to satellite, cable, MATV, SMATV, terrestrial, microwave or any future DVBbroadcasting or distribution system.The solutions provided in the present document for an interaction channel through GSM are a part of a wider set ofalternatives to implement interactive services for DVB systems.2ReferencesThe following documents contain provisions which, through reference in this text, constitute provisions of the presentdocument.· References are either specific (identified by date of publication, edition number, version number, etc.) ornon-specific.· For a specific reference, subsequent revisions do not apply.· For a non-specific reference, subsequent revisions do apply.· A non-specific reference to an ETS shall also be taken to refer to later versions published as an EN with the samenumber.[1]ETS 300 802: "Digital Video Broadcasting (DVB); Network-independent protocols for DVBinteractive services".[2]CENELEC EN 50201: "Interfaces for Digital Video Broadcast Integrated Receiver Decoder(DVB-IRD)".[3]ETS 300 505: "Digital cellular telecommunications system (Phase 2); Mobile Station (MS)features (GSM 02.07 version 4.8.2)".[4]ETS 300 556: "European digital cellular telecommunication system (Phase 2); Mobile radiointerface signalling layer 3; General aspects GSM 04.07".[5]ETS 300 557: "Digital cellular telecommunications system (Phase 2); Mobile radio interface;Layer 3 specification (GSM 04.08 version 4.22.0)".[6]ETS 300 600: "European digital cellular telecommunication system (Phase 2); Signallingrequirements on interworking between the Integrated Services Digital Network (ISDN) or PublicSwitched Telephone Network (PSTN) and the Public Land Mobile Network (PLMN)(GSM 09.03)".[7]ETS 300 604: "Digital cellular telecommunications system (Phase 2); General requirements oninterworking between the Public Land Mobile Network (PLMN) and the Integrated ServicesDigital Network (ISDN) or Public Switched Telephone Network (PSTN) (GSM 09.07)".[8]ETS 300 582: "Digital cellular telecommunications system (Phase 2); General on TerminalAdaptation Functions (TAF) for Mobile Stations (MS) (GSM 07.01)".[9]ETS 300 583: "European digital cellular telecommunications system (Phase 2); TerminalAdaptation Functions (TAF) for services using asynchronous bearer capabilities (GSM 07.02)".SIST EN 301 195 V1.1.1:2003

ETSIEN 301 195 V1.1.1 (1999-02)6[10]ETS 300 500: "Digital cellular telecommunications system (Phase 2); Principles oftelecommunication services supported by a GSM Public Land Mobile Network (PLMN)(GSM 02.01)".[11]ETS 300 501: "European digital cellular telecommunications system (Phase 2); Bearer Services(BS) supported by a GSM Public Land Mobile Network (PLMN) (GSM 02.02)".[12]ETS 300 522: "Digital cellular telecommunications system (Phase 2); Network architecture(GSM 03.02)".[13]ETS 300 528: "European digital cellular telecommunications system (Phase 2); GSM Public LandMobile Network (PLMN) connection types (GSM 03.10)".[14]ETS 300 550: "European digital cellular telecommunications system (Phase 2); Mobile Station -Base Station System (MS - BSS) interface; General aspects and principles (GSM 04.01)".[15]ETS 300 551: "European digital cellular telecommunications system (Phase 2); GSM Public LandMobile Network (PLMN) access reference configuration (GSM 04.02)".[16]ETS 300 552: "European digital cellular telecommunications system (Phase 2); Mobile Station -Base Station System (MS - BSS) interface; Channel structures and access capabilities(GSM 04.03)".[17]ETS 300 554: "European digital cellular telecommunications system (Phase 2); Data Link (DL)layer; General aspects (GSM 04.05)".[18]ETS 300 555: "European digital cellular telecommunications system (Phase 2); Mobile Station -Base Station System (MS - BSS) interface; Data Link (DL) layer specification (GSM 04.06)".[19]ETS 300 562: "European digital cellular telecommunications system (Phase 2); Rate adaption onthe Mobile Station - Base Station System (MS - BSS) interface (GSM 04.21)".[20]GSM 04.22 "Digital cellular telecommunications system (Phase 2+); Radio Link Protocol (RLP)for data and telematic services on the Mobile Station - Base Station System (MS-BSS) interfaceand the Base Station System -Mobile-services Switching Centre (BSS-MSC) interface".[21]ETS 300 586: "European digital cellular telecommunications system (Phase 2); Use of the V seriesData Terminal Equipment - Data Circuit terminating Equipment (DTE - DCE) interface at theMobile Station (MS) for Mobile Termination (MT) configuration (GSM 07.06)".[22]DVB-A008 October 1995: "Commercial requirements for asymmetric interactive servicessupporting broadcast to the home with narrowband return channels".3AbbreviationsFor the purposes of the present document, the following abbreviations apply:BCBroadcast ChannelBIMBroadcast Interface ModuleBSCBase Station ControllerBTSBase Transceiver StationDCEData Circuit-terminating EquipmentDTEData Terminal EquipmentDVBDigital Video BroadcastingETSEuropean Telecommunication StandardENEuropean NormGMSKGaussian Minimum Shift KeyingGSMGlobal System for Mobile CommunicationsICInteractive ChannelIIMInteractive Interface ModuleINAInteractive Network AdapterISDNIntegrated Services Digital NetworkSIST EN 301 195 V1.1.1:2003

ETSIEN 301 195 V1.1.1 (1999-02)7MSMobile StationMSCMobile Switching CentreMTMobile TerminationNIUNetwork Interface UnitOSIOpen Systems InterconnectionPSTNPublic Switched Telephone NetworkRARate AdaptationSMSShort Message ServiceSTBSet Top BoxSTUSet Top UnitTDMATime Division Multiple Access4Reference modelA reference model for the system architecture of narrowband interaction channels in a broadband scenario (asymmetricinteractive services) is presented in this clause.4.1Protocol Stack ModelWithin the DVB commercial requirements for asymmetric interactive services supporting broadcast to the home withnarrowband return channel [22], a simple communications model has been used to identify the necessity and importanceof each commercial requirement consisting of the following layers (the layers do not coincide exactly with the OSIlayers):Physical layer:Where all the physical (electrical) transmission parameters are defined.Transport layer:Defines all the relevant data structures and communication protocols like data containers, etc.Application layer:Is the interactive application software and runtime environment (e.g. home shoppingapplication, script interpreter, etc.).The present document addresses the lower two layers (the physical and transport layers), leaving the app
...
