SIST EN 16230-1:2014+A1:2015
(Main)Leisure karts - Part 1: Safety requirements and test methods for karts
Leisure karts - Part 1: Safety requirements and test methods for karts
This European Standard is applicable for karts, according to 3.1, that are not intended to be used on public roads.
This European Standard applies to:
- leisure karts only;
- karts propelled by a combustion engine, including LPG combustion engines;
- karts used on indoor and outdoor tracks, permanent or temporary;
- karts used on supervised tracks designed for leisure karting, with a sealed ground (such as asphalt, concrete, ice or snow).
This European Standard does not apply to:
- karts used for competition organised by and under the responsibility of the CIK-FIA and/or ASN, ensuring through the granting of licenses by an ASN or one of its affiliated members as defined in the International Sporting code, compliance with the safety, sporting, disciplinary and technical rules of the CIAK-FIA and/ or ASN;
- karts designed exclusively for competition and toys;
- cross country karts;
- karts with two or more seats;
- karts used on tracks not mentioned above (such as mud, earth);
- karts used in amusement parks.
The requirements related to the hazards of electrical propulsion are not covered in this European Standard.
The requirements related to whole-body vibration are not covered in this European Standard.
This European Standard specifies appropriate measures to eliminate or reduce the risks arising from significant hazards, hazardous situations and events (see Clause 6) during operation and maintenance of the karts, when carried out as intended by the manufacturer.
Safety in karting activities is dependent on a correct interaction between leisure karts and the track equipment and facilities. General recommendations for tracks to be used for leisure karting are included in this part of the standard.
This document is not applicable to karts that are manufactured before the date of publication of this European Standard by CEN.
NOTE Specific requirements for tracks design and operation will be included in a future Part 2 of this standard.
Freizeitkarts - Teil 1: Sicherheitstechnische Anforderungen und Prüfverfahren für Karts
Diese Europäische Norm gilt für Karts nach 3.1, die nicht für die Nutzung im öffentlichen Straßen¬verkehr vorgesehen sind.
Diese Europäische Norm gilt:
- ausschließlich für Freizeitkarts;
- für Karts, die mit einem Verbrennungsmotor betrieben werden, einschließlich Flüssiggas Verbrennungs-motoren;
- für dauerhaft oder zeitweise auf Strecken in Hallen und im Freien verwendete Karts;
- für die Nutzung von Karts auf beaufsichtigten Strecken, die für das Freizeit-Kartfahren ausgelegt sind und einen festen Untergrund besitzen (wie z. B. Asphalt, Beton, Eis oder Schnee).
Die vorliegende Europäische Norm gilt nicht für:
- in Wettkämpfen verwendete Karts, die von der CIK-FIA und/oder ASN organisiert werden und deren Verantwortung unter¬liegen, wobei durch die Erteilung von Genehmigungen durch die ASN oder einem sich ihr ange¬schlossenen Mitglied, wie im Internationalen Sportgesetz festgelegt, die Einhaltung der Sicherheits-, Sport-, Disziplinar- und Technikregeln der CIAK-FIA und/oder ASN sichergestellt werden;
- Karts, die ausschließlich zu Wettkampfzwecken bestimmt sind und Spielzeugkarts;
- Geländekarts;
- Karts mit zwei oder mehr Sitzen;
- Karts, die auf Strecken verwendet werden, die vorstehend nicht genannt werden (wie z. B. Schlamm, Erde);
- Karts, die in Freizeitparks verwendet werden.
Anforderungen in Bezug auf Gefährdungen durch den Elektroantrieb sind in der vorliegenden Europäischen Norm nicht berücksichtigt.
Anforderungen in Bezug auf Ganzkörper Vibration sind in der vorliegenden Europäischen Norm nicht berücksichtigt.
Die vorliegende Europäische Norm legt geeignete Maßnahmen zur Beseitigung oder Verringerung von Risi¬ken fest, die sich während des Betriebs und der Wartung der Karts, wenn sie nach den Herstellerangaben durchgeführt werden, aus signifikanten Gefährdungen, Gefährdungs¬situationen und Gefährdungsereignissen ergeben (siehe Abschnitt 6).
Die Sicherheit beim Kartfahren ist von einer geeigneten Wechselbeziehung zwischen den Freizeitkarts und den Einrichtungen und der Anlage der Kartstrecke abhängig. In diesem Teil der Norm werden allgemeine Empfehlungen für die Strecken angegeben, die für das Fahren von Freizeitkarts zu benutzen sind.
Das vorliegende Dokument gilt nicht für Karts, die hergestellt wurden, bevor diese Europäische Norm durch CEN veröffentlicht wurde.
ANMERKUNG Teil 2 dieser Norm, der gerade erarbeitet wird, enthält spezifische Anforderungen an die Gestaltung und den Betrieb der Strecken.
Karts de loisir - Partie 1: Exigences de sécurité et méthodes d'essais relatives aux karts
La présente Norme européenne est applicable aux karts, tels que définis en 3.1, qui ne sont pas destinés à être utilisés sur des voies publiques.
La présente Norme européenne s'applique aux :
- karts de loisir uniquement ;
- karts propulsés par un moteur à combustion, y compris les moteurs à combustion fonctionnant au GPL ;
- utilisations sur des pistes en intérieur et en extérieur, permanentes ou temporaires ;
- utilisations sur des pistes conçues pour le karting de loisir, ayant un sol scellé (asphalte, béton, glace ou neige par exemple).
La présente Norme européenne ne s'applique pas aux :
- karts utilisés pour les compétitions organisées par et sous la responsabilité de la CIK-FIA et/ou de l'ASN, assurant, par la délivrance de licences par une ASN ou par l'un de ses membres affiliés tels que définis dans le Code Sportif International, le respect des règles liées à la sécurité, au sport, à la discipline et à la technique édictées par la CIK-FIA et/ou l'ASN ;
- véhicules destinés exclusivement à la compétition et jouets ;
- karts tous terrains ;
- karts équipés de deux sièges ou plus ;
- karts utilisés sur des pistes non mentionnées ci-dessus (boue, terre par exemple) ;
- karts des parcs d'attractions.
Les prescriptions relatives aux dangers liés à la propulsion électrique ne sont pas traitées dans la présente Norme européenne.
Les prescriptions relatives aux dangers liés aux vibrations globales du corps ne sont pas traitées dans la présente Norme européenne.
La présente Norme européenne spécifie des mesures appropriées pour éliminer ou réduire les risques engendrés par les phénomènes dangereux significatifs, les situations et les événements dangereux (voir Article 6) lors de l'utilisation et de l'entretien des karts, lorsque ceux-ci sont réalisés conformément aux spécifications prévues par le fabricant.
La sécurité lors des activités de karting dépend d'une interaction correcte entre les karts de loisir et l'équipement de la piste et des installations. Des recommandations générales pour les pistes à utiliser pour le karting de loisir sont incluses dans cette partie de la norme.
Le présent document ne s'applique pas aux karts fabriqués avant la date de publication de la présente Norme européenne par le CEN.
NOTE Les exigences spécifiques à la conception et l'utilisation des pistes seront incluses dans la future partie 2 de la présente norme.
Gokarti za prosti čas - 1. del: Varnostne zahteve in preskusne metode za gokarte
Ta evropski standard se uporablja za gokarte v skladu s točko 3.1, ki niso namenjeni uporabi na javnih cestah.
Ta evropski standard se uporablja:
– samo za gokarte za prosti čas;
– za gokarte, ki jih poganja motor z notranjim zgorevanjem, vključno z motorji z zgorevanjem, ki jih poganja utekočinjeni naftni plin;
– za gokarte, ki se uporabljajo na notranjih in zunanjih progah, stalno ali začasno;
– za gokarte, ki se uporabljajo na nadzorovanih progah, namenjenih vožnji z gokarti za prosti čas, z zatesnjeno površino (kot je asfalt, beton, led ali sneg).
Ta evropski standard se ne uporablja za:
– gokarte, ki se uporabljajo za tekmovanja, ki jih organizirata CIK-FIA in/ali ASN ter sta za njih odgovorna, pri čemer se prek podeljevanja licenc, ki ga izvaja ASN ali eden od njegovih pridruženih članov, kot je opredeljeno v Mednarodnem športnem pravilniku, zagotovi skladnost z varnostnimi, športnimi, disciplinskimi in tehničnimi pravili CIAK-FIA in/ali ASN;
– gokarte, zasnovane izključno za tekmovanje in kot igrača;
– terenske gokarte;
– gokarte z dvema sedežema ali več;
– gokarte, ki se uporabljajo na progah, ki niso navedene zgoraj (kot so blato, zemlja);
– gokarte, ki se uporabljajo v zabaviščnih parkih.
Zahteve, povezane z nevarnostmi električnega pogona, niso obravnavane v tem evropskem standardu.
Zahteve, povezane z vibriranjem celotnega telesa, niso obravnavane v tem evropskem standardu.
Ta evropski standard določa ustrezne ukrepe za odpravo ali zmanjšanje tveganj, ki izhajajo iz pomembnih nevarnosti, nevarnih razmer in dogodkov (glej točko 6) med delovanjem in vzdrževanjem gokartov, kadar se ti izvajajo v skladu z namenom proizvajalca.
Varnost pri vožnji z gokarti je odvisna od pravilnega medsebojnega vplivanja med gokarti za prosti čas ter opremo in funkcijami proge. Splošna priporočila za proge, ki se uporabljajo za vožnjo z gokarti za prosti čas, so vključeni v ta del standarda.
Ta dokument se ne uporablja za gokarte, izdelane pred datumom izdaje tega evropskega standarda s strani CEN.
OPOMBA: Posebne zahteve za zasnovo in delovanje prog bodo vključene v prihodnji 2. del tega standarda.
General Information
Relations
Standards Content (Sample)
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Freizeitkarts - Teil 1: Sicherheitstechnische Anforderungen und Prüfverfahren für KartsKarts de loisir - Partie 1: Exigences de sécurité et méthodes d'essais relatives aux kartsLeisure karts - Part 1: Safety requirements and test methods for karts97.220.01Sports equipment and facilities in general43.100Osebni avtomobili. Bivalne prikolice in lahke prikolicePassenger cars. Caravans and light trailersICS:Ta slovenski standard je istoveten z:EN 16230-1:2013+A1:2014SIST EN 16230-1:2014+A1:2015en,fr,de01-februar-2015SIST EN 16230-1:2014+A1:2015SLOVENSKI
STANDARD
SIST EN 16230-1:2014+A1:2015
EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 16230-1:2013+A1
December 2014 ICS 43.100 Supersedes EN 16230-1:2013English Version
Leisure karts - Part 1: Safety requirements and test methods for karts
Karts de loisir - Partie 1: Exigences de sécurité et méthodes d'essais relatives aux karts
Freizeitkarts - Teil 1: Sicherheitstechnische Anforderungen und Prüfverfahren für Karts This European Standard was approved by CEN on 17 November 2012 and includes Amendment 1 approved by CEN on 18 November 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2014 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 16230-1:2013+A1:2014 ESIST EN 16230-1:2014+A1:2015

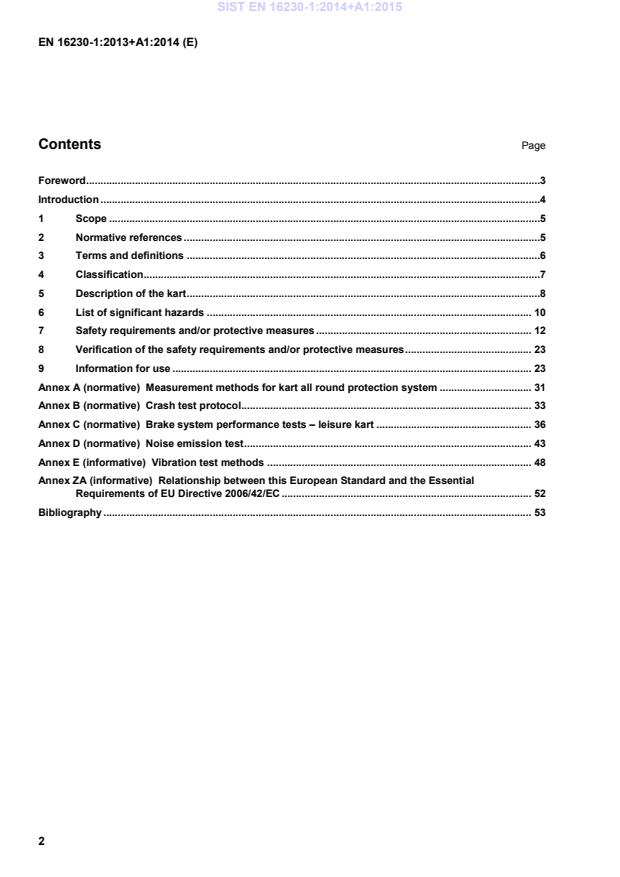

EN 16230-1:2013+A1:2014 (E) 2 Contents Page Foreword .3 Introduction .4 1 Scope .5 2 Normative references .5 3 Terms and definitions .6 4 Classification .7 5 Description of the kart .8 6 List of significant hazards . 10 7 Safety requirements and/or protective measures . 12 8 Verification of the safety requirements and/or protective measures . 23 9 Information for use . 23 Annex A (normative)
Measurement methods for kart all round protection system . 31 Annex B (normative)
Crash test protocol. 33 Annex C (normative)
Brake system performance tests – leisure kart . 36 Annex D (normative)
Noise emission test . 43 Annex E (informative)
Vibration test methods . 48 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC . 52 Bibliography . 53
SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 3 Foreword This document (EN 16230-1:2013+A1:2014) has been prepared by Technical Committee CEN/TC 354 “Ride-on, motorised vehicles intended for the transportation of persons and goods and not intended for use on public roads - Safety requirements”, the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by June 2015, and conflicting national standards shall be withdrawn at the latest by June 2015. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document includes Amendment 1, approved by CEN on 2014-11-18. This document supersedes EN 16230-1:2013. The start and finish of text introduced or altered by amendment is indicated in the text by tags ! ". This document has been prepared under a mandate given to CEN by the European Commission and the European Free Trade Association, and supports essential requirements of EU Directive(s). For relationship with EU Directive(s), see informative Annex ZA, which is an integral part of this document. This European Standard is one part of the series of standards of EN 16230, Leisure karts, consisting of the following parts: — Part 1: Safety requirements and test methods for karts (the present document); — Part 2: Safety requirements for tracks1). According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and the United Kingdom.
1) In preparation. SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 4 Introduction This document is a type C standard as stated in EN ISO 12100 (all parts). The kart concerned and the extent to which hazards, hazardous situations and hazardous events are covered are indicated in the scope of this document. When provisions of this type C standard are different from those which are stated in type A or B standards, the provisions of this type C standard take precedence over the provisions of the other standards, for karts that have been designed and built according to the provisions of this type C standard. SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 5 1 Scope This European Standard is applicable for karts, according to 3.1, that are not intended to be used on public roads. This European Standard applies to: — leisure karts only; — karts propelled by a combustion engine, including LPG combustion engines; — karts used on indoor and outdoor tracks, permanent or temporary; — karts used on supervised tracks designed for leisure karting, with a sealed ground (such as asphalt, concrete, ice or snow). This European Standard does not apply to: — karts used for competition organised by and under the responsibility of the CIK-FIA and/or ASN, ensuring through the granting of licenses by an ASN or one of its affiliated members as defined in the International Sporting code, compliance with the safety, sporting, disciplinary and technical rules of the CIAK-FIA and/ or ASN; — karts designed exclusively for competition and toys; — cross country karts; — karts with two or more seats; — karts used on tracks not mentioned above (such as mud, earth); — karts used in amusement parks. The requirements related to the hazards of electrical propulsion are not covered in this European Standard. The requirements related to whole-body vibration are not covered in this European Standard. This European Standard specifies appropriate measures to eliminate or reduce the risks arising from significant hazards, hazardous situations and events (see Clause 6) during operation and maintenance of the karts, when carried out as intended by the manufacturer. Safety in karting activities is dependent on a correct interaction between leisure karts and the track equipment and facilities. General recommendations for tracks to be used for leisure karting are included in this part of the standard. This document is not applicable to karts that are manufactured before the date of publication of this European Standard by CEN. NOTE Specific requirements for tracks design and operation will be included in a future Part 2 of this standard. 2 Normative references The following documents, in whole or in part, are normatively referenced in this document and are indispensable for its application. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 6 EN ISO 3744:2010, Acoustics - Determination of sound power levels and sound energy levels of noise sources using sound pressure - Engineering methods for an essentially free field over a reflecting plane (ISO 3744:2010) EN ISO 4871, Acoustics — Declaration and verification of noise emission values of machinery and equipment (ISO 4871) EN ISO 11201:2010, Acoustics - Noise emitted by machinery and equipment - Determination of emission sound pressure levels at a work station and at other specified positions in an essentially free field over a reflecting plane with negligible environmental corrections (ISO 11201:2010) EN ISO 12100-1:2003, Safety of machinery — Basic concepts, general principles for design — Part 1: Basic terminology, methodology (ISO 12100-1:2003) EN ISO 12100-2, Safety of machinery — Basic concepts, general principles for design — Part 2: Technical principles (ISO 12100-2) ISO 48, Rubber, vulcanized or thermoplastic — Determination of hardness (hardness between 10 IRHD and 100 IRHD) ISO 3864-1, Graphical symbols — Safety colours and safety signs — Part 1: Design principles for safety signs and safety markings ISO 3864-2, Graphical symbols — Safety colours and safety signs — Part 2: Design principles for product safety labels CR 1030-1, Hand-arm vibration — Guidelines for vibration hazards reduction — Part 1: Engineering methods by design of machinery 3 Terms and definitions For the purposes of this document, the terms and definitions given in EN ISO 12100-1:2003 and the following applies. 3.1 kart multilane motor driven sports equipment, with four wheels not set in a straight line, two wheels of which are powered and the other two serving as control, and without suspension 3.2 leisure karting organised activity, offering leisure services in karting including leisure competition 3.3 leisure kart kart intended and designed for leisure karting activities 3.4 all around protection device made of one or several parts encircling the kart and meant to protect the driver and the kart from external impacts, so as to eliminate the risk of wheel to kart contact 3.5 evaluation assessment of the ability of a person to drive SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 7 3.6 training teaching process by which a driver is brought to an appropriate level of driving standard for the session or event he or she is participating 3.7 track sealed ground consisting of a series of loops and straights that are continuous, designed and operated to provide safe driving of karts and located in an area of land or building that is separated from the public by a barrier 3.8 slow track track designed and operated to provide safe driving of karts up to 70 km/h 3.9 fast track track designed and operated to provide safe driving of karts up to 110 km/h 3.10 Liquified Petroleum Gas LPG mixture of propane and butane which is suitable as power fuel for combustion engines and fluid at room temperature and overpressure 4 Classification Leisure karting covers a wide range of activities on indoor and outdoor tracks, and can be used by drivers of different age, size, weight and experience. For the purpose of this document, different types of karts have been defined. Table 1 below defines the major design parameters to be taken as a reference by the kart manufacturer for each kart type. !
SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 8 Table 1 — Type of kart - Manufacturers design parameters Kart type Slow track karta Maximum speed Fast track karta Maximum speed Reference height of driver (ergonomy minimum size ranges for given type) Driver weight range Maximum power at the crankshaft Reference dummye km/h km/h mm kg kWd
Kart type A1 (babyf) 30 30 1 150 (- 100 / + 100)b 22 (- 5 / + 10)b 3,5 - Kart type A2 (mini) 45 65 1 350 (- 150 / + 150)b 32 (- 10 / + 18)b 5,15 5th percentile female Kart type B (adult) 70 80 1 700 (- 250 / + 250)b 78 (- 38 / + 23c)b 10,3 95th percentile male Kart type C1 (adult) 70 90 1 700 (- 250 / + 250)b 78 (- 38 / + 23c)b 16,9 95th percentile male Kart type C2 (adult) 70 110 1 700 (- 250 / + 250)b 78 (- 38 / + 23c)b 22,1 95th percentile male a Engineering design values; it is assumed that karts are used in conjunction with a track designed for their maximum speed. In some countries, specific regulations may apply regarding age, speed limitation, intended use or dedicated areas. b Range specified according to the relevant 50th percentile dummy. c Upper tolerance specified according to the 95th percentile male dummy. d Measured according to a generally acknowledged standardised method, e.g. ISO 15550, SAE J1349. e Hybrid III type dummies used for the crash test as described in B.3. f smallest category of a kart. " NOTE See also Table 6 in 9.2.2.3. 5 Description of the kart The main components of the karts are described in Figure 1. SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 9
Key 1 all around protection 2 stub axle 3 track rods 4 steering wheel 5 rear train 6 seat 7 wheel 8 steering axle 9 energy absorption device Figure 1 — Names of the components of the kart SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 10 6 List of significant hazards Table 2 below contains all significant hazards, hazardous situations and events, as far as they are dealt with in this document, and identified by risk assessment as significant for the karts within the scope of this standard and which require action to eliminate or reduce the risk. Table 2 — List of significant hazards Subclauses Danger zone or source of hazard Type of hazard Relevant clause of this standard 6.1 Mechanical hazards
6.1.1 Protection of the kart Wheel to wheel, or plastic/metal to wheel contact leading to a “launching” type of roll over 7.4.1 Kart protection
Karts “climbing” one on the other 7.4.1 Kart protection
Crash situations leading to high forces on the driver 7.4.1 Kart protection 6.1.2 Seat Falling on the side under centrifugal forces 7.4.2 Seat Non efficient braking due to bad position of the driver Lack of control due to bad driving position Falling aside under lateral crash 6.1.3 Brake system mechanical Brake system hydraulic Crash situation resulting from a failure of brake systems 7.4.3 Brake system performance 7.5.1 Brake system controls 6.1.4 Steering system Crash situation resulting from a failure of steering system
Steering wheel Projection of the driver against the steering wheel, resulting from a frontal crash 7.5.2 Steering wheel 6.1.5 Stub axle Crash situation resulting from a failure of a stub axle 7.6 Protection against break up during operation – stub axle 6.1.6 Sharp edges (whole kart) Injuries due to sharp edges under: — normal situations — crash situations 7.7 Protection against sharp and edges angles 6.1.7 Rotating elements Rear axle Transmission Brake disk Hair entanglement in moving parts, especially in rear axle 7.8 Protection against rotating parts Loose (floating) clothes entanglement in rotating parts
Risk of inadvertent contact of the body of the driver (e.g. hand) with rotating parts 9.4 Signs (pictogram), written warnings SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 11 Subclauses Danger zone or source of hazard Type of hazard Relevant clause of this standard 6.1.8 Stability Flip over of the kart resulting from excessive grip 7.12 Wheels and tyres 6.2 Electrical hazards
Starter batteries and/or 2nd systems (not propulsion), if any Fire caused by short circuits 7.18 Starter batteries and 2nd systems (not propulsion) Electrical risks of the power source (charger) 7.18 Starter batteries and 2nd systems (not propulsion) 6.3 Thermal hazard
All high temperature components Burns due to inadvertent contacts with hot parts 7.9 Protection against hot surfaces 6.4 Noise
Whole kart Risk for the driver, due to close source of noise 7.15 Noise Risk for other persons than the driver due to fleet of karts 7.15 Noise 6.5 Vibrations hazards
Whole kart Risk for the driver, due to sources of vibration 7.16 Vibrations hazards 6.6 Material / substance hazards
7.3 Materials and products 6.6.1 Fuel system Fuel tank Fuel line Fire or explosion due to damage on fuel system after impacts 7.14.1 Fuel tank Fire or explosion due to filling 7.14.2 Fuel lines 6.6.2 LPG system LPG tank LPG line Fire or explosion due to filling 7.13 Specific requirements for LPG karts Fire or explosion due to damage on fuel system after impacts 7.13 Specific requirements for LPG karts 6.6.3 Starter batteries and/or 2nd systems (not propulsion), if any Electrolyte of batteries spilled or projected due to battery failure 7.18 Starter batteries and batteries for second systems (not propulsion) 6.6.4 Indoor facilities. Requirements on karts is an open question Risk for the driver when exposed to gas emissions , in particular to carbon monoxide 7.17 Gas emission Risk for the other persons than driver when exposed to gas emissions, in particular to carbon monoxide 7.17 Gas emission 6.7 Ergonomics hazards
6.7.1 Pedals means of adjustment Loss of control due to bad ergonomics leading to crash 7.10 Protection against incorrect action on control SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 12 Subclauses Danger zone or source of hazard Type of hazard Relevant clause of this standard Pedals Pedal Brake Pedal Throttle situations systems Crash situation resulting from incorrect action on pedal / failure of brake pedal 7.10 Protection against incorrect action on control systems 6.7.2 Steering system Crash situation resulting from a failure of steering system 7.5.2 Steering wheel 6.7.3 Steering wheel Injury due to steering wheel bad design 7.5.2 Steering wheel 7 Safety requirements and/or protective measures 7.1 General Karts shall comply with the safety requirements and/or protective measures of this clause. In addition, the kart shall be designed according to the principles of EN ISO 12100 (all parts) for relevant but not significant hazards, which are not dealt with by this document. 7.2 Dimensions requirements The dimensions of the kart shall meet the requirements of Table 3. Table 3 — Dimensions of the kart Dimensions in mm
Maximum Total length Maximum Total width Minimum Wheel base Minimum Rear wheel tracka to wheel base ratiob Minimum Front wheel tracka to wheel base ratioc
L/mm B/mm A/mm
Kart Type A1 1 700 1 300 700 1 0,8 Kart Type A2 2 000 1 400 800 1 0,8 Others (B, C1, C2) 2 200 1 500 900 1 0,8 a The measurement of the track is taken from centre of the wheel to centre of the wheel. b The minimum rear wheel track dimension is the actual wheelbase multiplied by the minimum rear wheel track to wheel base ratio. c The minimum front wheel track dimension is the actual wheel base multiplied by the minimum front wheel track to wheel base ratio. 7.3 Materials and products No part or system shall contain asbestos or other materials endangering persons’ safety or health. SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 13 7.4 Protection against mechanical hazards 7.4.1 Kart protection 7.4.1.1 General requirements for all-around protection All around protection shall be provided that: — prevents wheel to kart contact and, therefore, the launching effect, — ensures impact stability, e.g. reduces the risk of karts climbing one on the other, of karts rolling over, of karts going under track protection, — reduces the effect of impact loads on the driver, — reduces the effects of impact loads on the frame and components. The relevant dimensions of the protection are described in Figure 2 and the requirements are specified in Table 4.
Key 1 all around protection (see Table 4) 2 upper edge of the all around protection (see Table 4) 3 bottom edge of the all around protection (see Table 4) a bottom edge height of the all around protection b upper edge height of the all around protection c depth of the all around protection
Figure 2 — Dimensions of the all around protection The dimensions a, b and c of the all-around protection shall be in accordance with the values given at Table 4 at all positions around the kart. Compliance with Table 4 shall be verified, as a minimum, by the measurement of the dimensions a, b and c at the 12 positions defined in Figure 4. NOTE Table 4 can only be applied directly to all-around protection having a flat vertical contact surface. See 7.4.1.2 for other contact surfaces. SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 14 7.4.1.2 Additional requirements for all-around protection having a shaped surface !When the vertical surface of the protection is shaped, the dimensions a, b and c shall be measured using the tool described in Figure 3. The tool shall be applied until the vertical component of the tool (1) makes contact with the outermost point of the all-around protection before adjusting the two measuring arms (3) and (2) until they make contact with the protection; the values of a, b and c shall be determined with the two measuring arms (3) and (2) in these positions in accordance with Figure 3.
Key a
bottom edge of the all-around protection (see Table 4) b
upper edge height of the all-around protection (see Table 4) c
depth of the all-around protection (see Table 4) 1
vertical component of the tool 2
upper measuring arm 3
bottom measuring arm Figure 3 — Tool for measuring the all-around protection" The dimensions a, b and c of the all-around protection shall be in accordance with the values given in Table 4 at all positions around the kart. Compliance with Table 4 shall be verified, as a minimum, by measurement of the dimensions a, b and c at the 12 positions defined in Figure 4. Table 4 — All around protection values Dimensions in mm
Kart with plastic all around protection Kart with metallic protection
Minimum Maximum Minimum Maximum bottom edge (key a in Figure 2) 35 80 60 80 upper edge (key b in Figure 2) 125 350 - 350 depth of the all around protection (key c in Figure 2) 80 - 80 140 SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 15 7.4.1.3 Additional requirements for tubular metallic all-around protection For metallic protection consisting of tubes, the maximum distance between the lower edge of the upper tube and the upper edge of the lower tube shall not exceed 100 mm. For tubular system, the upper and lower tubes shall correspond respectively. The vertical distance between the centre lines of the tubes in contact shall not exceed ± 7 mm. Additional tubes to protect an air box as part of all around protection is permitted. 7.4.1.4 Additional requirements for plastic all-around protection In addition to the requirements of 7.4.1.1 and 7.4.1.2, the contact surfaces of plastic all-around protection systems, regardless of the direction of contact between two karts of the same type, shall correspond over a minimum vertical distance of 65 mm, the kart being on a level surface with no steering input. As a minimum, this requirement shall be verified by measurement at the 12 positions on the all-around protection indicated at Figure 4 for each of the two karts of the same type. NOTE The checking of the correspondence of the contact areas at the combinations arising from the 12 measurement positions on each kart involves the consideration of 144 combinations of contact between the two karts. For example, Figure 4 illustrates 1 of the 144 combinations where position 11 of kart A contacts position 2 of kart B.
Key a) Point 1: middle of the protection, front b) Point 2 and 12 front of the protection, facing axle pins. c) Points 3 and 11: middle of front wheels d) Points 5 and 9; middle rear wheels e) Points 4 and 10: at equal distance between points 3 and 5, respectively 9 and 11 f) Points 6 and 8: rear of the protection, facing rear bearings g) Point 7: middle of the protection, rear Figure 4 — Selected points for measurement of all-around protection - Contact between two karts SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 16 The verification shall be in accordance with the following calculation: — calculate the value CPFij CPFij = min (bi, bj) – max (ai, aj) where CPFij = contact protection face of point i with point j ai= bottom edge height of point i bj = upper edge height of point j Min (bi, bj) – lowest value of bi, bj Max (ai, aj) – highest value of ai, aj — Then calculate the CPFij values for: i = 1 to 12 and j = 1 to 12, and find the minimum value of: CPFij for i = 1 to 12 and j = 1 to 12 The minimum value of CPFij shall not be less than the minimum requirement of 65 mm. 7.4.1.5 Energy absorption systems All karts shall be provided with frontal, side and rear absorption energy systems in accordance with Annex B. Energy absorption systems shall be able to maintain their absorption properties under repeated low speed impacts. In order to verify that absorption properties are adequate and maintained after recurring impacts, the crash test according to Annex B shall be repeated four times for each direction of impact. The resultant acceleration measured on the kart shall not exceed the following upper limits for all the impact events. a) For Kart type A2, B, C1: 1) Frontal crash maximum acceleration allowed: 15 g 2) Left and right side crash maximum acceleration allowed: 15 g 3) Rear crash maximum acceleration allowed: 20 g b) For Kart type C2: 1) Frontal crash maximum acceleration allowed: 15 g 2) Left and right side crash maximum acceleration allowed: 20 g 3) Rear crash maximum acceleration allowed: 20 g The result of the first crash test and the fourth crash test and the state of compliance shall be recorded for every direction of impact. There shall be no fractures in the elements constituting the kart protection system. SIST EN 16230-1:2014+A1:2015
EN 16230-1:2013+A1:2014 (E) 17 7.4.2 Seat Karts shall be designed to accommodate the range of intended drivers in accordance with Table 1. This may be achieved by supplying inserts to modify the size and shape of the seat. The dimensions of the seat, if appropriate with a suitable insert fitted, shall provide a distance between the top of the seat and the position of the bottom of the driver's neck in accordance with the following: a) Kart Type A1: 100 mm ± 25 mm, b) Kart Type A2: 100 mm ± 25 mm, c) Kart Type B, C1 and C2: 1) driver height 1 500 mm to 1 750 mm: 150 mm ± 35 mm, 2) driver height 1 750 mm to 1 950 mm: 200 mm ± 35 mm This standard only covers low backed seats where the seat back is sufficiently below the driver's neck to allow flexibility of the spine. Higher backed seats that provide support for the head are permitted but the kart manufacturer is responsible for their specification. 7.4.3 Brake system performance 7.4.3.1 General Karts shall be equipped with a brake system the function of which is to effectively reduce the speed of the kart when driving in order to minimise the following risks: — risk of contacts between karts moving at different speeds; — risk of impacting the track protections at high speeds; — risk of losing control of the kart speed in general. 7.4.3.2 Karts type A1 and A2 When tested in accordance with the static test described in C.1 the brakes of types A1 and A2 karts shall resist, without any turning of the brake tester, a braking torque of at least 100 Nm with a foot control force of 300 N applied. 7.4.3.3 Karts type B, C1 and C2 When tested in accordance with the dynamic test described in C.2.6 (dry stop test) karts of types B, C1 and C2 shall reach a mean fully developed deceleration (MFDD) of at least 3 m/s². When tested in accordance with the dynamic test described in C.2
...
