SIST EN IEC 60320-1:2022

Appliance couplers for household and similar general purposes - Part 1: General requirements (IEC 60320-1:2021)

This part of lEC 60320 sets the general requirements for appliance couplers for two poles and two poles with earth contact and for the connection of electrical devices for household and similar onto the mains supply.
This part of lEC 60320 is also valid for appliance inlets/appliance outlets integrated or incorporated in appliances.
The rated voltage does not exceed 250 V (a.c.) and the rated current does not exceed 16 A.
Appliance couplers complying with this part of lEC 60320 are suitable for normal use at ambient temperatures not normally exceeding +40 °C, but their average over a period of 24 h does not exceed +35 °C, with a lower limit of the ambient air temperature of -5 °C.
Annex E provides test requirements for derating the operating current of an accessory when used in ambient temperatures above +35 °C up to +90 °C.
Appliance couplers are not suitable for
- use in place of plug and socket-outlet systems according to IEC 60884-1.
- use in place of devices for connecting luminaires (DCLs) according to IEC 61995 or 306 luminaire supporting couplers (LSCs). 307
NOTE Requirements for d.c. are under consideration.

Gerätesteckvorrichtungen für den Hausgebrauch und ähnliche allgemeine Zwecke –Teil 1: Allgemeine Anforderungen (IEC 60320-1:2021)

Connecteurs pour usages domestiques et usages généraux analogues - Partie 1: Exigences générales (IEC 60320-1:2021)

L'IEC 60320-1:2021 établit les exigences générales applicables aux connecteurs bipolaires et bipolaires avec contact de mise à la terre et destinés au raccordement au réseau d'alimentation des dispositifs électriques pour usages domestiques et analogues.
Le présent document s'applique également aux socles de connecteurs/socles femelles de connecteurs intégrés ou incorporés dans des appareils d'utilisation.
Cette quatrième édition annule et remplace la troisième édition parue en 2015 et l'Amendement 1:2018. Cette édition constitue une révision technique.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l'édition précédente:


1. les tolérances nécessaires ont été ajoutées dans l'ensemble du présent document;


2. l'essai d'échauffement de l'édition 2 a été rétabli en 18.2;


3. l'échauffement a été ajouté à l'Article 21 pour les fiches mobiles mâles;


4. le 23.3 a été réorganisé pour des raisons de lisibilité;


5. l'essai de traction latérale du 23.6 a été mis à jour pour les prises mobiles/fiches mobiles mâles qui comportent des pièces frontales séparées;


6. le 24.1 qui traite de l'essai à la bille a été revu;


7. l'Article 27 qui traite de l'essai au fil incandescent a été mis à jour;


8. l'Annexe C qui traite des séquences d'essais a été revue;


9. l'Annexe E a été ajoutée afin de définir les essais et exigences supplémentaires pour les connecteurs destinés à être utilisés à des températures ambiantes supérieures à +35 °C.

Aparatne spojke za gospodinjstva in podobne splošne namene - 1. del: Splošne zahteve (IEC 60320-1:2021)

Ta del standarda lEC 60320 določa splošne zahteve za aparatne spojke za dva pola in dva pola z ozemljitvijo ter povezavo električnih naprav za gospodinjstva in podobne namene z napajalnim omrežjem.
Ta del standarda lEC 60320 se uporablja tudi za vhode/izhode aparatov, ki so vgrajeni v aparate oziroma jih ti vključujejo.
Nazivna napetost ne presega 250 V izmeničnega napajanja, nazivni tok pa ne presega 16 A.
Aparatne spojke, ki so v skladu s tem delom standarda lEC 60320, so primerne za običajno uporabo pri temperaturah okolja, ki običajno ne presegajo 40 °C, njihovo povprečje v 24 urah pa ne presega 35 °C. Spodnja meja temperature okolja je –5 °C.
Dodatek E vsebuje preskusne zahteve za redukcijo toka pribora, kadar se uporablja pri temperaturah okolja nad 35 °C do vključno 90 °C.
Aparatne spojke niso primerne za:
– uporabo namesto vtičnih naprav v skladu s standardom IEC 60884-1;
– uporabo namesto naprav za priključitev svetilk (DCL) v skladu s standardom IEC 61995 ali spojk za podporo svetilk (LSC).
OPOMBA: Zahteve za enosmerni tok so v obravnavi.

General Information

• Status: Published
• Public Enquiry End Date: 22-Nov-2020
• Publication Date: 03-Apr-2022
• ICS: 29.120.30 - Plugs, socket-outlets, couplers
• Technical Committee: EPR - Electrical accessories
• Current Stage: 6060 - National Implementation/Publication (Adopted Project)
• Start Date: 21-Oct-2021
• Due Date: 26-Dec-2021
• Completion Date: 04-Apr-2022
• Directive: 2014/35/EU - Directive 2014/35/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits
• Mandate: M/511 - Mandate to CEN, CENELEC and ETSI relating to harmonised standards in the field of the Low Voltage Directive
• Ref Project: EN IEC 60320-1:2021 - Appliance couplers for household and similar general purposes - Part 1: General requirements

Relations

• Replaces: SIST EN 60320-1:2015/A1:2021 - Appliance couplers for household and similar general purposes - Part 1: General requirements (IEC 60320-1:2015/A1:2018)
• Effective Date: 07-Jun-2022
• Replaces: SIST EN 60320-1:2015/AC:2019 - Appliance couplers for household and similar general purposes - Part 1: General requirements (IEC 60320-1:2015/COR2:2019)
• Effective Date: 12-Oct-2021
• Replaces: SIST EN 60320-1:2015 - Appliance couplers for household and similar general purposes - Part 1: General requirements (IEC 60320-1:2015)
• Effective Date: 12-Oct-2021
• Replaces: SIST EN 60320-1:2015/AC:2016 - Appliance couplers for household and similar general purposes - Part 1: General requirements
• Effective Date: 12-Oct-2021

Overview - SIST EN IEC 60320-1:2022 (IEC 60320-1:2021)

SIST EN IEC 60320-1:2022 specifies general requirements for appliance couplers used for household and similar general purposes. It covers two‑pole couplers and two‑pole plus earth couplers, including appliance inlets and outlets integrated into appliances. The standard applies to devices with a rated voltage up to 250 V (AC) and a rated current up to 16 A, intended for normal use in ambient temperatures normally not exceeding +40 °C (24‑h average ≤ +35 °C, lower limit −5 °C). Annex E gives test procedures for derating accessory current up to ambient temperatures of +90 °C.

Key technical topics and requirements

• Scope and ratings: Two‑pole and two‑pole with earth couplers, max 250 V / 16 A; valid for integrated inlets/outlets.
• Mechanical and dimensional requirements: Standardized dimensions, compatibility, and pin retention to ensure interchangeability and safe mating.
• Electrical safety: Insulation resistance, dielectric strength and protection against electric shock (accessibility, shrouds, single‑pole protection).
• Earthing / protective measures: Requirements for earthing contacts, contact pressure and earth continuity.
• Terminals and terminations: Rules for rewirable and non‑rewirable couplers, free‑wire tests and terminal markings.
• Environmental and mechanical tests: Moisture resistance, temperature limits, glow‑wire and ball pressure tests, and mechanical endurance (insertion/withdrawal forces).
• Marking and documentation: Ratings, wiring instructions, durability of markings, and symbols (including Class II considerations).
• Derating at high ambient temperatures: Annex E test requirements for use above +35 °C up to +90 °C.

Practical applications and who uses this standard

SIST EN IEC 60320-1:2022 is essential for:

• Manufacturers of appliance couplers, power cords, appliance inlets/outlets and connected accessories.
• Appliance and equipment designers specifying safe mains connections for household and similar products.
• Test laboratories and certification bodies performing conformity and safety testing.
• Compliance engineers and procurement teams ensuring components meet safety, interoperability and Low Voltage Directive requirements. Typical applications include mains connectors for household appliances, consumer electronics and office equipment where standardized, safe removable or fixed couplers are required.

Related standards and regulatory context

• IEC 60320‑2 series (standard sheets and gauges, specific types)
• IEC 60884‑1 (plug and socket‑outlet systems) - appliance couplers are not a replacement
• IEC 61995 / luminaire supporting couplers (DCLs/LSCs) - not covered
• IEC 60695 (glow‑wire tests), IEC 60664 (insulation coordination) This standard supports conformity with the EU Low Voltage Directive (2014/35/EU) when cited in the Official Journal.

Keywords: SIST EN IEC 60320-1:2022, appliance couplers, IEC 60320-1, appliance inlets, appliance outlets, 250 V, 16 A, derating, earthing, electrical safety.

Standards Content (Sample)

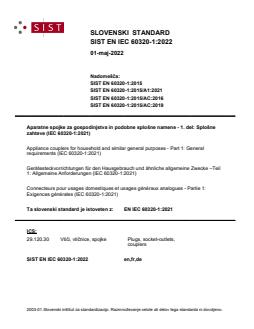

SLOVENSKI STANDARD
01-maj-2022
Nadomešča:
SIST EN 60320-1:2015
SIST EN 60320-1:2015/A1:2021
SIST EN 60320-1:2015/AC:2016
SIST EN 60320-1:2015/AC:2019
Aparatne spojke za gospodinjstva in podobne splošne namene - 1. del: Splošne
zahteve (IEC 60320-1:2021)
Appliance couplers for household and similar general purposes - Part 1: General
requirements (IEC 60320-1:2021)
Gerätesteckvorrichtungen für den Hausgebrauch und ähnliche allgemeine Zwecke –Teil
1: Allgemeine Anforderungen (IEC 60320-1:2021)
Connecteurs pour usages domestiques et usages généraux analogues - Partie 1:
Exigences générales (IEC 60320-1:2021)
Ta slovenski standard je istoveten z: EN IEC 60320-1:2021
ICS:
29.120.30 Vtiči, vtičnice, spojke Plugs, socket-outlets,
couplers
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

EUROPEAN STANDARD EN IEC 60320-1

NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2021
ICS 29.120.30 Supersedes EN 60320-1:2015 and all of its amendments
and corrigenda (if any)
English Version
Appliance couplers for household and similar general purposes -
Part 1: General requirements
(IEC 60320-1:2021)
Connecteurs pour usages domestiques et usages généraux Gerätesteckvorrichtungen für den Hausgebrauch und
analogues - Partie 1: Exigences générales ähnliche allgemeine Zwecke - Teil 1: Allgemeine
(IEC 60320-1:2021) Anforderungen
(IEC 60320-1:2021)
This European Standard was approved by CENELEC on 2021-08-31. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and the United Kingdom.

European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2021 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 60320-1:2021 E

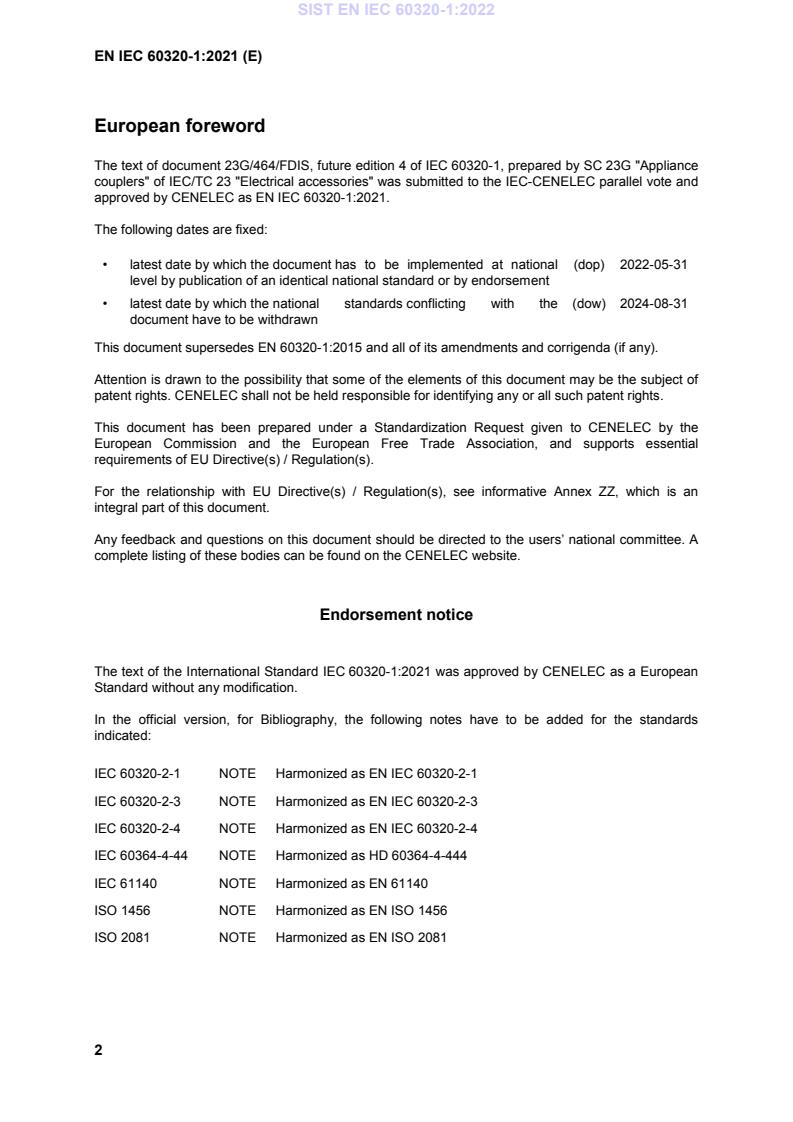

European foreword
