SIST EN IEC 62196-1:2023
(Main)Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 1: General requirements (IEC 62196-1:2022)
Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 1: General requirements (IEC 62196-1:2022)
This part of IEC 62196 is applicable to EV plugs, EV socket-outlets, vehicle connectors, vehicle inlets, herein referred to as "accessories", and to cable assemblies for electric vehicles (EV) intended for use in conductive charging systems which incorporate control means, with a rated operating voltage not exceeding:
- 690 V AC 50 Hz to 60 Hz, at a rated current not exceeding 250 A;
- 1 500 V DC at a rated current not exceeding 800 A.
These accessories and cable assemblies are intended to be installed by instructed persons (IEV 195-04-02) or skilled persons (IEV 195-04-01) only.
These accessories and cable assemblies are intended to be used for circuits specified in IEC 61851 (all parts), which operate at different voltages and frequencies, and which can include extra-low voltage and communication signals.
These accessories and cable assemblies are intended to be used at an ambient temperature between −30 °C and +40 °C.
NOTE 1 In some countries, other requirements can apply.
NOTE 2 In the following country, −35 °C applies: SE.
NOTE 3 The manufacturer can enlarge the temperature range on the condition that the specified range information is provided.
These accessories are intended to be connected only to cables with copper or copper-alloy conductors.
The accessories covered by this document are intended for use in electric vehicle supply equipment in accordance with IEC 61851 (all parts).
This document does not apply to standard plug and socket-outlets used for mode 1 and mode 2 according to IEC 61851-1:2017, 6.2.
NOTE 4 In the following countries, mode 1 is not allowed: UK, US, CA, SG.
Stecker, Steckdosen, Fahrzeugkupplungen und Fahrzeugstecker - Konduktives Laden von Elektrofahrzeugen - Teil 1: Allgemeine Anforderungen (IEC 62196-1:2022)
Fiches, socles de prise de courant, prises mobiles de véhicule et socles de connecteurs de véhicule - Charge conductive des véhicules électriques - Partie 1: Exigences générales (IEC 62196-1:2022)
L’IEC 62196-1:2022 s’applique aux fiches VE, socles de prise de courant VE, prises mobiles de véhicule, socles de connecteur de véhicules, ci-après désignés par le terme "appareils", et aux câbles de charge pour véhicules électriques (VE) destinés à être utilisés dans les systèmes de charge conductive qui comprennent des moyens de contrôle, avec une tension assignée d’emploi n’excédant pas:
- 690 V 50 Hz à 60 Hz, à un courant alternatif assigné n’excédant pas 250 A;
- 1 500 V, à un courant continu assigné n’excédant pas 800 A.
Cette édition inclut les modifications techniques majeures suivantes par rapport à l’édition précédente:
- suppression des références aux interfaces universelles en courant alternatif et en courant continu;
- exigences supplémentaires pour les matériaux de contact et la métallisation;
- modification de l’essai d’échauffement pour inclure des points de mesure supplémentaires;
- essais supplémentaires pour examiner les contraintes et la stabilité thermique, l’usure mécanique et une mauvaise utilisation des appareils, ainsi que leur exposition à des contaminants;
- déplacement des informations et exigences concernant la charge en courant continu dans l’IEC 62196-3.
Vtiči, vtičnice, konektorji in uvodnice na vozilih - Kabelsko napajanje električnih vozil - 1. del: Splošne zahteve (IEC 62196-1:2022)
Ta del standarda IEC 62196 se uporablja za vtiče, vtičnice, konektorje, uvodnice (v nadaljnjem besedilu: »priključki«) in kabelske sestave na električnih vozilih, ki so namenjeni sistemom kabelskega napajanja, ki vključujejo krmilno sredstvo z nazivno obratovalno napetostjo, ki ne presega napetosti:
– 690 V za izmenični tok, 50–60 Hz, pri nazivnem toku, ki ne presega 250 A,
– 1500 V za enosmerni tok pri nazivnem toku, ki ne presega 800 A.
Te priključke in kabelske sestave lahko namestijo le poučene osebe, (IEV 195-04-02) ali usposobljene osebe (IEV 195-04-01).
Ti priključki in kabelski sestavi so namenjeni za uporabo pri tokokrogih, navedenih v standardu IEC 61851 (vsi deli), ki delujejo pri različnih napetostih in frekvencah ter lahko vključujejo malo napetost in komunikacijske signale.
Ti priključki in kabelski sestavi so namenjeni za uporabo pri temperaturi okolja, in sicer med –30 °C in +40 °C.
OPOMBA 1: V nekaterih državah lahko veljajo drugačne zahteve.
OPOMBA 2: V naslednji državi velja –35 °C: SE.
OPOMBA 3: Proizvajalec lahko poveča temperaturno območje pod pogojem, da so zagotovljene informacije o posebnem območju.
Ti priključki se lahko priključijo samo na kable z vodniki iz bakra ali bakrove zlitine.
Priključki, zajeti v tem dokumentu, so namenjeni uporabi v napajalni opremi za električna vozila v skladu s standardom IEC 61851 (vsi deli).
Ta dokument se ne uporablja za standardne vtiče in vtičnice za način 1 ali način 2 v skladu s točko 6.2 standarda IEC 61851-1:2017.
OPOMBA 4: Način 1 ni dovoljen v naslednjih državah: ZK, ZDA, CA, SG.
General Information
- Status
- Published
- Public Enquiry End Date
- 30-Mar-2020
- Publication Date
- 10-Apr-2023
- Technical Committee
- EPR - Electrical accessories
- Current Stage
- 6060 - National Implementation/Publication (Adopted Project)
- Start Date
- 28-Nov-2022
- Due Date
- 02-Feb-2023
- Completion Date
- 11-Apr-2023
Relations
- Effective Date
- 22-Nov-2022
- Effective Date
- 04-Jul-2023
Overview
SIST EN IEC 62196-1:2023 (identical to IEC 62196-1:2022 / EN IEC 62196-1:2022) defines the general requirements for plugs, socket‑outlets, vehicle connectors and vehicle inlets used for conductive charging of electric vehicles (EVs). It applies to these accessories and to cable assemblies intended for conductive charging systems that incorporate control means and operate within the following ratings:
- AC: up to 690 V AC (50–60 Hz), rated currents up to 250 A
- DC: up to 1 500 V DC, rated currents up to 800 A
This European/Slovenian standard supersedes the 2014/2015 edition and is intended for equipment to be installed by instructed or skilled persons only. It is aligned with the IEC 61851 EV charging system family and covers ambient use from −30 °C to +40 °C (note: Sweden applies −35 °C).
Key topics and technical requirements
The standard establishes requirements across the full lifecycle of conductive charging accessories, including:
- Ratings and classification (voltage ranges, preferred rated currents, interface types)
- Mechanical and electrical construction (terminals, current‑carrying parts, cable connections)
- Dimensions and interfaces for AC, DC and combined charging arrangements
- Protection against electric shock, contact sequencing, shutters and misassembly prevention
- Interlocks and switching devices (safety interlocks, pilot/auxiliary contacts)
- Insulation resistance, dielectric strength and breaking capacity
- Environmental and mechanical tests (temperature, ageing resistance of rubber/thermoplastics, degrees of protection/IP)
- Marking, identification and documentation for safe installation and operation
The standard explicitly limits conductor materials to copper or copper‑alloy and excludes standard household mode 1/2 plug/socket arrangements per IEC 61851‑1:2017 clause 6.2 (note some countries prohibit mode 1).
Practical applications and users
SIST EN IEC 62196-1 is essential for:
- Manufacturers of EV plugs, socket‑outlets, vehicle connectors, inlets and cable assemblies
- Charging station designers and system integrators developing AC and DC EV charging infrastructure
- Test laboratories and conformity assessors verifying safety, compatibility and performance
- Installers, electrical engineers and technical specifiers ensuring compliant installations in accordance with IEC 61851 series
Use cases include public and private EV charging points, onboard vehicle inlet designs, portable charging cables and industrial EV supply equipment.
Related standards
- IEC 62196‑2 (AC dimensional compatibility)
- IEC 62196‑3 (DC / combined AC/DC dimensional compatibility)
- IEC 61851 (series) - EV conductive charging systems
- EN/IEC standards referenced for tests and materials (e.g., IEC 60529 IP code, insulation and thermal tests)
Keywords: EV plugs, vehicle connectors, conductive charging, IEC 62196-1, charging infrastructure, EV socket-outlets, cable assemblies, AC charging, DC charging.
Frequently Asked Questions
SIST EN IEC 62196-1:2023 is a standard published by the Slovenian Institute for Standardization (SIST). Its full title is "Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 1: General requirements (IEC 62196-1:2022)". This standard covers: This part of IEC 62196 is applicable to EV plugs, EV socket-outlets, vehicle connectors, vehicle inlets, herein referred to as "accessories", and to cable assemblies for electric vehicles (EV) intended for use in conductive charging systems which incorporate control means, with a rated operating voltage not exceeding: - 690 V AC 50 Hz to 60 Hz, at a rated current not exceeding 250 A; - 1 500 V DC at a rated current not exceeding 800 A. These accessories and cable assemblies are intended to be installed by instructed persons (IEV 195-04-02) or skilled persons (IEV 195-04-01) only. These accessories and cable assemblies are intended to be used for circuits specified in IEC 61851 (all parts), which operate at different voltages and frequencies, and which can include extra-low voltage and communication signals. These accessories and cable assemblies are intended to be used at an ambient temperature between −30 °C and +40 °C. NOTE 1 In some countries, other requirements can apply. NOTE 2 In the following country, −35 °C applies: SE. NOTE 3 The manufacturer can enlarge the temperature range on the condition that the specified range information is provided. These accessories are intended to be connected only to cables with copper or copper-alloy conductors. The accessories covered by this document are intended for use in electric vehicle supply equipment in accordance with IEC 61851 (all parts). This document does not apply to standard plug and socket-outlets used for mode 1 and mode 2 according to IEC 61851-1:2017, 6.2. NOTE 4 In the following countries, mode 1 is not allowed: UK, US, CA, SG.
This part of IEC 62196 is applicable to EV plugs, EV socket-outlets, vehicle connectors, vehicle inlets, herein referred to as "accessories", and to cable assemblies for electric vehicles (EV) intended for use in conductive charging systems which incorporate control means, with a rated operating voltage not exceeding: - 690 V AC 50 Hz to 60 Hz, at a rated current not exceeding 250 A; - 1 500 V DC at a rated current not exceeding 800 A. These accessories and cable assemblies are intended to be installed by instructed persons (IEV 195-04-02) or skilled persons (IEV 195-04-01) only. These accessories and cable assemblies are intended to be used for circuits specified in IEC 61851 (all parts), which operate at different voltages and frequencies, and which can include extra-low voltage and communication signals. These accessories and cable assemblies are intended to be used at an ambient temperature between −30 °C and +40 °C. NOTE 1 In some countries, other requirements can apply. NOTE 2 In the following country, −35 °C applies: SE. NOTE 3 The manufacturer can enlarge the temperature range on the condition that the specified range information is provided. These accessories are intended to be connected only to cables with copper or copper-alloy conductors. The accessories covered by this document are intended for use in electric vehicle supply equipment in accordance with IEC 61851 (all parts). This document does not apply to standard plug and socket-outlets used for mode 1 and mode 2 according to IEC 61851-1:2017, 6.2. NOTE 4 In the following countries, mode 1 is not allowed: UK, US, CA, SG.
SIST EN IEC 62196-1:2023 is classified under the following ICS (International Classification for Standards) categories: 29.120.30 - Plugs, socket-outlets, couplers; 43.120 - Electric road vehicles. The ICS classification helps identify the subject area and facilitates finding related standards.
SIST EN IEC 62196-1:2023 has the following relationships with other standards: It is inter standard links to SIST EN 62196-1:2015, kSIST FprEN IEC 62196-1:2025. Understanding these relationships helps ensure you are using the most current and applicable version of the standard.
SIST EN IEC 62196-1:2023 is associated with the following European legislation: EU Directives/Regulations: 2014/35/EU; Standardization Mandates: M/468, M/511. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase SIST EN IEC 62196-1:2023 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of SIST standards.
Standards Content (Sample)

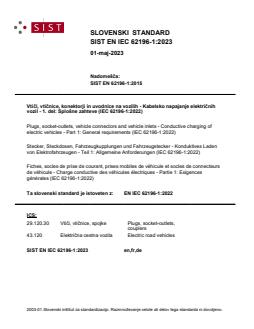

SLOVENSKI STANDARD
01-maj-2023
Nadomešča:
SIST EN 62196-1:2015
Vtiči, vtičnice, konektorji in uvodnice na vozilih - Kabelsko napajanje električnih
vozil - 1. del: Splošne zahteve (IEC 62196-1:2022)
Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of
electric vehicles - Part 1: General requirements (IEC 62196-1:2022)
Stecker, Steckdosen, Fahrzeugkupplungen und Fahrzeugstecker - Konduktives Laden
von Elektrofahrzeugen - Teil 1: Allgemeine Anforderungen (IEC 62196-1:2022)
Fiches, socles de prise de courant, prises mobiles de véhicule et socles de connecteurs
de véhicule - Charge conductive des véhicules électriques - Partie 1: Exigences
générales (IEC 62196-1:2022)
Ta slovenski standard je istoveten z: EN IEC 62196-1:2022
ICS:
29.120.30 Vtiči, vtičnice, spojke Plugs, socket-outlets,
couplers
43.120 Električna cestna vozila Electric road vehicles
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
EUROPEAN STANDARD EN IEC 62196-1
NORME EUROPÉENNE
EUROPÄISCHE NORM November 2022
ICS 29.120.30; 43.120 Supersedes EN 62196-1:2014
English Version
Plugs, socket-outlets, vehicle connectors and vehicle inlets -
Conductive charging of electric vehicles - Part 1: General
requirements
(IEC 62196-1:2022)
Fiches, socles de prise de courant, prises mobiles de Stecker, Steckdosen, Fahrzeugkupplungen und
véhicule et socles de connecteurs de véhicule - Charge Fahrzeugstecker - Konduktives Laden von
conductive des véhicules électriques - Partie 1: Exigences Elektrofahrzeugen - Teil 1: Allgemeine Anforderungen
générales (IEC 62196-1:2022)
(IEC 62196-1:2022)
This European Standard was approved by CENELEC on 2022-11-09. CENELEC members are bound to comply with the CEN/CENELEC
Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC
Management Centre or to any CENELEC member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation
under the responsibility of a CENELEC member into its own language and notified to the CEN-CENELEC Management Centre has the
same status as the official versions.
CENELEC members are the national electrotechnical committees of Austria, Belgium, Bulgaria, Croatia, Cyprus, the Czech Republic,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, the
Netherlands, Norway, Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Türkiye and the United Kingdom.
European Committee for Electrotechnical Standardization
Comité Européen de Normalisation Electrotechnique
Europäisches Komitee für Elektrotechnische Normung
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CENELEC All rights of exploitation in any form and by any means reserved worldwide for CENELEC Members.
Ref. No. EN IEC 62196-1:2022 E

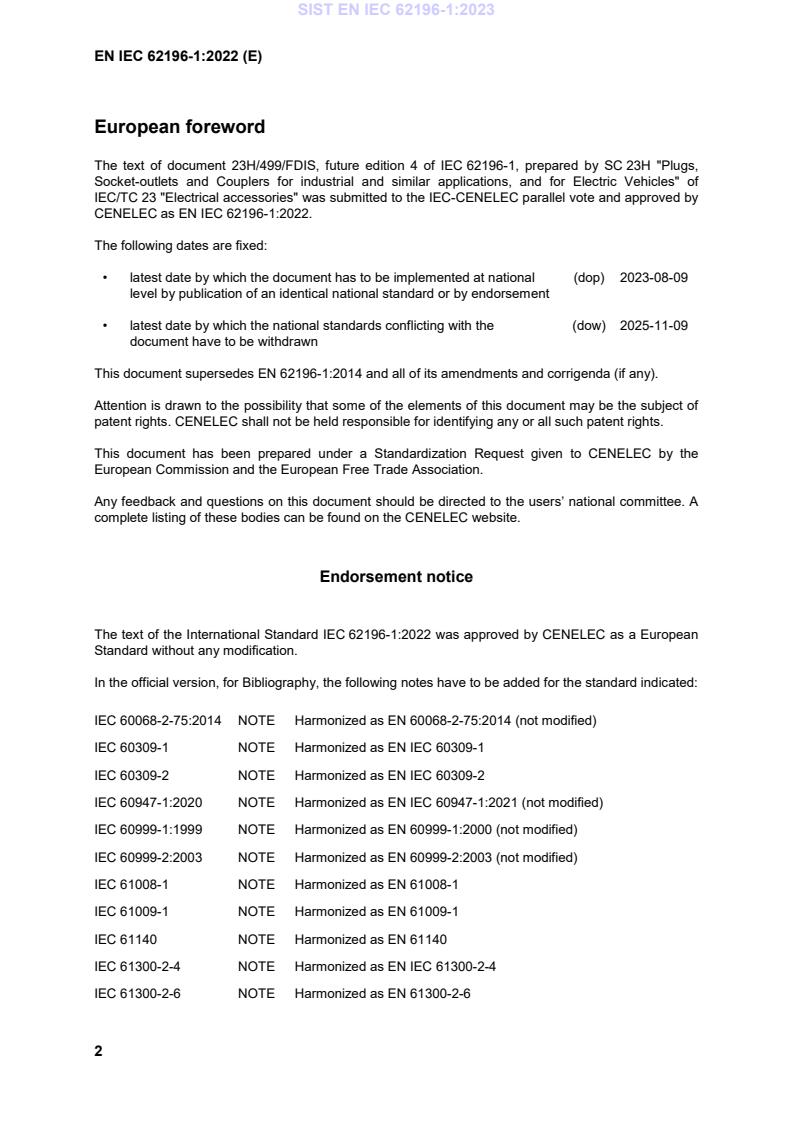

European foreword
