SIST EN 6081:2023
(Main)Aerospace series - Rivet, universal head, close tolerance - Inch series
Aerospace series - Rivet, universal head, close tolerance - Inch series
This document specifies the dimensions, tolerances and mass of rivets with universal head, close tolerance, inch series, for aerospace application.
Luft- und Raumfahrt - Vollniet, Universalkopf, enge Toleranz - Inch-Reihe
No Scope available
Série aérospatiale - Rivets de précision, tête universelle - Série en inches
La présente norme européenne spécifie les dimensions, les tolérances et la masse des rivets de précision à tête universelle, série en inches, pour les applications aérospatiales.
Aeronavtika - Kovice, univerzalna glava, ozka toleranca - Palčne mere
Ta dokument določa dimenzije, tolerance in maso kovic z univerzalno glavo, ozka toleranca, colska izvedba za uporabo v aeronavtiki.
General Information
Relations
Standards Content (Sample)

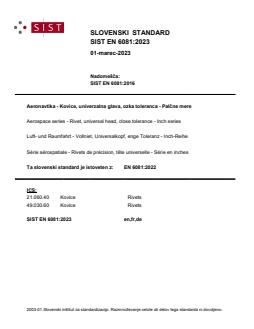

SLOVENSKI STANDARD
SIST EN 6081:2023
01-marec-2023
Nadomešča:
SIST EN 6081:2016
Aeronavtika - Kovice, univerzalna glava, ozka toleranca - Palčne mere
Aerospace series - Rivet, universal head, close tolerance - Inch series
Luft- und Raumfahrt - Vollniet, Universalkopf, enge Toleranz - Inch-Reihe
Série aérospatiale - Rivets de précision, tête universelle - Série en inches
Ta slovenski standard je istoveten z: EN 6081:2022
ICS:
21.060.40 Kovice Rivets
49.030.60 Kovice Rivets
SIST EN 6081:2023 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
SIST EN 6081:2023
---------------------- Page: 2 ----------------------
SIST EN 6081:2023

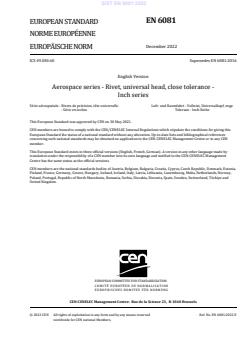

EN 6081
EUROPEAN STANDARD
NORME EUROPÉENNE
December 2022
EUROPÄISCHE NORM
ICS 49.030.60 Supersedes EN 6081:2016
English Version
Aerospace series - Rivet, universal head, close tolerance -
Inch series
Série aérospatiale - Rivets de précision, tête universelle Luft- und Raumfahrt - Vollniet, Universalkopf, enge
- Série en inches Toleranz - Inch-Reihe
This European Standard was approved by CEN on 30 May 2021.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this
European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references
concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN
member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by
translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management
Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2022 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN 6081:2022 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST EN 6081:2023
EN 6081:2022 (E)

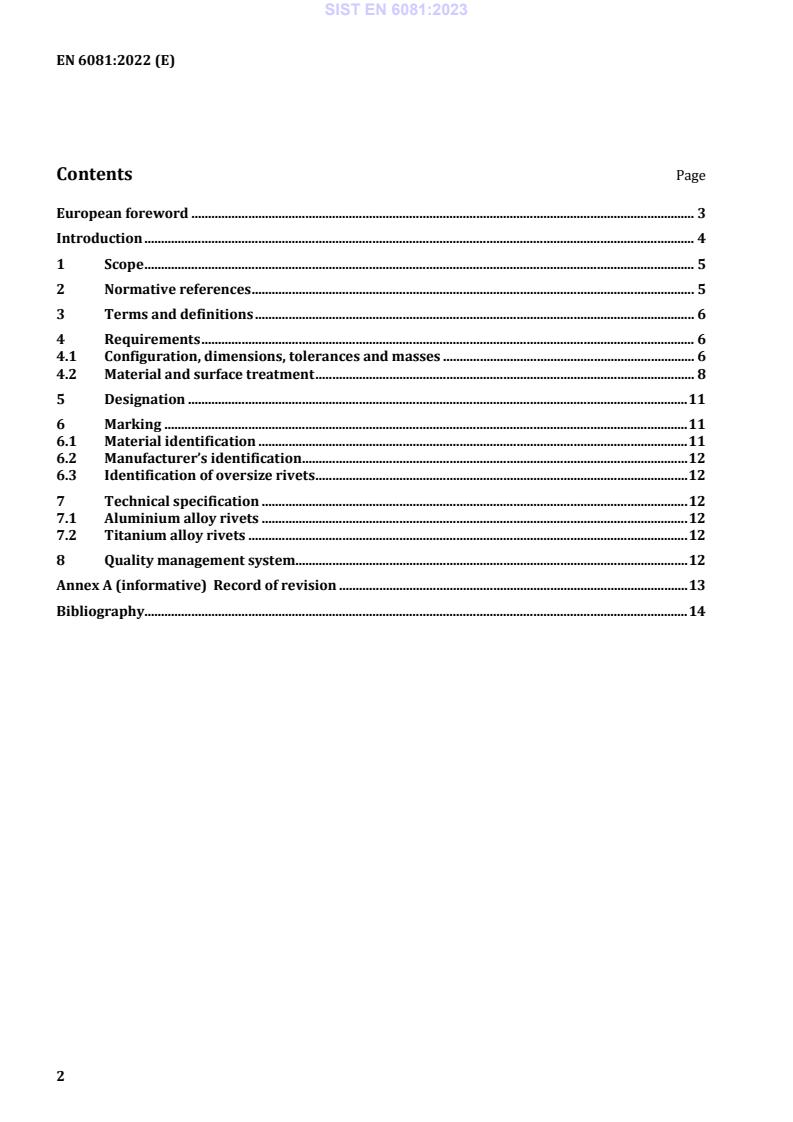

Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 6
4 Requirements . 6
4.1 Configuration, dimensions, tolerances and masses . 6
4.2 Material and surface treatment . 8
5 Designation . 11
6 Marking . 11
6.1 Material identification . 11
6.2 Manufacturer’s identification . 12
6.3 Identification of oversize rivets . 12
7 Technical specification . 12
7.1 Aluminium alloy rivets . 12
7.2 Titanium alloy rivets . 12
8 Quality management system. 12
Annex A (informative) Record of revision . 13
Bibliography. 14
2
---------------------- Page: 4 ----------------------
SIST EN 6081:2023
EN 6081:2022 (E)
European foreword
This document (EN 6081:2022) has been prepared by the Aerospace and Defence Industries
Association of Europe — Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this document has
received the approval of the National Associations and the Official Services of the member countries of
ASD-STAN, prior to its presentation to CEN.
This European Standard shall be given the status of a national standard, either by publication of an
identical text or by endorsement, at the latest by June 2023, and conflicting national standards shall be
withdrawn at the latest by June 2023.
Attention is drawn to the possibility that some of the elements of this document may be the subject of
patent rights. CEN shall not be held responsible for identifying any or all such patent rights.
This document supersedes EN 6081:2016.
According to the CEN-CENELEC Internal Regulations, the national standards organisations of the
following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria,
Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Republic of
North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and the
United Kingdom.
Any feedback and questions on this document should be directed to the users’ national standards body.
A complete listing of these bodies can be found on the CEN website.
3
---------------------- Page: 5 ----------------------
SIST EN 6081:2023
EN 6081:2022 (E)
Introduction
This document is published at Airbus agreed version prEN 6081 edition P3. Former issue 1 and 2 and
drafts may exist of Airbus development only but without any ASD–STAN official publication. In
consequence configuration management discrepancies with these unofficial documents are under
Airbus responsibility.
4
---------------------- Page: 6 ----------------------
SIST EN 6081:2023
EN 6081:2022 (E)
1 Scope
This document specifies the dimensions, tolerances and mass of rivets with universal head, close
tolerance, inch series, for aerospace application.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
EN 2114, Aerospace series — Aluminium 1050A-H14 — Wire for solid rivets — D ≤ 10 mm
EN 2115, Aerospace series — Aluminium alloy 2117-T42 — Wire for solid rivets — D ≤ 10 mm
EN 2116, Aerospace series — Aluminium alloy 2017A-T42 — Wire for solid rivets — D ≤ 10 mm
EN 2117, Aerospace series — Aluminium alloy AL-P5056A (5056A)-H32 — Wire for solid rivets —
D ≤ 10 mm
EN 2424, Aerospace series — Marking of aerospace products
EN 3115, Aerospace series — Aluminium alloy 7050-T73 — Wire for solid rivets — D ≤ 10 mm
prEN 6104, Aerospace series — Rivets, solid, in aluminium or aluminium alloy — Inch series — Technical
1
specification
1
prEN 6118, Aerospace series — Process specification — Aluminium base protection for fasteners
ISO 8080, Aerospace — Anodic treatment of titanium and titanium alloys — Sulfuric acid process
2
MIL-A-8625, Anodic Coatings for Aluminum and Aluminum Alloys
2
MIL-DTL-5541, Chemical Conversion Coatings on Aluminium and Aluminium Alloys
3
NASM5674, Rivets, Structural, Aluminium Alloy, Titanium Columbium Alloy, General Specification for
4
SAE AMS 4982, Titanium Alloy Wire 44.5 Cb
1
Published as ASD-STAN Prestandard at the date of publication of this standard by AeroSpace and Defence
In
...
SLOVENSKI STANDARD
oSIST prEN 6081:2019
01-januar-2019
$HURQDYWLND.RYLFHXQLYHU]DOQDJODYDR]NDWROHUDQFD3DOþQHPHUH
Aerospace series - Rivet, universal head, close tolerance - Inch series
Luft- und Raumfahrt - Vollniet, Universalkopf, enge Toleranz - Zoll-Reihe
Série aérospatiale - Rivets de précision, tête universelle - Série en inches
Ta slovenski standard je istoveten z: prEN 6081
ICS:
49.030.60 Kovice Rivets
oSIST prEN 6081:2019 en,fr,de
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
---------------------- Page: 1 ----------------------
oSIST prEN 6081:2019
---------------------- Page: 2 ----------------------
oSIST prEN 6081:2019
DRAFT
EUROPEAN STANDARD
prEN 6081
NORME EUROPÉENNE
EUROPÄISCHE NORM
October 2018
ICS 49.030.60 Will supersede EN 6081:2016
English Version
Aerospace series - Rivet, universal head, close tolerance -
Inch series
Série aérospatiale - Rivets de précision, tête universelle Luft- und Raumfahrt - Vollniet, Universalkopf, enge
- Série en inches Toleranz - Zoll-Reihe
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee ASD-
STAN.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,
Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,
Turkey and United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2018 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 6081:2018 E
worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
oSIST prEN 6081:2019
prEN 6081:2018 (E)
Contents Page
European foreword . 3
Introduction . 4
1 Scope . 5
2 Normative references . 5
3 Terms and definitions . 5
4 Requirements . 6
4.1 Configuration, dimensions, tolerances and mass . 6
4.2 Material and surface treatment . 9
5 Designation. 11
6 Marking . 11
6.1 Material identification . 11
6.2 Manufacturer's identification . 12
6.3 Identification of oversize rivets . 12
7 Technical specification . 12
7.1 Aluminium alloy rivet . 12
7.2 Titanium alloy rivet . 13
8 Quality management system . 13
Annex A (informative) Record of revision . 14
Bibliography . 15
2
---------------------- Page: 4 ----------------------
oSIST prEN 6081:2019
prEN 6081:2018 (E)
European foreword
This document (prEN 6081:2018) has been prepared by the Aerospace and Defence Industries
Association of Europe - Standardization (ASD-STAN).
After enquiries and votes carried out in accordance with the rules of this Association, this Standard has
received the approval of the National Associations and the Official Services of the member countries of
ASD, prior to its presentation to CEN.
This document is currently submitted to the CEN Enquiry.
This document will supersede EN 6081:2016.
3
---------------------- Page: 5 ----------------------
oSIST prEN 6081:2019
prEN 6081:2018 (E)
Introduction
This document is published at Airbus agreed version prEN 6081 edition P3. Former issue 1 and 2 and
drafts may exist of Airbus development only but without any ASD–STAN official publication. In
consequence configuration management discrepancies with these unofficial documents are under
Airbus responsibility.
4
---------------------- Page: 6 ----------------------
oSIST prEN 6081:2019
prEN 6081:2018 (E)
1 Scope
This document specifies the dimensions, tolerances and mass of rivets with universal head, close
tolerance, inch series, for aerospace application.
2 Normative references
The following documents are referred to in the text in such a way that some or all of their content
constitutes requirements of this document. For dated references, only the edition cited applies. For
undated references, the latest edition of the referenced document (including any amendments) applies.
1
EN 2114, Aerospace series - Aluminium 1050A-H14 - Wire for solid rivets - D ≤ 10 mm
EN 2115, Aerospace series - Aluminium alloy 2117-T42 - Wire for solid rivets – D ≤ 10 mm
EN 2116, Aerospace series - Aluminium alloy 2017A-T42 - Wire for solid rivets - D ≤ 10 mm
EN 2117, Aerospace series - Aluminium alloy AL-P5056A (5056A)-H32 - Wire for solid rivets – D ≤ 10 mm
EN 2424, Aerospace series - Marking of aerospace products
EN 3115, Aerospace series - Aluminium alloy 7050-T73 - Wire for solid rivets – D ≤ 10 mm
prEN 6104, Aerospace series - Rivets, solid, in aluminium or aluminium alloy - Inch series - Technical
1
Specification
1
prEN 6118, Aerospace series - Process specification - Aluminium base protection for fasteners
ISO 8080, Aerospace - Anodic treatment of titanium and titanium alloys - Sulfuric acid process
2
AMS 4982, Titanium alloy wire 44.5 Cb
3
MIL-C-5541, Chemical conversion coatings on aluminium and aluminium alloys
4
NASM 5674, Rivets, structural, aluminium alloy, titanium columbium alloy, general specification for
3 Terms and definitions
No terms and definitions are listed in this document.
ISO and IEC maintain terminological databases for use in standardization at the following addresses:
• IEC Electropedia: available at http://www.electropedia.org/
• ISO Online browsing platform: available at http://www.iso.org/obp
1
Under preparation. Published as ASD Prestandard at the date of publication of this standard.
2
Published by: Society of Automotive Engineers (SAE), 400 Commonwealt
...
Questions, Comments and Discussion
Ask us and Technical Secretary will try to provide an answer. You can facilitate discussion about the standard in here.
