Surface treatment equipment - Noise test code for surface treatment equipment including its ancillary handling equipment - Accuracy grades 2 and 3

This European Standard specifies standardised conditions for the determination, declaration and verification of airborne noise emission of the following surface treatment equipment:
-  machinery for cleaning and pre-treatment of industrial item surfaces (see EN 12921-1, EN 12921-2, EN 12921-3, EN 12921-4);
-  machinery for the supply and/or circulation of coating materials under pressure (see EN 12621, EN 12757-1);
-  atomising and spraying equipment for coating materials (see EN 1953, EN 50050-1, EN 50050-2, EN 50050-3, EN 50059, EN 50176, EN 50177, EN 50348);
-  coating plants (see EN 12215, EN 12581, EN 12981, EN 13355, EN 50223);
-  dryers, ovens and evaporating equipment (see EN 1539);
-  thermal cleaning plants (incinerators) for exhaust gas from surface treatment plants (see EN 12753);
-  dry-ice blasting equipment.
For the above surface treatment machinery, this European Standard gives provisions for the determination of
-  emission sound pressure levels at workstations and/or other specified positions and
-  sound power levels.
This European Standard specifies noise emission measurement methods, installation/mounting and operation conditions that shall be used for the test. The use of this document ensures the reproducibility of the determination of the noise emission characteristics within specified limits determined by the grade of accuracy of the basic noise emission measurement method used (see Clauses 4 and 5). Noise emission measurement methods allowed by this document are engineering methods (grade 2) and survey methods (grade 3).
This European Standard does not apply to machines not explicitly listed in the scope
-  plating machinery,
-  plasma surface treatment machinery,
-  printing, paper converting and paper making machinery and auxiliary equipment (see EN 13023),
-  abrasive blasting machinery see EN 1265.

Oberflächenbehandlungsgeräte - Geräuschmessverfahren für Oberflächenbehandlungsgeräte einschließlich ihrer Be- und Entladeeinrichtungen - Genauigkeitsklassen 2 und 3

Dieses Dokument präzisiert alle notwendigen Informationen zur Bestimmung, Angabe und Überprüfung der luftgetragenen Geräusch-Emissionswerte von folgenden Oberflächenbehandlungsgeräten:
   Maschinen zur Oberflächenreinigung und -vorbehandlung von industriellen Produkten (siehe EN 12921-1, EN 12921-2, EN 12921-3, EN 12921-4),
   Förder- und Umlaufanlagen für Beschichtungsstoffe unter Druck (siehe EN 12621, EN 12757-1),
   Spritz- und Sprühgeräte für Beschichtungsstoffe (siehe EN 1953, EN 50050-1, EN 50050-2, EN 50050-3, EN 50059, EN 50177, EN 50348),
   Beschichtungsanlagen (siehe EN 12215, EN 12581, EN 12981, EN 13355, EN 50223),
   Trockner, Öfen und Verdunstungseinrichtungen (siehe EN 1539),
   Thermische Reinigungssysteme für Abluft aus Anlagen zur Oberflächenbehandlung (siehe EN 12753),
   Einrichtungen zum Trockeneisstrahlen.
Für obengenannte Maschinen zur Oberflächenbehandlung beschreibt diese Europäische Norm Anforderungen für die Bestimmung der
   Emissionsschalldruckpegel an Arbeitsplätzen und / oder anderen definierten Orten und
   Schallleistungspegel.
Diese Norm legt Geräuschmessverfahren, Aufstellungs- und Befestigungsbedingungen sowie die Betriebsbedingungen für die Geräuschmessung fest. Die Anwendung dieser Norm stellt die Reproduzier-barkeit der Bestimmung der Kenndaten für das Geräuschmessverfahren innerhalb festgelegter Grenzen sicher, die durch die Genauigkeitsklasse der verwendeten Rahmenmessnorm (siehe Abschnitte 4 und 5) bestimmt werden. Diese Norm erlaubt Geräuschmessungen der Genauigkeitsklassen 2 und 3.
Diese Norm gilt nicht für Maschinen, die nicht im Anwendungsbereich aufgeführt sind:
   Galvanikmaschinen,
   Plasma-Oberflächenbehandlungsmaschinen,
   Druck-, Papierverarbeitungs- und Papierherstellungsmaschinen (siehe EN 13023),
   Strahlmaschinen (siehe EN 1265).

Equipements de traitement de surface - Code d'essai acoustique pour équipements de traitement de surface, y compris les équipements de manutention auxilliaires - Classes de précision 2 et 3

La présente Norme européenne spécifie toutes les informations nécessaires pour procéder avec efficacité et
dans des conditions normalisées, à la détermination, à la déclaration et à la vérification du bruit aérien émis
par les machines de traitement de surface suivantes :
- les machines de nettoyage et de prétraitement de surfaces de pièces industrielles (voir l’EN 12921-1,
l’EN 12921-2, l’EN 12921-3, l’EN 12921-4) ;
- les machines pour la fourniture et/ou la circulation des matériaux de revêtement sous pression (voir
l’EN 12621, l’EN 12757-1) ;
- les équipements d’atomisation ou de pulvérisation pour les matériaux de revêtement (voir l’EN 1953,
l’EN 50050-1, l’EN 50050-2, l’EN 50050-3, l’EN 50059, l’EN 50176, l’EN 50177, l’EN 50348) ;
- les installations d’application (voir l’EN 12215, l’EN 12581, l’EN 12981, l’EN 13355, l’EN 50223) ;
- les enceintes de séchage, fours et équipements d'évaporation (voir l’EN 1539) ;
- les installations de nettoyage thermique (incinérateurs) pour l’air extrait des installations de traitement
de surface (voir l’EN 12753) ;
- les équipements de projection de glace sèche.
Pour les équipements de traitement de surface ci-dessus, la présente Norme européenne fournit des
dispositions pour la détermination des :
- niveaux d'émission de pression acoustique aux postes de travail et/ou en d'autres positions spécifiées ;
- niveaux de puissance acoustique.
La présente Norme européenne spécifie les méthodes de mesurage acoustique et les conditions
d'installation/montage et de fonctionnement qui doivent être utilisées pour l'essai. L’utilisation du présent
document garantit la reproductibilité de la détermination des caractéristiques d’émission sonore dans les
limites spécifiées déterminées par la classe de précision de la méthode de mesurage acoustique de base
utilisée (voir Articles 4 et 5). Les méthodes de mesurage acoustique autorisées par le présent document sont
des méthodes d’expertise (classe 2) et des méthodes de contrôle (classe 3).
La présente Norme européenne ne s’applique pas aux machines qui ne sont pas explicitement référencées
dans le domaine d’application :
- les machines à plaquer ;
- les machines de traitement de surface au plasma ;
- les machines d'impression, de transformation, de fabrication et de finition du papier (voir l’EN 13023) ;
- les machines de projection d'abrasifs (voir l’EN 1265).

Naprave za površinsko obdelavo - Preskusni postopek za merjenje hrupa naprav za površinsko obdelavo, vključno z dodajnimi in odvzemnimi napravami - Razreda točnosti 2 in 3

Ta evropski standard določa standardizirane pogoje za določanje, objavljanje in preverjanje emisij hrupa naprav za površinsko obdelavo:
– strojev za čiščenje in predobdelavo industrijskih površin (glej standarde EN 12921-1, EN 12921-2, EN 12921-3, EN 12921-4);
– strojev za oskrbo in/ali širjenje premaznih materialov s pomočjo tlaka (glej standarda EN 12621, EN 12757-1);
– pršilne in škropilne opreme za premazne materiale (glej standarde EN 1953, EN 50050-1, EN 50050-2, EN 50050-3, EN 50059, EN 50176, EN 50177, EN 50348);
– premaznih naprav (glej standarde EN 12215, EN 12581, EN 12981, EN 13355, EN 50223);
– sušilnikov, peči in hlapilne opreme (glej standard EN 1539);
– termalnih čistilnih naprav (sežigalnic) za izpušne pline iz naprav za površinsko obdelavo (glej standard EN 12753);
– opreme za čiščenje s suhim ledom.
Za zgoraj navedene stroje za površinsko obdelavo vsebuje ta evropski standard določbe za določanje
– emisij ravni hrupa na delovnih postajah in/ali drugih določenih mestih ter
– ravni zvočne moči.
Ta evropski standard določa postopke za merjenje emisij hrupa, zahteve za namestitev/montažo in pogoje delovanja, ki jih je treba uporabiti za preskus. Uporaba tega dokumenta zagotavlja ponovljivost določanja značilnosti emisij hrupa v določenih mejah, ki jih določa razred točnosti uporabljene osnovne metode merjenja emisij hrupa (glej točki 4 in 5). Metode merjenja emisij hrupa, ki jih dovoljuje ta dokument, so inženirske metode (razred 2) in metode raziskovanja (razred 3).
Ta evropski standard se ne uporablja za stroje, ki niso izrecno navedeni:
– stroji za galvaniziranje,
– stroji za površinsko obdelavo s plazmo,
– stroji za tiskanje, predelavo papirja in izdelavo papirja ter pomožna oprema (glej standard EN 13023),
– abrazivni čistilni stroji (glej standard EN 1265).

General Information

Status
Published
Public Enquiry End Date
28-Feb-2013
Publication Date
08-Apr-2015
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
13-Mar-2015
Due Date
18-May-2015
Completion Date
09-Apr-2015

Relations

Buy Standard

Standard
EN 14462:2015
English language
30 pages
sale 10% off
Preview
sale 10% off
Preview
e-Library read for
1 day

Standards Content (Sample)

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Oberflächenbehandlungsgeräte - Geräuschmessverfahren für Oberflächenbehandlungsgeräte einschließlich ihrer Be- und Entladeeinrichtungen - Genauigkeitsklassen 2 und 3Equipements de traitement de surface - Code d'essai acoustique pour équipements de traitement de surface, y compris les équipements de manutention auxilliaires - Classes de précision 2 et 3Surface treatment equipment - Noise test code for surface treatment equipment including its ancillary handling equipment - Accuracy grades 2 and 325.220.01Površinska obdelava in prevleke na splošnoSurface treatment and coating in general17.140.20Emisija hrupa naprav in opremeNoise emitted by machines and equipmentICS:Ta slovenski standard je istoveten z:EN 14462:2015SIST EN 14462:2015en,fr,de01-maj-2015SIST EN 14462:2015SLOVENSKI
STANDARDSIST EN 14462:2005+A1:20091DGRPHãþD



SIST EN 14462:2015



EUROPEAN STANDARD NORME EUROPÉENNE EUROPÄISCHE NORM
EN 14462
February 2015 ICS 17.140.20; 25.220.01 Supersedes EN 14462:2005+A1:2009English Version
Surface treatment equipment - Noise test code for surface treatment equipment including its ancillary handling equipment -Accuracy grades 2 and 3
Equipements de traitement de surface - Code d'essai acoustique pour équipements de traitement de surface, y compris les équipements de manutention auxilliaires - Classes de précision 2 et 3
Oberflächenbehandlungsgeräte - Geräuschmessverfahren für Oberflächenbehandlungsgeräte - einschließlich ihrer Be-und Entladeeinrichtungen - Genauigkeitsklassen 2 und 3 This European Standard was approved by CEN on 29 November 2014.
CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN-CENELEC Management Centre or to any CEN member.
This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre:
Avenue Marnix 17,
B-1000 Brussels © 2015 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national Members. Ref. No. EN 14462:2015 ESIST EN 14462:2015

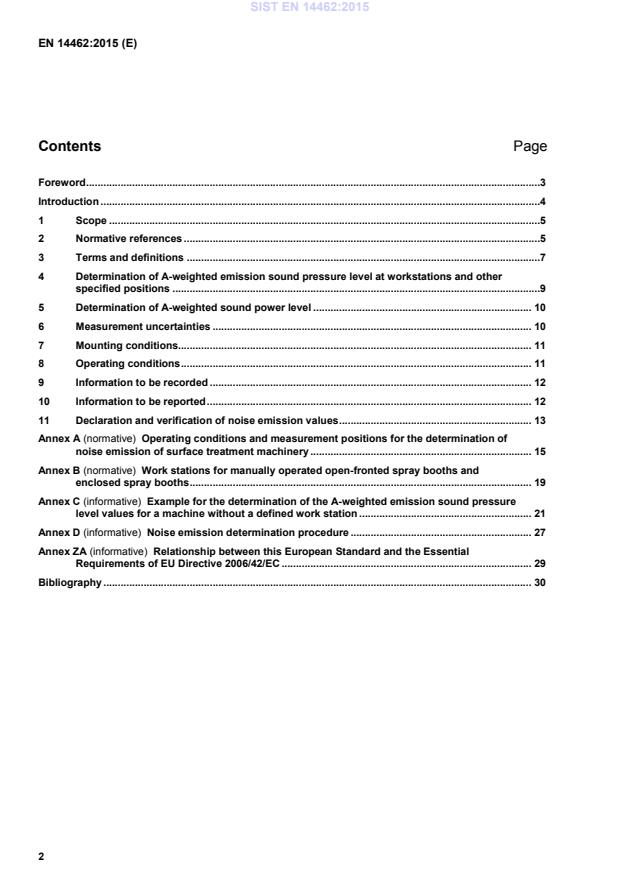

EN 14462:2015 (E) 2 Contents Page Foreword .3 Introduction .4 1 Scope .5 2 Normative references .5 3 Terms and definitions .7 4 Determination of A-weighted emission sound pressure level at workstations and other specified positions .9 5 Determination of A-weighted sound power level . 10 6 Measurement uncertainties . 10 7 Mounting conditions. 11 8 Operating conditions . 11 9 Information to be recorded . 12 10 Information to be reported . 12 11 Declaration and verification of noise emission values . 13 Annex A (normative)
Operating conditions and measurement positions for the determination of noise emission of surface treatment machinery . 15 Annex B (normative)
Work stations for manually operated open-fronted spray booths and enclosed spray booths . 19 Annex C (informative)
Example for the determination of the A-weighted emission sound pressure level values for a machine without a defined work station . 21 Annex D (informative)
Noise emission determination procedure . 27 Annex ZA (informative)
Relationship between this European Standard and the Essential Requirements of EU Directive 2006/42/EC . 29 Bibliography . 30
