Blind rivets - Mechanical testing (ISO 14589:2000)

Migrated from Progress Sheet (TC Comment) (2000-07-10): Accepted to go parallel with ISO, but as there is not yet a document reference ++ we have to wait before we can add it.

Blindniete - Mechanische Prüfung (ISO 14589:2000)

Diese Internationale Norm legt die Verfahren für die mechanische Prüfung von Blindnieten fest und umfaßt: - den Scherversuch, - den Zugversuch, - die Prüfung der Fähigkeit, - den Nietdornkopf festzuhalten, - den Nietdorn-Ausstoßversuch und, - den Nietdorn-Bruchkraftversuch, bei einer Umgebungstemperatur von 15°C bis 25°C. Sie gilt für Blindniete bis zu einem Nenn-Durchmesser von 6,4 mm.

Rivets aveugles - Essais mécaniques (ISO 14589:2000)

La présente Norme internationale spécifie les méthodes relatives aux essais mécaniques des rivets aveugles, y compris: - l'essai de résistance au cisaillement (voir article 3), - l'essai de résistance à la traction (voir article 3), - l'essai de retenue de la tête de rivet aveugle (voir article 4), - l'essai de résistance au désassemblage de la tige (avant pose) (voir article 5), et - l'essai de rupture de la tige (voir article 6), à une température ambiante comprise entre 10 °C et 35 °C. Elle s'applique aux rivets aveugles dont le diamètre nominal est inférieur ou égal à 6,4 mm.

Slepe kovice - Mehansko preskušanje (ISO 14589:2000)

General Information

Status
Published
Publication Date
30-Jun-2002
Technical Committee
Current Stage
6060 - National Implementation/Publication (Adopted Project)
Start Date
01-Jul-2002
Due Date
01-Jul-2002
Completion Date
01-Jul-2002

Buy Standard

Standard
SIST EN ISO 14589:2002
English language
17 pages
sale 10% off
Preview
sale 10% off
Preview

e-Library read for
1 day

Standards Content (sample)

SLOVENSKI STANDARD
SIST EN ISO 14589:2002
01-julij-2002
Slepe kovice - Mehansko preskušanje (ISO 14589:2000)
Blind rivets - Mechanical testing (ISO 14589:2000)
Blindniete - Mechanische Prüfung (ISO 14589:2000)
Rivets aveugles - Essais mécaniques (ISO 14589:2000)
Ta slovenski standard je istoveten z: EN ISO 14589:2000
ICS:
19.060 Mehansko preskušanje Mechanical testing
21.060.40 Kovice Rivets
SIST EN ISO 14589:2002 en

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.

---------------------- Page: 1 ----------------------
SIST EN ISO 14589:2002
---------------------- Page: 2 ----------------------
SIST EN ISO 14589:2002
EUROPEAN STANDARD
EN ISO 14589
NORME EUROPÉENNE
EUROPÄISCHE NORM
December 2000
ICS 21.060.40
English version
Blind rivets - Mechanical testing (ISO 14589:2000)

Rivets aveugles - Essais mécaniques (ISO 14589:2000) Blindniete - Mechanische Prüfung (ISO 14589:2000)

This European Standard was approved by CEN on 15 December 2000.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European

Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national

standards may be obtained on application to the Management Centre or to any CEN member.

This European Standard exists in three official versions (English, French, German). A version in any other language made by translation

under the responsibility of a CEN member into its own language and notified to the Management Centre has the same status as the official

versions.

CEN members are the national standards bodies of Austria, Belgium, Czech Republic, Denmark, Finland, France, Germany, Greece,

Iceland, Ireland, Italy, Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and United Kingdom.

EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: rue de Stassart, 36 B-1050 Brussels

© 2000 CEN All rights of exploitation in any form and by any means reserved Ref. No. EN ISO 14589:2000 E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------

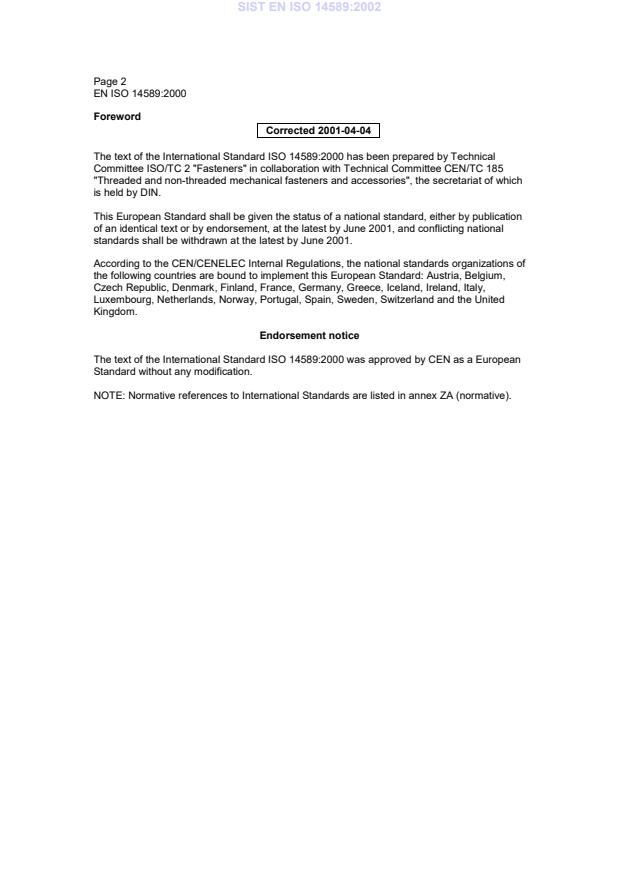

SIST EN ISO 14589:2002
Page 2
EN ISO 14589:2000
Foreword
Corrected 2001-04-04

The text of the International Standard ISO 14589:2000 has been prepared by Technical

Committee ISO/TC 2 "Fasteners" in collaboration with Technical Committee CEN/TC 185

"Threaded and non-threaded mechanical fasteners and accessories", the secretariat of which

is held by DIN.

This European Standard shall be given the status of a national standard, either by publication

of an identical text or by endorsement, at the latest by June 2001, and conflicting national

standards shall be withdrawn at the latest by June 2001.

According to the CEN/CENELEC Internal Regulations, the national standards organizations of

the following countries are bound to implement this European Standard: Austria, Belgium,

Czech Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy,

Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United

Kingdom.
Endorsement notice

The text of the International Standard ISO 14589:2000 was approved by CEN as a European

Standard without any modification.

NOTE: Normative references to International Standards are listed in annex ZA (normative).

---------------------- Page: 4 ----------------------
SIST EN ISO 14589:2002
Page 3
EN ISO 14589:2000
Annex ZA (normative)
Normative references to international publications
with their relevant European publications

This European Standard incorporates by dated or undated reference, provisions from other

publications. These normative references are cited at the appropriate places in the text and the

publications are listed hereafter. For dated references, subsequent amendments to or revisions

of any of these publications apply to this European Standard only when incorporated in it by

amendment or revision. For undated references the latest edition of the publication referred to

applies (including amendments).

NOTE Where an International Publication has been modified by common modifications,

indicated by (mod.), the relevant EN/HD applies.
Publication Year Title EN Year
ISO 7500-1 1999 Metallic materials - Verification of static EN ISO 7500-1 1999
uniaxial testing machines - Part 1:
Tension/compression testing machines
---------------------- Page: 5 ----------------------
SIST EN ISO 14589:2002
---------------------- Page: 6 ----------------------
SIST EN ISO 14589:2002
INTERNATIONAL ISO
STANDARD 14589
First edition
2000-12-15
Blind rivets — Mechanical testing
Rivets aveugles — Essais mécaniques
Reference number
ISO 14589:2000(E)
ISO 2000
---------------------- Page: 7 ----------------------
SIST EN ISO 14589:2002
ISO 14589:2000(E)
PDF disclaimer

This PDF file may contain embedded typefaces. In accordance with Adobe's licensing policy, this file may be printed or viewed but shall not

be edited unless the typefaces which are embedded are licensed to and installed on the computer performing the editing. In downloading this

file, parties accept therein the responsibility of not infringing Adobe's licensing policy. The ISO Central Secretariat accepts no liability in this

area.
Adobe is a trademark of Adobe Systems Incorporated.

Details of the software products used to create this PDF file can be found in the General Info relative to the file; the PDF-creation parameters

were optimized for printing. Every care has been taken to ensure that the file is suitable for use by ISO member bodies. In the unlikely event

that a problem relating to it is found, please inform the Central Secretariat at the address given below.

© ISO 2000

All rights reserved. Unless otherwise specified, no part of this publication may be reproduced or utilized in any form or by any means, electronic

or mechanical, including photocopying and microfilm, without permission in writing from either ISO at the address below or ISO's member body

in the country of the requester.
ISO copyright office
Case postale 56 � CH-1211 Geneva 20
Tel. + 41 22 749 01 11
Fax + 41 22 749 09 47
E-mail copyright@iso.ch
Web www.iso.ch
Printed in Switzerland
ii © ISO 2000 – All rights reserved
---------------------- Page: 8 ----------------------
SIST EN ISO 14589:2002
ISO 14589:2000(E)
Contents Page

Foreword.....................................................................................................................................................................iv

1 Scope ..............................................................................................................................................................1

2 Normative reference ......................................................................................................................................1

3 Shear and tensile tests..................................................................................................................................1

4 Mandrel head retention capability test ........................................................................................................8

5 Mandrel push out resistance test (prior to setting)..................................................................................10

6 Mandrel break load test...............................................................................................................................11

Annex A (informative) Example of a suitable test fixture for tensile testing of rivets .......................................13

© ISO 2000 – All rights reserved iii
---------------------- Page: 9 ----------------------
SIST EN ISO 14589:2002
ISO 14589:2000(E)
Foreword

ISO (the International Organization for Standardization) is a worldwide federation of national standards bodies (ISO

member bodies). The work of preparing International Standards is normally carried out through ISO technical

committees. Each member body interested in a subject for which a technical committee has been established has

the right to be represented on that committee. International organizations, governmental and non-governmental, in

liaison with ISO, also take part in the work. ISO collaborates closely with the International Electrotechnical

Commission (IEC) on all matters of electrotechnical standardization.

International Standards are drafted in accordance with the rules given in the ISO/IEC Directives, Part 3.

Draft International Standards adopted by the technical committees are circulated to the member bodies for voting.

Publication as an International Standard requires approval by at least 75 % of the member bodies casting a vote.

Attention is drawn to the possibility that some of the elements of this International Standard may be the subject of

patent rights. ISO shall not be held responsible for identifying any or all such patent rights.

International Standard ISO 14589 was prepared by Technical Committee ISO/TC 2, Fasteners.

Annex A of this International Standard is for information only.
iv © ISO 2000 – All rights reserved
---------------------- Page: 10 ----------------------
SIST EN ISO 14589:2002
INTERNATIONAL STANDARD ISO 14589:2000(E)
Blind rivets — Mechanical testing
1 Scope

This International Standard specifies the methods of mechanical testing of blind rivets including:

� shear test (see clause 3),
� tensile test (see clause 3),
� mandrel head retention capability test (see clause 4),
� mandrel push out resistance test (prior to setting) (see clause 5), and
� mandrel break load test (see clause 6),
at an ambient temperature of 10 °Cto35 °C.
It applies to blind rivets with nominal diameters up to and including 6,4 mm.
2 Normative reference

The following normative document contains provisions which, through reference in this text, constitute provisions of

this International Standard. For dated references, subsequent amendments to, or revisions of, any of these

publications do not apply. However, parties to agreements based on this International Standard are encouraged to

investigate the possibility of applying the most recent edition of the normative document indicated below. For

undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC

maintain registers of currently valid International Standards.

ISO 7500-1:1999, Metallic materials — Verification of static uniaxial testing machines — Part 1: Tension/

compression testing machines — Verification and calibration of the force-measuring system.

3 Shear and tensile tests
3.1 Principle of shear and tensile tests

The tests consist of straining a blind rivet which is set in a test fixture by a shear load or tensile load to failure.

3.2 Test fixtures for shear and tensile tests

Two test fixtures are specified for each of both test methods. The test fixtures specified in 3.2.1.1 and 3.2.2.1 may

be used for routine testing. The test fixtures specified in 3.2.1.2 and 3.2.2.2 may also be used for routine testing but

are decisive in the case of dispute and are the referee test fixtures in such cases.

3.2.1 Test fixtures for shear testing
3.2.1.1 Routine shear testing
See Figure 1 for basic dimensions.
© ISO 2000 – All rights reserved 1
---------------------- Page: 11 ----------------------
SIST EN ISO 14589:2002
ISO 14589:2000(E)
Surface roughness in micrometres
a Rz4
b There shall be no burrs at the corners of the test clearance holes.

c Countersink angle shall be the nominal angle of the rivet head with the tolerance .

��2

d Minimum circular plane area around the axis of the specimen with diameter D =25mm.

Figure 1 — Test fixture for routine shear testing

The test plates shall be made of steel having a hardness of not less than 420 HV30. To minimize the effect of

distortion under load, fitted steel bolts should be used for attachment to the testing machine.

Test plates shall be discarded when the test clearance holes to accommodate the test rivet are no longer round,

show signs of wear or damage or exceed the maximum diameter specified in Table 2.

For plate thicknesses and test clearance hole diameters see 3.2.3.
3.2.1.2 Referee shear testing

The inserts used in the test fixture according to Figure 3 shall have dimensions and finish as given in Figure 2.

The inserts shall be made of hardened and tempered steel and shall have a hardness of 700 HV30 minimum. The

test fixture which accommodates the test inserts shall be self-aligning when mounted in the tensile testing machine.

New inserts shall be used for each referee test programme.
2 © ISO 2000 – All rights reserved
---------------------- Page: 12 ----------------------
SIST EN ISO 14589:2002
ISO 1
...
