prEN 1090-4
(Main)Execution of steel structures and aluminium structures - Part 4: Technical requirements for cold-formed structural steel elements and cold-formed structures for roof, ceiling, floor and wall applications
Execution of steel structures and aluminium structures - Part 4: Technical requirements for cold-formed structural steel elements and cold-formed structures for roof, ceiling, floor and wall applications
This document specifies requirements for the execution, i.e. the manufacture and the installation, of cold-formed structural steel members and profiled sheeting and cold-formed structures for roof, ceiling, floor, wall and cladding applications.
This document applies to structures designed according to the EN 1993 series.
This document applies to structural members and profiled sheeting designed according to EN 1993 1 3.
This document can be used for structures designed according to other design rules provided that conditions for execution comply with them and any necessary additional requirements are specified.
This document also specifies requirements for the execution i.e. the manufacture and the installation of structures made from cold-formed profiled sheeting for roof, ceiling, floor and wall applications under predominately static loading or seismic loading conditions and their documentation.
This document covers structural profiled sheeting of Structural Class I and II and structural profiled sheeting in Structural Class III according to EN 1993 1 3 used in structures.
NOTE 1 In National Annexes of EN 1993 1 3 specifications can be given regarding the use of the Structural Classes.
This document covers structural members of all structural classes according to EN 1993 1 3.
Structural profiled sheeting is understood here to be:
- profiled sheet, such as trapezoidal, sinusoidal or liner trays (Figure 1).
Structural members are understood here to be:
- members (linear profiled cross sections) that are produced by cold forming (Figure 2).
This document also covers:
- not welded built-up sections (Figure 2d);
- cold-formed closed and hollow sections including the welding of the longitudinal seam (Figure 2b and Figure 2c), not covered by EN 10219 1;
— perforated, punctured and micro profiled sheeting and members;
The welding of built-up sections are not covered. The welding provisions are given in EN 1090 2.
This document also covers spacer constructions between the outer and inner or upper and lower skins for roofs, walls and ceilings made from cold-formed profiled sheeting and the connections and attachments of the afore mentioned elements as long as all has a structural purpose.
This document covers steel profiled sheeting for composite floors, e.g. during installation and in stage of pouring concrete.
This document also covers the deconstruction of structures made from cold-formed profiled sheeting and structural members for roof, ceiling, floor and wall applications.
Composite structural members where the interaction between dissimilar materials are an integral part of the structural behaviour such as sandwich panels and composite floors are not covered by this document.
This document does not cover the necessary analyses and detailing and execution rules for thermal insulation, moisture protection, noise control and fire protection.
This document does not cover regulations of roof cladding and wall cladding, produced by traditional plumber methods or tinsmith methods.
This document does not cover detailed requirements for water tightness or air permeability resistance and thermal aspects of profiled sheeting.
NOTE 2 The structures covered in this document can be for example.
- single- or multi-skin roofs, whereby the load-bearing structure (lower skin) or the actual roof covering (upper skin) or both consist of cold-formed structural members and profiled sheeting;
- single- or multi-skin walls whereby the load-bearing structure (inner skin), the actual cladding (outer skin) or both consist of cold-formed structural members and profiled sheeting, or
- trusses from cold-formed members.
NOTE 3 Structures can consist of an assembly of structural members and profiled sheeting made of steel according to EN 1090 4 and of aluminium according to EN 1090 5.
Ausführung von Stahltragwerken und Aluminiumtragwerken - Teil 4: Technische Anforderungen an tragende, kaltgeformte Bauelemente aus Stahl und tragende, kaltgeformte Bauteile für Dach-, Decken-, Boden- und Wandanwendungen
Dieses Dokument legt die Anforderungen an die Ausführung, d. h. Herstellung und Montage, von kaltgeformten, tragenden Bauteilen und Profiltafeln aus Stahl und kaltgeformten Tragwerken für Dach-, Decken-, Boden-, Wand- und Bekleidungsanwendungen fest.
Dieses Dokument gilt für Tragwerke, die nach der Normenreihe EN 1993 bemessen sind.
Dieses Dokument gilt für tragende Bauteile und Profiltafeln, die nach EN 1993 1 3 gestaltet sind.
Dieses Dokument darf bei Tragwerken, die nach anderen Bemessungsregeln bemessen wurden, angewendet werden, vorausgesetzt, die Bedingungen für die Ausführung stimmen mit diesen überein und erforderliche zusätzliche Anforderungen sind festgelegt.
Dieses Dokument legt außerdem die Anforderungen an die Ausführung, d. h. Herstellung und Montage, von Tragwerken aus kaltgeformten Profiltafeln für Dach-, Decken-, Boden- und Wandanwendungen unter vorwiegend ruhenden oder seismischen Lastbedingungen und deren Dokumentation fest.
Dieses Dokument behandelt tragende Profiltafeln der Konstruktionsklasse I und II sowie tragende Profiltafeln der Konstruktionsklasse III nach EN 1993 1 3, die in Bauwerken verwendet werden.
ANMERKUNG 1 Die nationalen Anhänge von EN 1993 1 3 können Spezifikationen hinsichtlich der Verwendung von Konstruktionsklassen enthalten.
Dieses Dokument gilt für tragende Bauteile aller Konstruktionsklassen nach EN 1993 1 3.
Als tragende Profiltafeln gelten an dieser Stelle:
- Profiltafeln, z. B. Trapez-, Well-, oder Kassettenprofile (Bild 1).
Als tragende Bauteile gelten an dieser Stelle:
- Bauteile (Querschnitte mit tragendem Profil), die durch Kaltumformen hergestellt werden (Bild 2).
Dieses Dokument behandelt außerdem Folgendes:
- nicht geschweißte, zusammengesetzte Querschnitte [Bild 2 d)];
- kaltgeformte geschlossene und Hohlprofile, einschließlich Schweißung der Längsnaht [Bild 2 b) und Bild 2 c)], die nicht in EN 10219 1 behandelt sind;
- perforierte, gelochte und mikroprofilierte Profiltafeln und Bauteile;
Das Schweißen von zusammengesetzten Querschnitten wird nicht behandelt. Die Bestimmungen für das Schweißen sind in EN 1090 2.angegeben.
Dieses Dokument umfasst außerdem Abstandhalterkonstruktionen zwischen Außen- und Innenschale oder Ober- und Unterschale für Dächer, Wände und Decken, die aus kaltgeformten Profiltafeln hergestellt wurden sowie die Verbindungen und Befestigungen der zuvor aufgeführten Bauteile, sofern diese einen tragenden Zweck haben.
Dieses Dokument umfasst auch Stahlprofiltafeln für Verbunddecken, z. B. in deren Montage- und Betonagezustand.
Dieses Dokument behandelt außerdem den Rückbau von Bauwerken aus kaltgeformte Profiltafeln und tragenden Bauteilen für Dächer, Decken, Böden und Wandanwendungen.
Dieses Dokument umfasst keine Verbundkonstruktionen, bei denen die Wechselwirkung unterschiedlicher Werkstoffe integraler Bestandteil des Tragwerksverhaltens ist, z. B. Sandwich-Elemente und Verbunddecken.
Dieses Dokument umfasst keine erforderlichen Nachweise und Ausführungsregeln für Wärme-, Feuchtigkeits-, Schall- und Brandschutz.
Dieses Dokument beinhaltet keine Bestimmungen hinsichtlich Dachdeckung und Wandbekleidung, die durch herkömmliche Klempner- oder andere handwerkliche Verfahren hergestellt wurden.
Dieses Dokument behandelt keine detaillierten Anforderungen an Wasser- oder Luftundurchlässigkeit und thermische Aspekte von Profiltafeln.
ANMERKUNG 2 Konstruktionen, die in diesem Dokument behandelt werden, können beispielsweise sein.
- einschalige- oder mehrschalige Dächer, wobei die tragende Konstruktion (Unterschale) oder die tatsächliche Dachdeckung (Oberschale) oder beide aus kaltgeformten Bauteilen und Profiltafeln bestehen;
- einschalige- oder mehrschalige Wände, wobei die tragende Konstruktion (Innenschale) oder die tatsächliche Bekleidung (Außenschale) oder beide aus kaltgeformten Bauteilen und Profiltafeln bestehen; oder
- Träger aus kaltgeformten Bauteilen.
(...)
Exécution des structures en acier et des structures en aluminium - Partie 4 : Exigences techniques pour éléments et structures en acier formés à froid pour applications structurales en toiture, couverture, plafond, paroi verticale et plancher
Izvedba jeklenih in aluminijastih konstrukcij - 4. del: Tehnične zahteve za hladno oblikovane konstrukcijske jeklene elemente in hladno oblikovane konstrukcijske elemente za strešne, stropne, talne in stenske konstrukcije
General Information
Relations
Standards Content (Sample)
SLOVENSKI STANDARD
01-marec-2025
Izvedba jeklenih in aluminijastih konstrukcij - 4. del: Tehnične zahteve za hladno
oblikovane konstrukcijske jeklene elemente in hladno oblikovane konstrukcijske
elemente za strešne, stropne, talne in stenske konstrukcije
Execution of steel structures and aluminium structures - Part 4: Technical requirements
for cold-formed structural steel elements and cold-formed structures for roof, ceiling, floor
and wall applications
Ausführung von Stahltragwerken und Aluminiumtragwerken - Teil 4: Technische
Anforderungen an tragende, kaltgeformte Bauelemente aus Stahl und tragende,
kaltgeformte Bauteile für Dach-, Decken-, Boden- und Wandanwendungen
Exécution des structures en acier et des structures en aluminium - Partie 4 : Exigences
techniques pour éléments et structures en acier formés à froid pour applications
structurales en toiture, couverture, plafond, paroi verticale et plancher
Ta slovenski standard je istoveten z: prEN 1090-4
ICS:
91.010.30 Tehnični vidiki Technical aspects
91.080.13 Jeklene konstrukcije Steel structures
91.080.17 Aluminijaste konstrukcije Aluminium structures
2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.
DRAFT
EUROPEAN STANDARD
NORME EUROPÉENNE
EUROPÄISCHE NORM
January 2025
ICS 91.010.30; 91.080.13; 91.080.17 Will supersede EN 1090-4:2018
English Version
Execution of steel structures and aluminium structures -
Part 4: Technical requirements for cold-formed structural
steel elements and cold-formed structures for roof, ceiling,
floor and wall applications
Exécution des structures en acier et des structures en Ausführung von Stahltragwerken und
aluminium - Partie 4 : Exigences techniques pour Aluminiumtragwerken - Teil 4: Technische
éléments et structures en acier formés à froid pour Anforderungen an tragende, kaltgeformte Bauelemente
applications en toiture, plafond, paroi verticale et aus Stahl und tragende, kaltgeformte Bauteile für Dach-
plancher , Decken-, Boden- und Wandanwendungen
This draft European Standard is submitted to CEN members for enquiry. It has been drawn up by the Technical Committee
CEN/TC 135.
If this draft becomes a European Standard, CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a national standard without any alteration.
This draft European Standard was established by CEN in three official versions (English, French, German). A version in any other
language made by translation under the responsibility of a CEN member into its own language and notified to the CEN-CENELEC
Management Centre has the same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,
Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Republic of North Macedonia, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Türkiye and
United Kingdom.
Recipients of this draft are invited to submit, with their comments, notification of any relevant patent rights of which they are
aware and to provide supporting documentation.
Warning : This document is not a European Standard. It is distributed for review and comments. It is subject to change without
notice and shall not be referred to as a European Standard.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
CEN-CENELEC Management Centre: Rue de la Science 23, B-1040 Brussels
© 2025 CEN All rights of exploitation in any form and by any means reserved Ref. No. prEN 1090-4:2025 E
worldwide for CEN national Members.

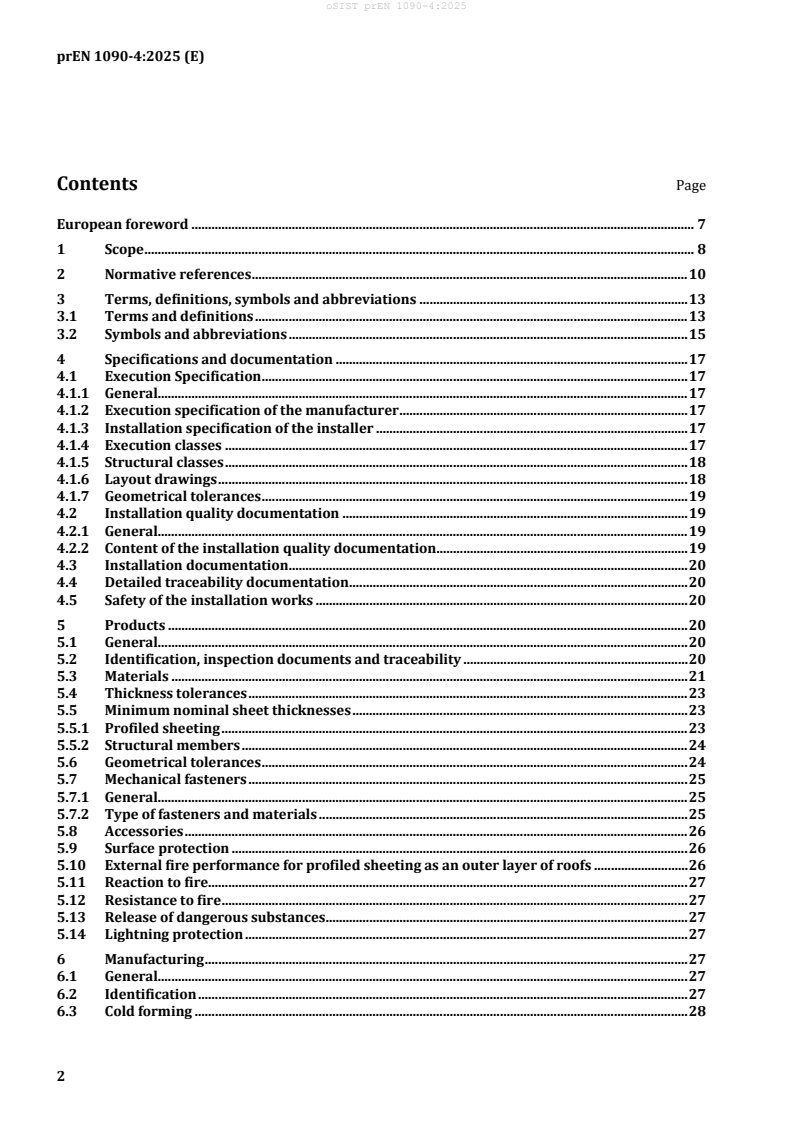

Contents Page
European foreword . 7
1 Scope . 8
2 Normative references . 10
3 Terms, definitions, symbols and abbreviations . 13
3.1 Terms and definitions . 13
3.2 Symbols and abbreviations . 15
4 Specifications and documentation . 17
4.1 Execution Specification . 17
4.1.1 General. 17
4.1.2 Execution specification of the manufacturer . 17
4.1.3 Installation specification of the installer . 17
4.1.4 Execution classes . 17
4.1.5 Structural classes . 18
4.1.6 Layout drawings . 18
4.1.7 Geometrical tolerances . 19
4.2 Installation quality documentation . 19
4.2.1 General. 19
4.2.2 Content of the installation quality documentation. 19
4.3 Installation documentation . 20
4.4 Detailed traceability documentation . 20
4.5 Safety of the installation works . 20
5 Products . 20
5.1 General. 20
5.2 Identification, inspection documents and traceability . 20
5.3 Materials . 21
5.4 Thickness tolerances . 23
5.5 Minimum nominal sheet thicknesses . 23
5.5.1 Profiled sheeting . 23
5.5.2 Structural members . 24
5.6 Geometrical tolerances . 24
5.7 Mechanical fasteners . 25
5.7.1 General. 25
5.7.2 Type of fasteners and materials . 25
5.8 Accessories . 26
5.9 Surface protection . 26
5.10 External fire performance for profiled sheeting as an outer layer of roofs . 26
5.11 Reaction to fire. 27
5.12 Resistance to fire . 27
5.13 Release of dangerous substances . 27
5.14 Lightning protection . 27
6 Manufacturing . 27
6.1 General. 27
6.2 Identification . 27
6.3 Cold forming . 28
6.4 Cutting. 28
6.4.1 General . 28
6.4.2 Shearing and nibbling . 28
6.4.3 Thermal cutting . 28
6.5 Holing . 28
6.5.1 General . 28
6.5.2 Execution of punching . 28
7 Welding . 29
7.1 General . 29
7.2 Welding of the longitudinal weld seam of cold-formed closed and hollow sections . 29
7.3 Welding at the construction site . 30
8 Mechanical fastening . 30
8.1 General . 30
8.2 Use of self-tapping and self-drilling screws . 31
8.3 Use of blind rivets . 31
8.4 Use of cartridge fired pins . 32
8.5 Attachment of cold-formed structural members and profiled sheeting to the supporting
member . 32
8.5.1 Types of connections and attachments. 32
8.5.2 Attachment of profiled sheets to the supporting member transverse to the direction of span
............................................................................................................................................................................. 32
8.5.3 Attachment of profiled sheeting to supports parallel to the direction of profiled sheeting’s
span. 34
8.5.4 Supporting member made of metal .
...
