TECHNICAL REPORT
CEN/TR 16395
RAPPORT TECHNIQUE
TECHNISCHER BERICHT
October 2012
ICS 01.040.23; 01.040.91; 23.040.01; 91.140.40
English Version
Gas Infrastructure - CEN/TC 234 Pressure Definitions -
Guideline Document

Infrastructures gazières - Définitions des pressions du Gasinfrastruktur - CEN/TC 234 Druckdefinitionen -

CEN/TC 234 - Lignes directrices Leitliniendokument

This Technical Report was approved by CEN on 24 June 2012. It has been drawn up by the Technical Committee CEN/TC 234.

CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,

Finland, Former Yugoslav Republic of Macedonia, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania,

Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey and United

Kingdom.
EUROPEAN COMMITTEE FOR STANDARDIZATION
COMITÉ EUROPÉEN DE NORMALISATION
EUROPÄISCHES KOMITEE FÜR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels

© 2012 CEN All rights of exploitation in any form and by any means reserved Ref. No. CEN/TR 16395:2012: E

worldwide for CEN national Members.
---------------------- Page: 3 ----------------------
SIST-TP CEN/TR 16395:2013
CEN/TR 16395:2012 (E)

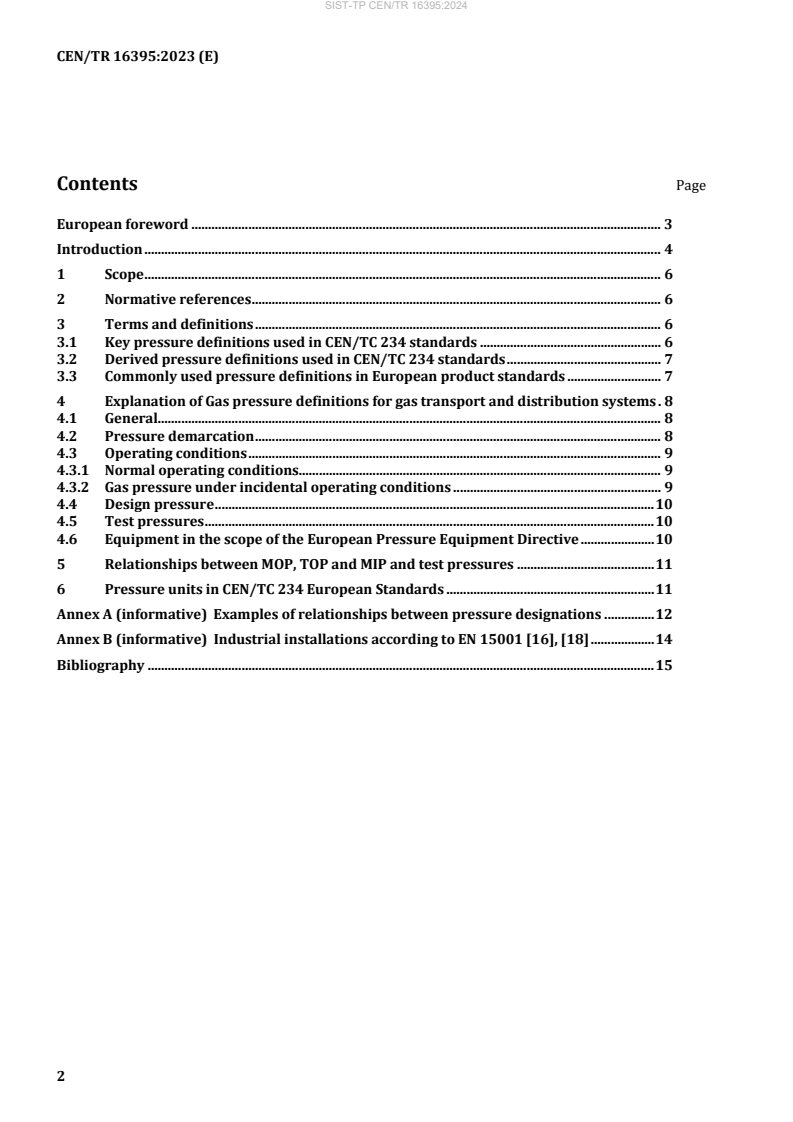

Contents Page

Foreword ..............................................................................................................................................................3

Introduction .........................................................................................................................................................4

1 Scope ......................................................................................................................................................6

2 Normative references ............................................................................................................................6

3 Terms and definitions ...........................................................................................................................6

3.1 Key pressure definitions used in CEN/TC 234 standards .................................................................6

3.2 Derived pressure definitions used in CEN/TC 234 standards ...........................................................6

3.3 Commonly used pressure definitions in European product standards ...........................................7

4 Explanation of Gas pressure definitions for gas transport and distribution systems ...................7

4.1 General ....................................................................................................................................................7

4.2 Pressure demarcation ...........................................................................................................................8

4.3 Operating conditions .............................................................................................................................8

4.3.1 Normal operating conditions ................................................................................................................8

4.3.2 Gas pressure under incidental operating conditions ........................................................................8

4.4 Design pressure .....................................................................................................................................9

4.5 Test pressures .......................................................................................................................................9

4.6 Equipment in the scope of the European Pressure Equipment Directive .......................................9

5 Relationships between MOP, TOP and MIP and test pressures .................................................... 10

Annex A (informative) Examples of relationships between pressure designations ................................. 11

Annex B (informative) Industrial installations according to EN 15001 ....................................................... 13

Bibliography ..................................................................................................................................................... 14

---------------------- Page: 4 ----------------------
SIST-TP CEN/TR 16395:2013
CEN/TR 16395:2012 (E)
Foreword

This document (CEN/TR 16395:2012) has been prepared by Technical Committee CEN/TC 234 “Gas

Infrastructure”, the secretariat of which is held by DIN.

Attention is drawn to the possibility that some of the elements of this document may be the subject of patent

rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights.

Operating pressure levels of gas infrastructure differ from one country to another in the European Union. This

is due to many different factors, such as the history of gas systems, technologies and materials used and

technical constraints.

When beginning to draft the functional standards on gas infrastructure, CEN/TC 234 recognised various

pressure levels and ranges in the European member countries, which are to some extent laid down in national

laws.

To form a consensus for the standardisation work, all pressure levels used in Europe have been brought

together and classified in ranges. This subdivision in pressure levels should permit the manufacturers of

components to focus on a limited number of designs in order to reduce the costs.
---------------------- Page: 5 ----------------------
SIST-TP CEN/TR 16395:2013
CEN/TR 16395:2012 (E)
Introduction
Background

The standards issued by CEN/TC 234 "Gas Infrastructure" contain a large number of definitions used for the

design, testing and operation of the different parts of the gas infrastructure.

This document clarifies the CEN/TC 234 concept behind the definitions and advises how to use the definitions

correctly and consistently. In order to further that goal, an inventory of existing definitions is compiled and the

primary definitions are identified.

This document also gives guidance for the selection of components falling into the scope of the European

Pressure Equipment Directive (PED) [15] and used in the gas infrastructure.

Apart from the issue of the consistency of the pressure definition in the standards, there is also the issue of

the pressure rating of equipment and systems. Other classifications (e.g. PN or class) do not necessarily

completely coincide with the classification as defined in the CEN/TC 234 standards.

Concept of pressure conditions
On one hand, three different sets of pressure conditions are to be considered:
 conditions during testing and commissioning (P );
 conditions during exceptional operating circumstances (P );
 conditions during normal operation (P ).
where:
P > P > P
1 2 3

The maximum pressure levels related to these conditions are the topic of the primary definitions.

On the other hand, two other pressure conditions are used for specifying the system:

 pressure on which design calculations are based (p );
 pressure rating of the system (p ).
where
p > p
A B.

The relationship between p and P or P is not uniform in the different CEN/TC 234 standards. This situation

A 2 3

is confusing and undesirable. The recommended practice is stated in chapter 4.4 and 4.5 below and should

be considered when revising standards or developing new standards.
---------------------- Page: 6 ----------------------
SIST-TP CEN/TR 16395:2013
CEN/TR 16395:2012 (E)
Piping versus pressure regulating installations

Only two out of the three aforementioned conditions apply when specifying piping:

 conditions during testing and commissioning;
 operating conditions.

Normally for piping no distinction is made between normal operating conditions and exceptional operating

conditions, as piping is a passive component. However, in gas infrastructure piping and pressure regulating

installations both are present. This necessitates identification of the “normal operating conditions” and

“exceptional operating conditions” of the pressure regulating installations and the “operating conditions” of the

piping.
---------------------- Page: 7 ----------------------
SIST-TP CEN/TR 16395:2013
CEN/TR 16395:2012 (E)
1 Scope

This Technical Report gives explanation on the pressure definitions used by the gas network operators with

regard to the standards of CEN/TC 234 "Gas Infrastructure".

The European Standards of CEN/TC 234 comprise the functional requirements in the field of gas

infrastructure from the input of gas into the on-shore transmission network up to the inlet connection of gas

appliances, including transmission, distribution, storage, compression, pressure regulation and metering,

installation, injection of non-conventional gases, gas quality issues and others.

2 Normative references
Not applicable.
3 Terms and definitions
3.1 Key pressure definitions used in CEN/TC 234 standards
3.1.1
design pressure
pressure on which design calculations are based

Note 1 to entry: A system designed for a design pressure (DP) can comprise components designed for a different

maximum allowable pressure (PS).
3.1.2
maximum operating pressure
MOP

maximum pressure at which a system can be operated continuously under normal operating conditions

Note 1 to entry: Normal operating conditions are: no fault in any device or stream.

Note 2 to entry: The set point of the regulator does not exceed MOP.
3.1.3
maximum incidental pressure
MIP

maximum pressure which a system can experience during a short time, limited by the safety devices

3.2 Derived pressure definitions used in CEN/TC 234 standards
3.2.1
operating pressure
nominal pressure on which the system is operated
3.2.2
temporary operating pressure
TOP

pressure at which a system can be operated temporarily under control of regulating devices

---------------------- Page: 8 ----------------------
SIST-TP CEN/TR 16395:2013
CEN/TR 16395:2012 (E)
3.2.3
test pressure
pressure at which pressure tests are conducted
3.2.4
strength test pressure
STP
pressure applied to a system during strength testing
3.2.5
tightness test pressure
TTP
pressure applied to a system during tightness testing
3.2.6
combined test pressure
CTP

pressure applied to a system during combined testing, i.e. tightness and strength testing

3.3 Commonly used pressure definitions in European product standards
3.3.1
maximum allowable pressure

maximum pressure for which the equipment is designed, as specified by the manufacturer

Note 1 to entry: Definition and requirements according Directive 97/23/EC (Pressure Equipment Directive - PED).

3.3.2
nominal pressure
PN xx

alphanumeric designation used for reference purposes related to a combination of mechanical and

dimensional characteristics of a component of a pipework system
Note 1 to entry: It comprises the letters PN followed by a dimensionless number.
[SOURCE: EN 1333, modified]
3.3.3
class xxx

alphanumeric designation used for reference purposes related to a combination of mechanical and

dimensional characteristics of a component of a pipework system

Note 1 to entry: It comprises the word "Class" followed by a dimensionless whole number.

[SOURCE: EN 1759-1, modified]
4 Explanation of Gas pressure definitions for gas transport and distribution
systems
4.1 General

The pressure levels in the system MOP, TOP and MIP are to be chosen by the network operator when

designing and operating its network according to its constraints and national regulations.

---------------------- Page: 9 ----------------------
SIST-TP CEN/TR 16395:2013
CEN/TR 16395:2012 (E)
4.2 Pressure demarcation

For a pipeline system, the maximum pressure values will occur at the entrance of a pipeline section. However,

in case the gas stream is interrupted for any reason, the whole pipeline section will be subjected to the same

pressure level.

The demarcation line for different pressure levels are, in the case of gas pressure regulating stations, at the

exit flange of the gas pressure regulator [EN 12186] and for compressor stat
...

Questions, Comments and Discussion
