EN 10266:2003
(Main)Steel tubes, fittings and structural hollow sections - Symbols and definitions of terms for use in product standards
Steel tubes, fittings and structural hollow sections - Symbols and definitions of terms for use in product standards
This European Standard gives the symbols and definitions of terms for use in product standards for steel tubes, fittings and steel structural hollow sections.
NOTE For definitions of terms non specific to tubular products, see other relevant standards e.g. EN ISO 9000 [1].
Stahlrohre, Fittings und Hohlprofile für den Stahlbau - Symbole und Definition von Begriffen für die Verwendung in Erzeugnisnormen
Diese Europäische Norm enthält die Definition von Begriffen und Symbolen für die Verwendung in Erzeugnisnormen für Stahlrohre, Fittings und Hohlprofile für den Stahlbau.
ANMERKUNG Zur Definition von Begriffen, die nicht speziell für rohrförmige Erzeugnisse gelten, siehe andere entsprechende Normen, z. B. EN ISO 9000 [1].
Tubes en acier, accessoires et profils creux en acier pour la construction - Symboles et définitions des termes à utiliser dans les normes de produits
La présente Norme européenne indique les symboles et définitions des termes en usage dans les normes de produits traitant des tubes, raccords et profils creux de construction en acier.
NOTE Pour les définitions des termes qui ne sont pas spécifiques aux produits tubulaires, voir d'autres normes appropriées, par exemple l'EN ISO 9000.
Steel tubes, fittings and structural hollow sections - Symbols and definitions of terms for use in product standards
General Information
- Status
- Published
- Publication Date
- 19-Aug-2003
- Withdrawal Date
- 28-Feb-2004
- Technical Committee
- ECISS/TC 110 - Steel tubes, and iron and steel fittings
- Drafting Committee
- ECISS/TC 29 - Steel tubes and fittings for steel tubes
- Current Stage
- 9093 - Decision to confirm - Review Enquiry
- Start Date
- 05-Jun-2025
- Completion Date
- 23-Sep-2025
Overview
EN 10266:2003 - Steel tubes, fittings and structural hollow sections: Symbols and definitions of terms for use in product standards (CEN) defines the standardized vocabulary and symbolic notation used in European product standards for steel tubes, tubular fittings and structural hollow sections. Prepared by CEN/TC 29 and derived from ISO 3545, the standard harmonizes terminology and symbols to ensure consistent specifications, drawings, test procedures and product standards across manufacturers, testing bodies and purchasers.
Key topics
- Definitions of core terms such as tube, structural hollow section, fitting, seamless tube (S), welded tube (W) and specific welded types (e.g. butt welded (BW), electric/high‑frequency welded (EW/HFW), submerged arc welded (SAW), combination welded (COW)).
- General symbols for geometric and dimensional parameters: outside/inside diameter (D, d), wall thickness (T), cross‑sectional area (Ac), mass per unit length (M), length types (standard, exact, approximate, random), and out‑of‑roundness (O = 100 × (Dmax − Dmin) / D).
- Additional symbols for structural hollow sections: corner radii, second moments of area (I), torsional and polar inertia (It), elastic/plastic section moduli (Wel, Wpl), radii of gyration and form‑related measures (twist, convexity/concavity, deviation from straightness).
- Testing symbols and methods referenced: pressure test, flattening, drift expanding, ring expanding, flanging and tube bending - with associated symbol designations used in product standards and test reports.
- Symbols for tubular fittings: dimensional notations for elbows, tees, reducers, caps (major/minor diameters, wall thickness on major/minor diameters, face‑to‑center distances, bending radius, tolerances on form).
Applications
- Creating or interpreting product standards, technical specifications and engineering drawings for steel tubes and fittings.
- Writing procurement documents and contracts that reference standardized terms and symbols to avoid ambiguity.
- Performing and documenting mechanical and dimensional tests in inspection reports and certificates.
- Ensuring consistent communication between manufacturers, fabricators, testing laboratories, structural engineers and conformity assessment bodies.
Who uses this standard
- Standards writers and technical committees
- Tube and fittings manufacturers and fabricators
- Structural and mechanical engineers
- Quality managers and inspection/testing laboratories
- Procurement professionals and regulators
Related standards
- EN ISO 9000 (quality management vocabulary): for definitions non‑specific to tubular products.
- ISO 3545: source standard from which EN 10266:2003 is derived.
Using EN 10266:2003 helps eliminate ambiguity in specifications for steel tubes, fittings and hollow sections by providing a common, CEN‑approved set of symbols and definitions for product standards.
Frequently Asked Questions
EN 10266:2003 is a standard published by the European Committee for Standardization (CEN). Its full title is "Steel tubes, fittings and structural hollow sections - Symbols and definitions of terms for use in product standards". This standard covers: This European Standard gives the symbols and definitions of terms for use in product standards for steel tubes, fittings and steel structural hollow sections. NOTE For definitions of terms non specific to tubular products, see other relevant standards e.g. EN ISO 9000 [1].
This European Standard gives the symbols and definitions of terms for use in product standards for steel tubes, fittings and steel structural hollow sections. NOTE For definitions of terms non specific to tubular products, see other relevant standards e.g. EN ISO 9000 [1].
EN 10266:2003 is classified under the following ICS (International Classification for Standards) categories: 01.040.77 - Metallurgy (Vocabularies); 01.075 - Character symbols; 77.140.75 - Steel pipes and tubes for specific use. The ICS classification helps identify the subject area and facilitates finding related standards.
EN 10266:2003 is associated with the following European legislation: EU Directives/Regulations: 97/23/EC; Standardization Mandates: M/071. When a standard is cited in the Official Journal of the European Union, products manufactured in conformity with it benefit from a presumption of conformity with the essential requirements of the corresponding EU directive or regulation.
You can purchase EN 10266:2003 directly from iTeh Standards. The document is available in PDF format and is delivered instantly after payment. Add the standard to your cart and complete the secure checkout process. iTeh Standards is an authorized distributor of CEN standards.
Standards Content (Sample)

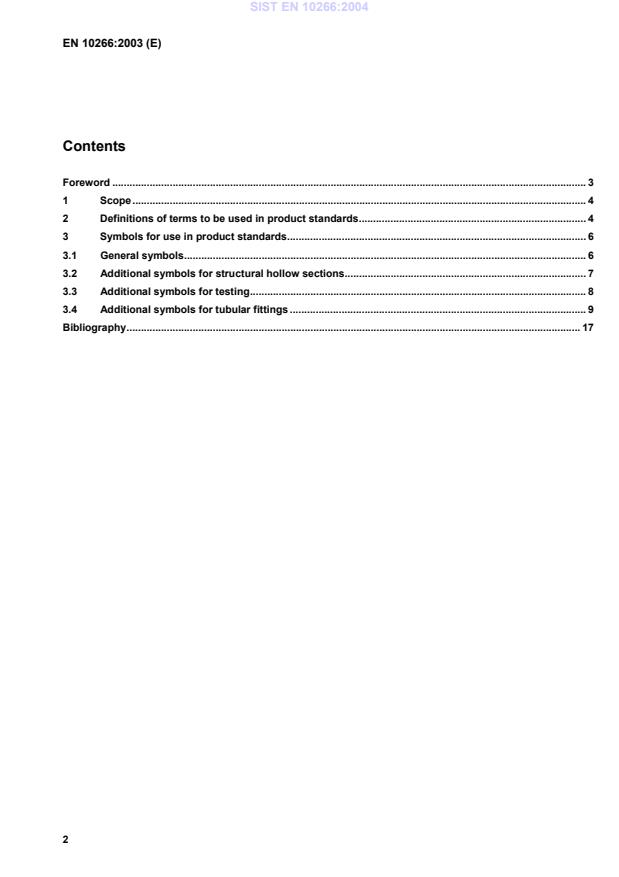

2003-01.Slovenski inštitut za standardizacijo. Razmnoževanje celote ali delov tega standarda ni dovoljeno.Steel tubes, fittings and structural hollow sections - Symbols and definitions of terms for use in product standardsStahlrohre, Fittings und Hohlprofile für den Stahlbau - Symbole und Definition von Begriffen für die Verwendung in ErzeugnisnormenTubes en acier, accessoires et profils creux en acier pour la construction - Symboles et définitions des termes a utiliser dans les normes de produitsSteel tubes, fittings and structural hollow sections - Symbols and definitions of terms for use in product standards77.140.75Jeklene cevi in cevni profili za posebne nameneSteel pipes and tubes for specific use01.075Simboli za znakeCharacter symbols01.040.77Metalurgija (Slovarji)Metallurgy (Vocabularies)ICS:Ta slovenski standard je istoveten z:EN 10266:2003SIST EN 10266:2004en01-junij-2004SIST EN 10266:2004SLOVENSKI
